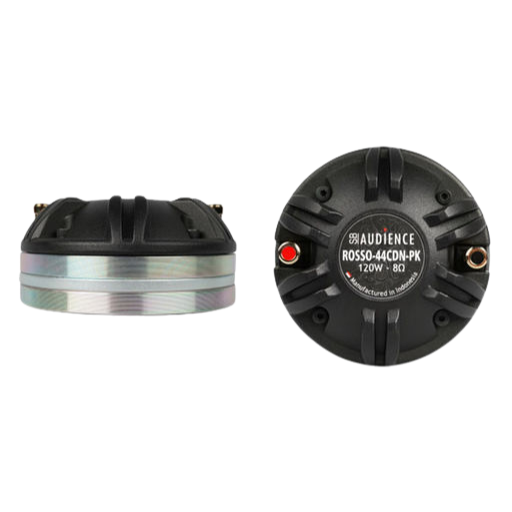

SB Audience - 1" ROSSO Compression Driver - ROSSO-44CDN-PK
SB Audience - 1" ROSSO Compression Driver - ROSSO-44CDN-PK
Regular price
$264.95
Regular price
Sale price
$264.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Features
- PEEK diaphragm
- Neodymium motor assembly
- Optimised cast aluminium rear chamber with damping
- High sensitivity
- Wide useful bandwidth
- Smooth frequency and impedance response
- Advanced voice coil with flat copper clad aluminium wire
Specifications
Specifications
General
| Driver type | Horn |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 8Ω |
| Series | SB Compression |
| Power handling (RMS) | 60 W |
| Power handling (program) | 120 W |
| Sensitivity | 109 dB |
| Frequency range | 700 – 20,000 Hz |
| Recommended crossover | 1.8 kHz |
| Phase plug | Annular |
| Total exit angle | 13.7° conical |
| Replacement diaphragm | 1P000OPSB029 |
Thiele/Small parameters
| DC resistance (Re) | 6.2 Ω |
|---|
Motor
| Voice coil height | 2.3 mm |
|---|---|
| Air gap height | 2.5 mm |
| Magnetic flux density | 1.85 T |
| Voice coil wire | Flat copper clad aluminium |
Mounting
| Overall diameter | 100 mm |
|---|---|
| Mounting depth | 49.7 mm |
| Bolt circle diameter | 76 mm |
| Mounting holes | 4 |
| Volume displaced by driver | 0.3 L |
| Voice coil diameter | 44.3 mm |
| Weight | 1.4 kg |
| Mounting thread | M6 |
| Exit diameter | 25.4 mm |
Materials
| Cone | PEEK |
|---|---|
| Voice coil former | Kapton |
| Magnet | Neodymium |
- Sensitivity measured at 1W/1m.
- Power handling (RMS) is a 2-hour pink noise test from the recommended crossover frequency to 20 kHz. Program power is SB Audience's maximum power, 3 dB above the RMS rating.
- Sensitivity is averaged over 1–18 kHz, with the driver mounted on SB Audience's H250 horn.
Where do these figures come from? See the source of each one
