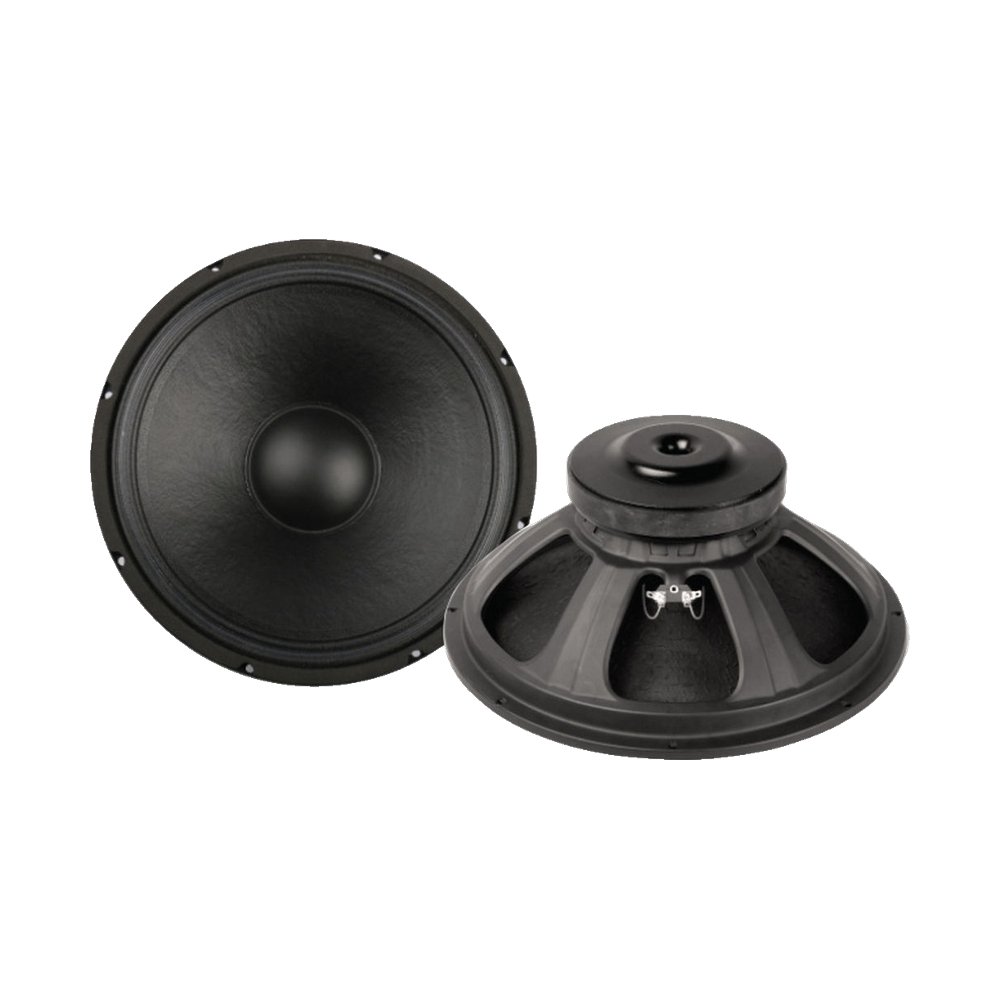

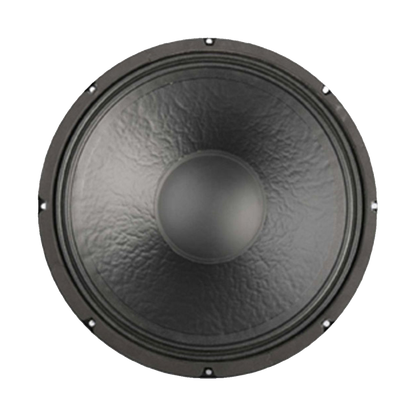

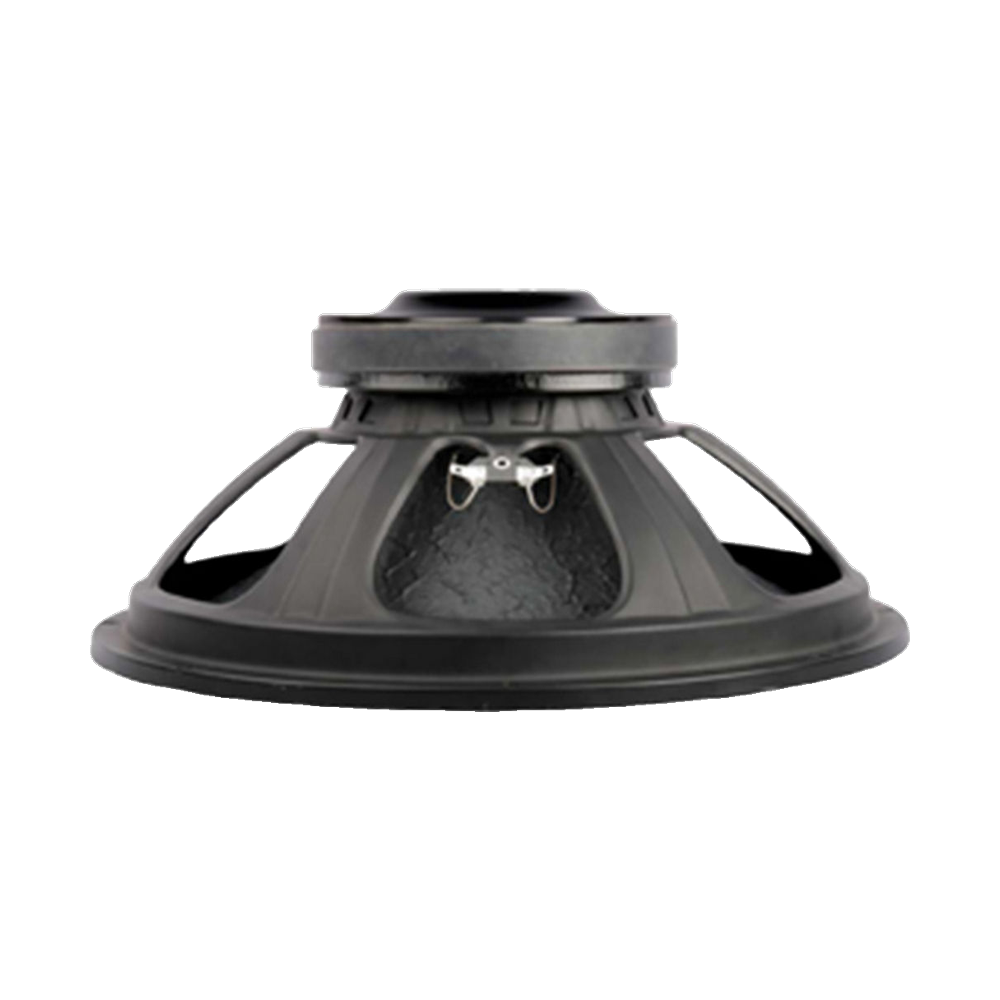

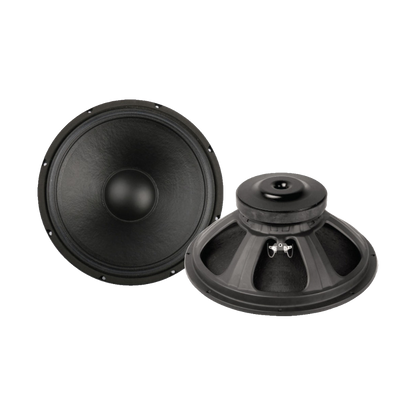

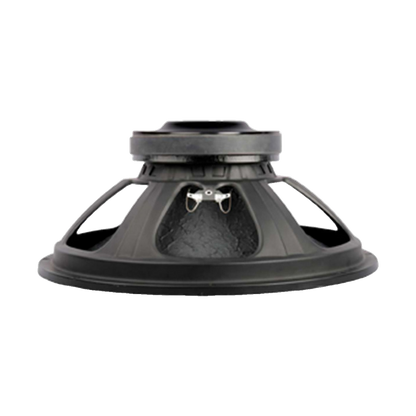

SB Audience - 15" Bianco Open Baffle Woofer - BIANCO-15OB350
SB Audience - 15" Bianco Open Baffle Woofer - BIANCO-15OB350
Regular price
$194.95
Regular price
Sale price
$194.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia and has serviced well known brands in the PRO audio industry for decades with in house engineering and manufacturing.
This 15" woofer has been built with Open Baffle designs in mind.
Features
- Proprietary cone paper material made in-house
- Vented pole piece for reduced compression
- Minimum damping fibre glass voice coil former
- 2.5" voice coil
- Long life silver lead wires
- Weather-proof coated cone paper
- Designed for open baffle applications
Specifications
Specifications
General
| Driver type | Open Baffle |
|---|---|
| Nominal size | 15" |
| Nominal impedance | 8Ω |
| Series | SB Pro-woofers |
| Power handling (RMS) | 350 W |
| Power handling (program) | 700 W |
| Sensitivity | 98 dB |

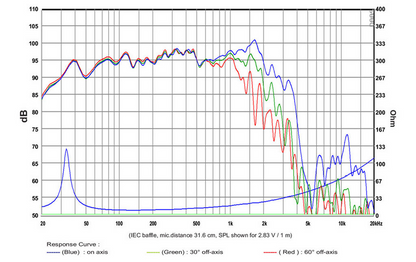

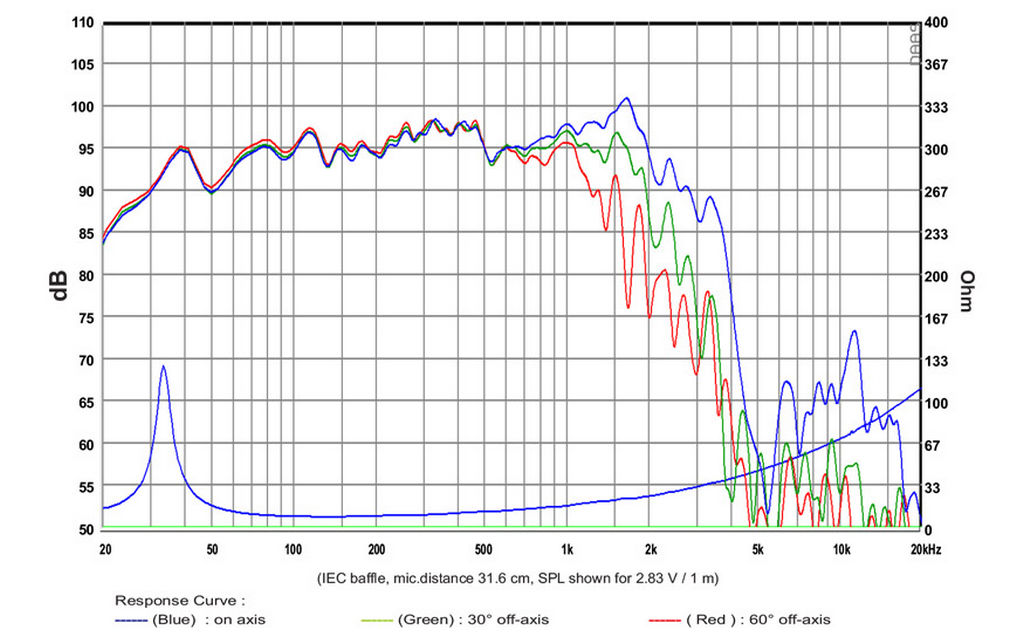

| Frequency range | 34 – 3,700 Hz |
| Cone surround | Double half roll |
| Spider profile | Constant height waves |
| Weather resistant | Yes |
Thiele/Small parameters
| Resonant frequency (Fs) | 34 Hz |
|---|---|
| DC resistance (Re) | 7.2 Ω |
| Minimum impedance (Zmin) | 7.2 Ω |
| Voice coil inductance (Le) | 1.72 mH |
| Mechanical Q (Qms) | 12.17 |
| Electrical Q (Qes) | 0.6 |
| Total Q (Qts) | 0.57 |
| Equivalent volume (Vas) | 212.7 L |
| Compliance (Cms) | 0.21 mm/N |
| Moving mass (Mms) | 106.5 g |
| Mechanical resistance (Rms) | 1.87 kg/s |
| Force factor (Bl) | 16.48 T·m |
| Effective piston area (Sd) | 855.3 cm² |
| Linear excursion (Xmax, one-way) | 11.02 mm |
| Mechanical excursion (Xmech) | 15 mm |
| Displacement volume (Vd) | 942.5 cm³ |
| Efficiency bandwidth product (EBP) | 56.67 |
| Reference efficiency (η0) | 1.34 % |
Motor
| Voice coil height | 24.7 mm |
|---|---|
| Air gap height | 8 mm |
| Magnetic flux density | 1.16 T |
| Voice coil wire | Copper |

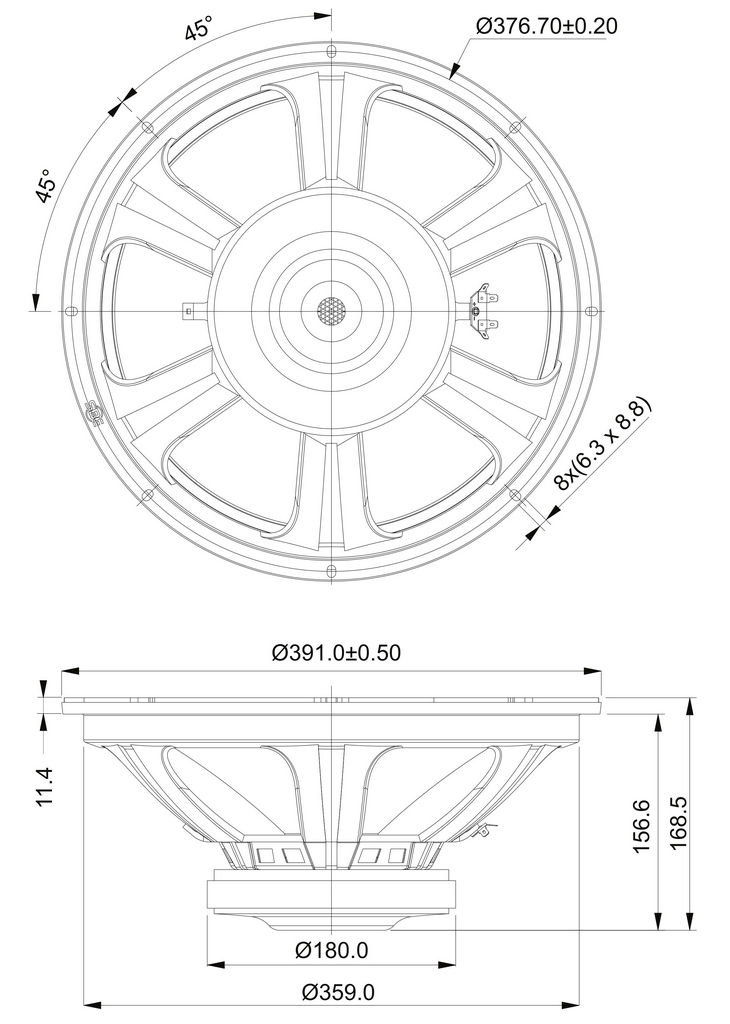

Mounting
| Overall diameter | 391 mm |
|---|---|
| Cutout diameter | 363 mm |
| Mounting depth | 156.6 mm |
| Flange thickness (estimate) | ≈ 8.5 mm |
| Bolt circle diameter | 376.7 mm |
| Mounting holes | 8 |
| Mounting hole diameter | 6.3 mm |
| Volume displaced by driver | 3.87 L |
| Voice coil diameter | 65.5 mm |
| Weight | 6 kg |
| Flange and gasket thickness | 11.9 mm |
Materials
| Cone | Coated Paper |
|---|---|
| Voice coil former | Fibreglass |
| Basket | Stamped Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 1W/1m.
- Power handling (RMS) is the AES rating: 2 hours of pink noise (6 dB crest factor), Fs to 10 × Fs, in free air, on the nominal impedance. Program power is SB Audience's maximum power, 3 dB above the RMS rating.
Downloads
- BIANCO-150B350 Datasheet
- BIANCO-150B350 Drawing
- BIANCO-150B350 Cutout & Recess Template (NB Audio) Every figure is straight off SB Audience's own spec sheet. Check it against your driver before you cut.
