SB Audience - 5" Nero Mid-Range - NERO-5CCN125D
SB Audience - 5" Nero Mid-Range - NERO-5CCN125D
Regular price
$294.95
Regular price
Sale price
$294.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Description

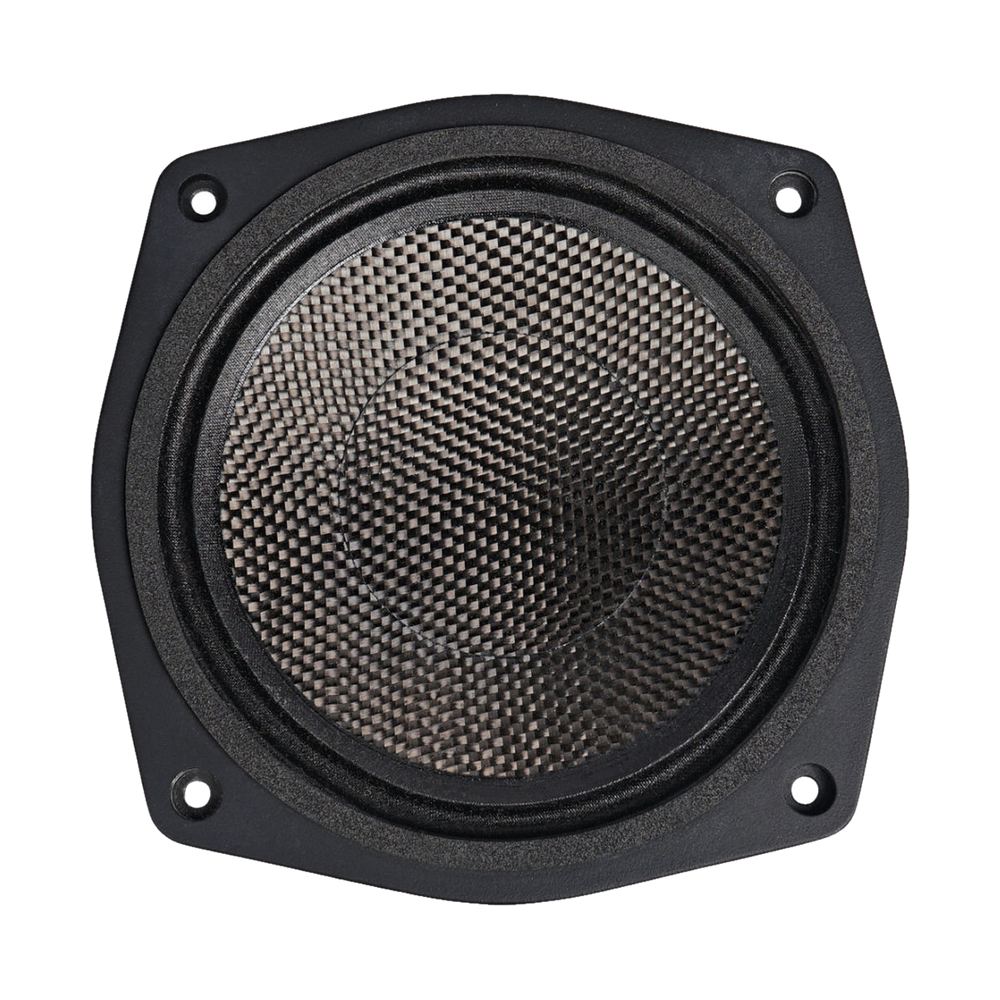

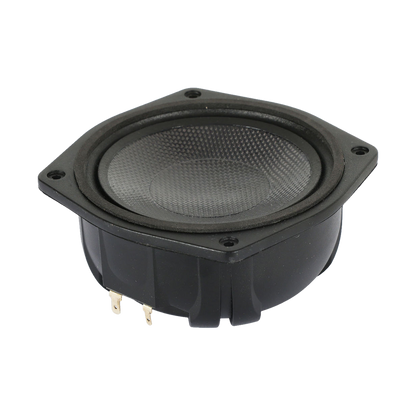

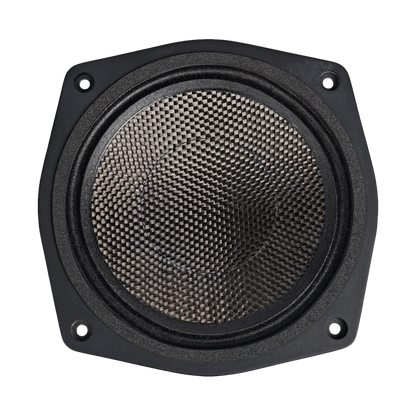

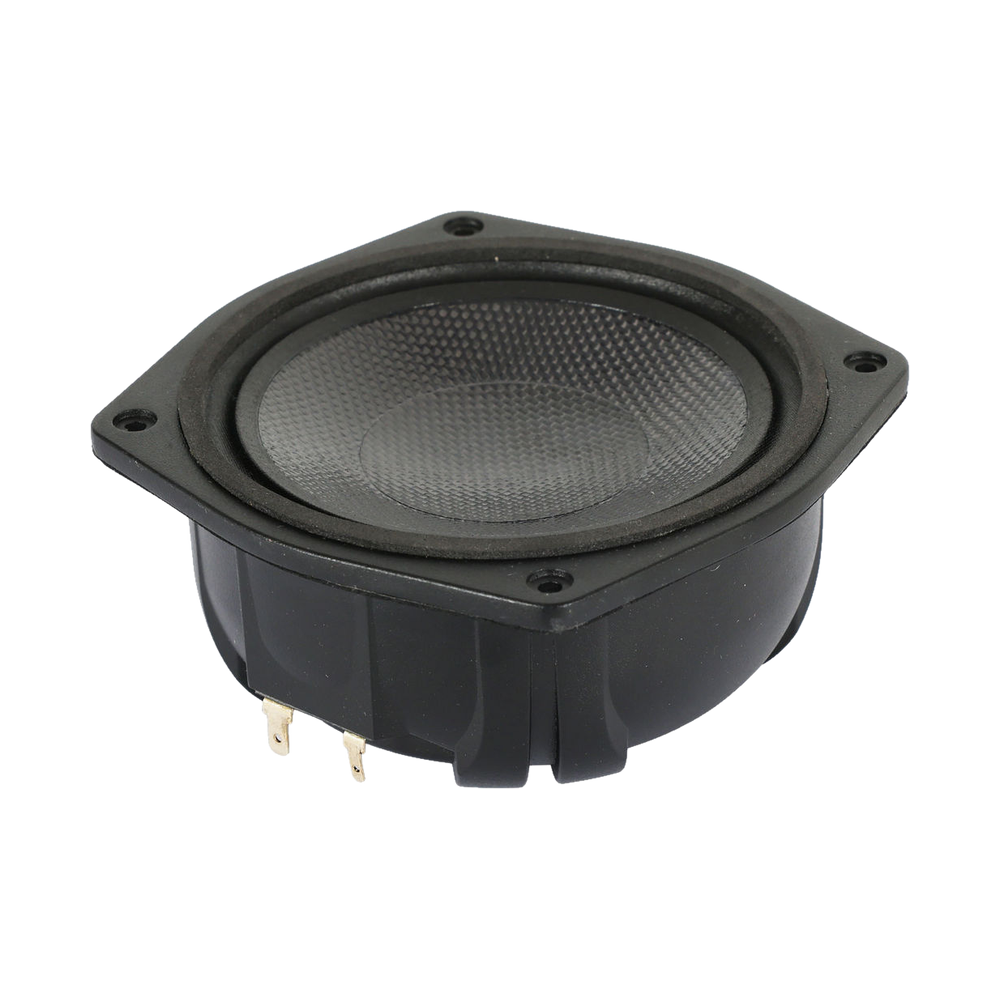

A compact 5" coaxial midrange driver from SB Audience's Nero range, with a powerful neodymium motor, high sensitivity and very low distortion. A full copper cap reduces distortion further, and the carbon fibre cone and inverted dust cap make it easy to pair with a phase plug. With its removable cast aluminium rear chamber, it suits high-compression midrange applications.
Features
- Pure carbon fibre cone
- Cast aluminium chassis
- Inverted low mass surround
- High grade neodymium magnet

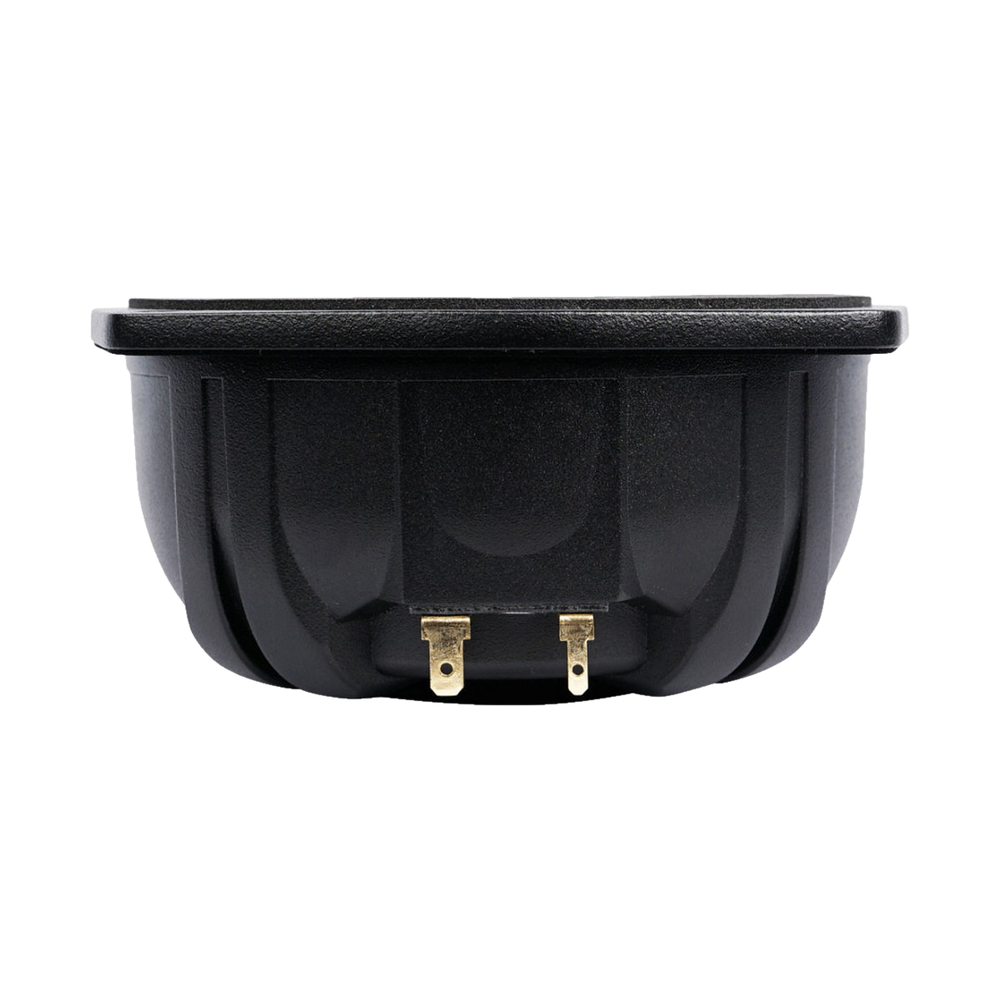

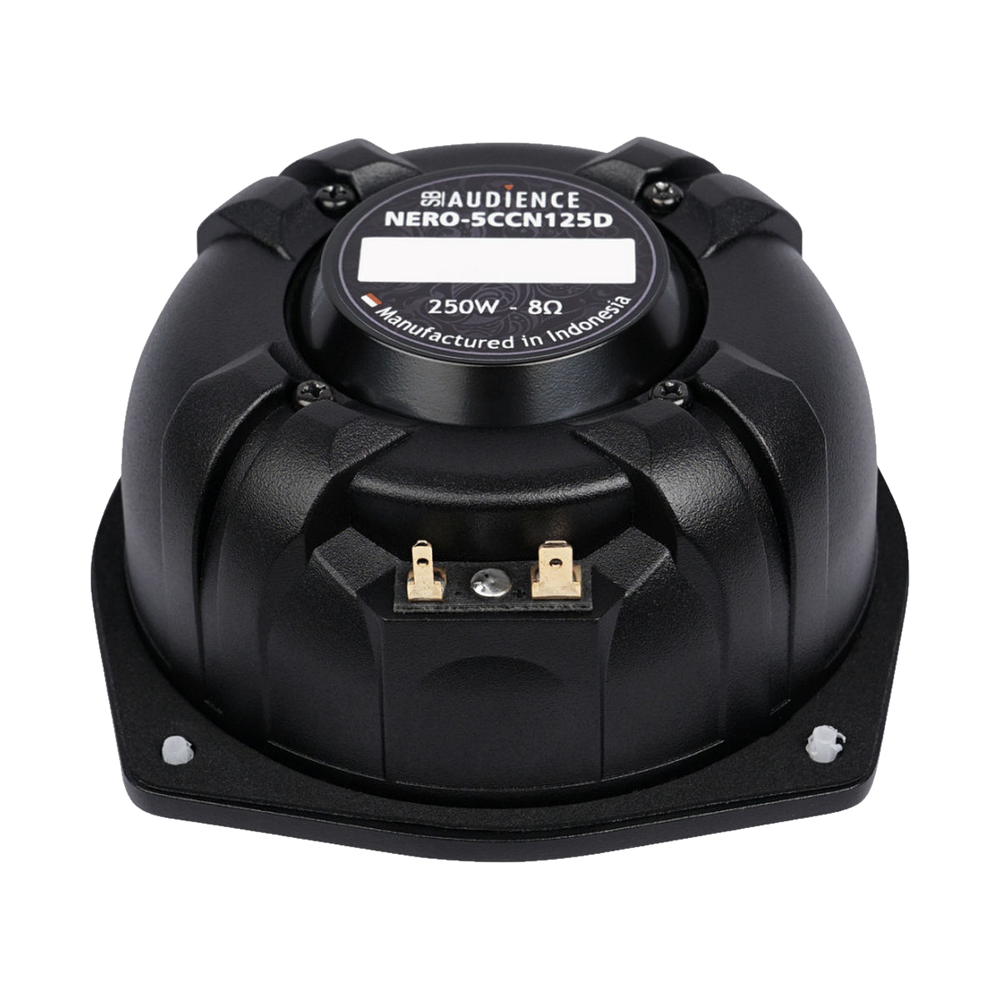

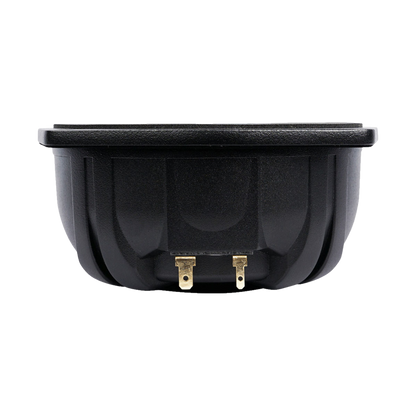

- Removable cast aluminium rear chamber
- Minimum damping fibre glass voice coil former
- Suitable for high compression midrange applications
- Copper sleeve for low inductance and intermodulation distortion
Specifications
Specifications
General
| Driver type | Mid-Range |
|---|---|
| Nominal size | 5" |
| Nominal impedance | 8Ω |
| Power handling (RMS) | 125 W |
| Power handling (program) | 250 W |
| Frequency range | 355 – 20,000 Hz |
| Cone surround | Inverted single half roll |
| Spider profile | Single constant height waves |
| Weather resistant | Yes |
Thiele/Small parameters
| Resonant frequency (Fs) | 122 Hz |
|---|---|
| DC resistance (Re) | 5.4 Ω |
| Minimum impedance (Zmin) | 6.5 Ω |
| Voice coil inductance (Le) | 0.07 mH |
| Mechanical Q (Qms) | 9.61 |
| Electrical Q (Qes) | 0.28 |
| Total Q (Qts) | 0.28 |
| Equivalent volume (Vas) | 2.7 L |
| Compliance (Cms) | 0.22 mm/N |
| Moving mass (Mms) | 7.9 g |
| Mechanical resistance (Rms) | 0.6301 kg/s |
| Force factor (Bl) | 10.6 T·m |
| Effective piston area (Sd) | 93.3 cm² |
| Linear excursion (Xmax, one-way) | 3.2 mm |
| Displacement volume (Vd) | 29.86 cm³ |
| Efficiency bandwidth product (EBP) | 435.7 |
Motor
| Voice coil height | 8.4 mm |
|---|---|
| Air gap height | 6 mm |
| Magnetic flux density | 1.64 T |
| Voice coil wire | Copper clad aluminium |
| Demodulation | Copper cap |
Mounting
| Overall diameter | 159.1 mm |
|---|---|
| Cutout diameter | 127.1 mm |
| Mounting depth | 56.5 mm |
| Bolt circle diameter | 142 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4 mm |
| Volume displaced by driver | 0.59 L |
| Voice coil diameter | 38.5 mm |
| Weight | 1.3 kg |
| Flange and gasket thickness | 6.9 mm |
Materials
| Cone | Carbon Fibre |
|---|---|
| Voice coil former | Fibreglass |
| Basket | Cast Aluminium |
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Power handling (RMS) is the AES rating: 2 hours of pink noise (6 dB crest factor), Fs to 10 × Fs, in free air, on the minimum impedance. Program power is SB Audience's maximum power, 3 dB above the RMS rating.
