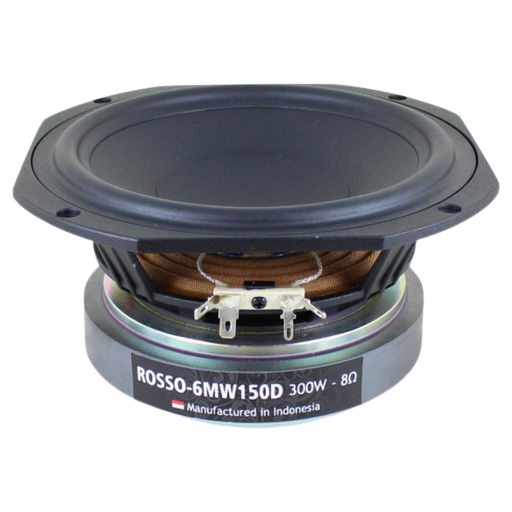

SB Audience - 6" ROSSO Mid-Woofer - ROSSO-6MW150D

SB Audience - 6" ROSSO Mid-Woofer - ROSSO-6MW150D

Regular price $144.95 AUD
Regular price Sale price $144.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description:

Heavy-duty commercial grade speaker driver. Graphite and paper pulp cone and die cast aluminium basket. Ferrite magnet with 50mmØ voice coil and aluminium shorting ring motor for exceptionally high efficiencies, low distortion and extended midrange performance.

Features:

  • Proprietary cone paper material with manila pulp and graphite.
  • Proprietary cone coating for controlled breakup.
  • Extended midrange performance.
  • Shorting ring in motor system for reduced distortion.
  • Minimum damping fiber glass voice coil former.
  • Cast aluminium chassis.

Specifications:

Code ROSSO-6MW150D
Description 6" - Midwoofer - 150W - 94dB
Manufacturer SB Acoustics
Type Mid-Woofer
Cms 0.3mm/N
Coil 49.5mm
Depth 84mm
Freq. 66-5000Hz
Fs 66Hz
Impedance 8Ω (Re 5.4Ω)
Le 0.39mH
Materials Till
Mms 19.4g
Pmax 300W
Prms 150W
Qes 0.33
Qms 9.24
Qts 0.32
Re 5.4Ω
Rms 0.88kg/s
Sd 0.1453L
Sens. 94dB
Series SB Pro-mid woofers
Size 6"
Vas 8.8L
Width 163mmØ
Zn
