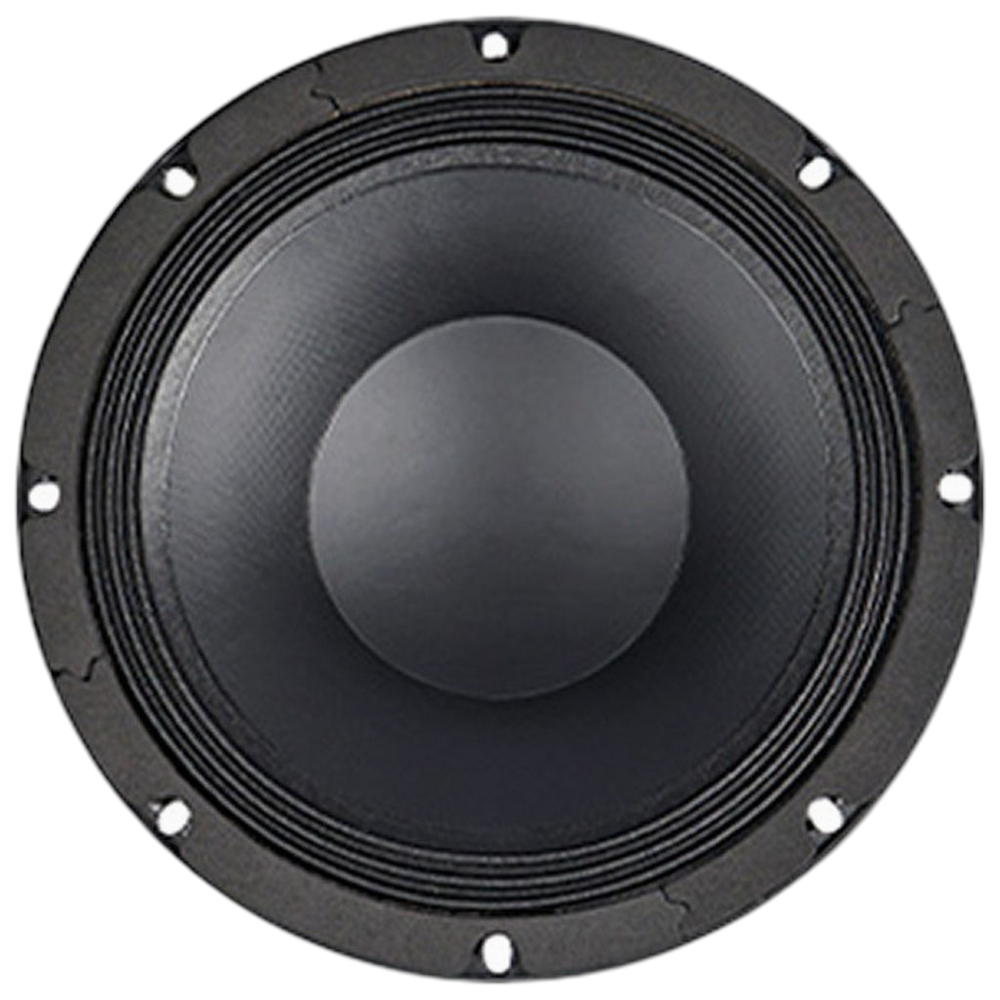

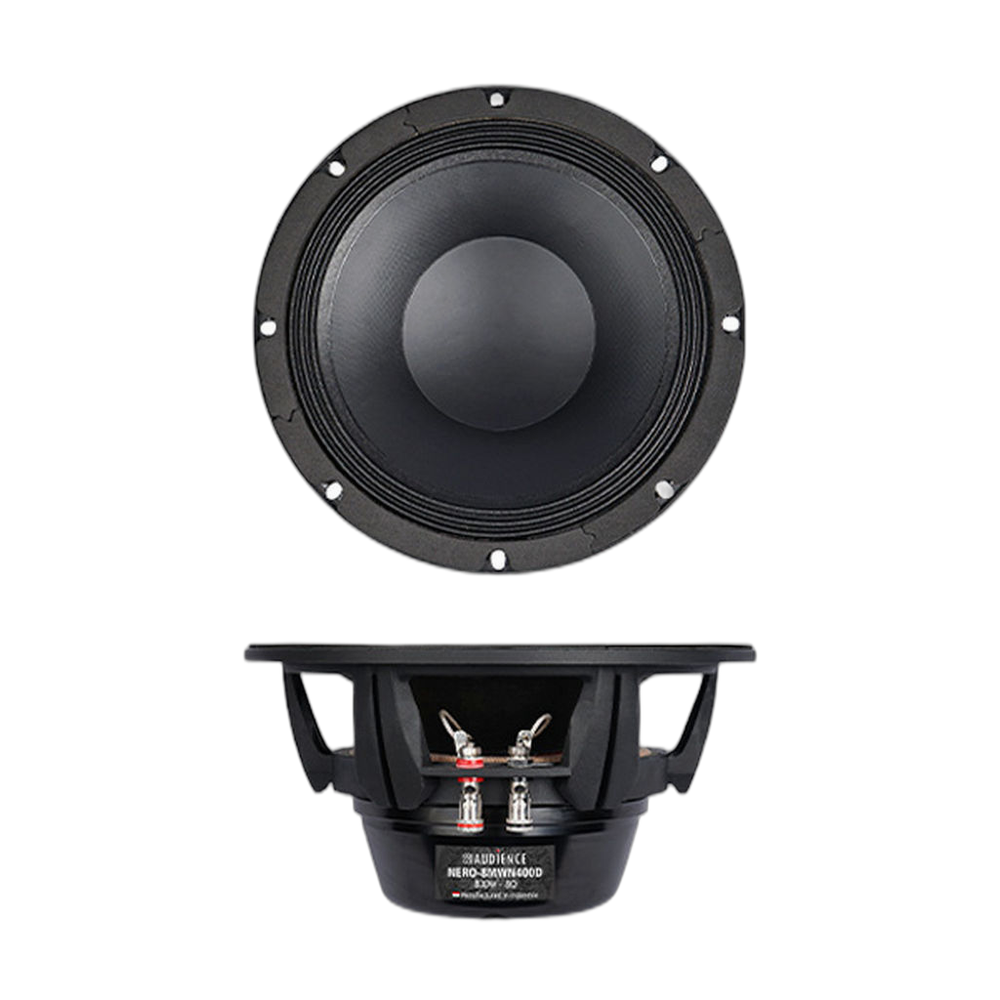

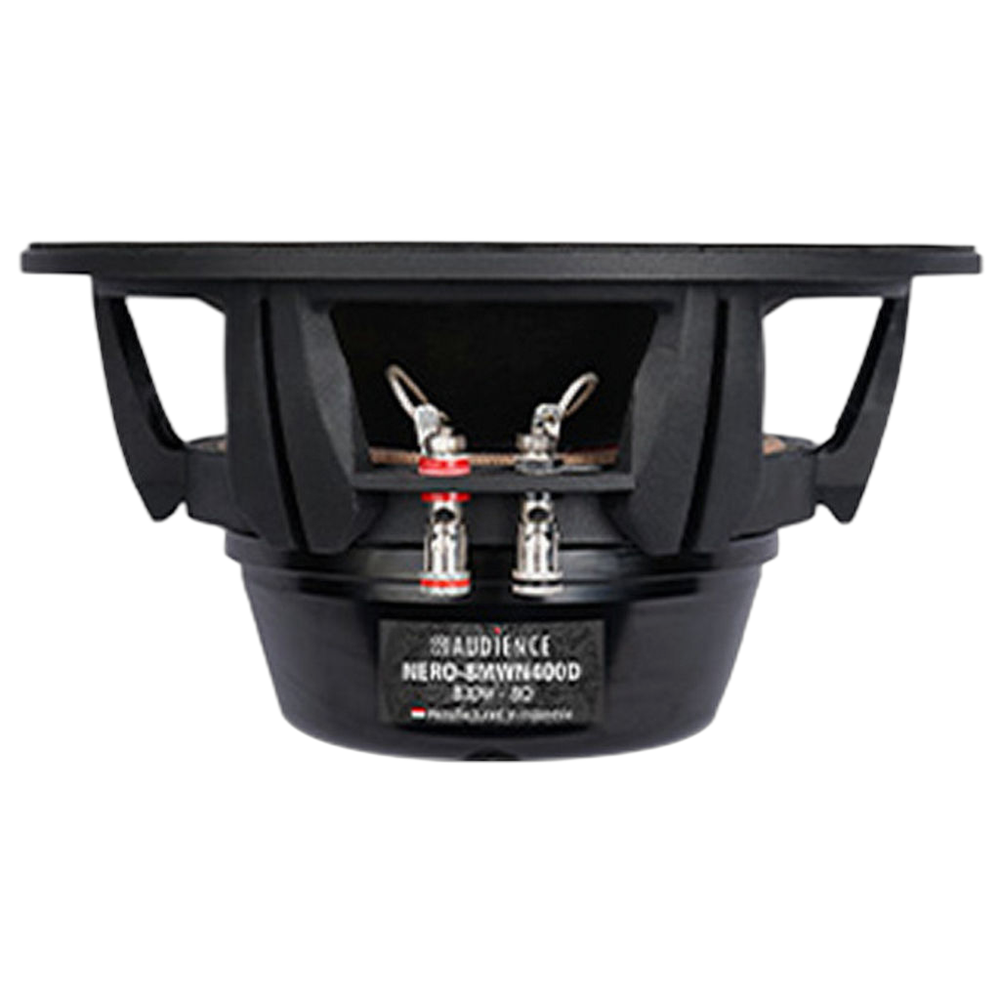

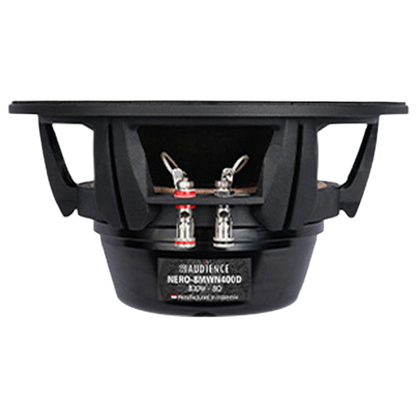

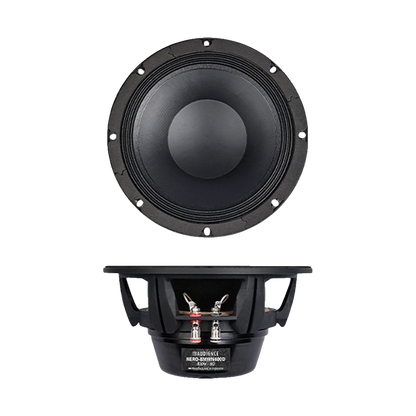

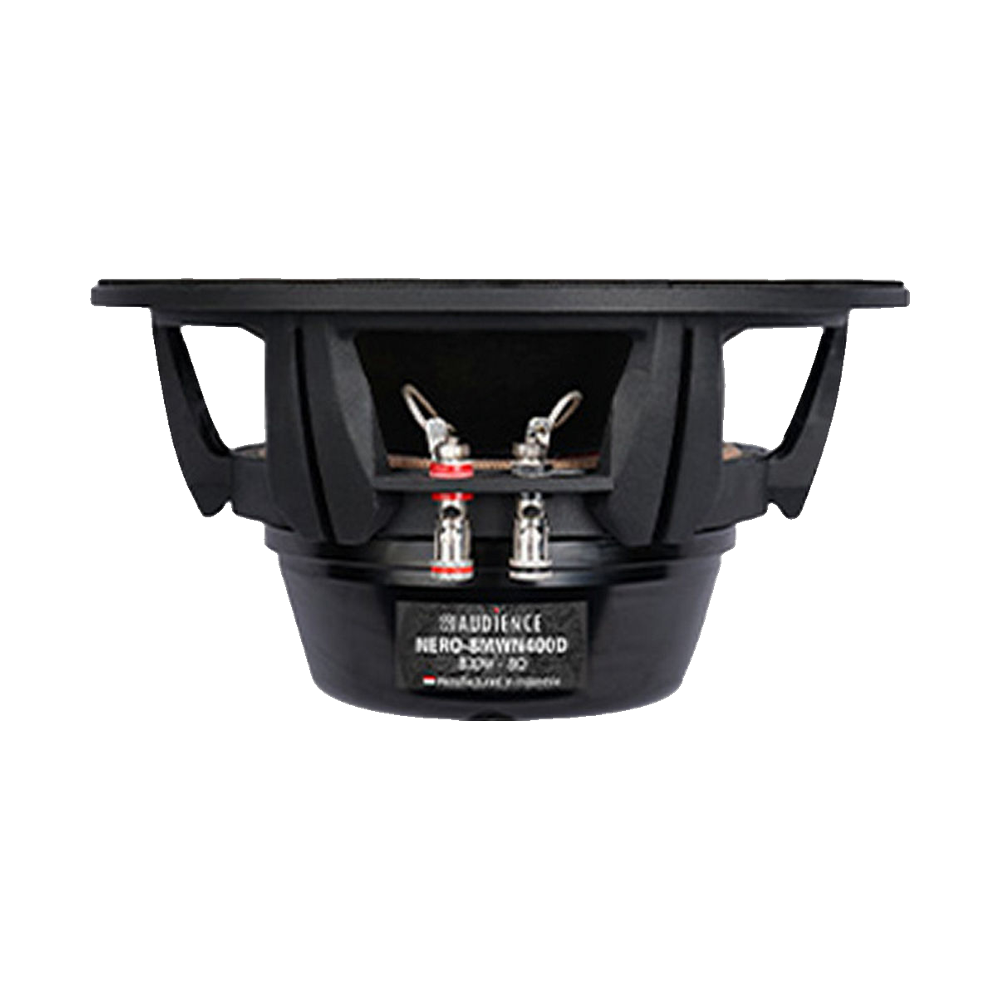

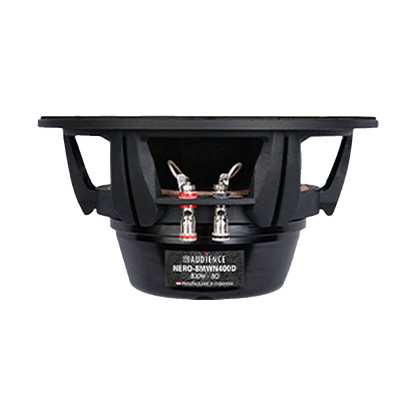

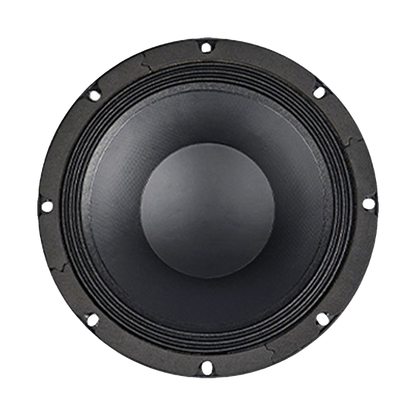

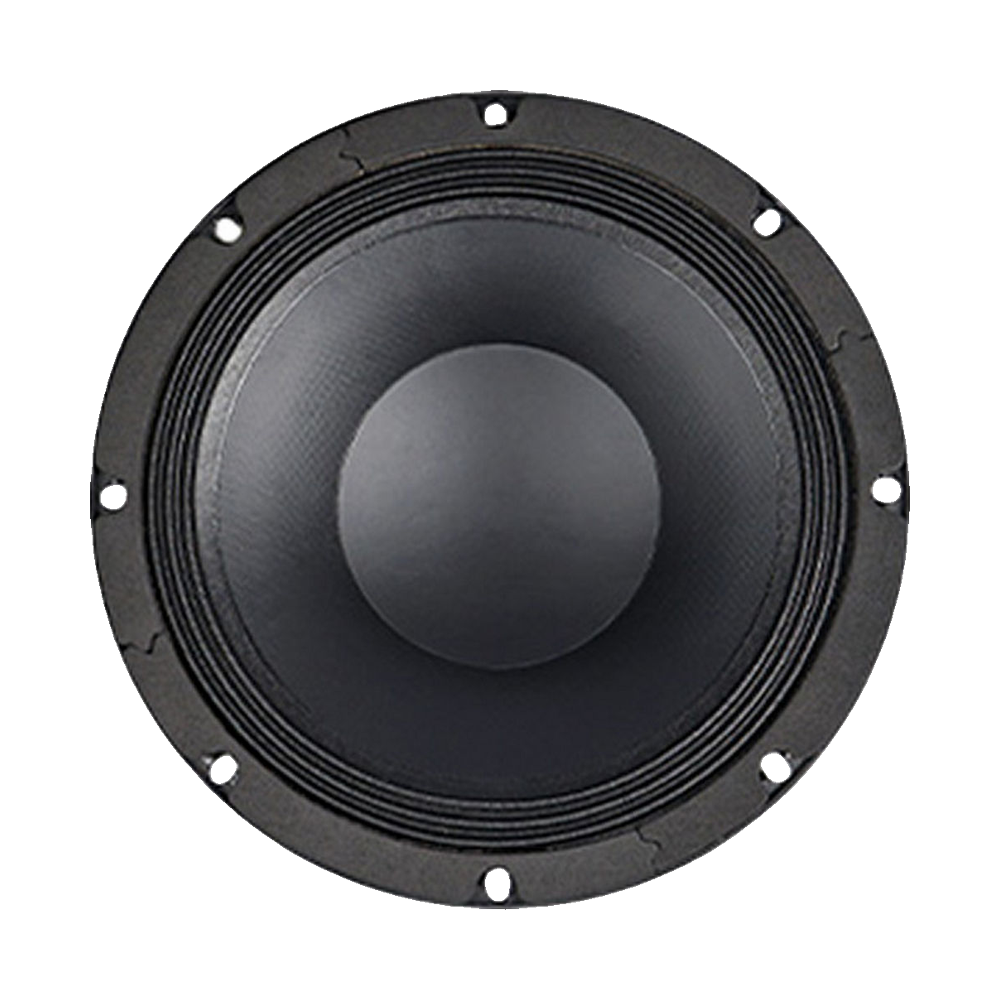

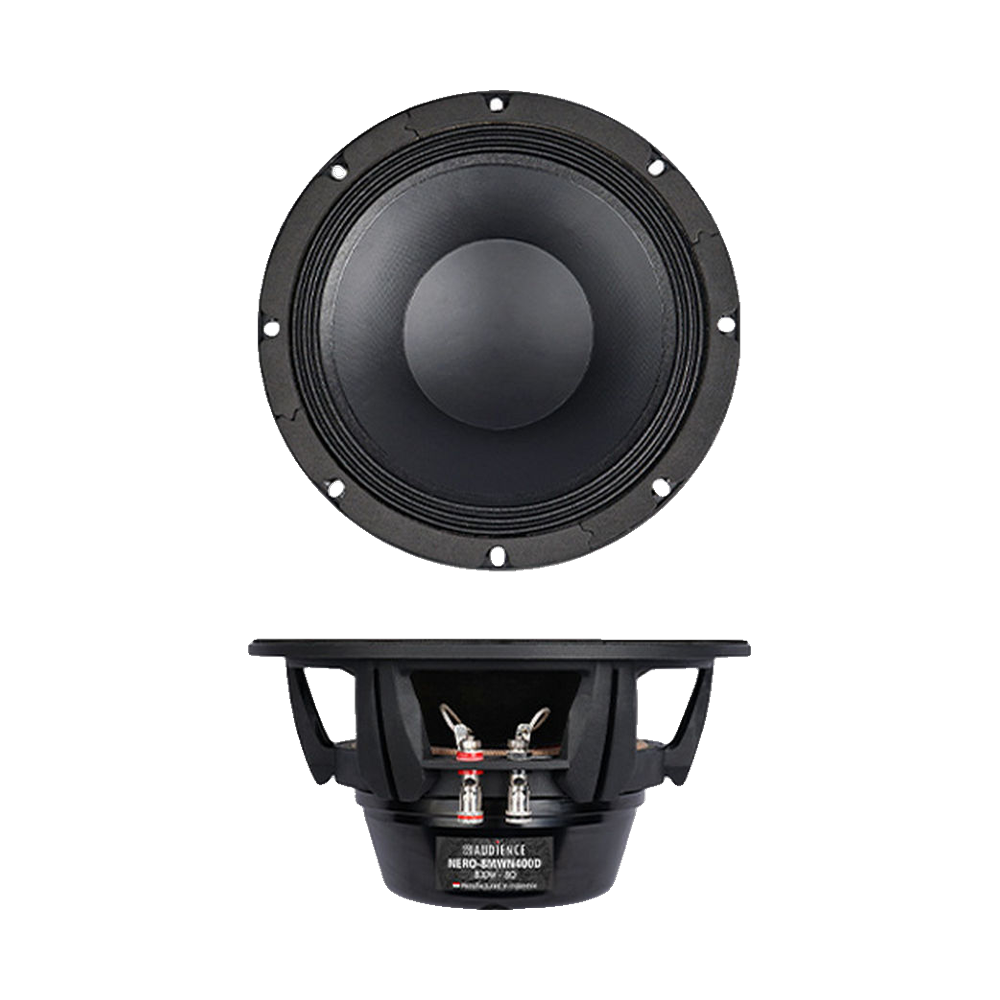

SB Audience - 8" Nero Mid-Woofer - NERO-8MWN400D
SB Audience - 8" Nero Mid-Woofer - NERO-8MWN400D
Regular price
$324.95
Regular price
Sale price
$324.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Features
- Cast aluminium chassis
- Strong neodymium motor
- Vented motor for reduced compression
- Minimum damping fibre glass voice coil former
- Proprietary cone paper material with manila pulp
- Copper sleeve for low inductance and reduced distortion
- Bifilar 4-layer voice coil for higher BL and reduced mass
- 2.4" copper clad aluminium voice coil with APC (Advanced Polymer Coating)
Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 8" |
| Nominal impedance | 8Ω |
| Series | SB Pro-mid woofers |
| Power handling (RMS) | 400 W |
| Power handling (program) | 800 W |
| Sensitivity | 93.5 dB |

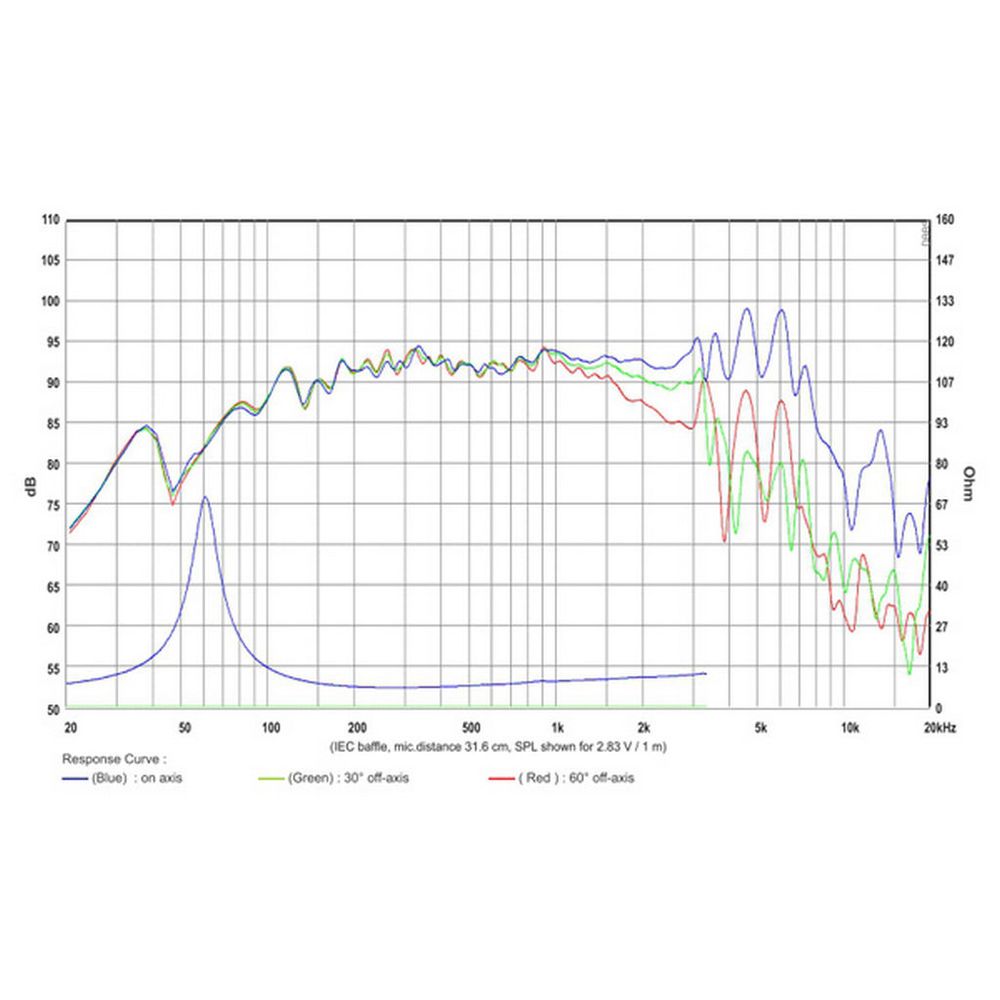

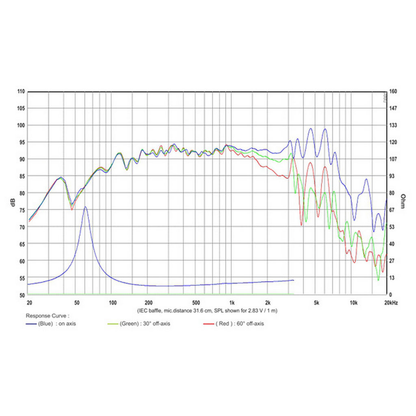

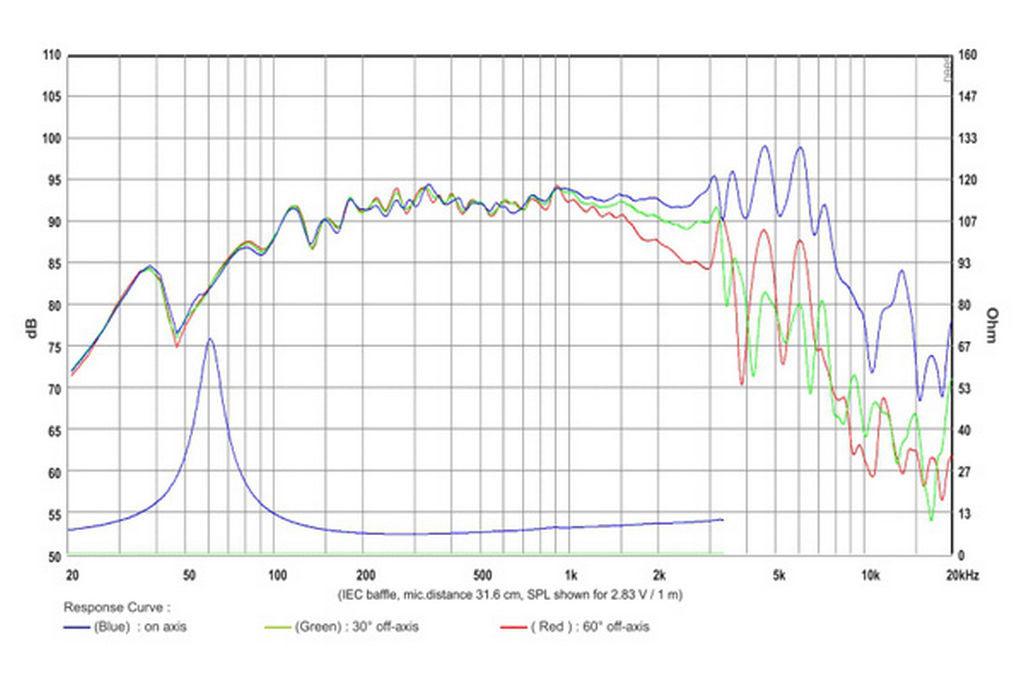

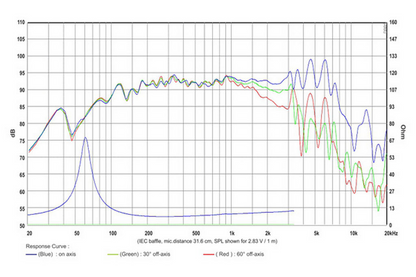

| Frequency range | 62 – 8,700 Hz |
| Suggested alignment | Ported |
| Cone surround | Triple roll with damping glue |
| Spider profile | Single constant height waves |
| Weather resistant | Yes |
Thiele/Small parameters
| Resonant frequency (Fs) | 63 Hz |
|---|---|
| DC resistance (Re) | 5.2 Ω |
| Minimum impedance (Zmin) | 5.2 Ω |
| Voice coil inductance (Le) | 0.25 mH |
| Mechanical Q (Qms) | 4.07 |
| Electrical Q (Qes) | 0.41 |
| Total Q (Qts) | 0.38 |
| Equivalent volume (Vas) | 13.9 L |
| Compliance (Cms) | 0.23 mm/N |
| Moving mass (Mms) | 28.4 g |
| Mechanical resistance (Rms) | 2.75 kg/s |
| Force factor (Bl) | 11.9 T·m |
| Effective piston area (Sd) | 208.7 cm² |
| Linear excursion (Xmax, one-way) | 6.7 mm |
| Mechanical excursion (Xmech) | 11 mm |
| Displacement volume (Vd) | 139.8 cm³ |
| Efficiency bandwidth product (EBP) | 153.7 |
| Reference efficiency (η0) | 0.81 % |
Motor
| Voice coil height | 16 mm |
|---|---|
| Air gap height | 8 mm |
| Magnetic flux density | 0.85 T |
| Voice coil wire | Copper clad aluminium |
| Demodulation | Extended copper cap |

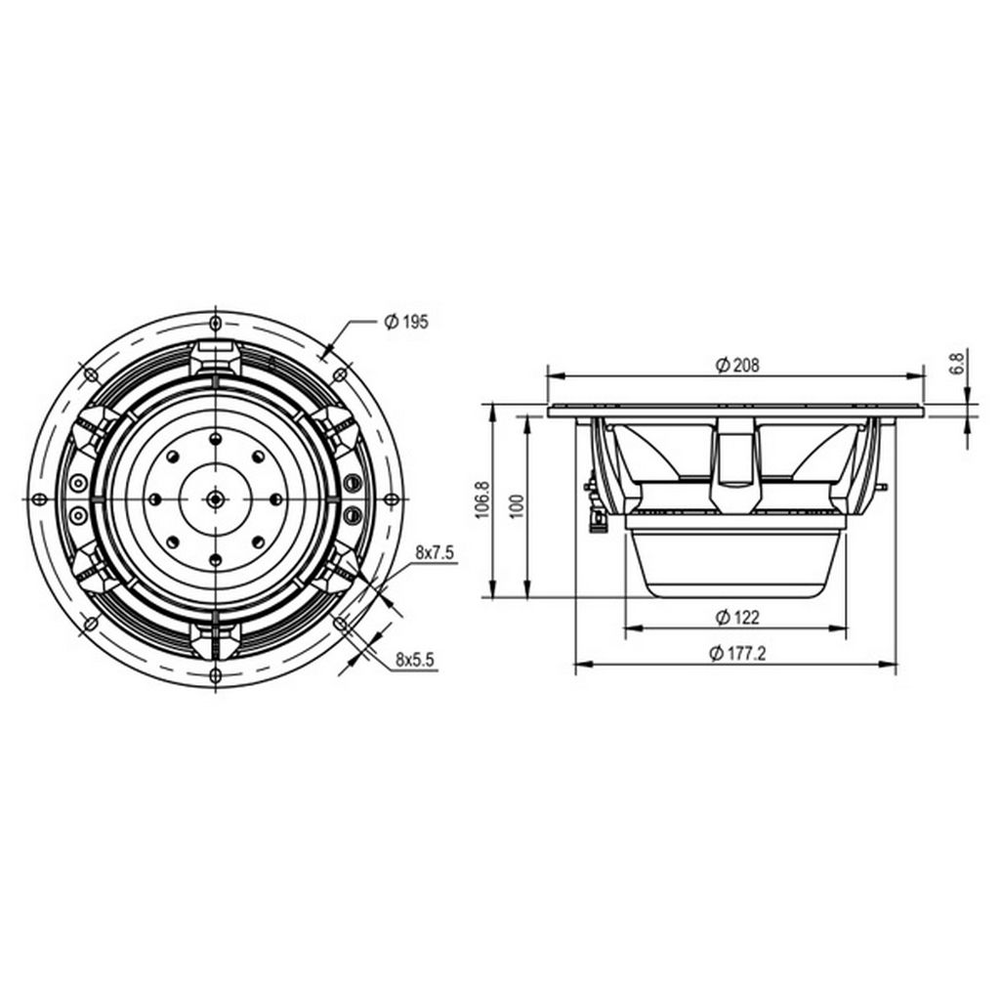

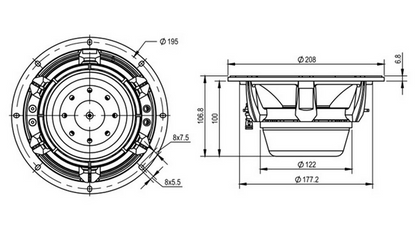

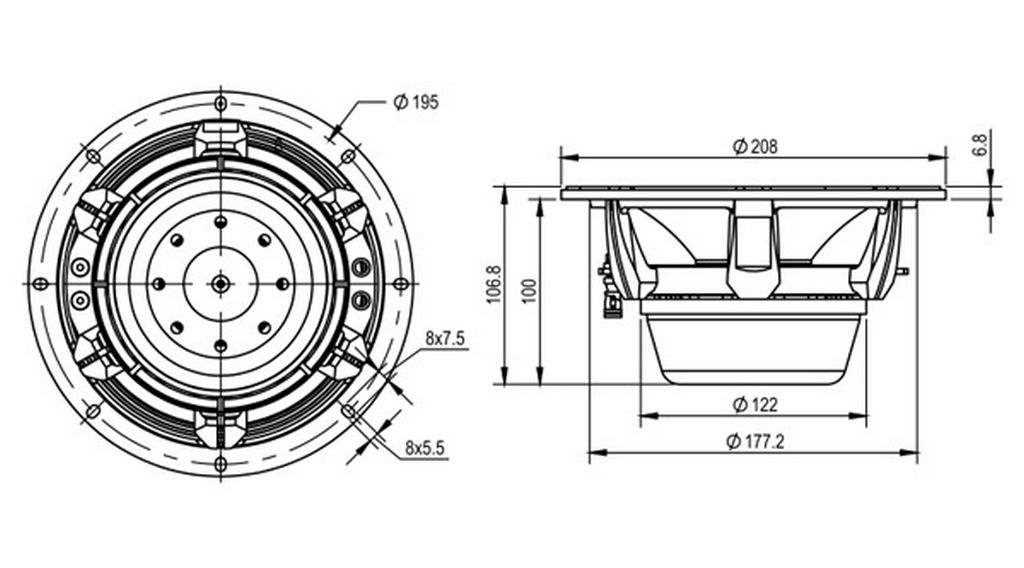

Mounting
| Overall diameter | 208 mm |
|---|---|
| Cutout diameter | 180 mm |
| Mounting depth | 100 mm |
| Flange thickness (estimate) | ≈ 5.1 mm |
| Bolt circle diameter | 195 mm |
| Mounting holes | 8 |
| Mounting hole diameter | 5.5 mm |
| Volume displaced by driver | 4.4 L |
| Voice coil diameter | 60.6 mm |
| Weight | 3 kg |
| Flange and gasket thickness | 6.8 mm |
Materials
| Voice coil former | Fibreglass |
|---|---|
| Basket | Cast Aluminium |
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 1W/1m.
- Power handling (RMS) is the AES rating: 2 hours of pink noise (6 dB crest factor), Fs to 10 × Fs, in free air, on the nominal impedance. Program power is SB Audience's maximum power, 3 dB above the RMS rating.
- Sensitivity is averaged over 100 Hz–2 kHz.
Downloads
- NERO-8MWN400D Datasheet
- NERO-8MWN400D Drawing
- NERO-8MWN400D Cutout & Recess Template (NB Audio) Every figure is straight off SB Audience's own spec sheet. Check it against your driver before you cut.
