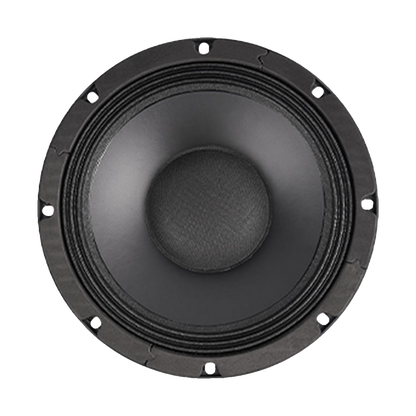

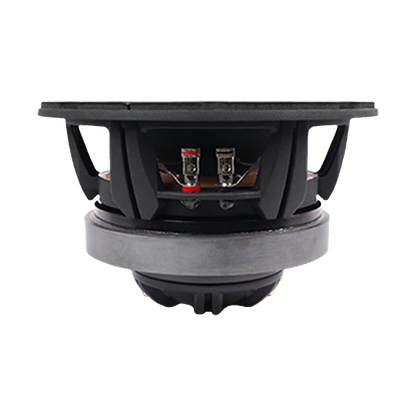

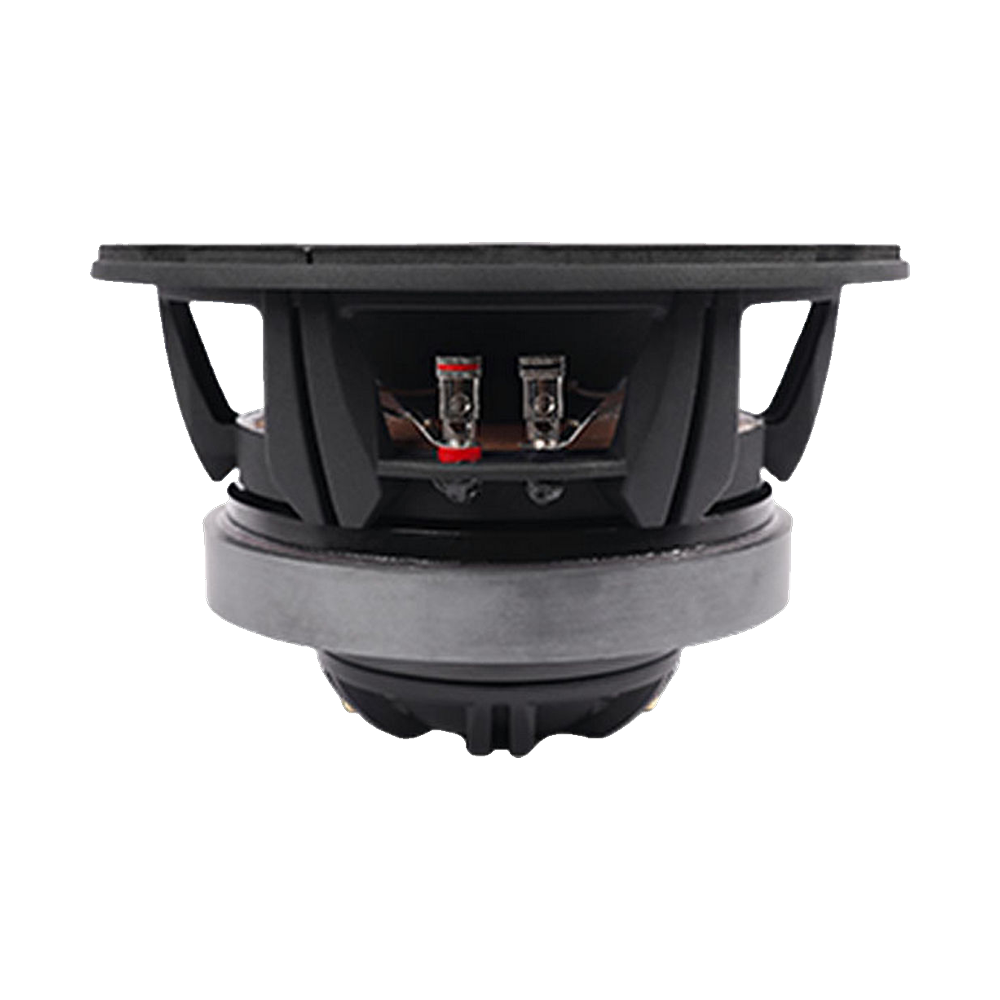

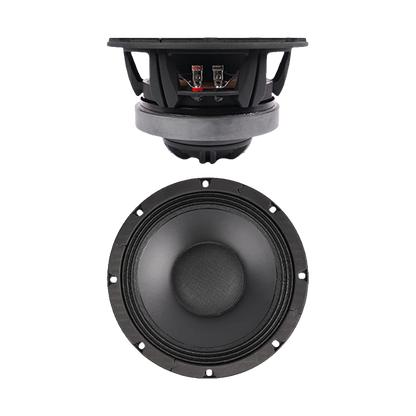

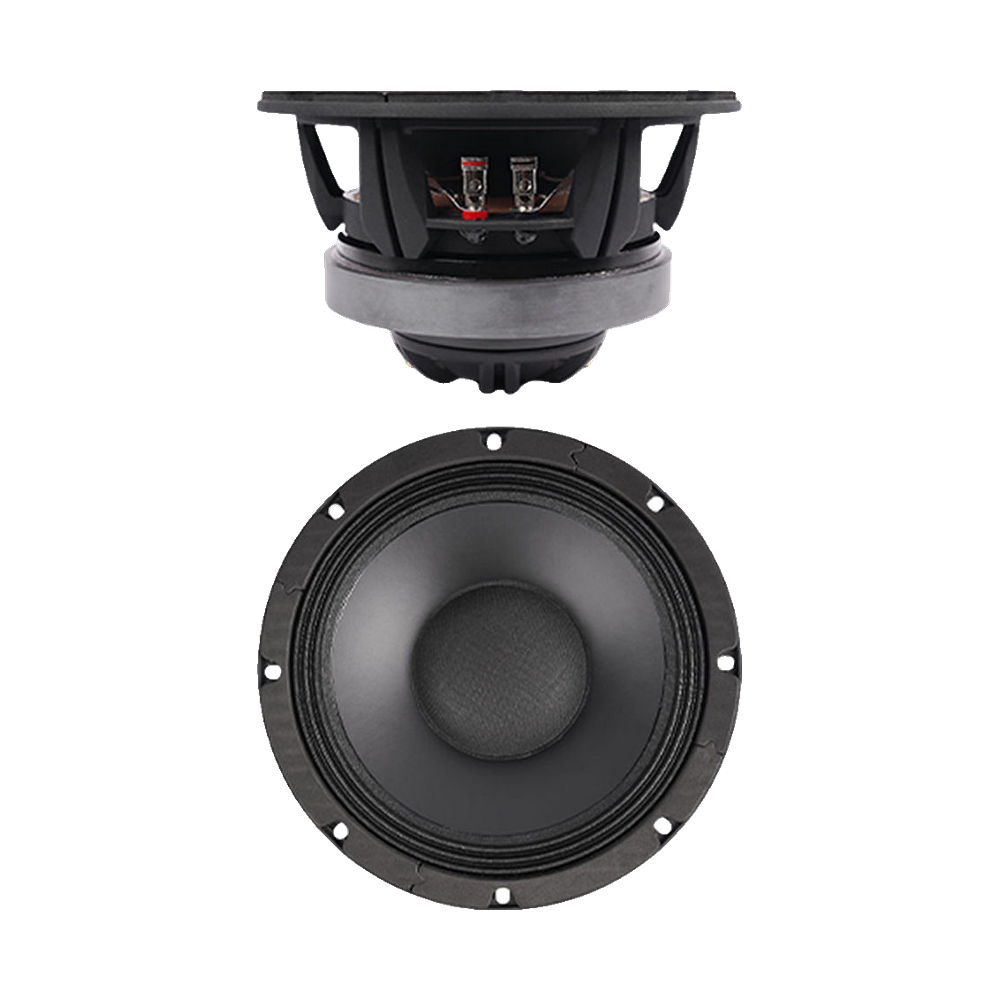

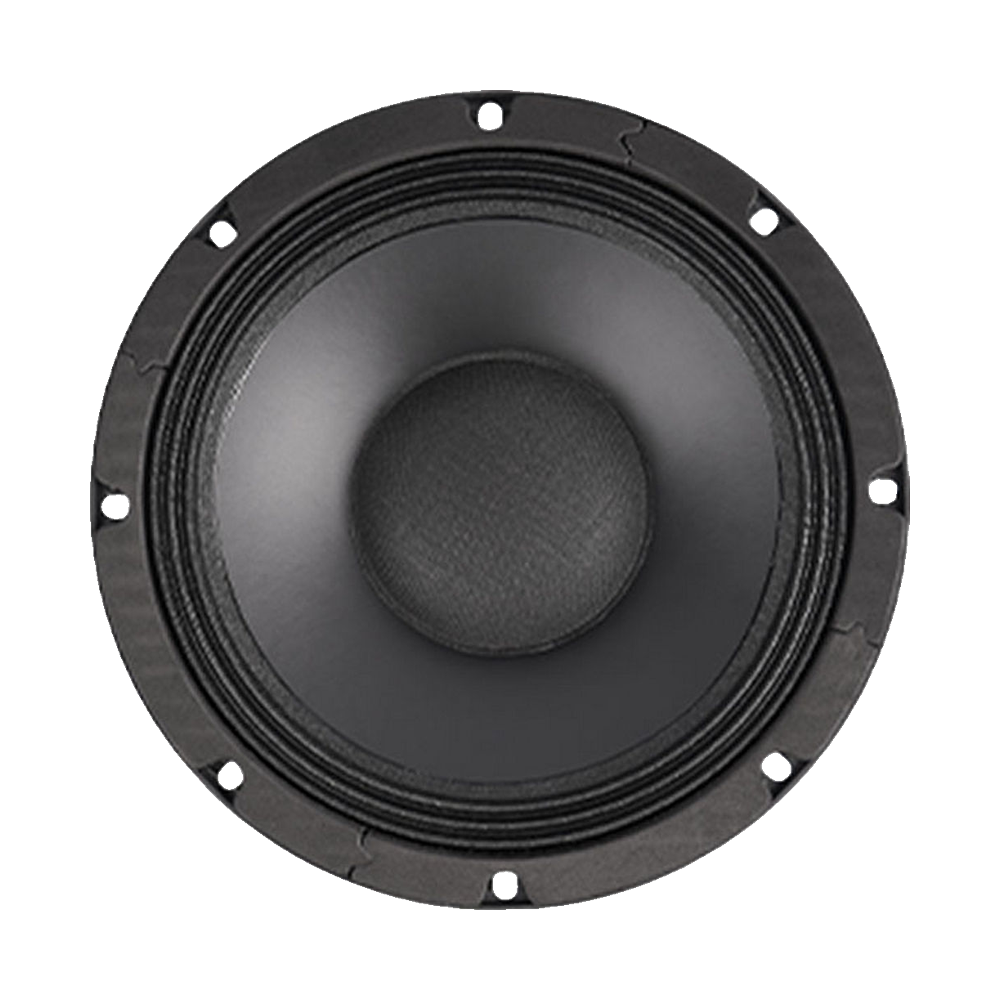

SB Audience - 8" Rosso Coaxial - ROSSO-8CX250
SB Audience - 8" Rosso Coaxial - ROSSO-8CX250
Regular price
$344.95
Regular price
Sale price
$344.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Supplier availability unconfirmed.
Couldn't load pickup availability
Description

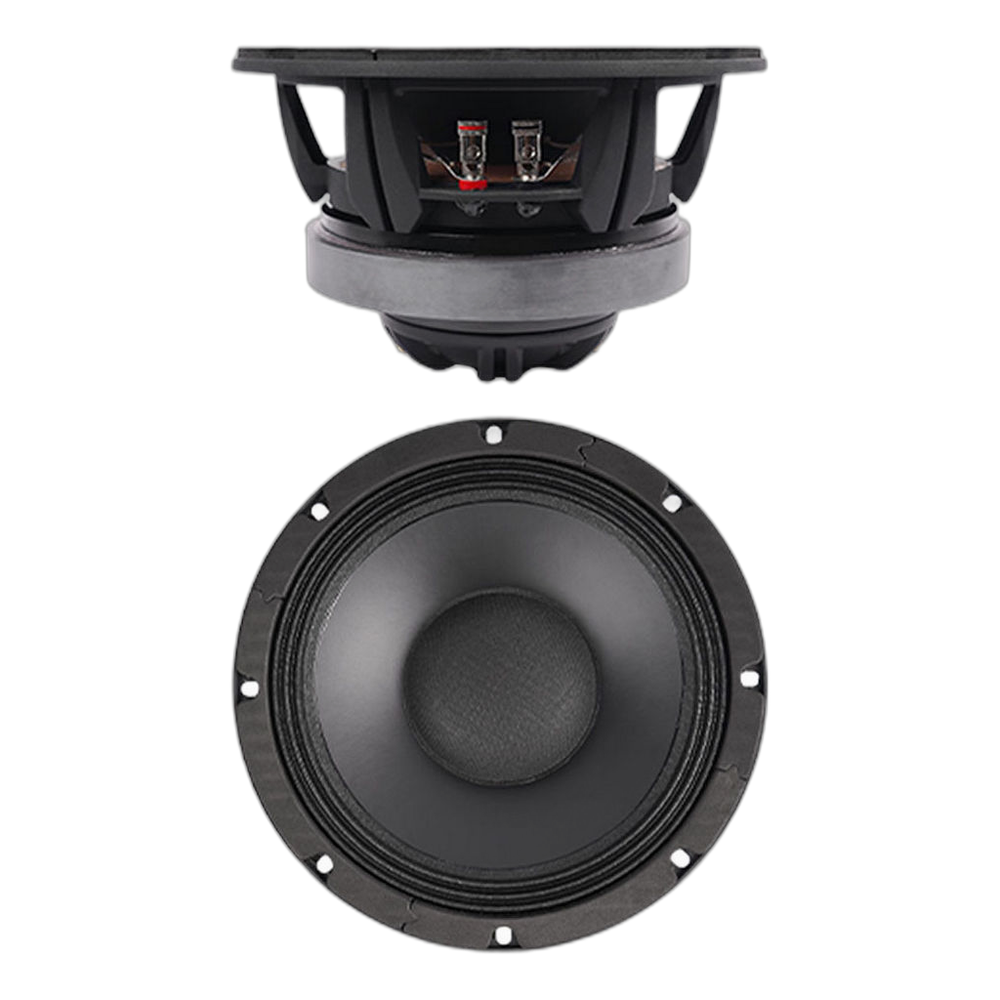

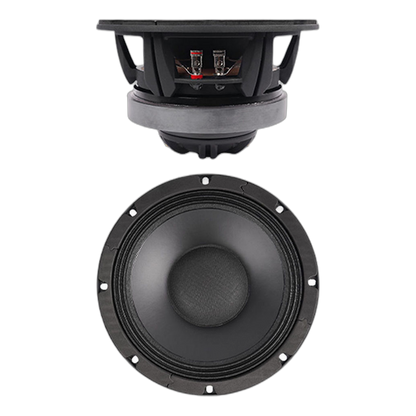

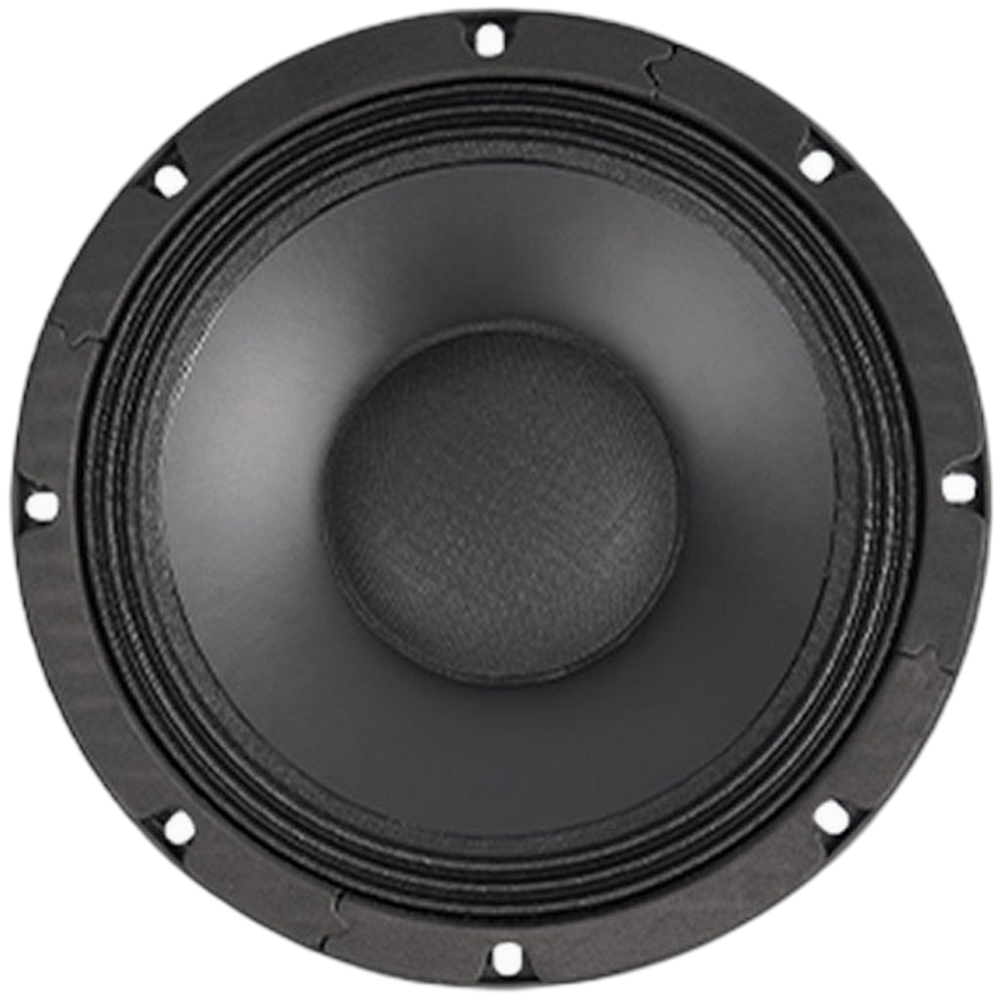

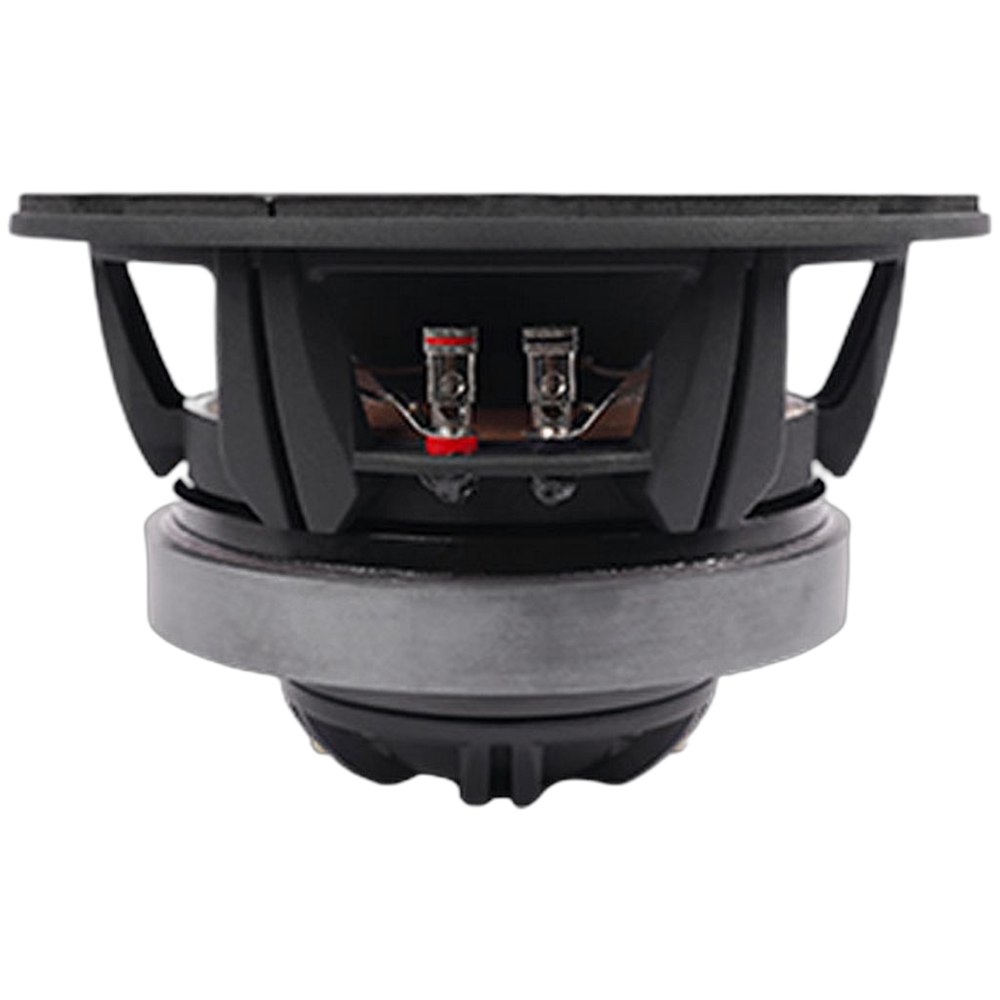

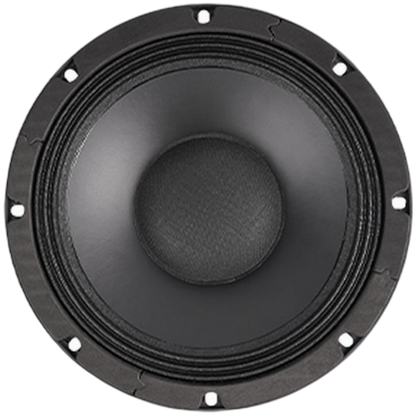

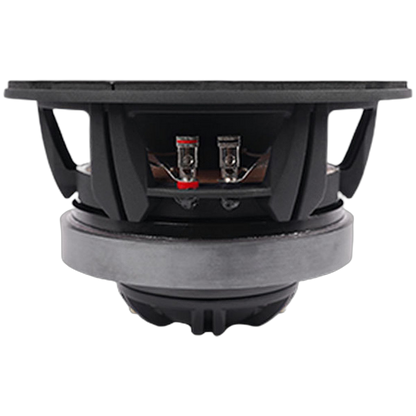

The ROSSO-8CX250 is a compact yet powerful 8" coaxial loudspeaker from SB Audience, designed for full-range audio reproduction in space-conscious professional setups. It integrates a low-frequency woofer and a high-frequency compression driver into a single unit, delivering coherent sound from a unified source.
Features
- Integrated high precision machined HF horn
- Cast aluminium chassis and HF rear chamber
- Common HF/LF ferrite magnet motor structure
- Minimum damping fibre glass voice coil former
- Ribbon voice coil wire for high efficiency of HF section
- Bifilar woofer voice coil technology for optimised BL and lower mass
- Weather-proof coated paper cone made in house with sisal and manila fibres
- Crossover not included.
Specifications
Specifications
General
| Driver type | Coaxial |
|---|---|
| Nominal size | 8" |
| Nominal impedance | 8Ω |
| Power handling (RMS) | 250 W |
| Power handling (program) | 500 W |
| Sensitivity | 94 dB |
| Frequency range | 70 – 9,200 Hz |
| Suggested alignment | Ported |
| Cone surround | Cloth triple roll |
| Spider profile | Single constant height waves |
| Weather resistant | Yes |
| Recone kit | 1P000OPSB043 |
Thiele/Small parameters
| Resonant frequency (Fs) | 70 Hz |
|---|---|
| DC resistance (Re) | 5.3 Ω |
| Minimum impedance (Zmin) | 6.2 Ω |
| Voice coil inductance (Le) | 0.72 mH |
| Mechanical Q (Qms) | 2.19 |
| Electrical Q (Qes) | 0.37 |
| Total Q (Qts) | 0.32 |
| Equivalent volume (Vas) | 15.8 L |
| Compliance (Cms) | 0.25 mm/N |
| Moving mass (Mms) | 20.8 g |
| Mechanical resistance (Rms) | 4.17 kg/s |
| Force factor (Bl) | 11.4 T·m |
| Effective piston area (Sd) | 211.2 cm² |
| Linear excursion (Xmax, one-way) | 5.4 mm |
| Mechanical excursion (Xmech) | 12 mm |
| Displacement volume (Vd) | 114 cm³ |
| Efficiency bandwidth product (EBP) | 189.2 |
| Reference efficiency (η0) | 1.39 % |
Motor
| Voice coil height | 13.4 mm |
|---|---|
| Air gap height | 8 mm |
| Magnetic flux density | 0.88 T |
| Voice coil wire | EISVCAW |
Tweeter (coaxial)
| Nominal impedance | 8Ω |
|---|---|
| Minimum impedance (Zmin) | 7.1 Ω |
| Sensitivity | 102 dB |
| Power handling (RMS) | 50 W |
| Power handling (program) | 100 W |
| Frequency range | 1,100 – 19,400 Hz |
| Voice coil diameter | 44.3 mm |
| Voice coil height | 2.25 mm |
| Air gap height | 2.5 mm |
| Magnetic flux density | 1.41 T |
| Voice coil wire | PSVCAR |
| Voice coil former | Kapton |
| Diaphragm | PEEK |
| Replacement diaphragm | 1P000OPSB032 |
Mounting
| Overall diameter | 208 mm |
|---|---|
| Cutout diameter | 179.2 mm |
| Mounting depth | 119.2 mm |
| Flange thickness (estimate) | ≈ 5.0 mm |
| Bolt circle diameter | 195 mm |
| Mounting holes | 8 |
| Mounting hole diameter | 5.5 mm |
| Volume displaced by driver | 2 L |
| Voice coil diameter | 49.5 mm |
| Weight | 4.32 kg |
| Flange and gasket thickness | 6.8 mm |
Materials
| Cone | Coated Paper |
|---|---|
| Voice coil former | Fibreglass |
| Basket | Cast Aluminium |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- On this coaxial, the Thiele/Small parameters are the woofer's; the tweeter's are listed separately.
- Power handling (RMS) is the AES rating: 2 hours of pink noise (6 dB crest factor), Fs to 10 × Fs, in free air, on the minimum impedance. Program power is SB Audience's maximum power, 3 dB above the RMS rating.
- Sensitivity is averaged over 100 Hz–2 kHz.
Downloads
- ROSSO-8CX250 Datasheet
- ROSSO-8CX250 Drawing
- ROSSO-8CX250 Cutout & Recess Template (NB Audio) Every figure is straight off SB Audience's own spec sheet. Check it against your driver before you cut.
