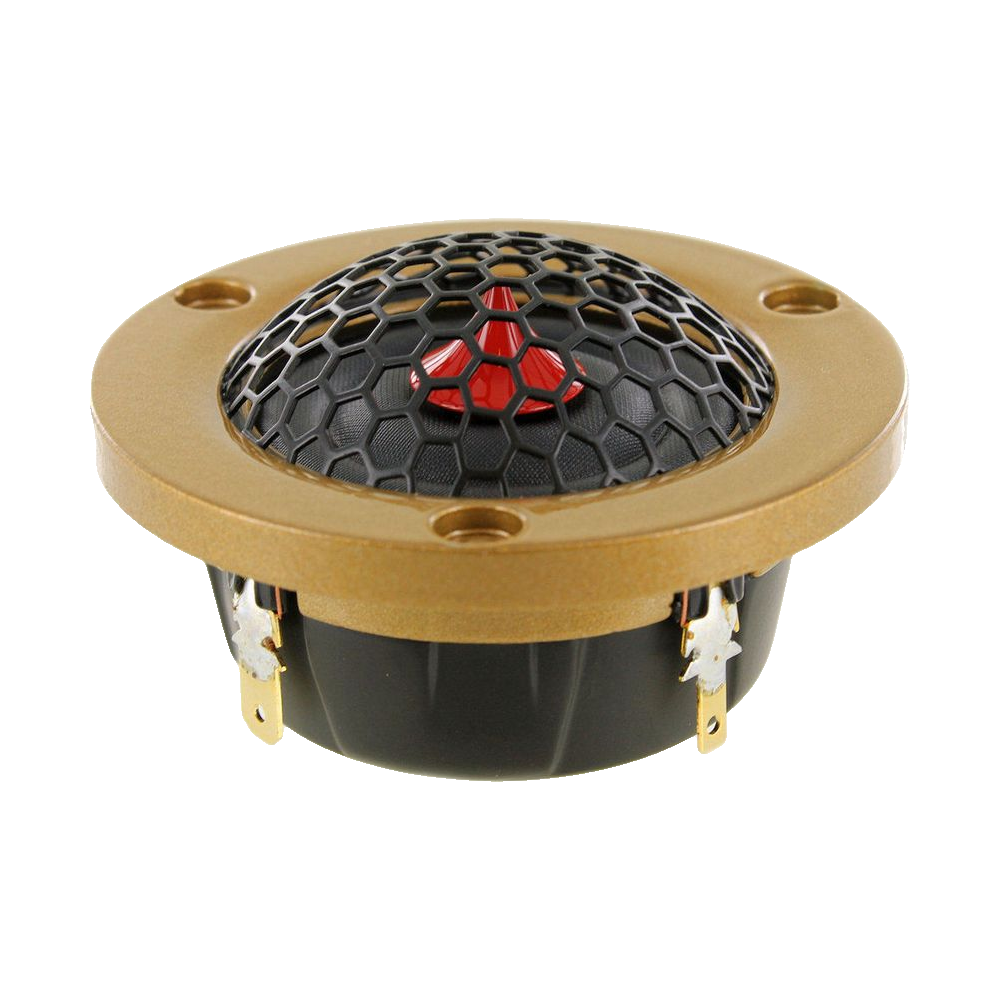

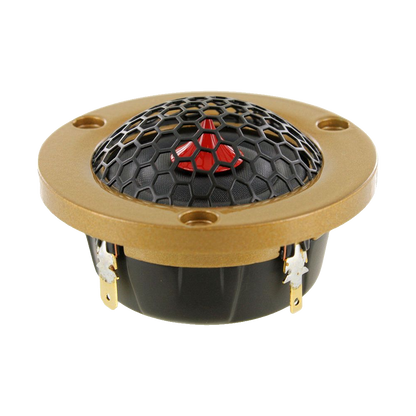

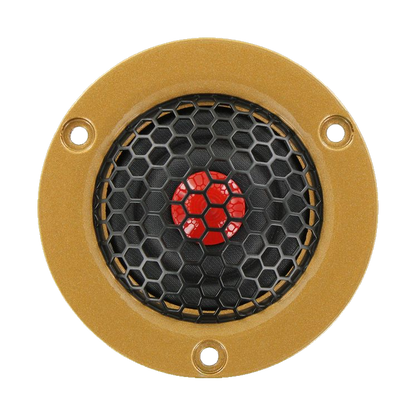

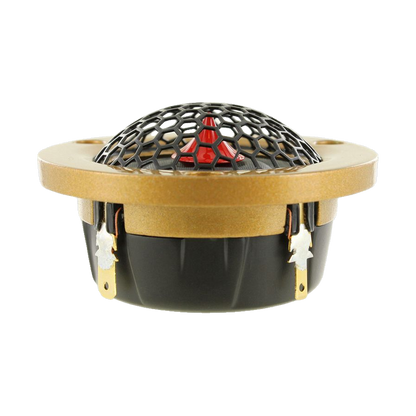

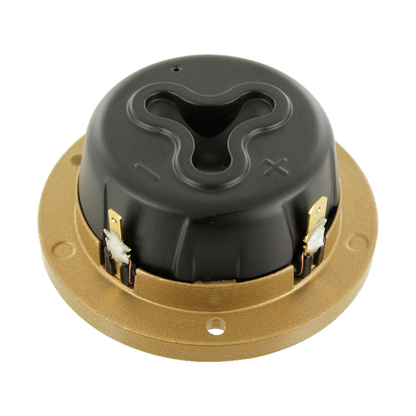

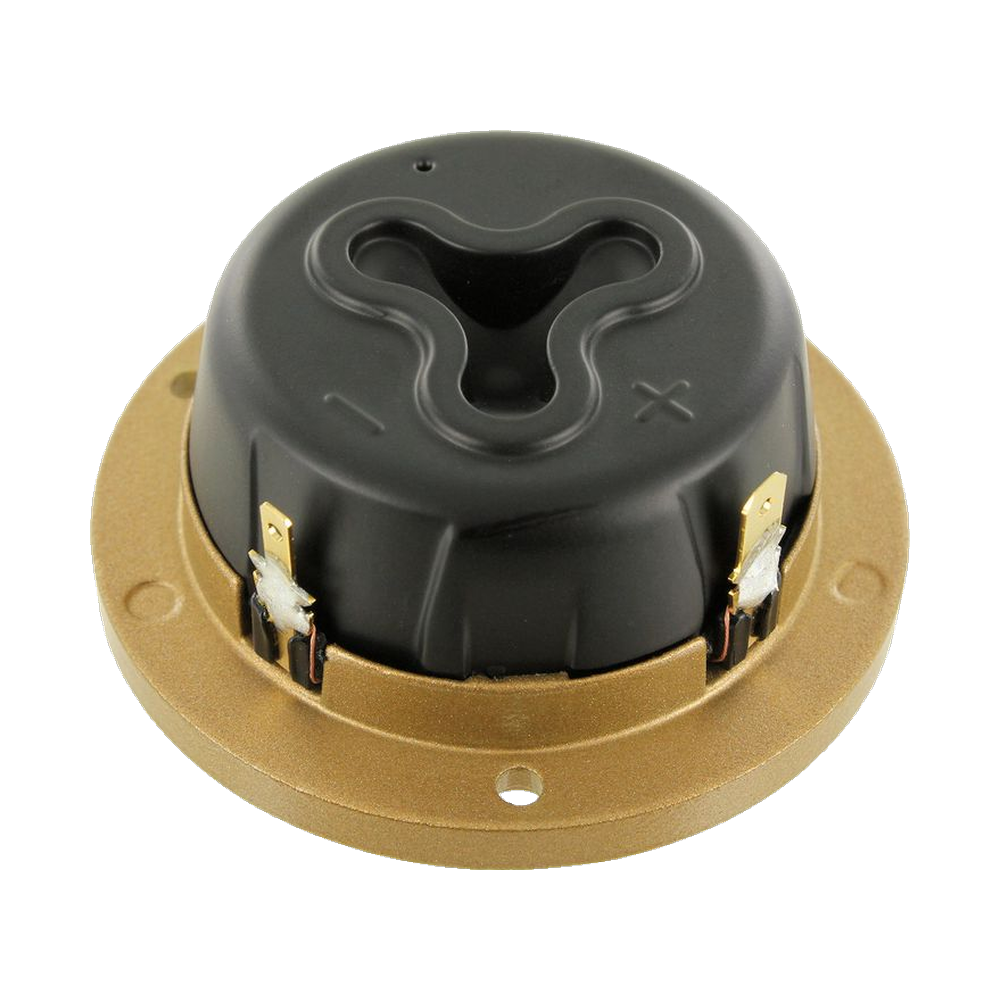

Scan-Speak - 1" Automotive Ring Radiator Tweeter - R3004/602005
Scan-Speak - 1" Automotive Ring Radiator Tweeter - R3004/602005
Regular price
$434.95
Regular price
Sale price
$434.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
26mm Ring Radiator, 4ohm, Neo, Small Chamber, Grill. Scan-Speak GOLD SERIES are specially selected units from Scan-Speak’s well-known home audio speakers, which have been optimised for automotive use. This series enables audiophiles to experience in their vehicle the - TRUE TO LIFE - that they enjoy from their high-end home audio system. Scan-Speak
Features
- 1" Ring Dome Diaphragm
- High Power Patented SD-2 magnet system
- Non Resonant Alu Rear Chamber
- Non Resonant Alu Rear Chamber
- Sound Transparent Protective Grill
- Die Cast Housing & Face Plate
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 4Ω |
| Series | Automotive |
| Power handling (RMS) | 50 W |
| Power handling (program) | 130 W |
| Sensitivity | 90 dB |
| Frequency range | 2,500 – 25,000 Hz |
| Recommended crossover | 2. order HP Butterworth, 2.5 kHz |
Thiele/Small parameters
| Resonant frequency (Fs) | 630 Hz |
|---|---|
| DC resistance (Re) | 3 Ω |
| Minimum impedance (Zmin) | 3.8 Ω |
| Voice coil inductance (Le) | 0.02 mH |
| Mechanical Q (Qms) | 3.42 |
| Electrical Q (Qes) | 1.15 |
| Total Q (Qts) | 0.86 |
| Equivalent volume (Vas) | 0.01 L |
| Compliance (Cms) | 0.11 mm/N |
| Moving mass (Mms) | 0.59 g |
| Mechanical resistance (Rms) | 0.68 kg/s |
| Force factor (Bl) | 2.4 T·m |
| Effective piston area (Sd) | 5.6 cm² |
| Linear excursion (Xmax, one-way) | 0.25 mm |
| Mechanical excursion (Xmech) | 1.6 mm |
| Efficiency bandwidth product (EBP) | 547.8 |
| Effective piston diameter (D) | 27 mm |
| Impedance at resonance (Zo) | 15 Ω |
Motor
| Voice coil height | 2 mm |
|---|---|
| Air gap height | 2.5 mm |
| Voice coil layers | 2 |

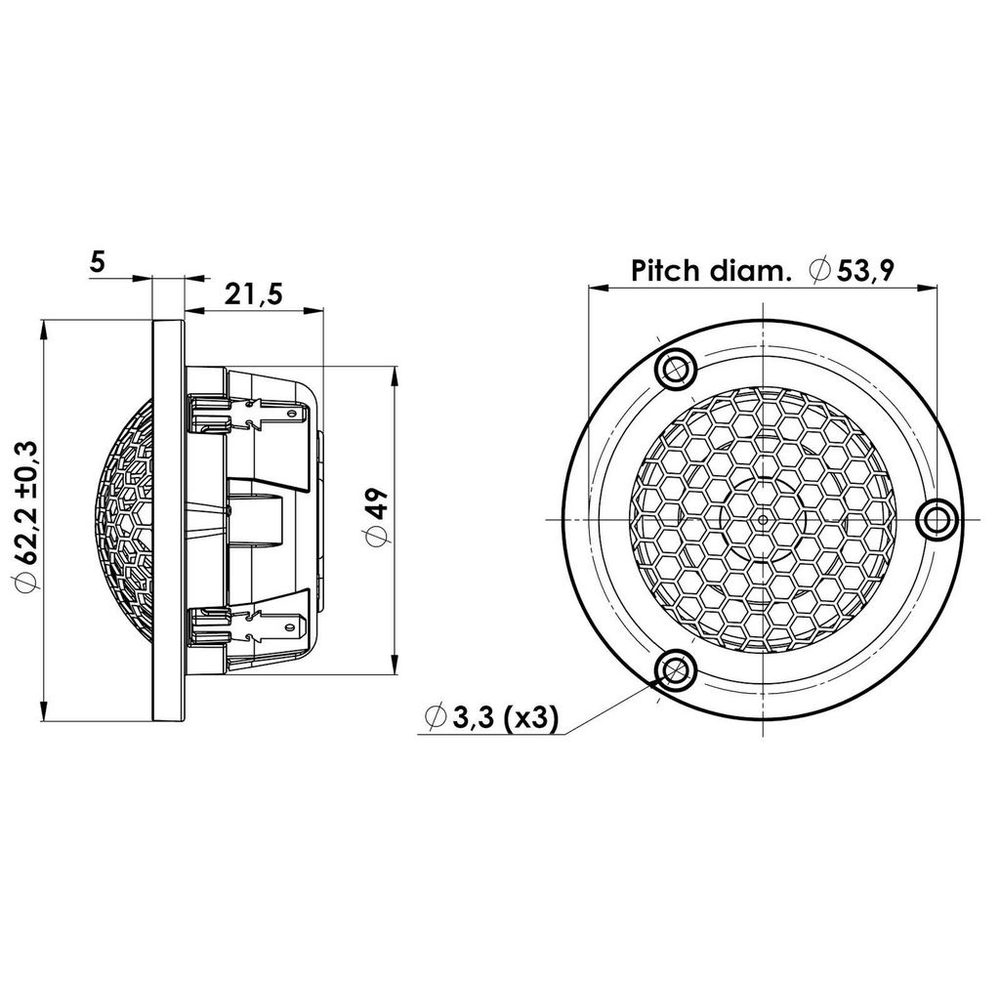

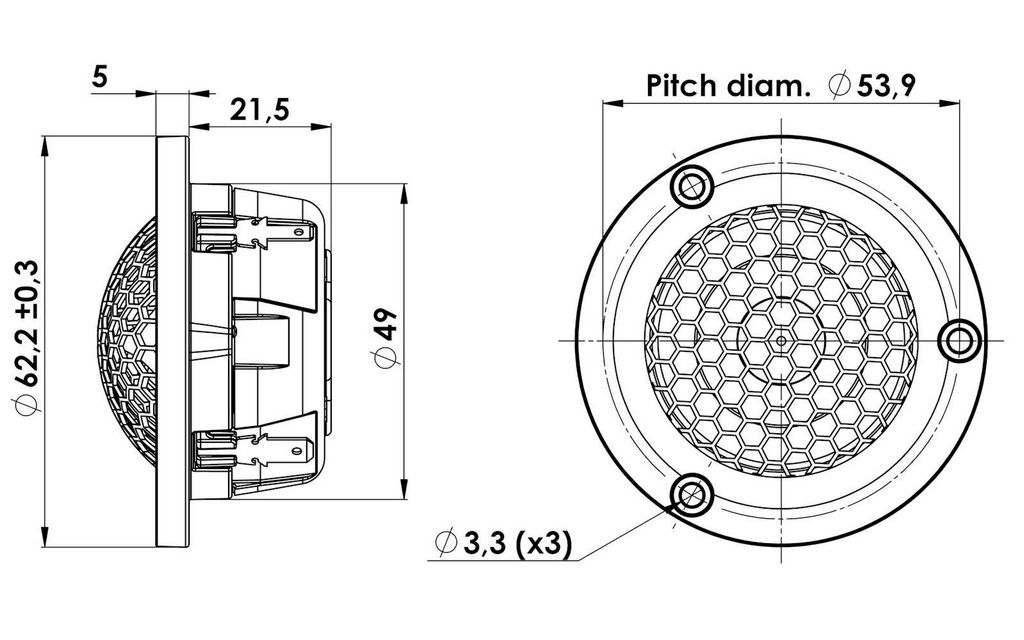

Mounting
| Overall diameter | 62.2 mm |
|---|---|
| Mounting depth | 21.5 mm |
| Flange thickness | 5 mm |
| Bolt circle diameter | 53.9 mm |
| Mounting holes | 3 |
| Mounting hole diameter | 3.3 mm |
| Volume displaced by driver | 0.03 L |
| Voice coil diameter | 26 mm |
| Weight | 0.15 kg |
Materials
| Magnet | Neodymium |
|---|
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Where do these figures come from? See the source of each one
