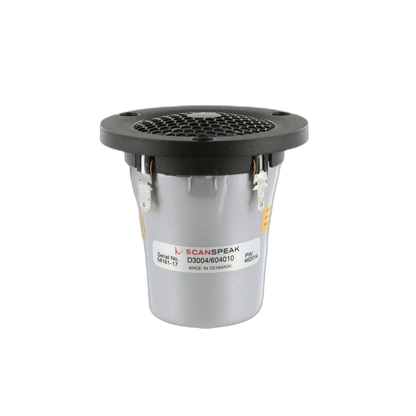

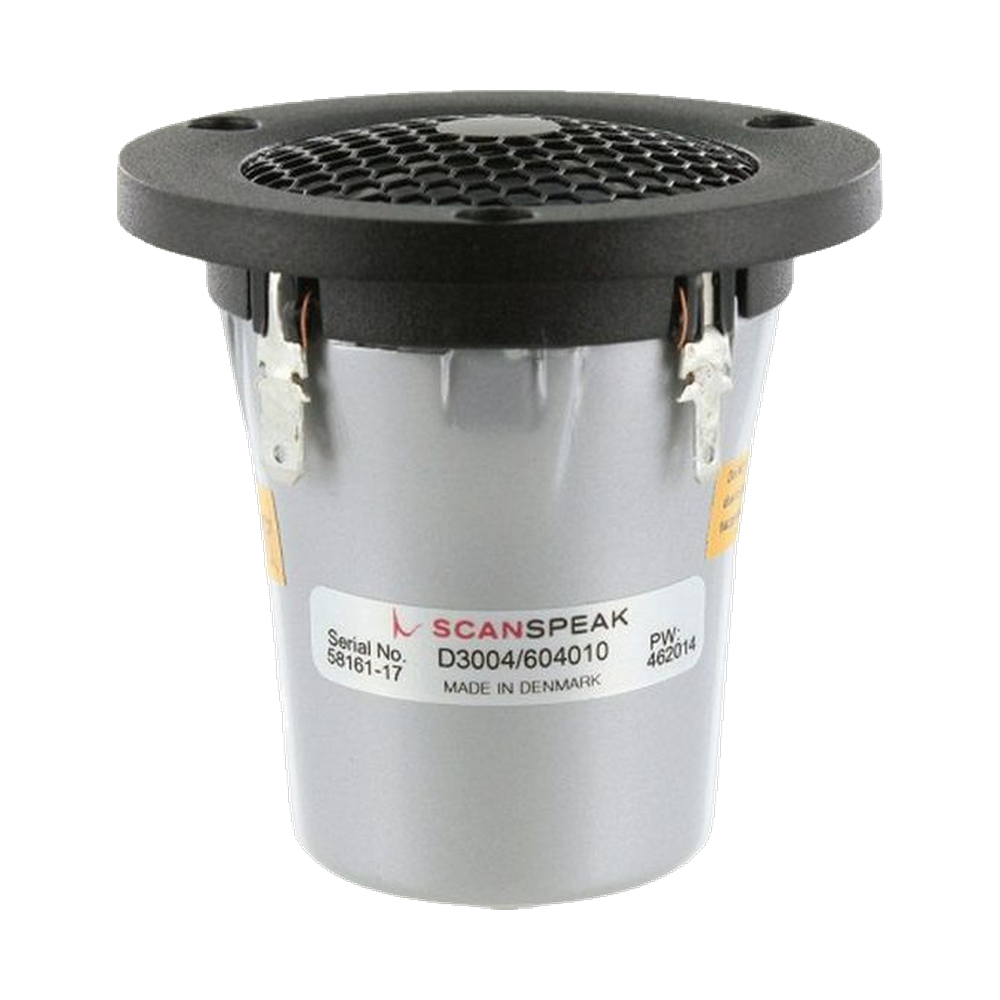

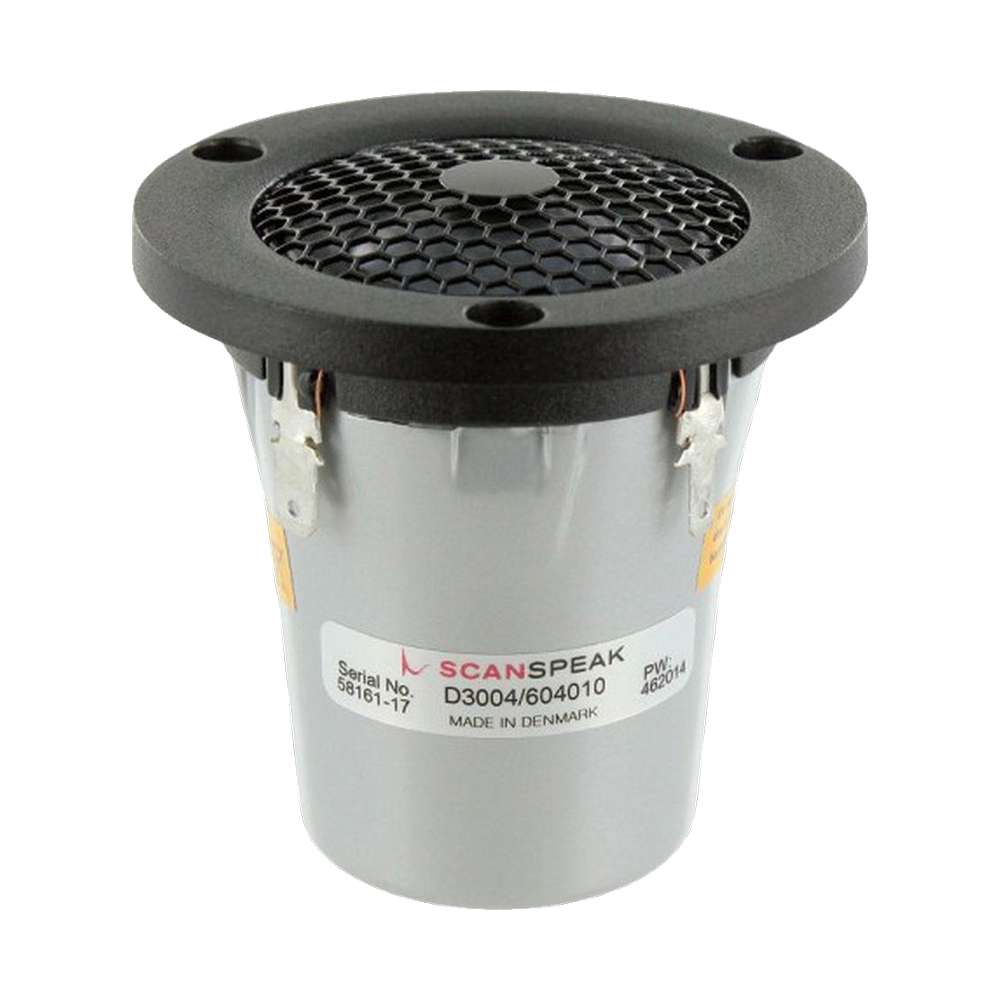

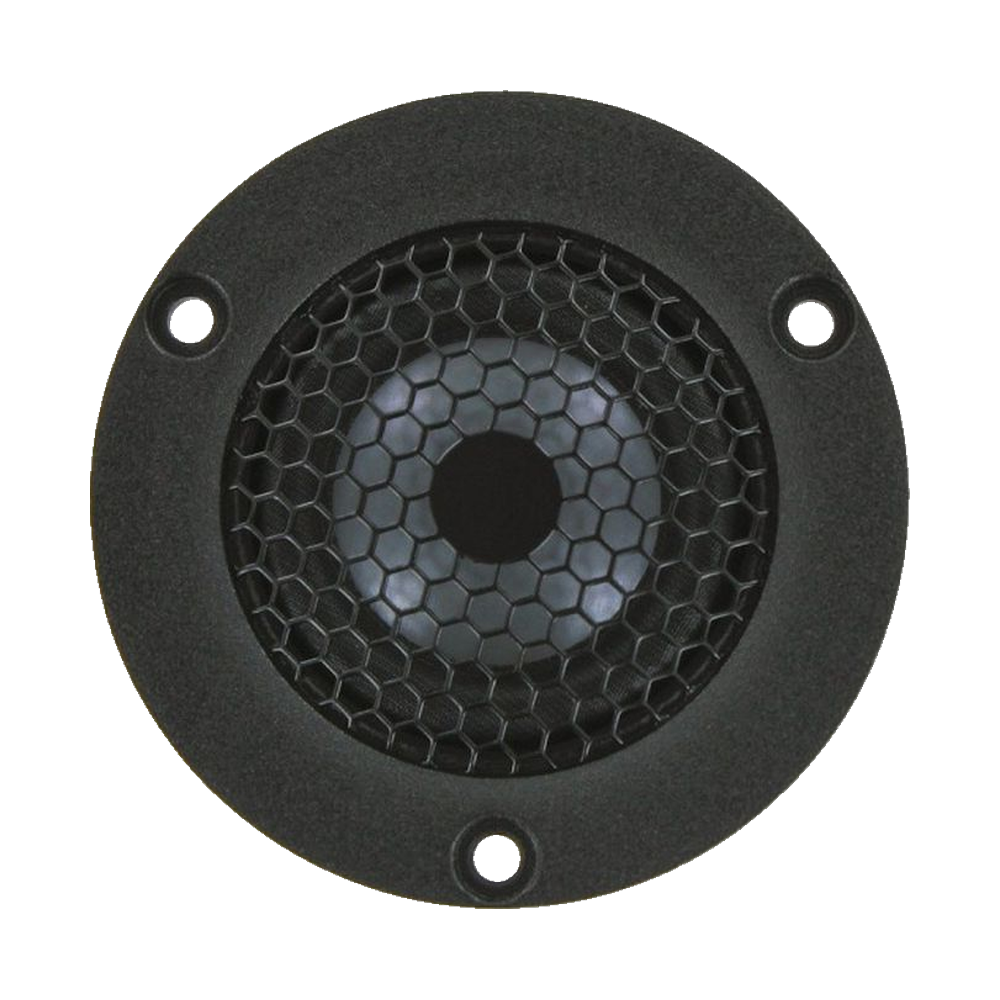

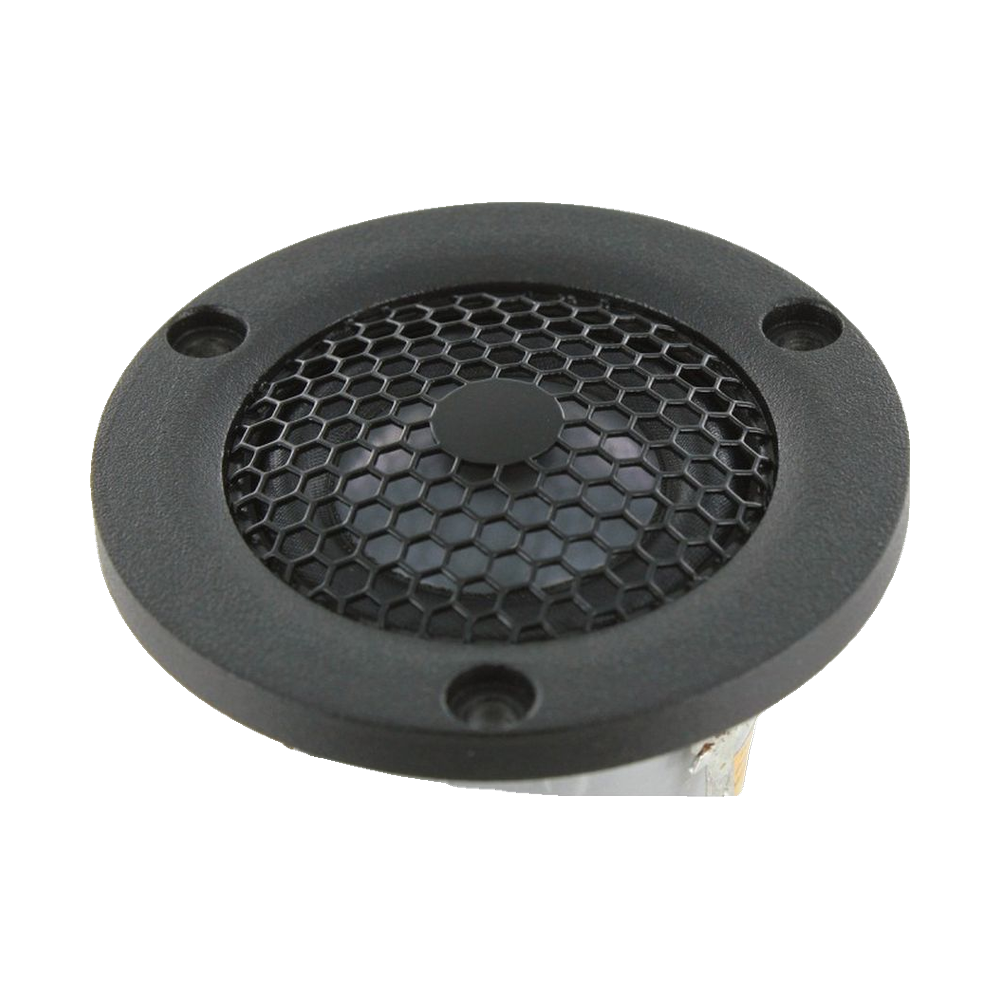

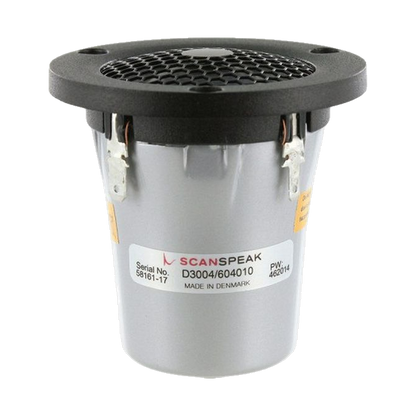

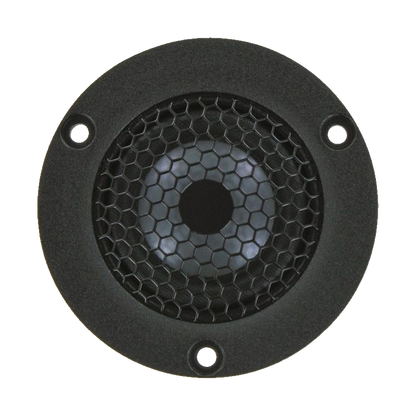

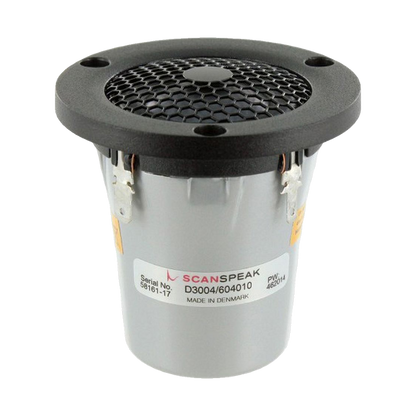

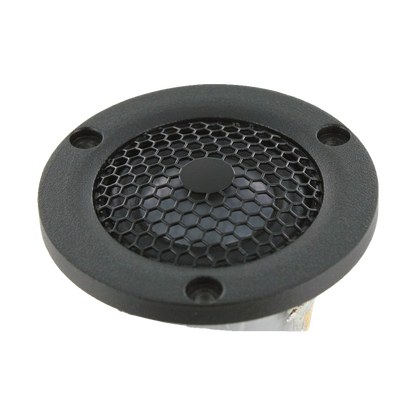

Scan-Speak - 1" Beryllium Tweeter - D3004/604010
Scan-Speak - 1" Beryllium Tweeter - D3004/604010
Regular price
$554.95
Regular price
Sale price
$554.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Limited supplier stock; availability unconfirmed.
Couldn't load pickup availability
Description
This 1” compact Illuminator beryllium tweeter is an example of a big sound in a small body. As beryllium is a material characterised by great stiffness, light weight and high damping, the beryllium diaphragm offers all the properties required to reproduce excellent sound. And indeed, the 1” tweeter sounds great. It has a very low distortion and a distinct clarity that brings out the best in all types of music.
Features
- 1" Beryllium diaphragm (99% pure BE)
- Large non resonant aluminium enclosure
- Sound transparent protective grill
- Patented symetrical drive (SD-2) motor
- Large roll surround f. wide dispersion
- Applicable for HiFi and automotive
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 4Ω |
| Power handling (RMS) | 50 W |
| Sensitivity | 90.5 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 450 Hz |
|---|---|
| DC resistance (Re) | 3 Ω |
| Minimum impedance (Zmin) | 3.6 Ω |
| Voice coil inductance (Le) | 0.02 mH |
| Mechanical Q (Qms) | 2.5 |
| Electrical Q (Qes) | 0.97 |
| Total Q (Qts) | 0.7 |
| Equivalent volume (Vas) | 0.03 L |
| Compliance (Cms) | 0.43 mm/N |
| Moving mass (Mms) | 0.35 g |
| Mechanical resistance (Rms) | 0.4 kg/s |
| Force factor (Bl) | 1.7 T·m |
| Effective piston area (Sd) | 7 cm² |
| Linear excursion (Xmax, one-way) | 0.2 mm |
| Mechanical excursion (Xmech) | 1.6 mm |
| Displacement volume (Vd) | 0.14 cm³ |
| Efficiency bandwidth product (EBP) | 463.9 |

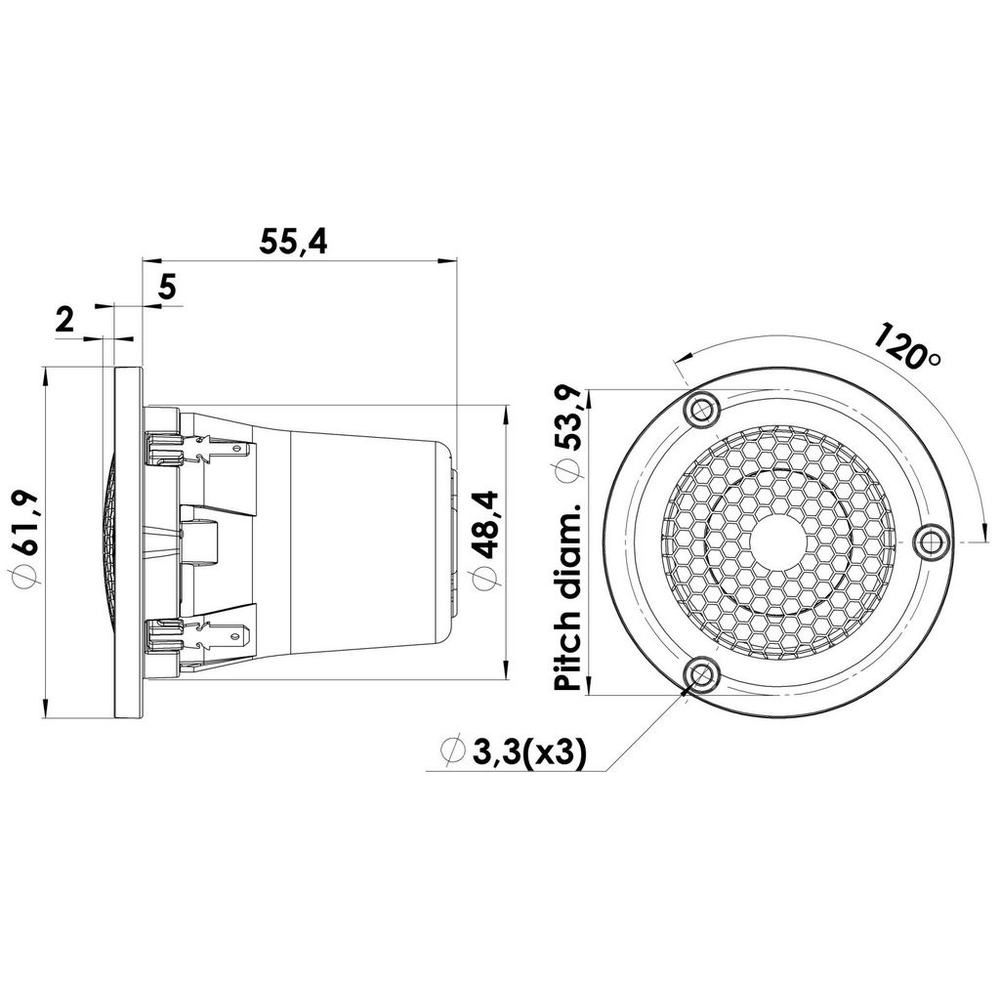

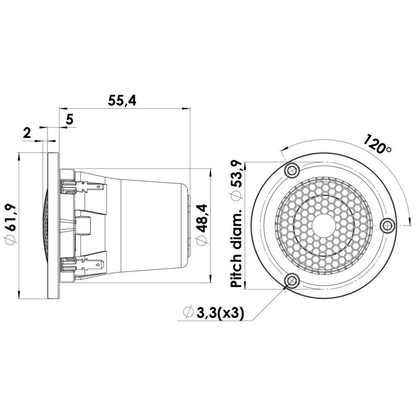

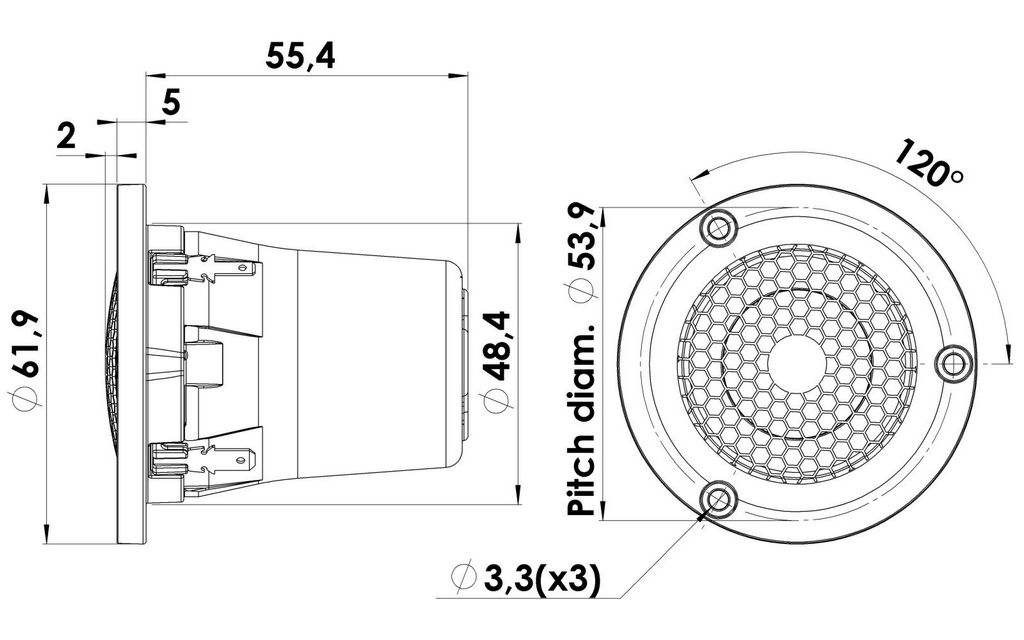

Mounting
| Overall diameter | 61.7 mm |
|---|---|
| Mounting depth | 55.4 mm |
| Flange thickness | 5 mm |
| Bolt circle diameter | 53.9 mm |
| Mounting holes | 3 |
| Mounting hole diameter | 3.3 mm |
| Volume displaced by driver | 0.08 L |
| Voice coil diameter | 26 mm |
| Weight | 0.2 kg |
- Xmax is quoted one-way (peak), not peak-to-peak.
