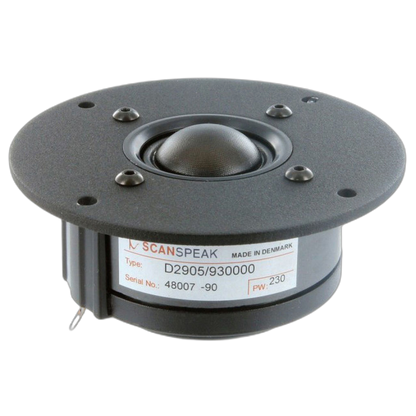

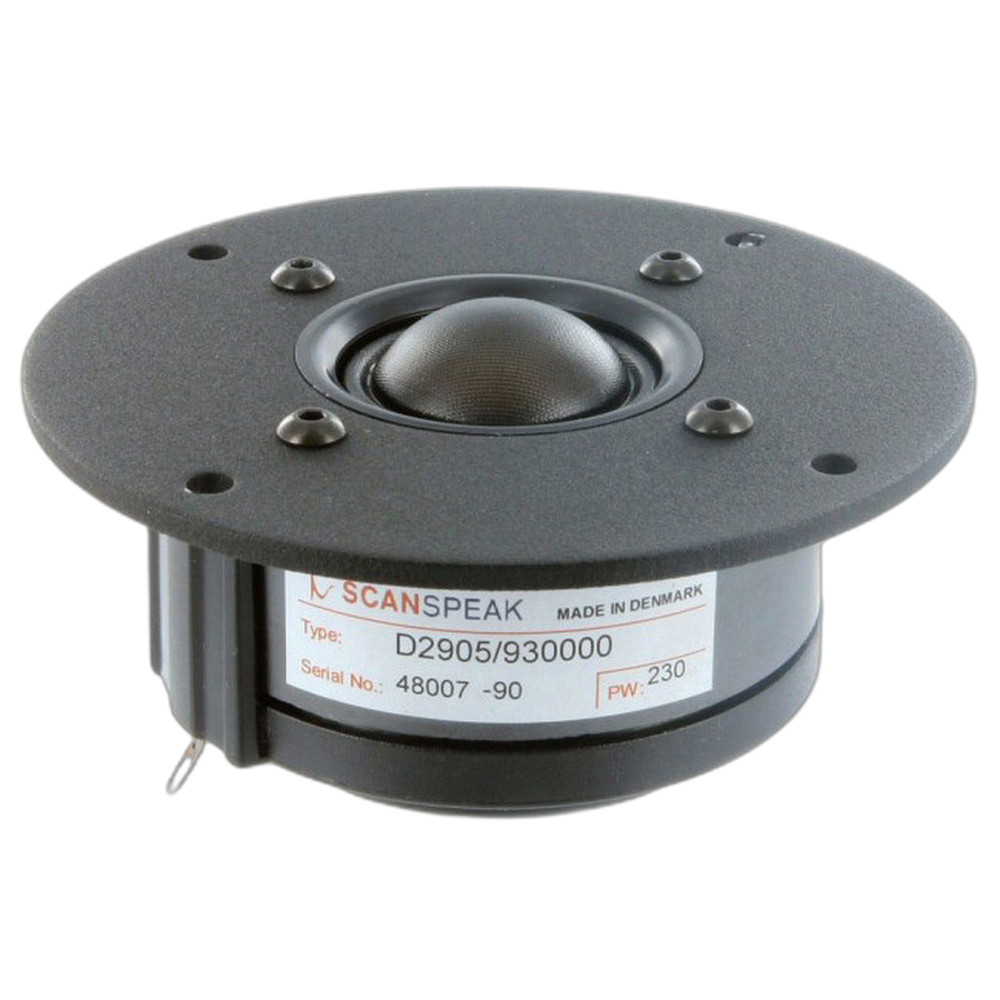

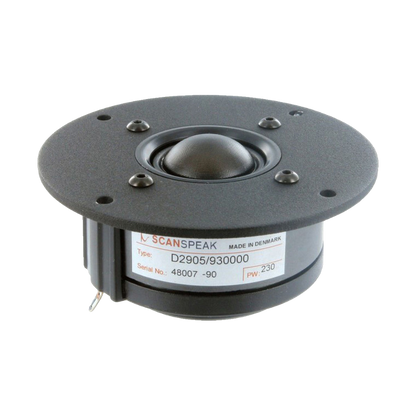

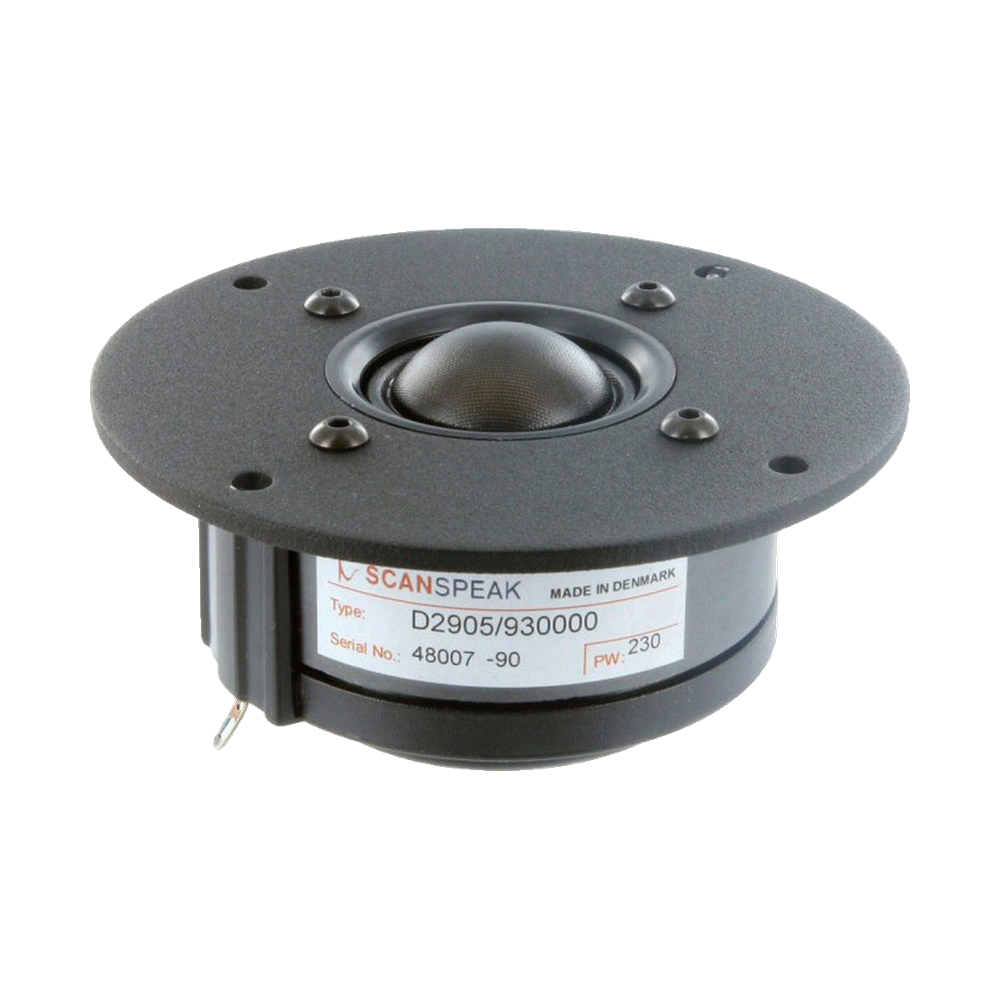

Scan-Speak - 1" Classic Dome Tweeter - D2905/930000
Scan-Speak - 1" Classic Dome Tweeter - D2905/930000
Regular price
$204.95
Regular price
Sale price
$204.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
The Classic tweeters are among the many highly praised designs in the Classic series. They have enjoyed success over 3 decades, and are still among the best tweeters available. The D2905/9000 tweeter kick-started a new era with a line of very high quality 1" tweeters. Despite their many years on the market still used in many top High-End speakers around the world.
Features
- 1" Textile Dome Diaphragm
- Ferro Fluid
- Low Resonance Rear Chamber
- Black Painted Alu Face Plate
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 6Ω |
| Series | Classic |
| Power handling (RMS) | 150 W |
| Power handling (program) | 460 W |
| Sensitivity | 90 dB |
| Frequency range | 2,500 – 30,000 Hz |
| Recommended crossover | 2. order HP Butterworth, 2.5 kHz |
Thiele/Small parameters
| Resonant frequency (Fs) | 650 Hz |
|---|---|
| DC resistance (Re) | 4.7 Ω |
| Minimum impedance (Zmin) | 5.4 Ω |
| Voice coil inductance (Le) | 0.07 mH |
| Mechanical Q (Qms) | 0.94 |
| Electrical Q (Qes) | 0.72 |
| Total Q (Qts) | 0.41 |
| Equivalent volume (Vas) | 0.01 L |
| Compliance (Cms) | 0.13 mm/N |
| Moving mass (Mms) | 0.45 g |
| Mechanical resistance (Rms) | 1.96 kg/s |
| Force factor (Bl) | 3.5 T·m |
| Effective piston area (Sd) | 8.5 cm² |
| Linear excursion (Xmax, one-way) | 0.4 mm |
| Mechanical excursion (Xmech) | 1.5 mm |
| Efficiency bandwidth product (EBP) | 902.8 |
| Effective piston diameter (D) | 33 mm |
| Impedance at resonance (Zo) | 10.9 Ω |
Motor
| Voice coil height | 3.3 mm |
|---|---|
| Air gap height | 2.5 mm |
| Voice coil layers | 2 |

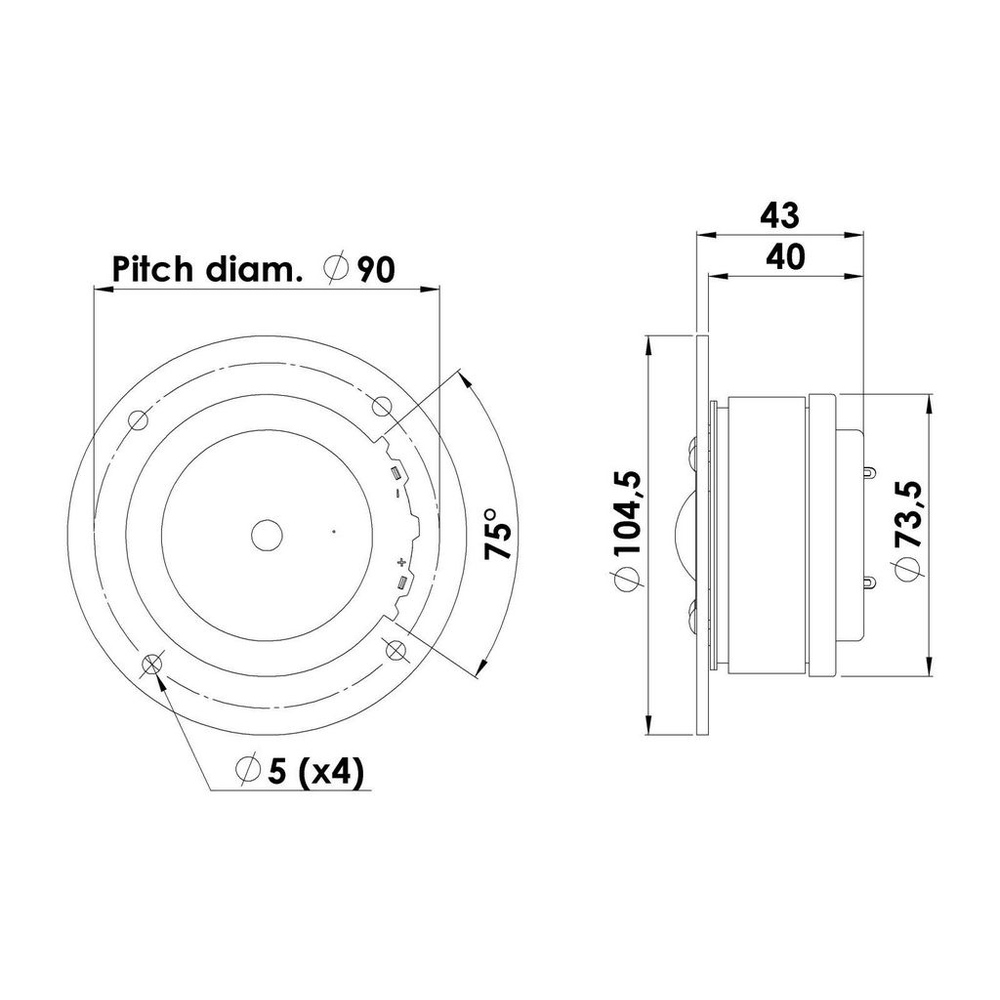

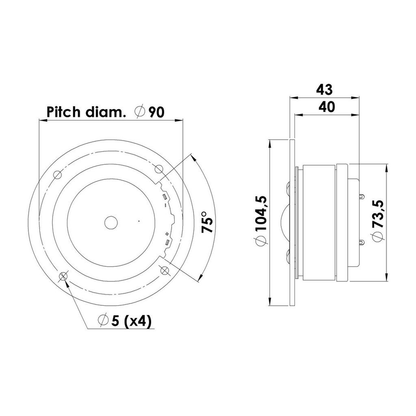

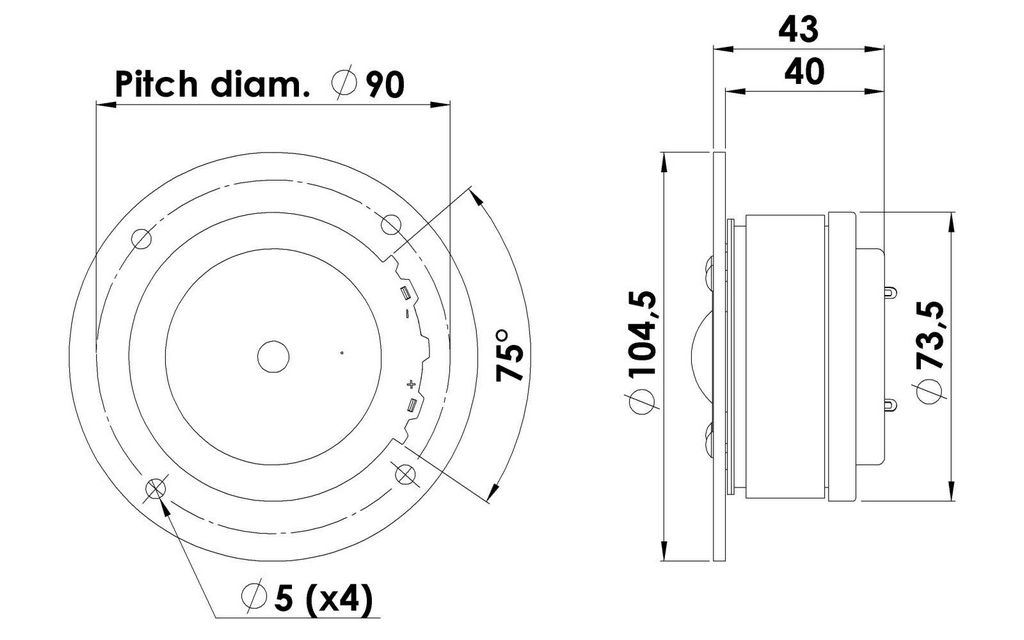

Mounting
| Overall diameter | 104.3 mm |
|---|---|
| Mounting depth | 41.3 mm |
| Flange thickness | 3.1 mm |
| Bolt circle diameter | 90 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 5 mm |
| Volume displaced by driver | 0.15 L |
| Voice coil diameter | 28 mm |
| Weight | 0.7 kg |
Materials
| Cone | Textile |
|---|---|
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Where do these figures come from? See the source of each one
