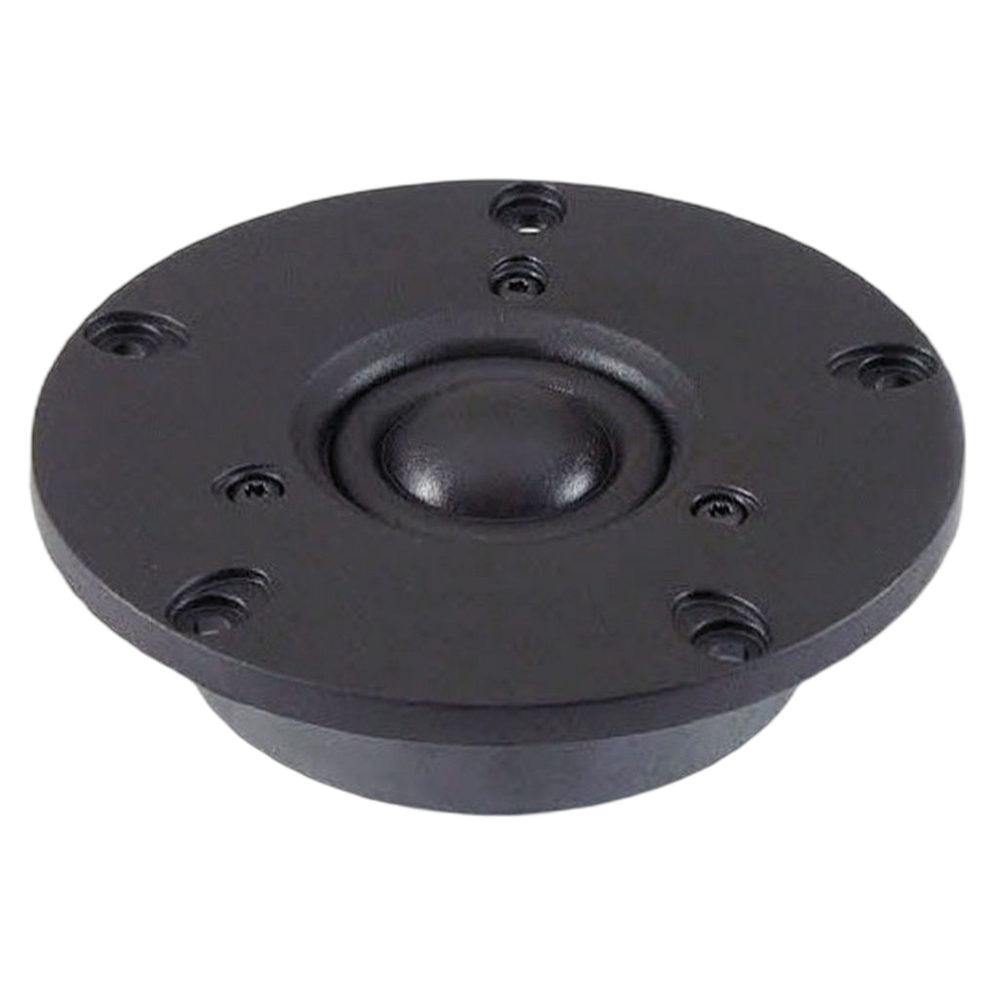

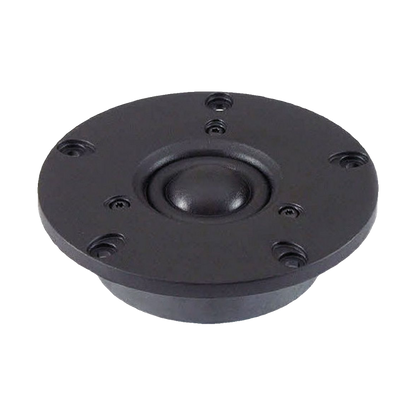

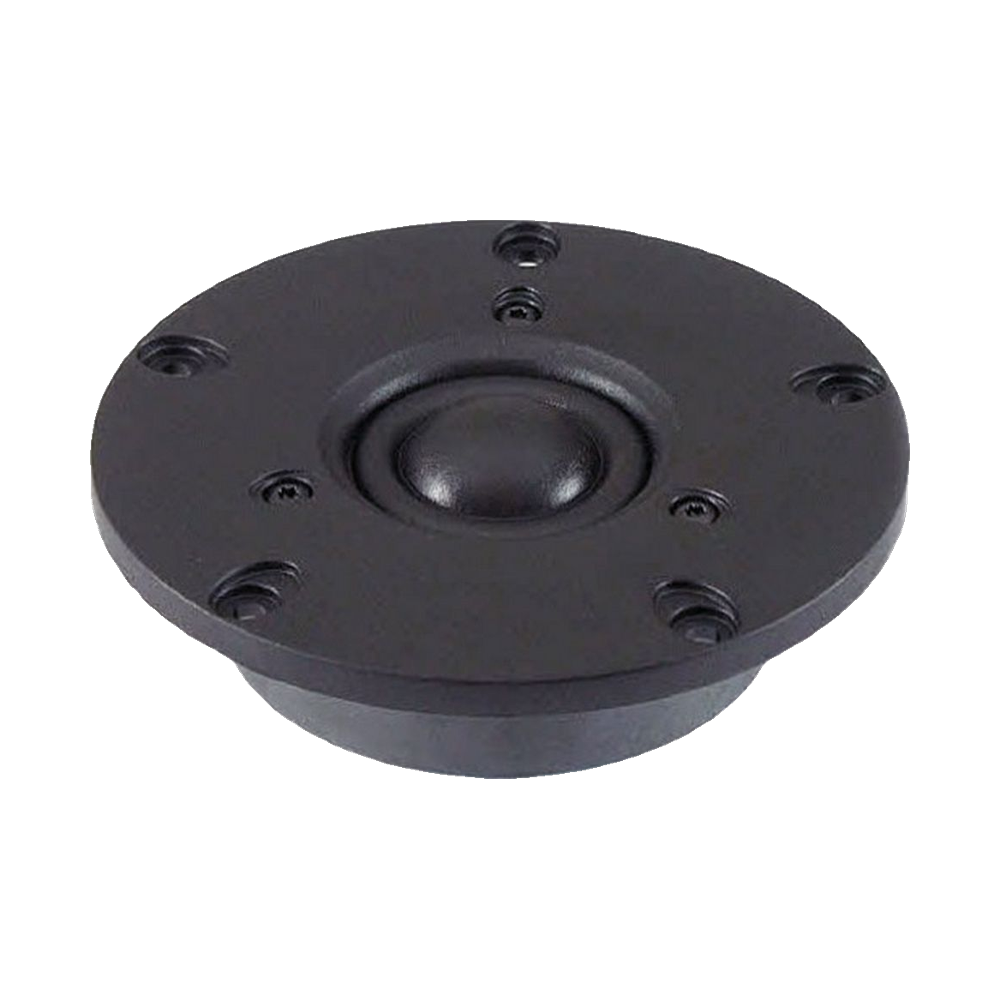

Scan-Speak - 1" Discovery Dome Tweeter - D2604/830000
Scan-Speak - 1" Discovery Dome Tweeter - D2604/830000
Regular price
$74.95
Regular price
Sale price
$74.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Extended high frequency response and good off-axis performance Specially treated lightweight silk fabric diaphragm dome Oversized surround structure. Copper-clad aluminium wire. A critically damped rear chamber. 5 hole poly faceplate.
Features
- High sensitivity - 92dB
- Extended Frequency to Above 30KHz
- Low Resonance Frequency - 630Hz
- Low Distortion
- Wide Dispersion
- Textile Diaphragm, Wide Surround
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 4Ω |
| Series | Discovery |
| Power handling (RMS) | 100 W |
| Power handling (program) | 240 W |
| Sensitivity | 92.1 dB |
| Frequency range | 2,500 – 20,000 Hz |
| Recommended crossover | 2. order HP Butterworth, 2.5 kHz |
Thiele/Small parameters
| Resonant frequency (Fs) | 630 Hz |
|---|---|
| DC resistance (Re) | 2.8 Ω |
| Minimum impedance (Zmin) | 3.7 Ω |
| Voice coil inductance (Le) | 0.04 mH |
| Mechanical Q (Qms) | 3.46 |
| Electrical Q (Qes) | 1.02 |
| Total Q (Qts) | 0.79 |
| Equivalent volume (Vas) | 0.01 L |
| Compliance (Cms) | 0.15 mm/N |
| Moving mass (Mms) | 0.42 g |
| Mechanical resistance (Rms) | 0.48 kg/s |
| Force factor (Bl) | 2.2 T·m |
| Effective piston area (Sd) | 8 cm² |
| Linear excursion (Xmax, one-way) | 0.3 mm |
| Mechanical excursion (Xmech) | 1.6 mm |
| Efficiency bandwidth product (EBP) | 617.6 |
| Effective piston diameter (D) | 32 mm |
| Impedance at resonance (Zo) | 12.3 Ω |
Motor
| Voice coil height | 2 mm |
|---|---|
| Air gap height | 2.5 mm |
| Voice coil layers | 2 |

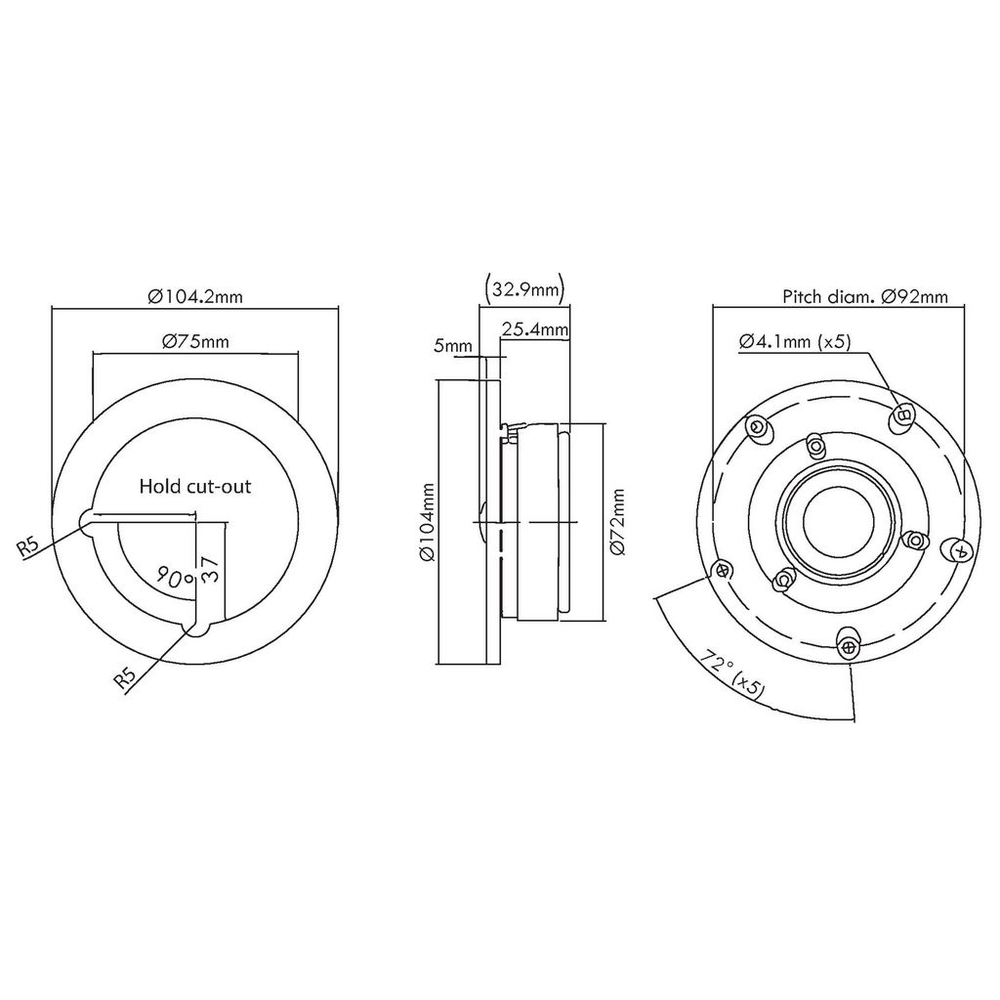

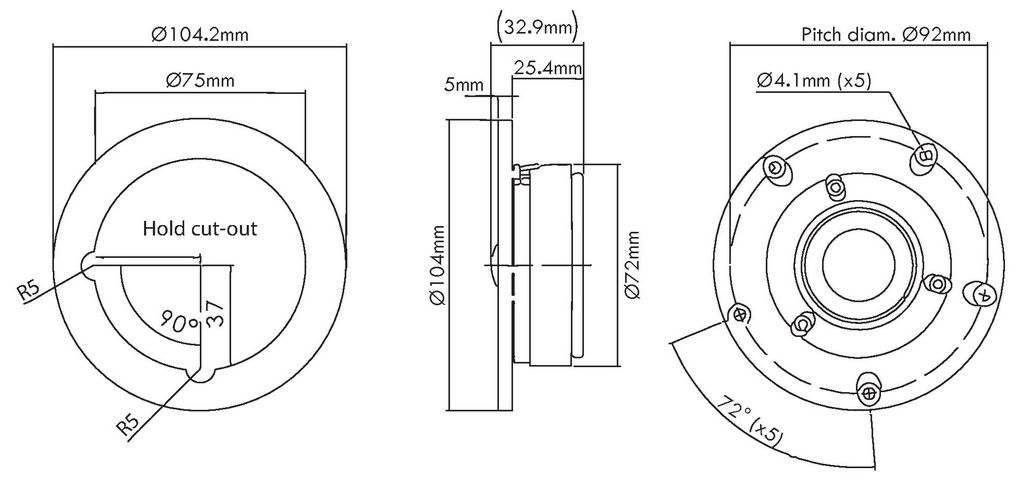

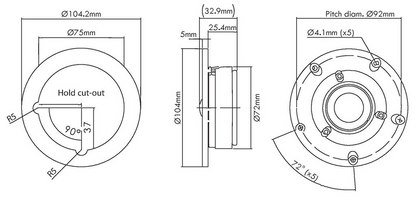

Mounting
| Overall diameter | 104 mm |
|---|---|
| Mounting depth | 25.4 mm |
| Flange thickness | 5 mm |
| Bolt circle diameter | 92 mm |
| Mounting holes | 5 |
| Mounting hole diameter | 4.2 mm |
| Volume displaced by driver | 0.1 L |
| Voice coil diameter | 26 mm |
| Weight | 0.5 kg |
Materials
| Cone | Textile |
|---|---|
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
