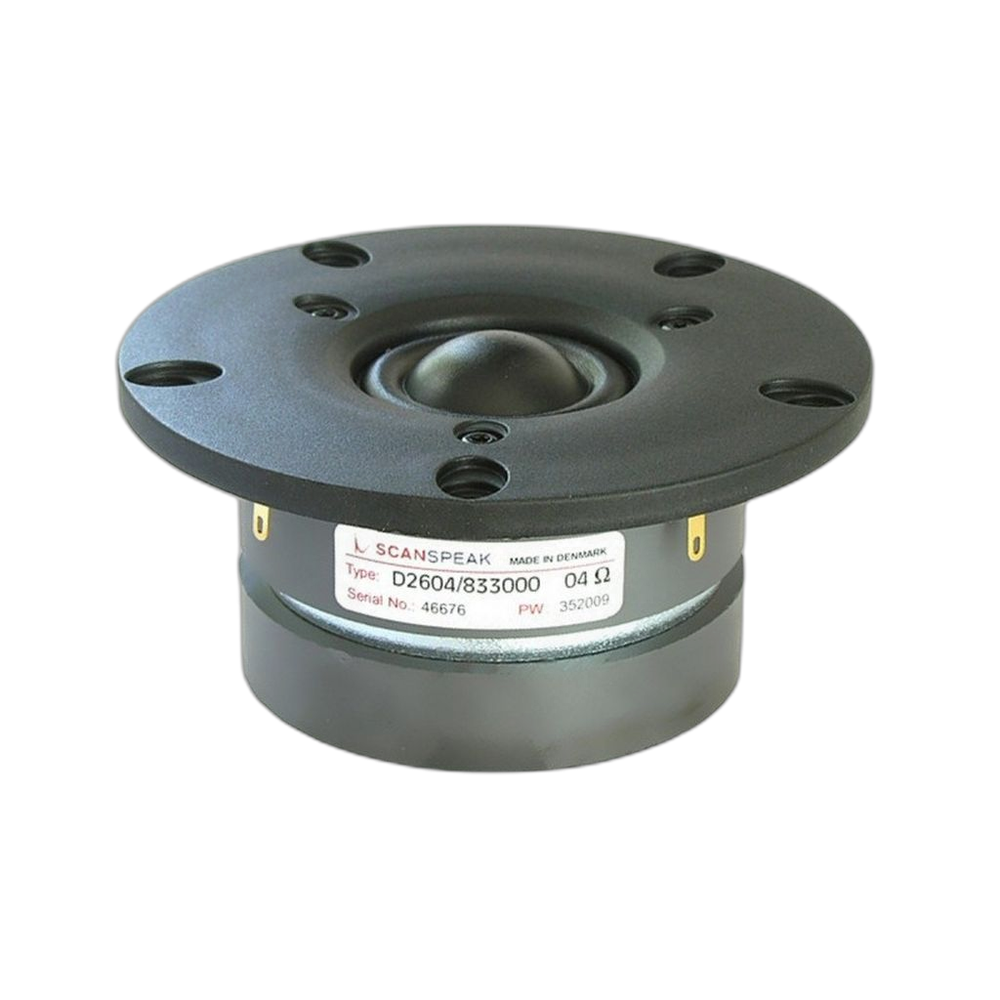

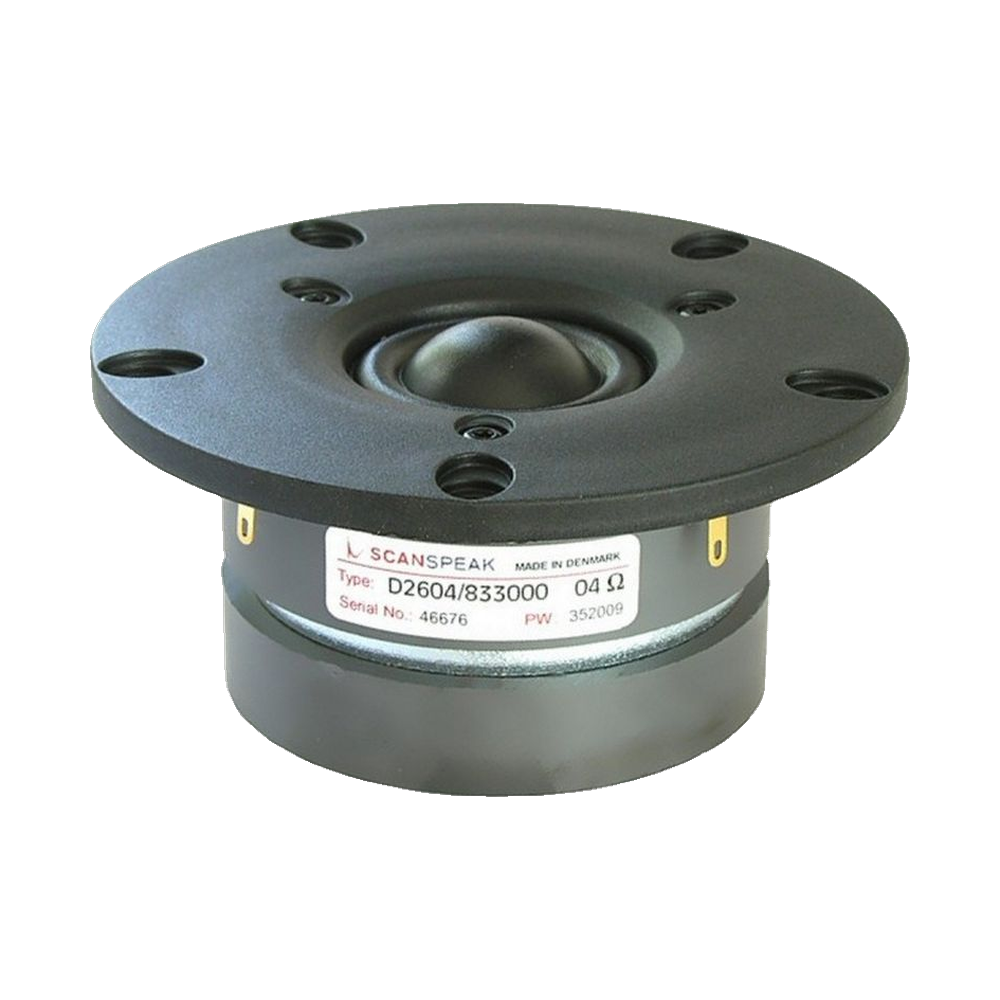

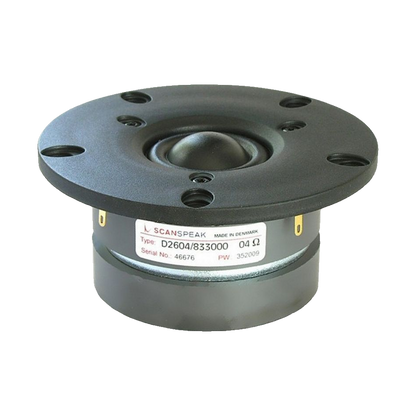

Scan-Speak - 1" Discovery Dome Tweeter - D2604/833000
Scan-Speak - 1" Discovery Dome Tweeter - D2604/833000
Regular price
$88.95
Regular price
Sale price
$88.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonably low price point.
Features
- High sensitivity - 93dB
- Extended Frequency to Above 40KHz
- Low Resonance Frequency - 475Hz
- Low Distortion
- Wide Dispersion
- Textile Diaphragm, wide Surround
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 4Ω |
| Series | Discovery |
| Power handling (RMS) | 100 W |
| Power handling (program) | 240 W |
| Sensitivity | 93 dB |
| Frequency range | 2,500 – 20,000 Hz |
| Recommended crossover | 2. order HP Butterworth, 2.5 kHz |
Thiele/Small parameters
| Resonant frequency (Fs) | 475 Hz |
|---|---|
| DC resistance (Re) | 2.8 Ω |
| Minimum impedance (Zmin) | 3.8 Ω |
| Voice coil inductance (Le) | 0.04 mH |
| Mechanical Q (Qms) | 2.55 |
| Electrical Q (Qes) | 0.71 |
| Total Q (Qts) | 0.55 |
| Equivalent volume (Vas) | 0.02 L |
| Compliance (Cms) | 0.27 mm/N |
| Moving mass (Mms) | 0.42 g |
| Mechanical resistance (Rms) | 0.49 kg/s |
| Force factor (Bl) | 2.2 T·m |
| Effective piston area (Sd) | 8 cm² |
| Linear excursion (Xmax, one-way) | 0.3 mm |
| Mechanical excursion (Xmech) | 1.6 mm |
| Efficiency bandwidth product (EBP) | 669 |
| Effective piston diameter (D) | 32 mm |
| Impedance at resonance (Zo) | 12.9 Ω |
Motor
| Voice coil height | 2 mm |
|---|---|
| Air gap height | 2.5 mm |
| Voice coil layers | 2 |

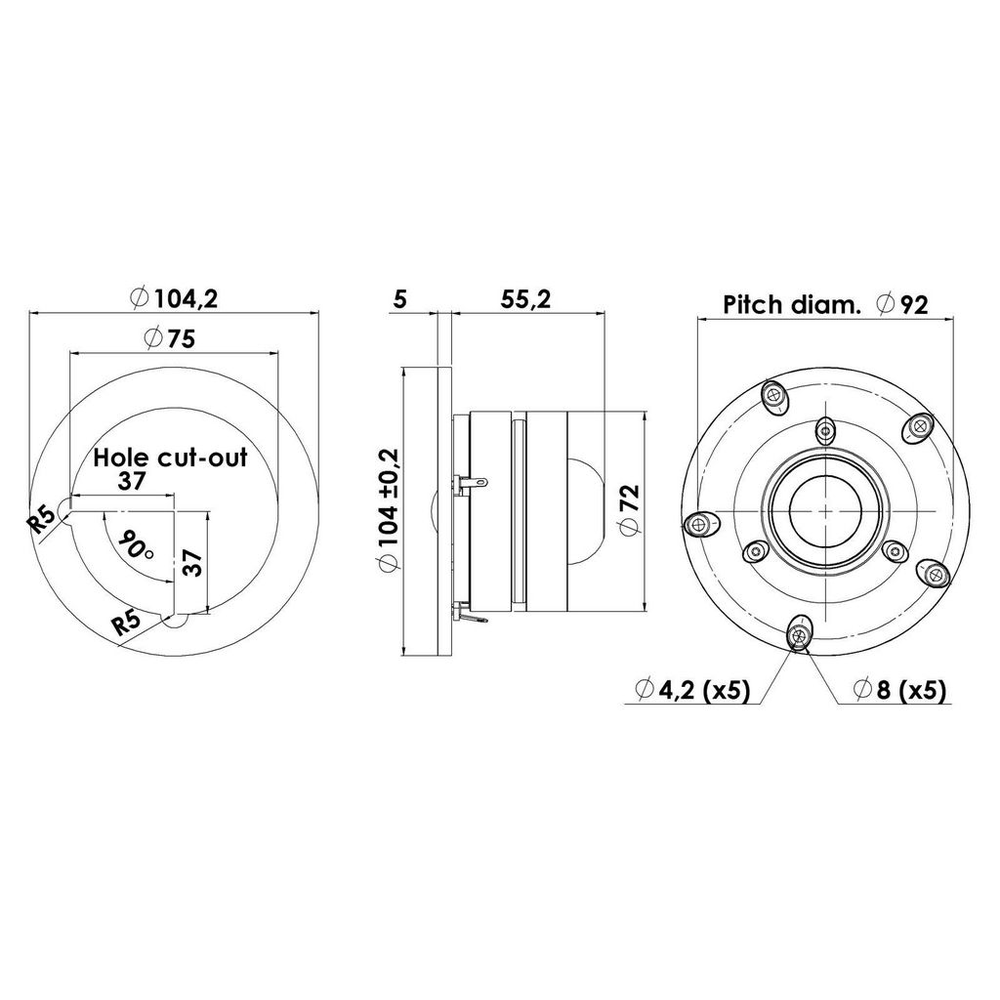

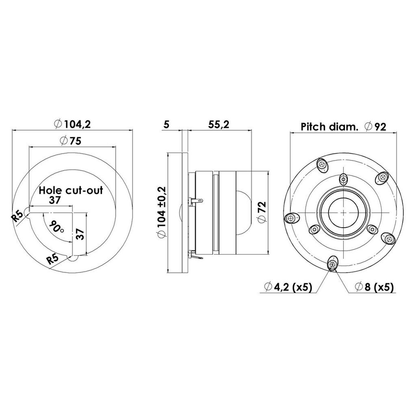

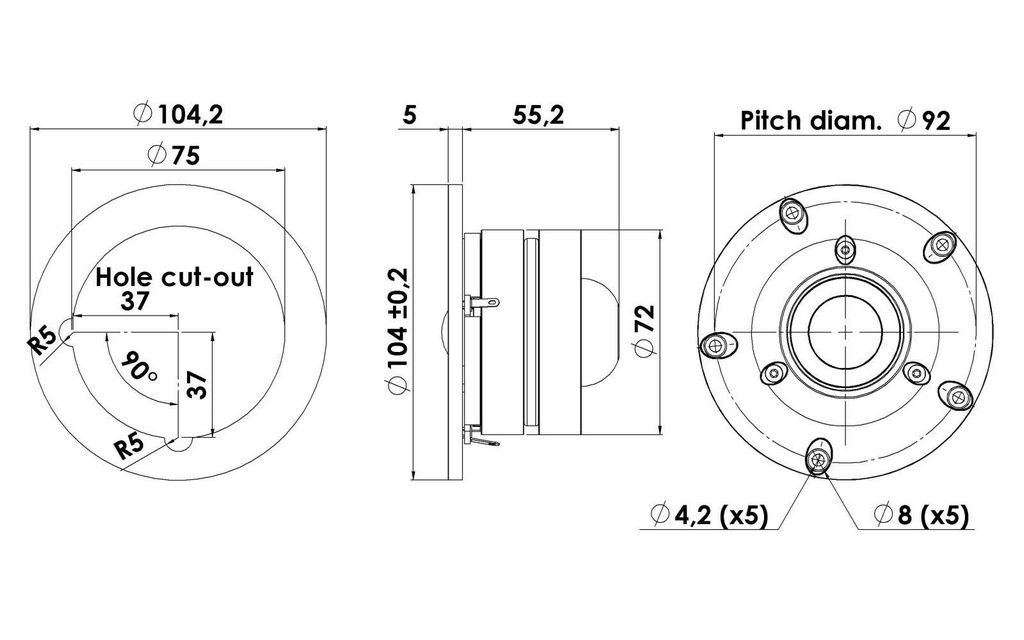

Mounting
| Overall diameter | 104 mm |
|---|---|
| Mounting depth | 55 mm |
| Flange thickness | 5 mm |
| Bolt circle diameter | 92 mm |
| Mounting holes | 5 |
| Mounting hole diameter | 4.2 mm |
| Volume displaced by driver | 0.18 L |
| Voice coil diameter | 26 mm |
| Weight | 0.8 kg |
Materials
| Cone | Textile |
|---|---|
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
