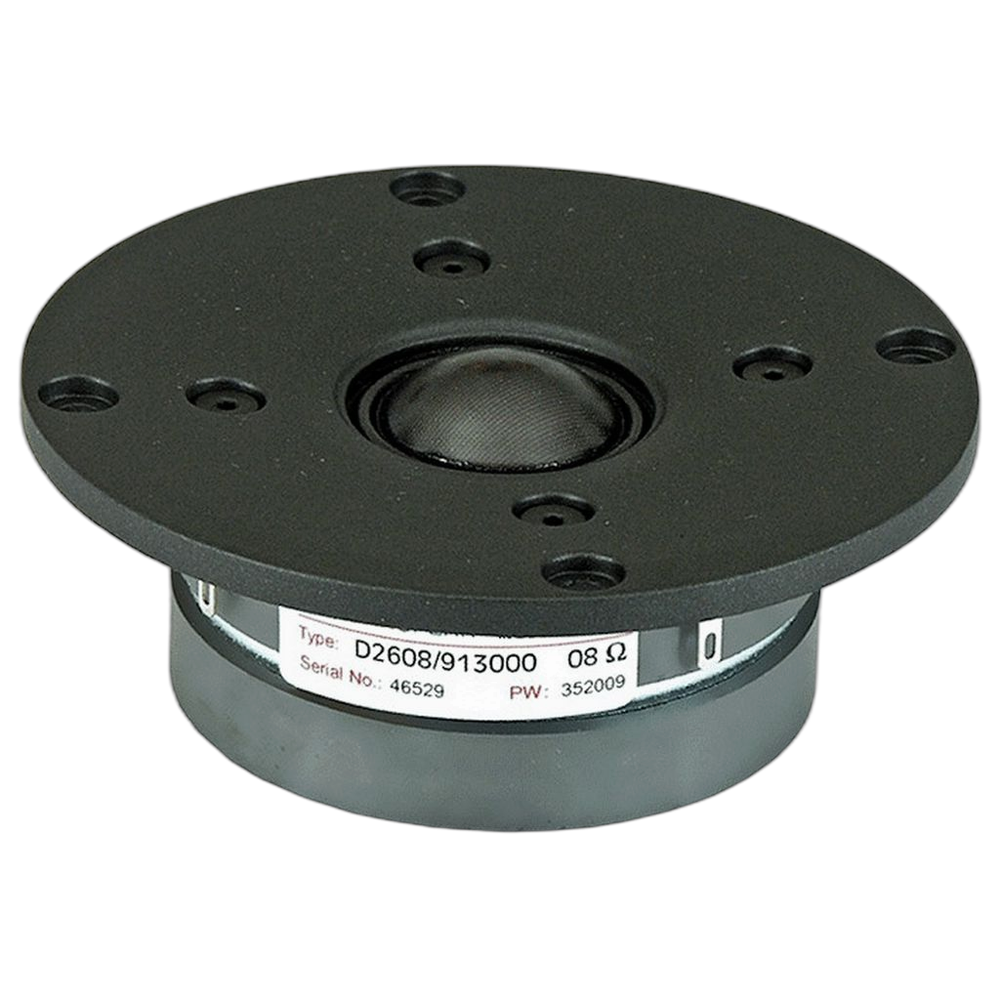

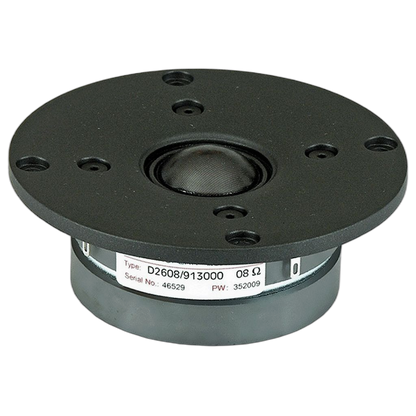

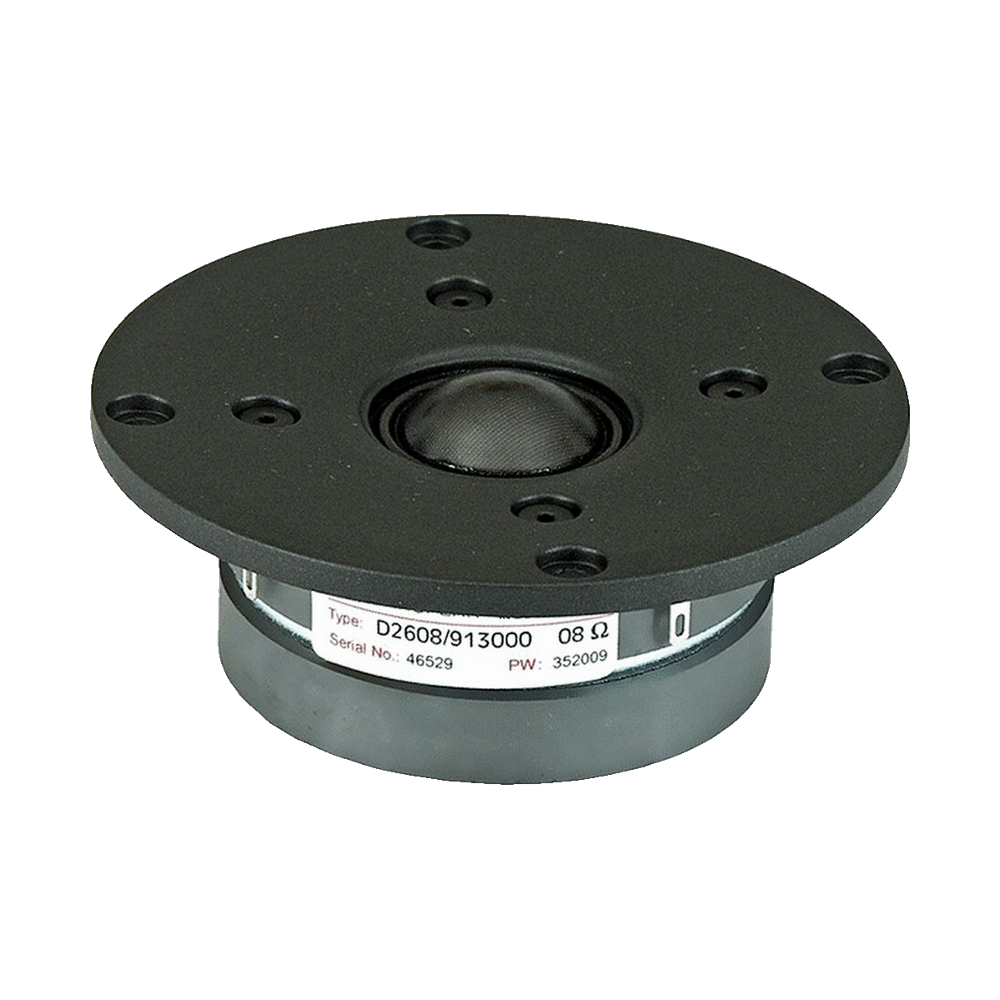

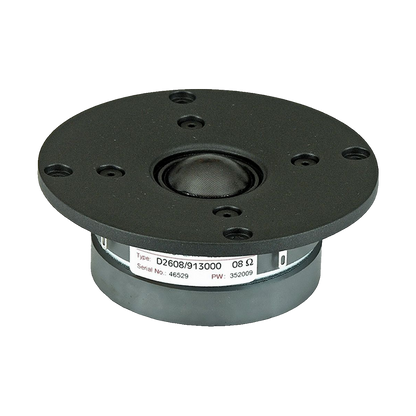

Scan-Speak - 1" Discovery Dome Tweeter - D2608/913000
Scan-Speak - 1" Discovery Dome Tweeter - D2608/913000
Regular price
$154.95
Regular price
Sale price
$154.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Very light, low mass soft dome diaphragm with high internal damping in a Highly optimised, low compression, vented magnet system especially to suit. This design allows use with a lower than normal crossover frequency point. Double magnet. High efficiency. Magnetic fluid. Die cast aluminium facia. Excellent entertainment system performer suitable for a large range of purposes.
Features
- Very low mass soft dome diaphragm
- Optimised Magnet System with Double magnets
- Ferrofluid
- Fully Vented Motor System for Low compression
- Low resonance Frequency
- Black Die-Cast Aluminium Face Plate
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 8Ω |
| Series | Discovery |
| Power handling (RMS) | 80 W |
| Power handling (program) | 400 W |
| Sensitivity | 91.3 dB |

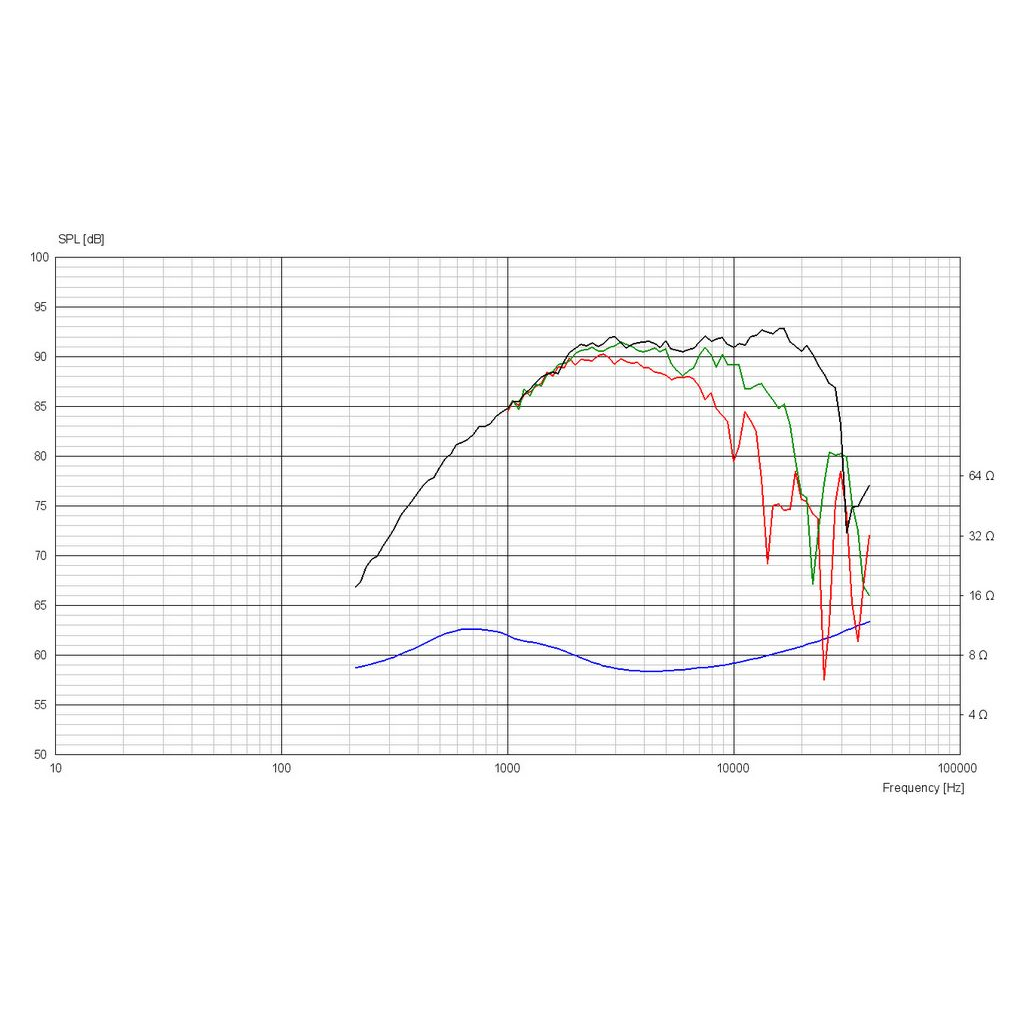

| Frequency range | 3,500 – 20,000 Hz |
| Recommended crossover | 2. order HP Butterworth, 4 kHz |
Thiele/Small parameters
| Resonant frequency (Fs) | 700 Hz |
|---|---|
| DC resistance (Re) | 5.6 Ω |
| Minimum impedance (Zmin) | 6.6 Ω |
| Voice coil inductance (Le) | 0.04 mH |
| Mechanical Q (Qms) | 0.51 |
| Electrical Q (Qes) | 0.65 |
| Total Q (Qts) | 0.29 |
| Equivalent volume (Vas) | 0.02 L |
| Compliance (Cms) | 0.29 mm/N |
| Moving mass (Mms) | 0.18 g |
| Mechanical resistance (Rms) | 1.54 kg/s |
| Force factor (Bl) | 2.6 T·m |
| Effective piston area (Sd) | 7 cm² |
| Linear excursion (Xmax, one-way) | 0.5 mm |
| Displacement volume (Vd) | 0.35 cm³ |
| Efficiency bandwidth product (EBP) | 1,077 |
| Effective piston diameter (D) | 30 mm |
| Impedance at resonance (Zo) | 10 Ω |
Motor
| Voice coil height | 1.5 mm |
|---|---|
| Air gap height | 2.5 mm |
| Voice coil layers | 2 |

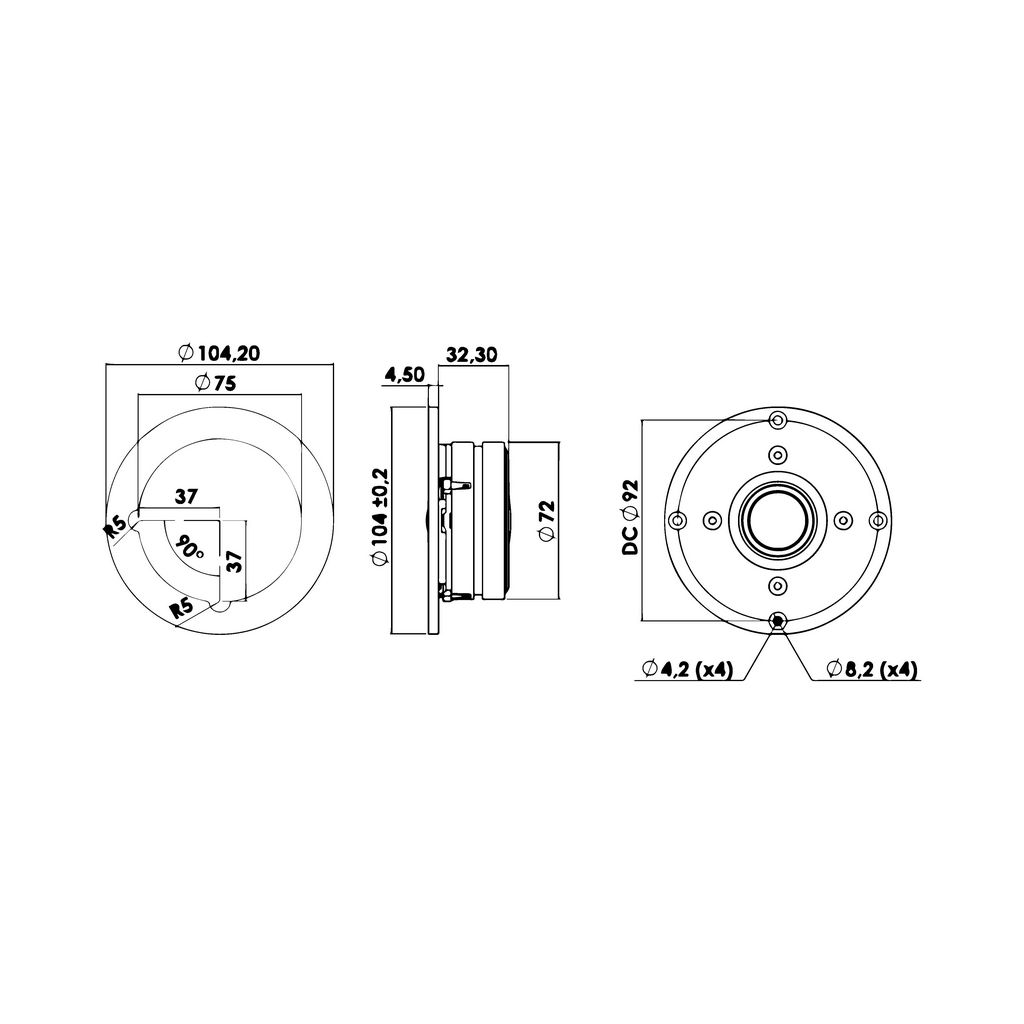

Mounting
| Overall diameter | 104 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 73.0 mm |
| Mounting depth | 33.1 mm |
| Flange thickness | 4.5 mm |
| Bolt circle diameter | 92 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4.2 mm |
| Volume displaced by driver | 0.13 L |
| Voice coil diameter | 26 mm |
| Weight | 0.7 kg |
Materials
| Magnet | Ferrite |
|---|
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
