Scan-Speak

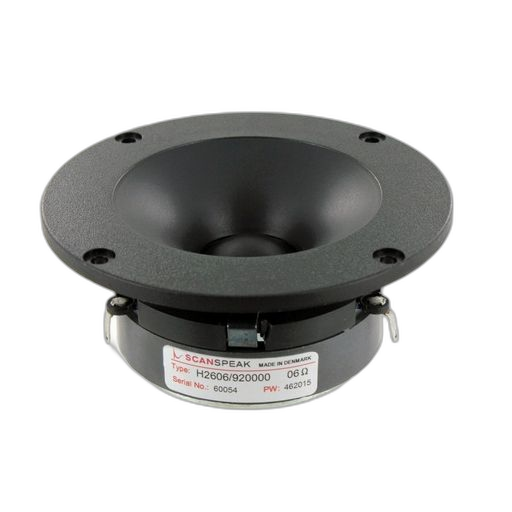

Scan-Speak - 1" Dome Tweeter Horn Discovery - H2606/920000
Scan-Speak - 1" Dome Tweeter Horn Discovery - H2606/920000
Regular price
$68.95 AUD
Regular price
Sale price
$68.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description:
The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point.
Features:
- Horn Loaded High Sensitivity Tweeter
- High Stability
- Low Damping Ferrofluid Cooling
- High Performance Tweeter
- Coated Textile Diaphragm
- Dampened Cavity in Pole Piece
Specifications:
Code | H2606/920000 |
Description | 26mm Horn Dome Tweeter 6 ohm, Ferrite Magnet |
Impedance | 6Ω (Re 5.0Ω) |
Power | 100Wrms |
Sens. | 95.2dB |
Fs | 1030Hz |
Qes | 1.2 |
Qms | 2.1 |
Qts | 0.7 |
Cms | - |
Coil | 25mmØ |
Depth | 45mm |
Impedance (Ohm) | 6 ohm |
Le | 0.05mH |
Mag. | 0.6kg |
Mms | 0.4g |
Power (RMS) | 51-100 Watt |
Re | 5.0Ω |
Rms | 1.3kg/s |
Sd | 5.7cm² |
Size | 1" |
Type | Tweeter |
Width | 104mm |
Zn | 6Ω |
Manufacturer | Scan-speak |
Series | Discovery |
