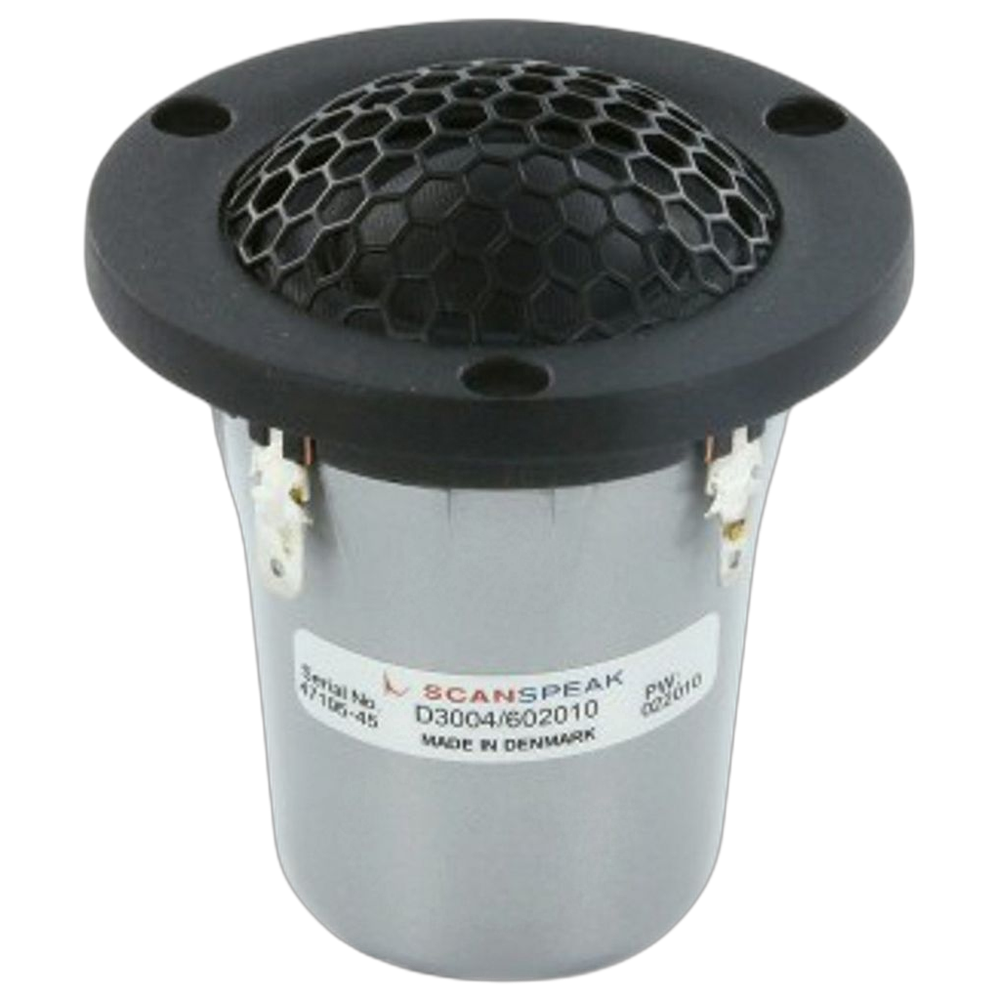

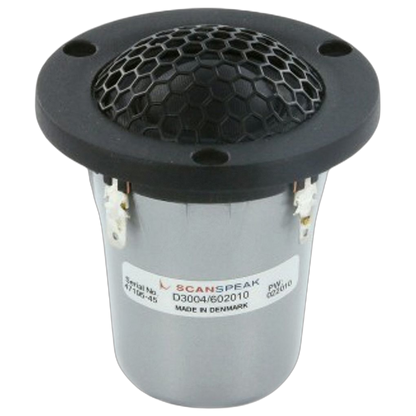

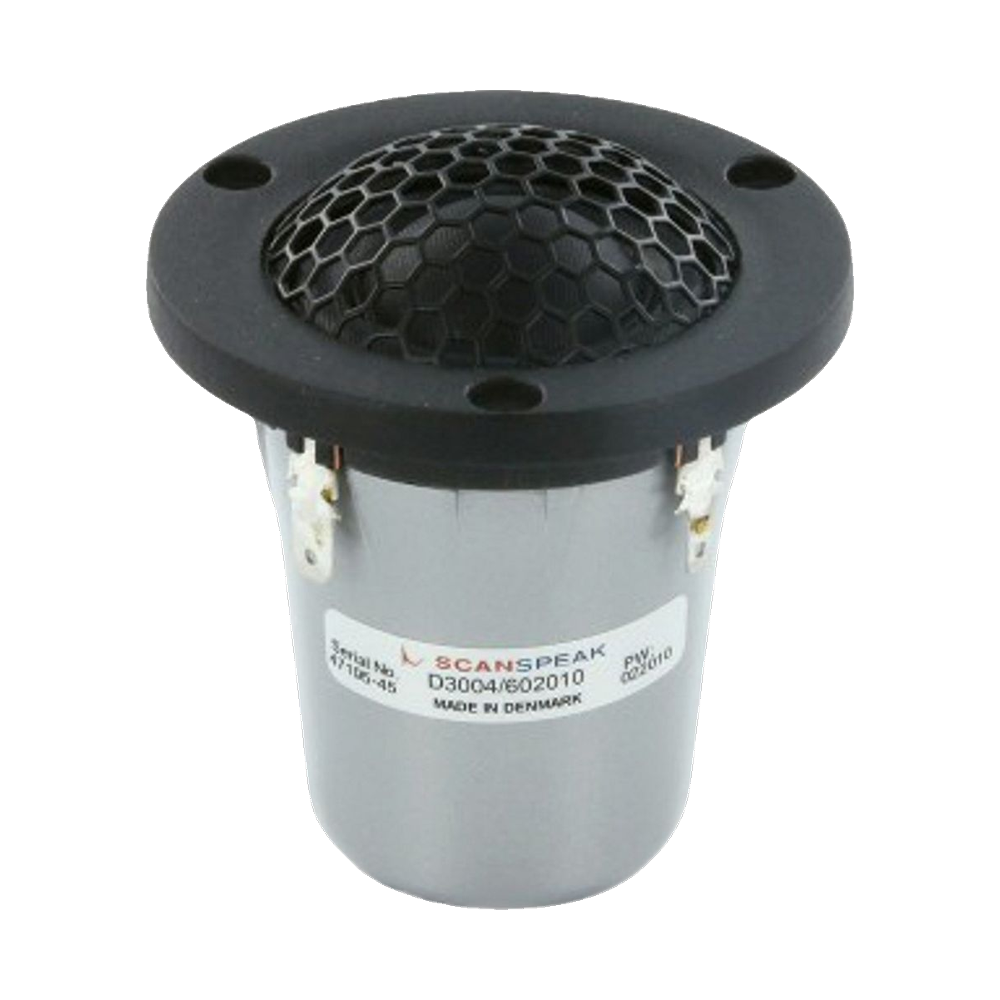

Scan-Speak - 1" Illuminator Dome Tweeter - D3004/602010
Scan-Speak - 1" Illuminator Dome Tweeter - D3004/602010
Regular price
$209.95 AUD
Regular price
Sale price
$209.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
***Discontinued by Scan-Speak: available while stock lasts.***
Description
The face plates are die cast in aluminium for a beautiful modern look and maximum mechanical stability. Optimised to offer a small package that can fit into tight spaces such as compact cabinets & automotive trim. Protective grille. Ring neodymium magnet. Deep chamber for lower resonance die cast in aluminium and designed with a contoured shape for heat sinking Exceptional monitor quality sound and all-round versatile tweeter package.
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 4Ω |
| Series | Illuminator |
| Power handling (RMS) | 50 W |
| Sensitivity | 89.6 dB |
Thiele/Small parameters
| Resonant frequency (Fs) | 425 Hz |
|---|---|
| DC resistance (Re) | 3 Ω |
| Voice coil inductance (Le) | 0.02 mH |
| Mechanical Q (Qms) | 2.5 |
| Electrical Q (Qes) | 0.97 |
| Total Q (Qts) | 0.7 |
| Equivalent volume (Vas) | 0.03 L |
| Compliance (Cms) | 0.4 mm/N |
| Moving mass (Mms) | 0.35 g |
| Mechanical resistance (Rms) | 0.4 kg/s |
| Force factor (Bl) | 1.7 T·m |
| Effective piston area (Sd) | 7 cm² |
| Efficiency bandwidth product (EBP) | 438.1 |

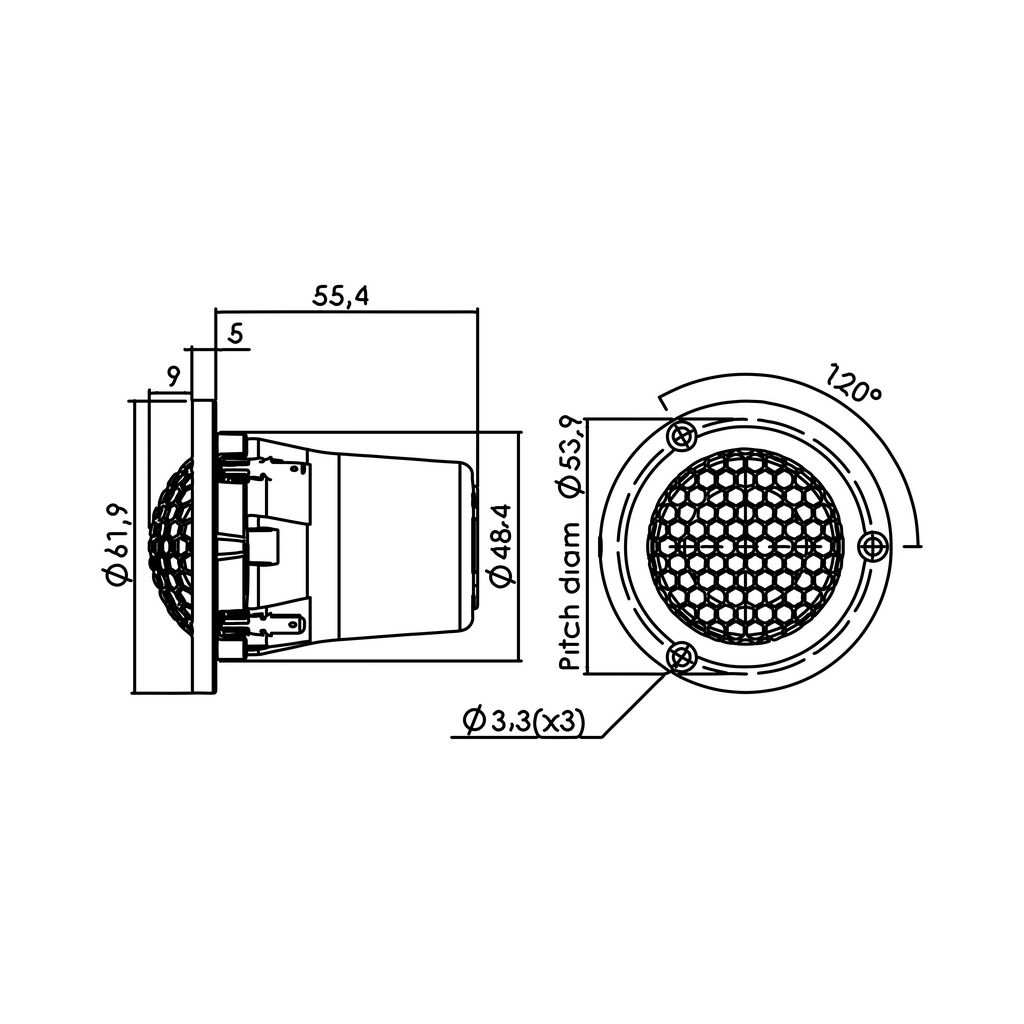

Mounting
| Overall diameter | 62 mm |
|---|---|
| Voice coil diameter | 26 mm |
| Weight | 0.2 kg |
| Width | 61.9 mm |
