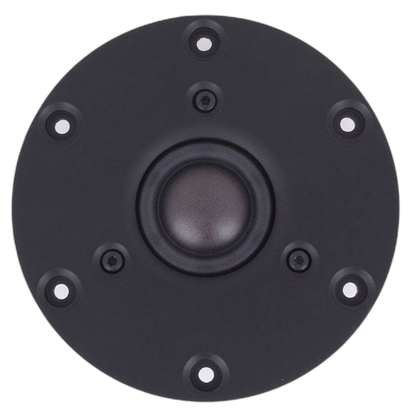

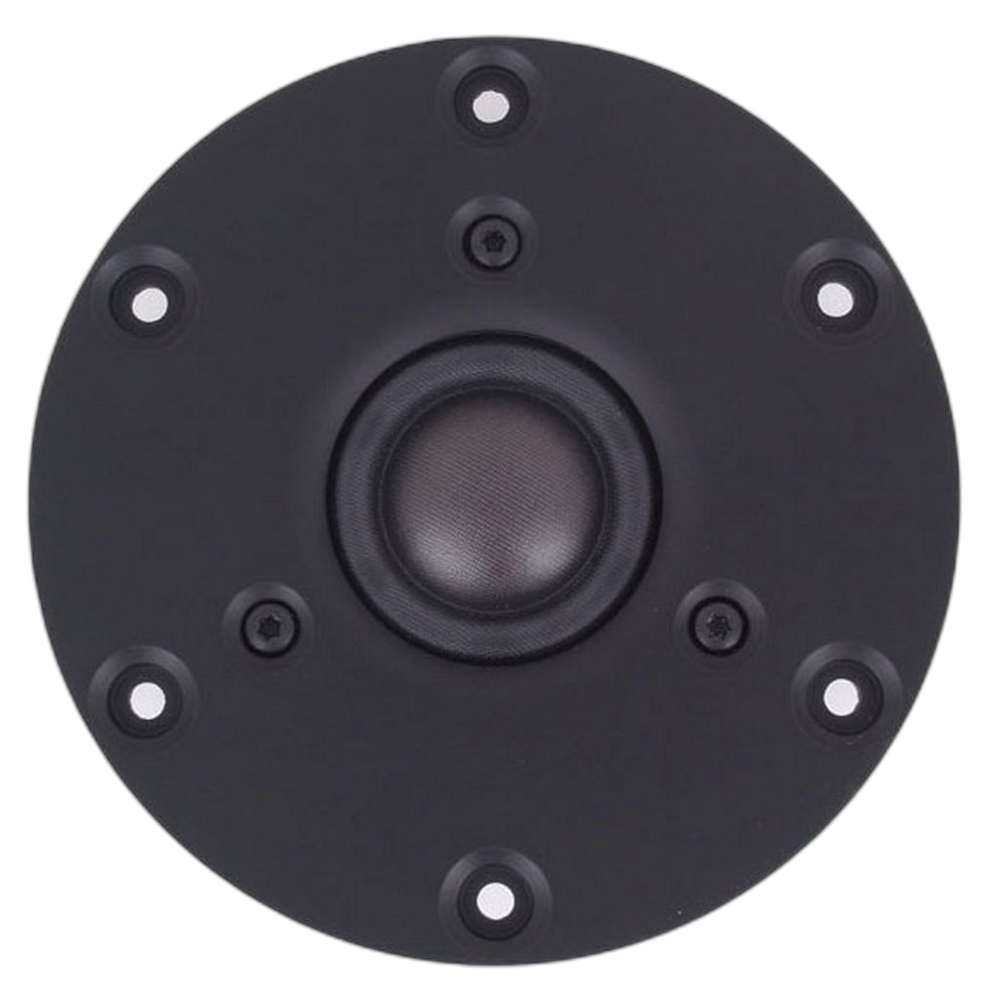

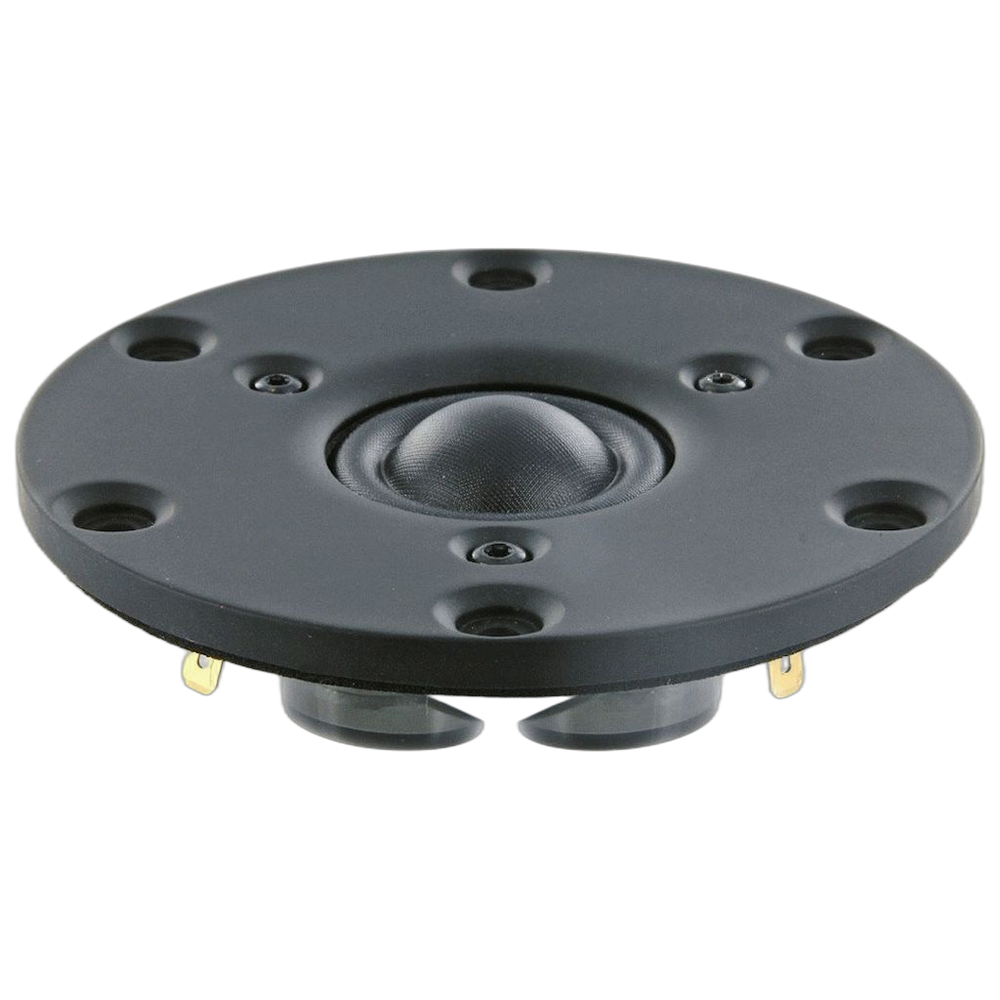

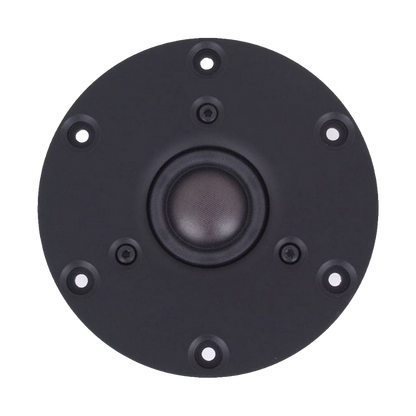

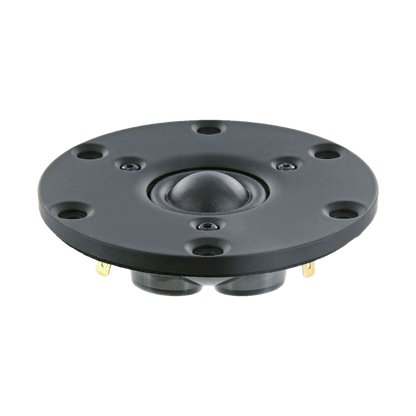

26mm Dome Tweeter 4ohm, Neo, AirCirc

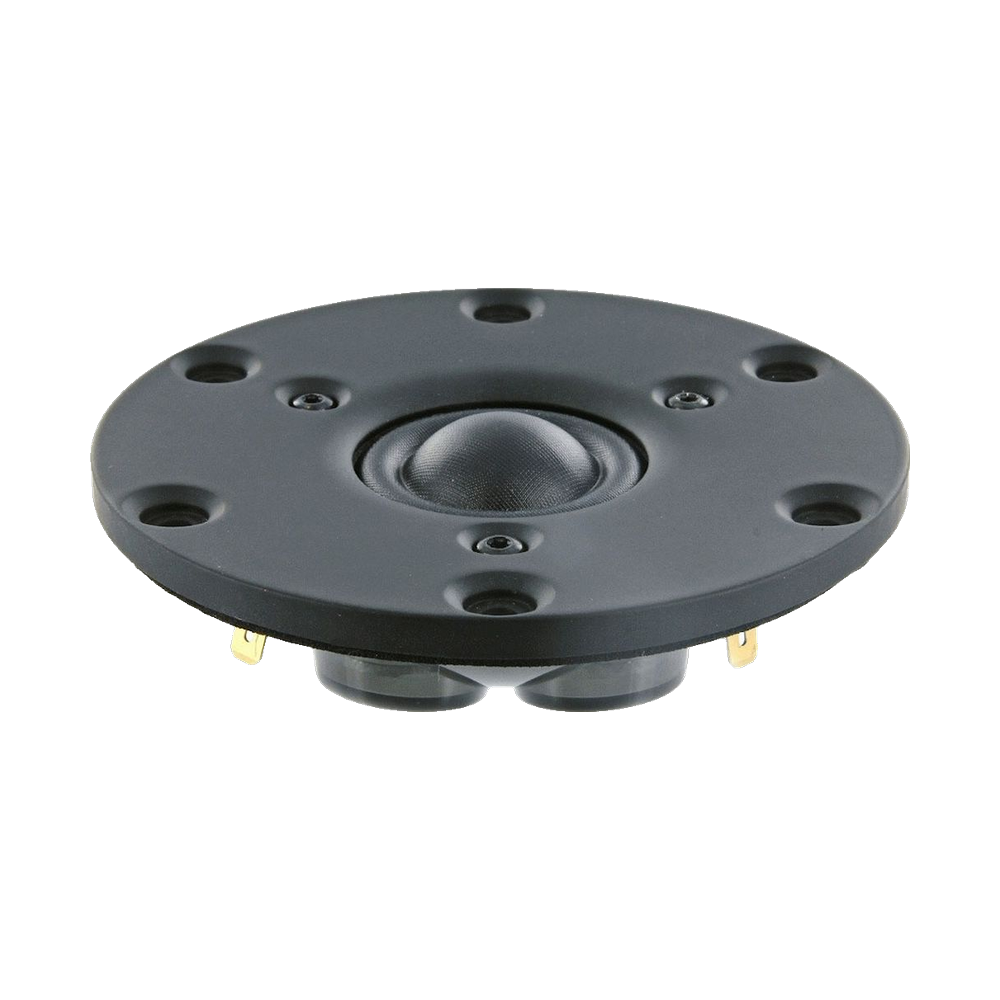

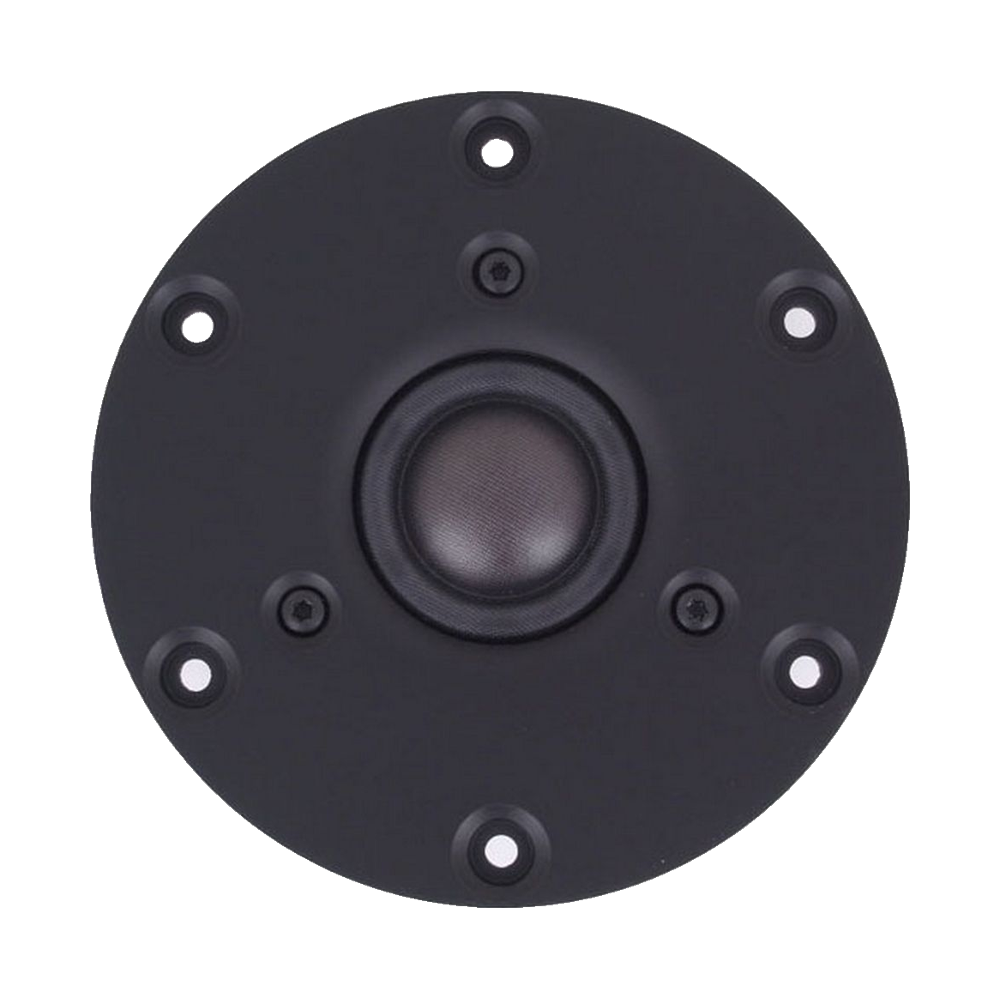

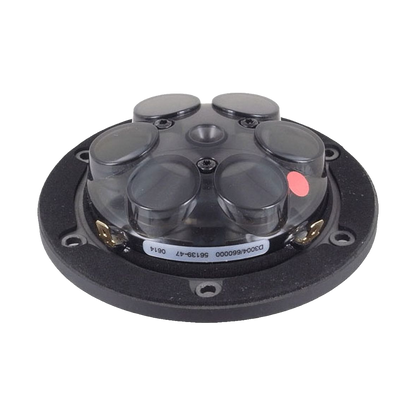

The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. Its large roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The unique AirCirc Magnet System, and its rear chamber, results in elimination of reflections and resonances that compromise the performance of traditional motors.
Features
- 1" Textile Dome Diaphragm
- Large Roll Surround f. Wide Dispersion
- Patented Symmetrical Drive (SD-2) motor

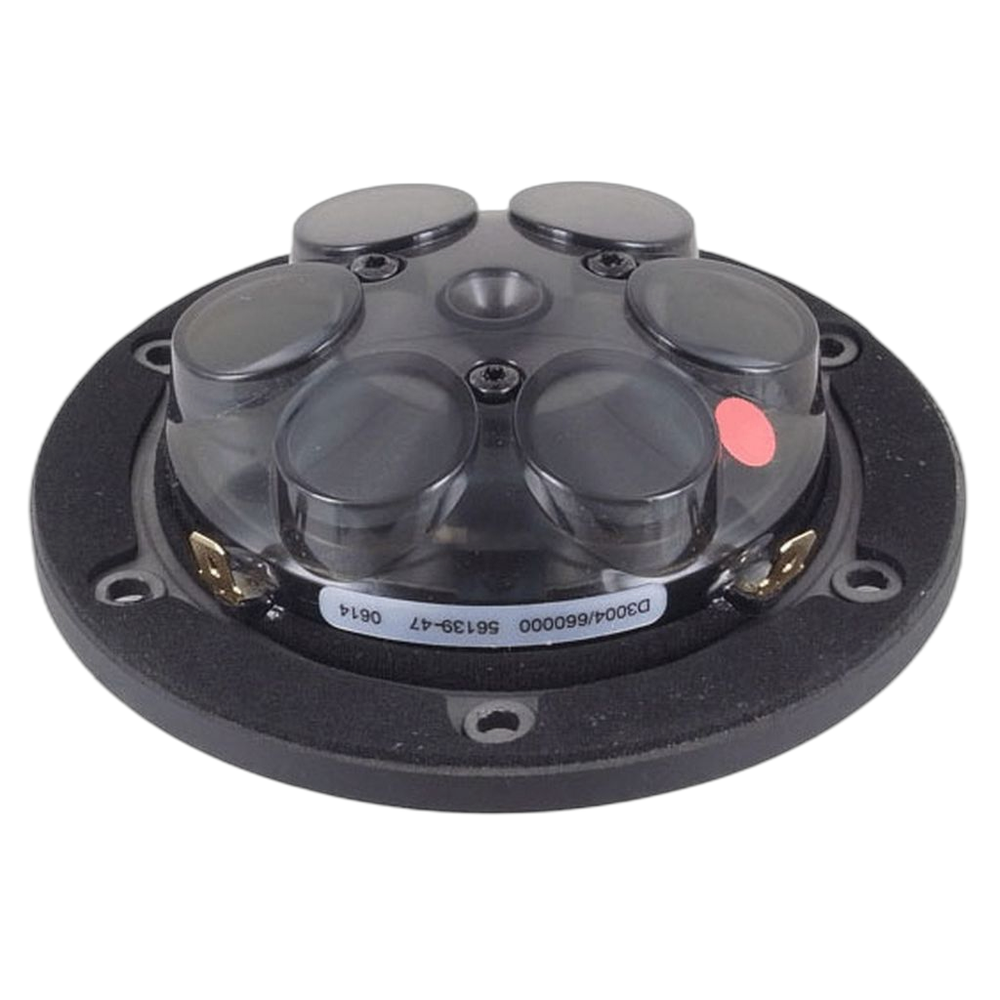

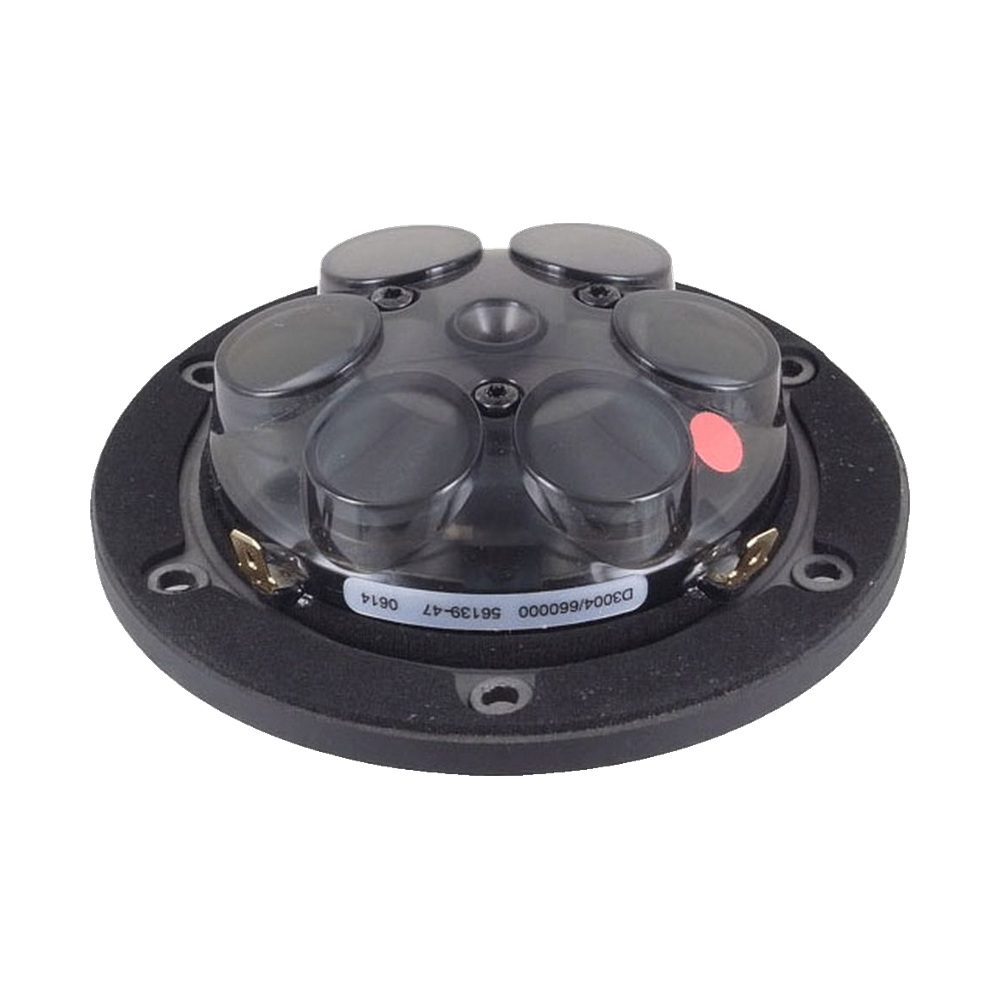

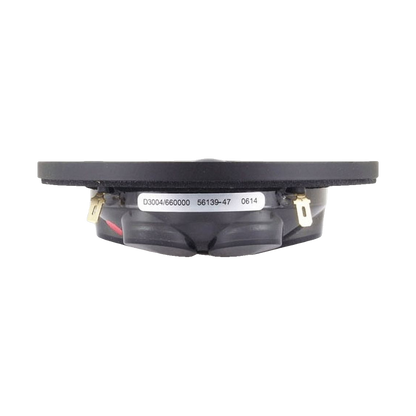

- AirCirc Motor Design w. 6 Neo magnets
- Die Cast Rubber Painted Alu Face Plate
Specifications
Specifications
General

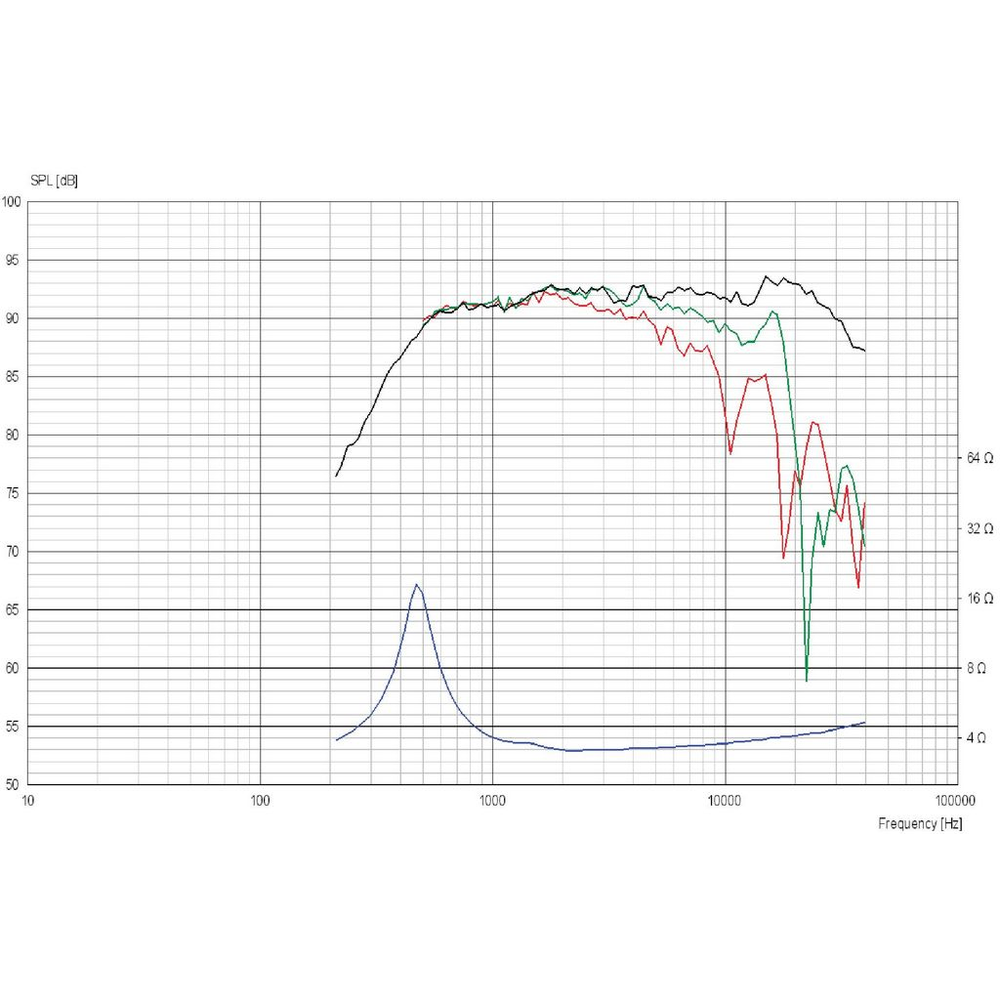

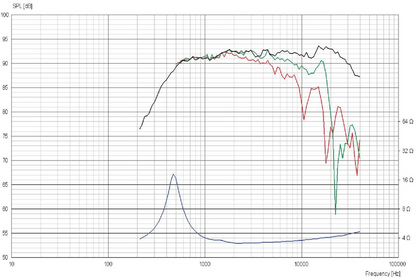

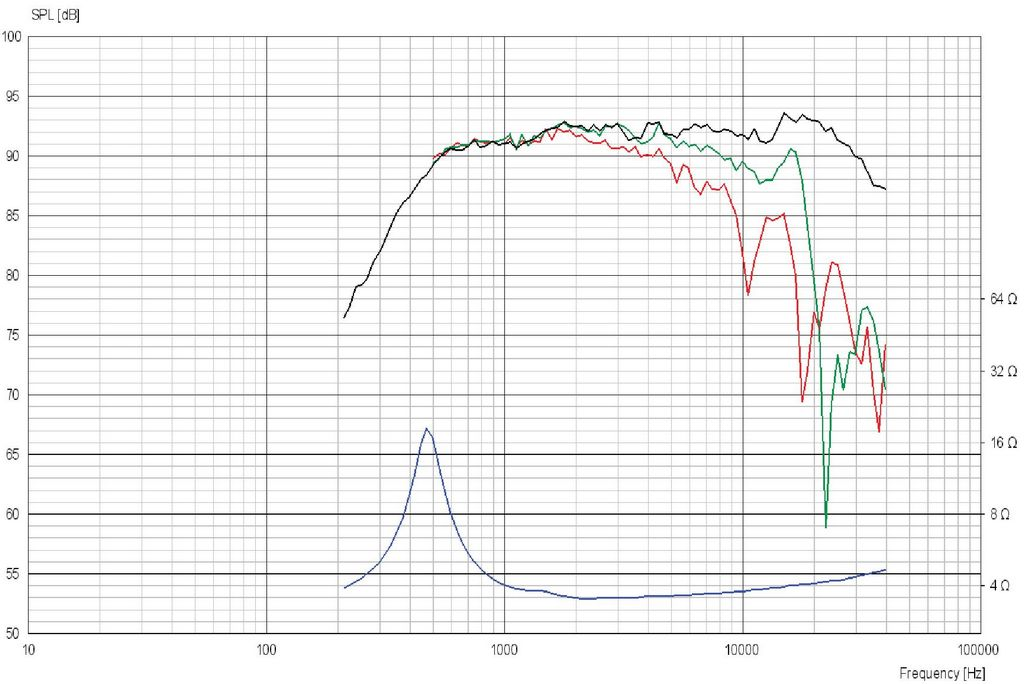

| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 4Ω |
| Series | Illuminator |
| Power handling (RMS) | 90 W |
| Power handling (program) | 150 W |
| Sensitivity | 91.6 dB |
| Frequency range | 2,500 – 30,000 Hz |
| Recommended crossover | 2. order HP Butterworth, 2.5 kHz |
Thiele/Small parameters
| Resonant frequency (Fs) | 470 Hz |
|---|---|
| DC resistance (Re) | 3 Ω |
| Minimum impedance (Zmin) | 3.5 Ω |
| Voice coil inductance (Le) | 0.03 mH |
| Mechanical Q (Qms) | 3 |
| Electrical Q (Qes) | 0.59 |
| Total Q (Qts) | 0.49 |
| Equivalent volume (Vas) | 0.02 L |
| Compliance (Cms) | 0.33 mm/N |
| Moving mass (Mms) | 0.35 g |
| Mechanical resistance (Rms) | 0.3 kg/s |
| Force factor (Bl) | 2.3 T·m |
| Effective piston area (Sd) | 6.9 cm² |
| Linear excursion (Xmax, one-way) | 0.2 mm |
| Mechanical excursion (Xmech) | 1.6 mm |
| Displacement volume (Vd) | 0.138 cm³ |
| Efficiency bandwidth product (EBP) | 796.6 |
| Effective piston diameter (D) | 30 mm |
| Impedance at resonance (Zo) | 18.4 Ω |
Motor
| Voice coil height | 2 mm |
|---|---|
| Air gap height | 2.5 mm |
| Voice coil layers | 2 |
Mounting

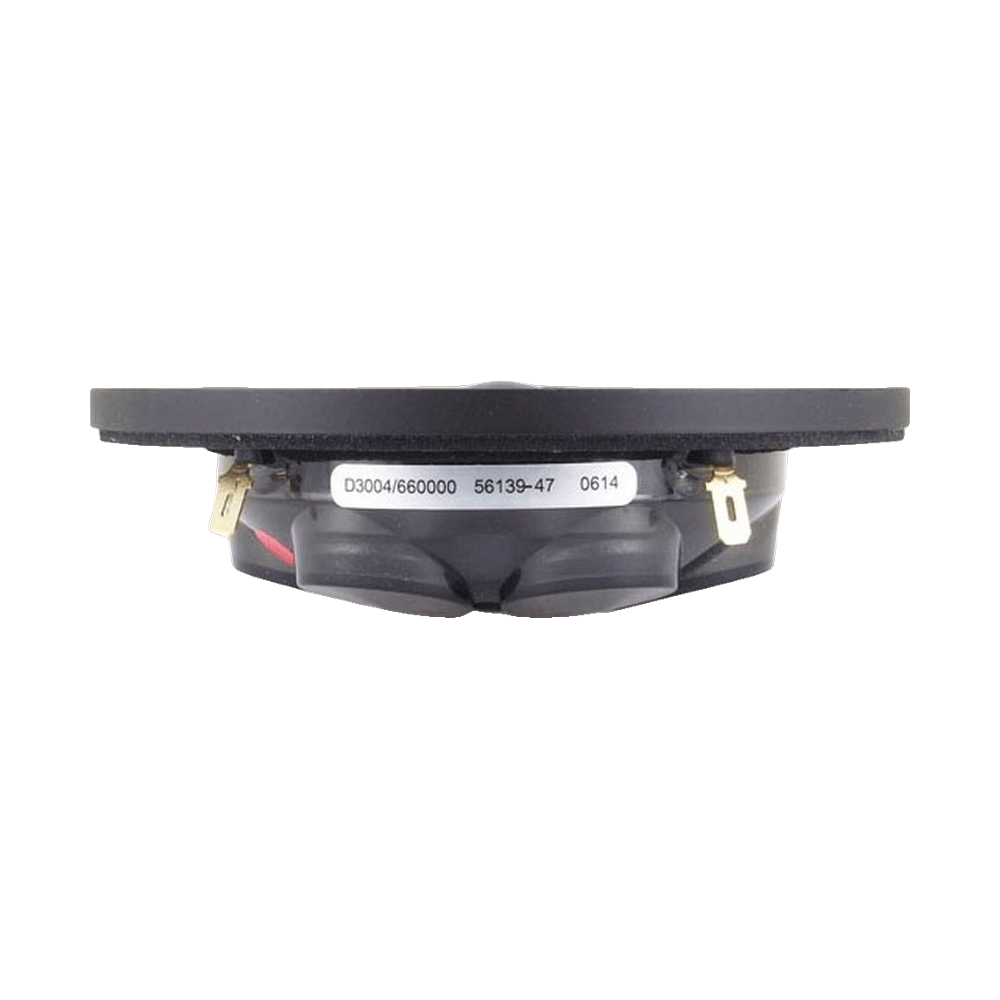

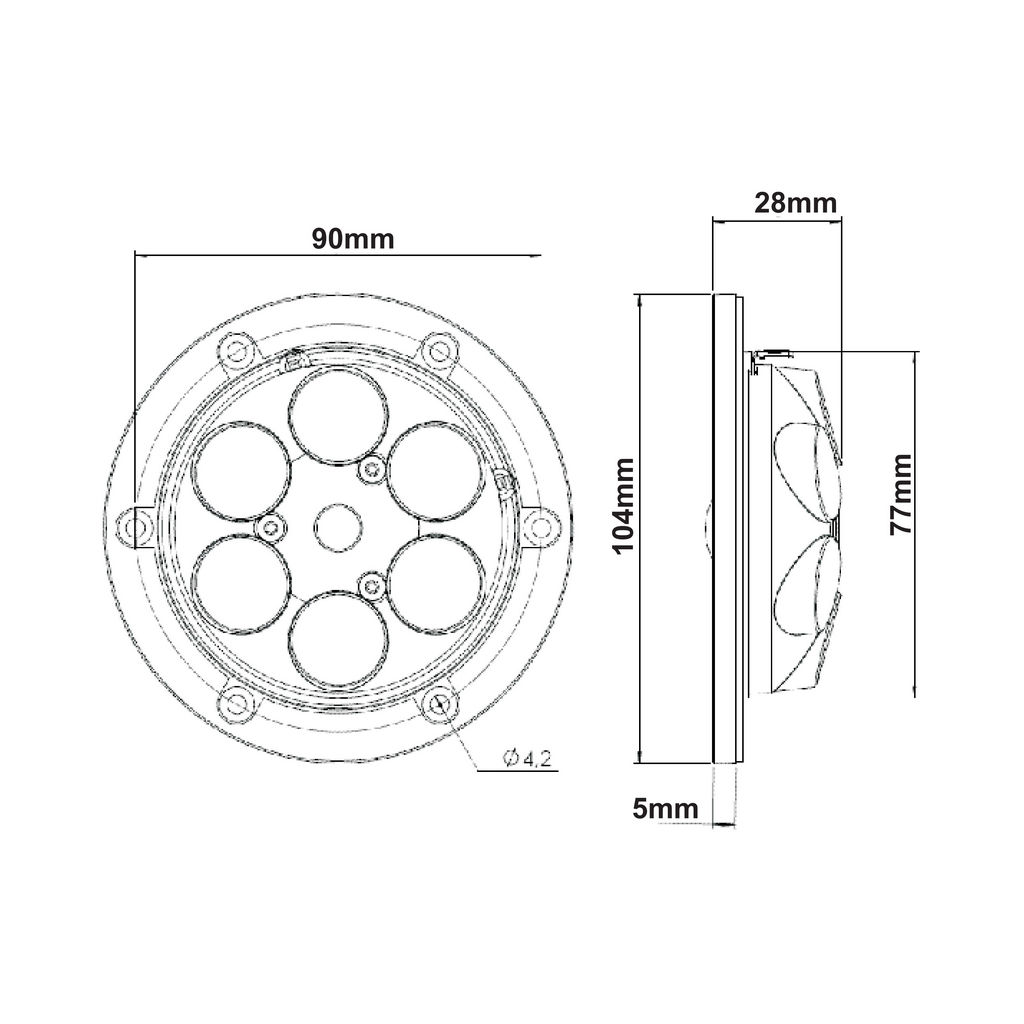

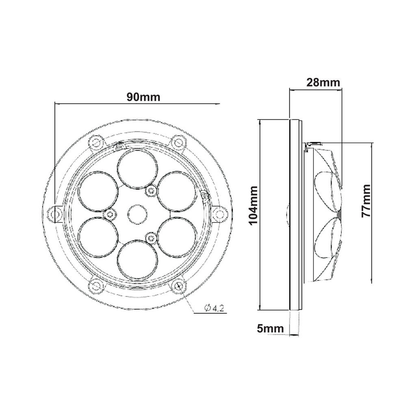

| Overall diameter | 104 mm |
|---|---|
| Mounting depth | 28 mm |
| Bolt circle diameter | 90 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 4.2 mm |
| Volume displaced by driver | 0.11 L |
| Voice coil diameter | 26 mm |
| Weight | 0.3 kg |
Materials
| Cone | Textile |
|---|---|
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
