Scan-Speak

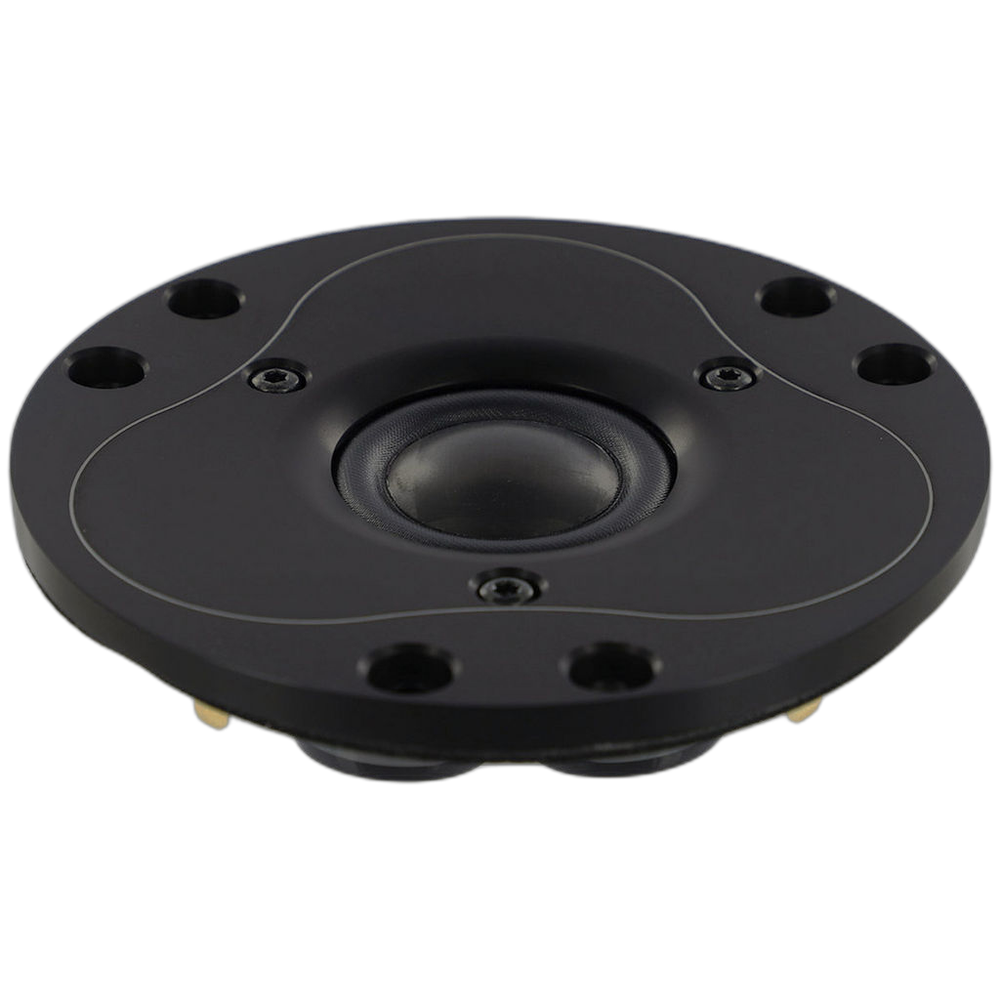

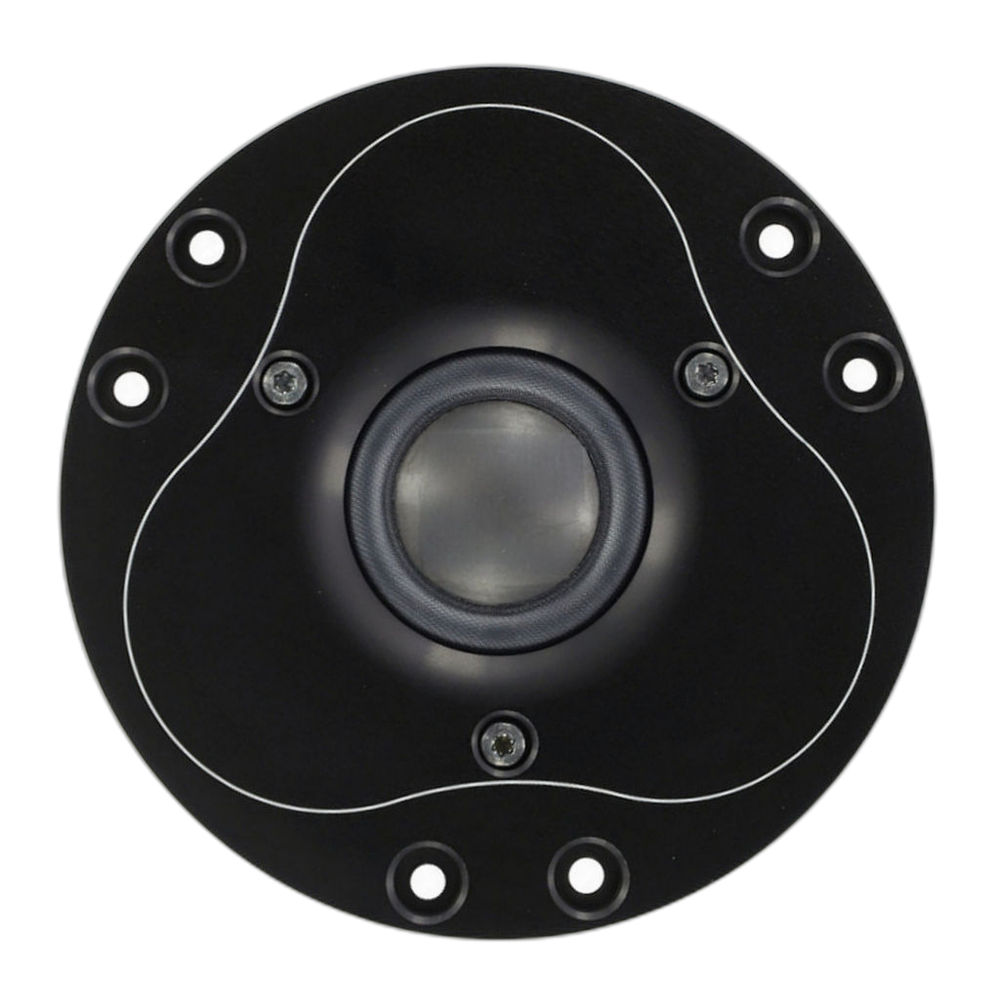

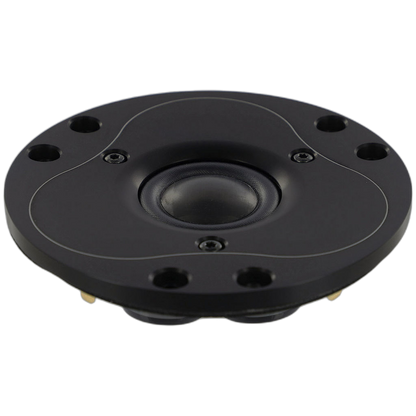

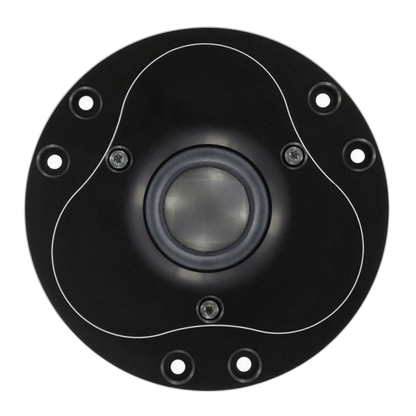

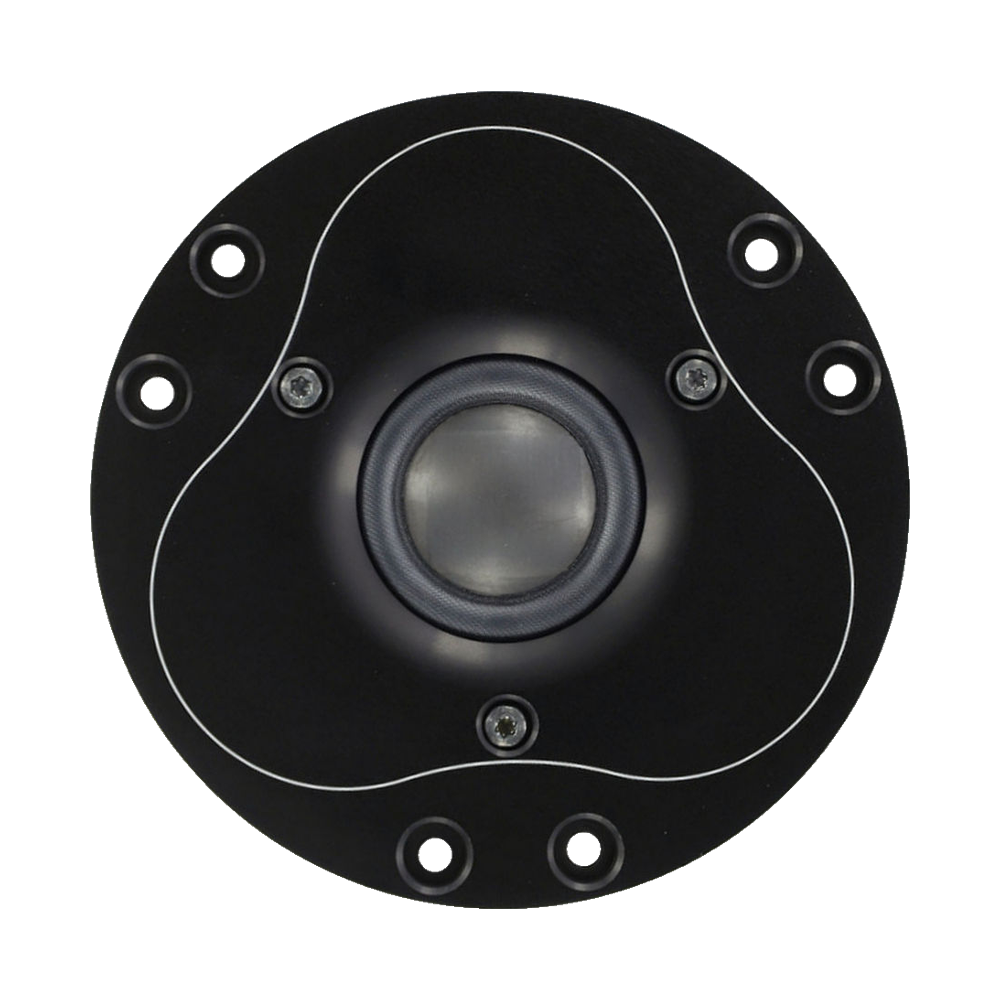

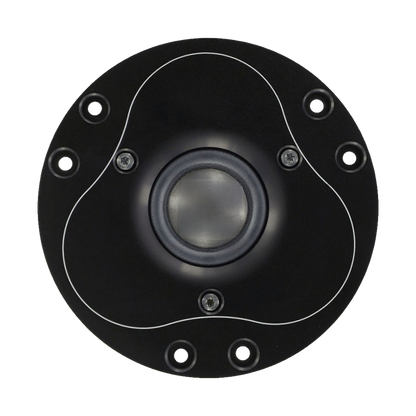

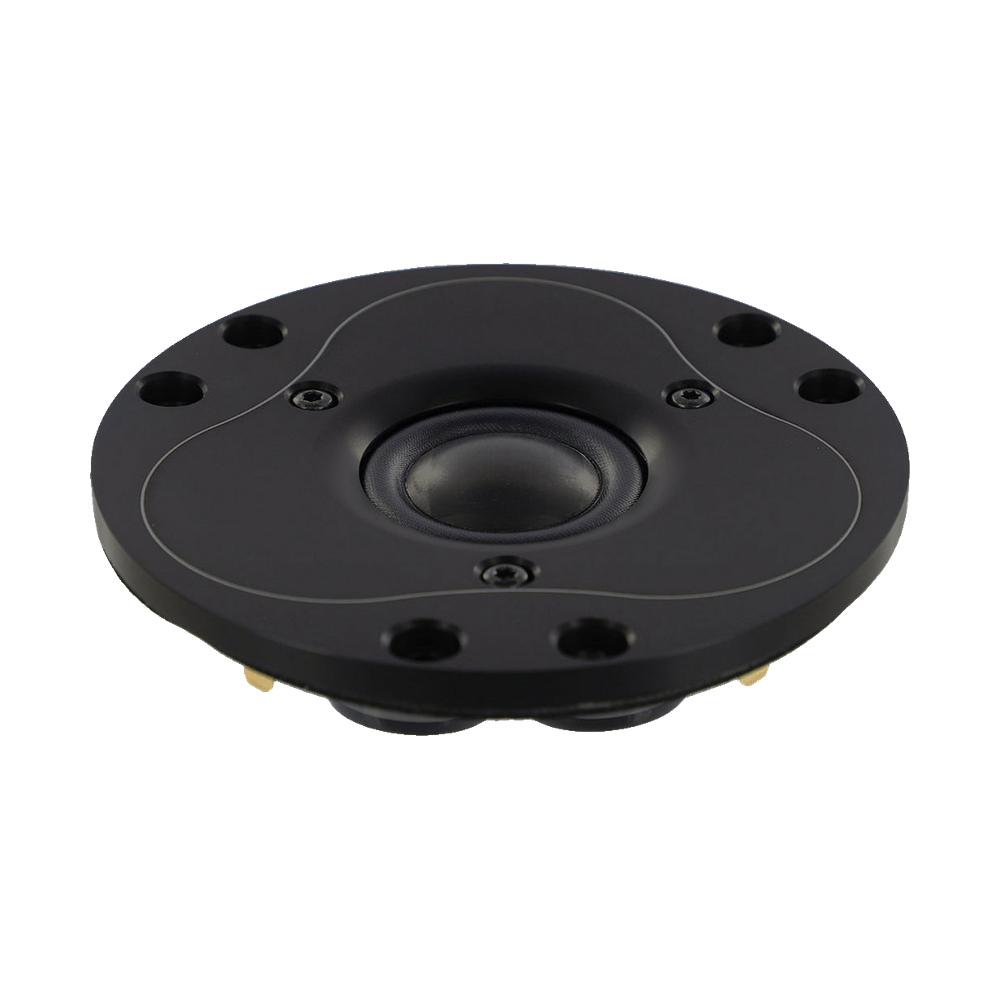

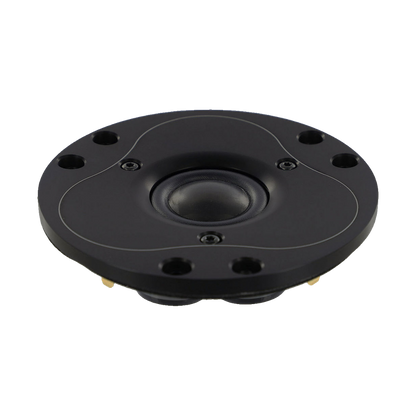

Scan-Speak - 1" Illuminator Dome Tweeter - D3004/666000
Scan-Speak - 1" Illuminator Dome Tweeter - D3004/666000
Regular price
$749.95 AUD
Regular price
Sale price
$749.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
26 mm Dome Tweeter
The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. Its large roll surround and TPCD dome diaphragm provide a flat frequency response to above 40KHz with outstanding off-axis dispersion. The unique AirCirc Magnet System, and its rear chamber, results in elimination of reflections and resonances that compromise the performance of traditional motors.
Features
- Bespoke tailored Thin-Ply Carbon Diaphragm (TPCD)
- AirCirc Motor Design w. 6 Neo magnets
- Patented Symmetrical Drive (SD-2) motor
- Large Roll Surround f. Wide Dispersion
- Black Anodised machined Faceplate
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 4Ω |
| Series | Illuminator |
| Power handling (RMS) | 90 W |
| Power handling (program) | 150 W |
| Sensitivity | 91.5 dB |

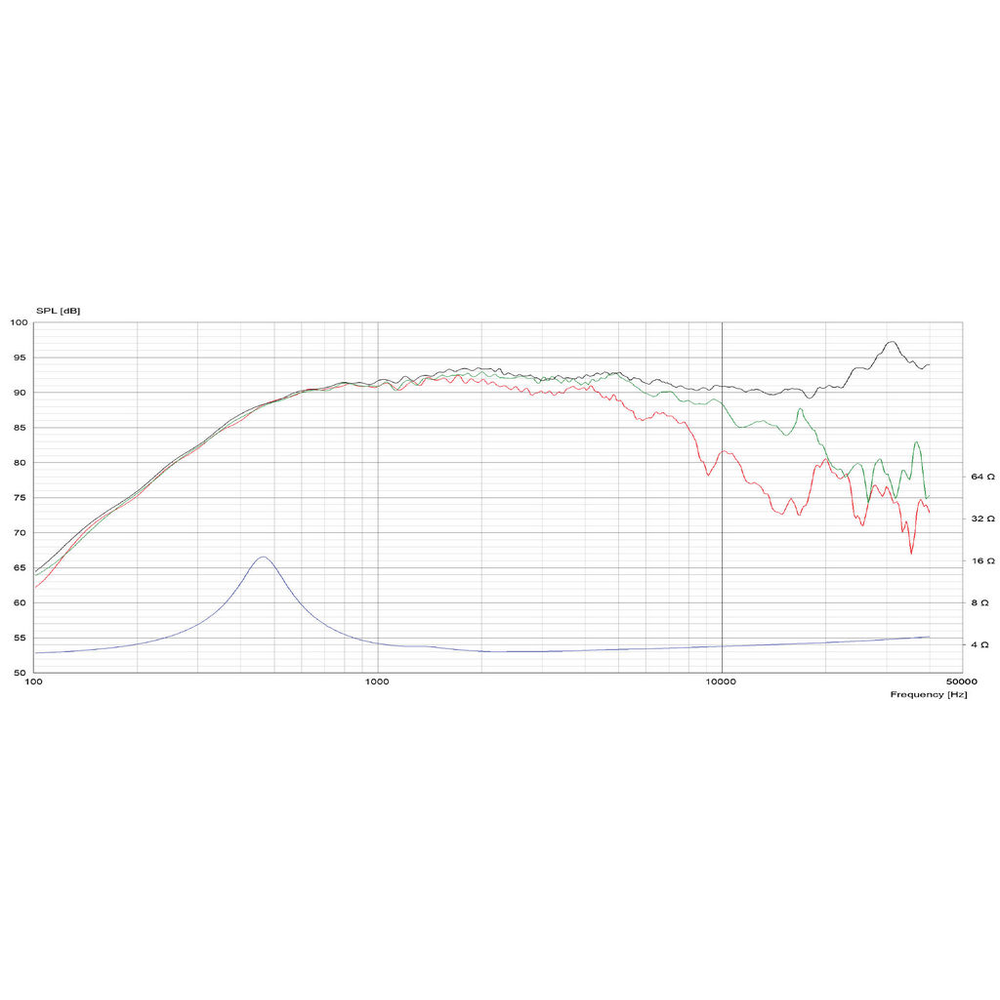

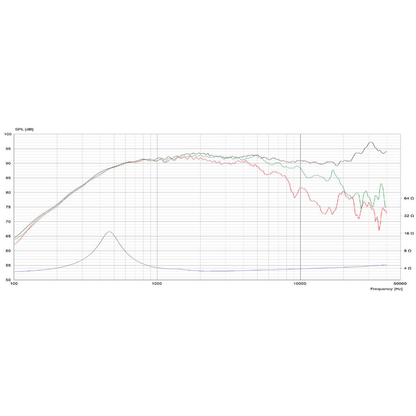

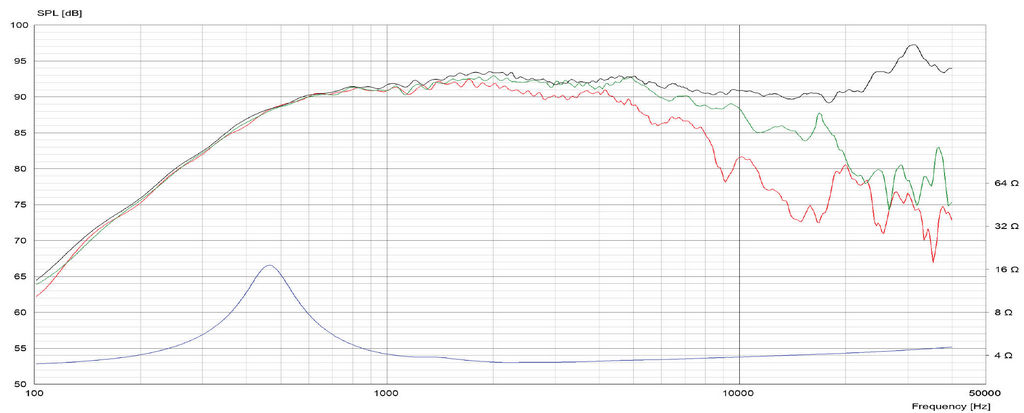

| Frequency range | 2,500 – 40,000 Hz |
| Recommended crossover | 2. order HP Butterworth, 2.5 kHz |
Thiele/Small parameters
| Resonant frequency (Fs) | 470 Hz |
|---|---|
| DC resistance (Re) | 3 Ω |
| Minimum impedance (Zmin) | 3.5 Ω |
| Voice coil inductance (Le) | 0.03 mH |
| Mechanical Q (Qms) | 3.61 |
| Electrical Q (Qes) | 0.59 |
| Total Q (Qts) | 0.51 |
| Equivalent volume (Vas) | 0.02 L |
| Compliance (Cms) | 0.323 mm/N |
| Moving mass (Mms) | 0.355 g |
| Mechanical resistance (Rms) | 0.29 kg/s |
| Force factor (Bl) | 2.3 T·m |
| Effective piston area (Sd) | 7 cm² |
| Linear excursion (Xmax, one-way) | 0.2 mm |
| Mechanical excursion (Xmech) | 1.6 mm |
| Displacement volume (Vd) | 0.14 cm³ |
| Efficiency bandwidth product (EBP) | 796.6 |
| Effective piston diameter (D) | 30 mm |
| Impedance at resonance (Zo) | 17.1 Ω |
Motor
| Voice coil height | 2 mm |
|---|---|
| Air gap height | 2.5 mm |
| Voice coil layers | 2 |

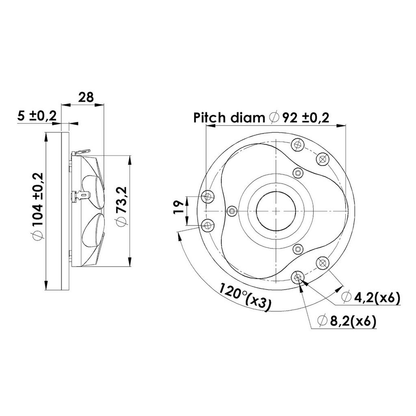

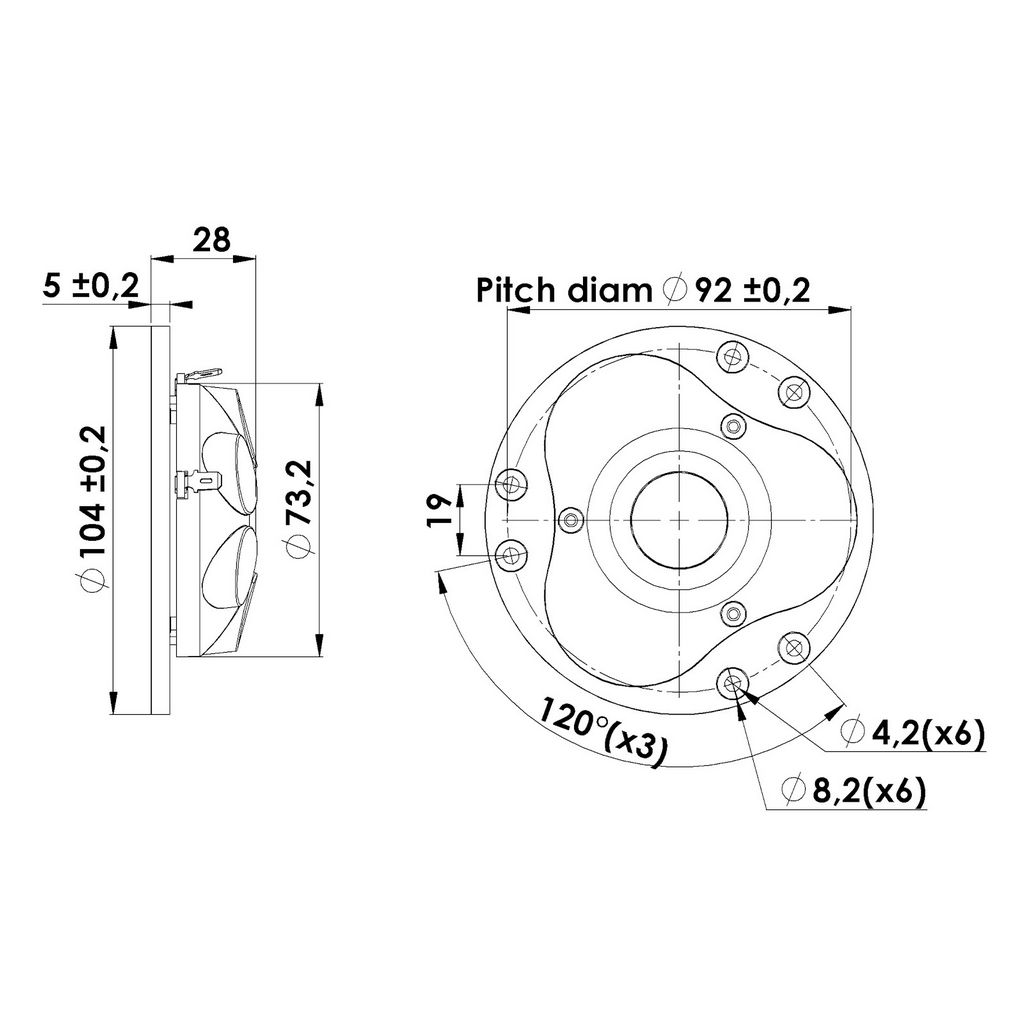

Mounting
| Overall diameter | 104 mm |
|---|---|
| Volume displaced by driver | 0.11 L |
| Voice coil diameter | 26 mm |
| Weight | 0.3 kg |
Materials
| Cone | Thin-Ply Carbon |
|---|---|
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
