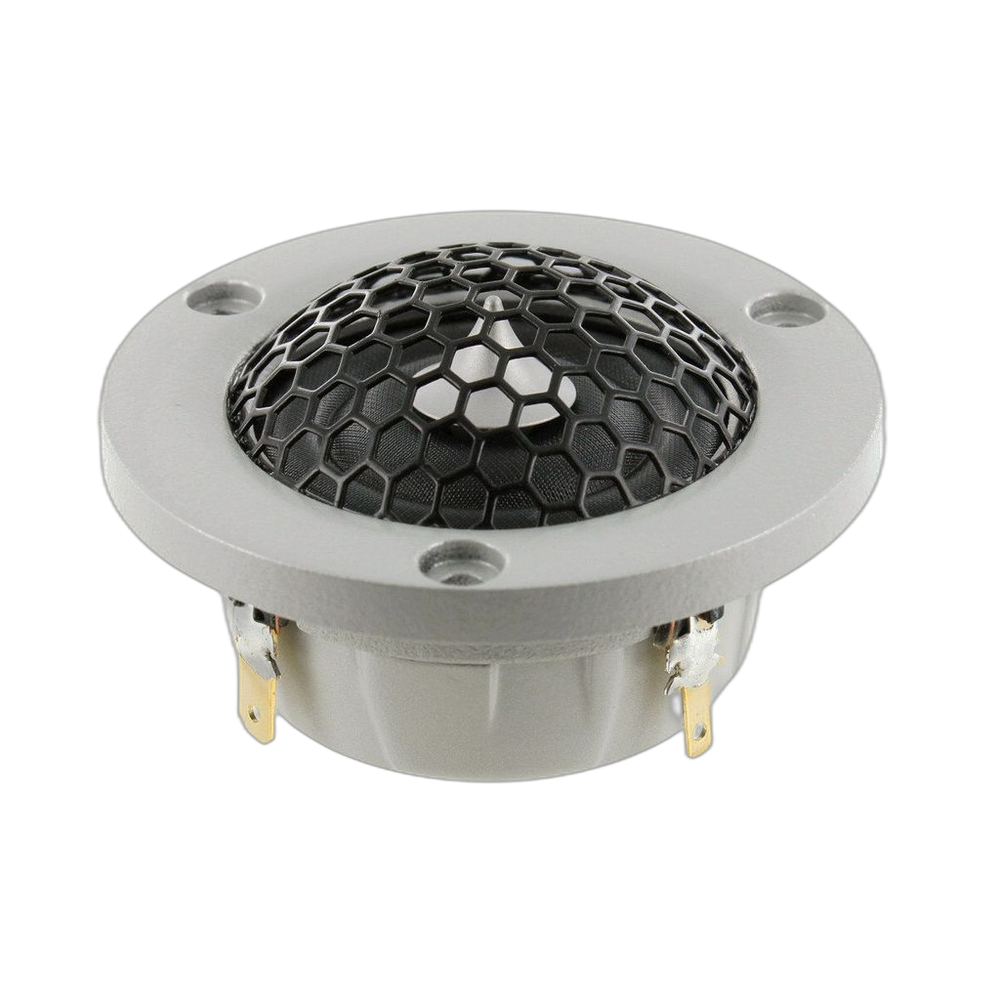

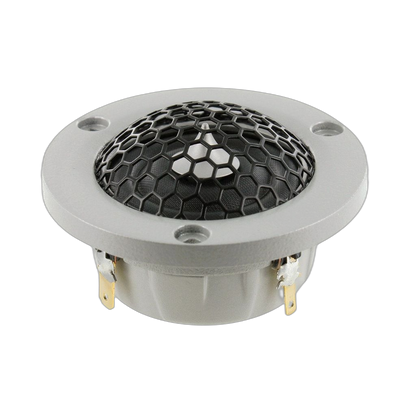

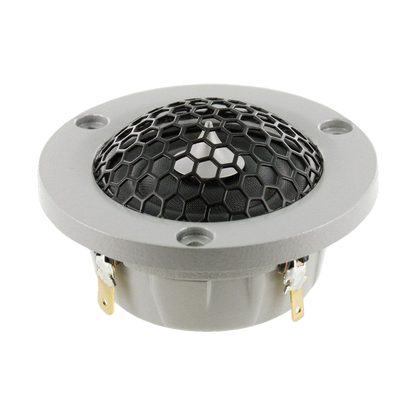

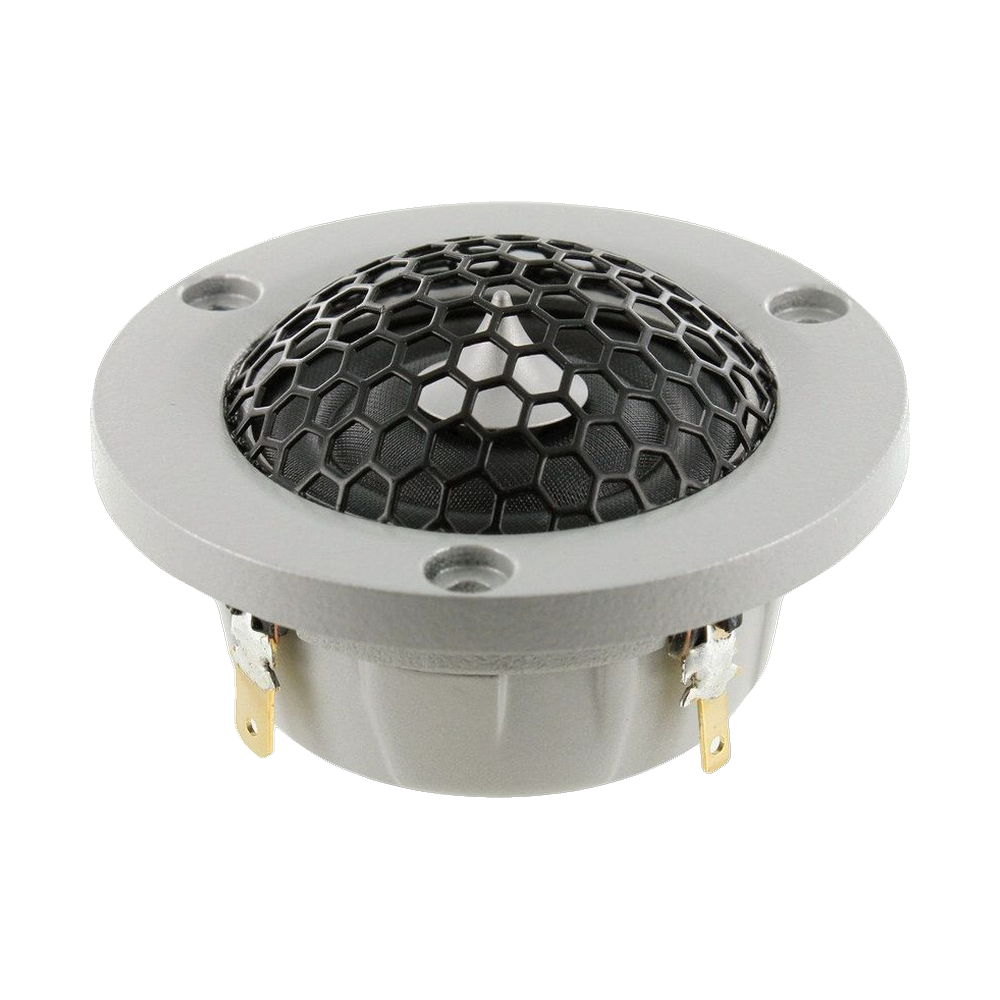

Scan-Speak - 1" Illuminator Ring Radiator Tweeter - R3004/602006

Scan-Speak - 1" Illuminator Ring Radiator Tweeter - R3004/602006

Regular price $314.95 AUD
Regular price Sale price $314.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

26mm Ring Radiator 4 ohm, Neo, Small Chamber, Grille. Scan-Speak SILVER SERIES are specially selected units from Scan-Speak’s well-known home audio speakers. Which have been optimized for automotive use. Suitable for home or automotive use.

Features

  • 1" Ring Dome Diaphragm
  • Symmetrical Drive (SD-2) motor
  • Non Resonant aluminium Rear Chamber
  • Patented Phase Plug Design
  • Sound Transparent Protective Grille
  • Die Cast Housing & Face Plate

Specifications

Type Tweeter
Size 1'
Power 50Wrms
Coil 26mmØ

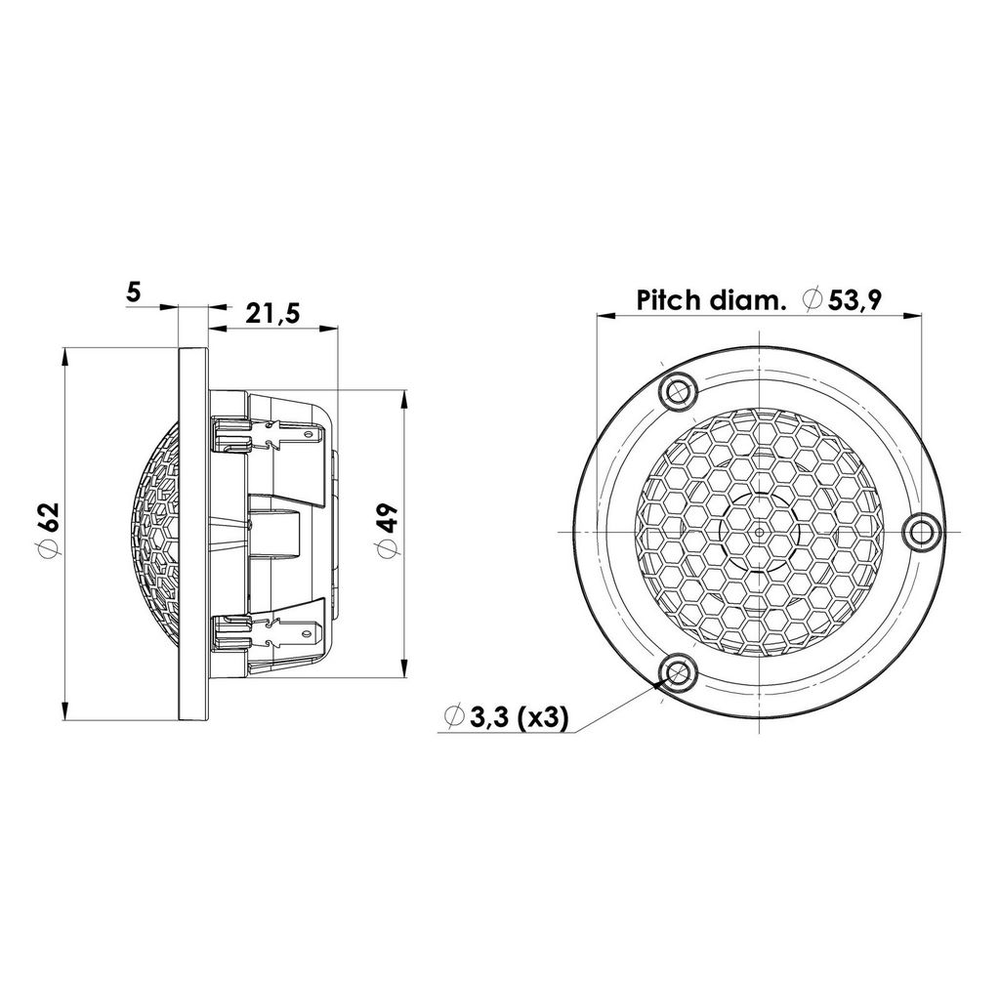

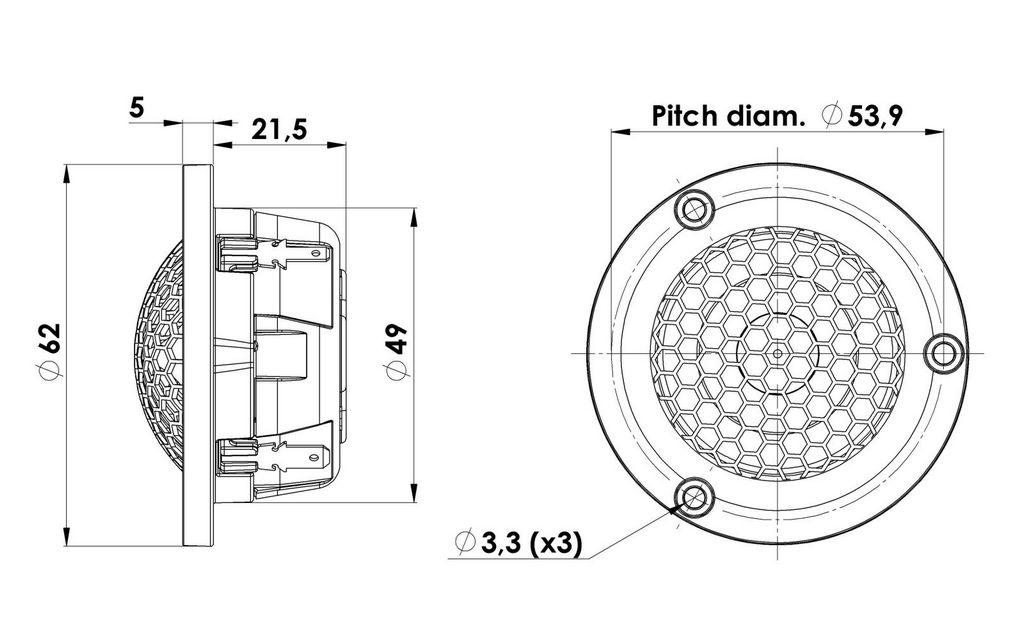

Width 62mm
Impedance 4Ω Re 3.8Ω
Mag. 0.15kg
Sens. 87.5dB
Re 3.8Ω
Qms 5.73
Qes 1.43
Qts 1.14
Vas 0.01L
Sd 5.6cm²
Cms 0.19mm/N
Fs 625Hz
Mms 0.35g
Zn
Le 0.02mH
Rms 0.24kg/s
Series Automotive
Manufacturer Scan-speak
