Scan-Speak

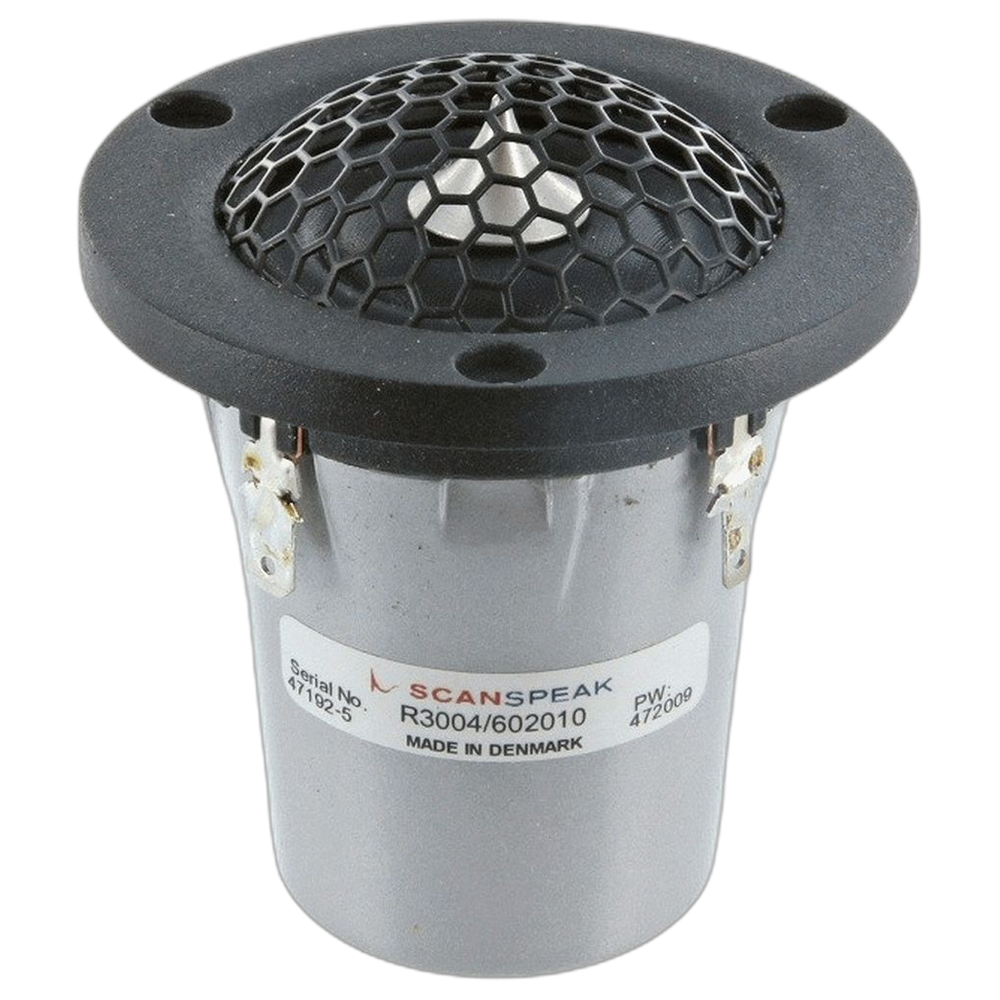

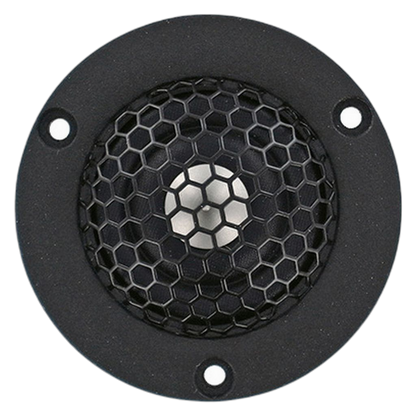

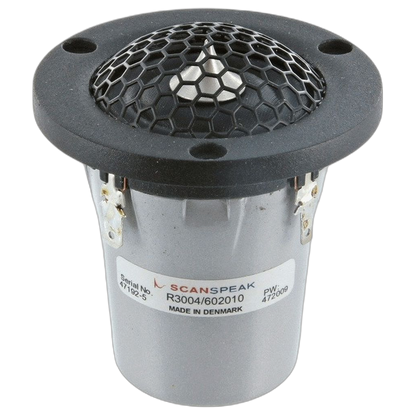

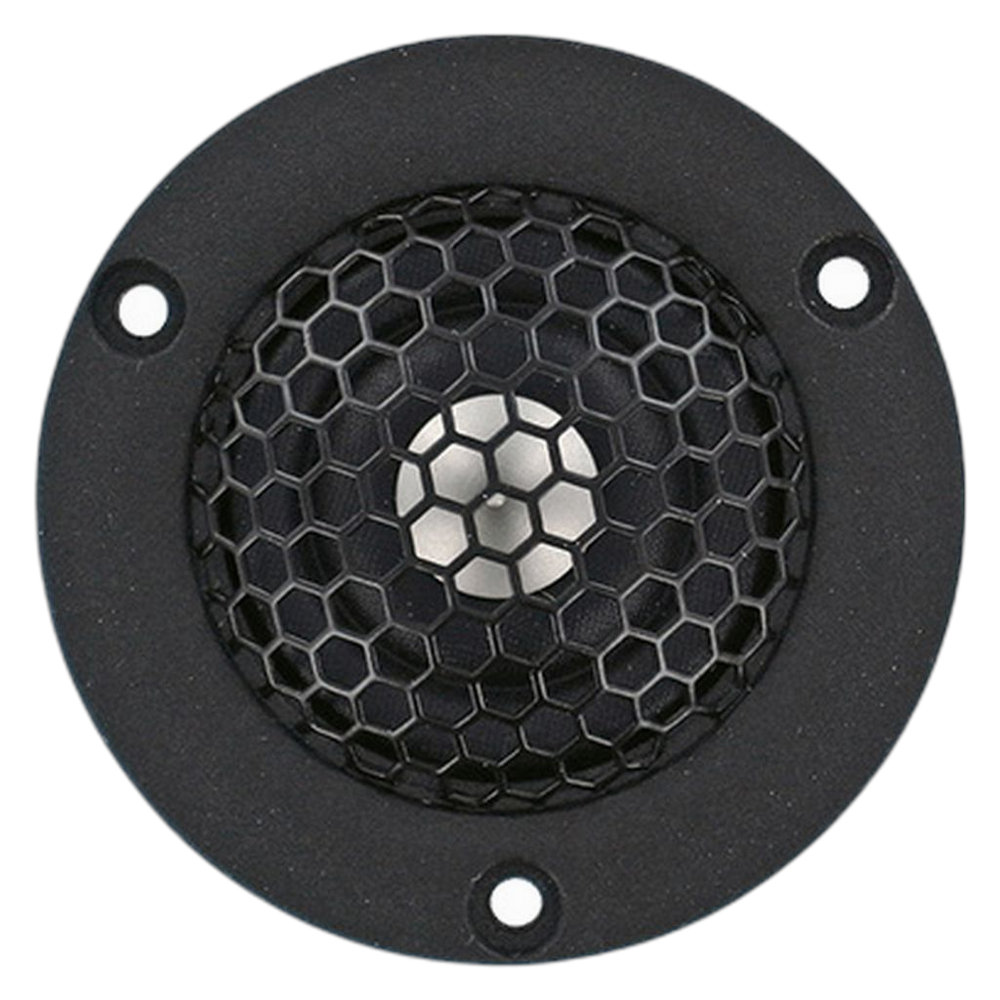

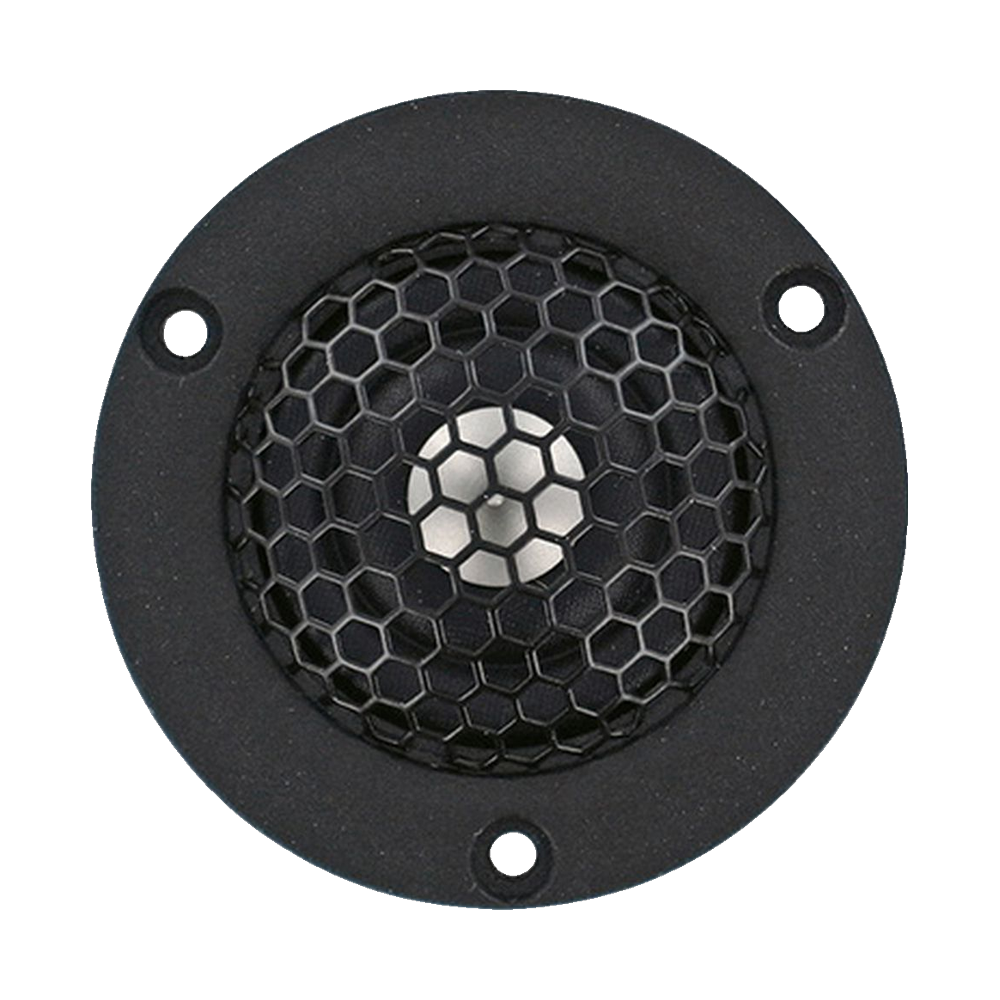

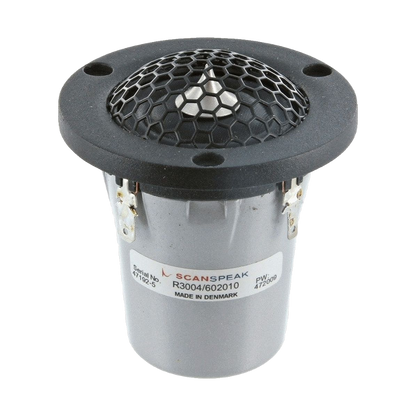

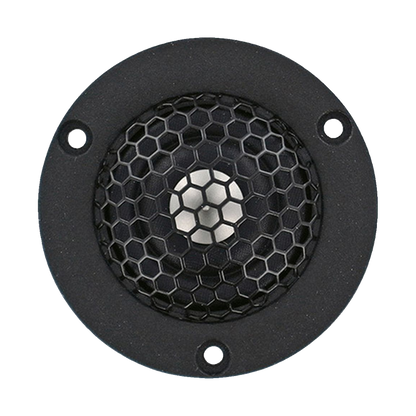

Scan-Speak - 1" Illuminator Ring Radiator Tweeter - R3004/602010
Scan-Speak - 1" Illuminator Ring Radiator Tweeter - R3004/602010
Regular price
$239.95 AUD
Regular price
Sale price
$239.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The compact size is one of the key elements of these Illuminator tweeters, which provides a high degree of flexibility within design options. The small size is employed without compromising sound quality where these compact tweeters are fully comparable to the renowned full size Illuminator and Revelator tweeters, no matter if the music is played at high or low listening levels.
Features
- 1" Ring Dome Diaphragm
- Patented Symmetrical Drive (SD-2) motor
- Non Resonant Alu Rear Chamber
- Patented Phase Plug Design
- Sound Transparant Protective Grill
- Die Cast Housing & Face Plate
Specifications
| Impedance | 4Ω Re 3.0Ω |
|---|---|
| Power | 50Wrms |
| Sens. | 87.4dB |
| Fs | 420Hz |
| Cms | 0.41mm/N |
| Coil | 26mmØ |
| Le | 0.02mH |
| Mag. | 0.2kg |
| Manufacturer | Scan-speak |
| Mms | 0.35g |

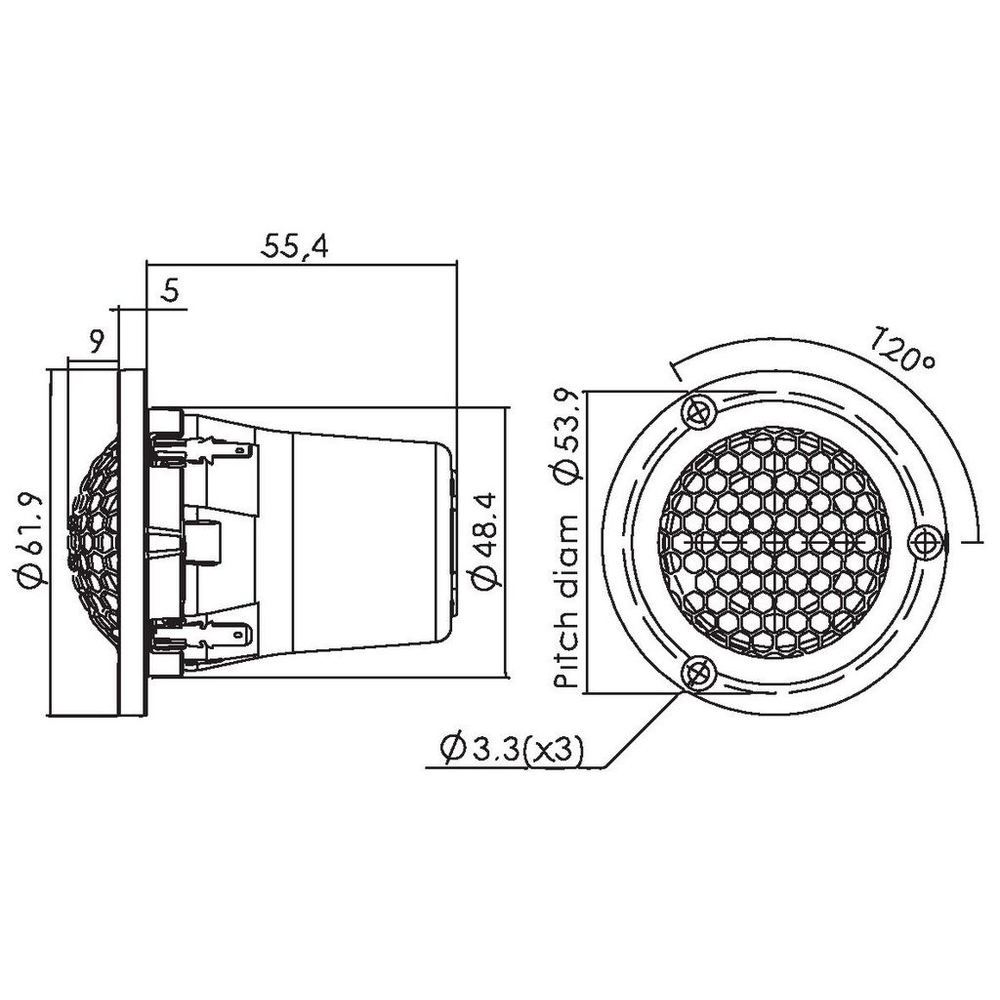

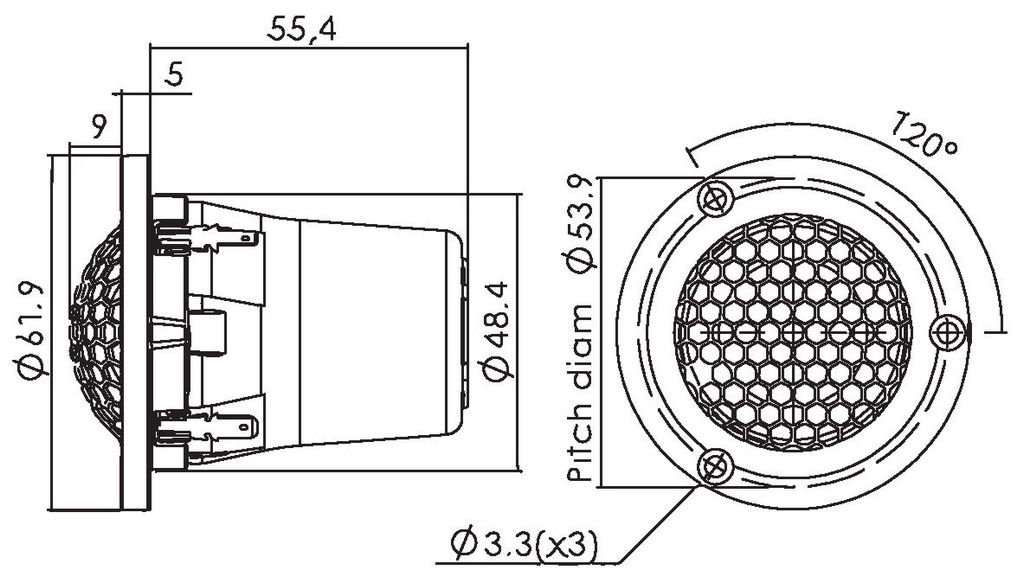

| O/D | 62mm |
| Qes | 1.03 |
| Qms | 2.57 |
| Qts | 0.74 |
| Re | 3.0Ω |
| Rms | 0.36kg/s |
| Sd | 5.6cm² |
| Size | 1' |
| Type | Tweeter |
| Vas | 0.02L |
| Width | 61.9mm |
| Zn | 4Ω |
| Series | Illuminator |
