Scan-Speak

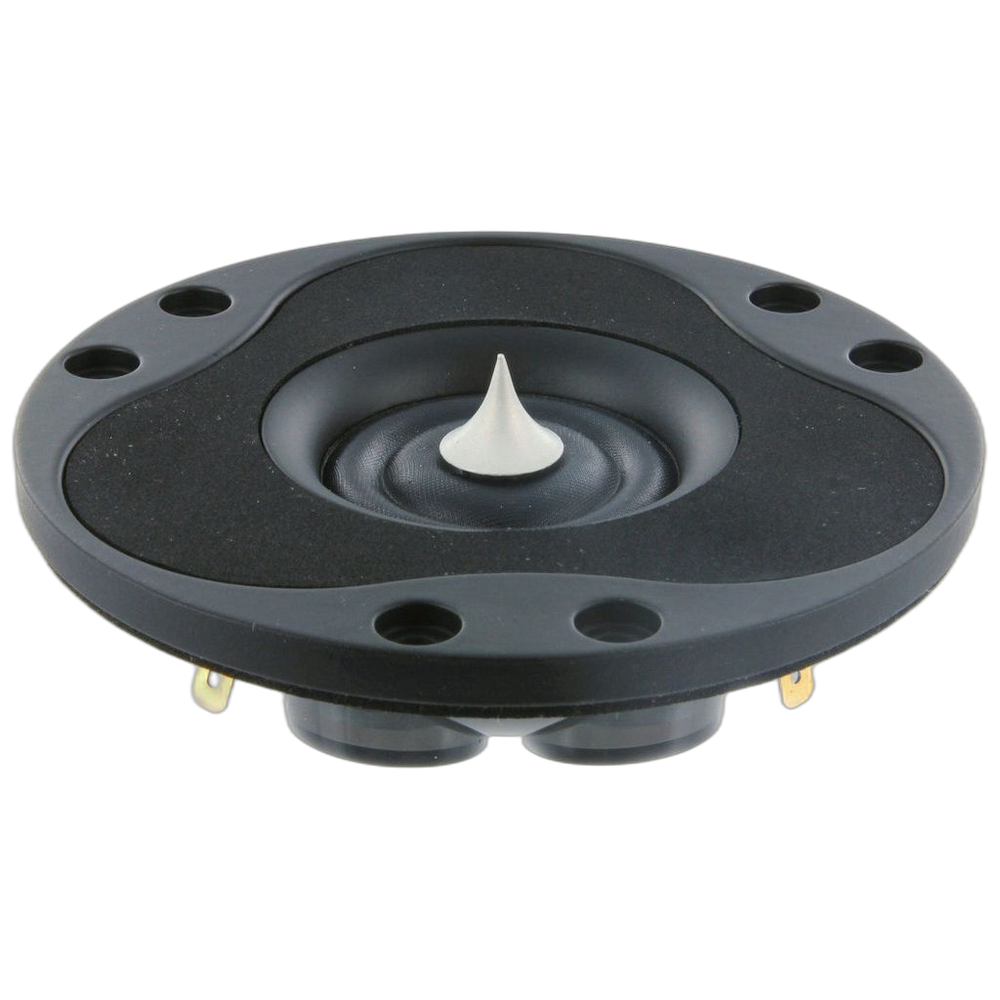

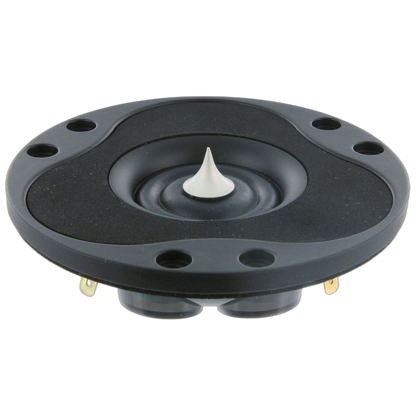

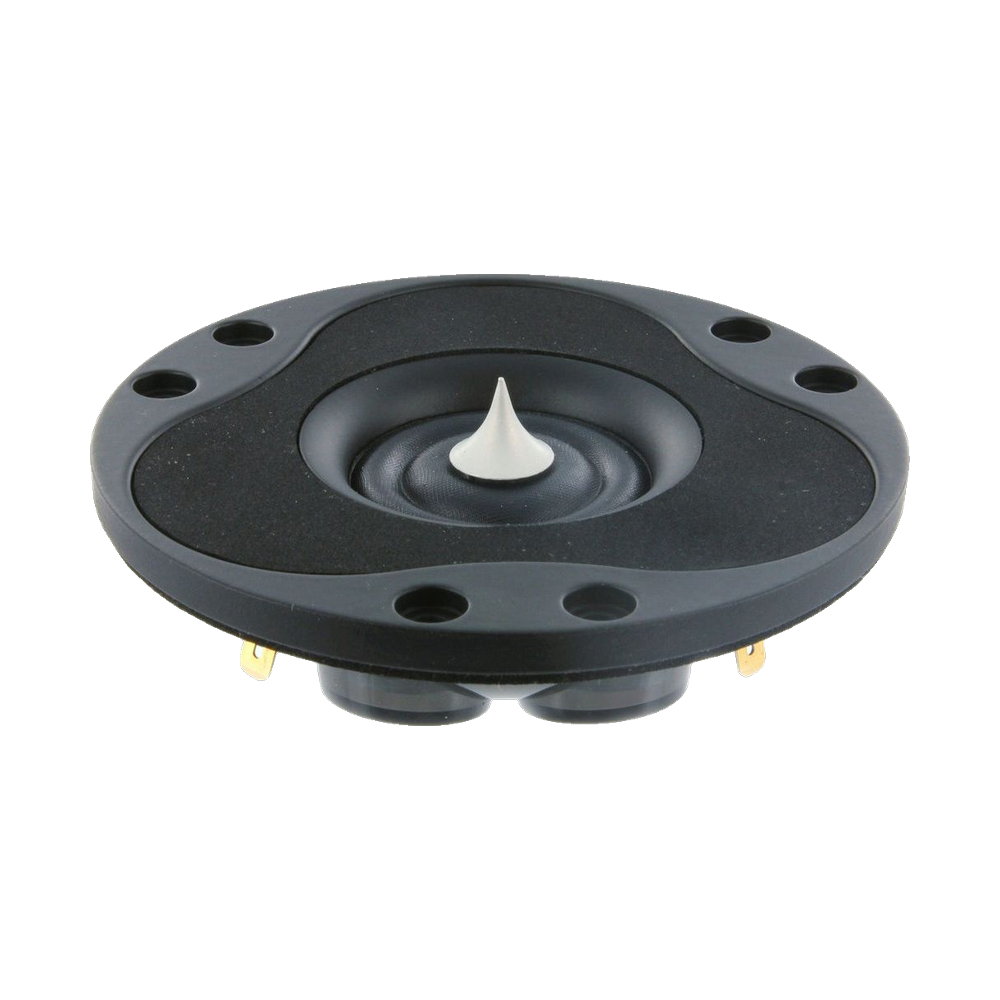

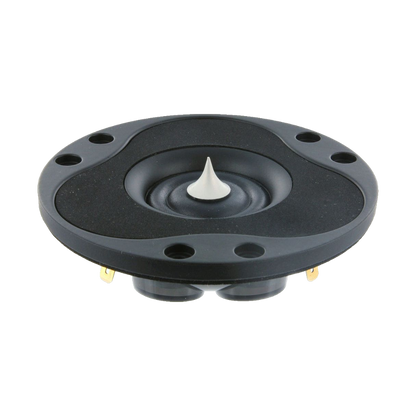

Scan-Speak - 1" Illuminator Ring Radiator Tweeter - R3004/662000
Scan-Speak - 1" Illuminator Ring Radiator Tweeter - R3004/662000
Regular price
$409.95 AUD
Regular price
Sale price
$409.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
26mm Ring Radiator 4ohm, Neo, AirCirc, Clover

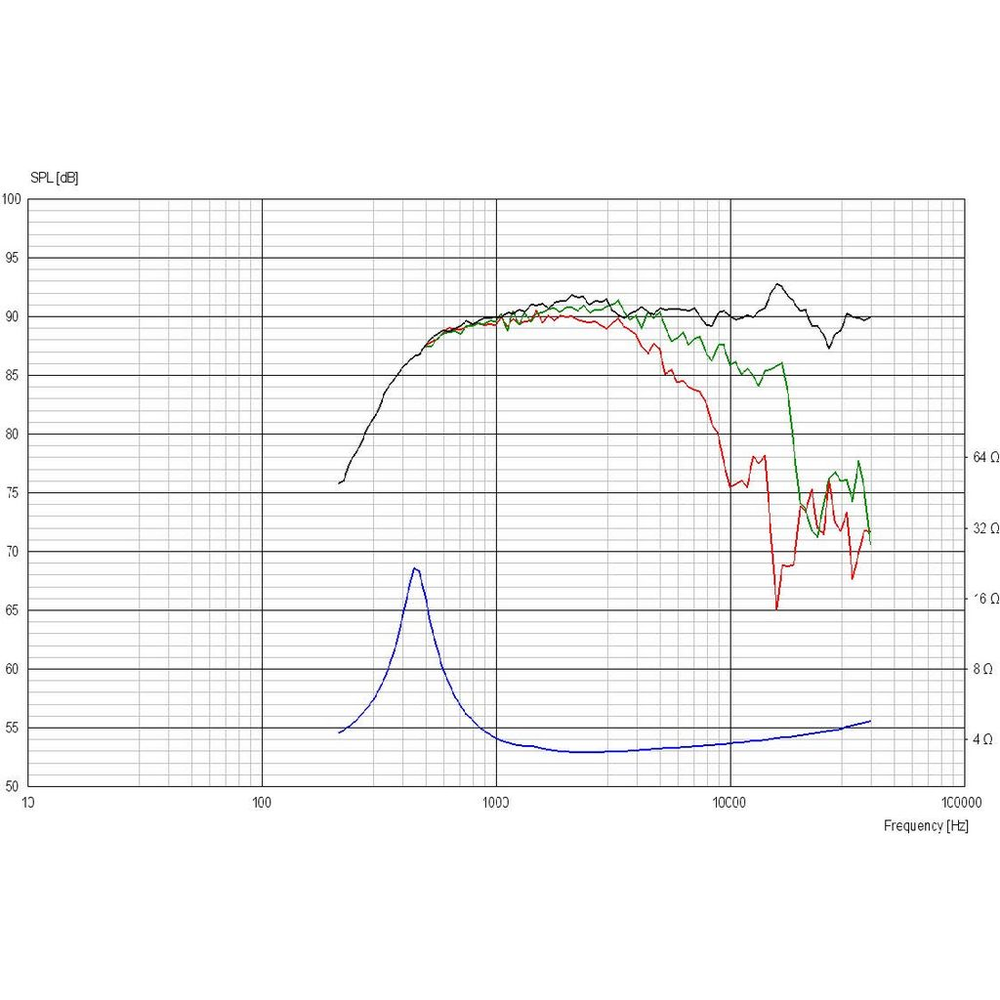

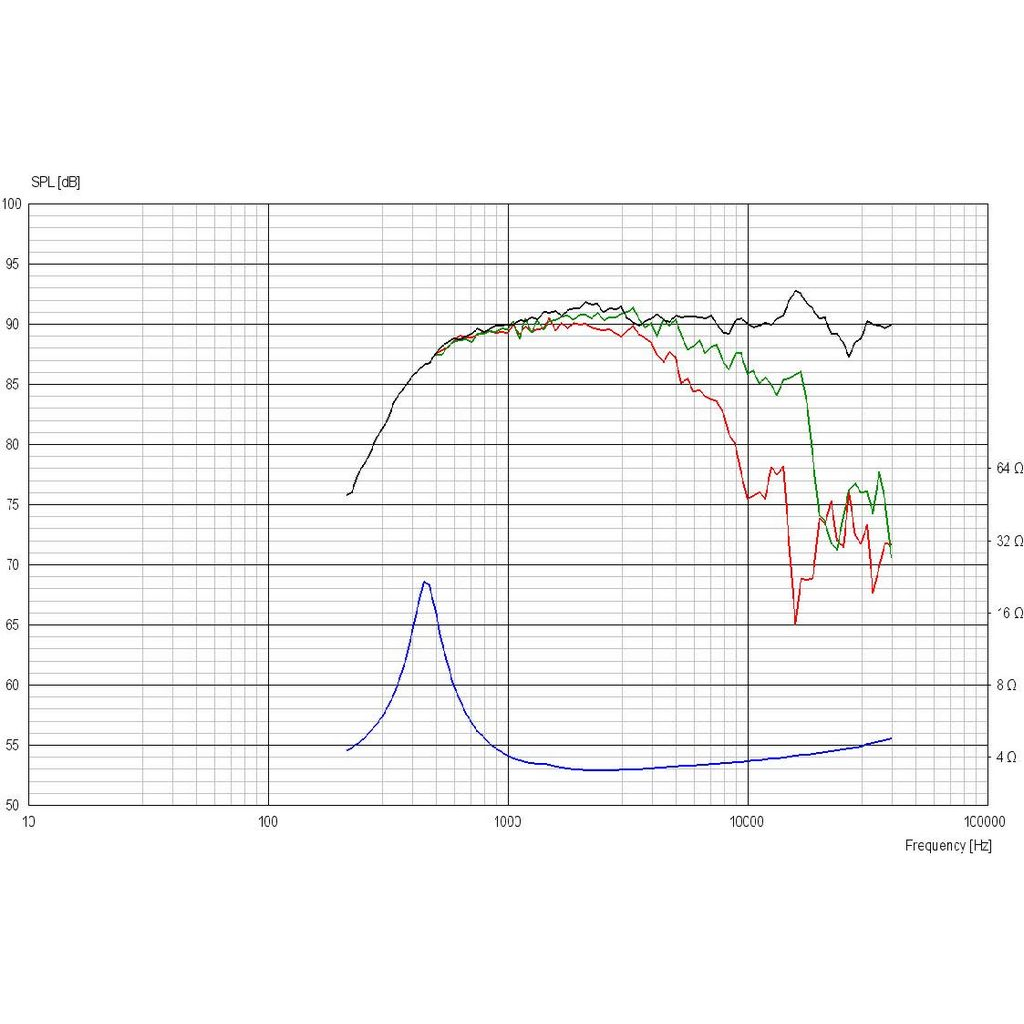

The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. Its large roll surround and textile diaphragm provide a flat frequency response to above 30KHz. The unique AirCirc Magnet System, and its rear chamber, results in elimination of reflections and resonances that compromise the performance of traditional motors.
Features
- 1" Ring Dome Diaphragm
- Patented Phase Plug Design
- Patented Symmetrical Drive (SD-2) motor
- AirCirc Motor Design w. 6 Neo magnets
- Diffraction Damping Rubber Front
- Die Cast Rubber Painted Alu Face Plate
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 4Ω |
| Series | Illuminator |
| Power handling (RMS) | 90 W |
| Power handling (program) | 150 W |
| Sensitivity | 90.4 dB |
| Frequency range | 2,500 – 20,000 Hz |
| Recommended crossover | 2. order HP Butterworth, 2.5 kHz |
Thiele/Small parameters
| Resonant frequency (Fs) | 520 Hz |
|---|---|
| DC resistance (Re) | 3 Ω |
| Minimum impedance (Zmin) | 3.9 Ω |
| Voice coil inductance (Le) | 0.03 mH |
| Mechanical Q (Qms) | 3.27 |
| Electrical Q (Qes) | 0.56 |
| Total Q (Qts) | 0.48 |
| Equivalent volume (Vas) | 0.01 L |
| Compliance (Cms) | 0.31 mm/N |
| Moving mass (Mms) | 0.3 g |
| Mechanical resistance (Rms) | 0.3 kg/s |
| Force factor (Bl) | 2.3 T·m |
| Effective piston area (Sd) | 5.6 cm² |
| Linear excursion (Xmax, one-way) | 0.2 mm |
| Mechanical excursion (Xmech) | 1.6 mm |
| Efficiency bandwidth product (EBP) | 928.6 |
| Effective piston diameter (D) | 27 mm |
| Impedance at resonance (Zo) | 20.6 Ω |
Motor
| Voice coil height | 2 mm |
|---|---|
| Air gap height | 2.5 mm |
| Voice coil layers | 2 |

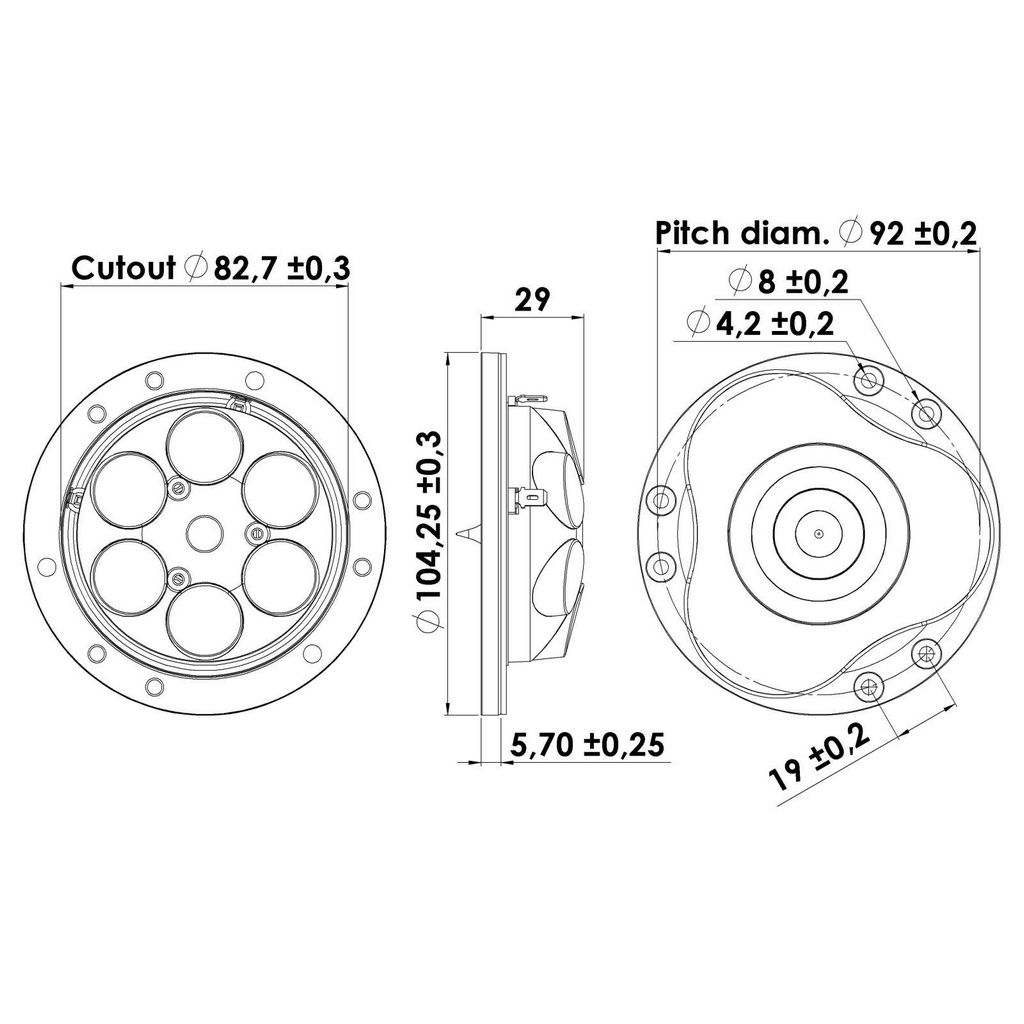

Mounting
| Overall diameter | 103.5 mm |
|---|---|
| Volume displaced by driver | 0.12 L |
| Voice coil diameter | 26 mm |
| Weight | 0.3 kg |
Materials
| Magnet | Neodymium |
|---|
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
