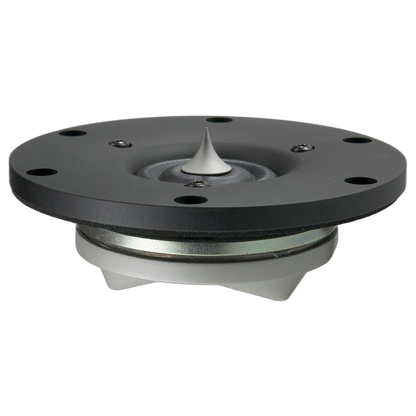

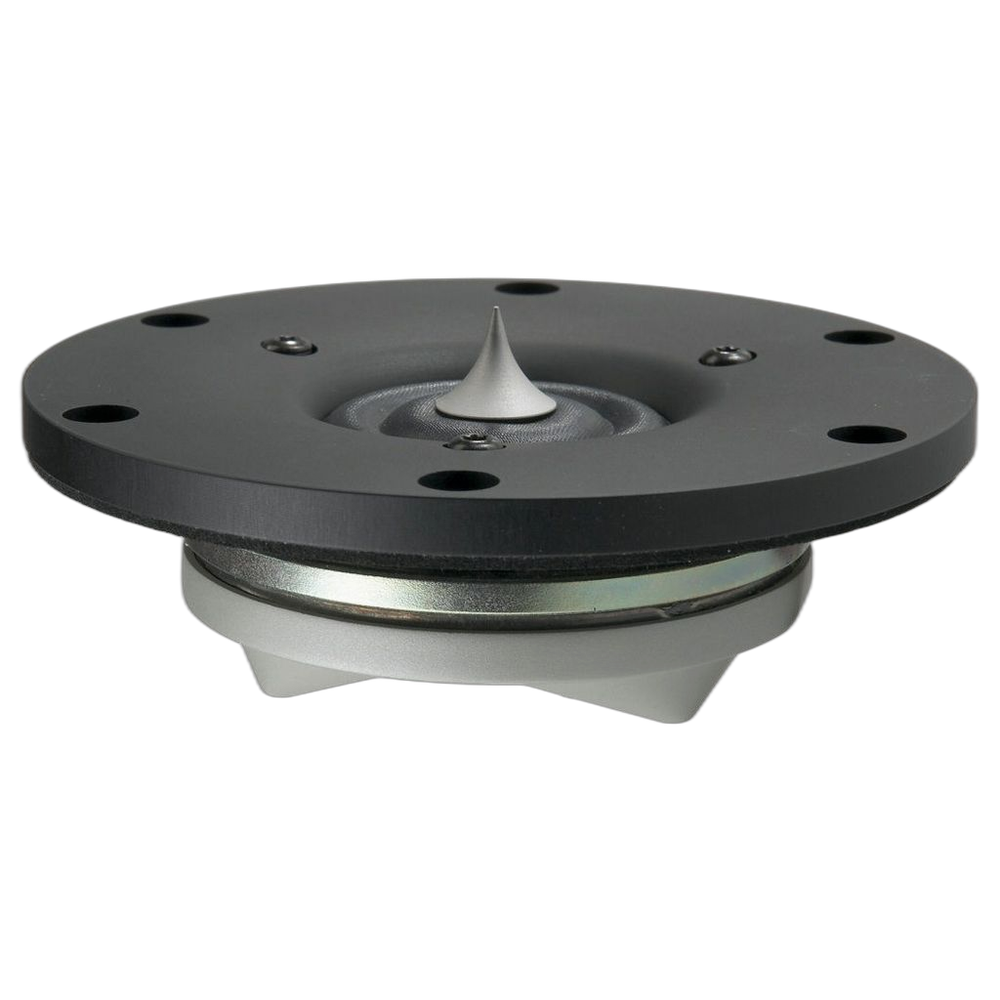

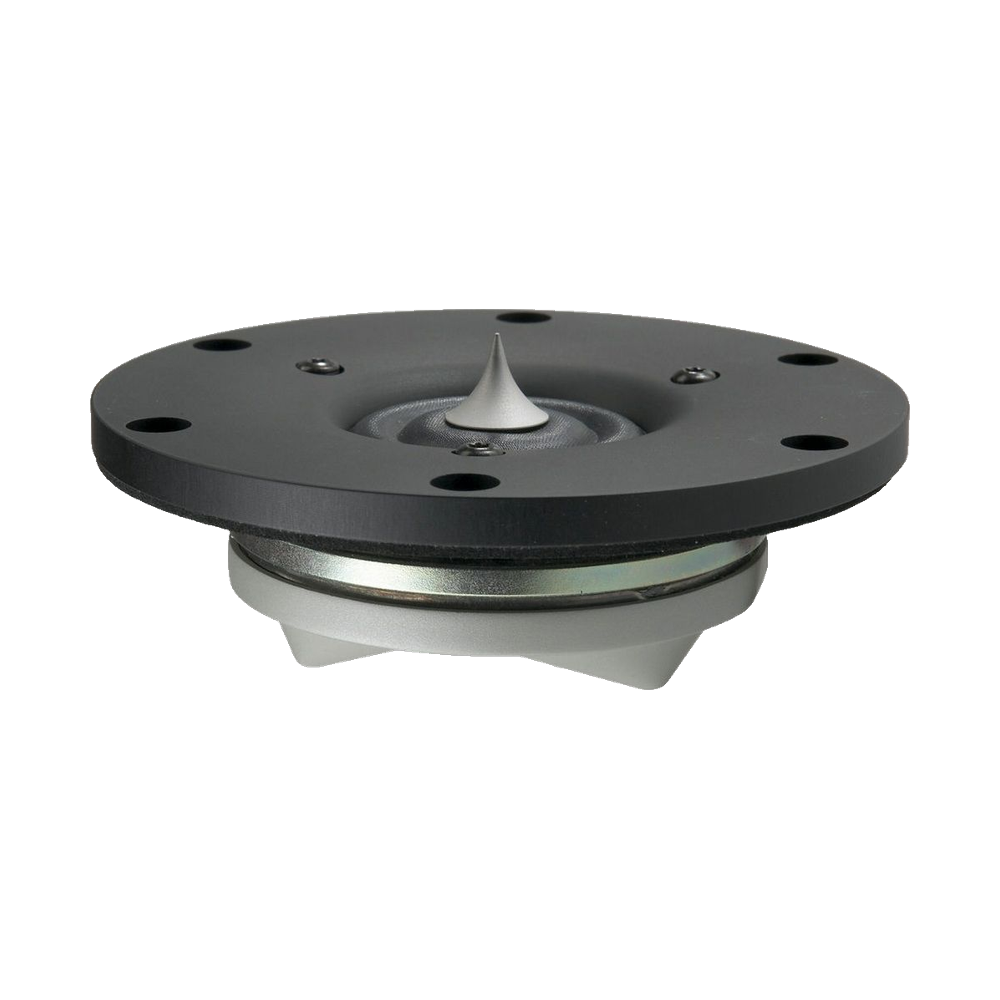

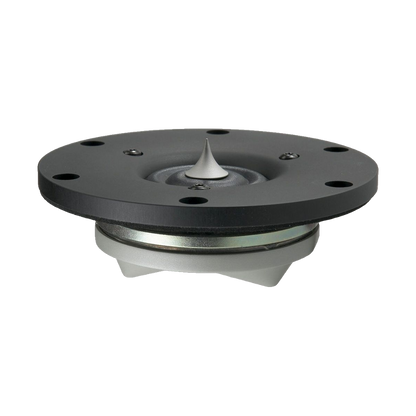

Description
The Revelator tweeter series consists of the revolutionary ring radiator design, which put an end to some of the design trade-offs in dome designs. The ring radiator still offers unrivalled performance. Additional enhancements have been made to reduce distortion and power compression, such as large neodymium magnet systems for high sensitivity, and a careful design to optimise airflow in the chambers.
Features
- 1" Ring Dome Diaphragm
- Patented Symmetrical Drive (SD-2) motor
- Non Resonant Alu Rear Chamber
- Patented Phase Plug Design
- Large Ring Neo Magnet f. High Output
- Black Anodised Machined Alu Face Plate

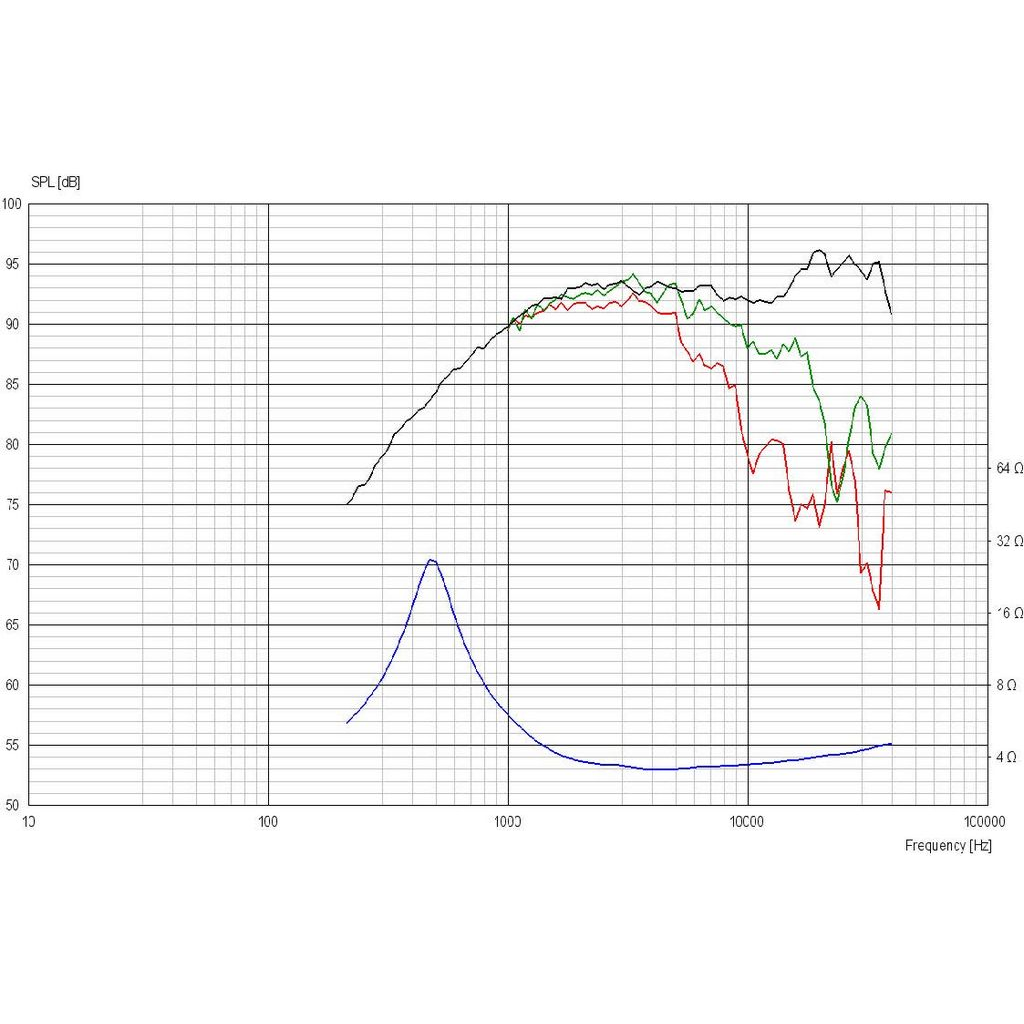

Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 4Ω |
| Series | Revelator |
| Power handling (RMS) | 160 W |
| Power handling (program) | 210 W |
| Sensitivity | 94.5 dB |
| Frequency range | 2,500 – 30,000 Hz |
| Recommended crossover | 2. order HP Butterworth, 2.5 kHz |
Thiele/Small parameters
| Resonant frequency (Fs) | 520 Hz |
|---|---|
| DC resistance (Re) | 3 Ω |
| Minimum impedance (Zmin) | 3.7 Ω |
| Voice coil inductance (Le) | 0.01 mH |
| Mechanical Q (Qms) | 2.9 |
| Electrical Q (Qes) | 0.38 |
| Total Q (Qts) | 0.33 |
| Equivalent volume (Vas) | 0.01 L |
| Compliance (Cms) | 0.31 mm/N |
| Moving mass (Mms) | 0.3 g |
| Mechanical resistance (Rms) | 0.34 kg/s |
| Force factor (Bl) | 2.8 T·m |
| Effective piston area (Sd) | 5.6 cm² |
| Linear excursion (Xmax, one-way) | 0.25 mm |
| Mechanical excursion (Xmech) | 1.6 mm |
| Efficiency bandwidth product (EBP) | 1,368 |
| Effective piston diameter (D) | 27 mm |
| Impedance at resonance (Zo) | 26.2 Ω |

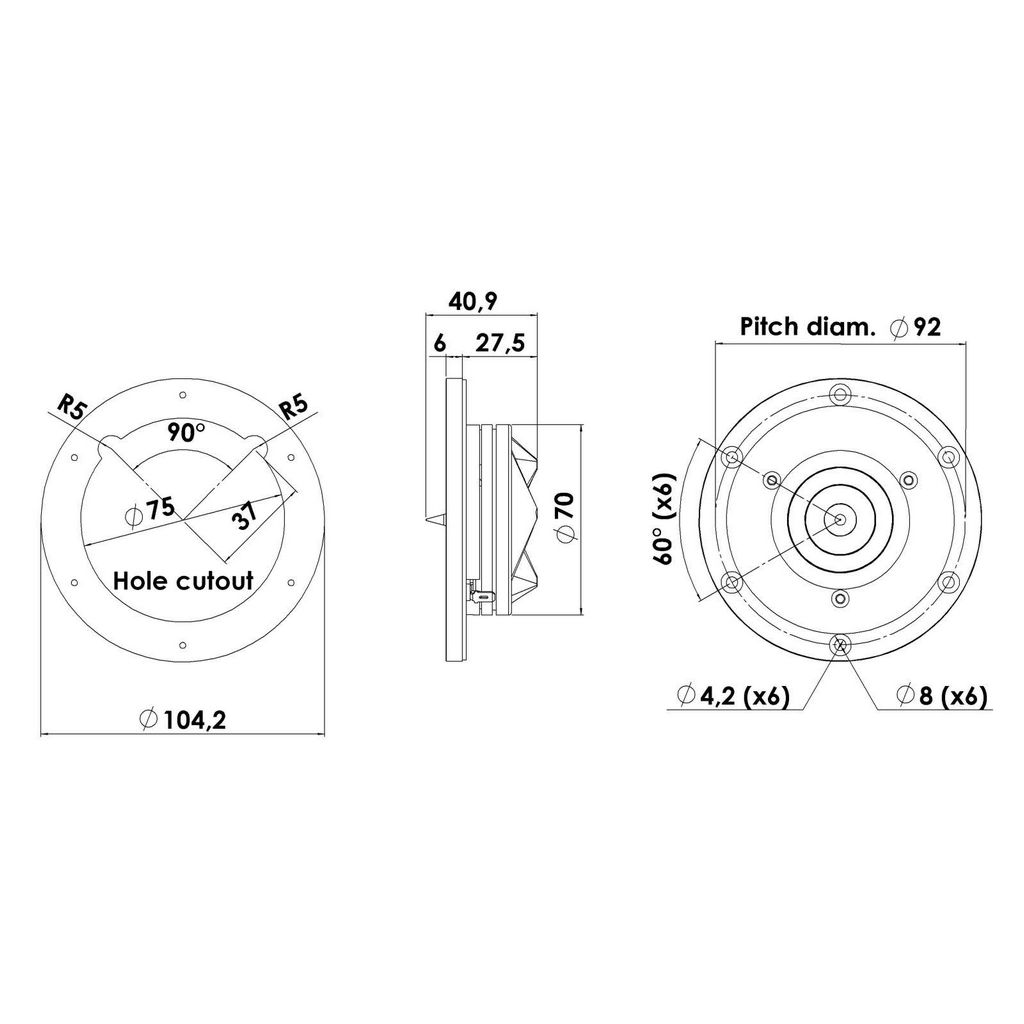

Motor
| Voice coil height | 2 mm |
|---|---|
| Air gap height | 2.5 mm |
| Voice coil layers | 2 |
Mounting
| Overall diameter | 103.8 mm |
|---|---|
| Flange thickness | 5.9 mm |
| Bolt circle diameter | 92 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 4.2 mm |
| Volume displaced by driver | 0.12 L |
| Voice coil diameter | 26 mm |
| Weight | 0.4 kg |
Materials
| Magnet | Neodymium |
|---|
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
