Scan-Speak - 1" Revelator TEXTREME Dome Tweeter - D2908/716000
Scan-Speak - 1" Revelator TEXTREME Dome Tweeter - D2908/716000
Regular price
$849.95 AUD
Regular price
Sale price
$849.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description

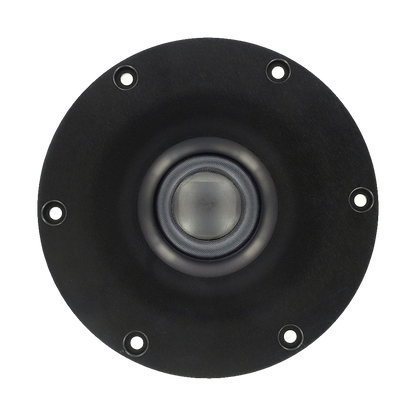

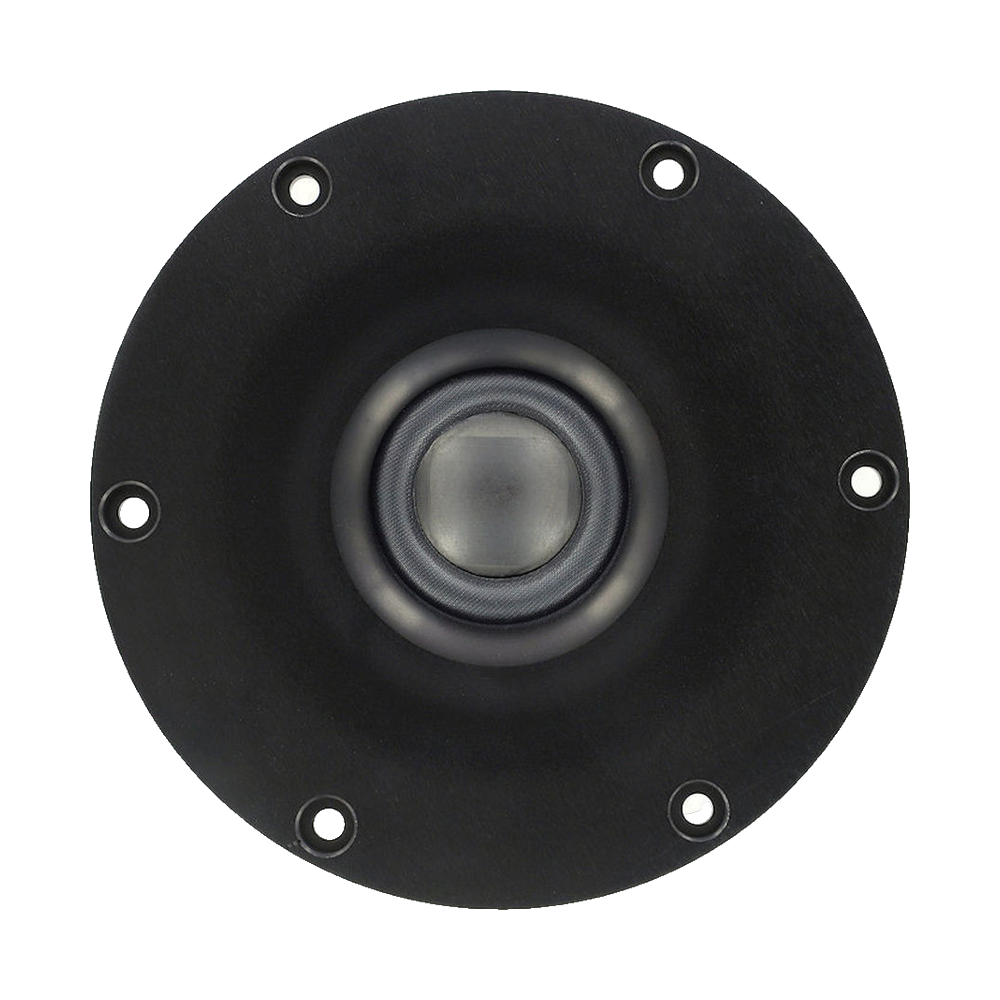

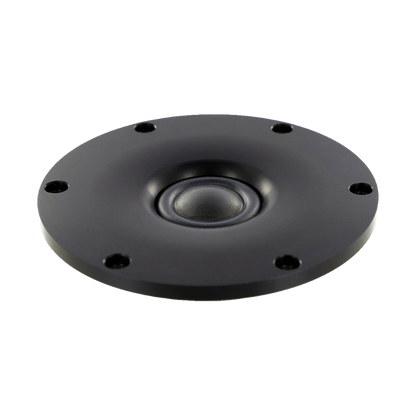

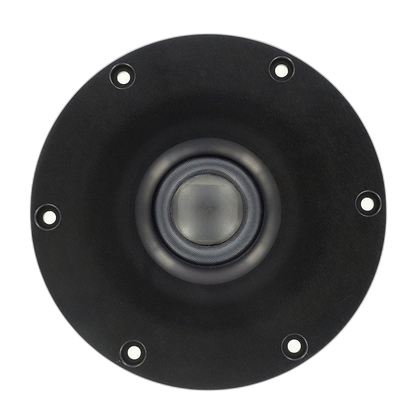

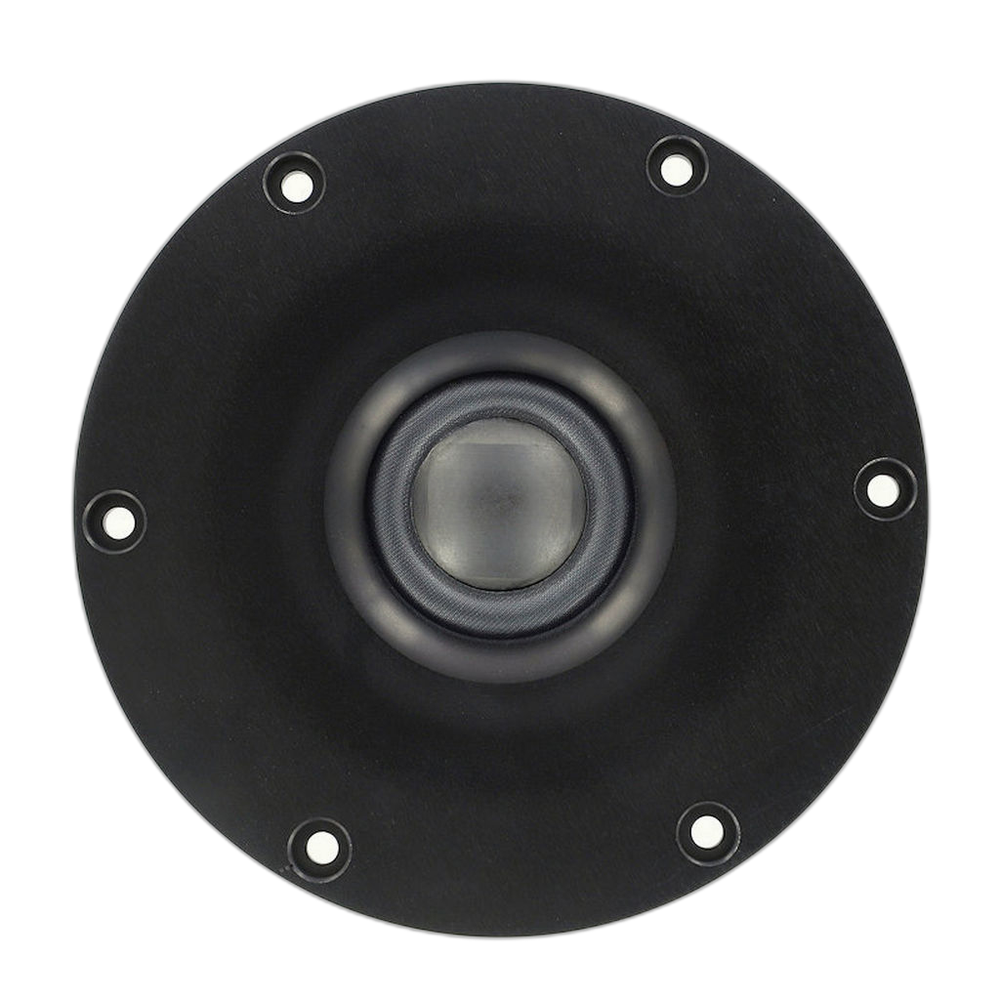

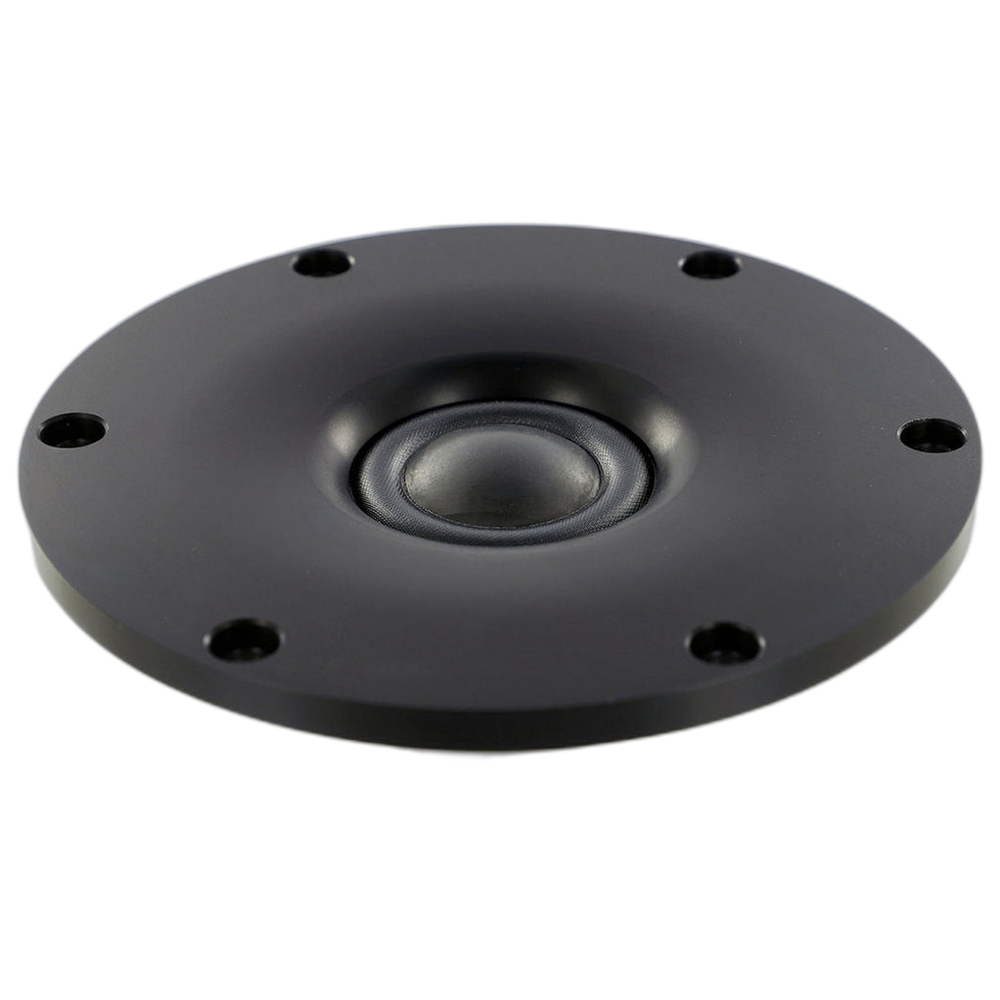

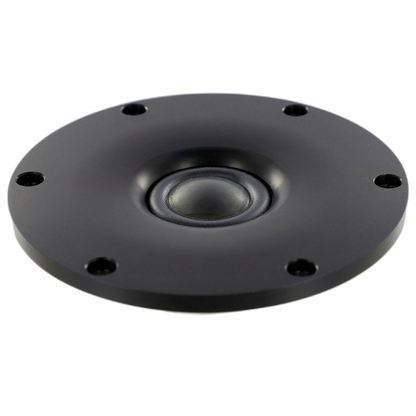

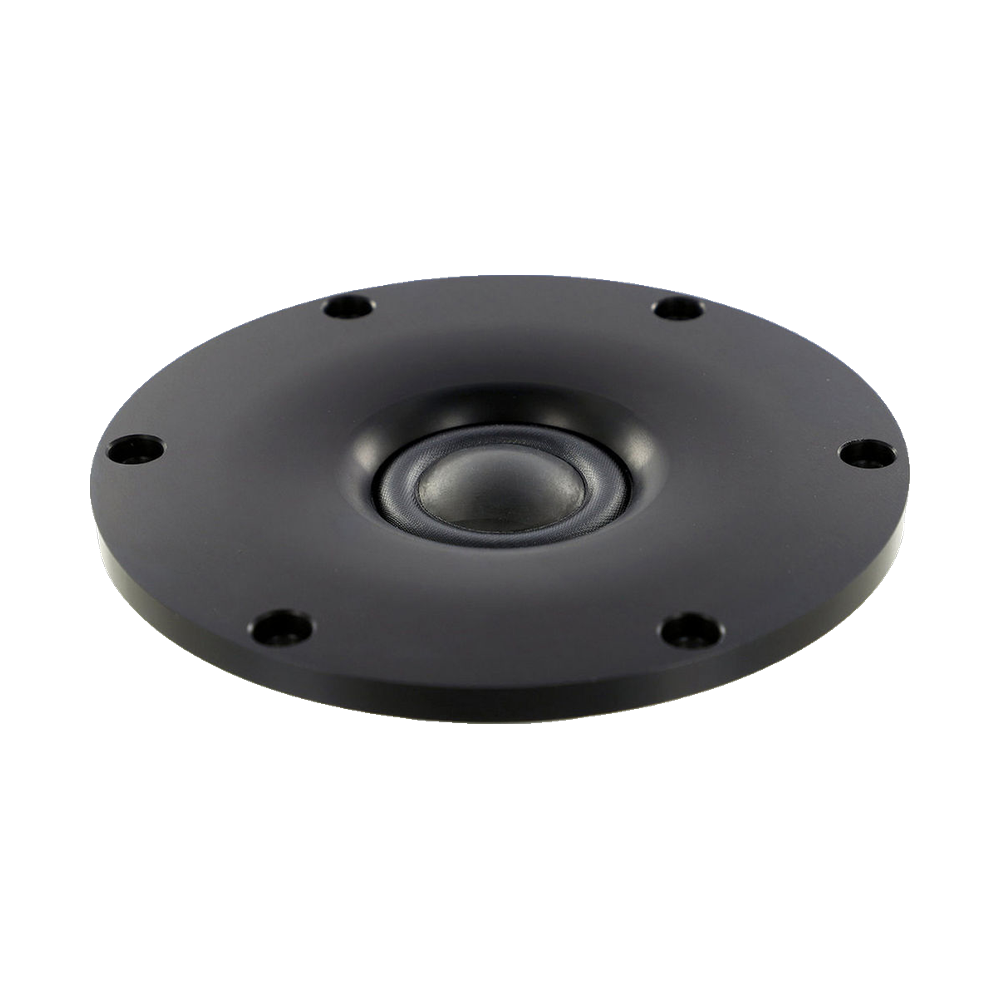

26mm TPCD Tweeter 8ohm, Black Faceplate.
The Revelator Tweeters' large roll surround and TPCD dome diaphragm technology represents a breakthrough in overall performance, with outstanding off-axis response and low distortion, high output capability and low resonance frequency. Additional enhancements have been made to reduce distortion and power compression, such as large neodymium magnet systems for high sensitivity, and a careful design to optimise airflow in the chambers.
Features
- Bespoke tailored Thin-Ply Carbon Diaphragm (TPCD)
- Rear Mount Magnet System
- Patented Symmetrical Drive (SD-2) motor
- Titanium Voice Coil Former
- Black Anodised 120mm Machined Alu Faceplate
- Non Resonant Aluminium Rear Chamber
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1" |
| Nominal impedance | 8Ω |
| Series | Revelator |
| Power handling (RMS) | 160 W |
| Power handling (program) | 200 W |
| Sensitivity | 92.5 dB |
| Frequency range | 2,500 – 40,000 Hz |
| Recommended crossover | 2. order HP Butterworth, 2.5 kHz |
Thiele/Small parameters
| Resonant frequency (Fs) | 510 Hz |
|---|---|
| DC resistance (Re) | 5.7 Ω |
| Minimum impedance (Zmin) | 7.1 Ω |
| Voice coil inductance (Le) | 0.02 mH |
| Mechanical Q (Qms) | 7.6 |
| Electrical Q (Qes) | 0.47 |
| Total Q (Qts) | 0.44 |
| Equivalent volume (Vas) | 0.02 L |
| Compliance (Cms) | 0.295 mm/N |
| Moving mass (Mms) | 0.33 g |
| Mechanical resistance (Rms) | 0.14 kg/s |
| Force factor (Bl) | 3.6 T·m |
| Effective piston area (Sd) | 7 cm² |
| Linear excursion (Xmax, one-way) | 0.2 mm |
| Mechanical excursion (Xmech) | 1.6 mm |
| Displacement volume (Vd) | 0.14 cm³ |
| Efficiency bandwidth product (EBP) | 1,085 |
| Effective piston diameter (D) | 30 mm |
| Impedance at resonance (Zo) | 50 Ω |
Motor
| Voice coil height | 2.1 mm |
|---|---|
| Air gap height | 2.5 mm |
| Voice coil layers | 2 |

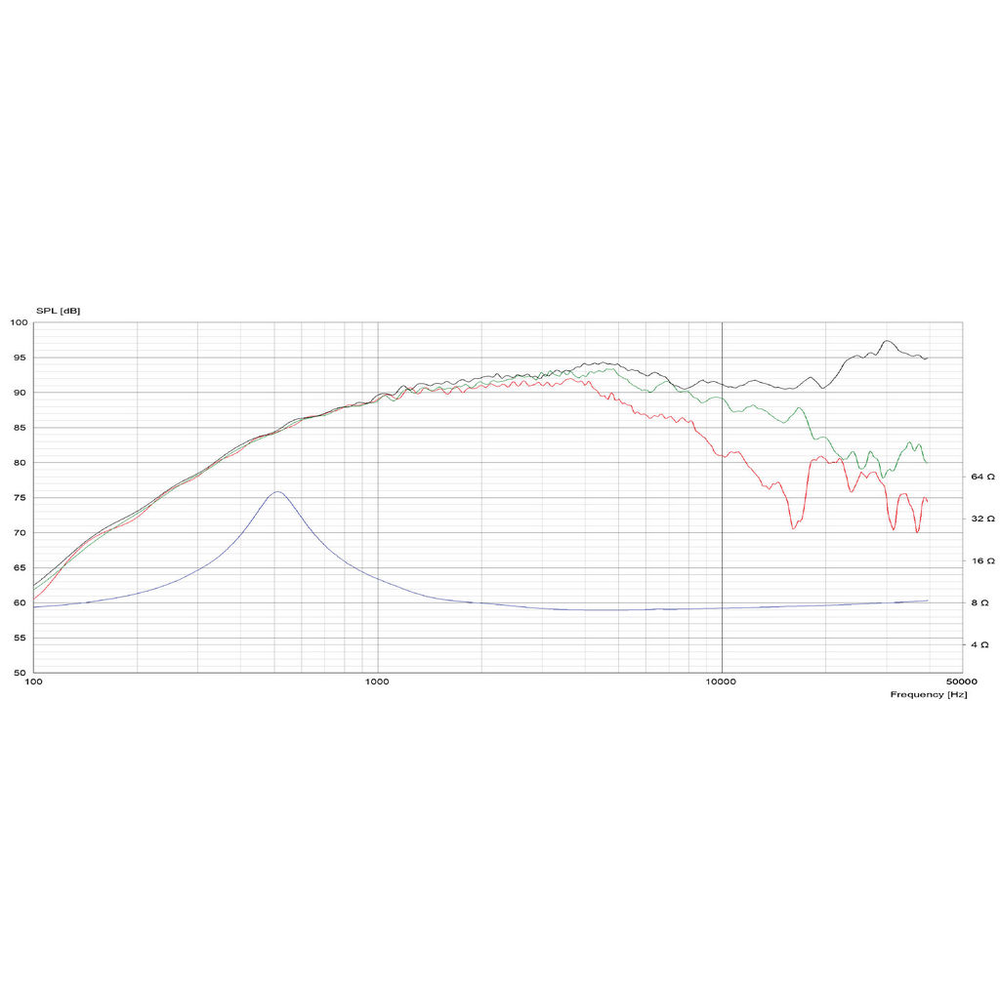

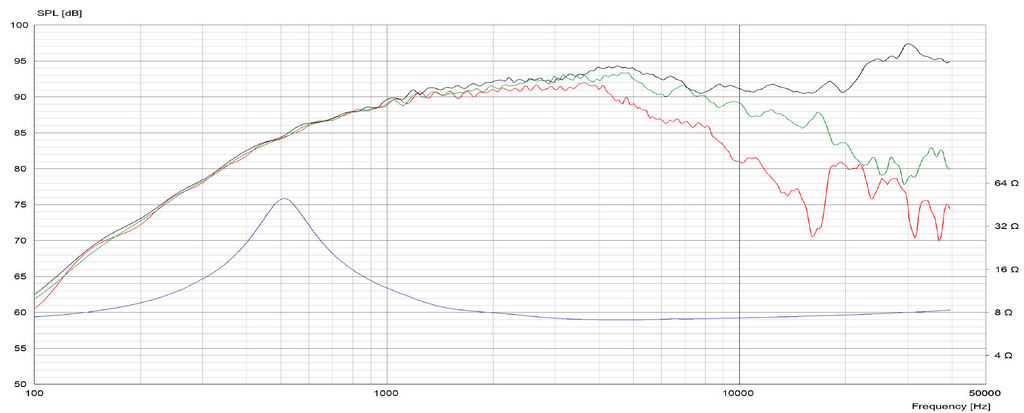

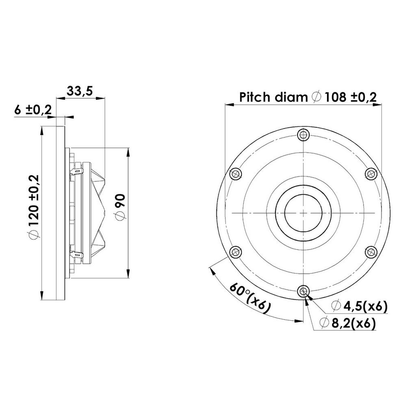

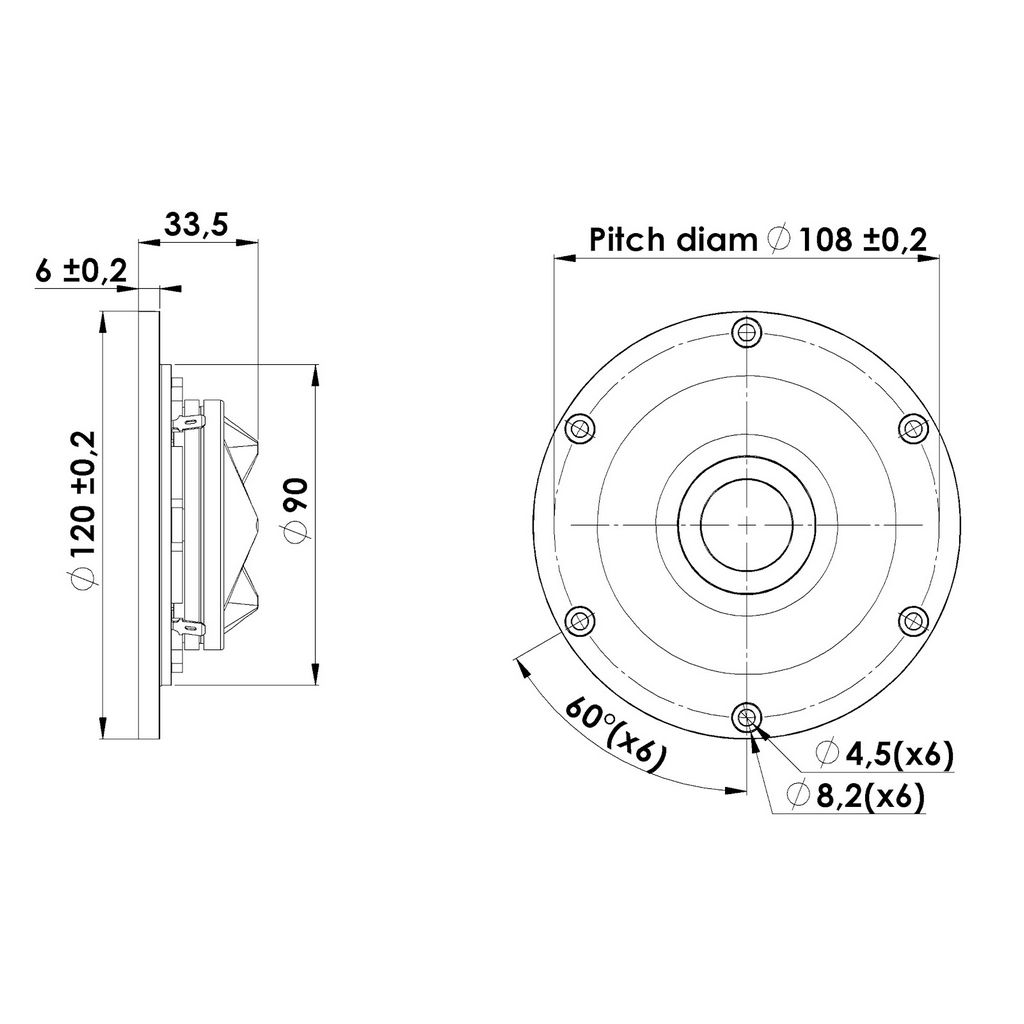

Mounting
| Overall diameter | 120 mm |
|---|---|
| Cutout diameter | 90 mm |
| Flange thickness | 6 mm |
| Bolt circle diameter | 108 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 4.5 mm |
| Voice coil diameter | 26 mm |
| Weight | 0.5 kg |
Materials
| Cone | Thin-Ply Carbon |
|---|
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
