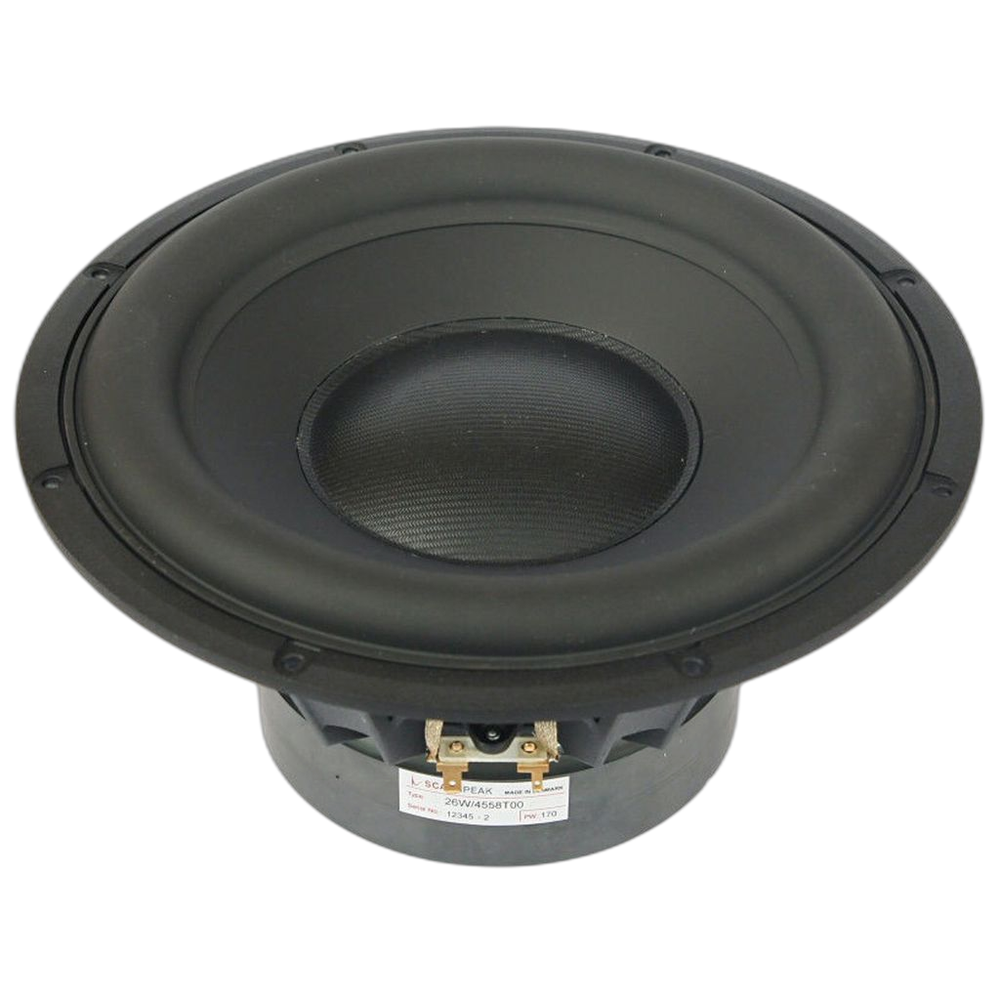

Scan-Speak - 10" Discovery Subwoofer - 26W/4558T00

Description

26cm Sub-woofer 4 ohm, Aluminium Cone, Double Ferrite Magnet. The extra long stroke suspension is to suit the unlimited demands of bass hungry enthusiasts in home or automotive audio. Emphasis has been placed in design to achieve extremely deep bass, long time reliability, high power handling and very low distortion or compression under very large sound pressures. Suitable for sealed or vented box or with the 26W/0-00-00 passive radiator.

Features

• Aluminium Cone, Black Anodised
• Fiberglass/Paper Sandwich Dust Cap, Black Coated
• 56 mm peak excursion – 25mm linear (X-max)
• Aluminum Short Circuiting Ring
• Aluminum Pole Piece Extension to reduce distortion and power compression
• Titanium Voice coil former
• Vented cone / dustcap
• Nomex spider
• Low damping rubber surround
• Litz wire woven into the spider
• Low Resonance Freq. 21Hz
• Magnet System w. Alu Ring
• High Output 88dB @ 2,83V
• Anodised Alu Cone, Fibre Glass Dust Cap
• Die cast Alu Chassis vented below spider
