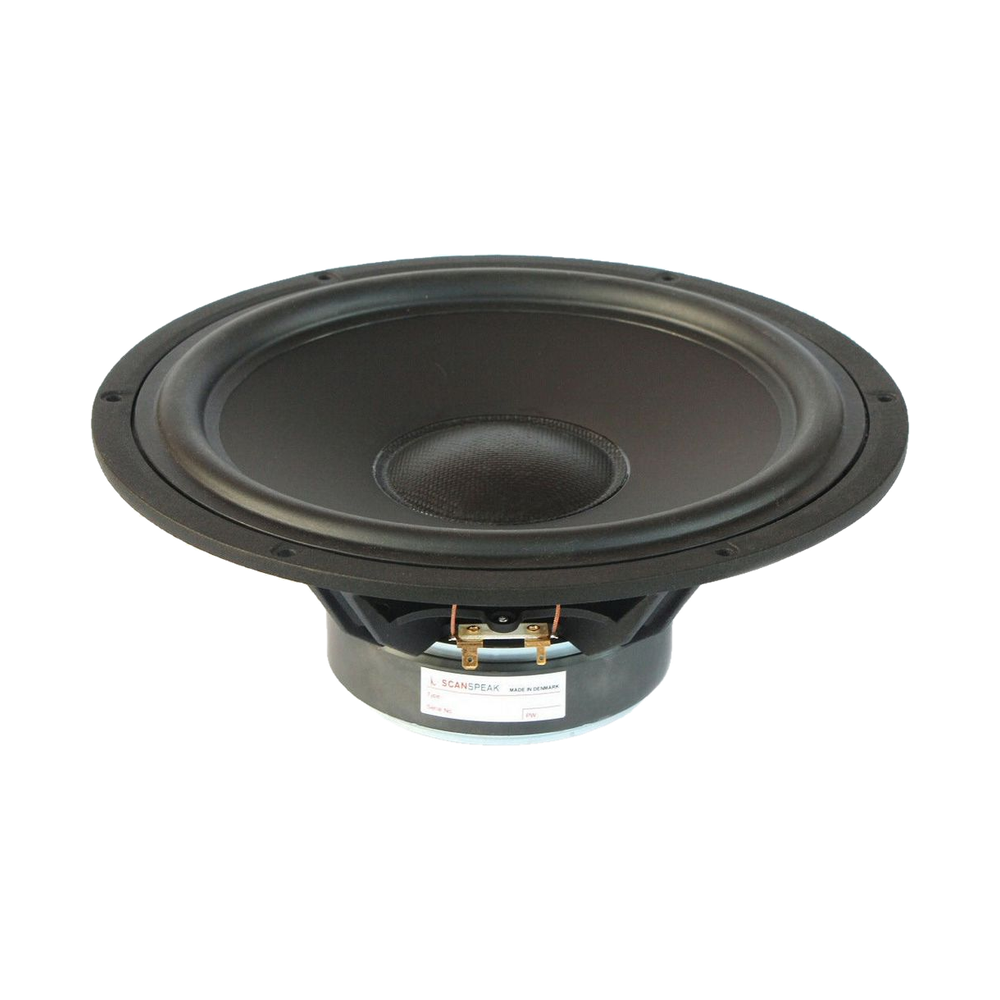

Scan-Speak - 10" Discovery Woofer - 26W/8534G00
Scan-Speak - 10" Discovery Woofer - 26W/8534G00
Regular price
$314.95 AUD
Regular price
Sale price
$314.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
A 26 cm (10") woofer from Scan-Speak's Discovery range, with a black anodised aluminium cone, a coated fibreglass dust cap and a ferrite magnet system with an aluminium ring. The die-cast aluminium chassis is vented below the spider.
Features
- Black Anodised Alu Cone
- Coated Fibre Glass Dust Cap
- Magnet System w. Alu Ring
- Die cast Alu Chassis vented below spider
- Low resonance frequency
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 10" |
| Nominal impedance | 8Ω |
| Series | Discovery |
| Power handling (RMS) | 80 W |
| Power handling (program) | 150 W |
| Sensitivity | 89 dB |
| Frequency range | fs – 1,500 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 23 Hz |
|---|---|
| DC resistance (Re) | 5.7 Ω |
| Minimum impedance (Zmin) | 6.4 Ω |
| Voice coil inductance (Le) | 0.96 mH |
| Mechanical Q (Qms) | 9.12 |
| Electrical Q (Qes) | 0.42 |
| Total Q (Qts) | 0.4 |
| Equivalent volume (Vas) | 150 L |
| Compliance (Cms) | 0.95 mm/N |
| Moving mass (Mms) | 50.5 g |
| Mechanical resistance (Rms) | 0.8 kg/s |
| Force factor (Bl) | 10.1 T·m |
| Effective piston area (Sd) | 350 cm² |
| Linear excursion (Xmax, one-way) | 6 mm |
| Mechanical excursion (Xmech) | 12 mm |
| Displacement volume (Vd) | 210 cm³ |
| Efficiency bandwidth product (EBP) | 54.76 |
| Effective piston diameter (D) | 211 mm |
| Impedance at resonance (Zo) | 117 Ω |
Motor
| Voice coil height | 18 mm |
|---|---|
| Air gap height | 6 mm |
| Voice coil layers | 2 |
Mounting
| Volume displaced by driver | 0.73 L |
|---|---|
| Voice coil diameter | 38 mm |
| Weight | 2.9 kg |
Materials
| Cone | Aluminium |
|---|---|
| Magnet | Ferrite |
Typical box tunings
| Closed box: box volume | 82 L |
|---|---|
| Closed box: corner frequency | 39 Hz |
| Vented box: box volume | 173 L |
| Vented box: box resonance | 22 Hz |
| Vented box: corner frequency | 22 Hz |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Downloads
- Datasheet PDF, 372 KB

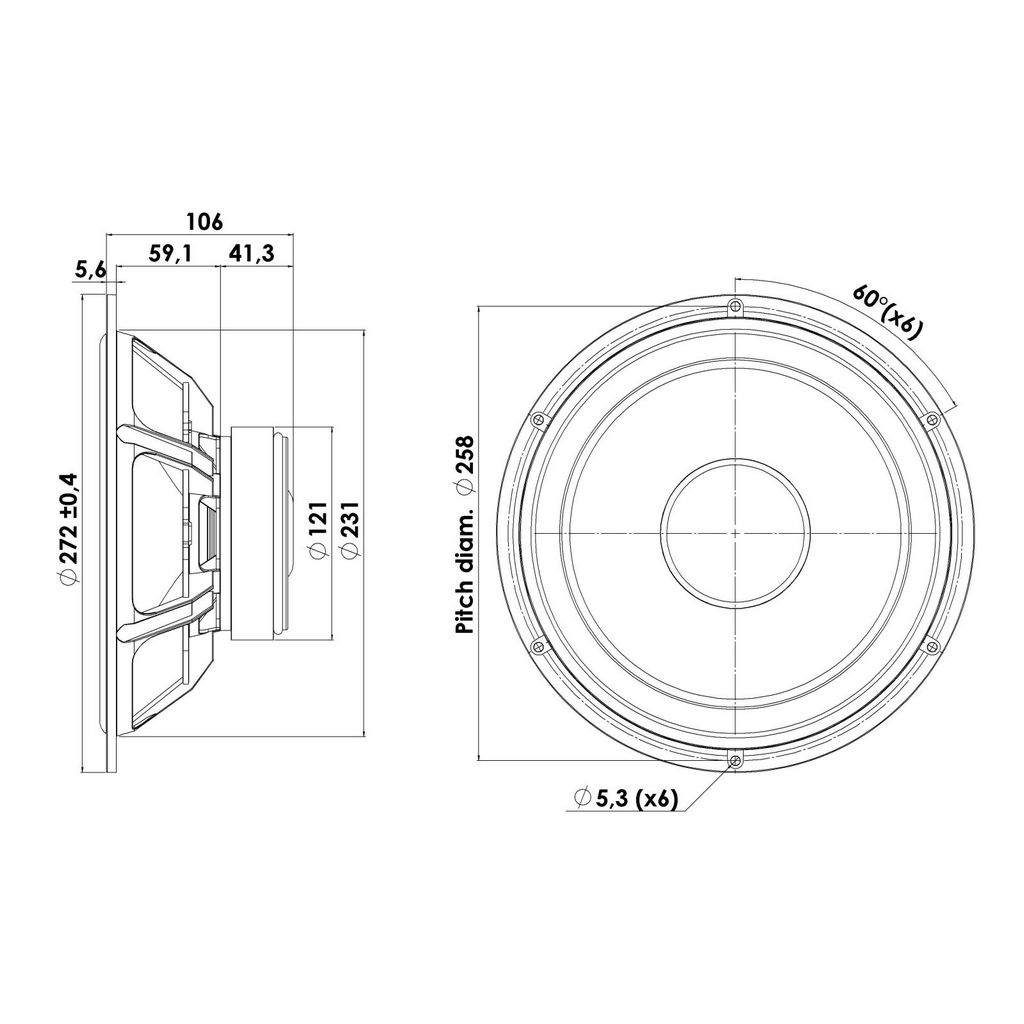

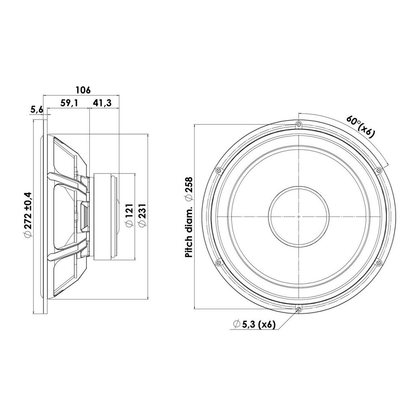

- Drawing PNG, 259 KB
- Adv. Parameters PDF, 46 KB
- 3D model 3D CAD, ZIP, 3.0 MB
