Scan-Speak - 10" Revelator Woofer - 26W/8861T00
Scan-Speak - 10" Revelator Woofer - 26W/8861T00
Regular price
$674.95
Regular price
Sale price
$674.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

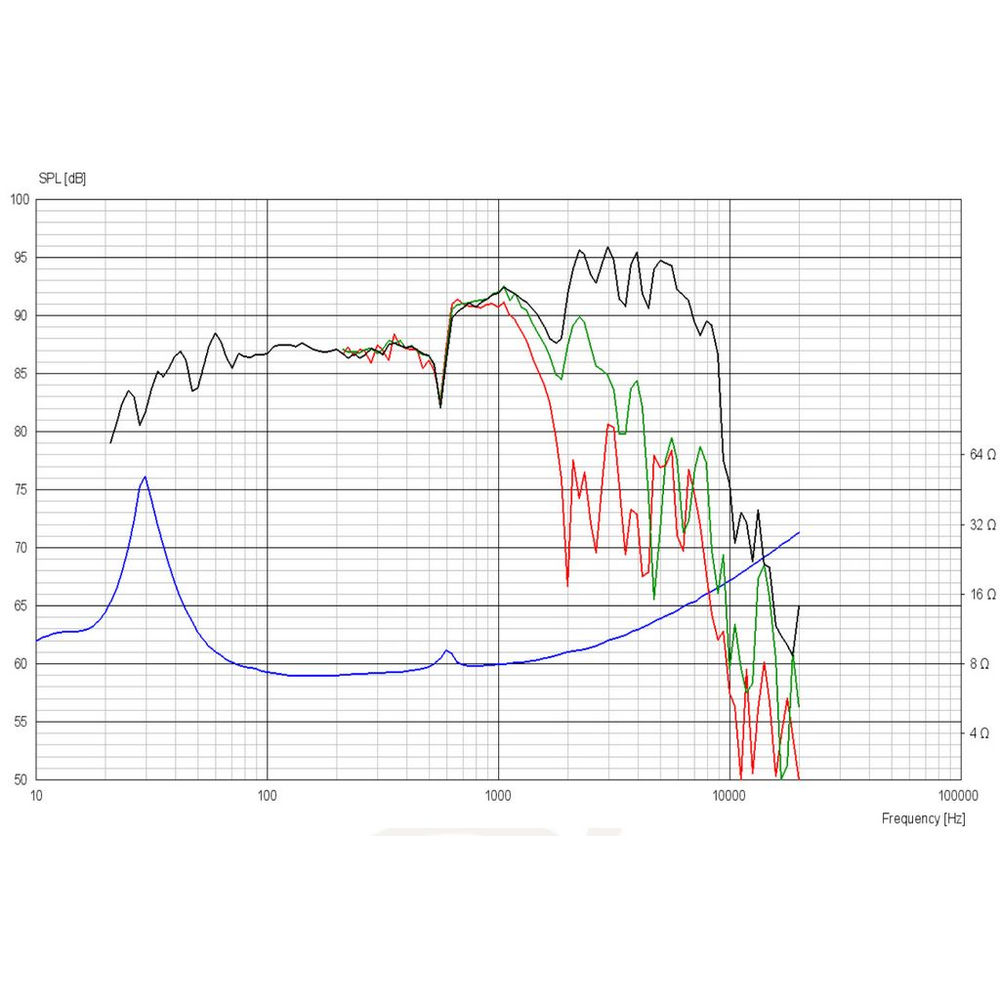

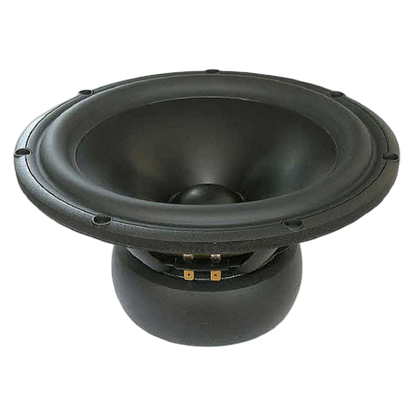

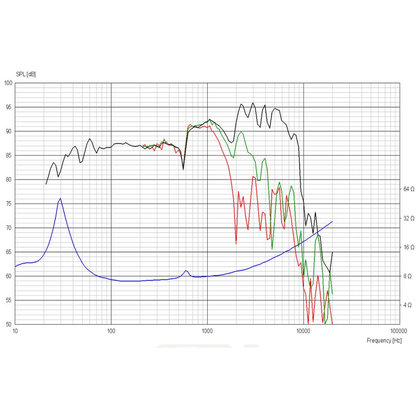

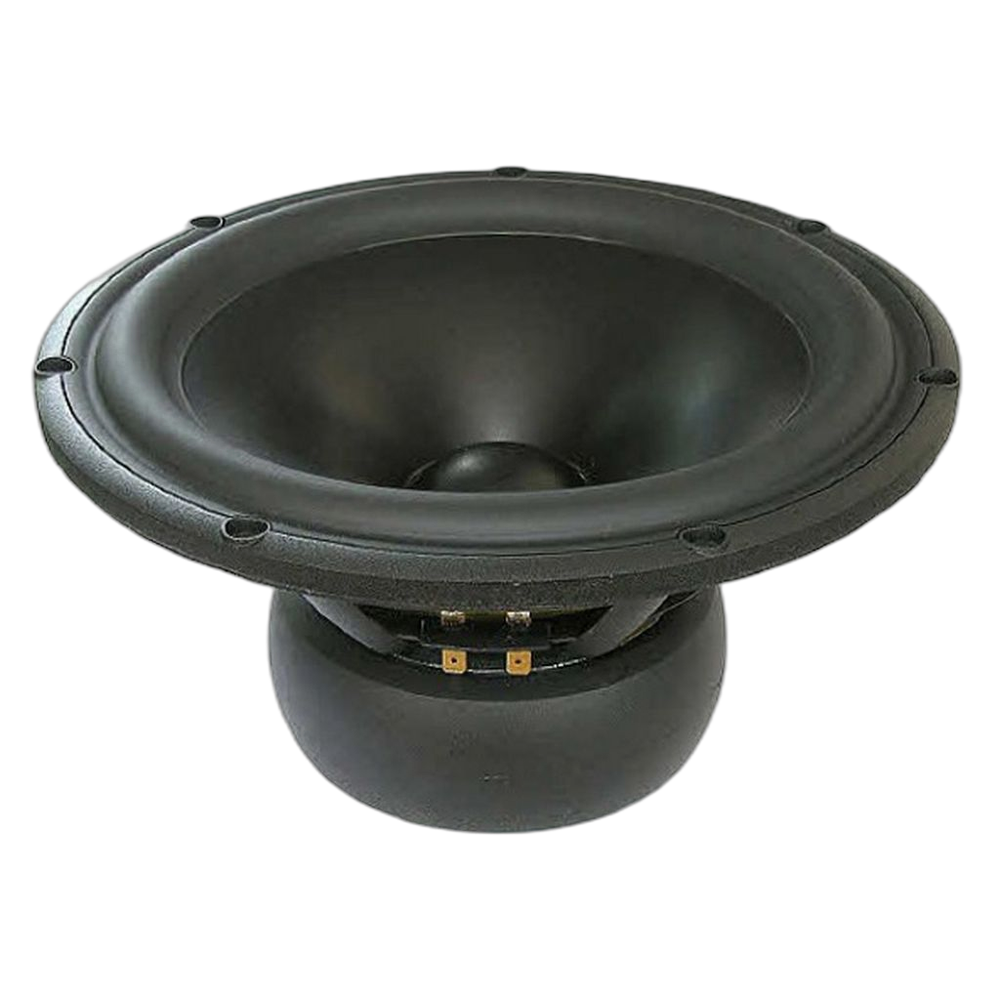

Low loss linear suspension, SD-1 motor system, hard paper cone. This robust 10” woofer was designed to provide deep and accurate bass in a small enclosure. 2” voice coil on a titanium former, a low loss linear suspension and symmetric drive motor. The deep set hard paper cone is attached to the frame with a minimal reflection rubber surround. The 9mm X-max insures good linear travel.
Features
- Patented Symmetrical Drive Motor Design
- Rigid Paper Cone
- Low-Loss linear suspension
- Low Damping SBR Rubber Surround
- Die cast Alu Chassis vented below spider
- Ferrite Magnet System w. Rubber Boot
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 10" |
| Nominal impedance | 8Ω |
| Series | Revelator |
| Power handling (RMS) | 80 W |
| Power handling (program) | 200 W |
| Sensitivity | 88.5 dB |
| Suggested alignment | Either |
| Frequency range | fs – 1,500 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 19 Hz |
|---|---|
| DC resistance (Re) | 6.2 Ω |
| Minimum impedance (Zmin) | 7.1 Ω |
| Voice coil inductance (Le) | 0.35 mH |
| Mechanical Q (Qms) | 5.2 |
| Electrical Q (Qes) | 0.33 |
| Total Q (Qts) | 0.31 |
| Equivalent volume (Vas) | 231 L |
| Compliance (Cms) | 1.61 mm/N |
| Moving mass (Mms) | 43.5 g |
| Mechanical resistance (Rms) | 1 kg/s |
| Force factor (Bl) | 9.9 T·m |
| Effective piston area (Sd) | 320 cm² |
| Linear excursion (Xmax, one-way) | 9 mm |
| Mechanical excursion (Xmech) | 14 mm |
| Displacement volume (Vd) | 288 cm³ |
| Efficiency bandwidth product (EBP) | 57.58 |
| Effective piston diameter (D) | 202 mm |
| Impedance at resonance (Zo) | 104 Ω |
Motor
| Voice coil height | 24 mm |
|---|---|
| Air gap height | 6 mm |
| Voice coil layers | 2 |
Mounting
| Overall diameter | 260 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 229.6 mm |
| Mounting depth | 124.2 mm |
| Flange thickness | 7 mm |
| Bolt circle diameter | 247.5 mm |
| Mounting holes | 7 |
| Mounting hole diameter | 5.2 mm |
| Volume displaced by driver | 1.31 L |
| Voice coil diameter | 50 mm |
| Weight | 3.7 kg |
Materials
| Cone | Rigid Paper |
|---|---|
| Surround | SBR |
| Basket | Cast Aluminium |
| Magnet | Ferrite |
Typical box tunings
| Closed box: box volume | 62 L |
|---|---|
| Closed box: corner frequency | 41 Hz |
| Vented box: box volume | 113 L |
| Vented box: box resonance | 24 Hz |
| Vented box: corner frequency | 26 Hz |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Downloads
- 26W/8861T00 Datasheet

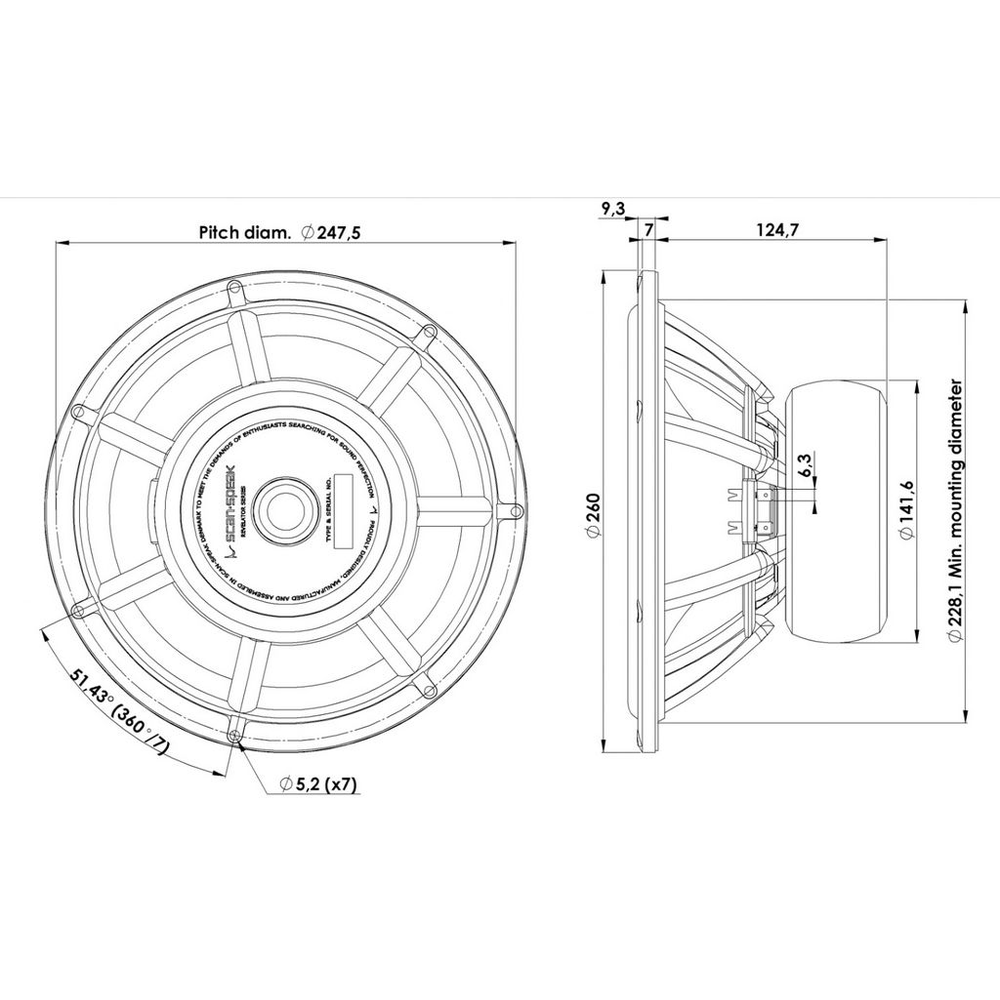

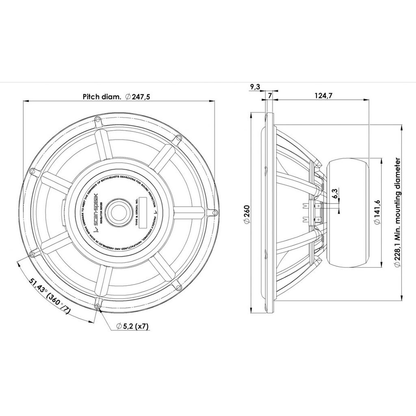

- 26W/8861T00 Drawing
- 26W/8861T00 Adv. Parameters
- 26W/8861T00 3D model
- 26W/8861T00 Cutout & Recess Template (NB Audio) Straight off Scan-Speak's spec sheet: flange outline, recess depth, bolt holes. Scaled from Scan-Speak's drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
