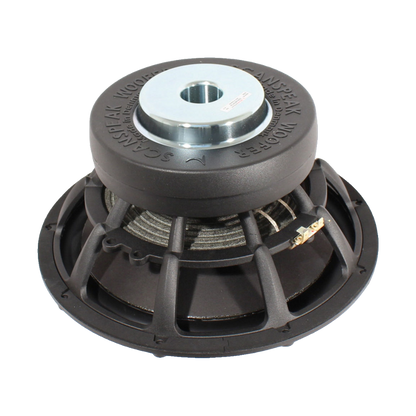

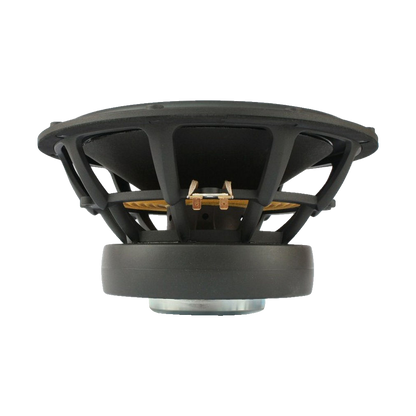

Scan-Speak - 13" Revelator Subwoofer - 32W/4878T00
Scan-Speak - 13" Revelator Subwoofer - 32W/4878T00
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

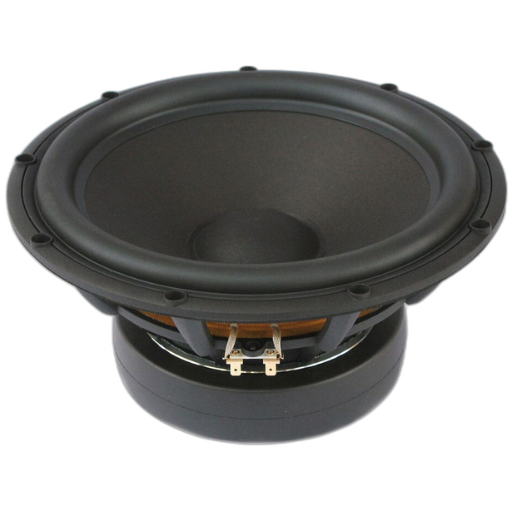

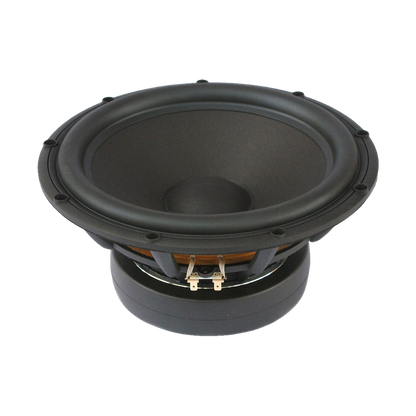

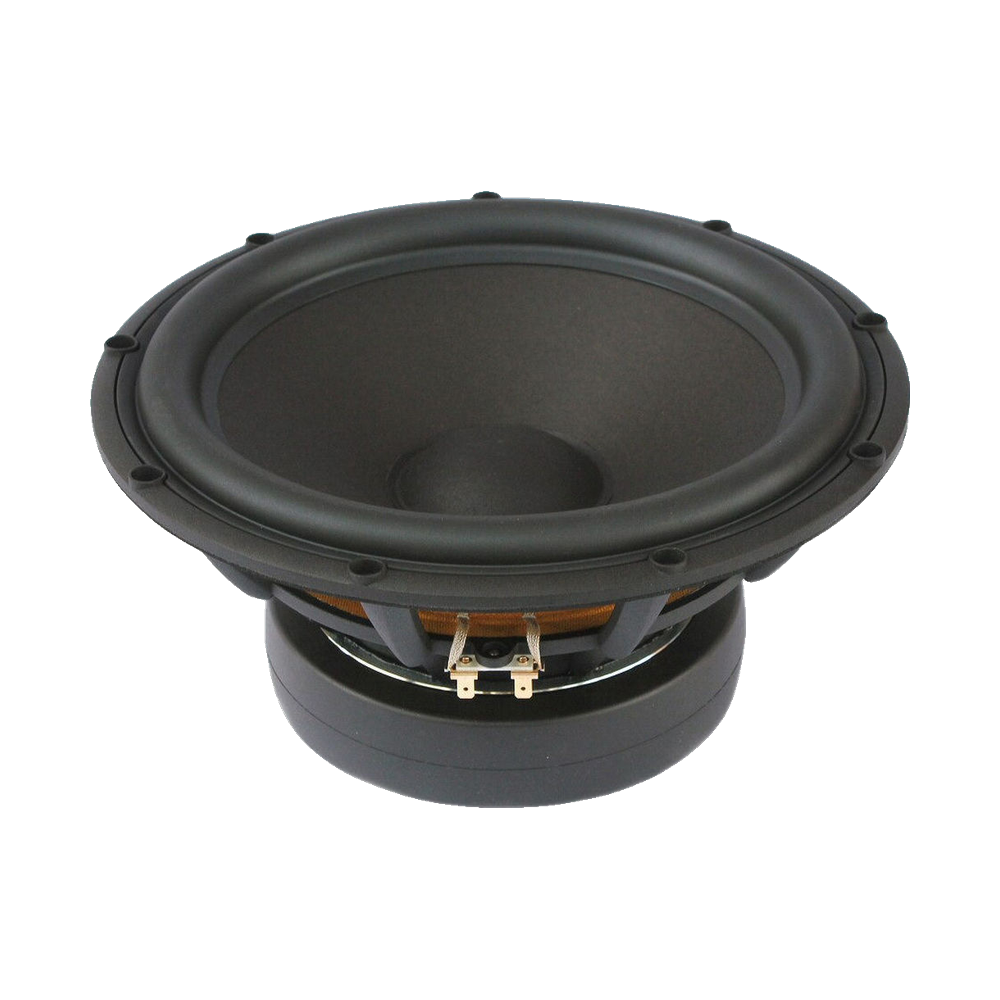

32cm Subwoofer 4ohm, Sandwich Paper Cone, Ferrite Magnet
The 32W/4878T00 is the most powerful subwoofer designed by Scan-Speak to this date, with its large 3” voice coil, extreme linear excursion and low resonance frequency, it is perfect to reproduce the deepest frequencies. It features a brand new type of paper-sandwich cone with a special foam filling technology (patented) that gives the cone very high stiffness and relatively low weight. The motor system has heavy duty copper sleeves for reducing eddy currents and minimising self-induction.
Features

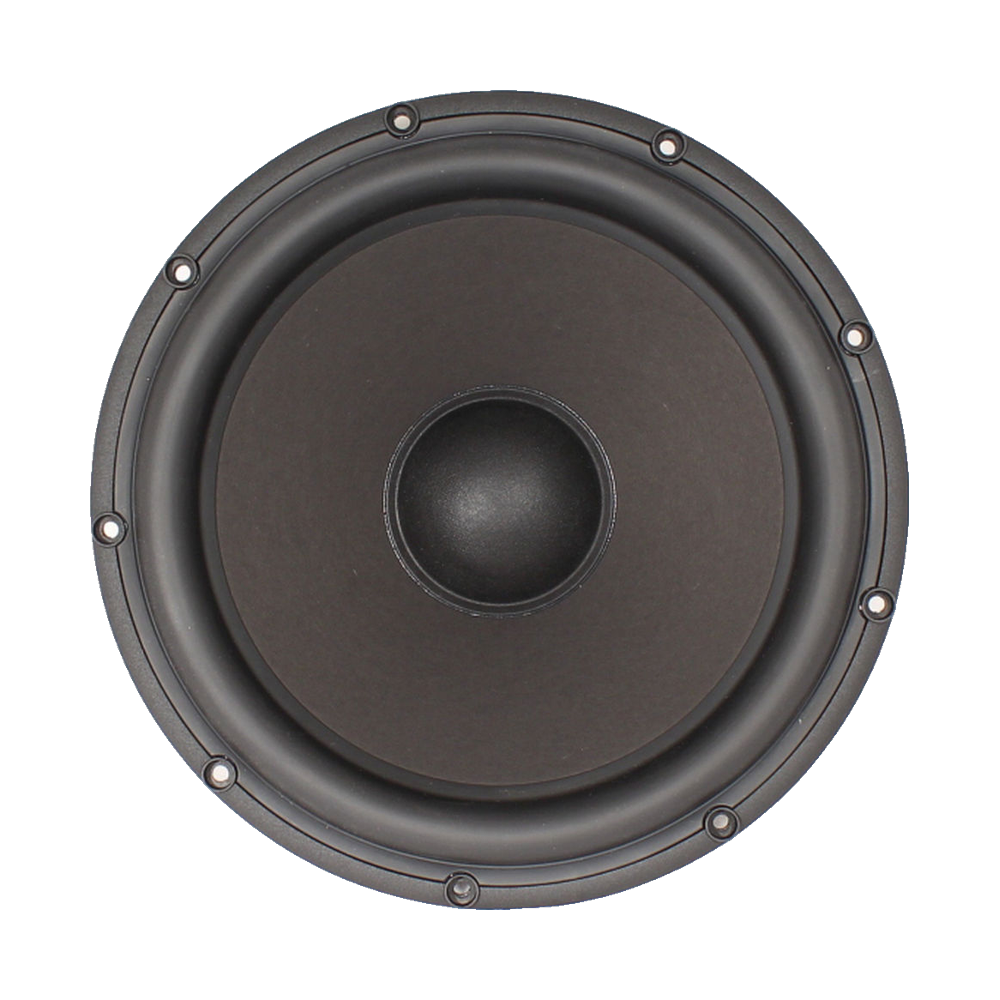

- Paper sandwich cone with Patented foam filling
- Extreme linear excursion (+/-14 mm)

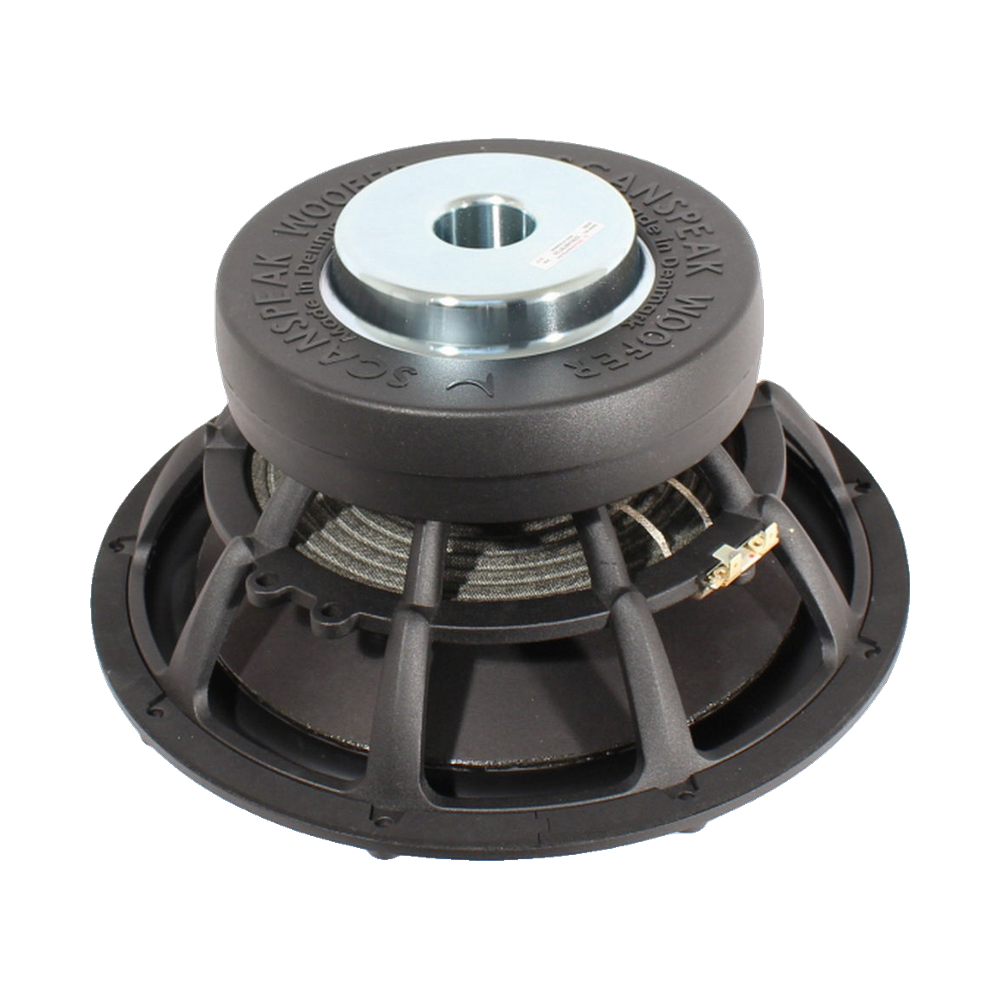

- Patented Symmetrical Drive motor
- 3" Voice coil, Titanium former and paper reinforced
- Spider with balanced woven in tinsel leads

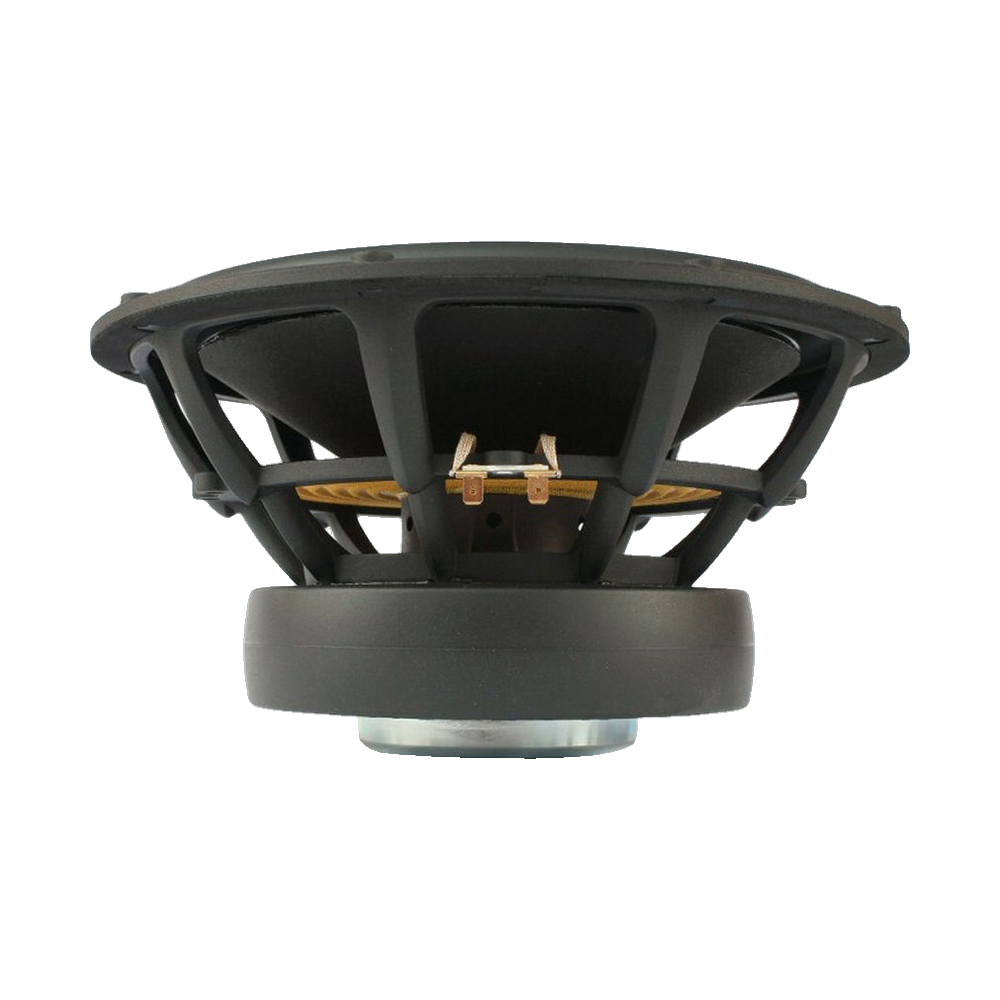

- Stiff and strong die cast aluminium chassis
Specifications
Specifications

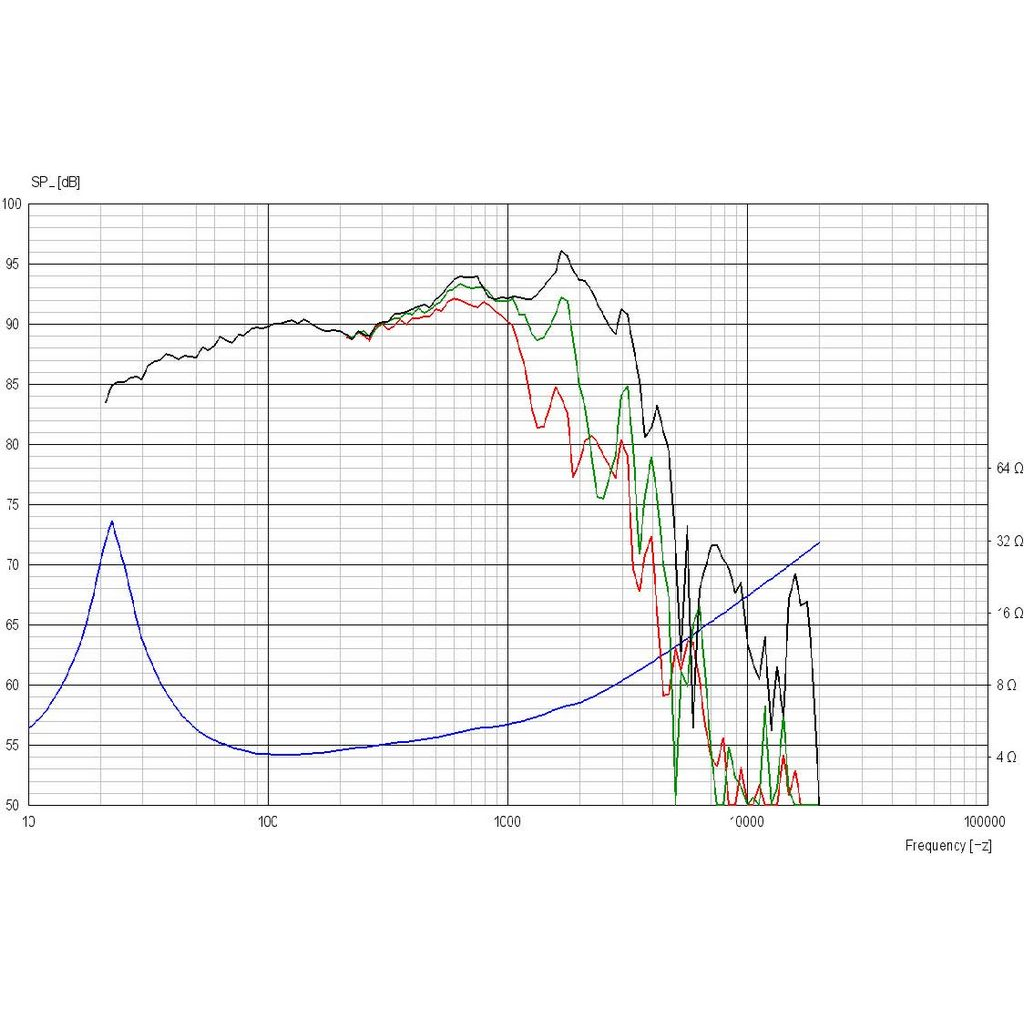

General
| Driver type | Subwoofer |
|---|---|
| Nominal size | 13" |
| Nominal impedance | 4Ω |
| Series | Revelator |
| Power handling (RMS) | 200 W |
| Power handling (program) | 550 W |
| Sensitivity | 90 dB |
| Suggested alignment | Either |

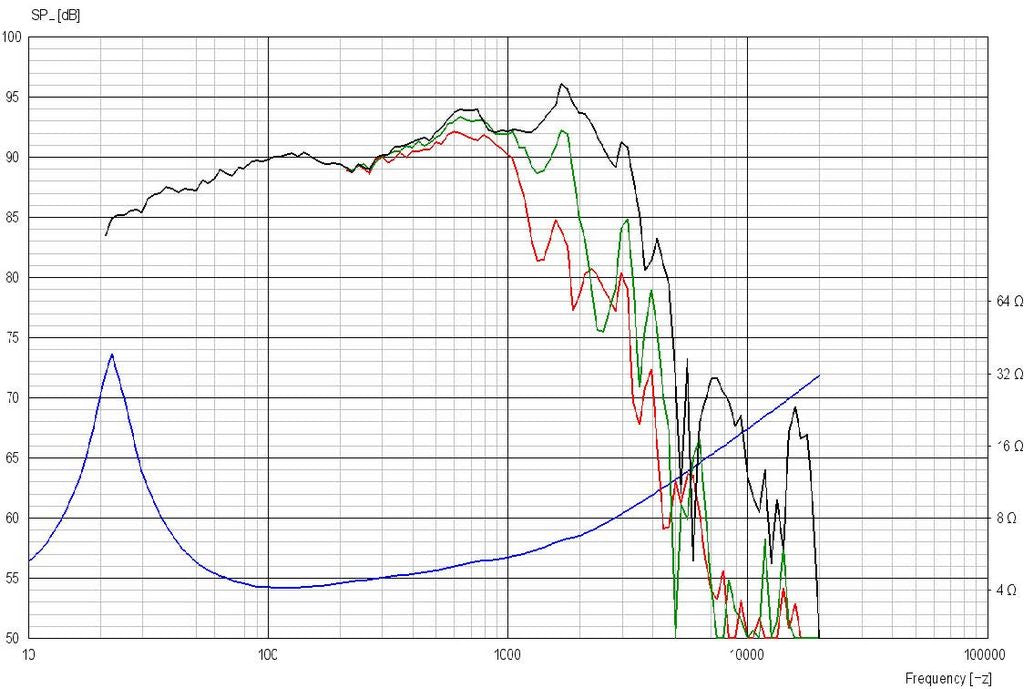

| Frequency range | fs – 2,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 18 Hz |
|---|---|
| DC resistance (Re) | 3.1 Ω |
| Minimum impedance (Zmin) | 4 Ω |
| Voice coil inductance (Le) | 0.5 mH |
| Mechanical Q (Qms) | 7 |
| Electrical Q (Qes) | 0.33 |
| Total Q (Qts) | 0.32 |
| Equivalent volume (Vas) | 204 L |
| Compliance (Cms) | 0.52 mm/N |
| Moving mass (Mms) | 150 g |
| Mechanical resistance (Rms) | 2.42 kg/s |
| Force factor (Bl) | 12.5 T·m |
| Effective piston area (Sd) | 526 cm² |
| Linear excursion (Xmax, one-way) | 14 mm |
| Mechanical excursion (Xmech) | 28 mm |
| Displacement volume (Vd) | 736.4 cm³ |
| Efficiency bandwidth product (EBP) | 54.55 |
| Effective piston diameter (D) | 260 mm |
| Impedance at resonance (Zo) | 69 Ω |
Motor
| Voice coil height | 36 mm |
|---|---|
| Air gap height | 8 mm |
| Voice coil layers | 2 |

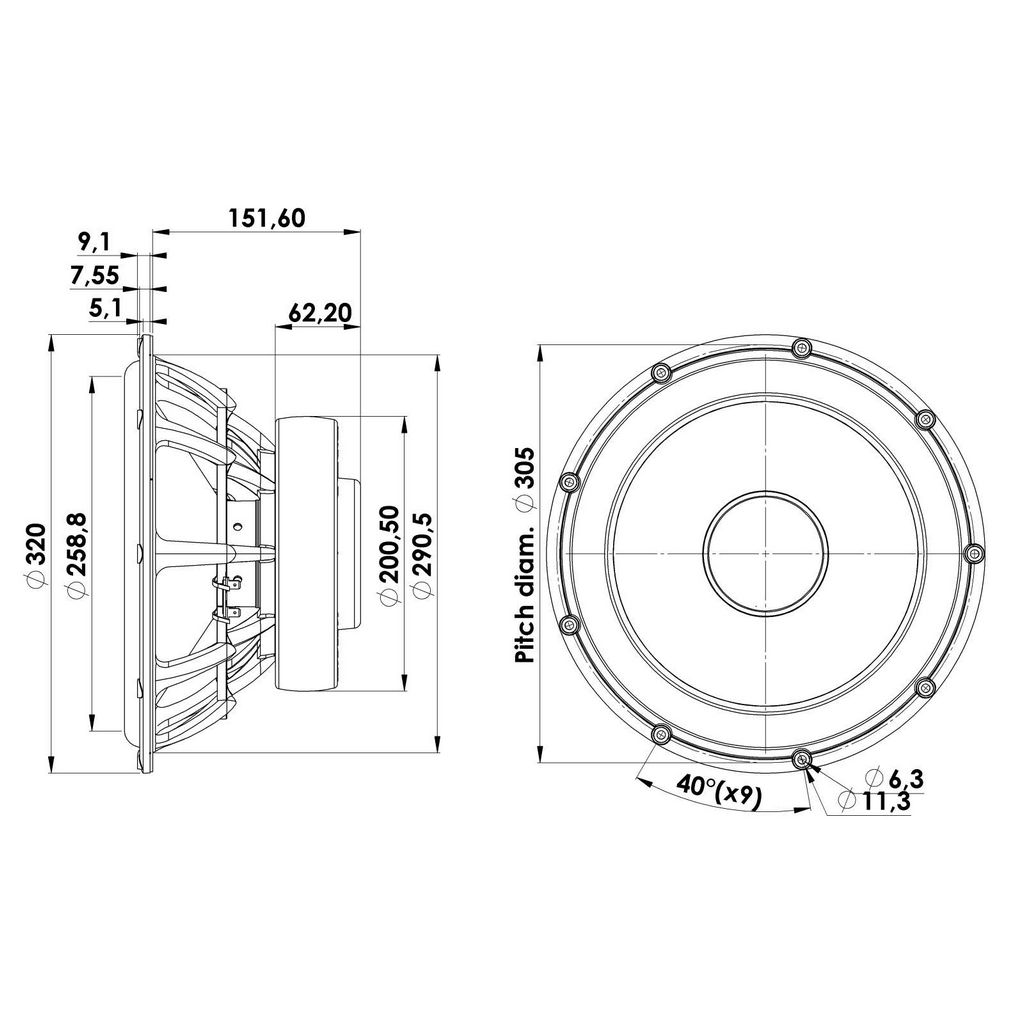

Mounting
| Overall diameter | 320 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 292.0 mm |
| Mounting depth | 150.6 mm |
| Flange thickness | 7.55 mm |
| Bolt circle diameter | 305 mm |
| Mounting holes | 9 |
| Mounting hole diameter | 6.3 mm |
| Volume displaced by driver | 2.65 L |
| Voice coil diameter | 75 mm |
| Weight | 7.5 kg |
Materials
| Cone | Sandwich Paper |
|---|---|
| Voice coil former | Titanium |
| Basket | Cast Aluminium |
| Magnet | Ferrite |
Typical box tunings
| Closed box: box volume | 67 L |
|---|---|
| Closed box: corner frequency | 36 Hz |
| Vented box: box volume | 129 L |
| Vented box: box resonance | 20 Hz |
| Vented box: corner frequency | 21 Hz |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Downloads
- 32W/4878T00 Datasheet
- 32W/4878T00 Drawing
- 32W/4878T00 Adv. Parameters
- 32W/4878T00 3D model
- 32W/4878T00 Cutout & Recess Template (NB Audio) Straight off Scan-Speak's spec sheet: flange outline, recess depth, bolt holes. Scaled from Scan-Speak's drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
