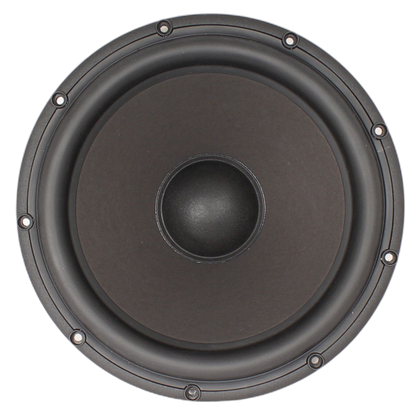

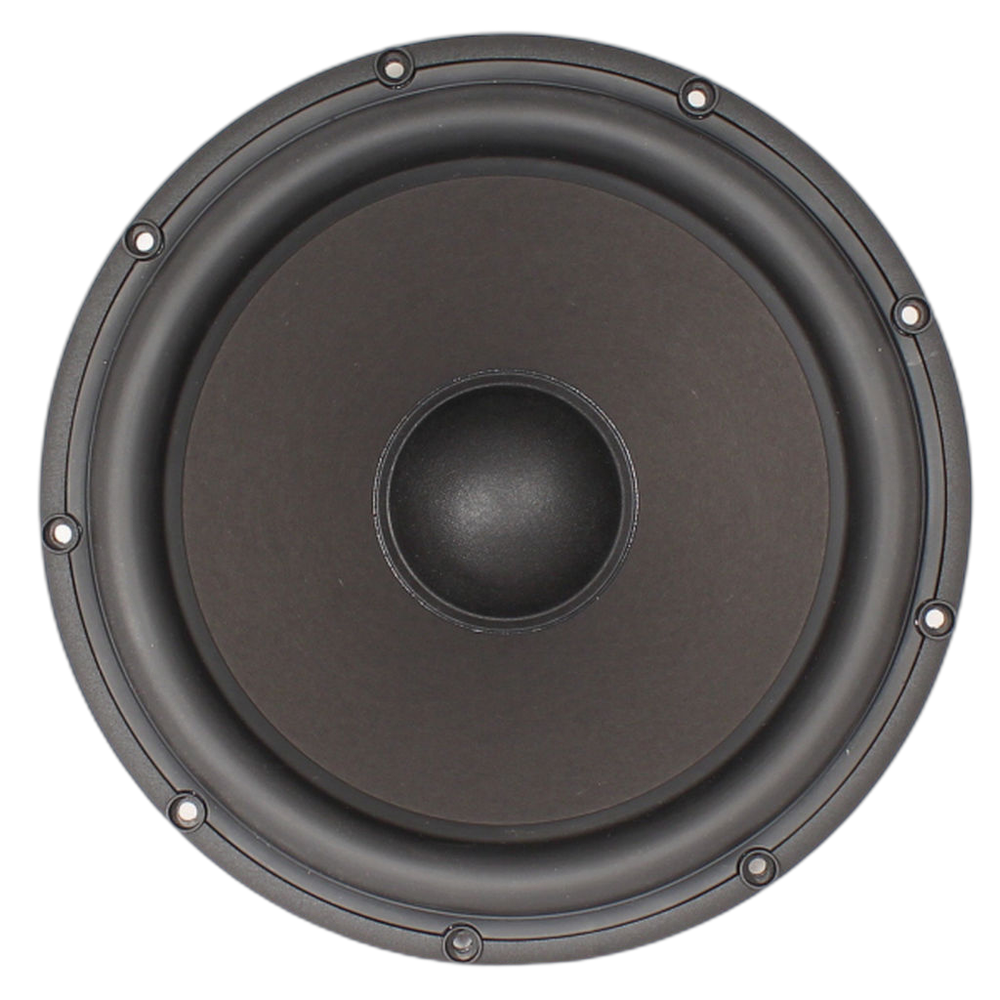

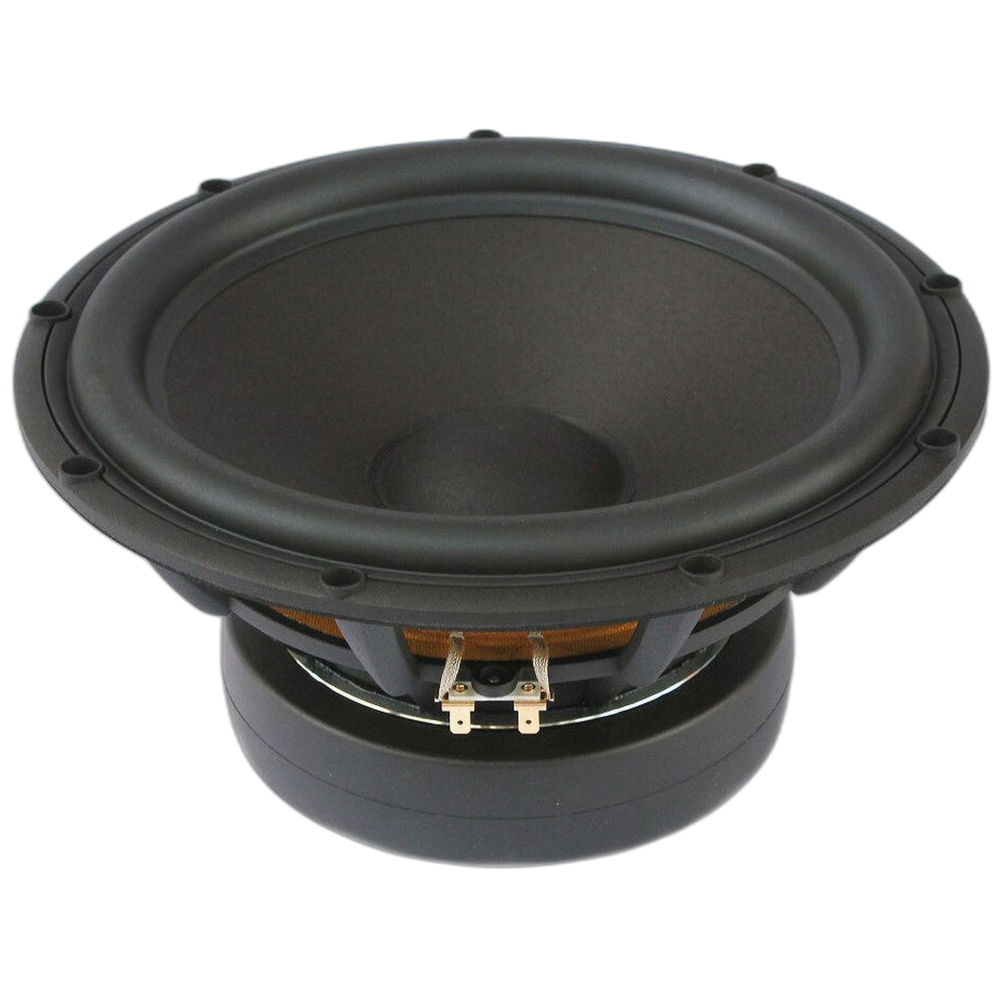

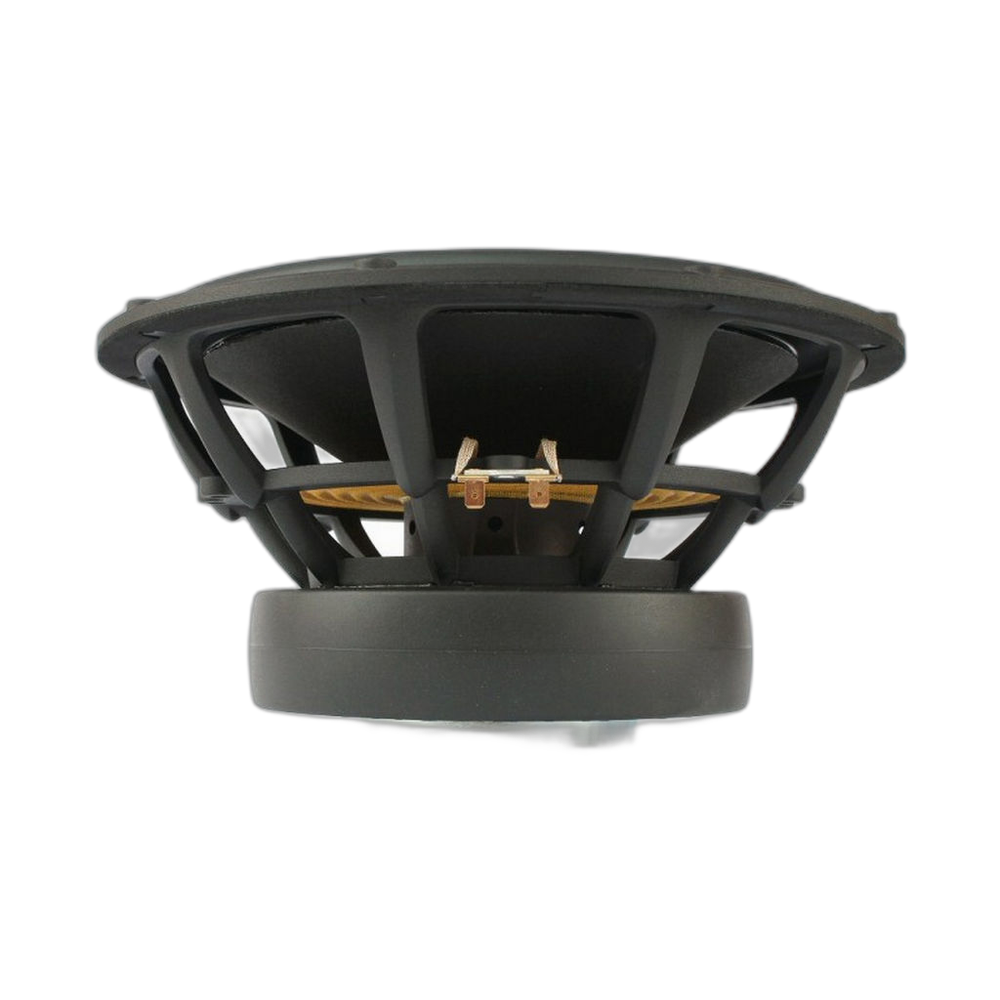

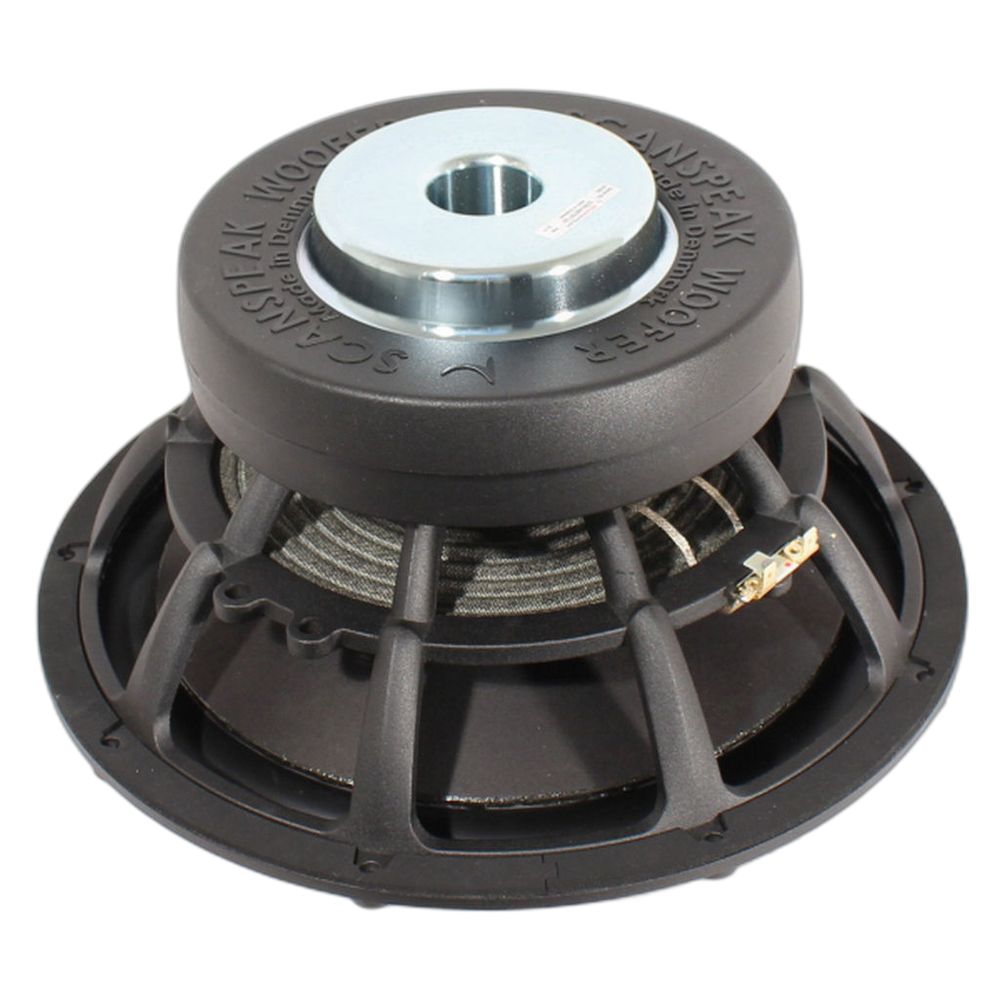

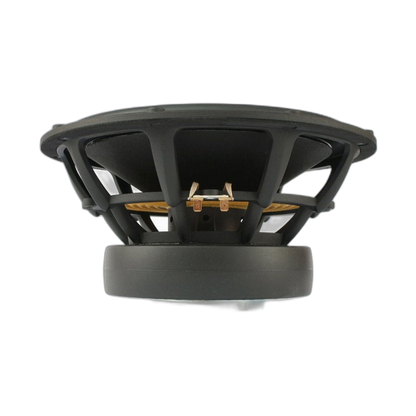

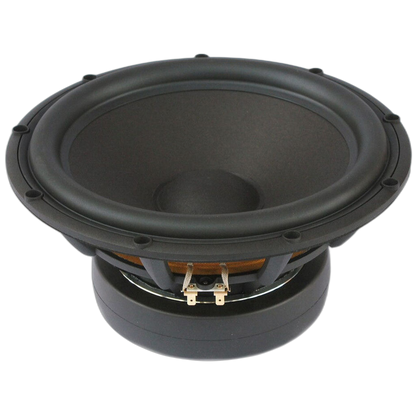

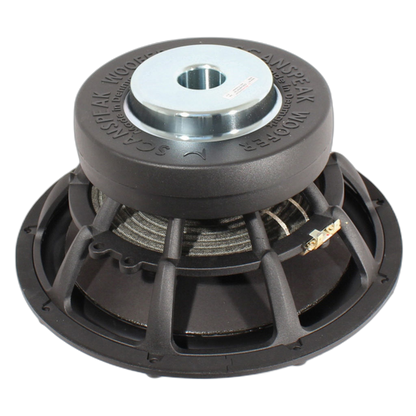

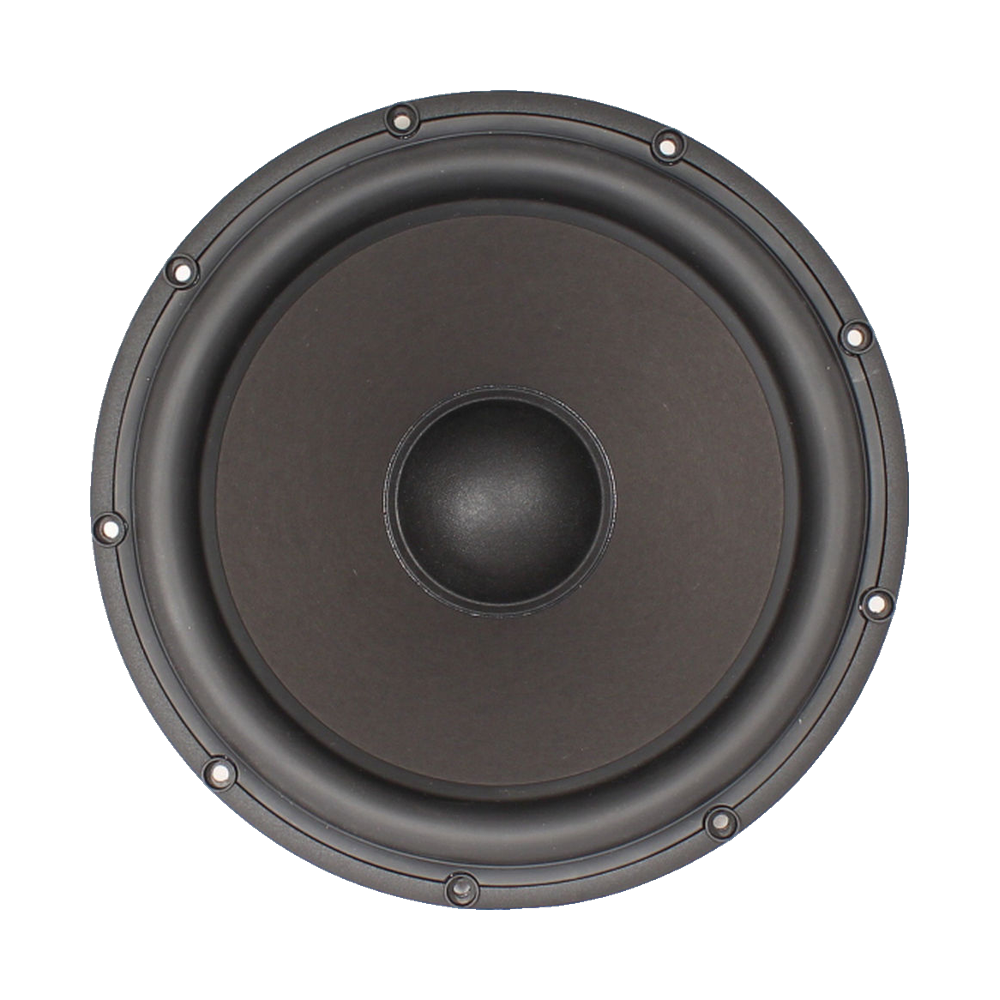

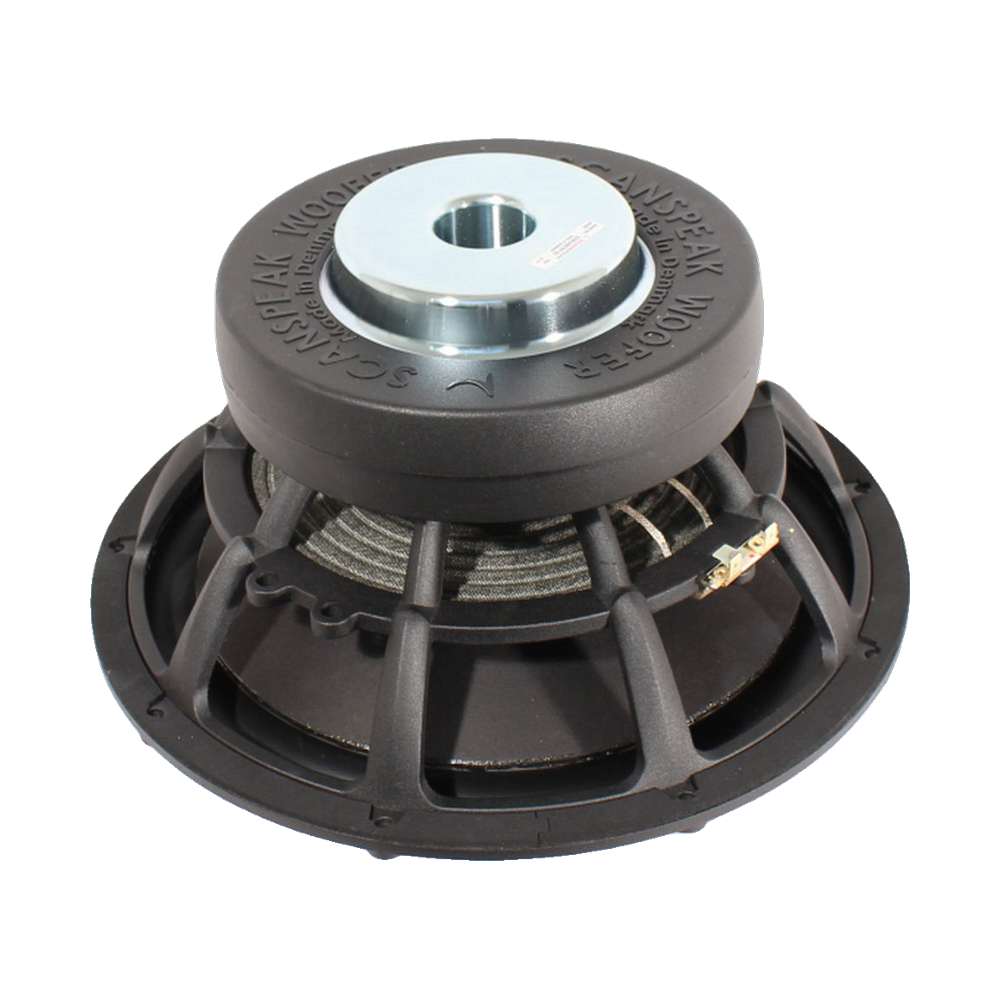

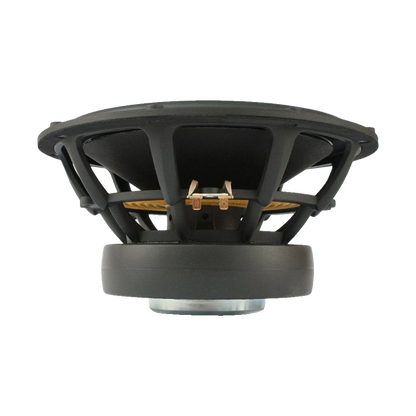

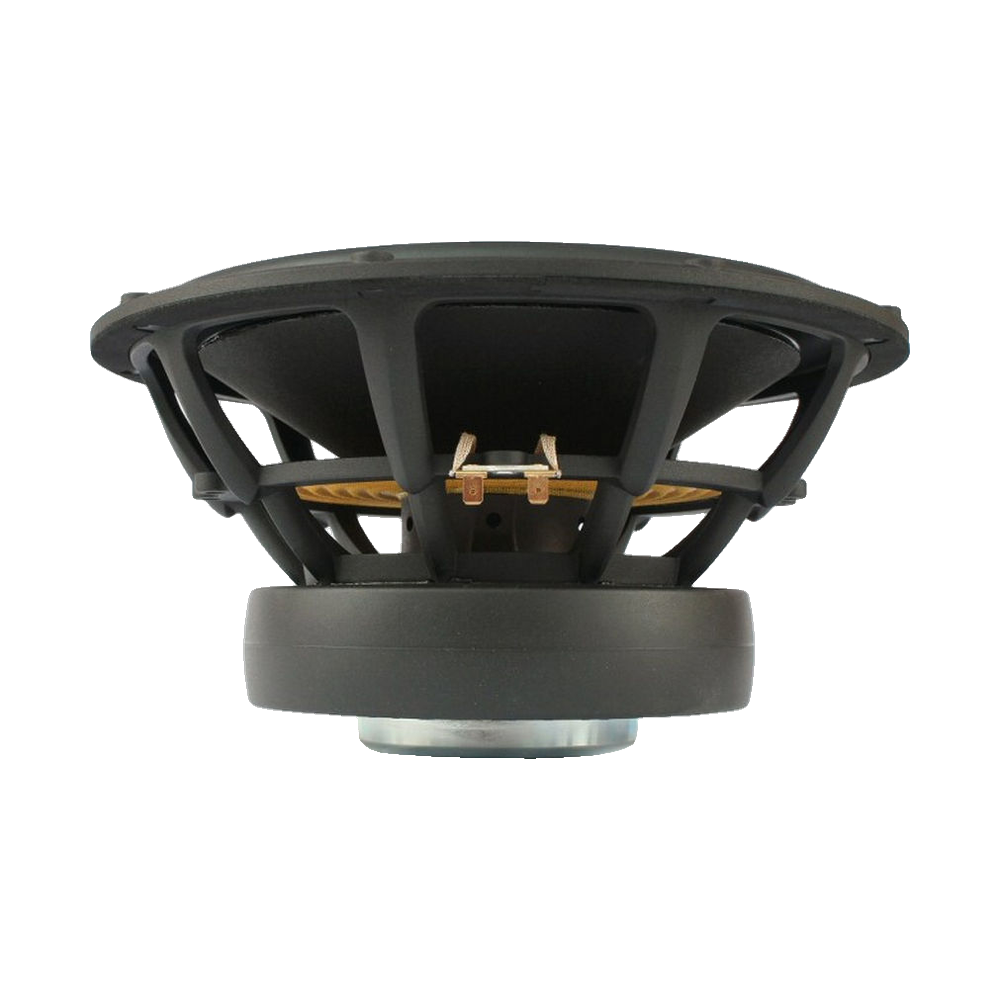

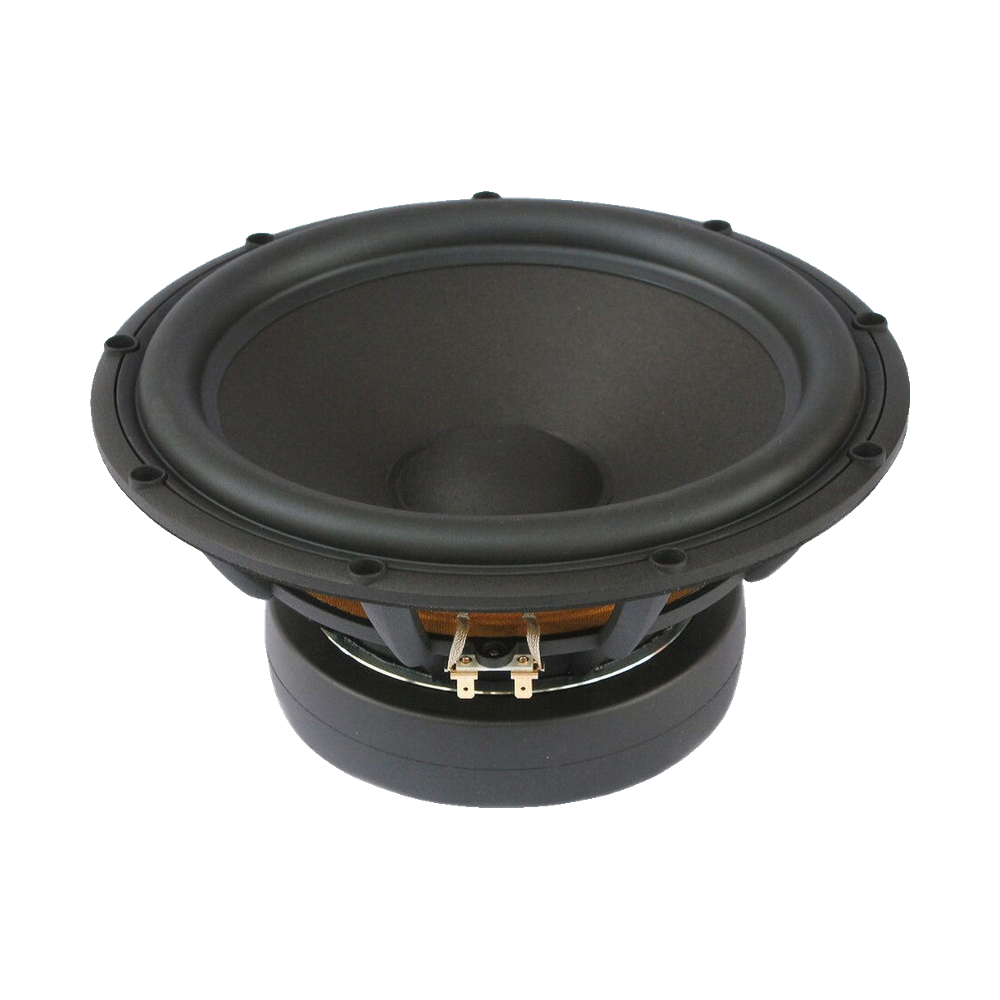

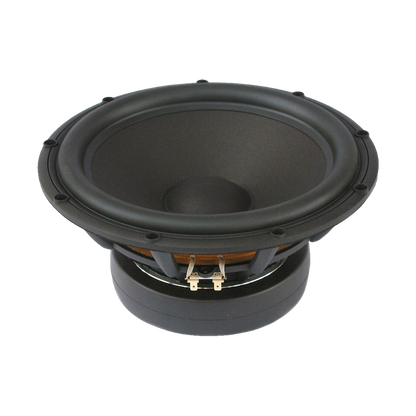

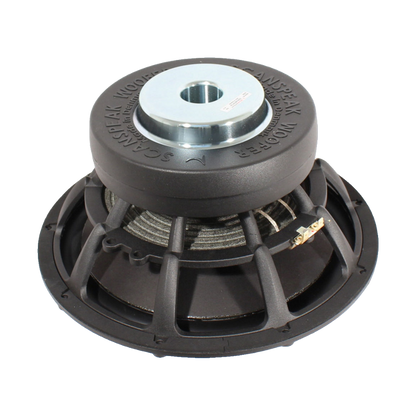

Scan-Speak - 13" Revelator Woofer - 32W/8878T01
Scan-Speak - 13" Revelator Woofer - 32W/8878T01
Regular price
$979.95 AUD
Regular price
Sale price
$979.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
32cm Woofer 8ohm, Sandwich Paper Cone, Ferrite Magnet
The 32W/8878T01 is the most powerful woofer designed by Scan-Speak. Its large 3” voice coil and low resonance frequency is perfect to reproduce low to mid frequencies with high efficiency. It features a brand new type of paper-sandwich cone with a special foam filling technology (patented) that gives the cone very high stiffness and relatively low weight. The motor system has heavy-duty copper sleeves for optimising eddy currents effect and minimised self-induction.
Features
- Paper sandwich cone with Patented foam filling
- Patented Symmetrical Drive motor
- Spider with balanced woven in tinsel leads
- Long linear excursion (+/- 7.5 mm)
- 3" Voice coil, Titanium former and paper reinforced
- Stiff and strong die cast aluminium chassis
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 13" |
| Nominal impedance | 8Ω |
| Series | Revelator |
| Power handling (RMS) | 150 W |
| Power handling (program) | 400 W |
| Sensitivity | 89 dB |
| Suggested alignment | Either |
| Frequency range | fs – 1,500 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 19.1 Hz |
|---|---|
| DC resistance (Re) | 6.1 Ω |
| Minimum impedance (Zmin) | 7.2 Ω |
| Voice coil inductance (Le) | 0.68 mH |
| Mechanical Q (Qms) | 5.69 |
| Electrical Q (Qes) | 0.35 |
| Total Q (Qts) | 0.33 |
| Equivalent volume (Vas) | 234 L |
| Compliance (Cms) | 0.6 mm/N |
| Moving mass (Mms) | 115 g |
| Mechanical resistance (Rms) | 2.4 kg/s |
| Force factor (Bl) | 15.6 T·m |
| Effective piston area (Sd) | 526 cm² |
| Linear excursion (Xmax, one-way) | 7.5 mm |
| Mechanical excursion (Xmech) | 28 mm |
| Displacement volume (Vd) | 394.5 cm³ |
| Efficiency bandwidth product (EBP) | 54.57 |
| Effective piston diameter (D) | 260 mm |
| Impedance at resonance (Zo) | 56.8 Ω |
Motor
| Voice coil height | 23 mm |
|---|---|
| Air gap height | 8 mm |
| Voice coil layers | 2 |

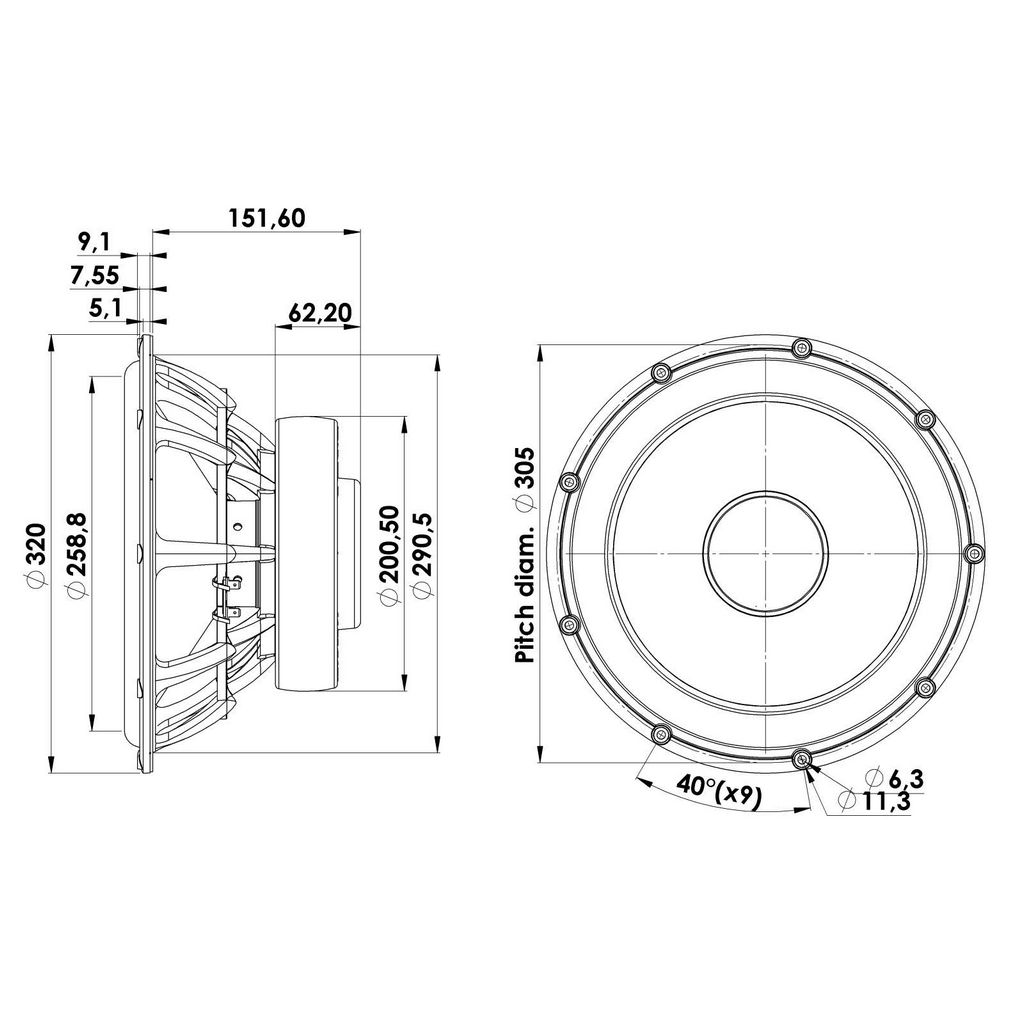

Mounting
| Overall diameter | 320 mm |
|---|---|
| Flange thickness | 7.55 mm |
| Bolt circle diameter | 305 mm |
| Mounting holes | 9 |
| Mounting hole diameter | 6.3 mm |
| Volume displaced by driver | 2.65 L |
| Voice coil diameter | 75 mm |
| Weight | 7.5 kg |
Materials
| Cone | Sandwich Paper |
|---|---|
| Magnet | Ferrite |
Typical box tunings
| Closed box: box volume | 74 L |
|---|---|
| Closed box: corner frequency | 39 Hz |
| Vented box: box volume | 141 L |
| Vented box: box resonance | 22 Hz |
| Vented box: corner frequency | 24 Hz |
- Xmax is quoted one-way (peak), not peak-to-peak.

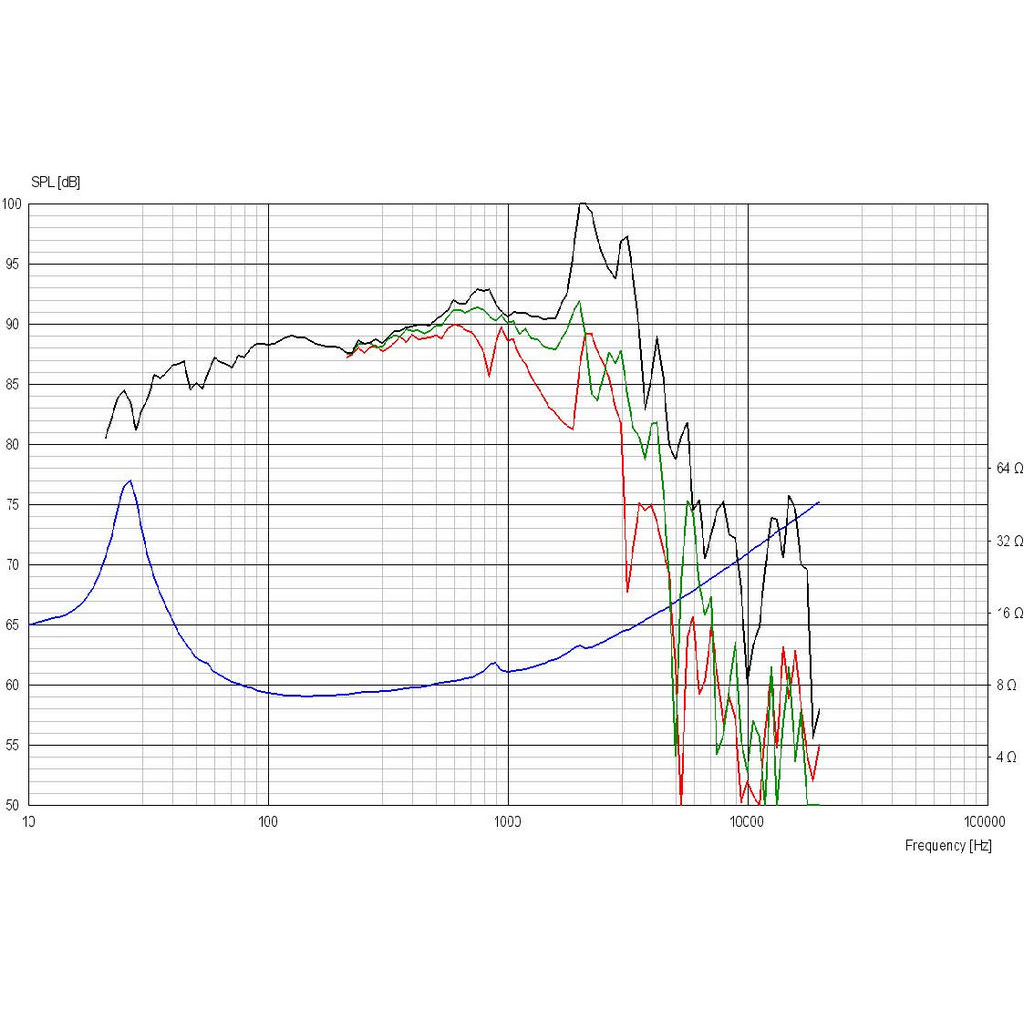

- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
