Scan-Speak

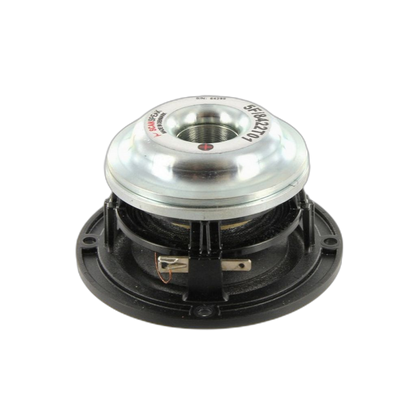

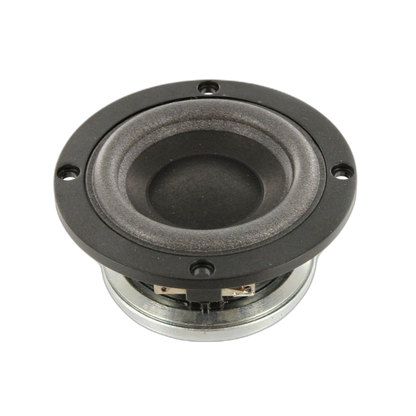

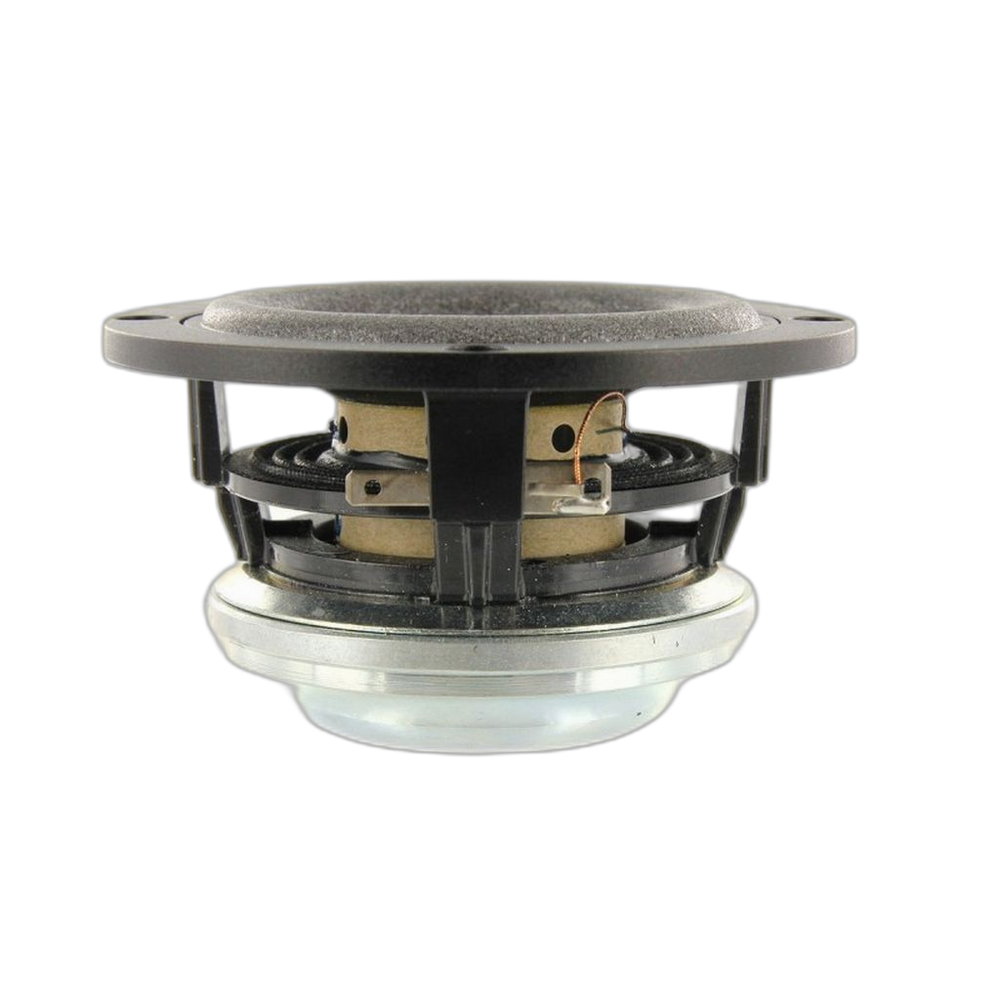

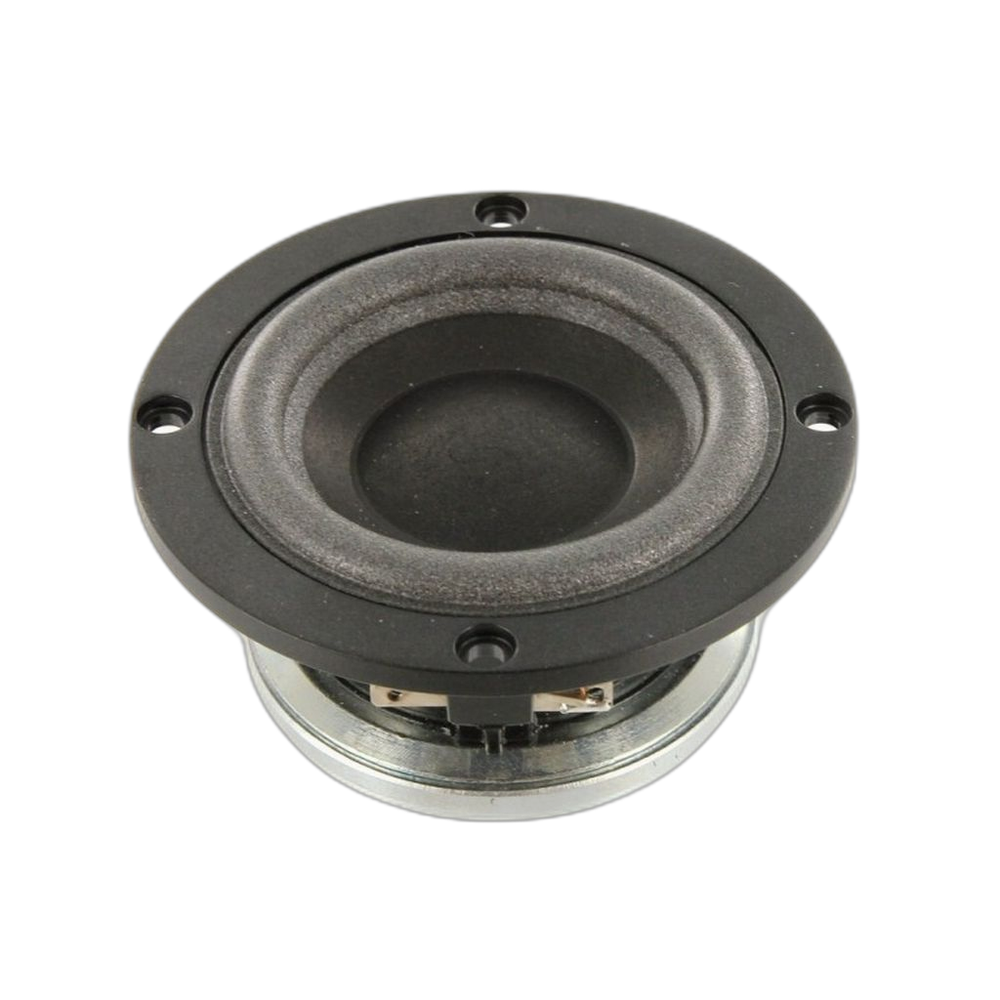

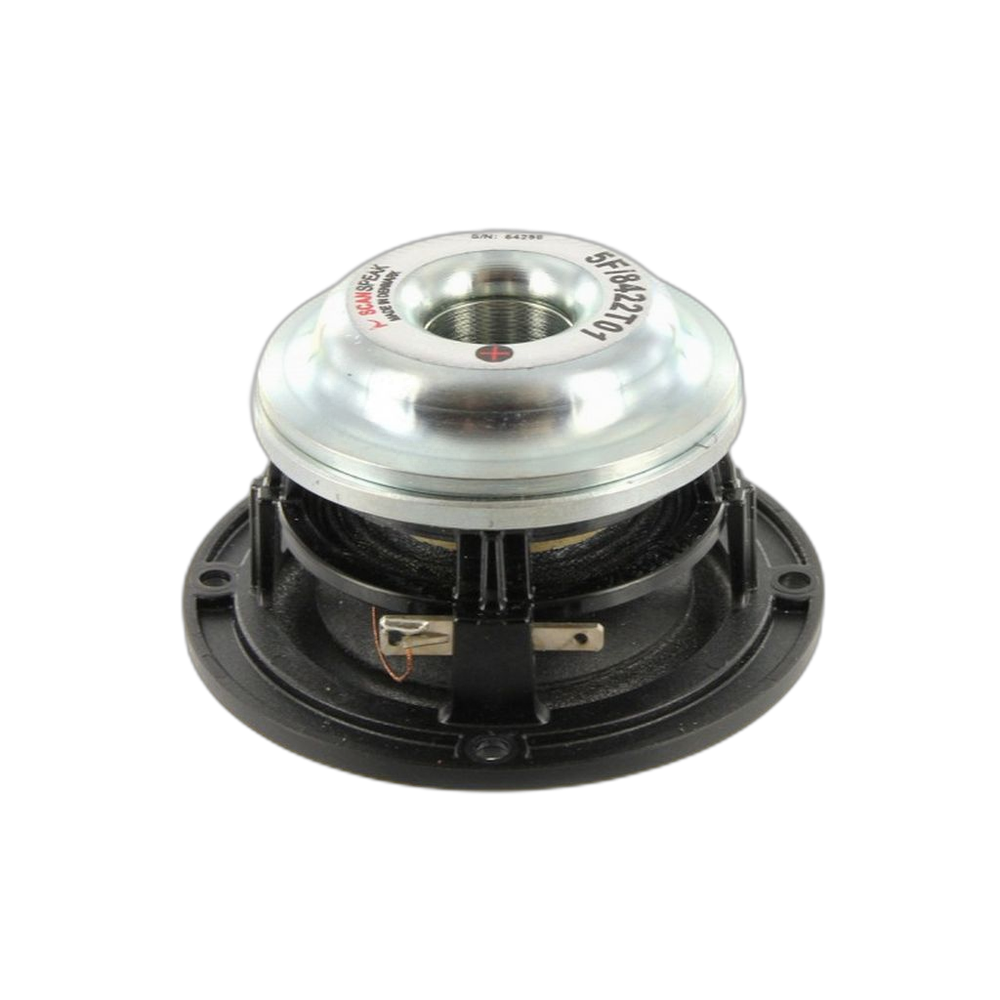

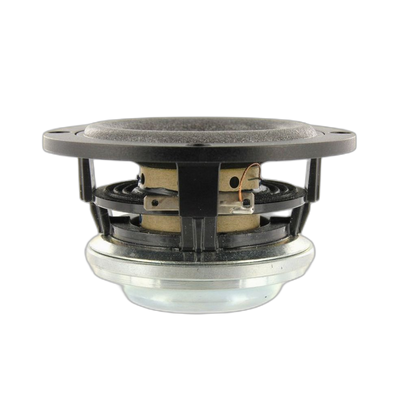

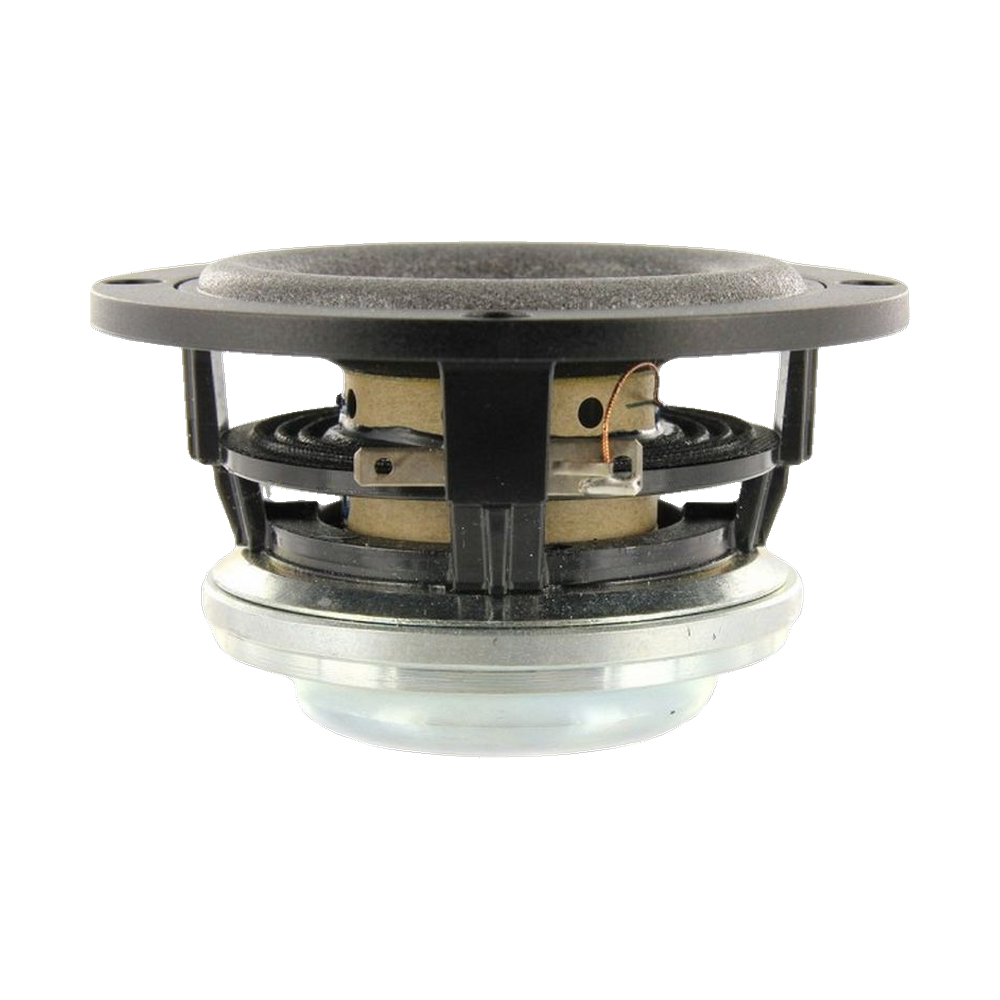

Scan-Speak - 2" Discovery Full Range Driver - 5F/8422T01
Scan-Speak - 2" Discovery Full Range Driver - 5F/8422T01
Regular price
$114.95 AUD
Regular price
Sale price
$114.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
6.7cm Fullrange 8ohm, Large Ring Neo Magnet. The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point.
Features
- Powerful Neo Ring Motor, Symmetric Drive
- 1" Voice Coil, Ti Former, European Soft Parts
- Hard Paper Cone, Foam Surround, Long Excursion
- Large Pole Piece Vent, Low Distortion
- Wide Frequency Range
- Extended Copper Cap on Pole Piece
Specifications
| Impedance | 8Ω Re 6.1Ω |
|---|---|
| Fs | 93Hz |
| Power | 10Wrms |
| Sens. | 80.0dB |
| Qes | 0.69 |
| Qms | 5.17 |
| Qts | 0.61 |
| Cms | 1.58mm/N |
| Coil | 26mmØ |
| Le | 0.07mH |
| Mag. | 0.127kg |
| Mms | 1.86g |
| Re | 6.1Ω |
| Rms | 0.21kg/s |
| Sd | 15cm² |
| Series | Discovery |
| Size | 1.7' |
| Type | Full Range |
| Vas | 0.50L |

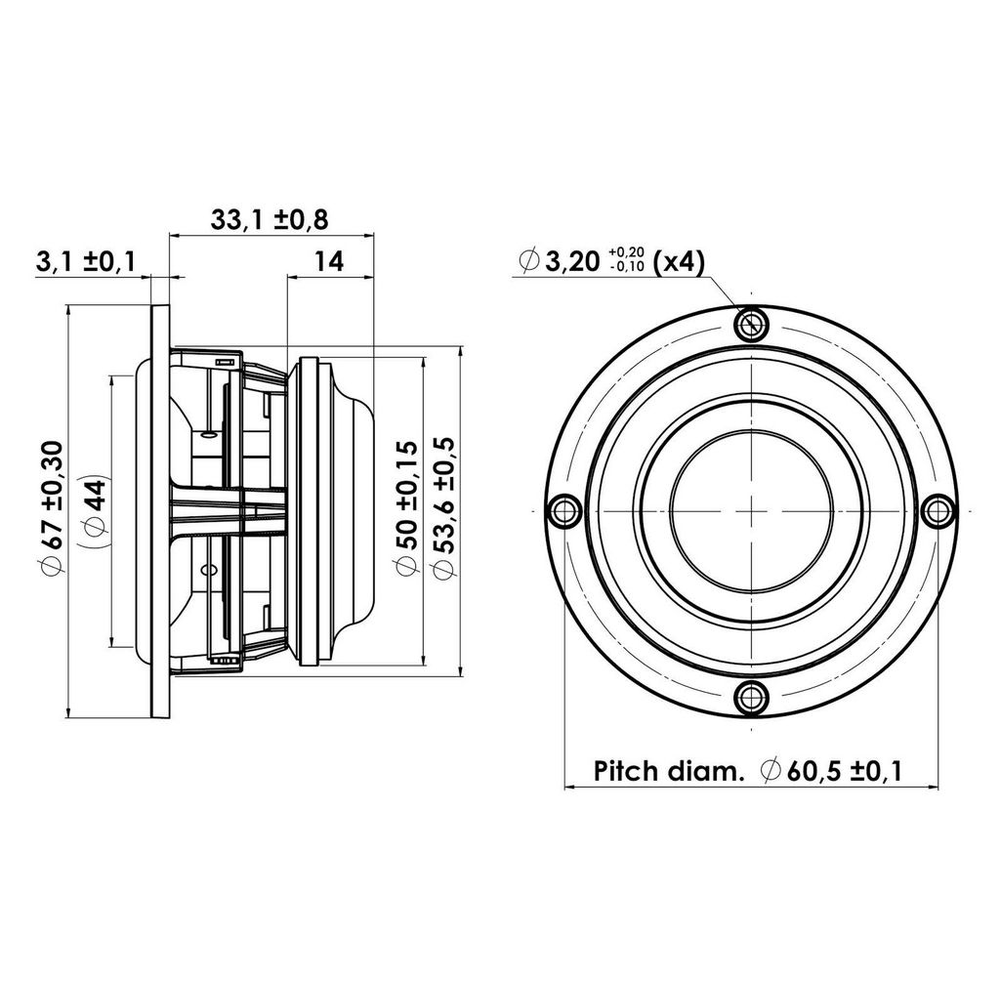

| Width | 67mm |
| Zn | 8Ω |
| Manufacturer | Scan-speak |
