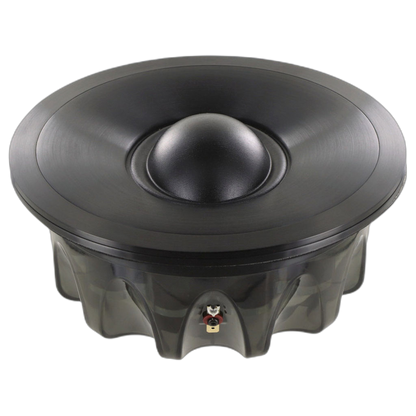

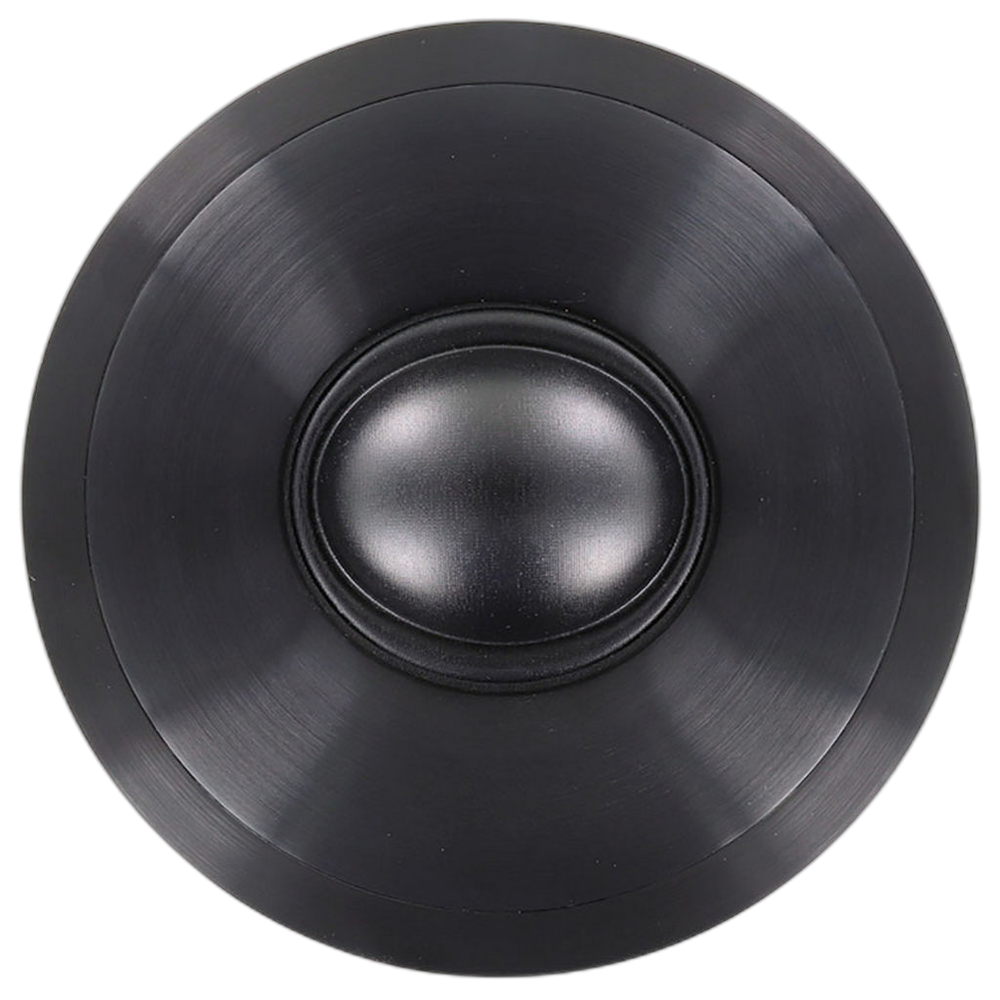

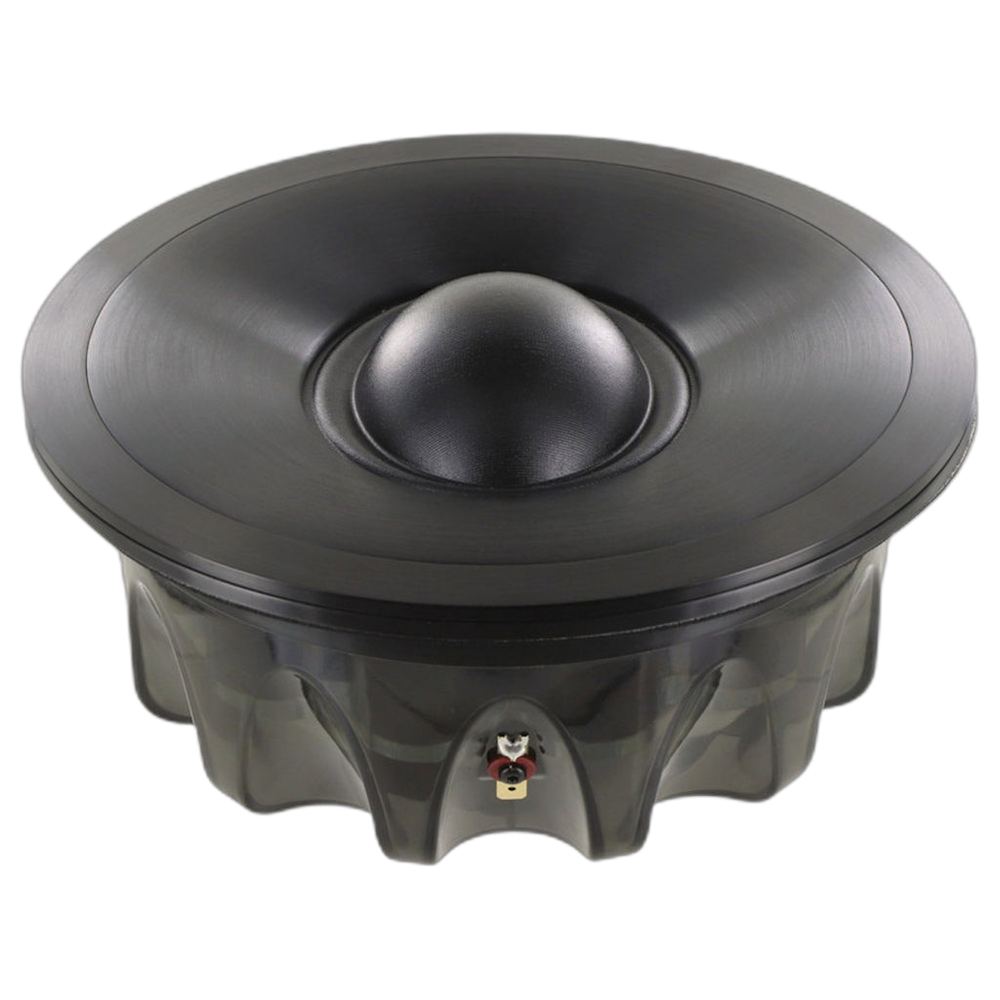

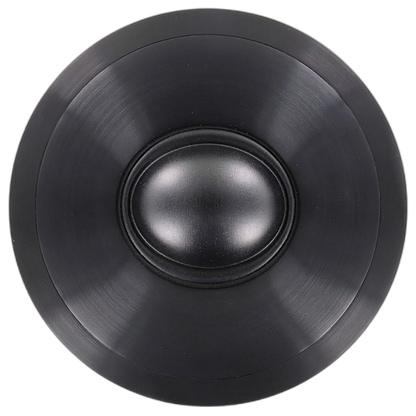

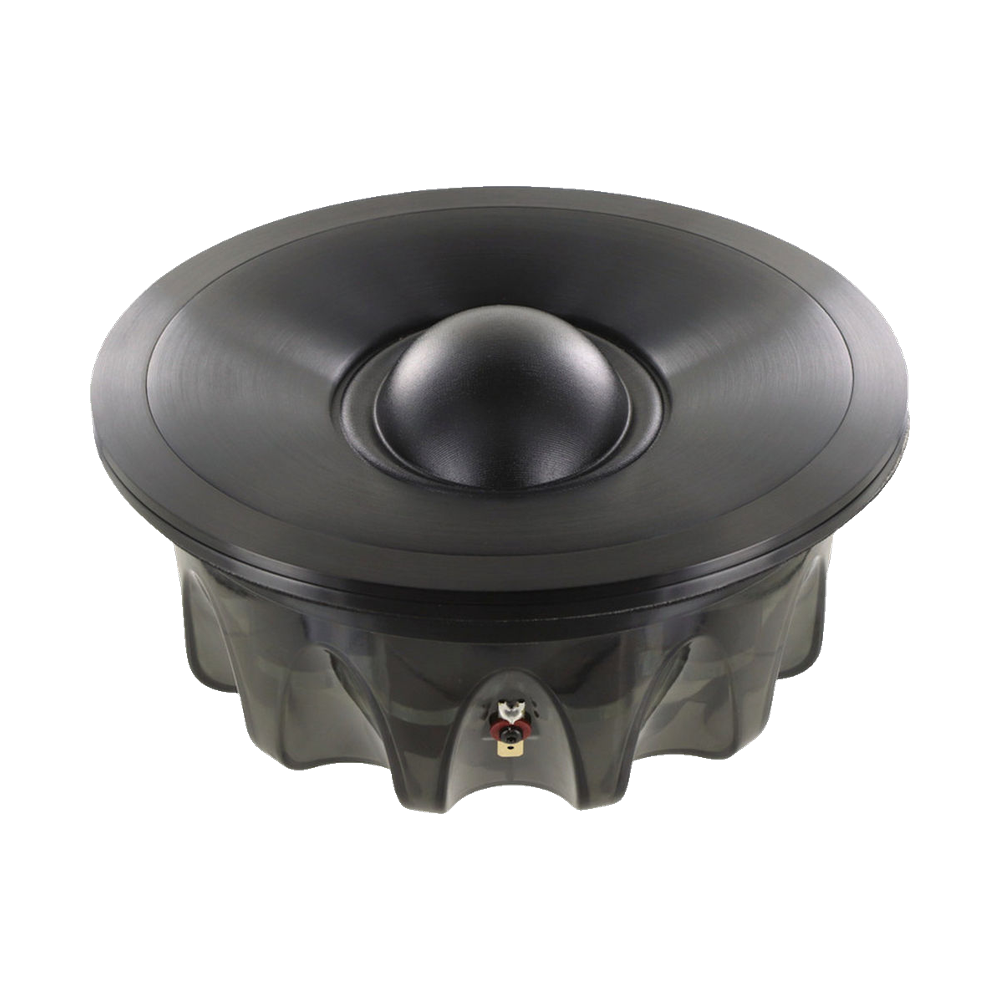

Scan-Speak - 3.3" Ellipticor Dome Midrange - D8404/55200
Scan-Speak - 3.3" Ellipticor Dome Midrange - D8404/55200
Couldn't load pickup availability
Description
The Scanspeak Ellipticor D8404/552000 midrange dome driver features an elliptical voice coil and magnet gap. In combination with the powerful SD AirCirc magnet system the D8404 has high sensitivity, very low distortion, and has an extremely fast response to transients. With the Ellipticor family a long tradition of circular motor structures and their inherent breakup behavior has been broken since one of its key features is an elliptical voice coil and magnet gap. In combination with the powerful SD AirCirc magnet system the D8404 has high sensitivity, very low distortion, and has an extremely fast response to transients. Above all a TRUE TO LIVE sound which makes D8404/552000 probably the very best midrange on the market!
Features
- 4Ω. 3½" Dome. 8¾" Facia.
- Elliptical voice coil 84x68mm oval
- Coated textile dome & surround.
- AirCirc optimised magnet system.
- Low mechanical loss design
- Exceptionally low distortion.
- Dual suspension. High sensitivity.
- Black anodised aluminium faceplate
- Detachable decorative ring
Specifications
| Power | TBD |
|---|---|
| Cms | 0.06mm/N |
| Coil | 68-84mm |
| Fs | 280Hz |
| Le | 0.04mH |
| Mms | 5.75g |
| Qes | 0.83 |
| Qms | 3.89 |
| Qts | 0.69 |
| Re | 3.03Ω |
| Rms | 2.6lg/s |
| Sd | 57.8cm² |
| Sens. | 92dB |
| Vas | 0.27L |

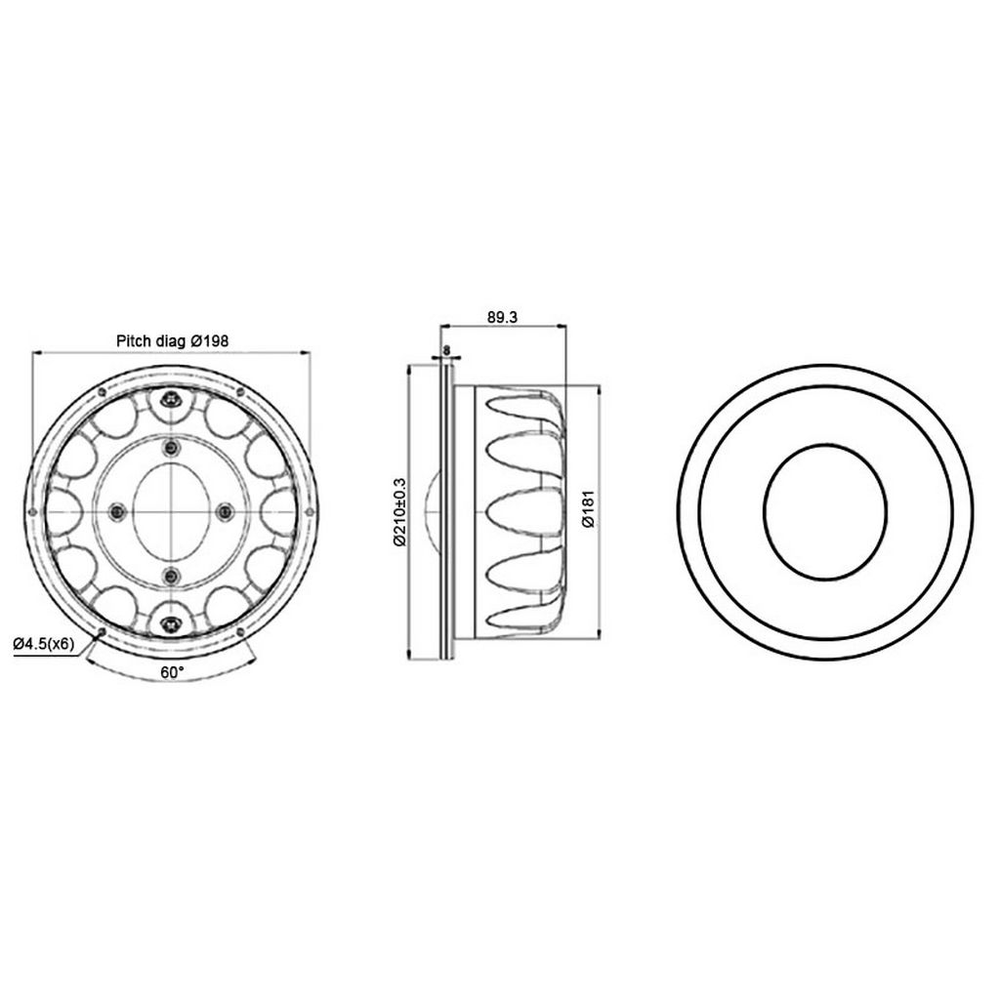

| Width | 210mm |
| Zn | 4Ω |
| Diam. | 210mmØ |
| Hole | 181mmØ |
