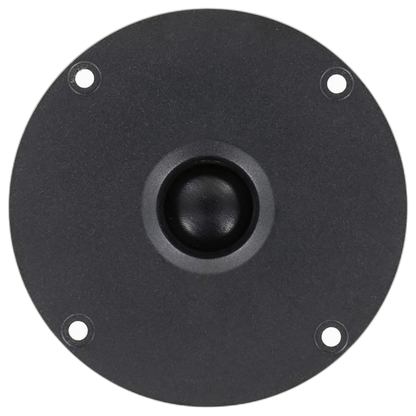

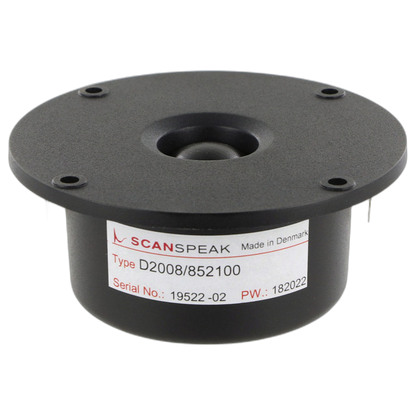

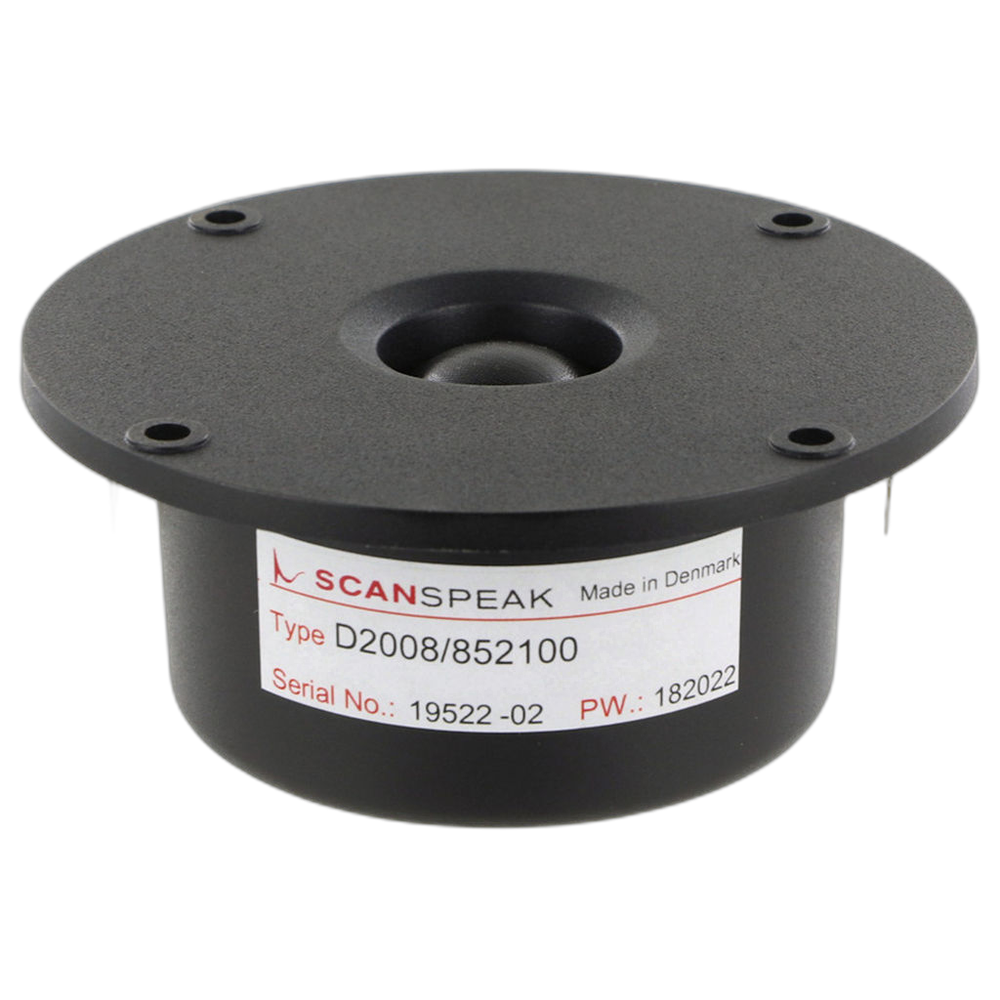

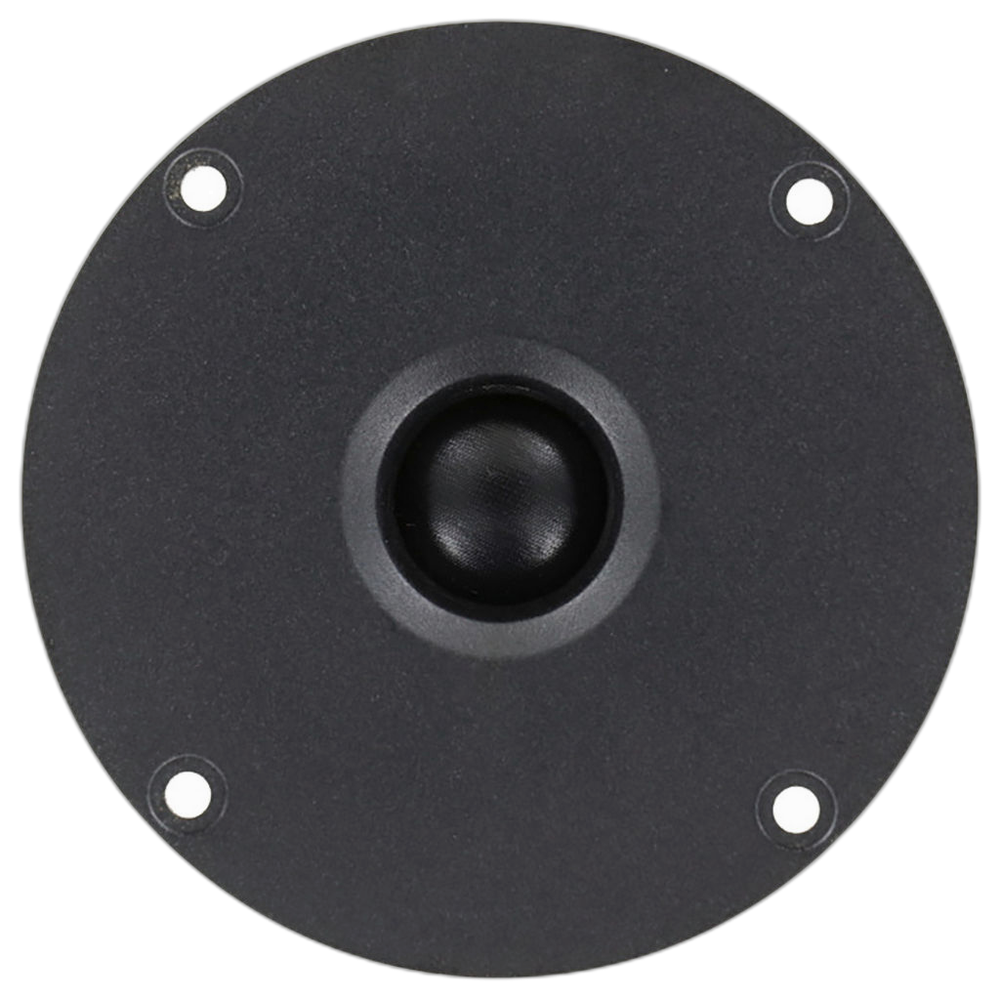

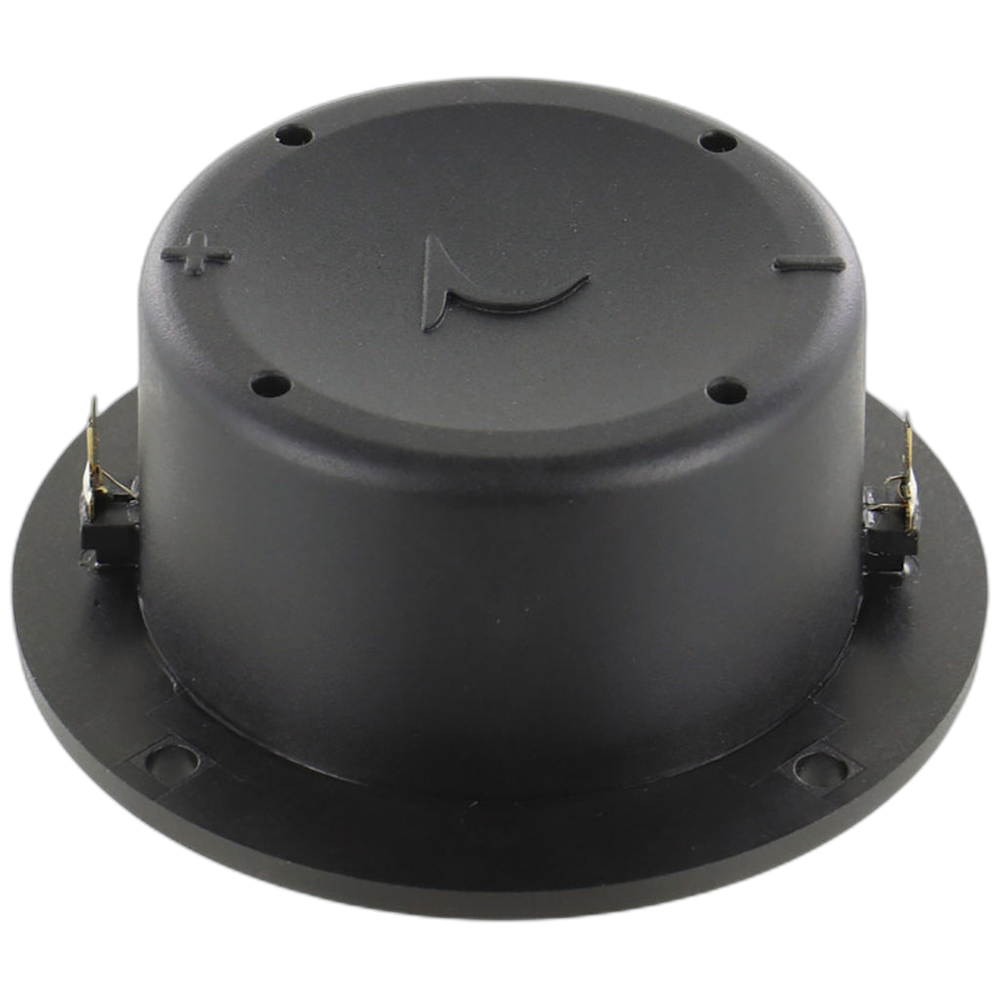

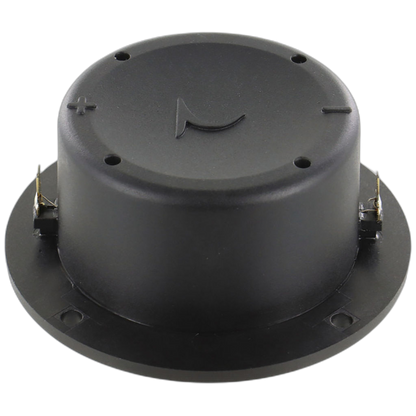

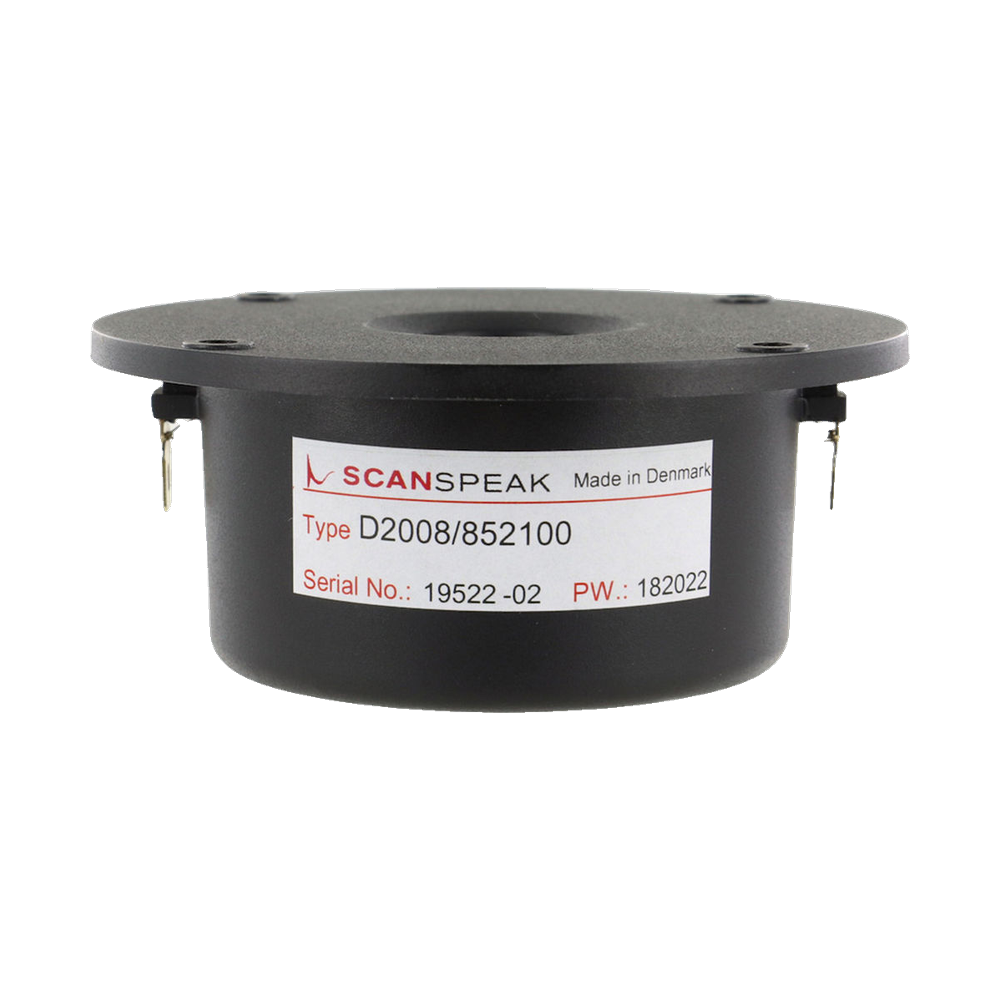

Scan-Speak - 3/4" Classic Dome Tweeter - D2008/852100
Scan-Speak - 3/4" Classic Dome Tweeter - D2008/852100
Regular price
$124.95
Regular price
Sale price
$124.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
20mm (3/4”) Dome Tweeter 8ohm, Neodymium Magnet
After almost 5 decades of service the highly praised D2008/851100 was upgraded to D2008/852100 with modern materials and to new manufacturing standards, still maintaining its excellent performance, such as wide dispersion, smooth frequency response and natural sound character.
Features
- 3/4" Textile Dome Diaphragm
- Wide Dispersion
- Dual Rear Chamber
- Vented Pole Piece
- Neodymium Magnet
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 0.75" |
| Nominal impedance | 8Ω |
| Series | Classic |
| Power handling (RMS) | 90 W |
| Power handling (program) | 150 W |
| Sensitivity | 89 dB |

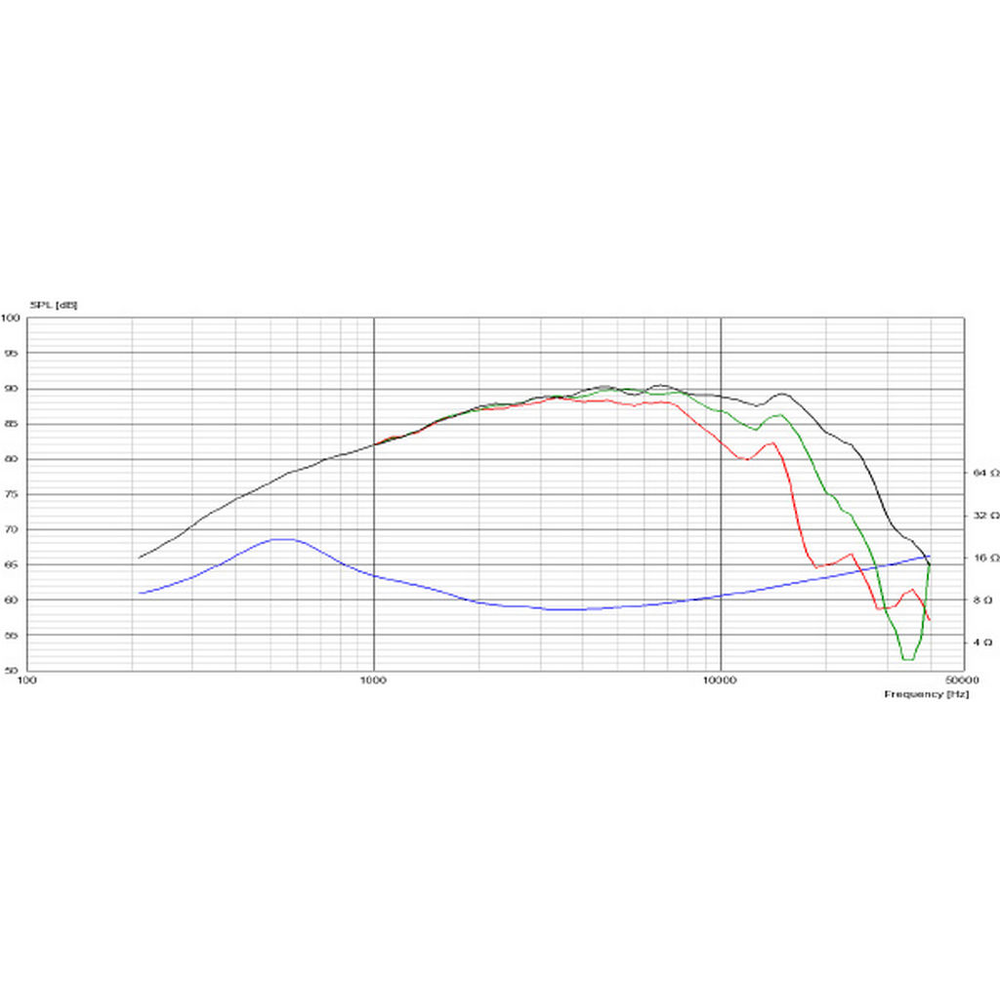

| Frequency range | 4,000 – 20,000 Hz |
| Recommended crossover | 2. order HP Butterworth, 4 kHz |
Thiele/Small parameters
| Resonant frequency (Fs) | 550 Hz |
|---|---|
| DC resistance (Re) | 5.9 Ω |
| Minimum impedance (Zmin) | 6.9 Ω |
| Voice coil inductance (Le) | 0.08 mH |
| Mechanical Q (Qms) | 1.61 |
| Electrical Q (Qes) | 0.71 |
| Total Q (Qts) | 0.49 |
| Equivalent volume (Vas) | 0.01 L |
| Compliance (Cms) | 0.42 mm/N |
| Moving mass (Mms) | 0.2 g |
| Mechanical resistance (Rms) | 0.43 kg/s |
| Force factor (Bl) | 2.4 T·m |
| Effective piston area (Sd) | 3.8 cm² |
| Linear excursion (Xmax, one-way) | 0.5 mm |
| Mechanical excursion (Xmech) | 1.2 mm |
| Efficiency bandwidth product (EBP) | 774.6 |
| Effective piston diameter (D) | 22 mm |
| Impedance at resonance (Zo) | 21.1 Ω |
Motor
| Voice coil height | 2.9 mm |
|---|---|
| Air gap height | 1.9 mm |
| Voice coil layers | 2 |

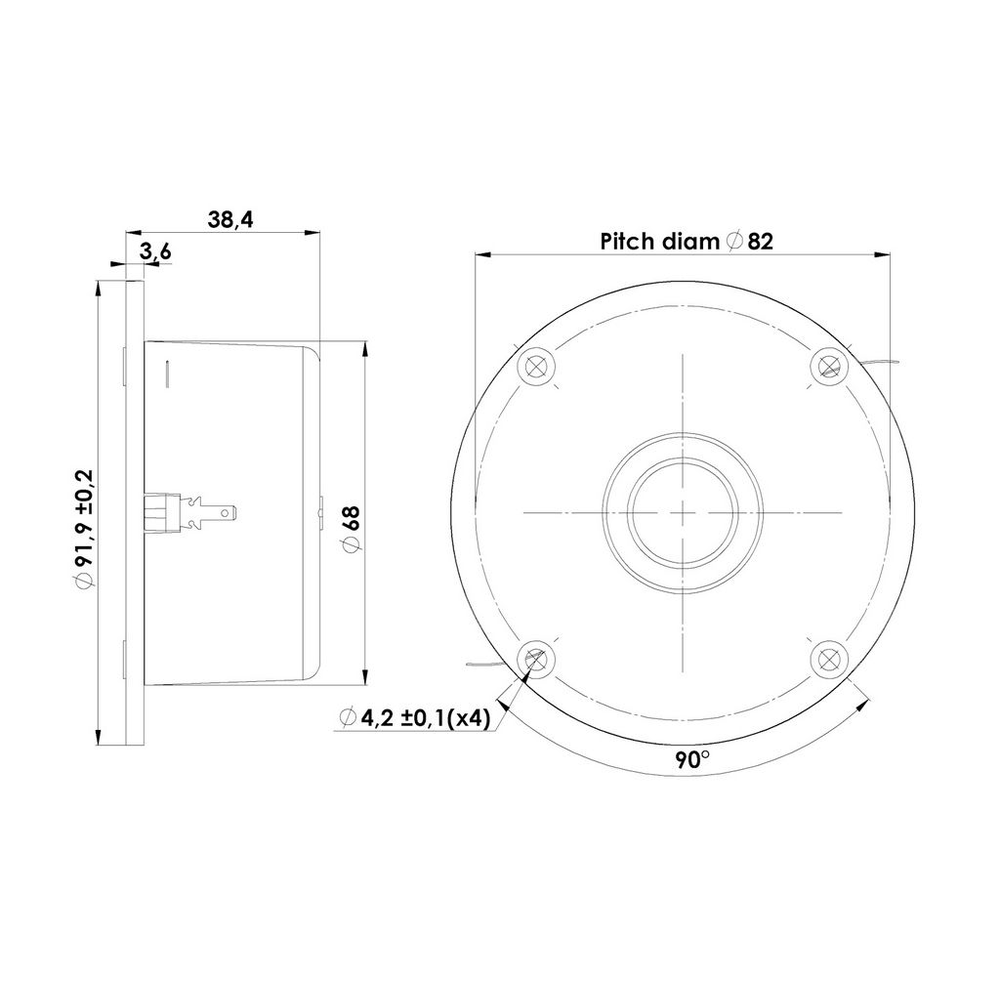

Mounting
| Overall diameter | 91.9 mm |
|---|---|
| Mounting depth | 35.3 mm |
| Flange thickness | 3.6 mm |
| Bolt circle diameter | 82 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4.2 mm |
| Volume displaced by driver | 0.13 L |
| Voice coil diameter | 19.4 mm |
| Weight | 0.23 kg |
Materials
| Cone | Textile |
|---|---|
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
