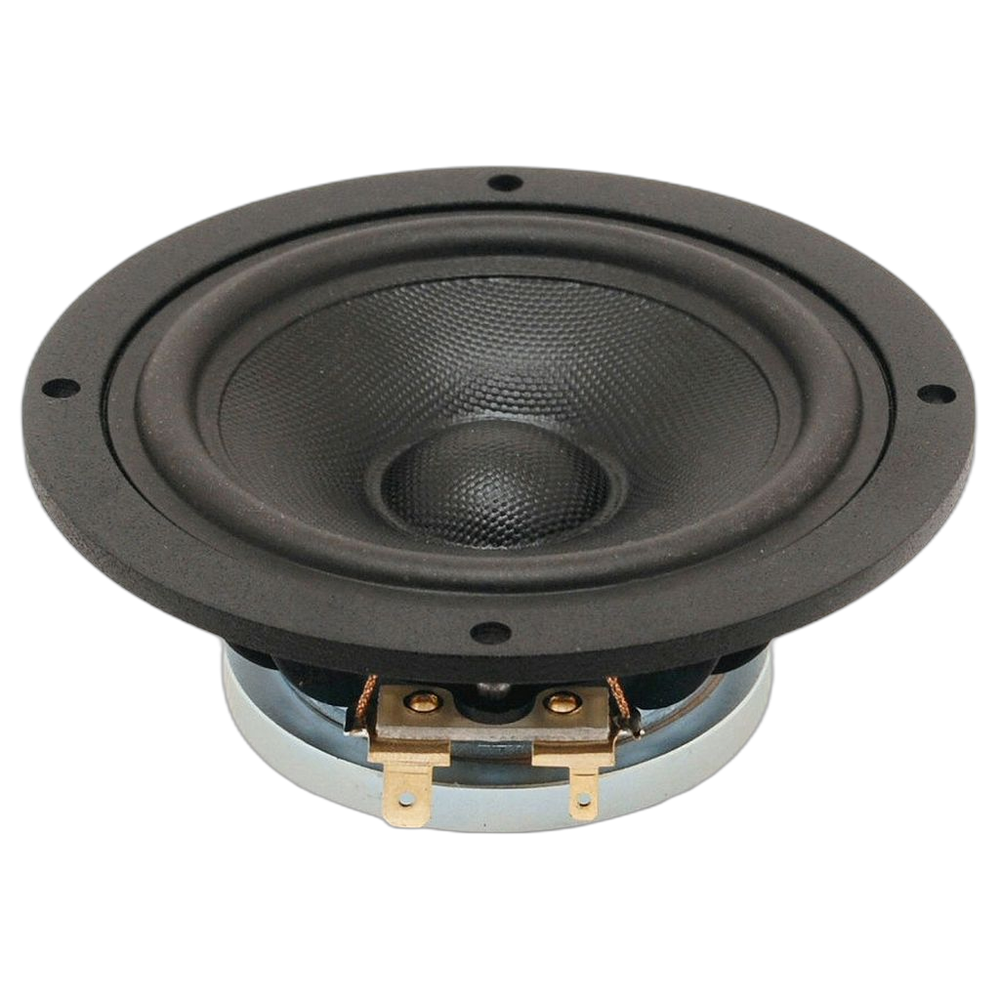

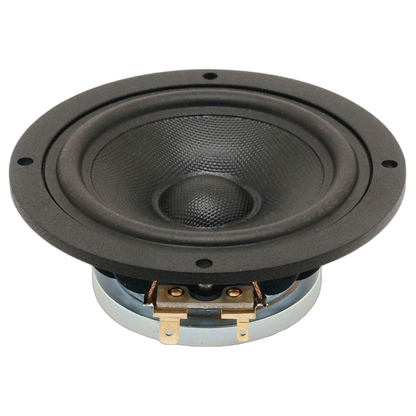

Scan-Speak - 3" Discovery Full Range Driver - 10F/8424G00
Scan-Speak - 3" Discovery Full Range Driver - 10F/8424G00
Regular price
$169.95
Regular price
Sale price
$169.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
10cm Fullrange 8ohm, Large Neo Magnet, Coated Fibreglass Cone. The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonably low price point.
Features
- Very wide Frequency Range
- High Sensitivity 87dB / 2.83V
- Coated NRSC Fibre Glass Cone (patent)
- SBR Rubber Surround
- Compact Size, Neo magnet, Alu. Chassis
- Copper Cap on Pole Piece
Specifications
Specifications
General
| Driver type | Full Range |
|---|---|
| Nominal size | 3" |
| Nominal impedance | 8Ω |
| Series | Discovery |
| Power handling (RMS) | 15 W |
| Power handling (program) | 30 W |
| Sensitivity | 86.6 dB |

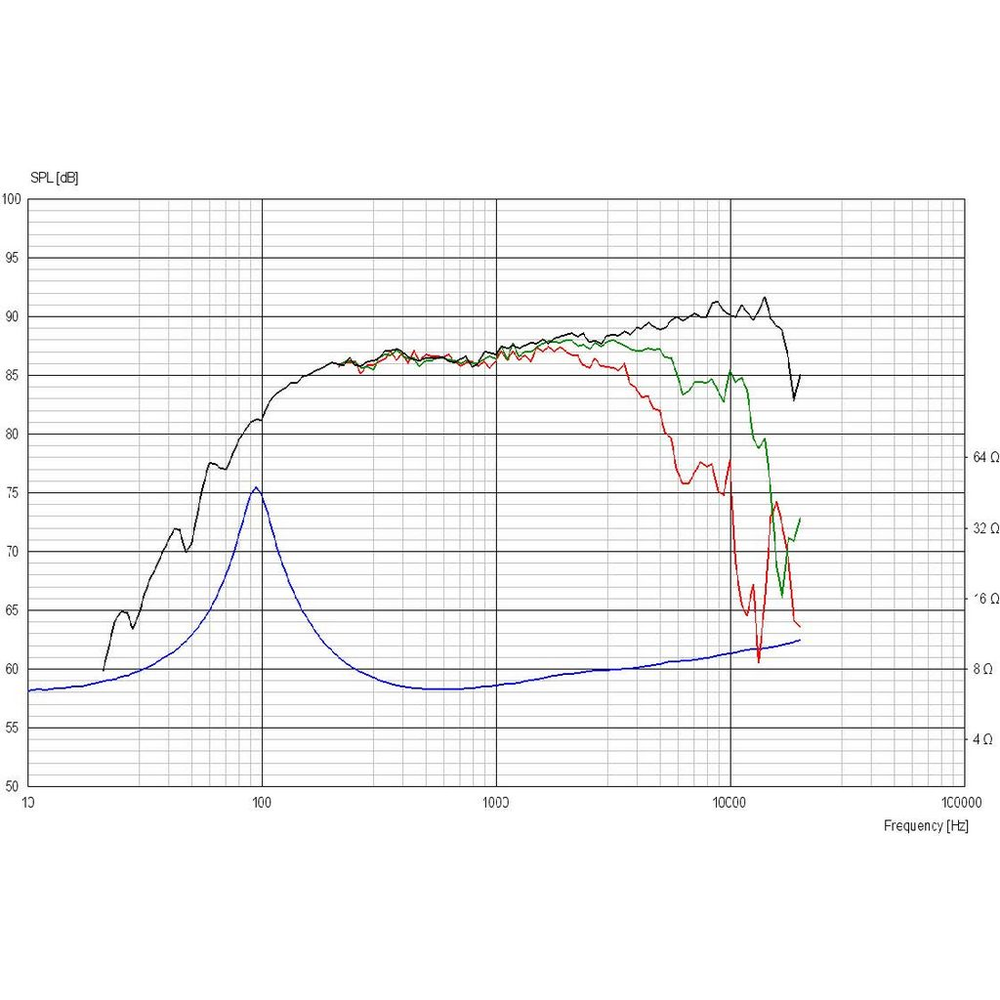

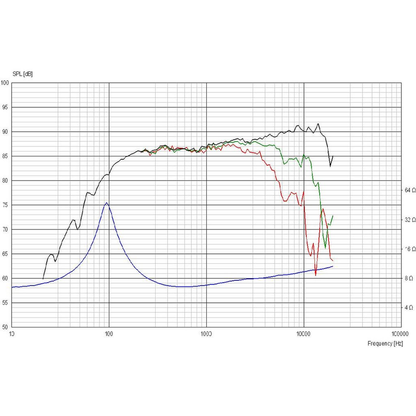

| Frequency range | 150 – 12,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 90 Hz |
|---|---|
| DC resistance (Re) | 5.8 Ω |
| Minimum impedance (Zmin) | 6.5 Ω |
| Voice coil inductance (Le) | 0.13 mH |
| Mechanical Q (Qms) | 3.49 |
| Electrical Q (Qes) | 0.41 |
| Total Q (Qts) | 0.37 |
| Equivalent volume (Vas) | 2.1 L |
| Compliance (Cms) | 1.13 mm/N |
| Moving mass (Mms) | 2.77 g |
| Mechanical resistance (Rms) | 0.45 kg/s |
| Force factor (Bl) | 4.8 T·m |
| Effective piston area (Sd) | 36 cm² |
| Linear excursion (Xmax, one-way) | 2.6 mm |
| Mechanical excursion (Xmech) | 7 mm |
| Displacement volume (Vd) | 9.36 cm³ |
| Efficiency bandwidth product (EBP) | 219.5 |
| Effective piston diameter (D) | 68 mm |
| Impedance at resonance (Zo) | 55.2 Ω |
Motor
| Voice coil height | 9.2 mm |
|---|---|
| Air gap height | 4 mm |
| Voice coil layers | 2 |

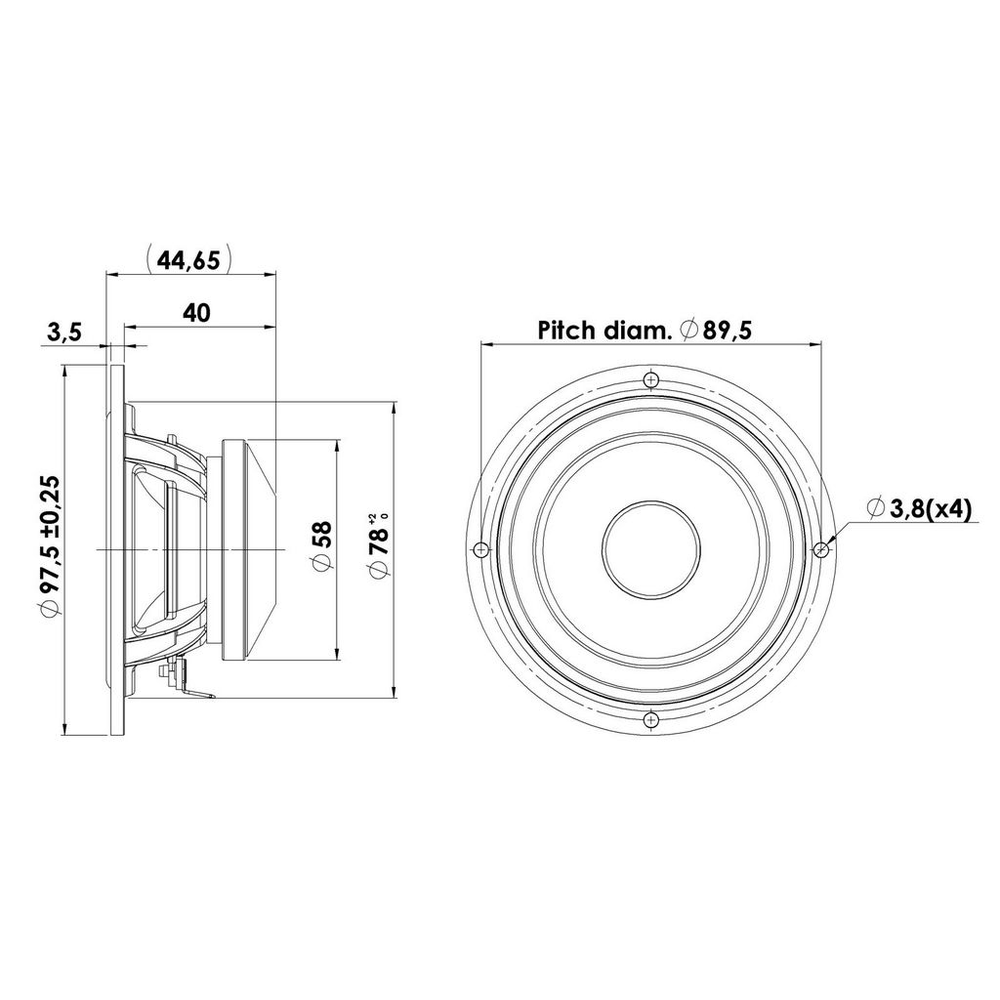

Mounting
| Overall diameter | 97.5 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 79.0 mm |
| Mounting depth | 40 mm |
| Flange thickness | 3.5 mm |
| Bolt circle diameter | 89.5 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 3.8 mm |
| Volume displaced by driver | 0.05 L |
| Voice coil diameter | 20 mm |
| Weight | 0.3 kg |
Materials
| Cone | Coated Fibreglass |
|---|---|
| Surround | SBR |
| Basket | Aluminium |
| Magnet | Neodymium |
Typical box tunings
| Closed box: box volume | 0.9 L |
|---|---|
| Closed box: corner frequency | 164 Hz |
| Vented box: box volume | 1.9 L |
| Vented box: box resonance | 93 Hz |
| Vented box: corner frequency | 95 Hz |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Downloads
- 10F/8424G00 Datasheet
- 10F/8424G00 Drawing
- 10F/8424G00 Adv. Parameters
- 10F/8424G00 Cutout & Recess Template (NB Audio) Straight off Scan-Speak's spec sheet: flange outline, recess depth, bolt holes. Scaled from Scan-Speak's drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
