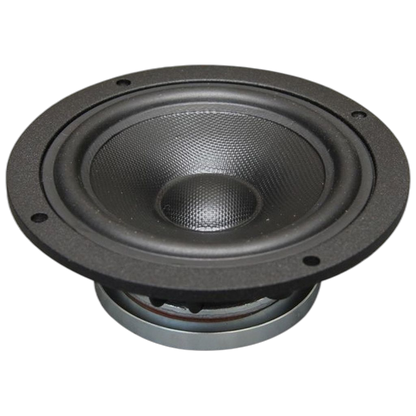

Scan-Speak - 4" Discovery Full Range Driver - 10F/4424G00
Scan-Speak - 4" Discovery Full Range Driver - 10F/4424G00
Regular price
$194.95
Regular price
Sale price
$194.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
The Discovery series is designed for the discerning audiophile customer. To meet the needs of this audience, several new technologies were developed with the goal of lowering distortion and damping in the speaker. The coated fibreglass cone reduces vibration and standing waves, and the vented motor system minimises power compression. The combined result is a very open and dynamic sound.
Features
- Very wide Frequency Range
- High Sensitivity 90dB / 2.83V
- Coated NRSC Fibre Glass Cone (patent)
- SBR Rubber Surround
- Compact Size, Neo magnet, Alu. Chassis
- Copper Cap on Pole Piece
Specifications
Specifications
General
| Driver type | Full Range |
|---|---|
| Nominal size | 4" |
| Nominal impedance | 4Ω |
| Series | Discovery |
| Power handling (RMS) | 15 W |
| Power handling (program) | 30 W |
| Sensitivity | 89.8 dB |
| Frequency range | 130 – 10,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 90 Hz |
|---|---|
| DC resistance (Re) | 3.2 Ω |
| Minimum impedance (Zmin) | 3.8 Ω |
| Voice coil inductance (Le) | 0.1 mH |
| Mechanical Q (Qms) | 3.2 |
| Electrical Q (Qes) | 0.32 |
| Total Q (Qts) | 0.29 |
| Equivalent volume (Vas) | 2 L |
| Compliance (Cms) | 1.1 mm/N |
| Moving mass (Mms) | 2.8 g |
| Mechanical resistance (Rms) | 0.49 kg/s |
| Force factor (Bl) | 3.9 T·m |
| Effective piston area (Sd) | 36 cm² |
| Linear excursion (Xmax, one-way) | 2.6 mm |
| Mechanical excursion (Xmech) | 7 mm |
| Displacement volume (Vd) | 9.36 cm³ |
| Efficiency bandwidth product (EBP) | 281.2 |
| Effective piston diameter (D) | 68 mm |
| Impedance at resonance (Zo) | 34.5 Ω |
Motor
| Voice coil height | 9.2 mm |
|---|---|
| Air gap height | 4 mm |
| Voice coil layers | 2 |

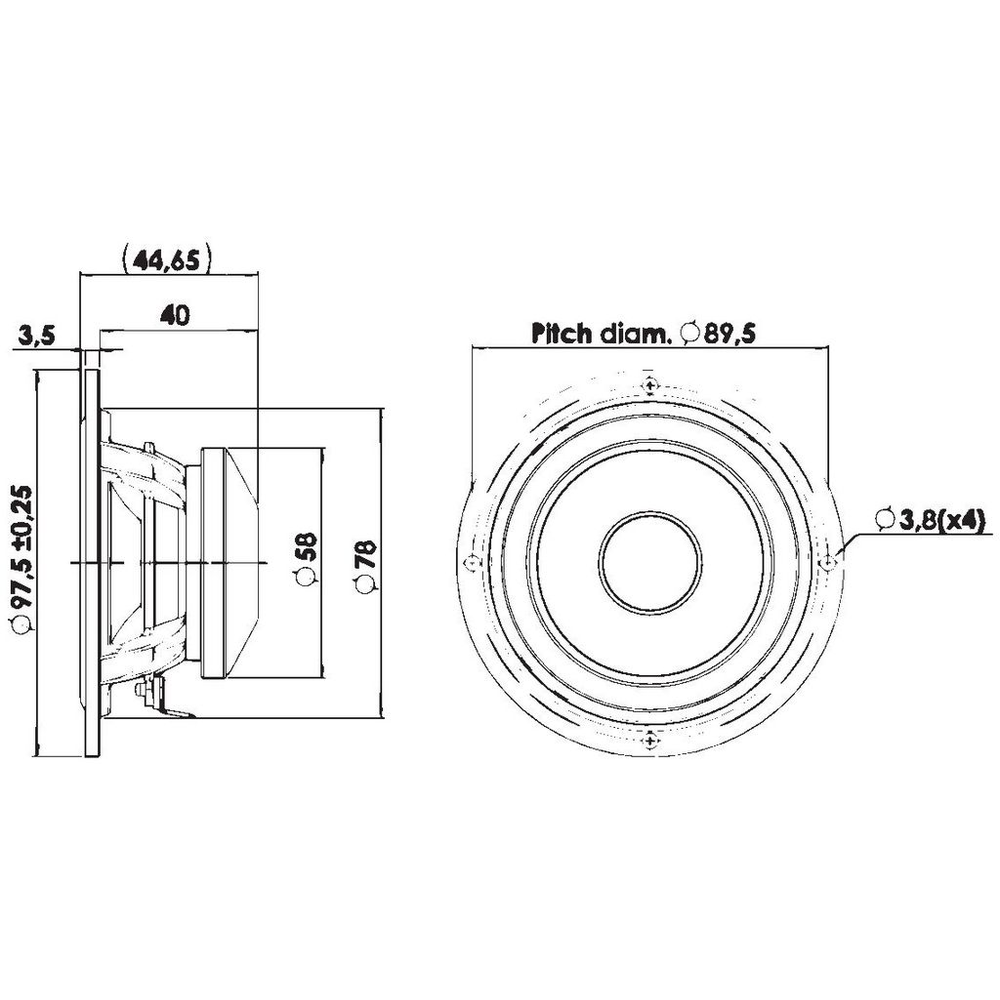

Mounting
| Overall diameter | 97.5 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 79.0 mm |
| Mounting depth | 40 mm |
| Flange thickness | 3.5 mm |
| Bolt circle diameter | 89.5 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 3.8 mm |
| Volume displaced by driver | 0.05 L |
| Voice coil diameter | 20 mm |
| Weight | 0.3 kg |
Materials
| Cone | Coated Fibreglass |
|---|---|
| Surround | SBR |
| Basket | Aluminium |
| Magnet | Neodymium |
Typical box tunings
| Closed box: box volume | 0.5 L |
|---|---|
| Closed box: corner frequency | 200 Hz |
| Vented box: box volume | 0.9 L |
| Vented box: box resonance | 115 Hz |
| Vented box: corner frequency | 127 Hz |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Downloads
- 10F/4424G00 Datasheet
- 10F/4424G00 Drawing
- 10F/4424G00 Adv. Parameters
- 10F/4424G00 3D model
- 10F/4424G00 Cutout & Recess Template (NB Audio) Straight off Scan-Speak's spec sheet: flange outline, recess depth, bolt holes. Scaled from Scan-Speak's drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
