Scan-Speak
Scan-Speak - 4" Discovery Full Range Driver - 10F/8414G10
Scan-Speak - 4" Discovery Full Range Driver - 10F/8414G10
Regular price
$144.95 AUD
Regular price
Sale price
$144.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point.
Features
- Wide Frequency Range
- Compact Neo magnet Motor
- Copper Cap on Pole Piece
- Vented Alu. Chassis, SBR Rubber Surround
- High Sensitivity 86dB/2,83V
- Coated NRSC Fibre Glass Cone (patent)
Specifications
| Impedance | 8Ω Re 6.8Ω |
|---|---|
| Power | 10Wrms |
| Sens. | 86.0dB |
| Fs | 100Hz |
| Qes | 0.65 |
| Qms | 2.44 |
| Qts | 0.51 |
| Cms | 0.86mm/N |
| Coil | 19mmØ |
| Le | 0.11mH |
| Mag. | 0.16kg |
| Mms | 2.93g |
| Re | 6.8Ω |
| Rms | 0.76kg/s |
| Sd | 36cm² |
| Size | 4' |
| Type | Full Range |
| Vas | 1.57L |

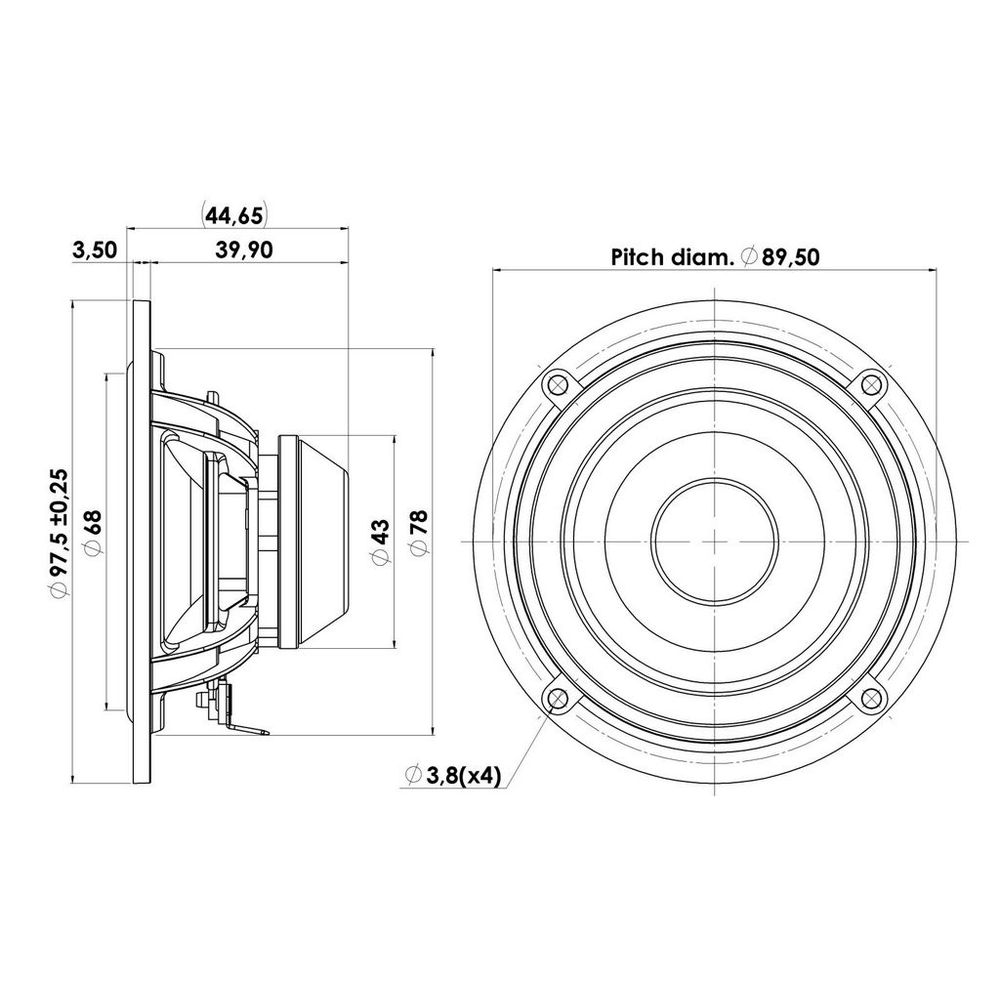

| Width | 98mm |
| Zn | 8Ω |
| Manufacturer | Scan-speak |
| Series | Discovery |
