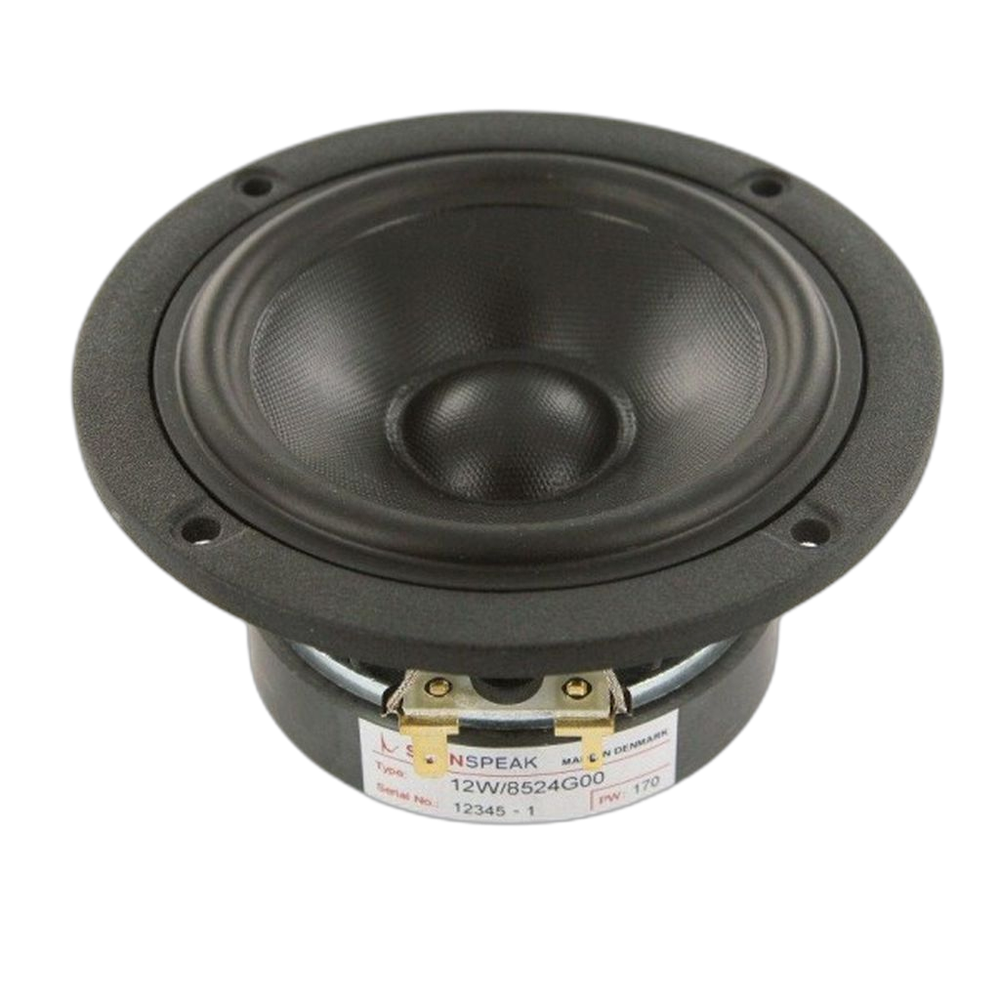

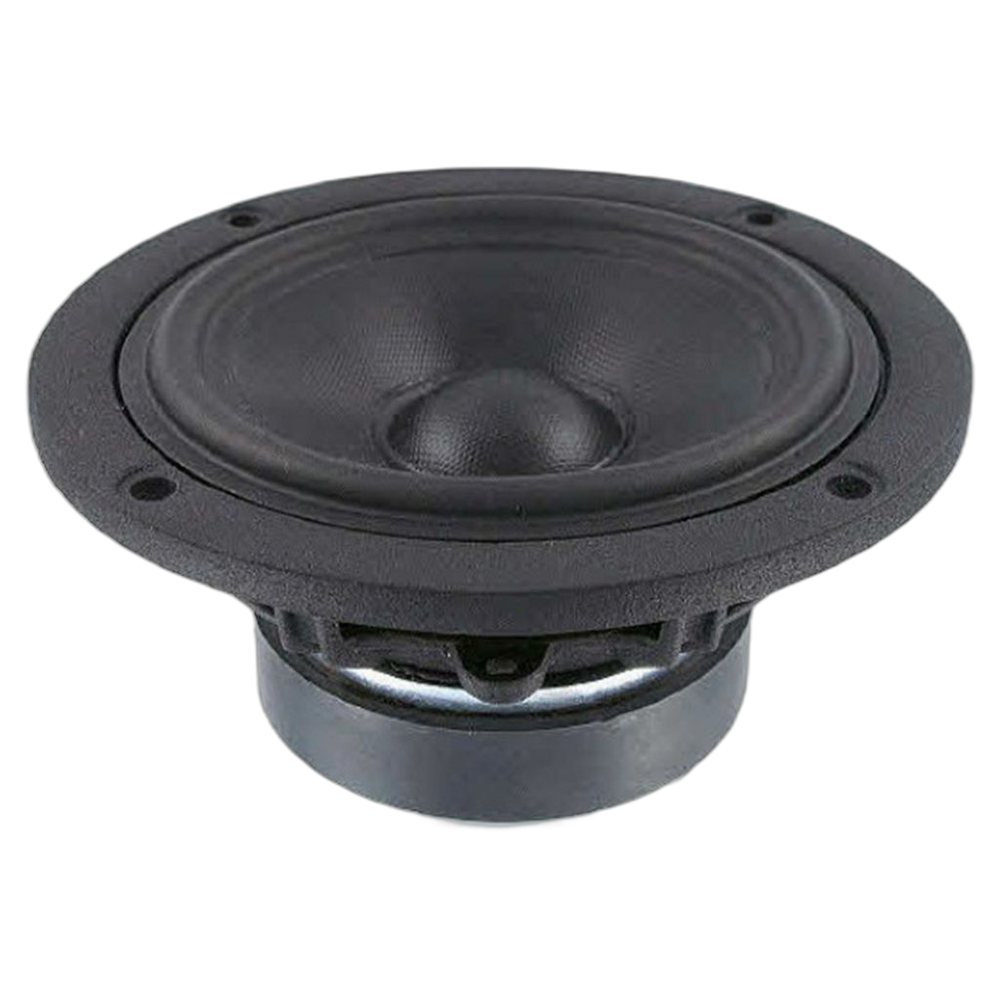

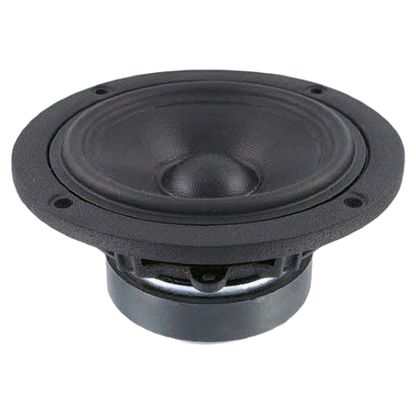

Scan-Speak - 4" Discovery Mid-Woofer - 12W/8524G00
Scan-Speak - 4" Discovery Mid-Woofer - 12W/8524G00
Regular price
$104.95
Regular price
Sale price
$104.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses for a tailor-made Scan-Speak solution with very good performance at a reasonably low price point. The 12W/8524G has the same frame size and should be considered as a good replacement for the PL11WH09-08 or PL11WG09-08.
Features
- Wide Operating Frequency Range
- Suitable for 2-way or 3-way (as midrange)
- Coated NRSC Fibre Glass Cone (patent)
- Low Damping SBR Rubber Surround
- Die cast Alu Chassis vented below spider

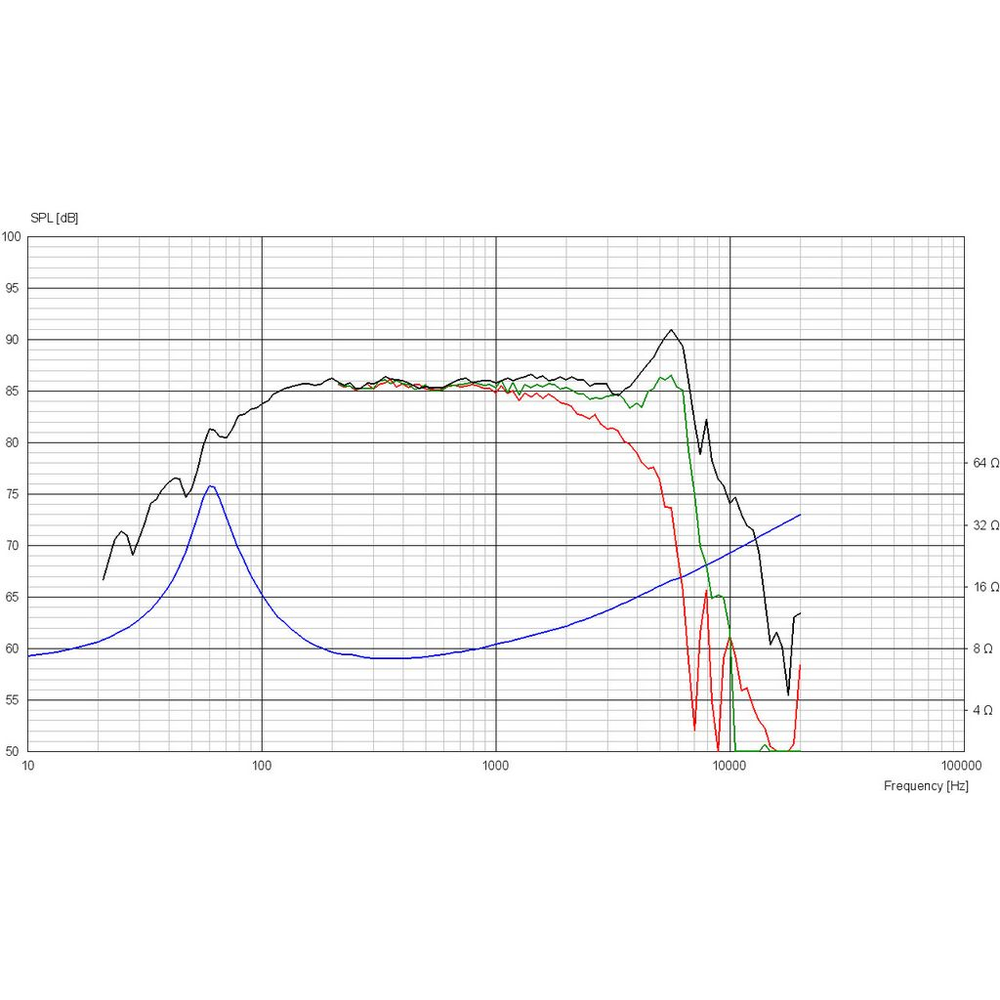

Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 4" |
| Nominal impedance | 8Ω |
| Series | Discovery |
| Power handling (RMS) | 40 W |
| Power handling (program) | 70 W |
| Sensitivity | 85.8 dB |
| Suggested alignment | Ported |
| Frequency range | fs – 5,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 52 Hz |
|---|---|
| DC resistance (Re) | 5.7 Ω |
| Minimum impedance (Zmin) | 6.6 Ω |
| Voice coil inductance (Le) | 0.6 mH |
| Mechanical Q (Qms) | 3.42 |
| Electrical Q (Qes) | 0.35 |
| Total Q (Qts) | 0.32 |
| Equivalent volume (Vas) | 8.2 L |
| Compliance (Cms) | 1.67 mm/N |
| Moving mass (Mms) | 5.6 g |
| Mechanical resistance (Rms) | 0.54 kg/s |
| Force factor (Bl) | 5.4 T·m |
| Effective piston area (Sd) | 59 cm² |
| Linear excursion (Xmax, one-way) | 3 mm |
| Mechanical excursion (Xmech) | 9 mm |
| Displacement volume (Vd) | 17.7 cm³ |
| Efficiency bandwidth product (EBP) | 148.6 |
| Effective piston diameter (D) | 86 mm |
| Impedance at resonance (Zo) | 48.2 Ω |
Motor
| Voice coil height | 10 mm |
|---|---|
| Air gap height | 4 mm |
| Voice coil layers | 2 |
Mounting
| Overall diameter | 124.7 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 101.0 mm |
| Mounting depth | 53.4 mm |
| Flange thickness | 5 mm |
| Bolt circle diameter | 113 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 5.3 mm |
| Volume displaced by driver | 0.12 L |
| Voice coil diameter | 25 mm |
| Weight | 1 kg |
Materials
| Cone | Coated Fibreglass |
|---|---|
| Surround | SBR |
| Basket | Cast Aluminium |
| Magnet | Ferrite |
Typical box tunings
| Vented box: box volume | 4.5 L |
|---|---|
| Vented box: box resonance | 62 Hz |
| Vented box: corner frequency | 68 Hz |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Downloads
- 12W/8524G00 Datasheet

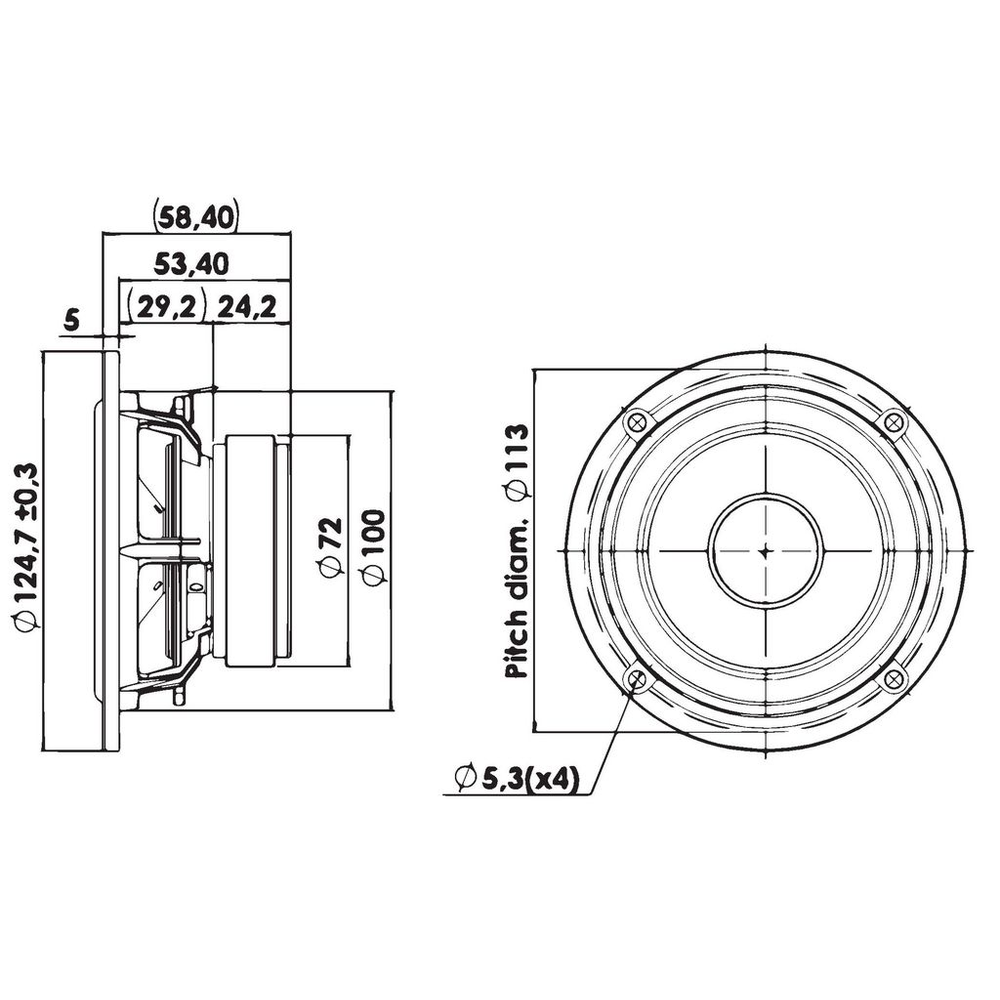

- 12W/8524G00 Drawing
- 12W/8524G00 Adv. Parameters
- 12W/8524G00 3D model
- 12W/8524G00 Cutout & Recess Template (NB Audio) Straight off Scan-Speak's spec sheet: flange outline, recess depth, bolt holes. Scaled from Scan-Speak's drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
