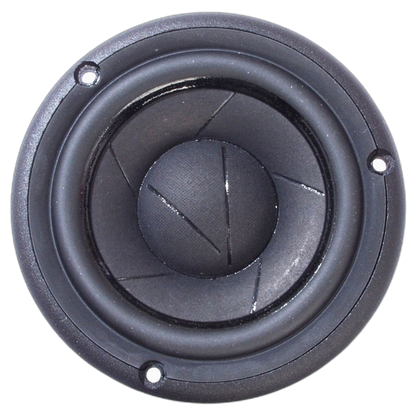

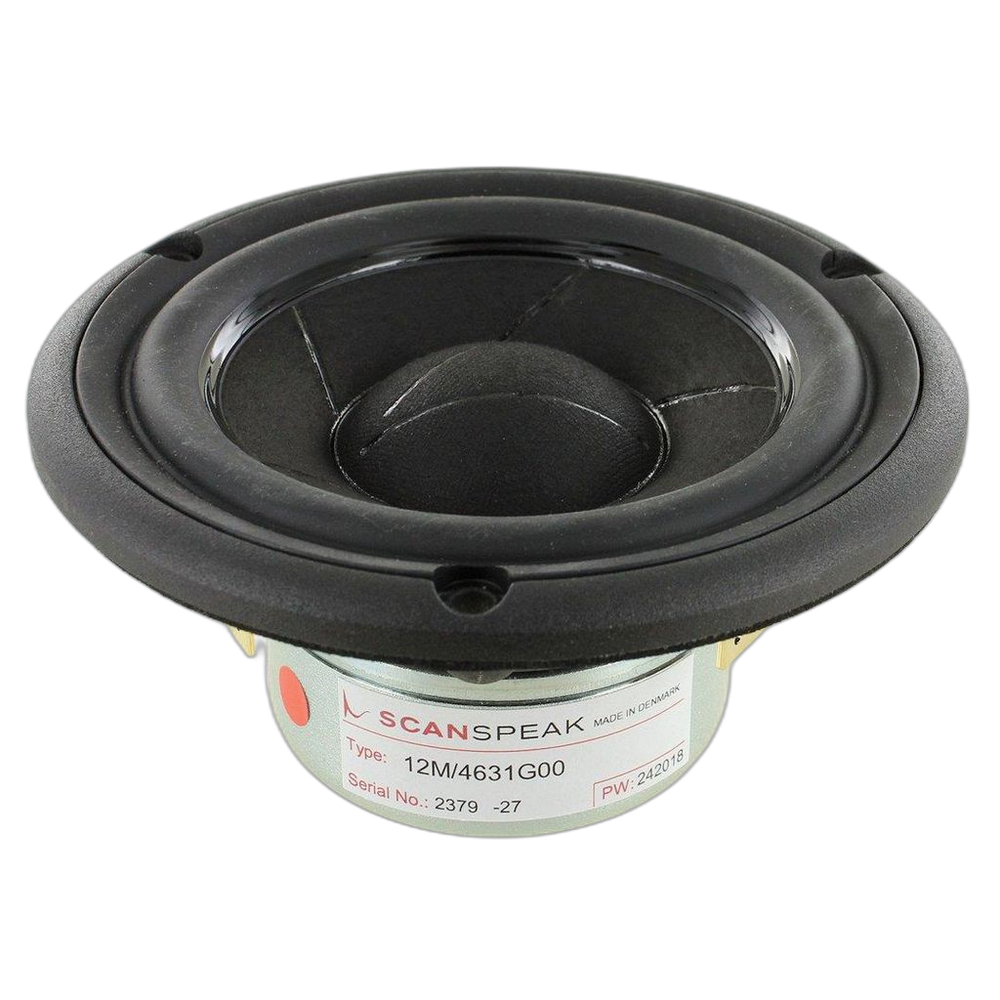

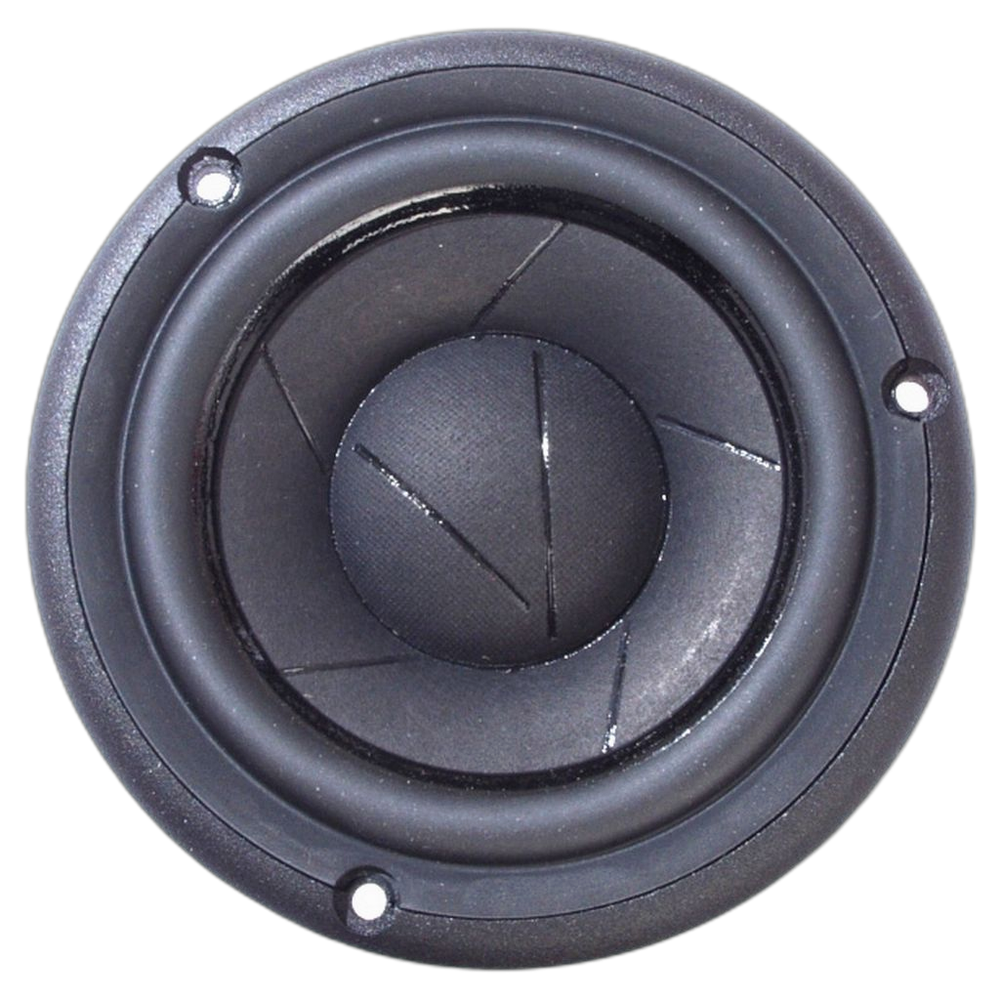

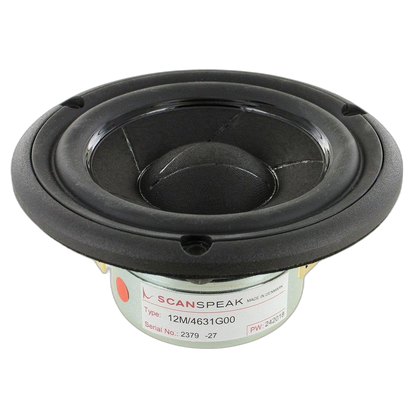

Scan-Speak - 4" Revelator Midrange - 12M/4631G00
Scan-Speak - 4" Revelator Midrange - 12M/4631G00
Regular price
$454.95
Regular price
Sale price
$454.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Heavy-duty cast alloy frame and pole ventilated magnet system. Sandwich paper cone doped, textile dust cap, all coated. Rubber surround, large spider, maximising coil linearity. Open back design for optimising resonances, requires chamber. Absolute premium construction achieving phenomenal mid acoustics. Crossover point is recommended at 300Hz for maximum power handling.
Features
- Excellent Midrange reproduction
- Sliced Cone (Controls Cone Breakups)
- Low-Loss Linear Suspension
- High Output 89dB @ 2.83V
- Compact Neodymium Magnet System

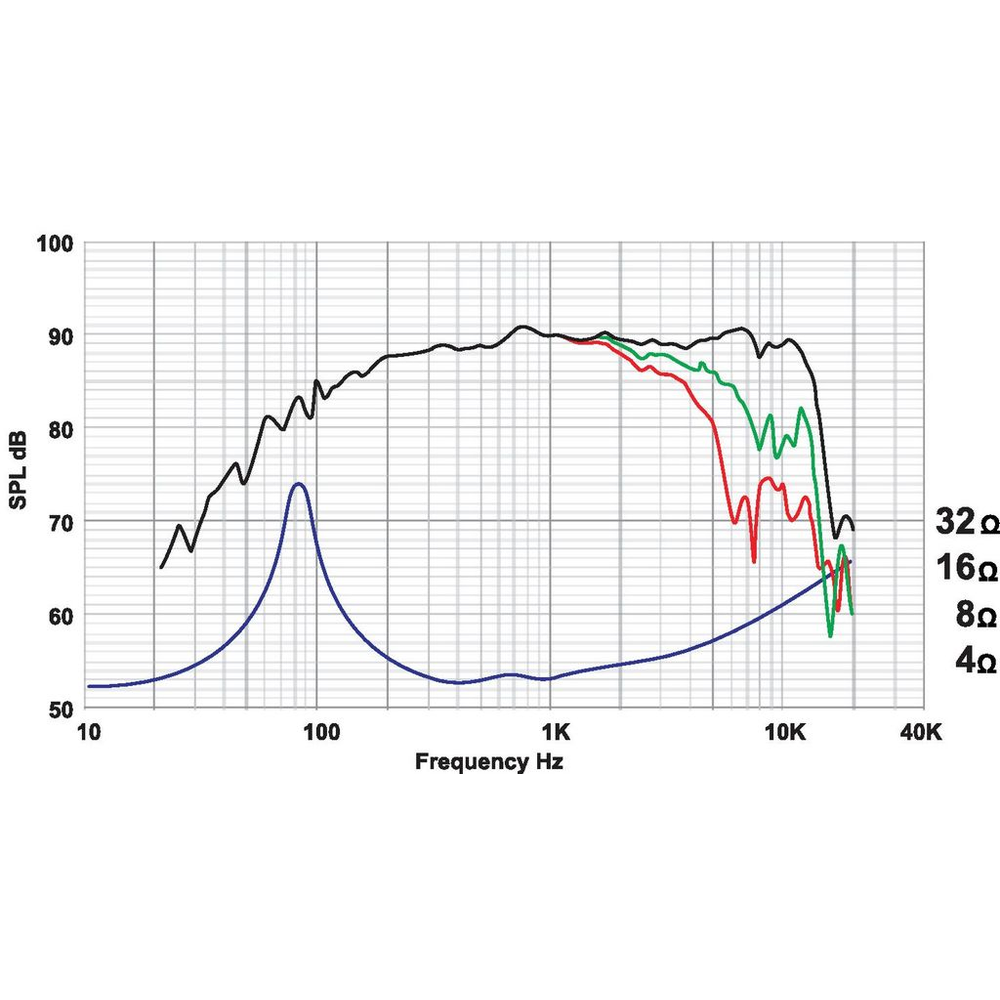

Specifications
Specifications
General
| Driver type | Mid-Range |
|---|---|
| Nominal size | 4" |
| Nominal impedance | 4Ω |
| Series | Revelator |
| Power handling (RMS) | 40 W |
| Power handling (program) | 70 W |
| Sensitivity | 89 dB |
| Frequency range | 85 – 10,000 Hz |
| Suggested alignment | Ported |
| Recommended crossover | 2. order HP Butterworth, 200 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 75 Hz |
|---|---|
| DC resistance (Re) | 3.2 Ω |
| Minimum impedance (Zmin) | 3.8 Ω |
| Voice coil inductance (Le) | 0.22 mH |
| Mechanical Q (Qms) | 5.57 |
| Electrical Q (Qes) | 0.35 |
| Total Q (Qts) | 0.33 |
| Equivalent volume (Vas) | 2.3 L |
| Compliance (Cms) | 0.69 mm/N |
| Moving mass (Mms) | 6.5 g |
| Mechanical resistance (Rms) | 0.55 kg/s |
| Force factor (Bl) | 5.3 T·m |
| Effective piston area (Sd) | 49 cm² |
| Linear excursion (Xmax, one-way) | 3 mm |
| Mechanical excursion (Xmech) | 7 mm |
| Displacement volume (Vd) | 14.7 cm³ |
| Efficiency bandwidth product (EBP) | 214.3 |
| Effective piston diameter (D) | 79 mm |
| Impedance at resonance (Zo) | 54.1 Ω |
Motor
| Voice coil height | 10 mm |
|---|---|
| Air gap height | 4 mm |
| Voice coil layers | 2 |
Mounting
| Overall diameter | 115.5 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 93.0 mm |
| Mounting depth (estimate) | ≈ 48.4 mm |
| Flange thickness | 8 mm |
| Bolt circle diameter | 103.2 mm |
| Mounting holes | 3 |
| Mounting hole diameter | 4.2 mm |
| Volume displaced by driver | 0.14 L |
| Voice coil diameter | 38 mm |
| Weight | 0.6 kg |
Materials
| Cone | Sliced Paper |
|---|---|
| Magnet | Neodymium |
Typical box tunings
| Closed box: box volume | 0.8 L |
|---|---|
| Closed box: corner frequency | 147 Hz |
| Vented box: box volume | 1.6 L |
| Vented box: box resonance | 84 Hz |
| Vented box: corner frequency | 88 Hz |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Downloads
- 12M/4631G00 Datasheet

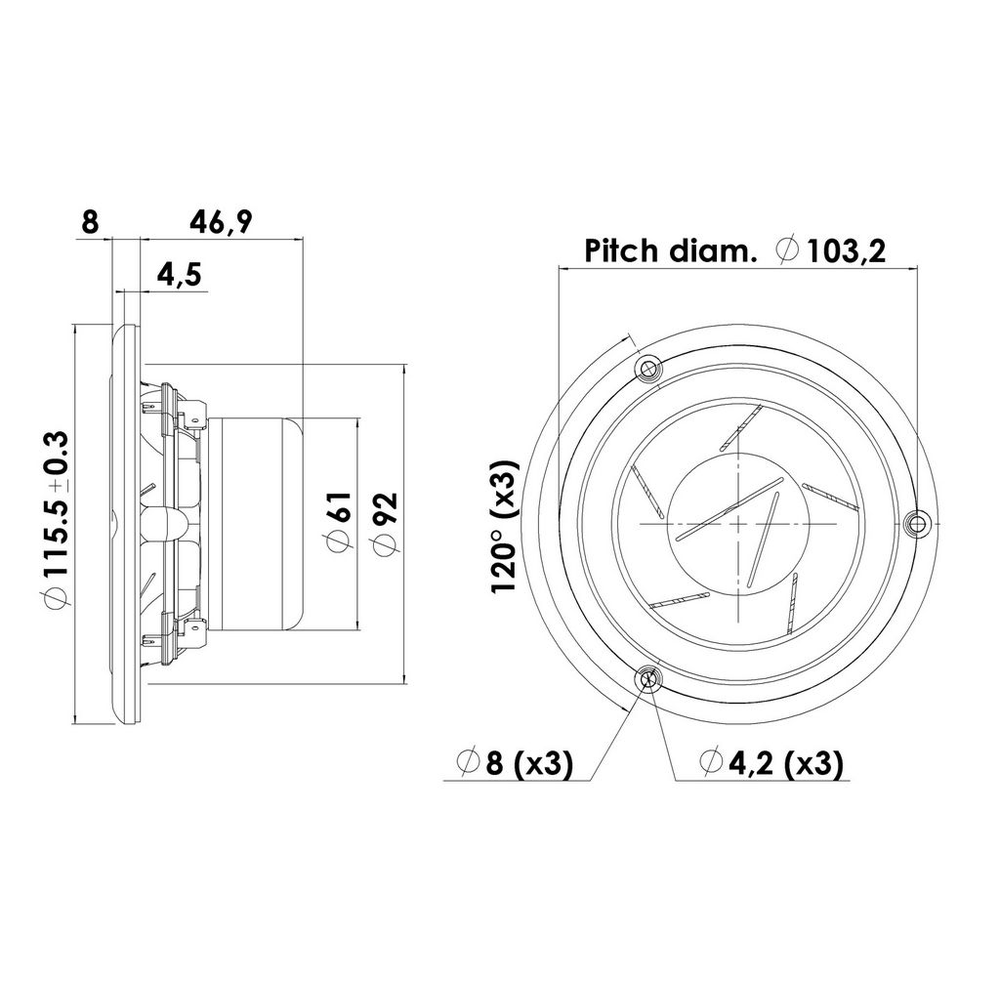

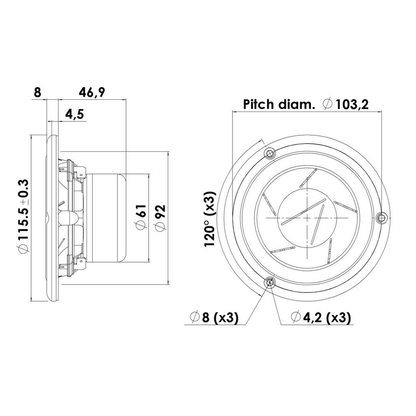

- 12M/4631G00 Drawing
- 12M/4631G00 Adv. Parameters
- 12M/4631G00 3D model
- 12M/4631G00 Cutout & Recess Template (NB Audio) Straight off Scan-Speak's spec sheet: flange outline, bolt holes. Scaled from Scan-Speak's drawing, so close but not guaranteed exact: cutout. Left out: recess depth not on file, so measure your flange. Check it against your driver before you cut.
