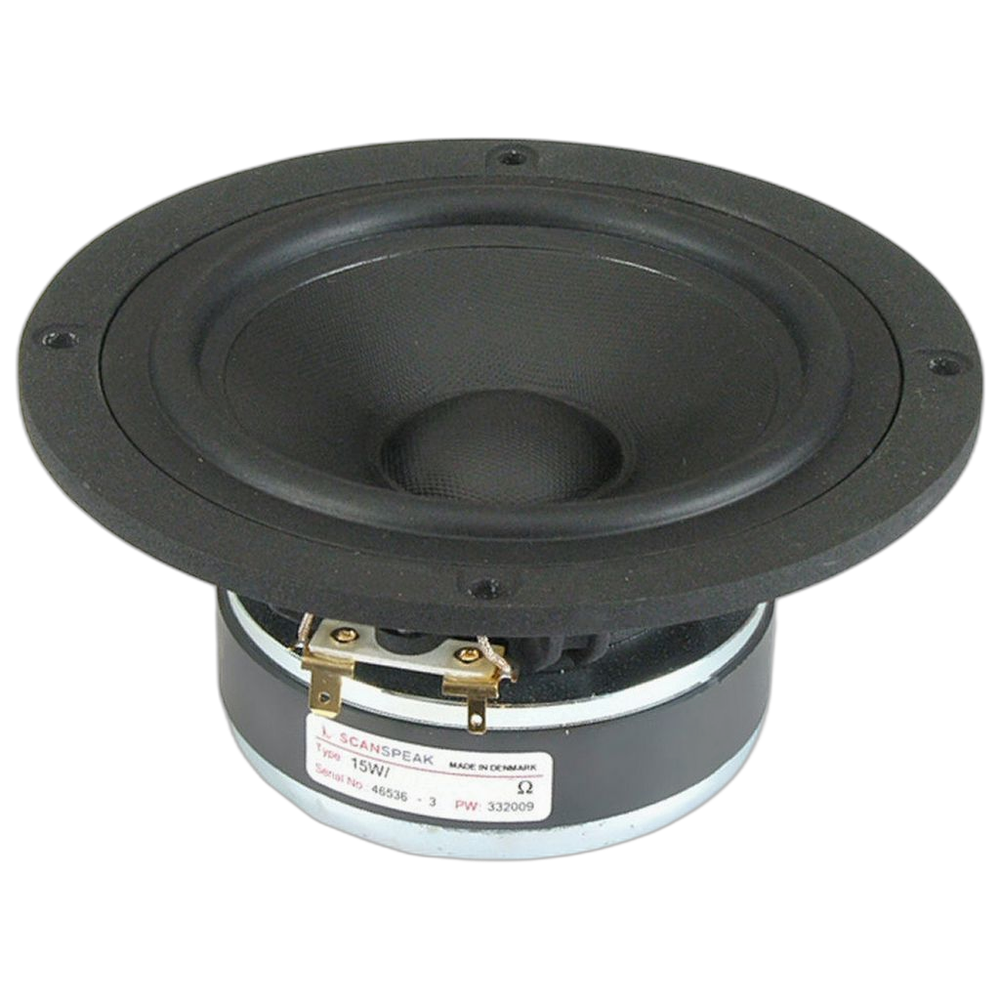

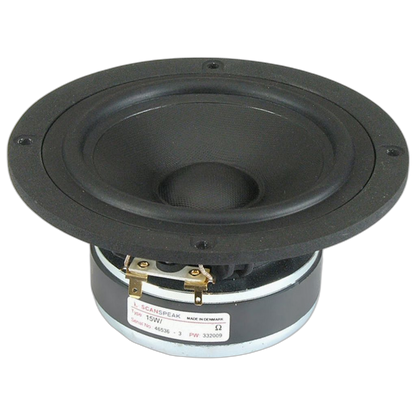

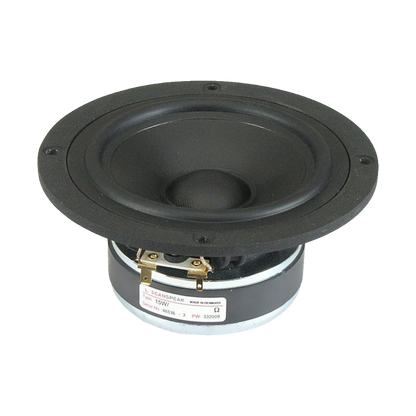

Scan-Speak - 5" Discovery Mid-Woofer - 15W/8434G00
Scan-Speak - 5" Discovery Mid-Woofer - 15W/8434G00
Regular price
$124.95
Regular price
Sale price
$124.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
15cm Midwoofer 8 ohm, Coated Fibreglass Cone, Ferrite Magnet, aluminium Ring. The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonably low price point.
Features
- Coated NRSC Fibre Glass Cone
- Magnet System w. Alu Ring
- Low Damping SBR Rubber Surround
- Die cast Alu Chassis vented below spider
Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 5" |
| Nominal impedance | 8Ω |
| Series | Discovery |
| Power handling (RMS) | 60 W |
| Power handling (program) | 120 W |
| Sensitivity | 86.9 dB |
| Suggested alignment | Ported |
| Frequency range | fs – 8,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 45 Hz |
|---|---|
| DC resistance (Re) | 5.7 Ω |
| Minimum impedance (Zmin) | 7.1 Ω |
| Voice coil inductance (Le) | 0.8 mH |
| Mechanical Q (Qms) | 3.74 |
| Electrical Q (Qes) | 0.27 |
| Total Q (Qts) | 0.25 |
| Equivalent volume (Vas) | 12.8 L |
| Compliance (Cms) | 1.43 mm/N |
| Moving mass (Mms) | 8.61 g |
| Mechanical resistance (Rms) | 0.66 kg/s |
| Force factor (Bl) | 7.3 T·m |
| Effective piston area (Sd) | 80 cm² |
| Linear excursion (Xmax, one-way) | 4.2 mm |
| Mechanical excursion (Xmech) | 8 mm |
| Displacement volume (Vd) | 33.6 cm³ |
| Efficiency bandwidth product (EBP) | 166.7 |
| Effective piston diameter (D) | 101 mm |
| Impedance at resonance (Zo) | 84.7 Ω |
Motor
| Voice coil height | 13.4 mm |
|---|---|
| Air gap height | 5 mm |
| Voice coil layers | 2 |

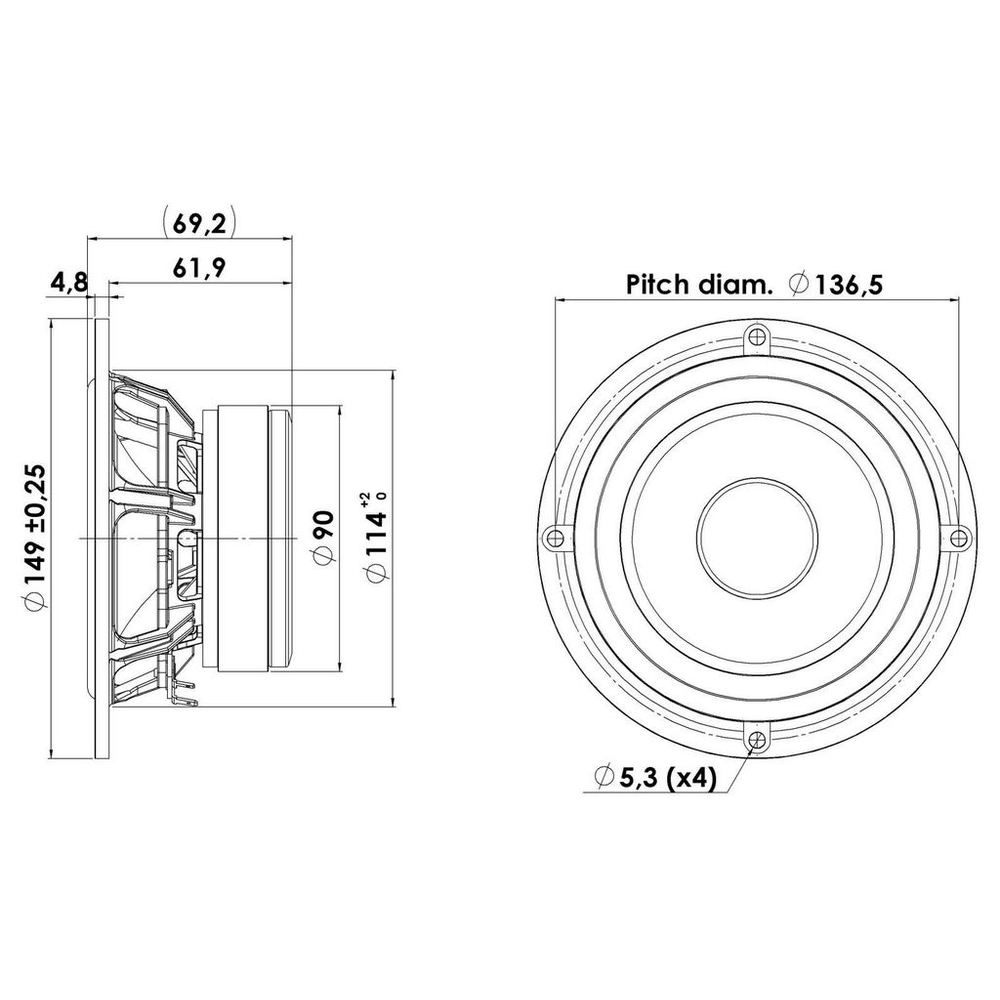

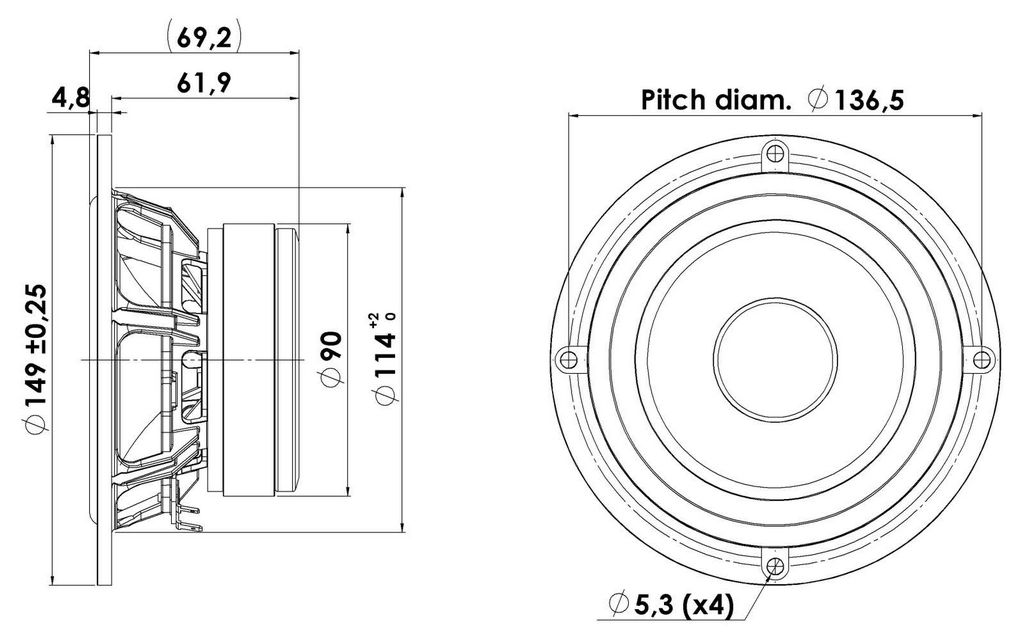

Mounting
| Overall diameter | 149.3 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 115.0 mm |
| Mounting depth | 61.9 mm |
| Flange thickness | 4.8 mm |
| Bolt circle diameter | 136.5 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 5.3 mm |
| Volume displaced by driver | 0.23 L |
| Voice coil diameter | 32 mm |
| Weight | 1.2 kg |
Materials
| Cone | Coated Fibreglass |
|---|---|
| Surround | SBR |
| Basket | Cast Aluminium |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Downloads
- 15W/8434G00 Datasheet
- 15W/8434G00 Drawing
- 15W/8434G00 Adv. Parameters
- 15W/8434G00 3D model
- 15W/8434G00 Cutout & Recess Template (NB Audio) Straight off Scan-Speak's spec sheet: flange outline, recess depth, bolt holes. Scaled from Scan-Speak's drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
