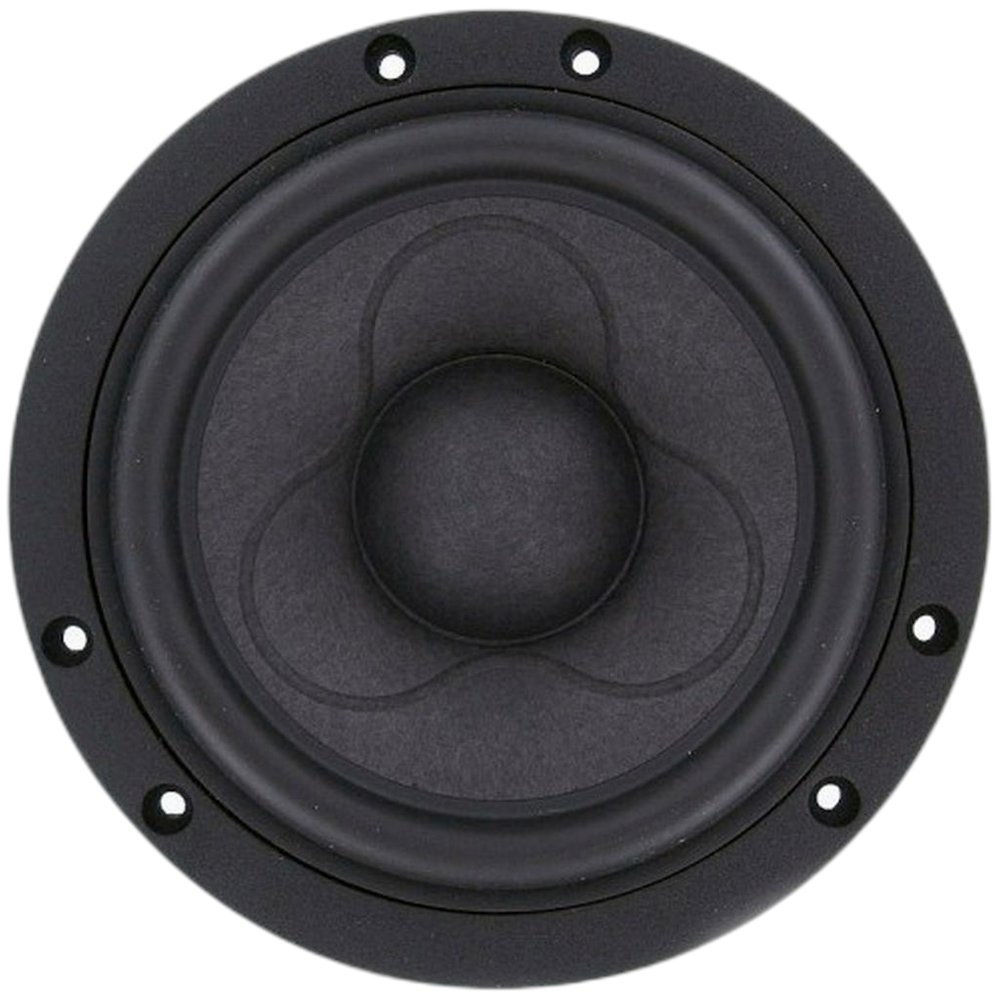

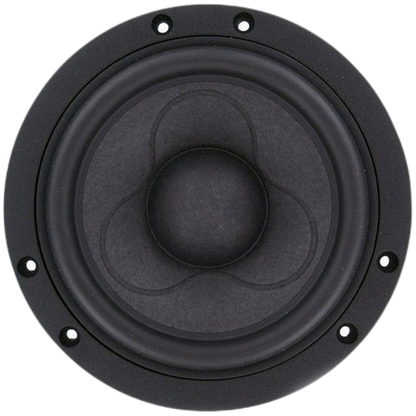

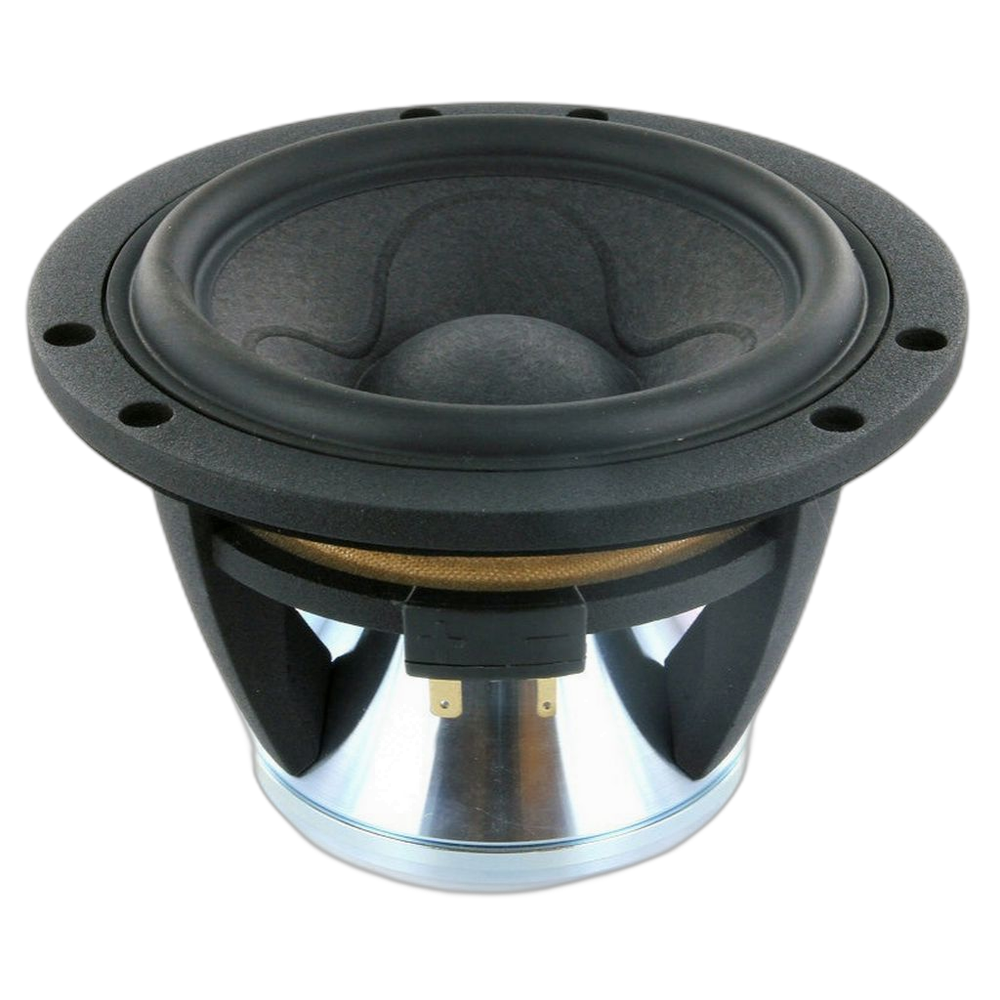

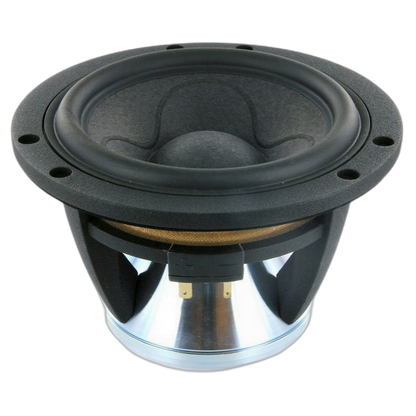

Scan-Speak - 5" Illuminator Mid-Woofer - 15WU/4741T00
Scan-Speak - 5" Illuminator Mid-Woofer - 15WU/4741T00
Regular price
$594.95
Regular price
Sale price
$594.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

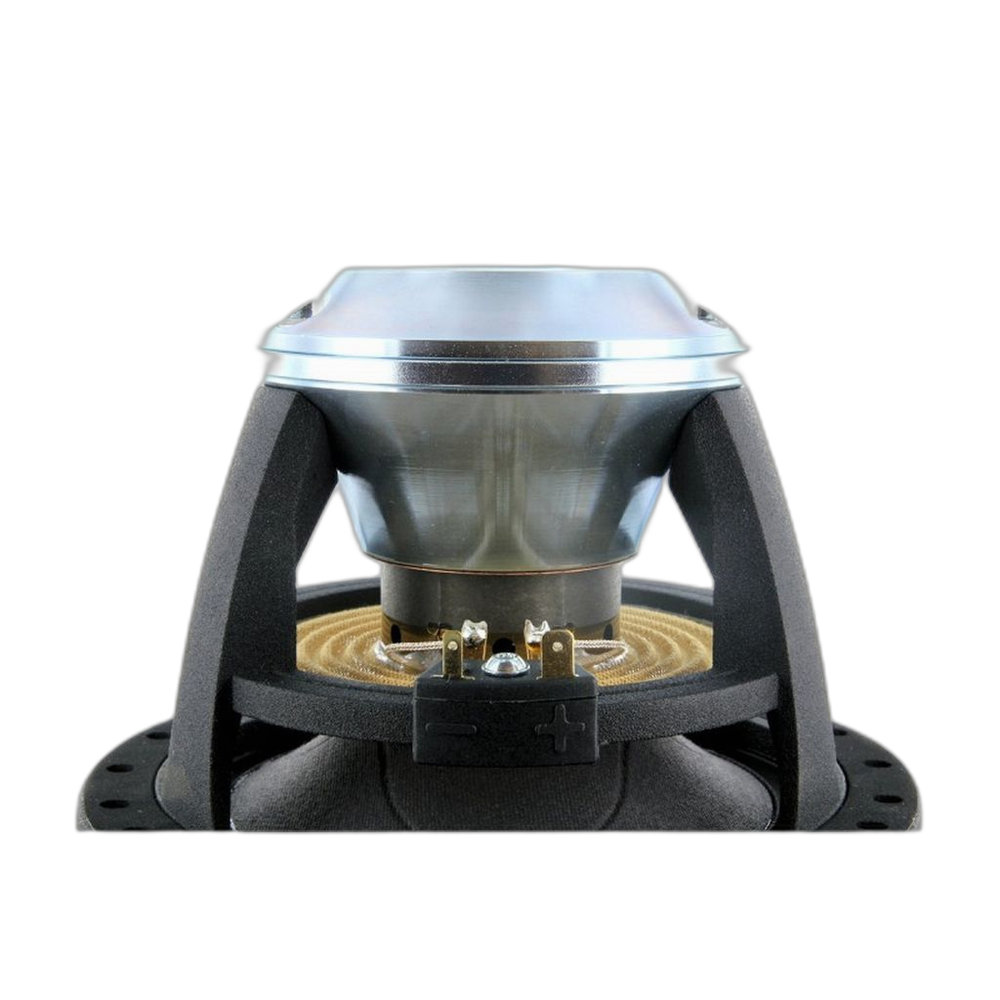

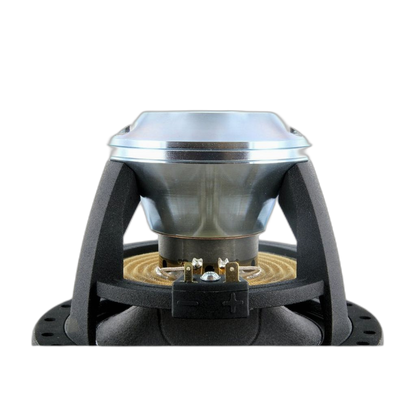

The Illuminator midwoofers are based on the patented under-hung SD-3 (Symmetrical Drive) neodymium motor system. It offers a very long linear excursion together with a very high force factor. The top plate is shaped to guide the backside airflow around the motor and with the very open cast aluminium chassis design the driver ensures very low distortion.
Features
- Under-Hung Neodymium Motor Design
- Patented Symmetrical Drive (SD-3)
- Patented Sandwich Paper Cone
- Exceptionally Long Linear Excursion
- Low-loss linear suspension
- Patented Design

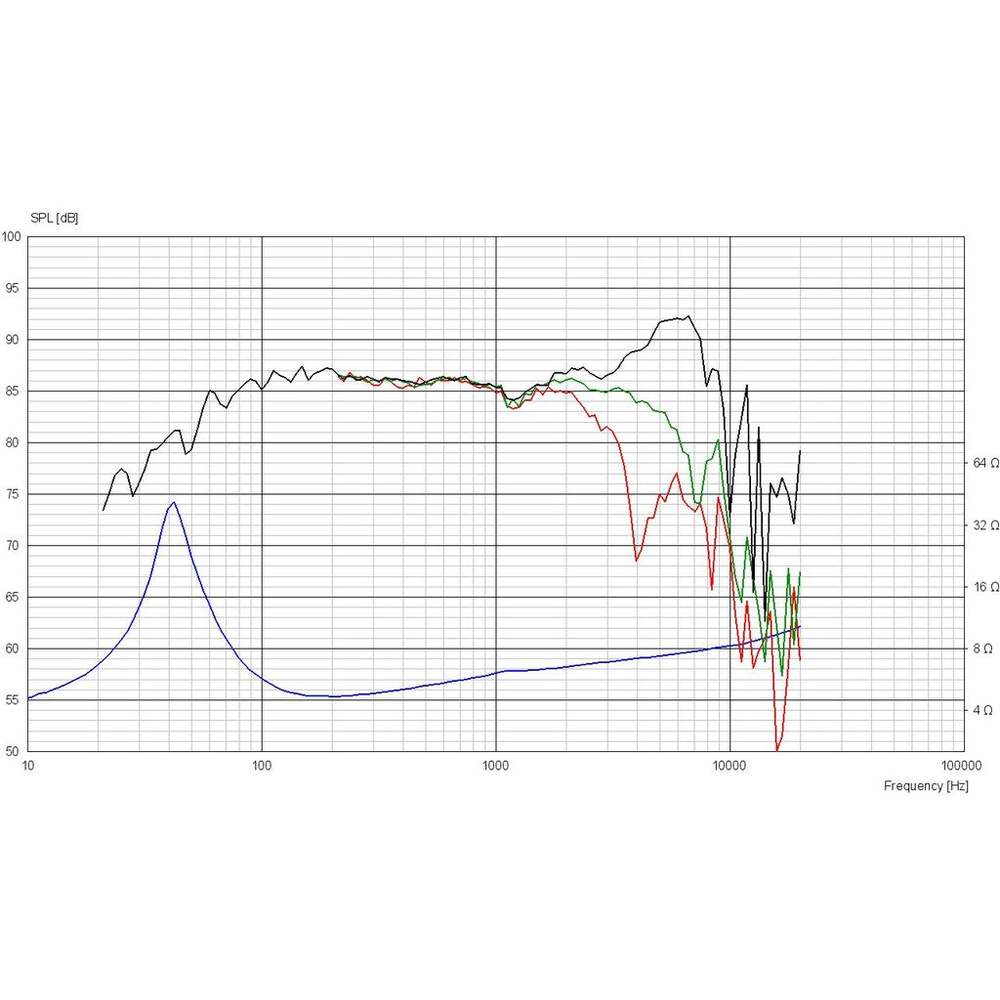

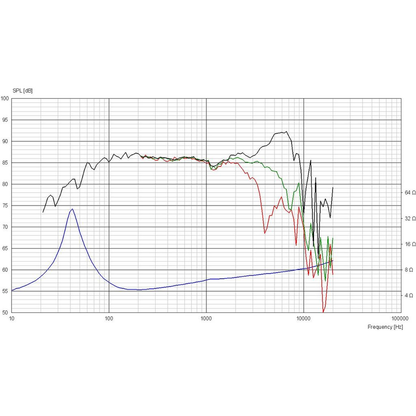

Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 5" |
| Nominal impedance | 4Ω |
| Series | Illuminator |
| Power handling (RMS) | 80 W |
| Power handling (program) | 150 W |
| Sensitivity | 85.9 dB |
| Suggested alignment | Ported |
| Frequency range | fs – 5,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 34 Hz |
|---|---|
| DC resistance (Re) | 3.2 Ω |
| Minimum impedance (Zmin) | 4.6 Ω |
| Voice coil inductance (Le) | 0.5 mH |
| Mechanical Q (Qms) | 3.47 |
| Electrical Q (Qes) | 0.25 |
| Total Q (Qts) | 0.23 |
| Equivalent volume (Vas) | 20 L |
| Compliance (Cms) | 1.69 mm/N |
| Moving mass (Mms) | 13 g |
| Mechanical resistance (Rms) | 0.8 kg/s |
| Force factor (Bl) | 6 T·m |
| Effective piston area (Sd) | 92 cm² |
| Linear excursion (Xmax, one-way) | 9 mm |
| Mechanical excursion (Xmech) | 13 mm |
| Displacement volume (Vd) | 82.8 cm³ |
| Efficiency bandwidth product (EBP) | 136 |
| Effective piston diameter (D) | 108 mm |
| Impedance at resonance (Zo) | 47.6 Ω |
Motor
| Voice coil height | 8 mm |
|---|---|
| Air gap height | 20 mm |
| Voice coil layers | 4 |
Mounting
| Overall diameter | 149 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 123.7 mm |
| Mounting depth (estimate) | ≈ 91.3 mm |
| Volume displaced by driver | 0.35 L |
| Voice coil diameter | 42 mm |
| Weight | 1.7 kg |
Materials
| Cone | Sandwich Paper |
|---|---|
| Magnet | Neodymium |
Typical box tunings
| Vented box: box volume | 4.5 L |
|---|---|
| Vented box: box resonance | 55 Hz |
| Vented box: corner frequency | 65 Hz |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Downloads
- 15WU/4741T00 Datasheet

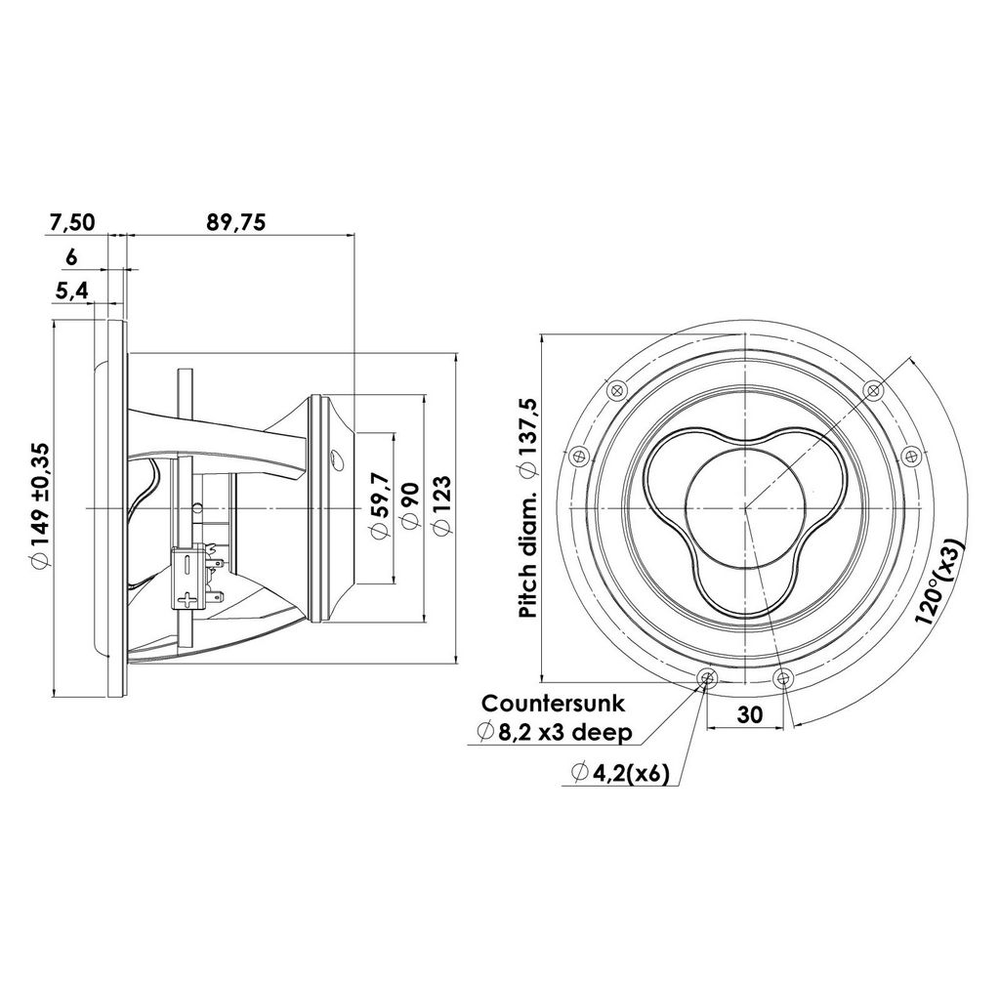

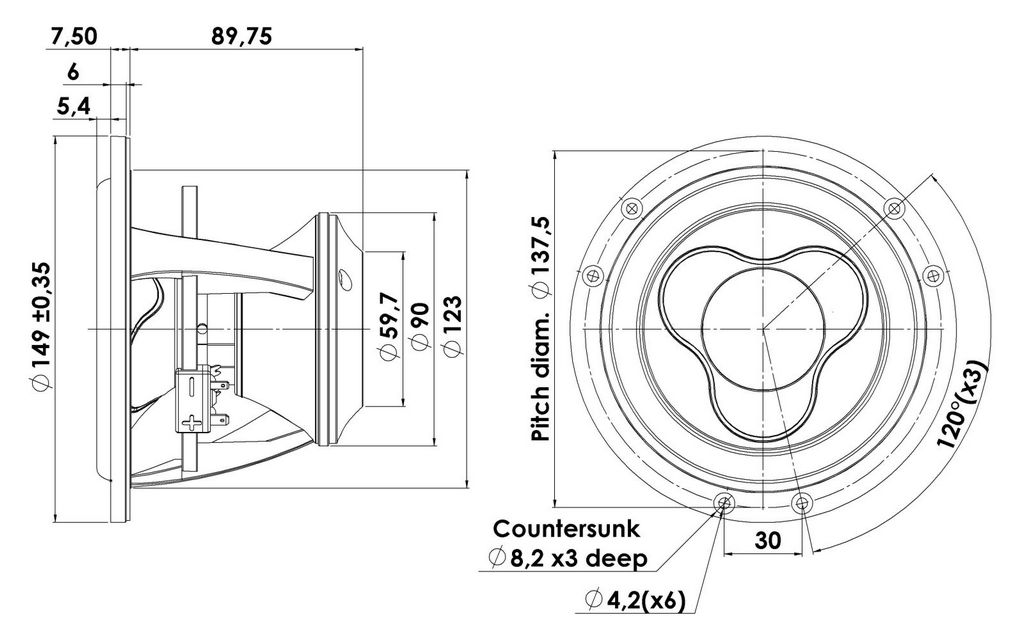

- 15WU/4741T00 Drawing
- 15WU/4741T00 Adv. Parameters
- 15WU/4741T00 3D model
- 15WU/4741T00 Cutout & Recess Template (NB Audio) Straight off Scan-Speak's spec sheet: flange outline. Scaled from Scan-Speak's drawing, so close but not guaranteed exact: cutout. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
Where do these figures come from? See the source of each one
