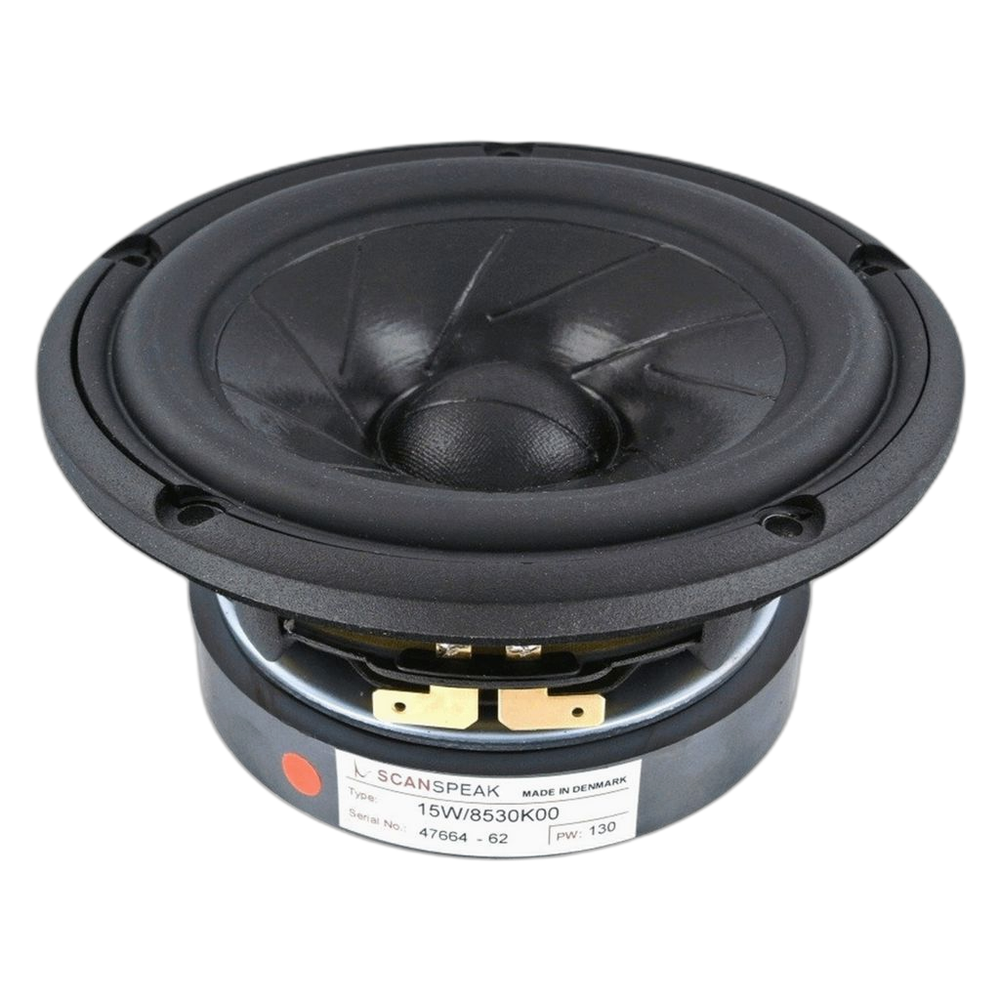

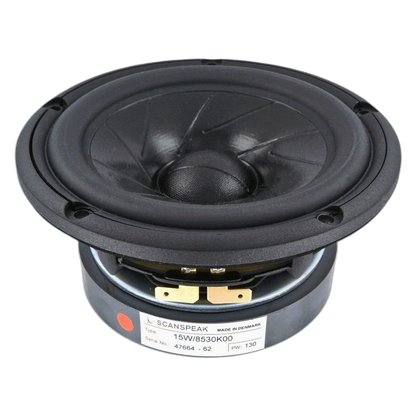

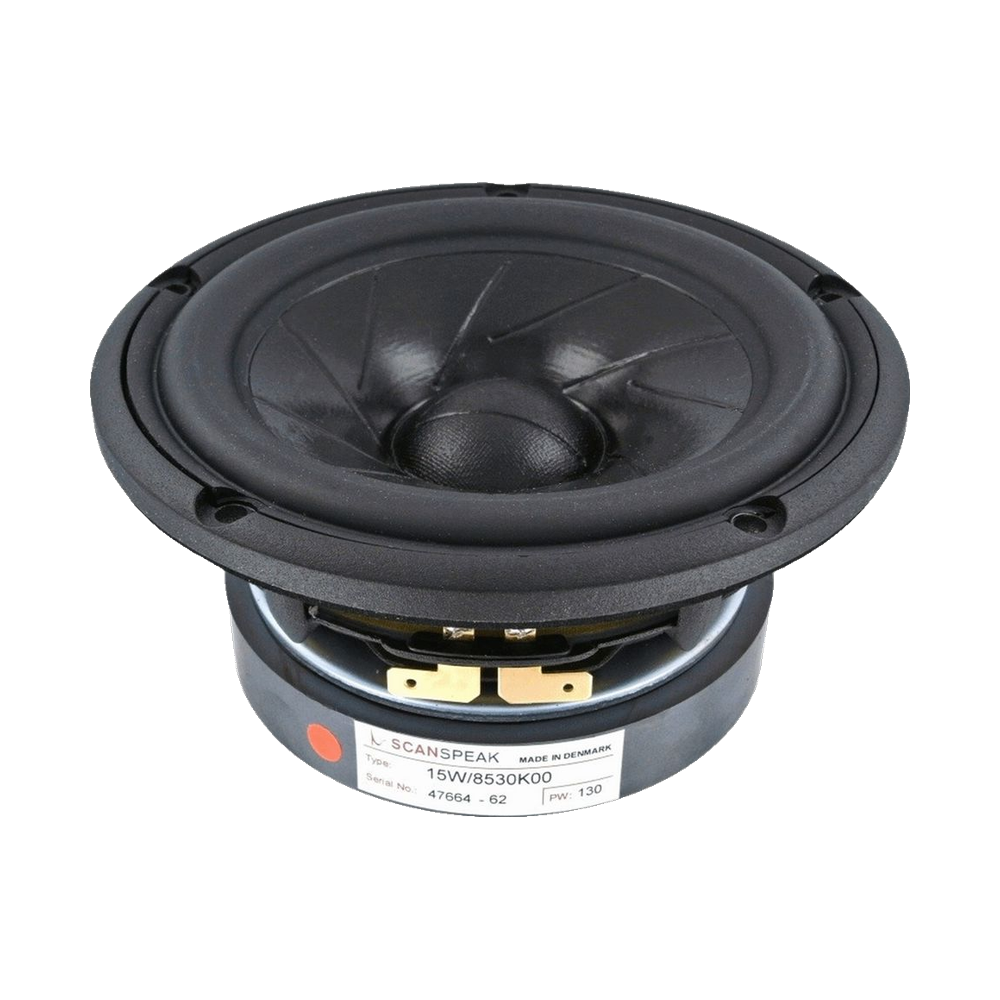

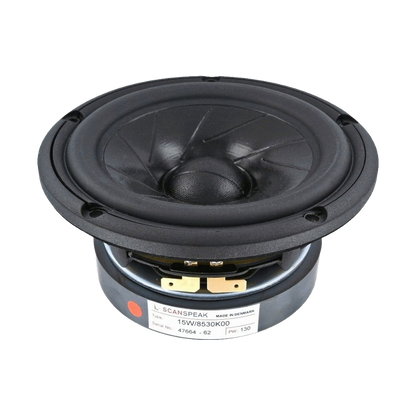

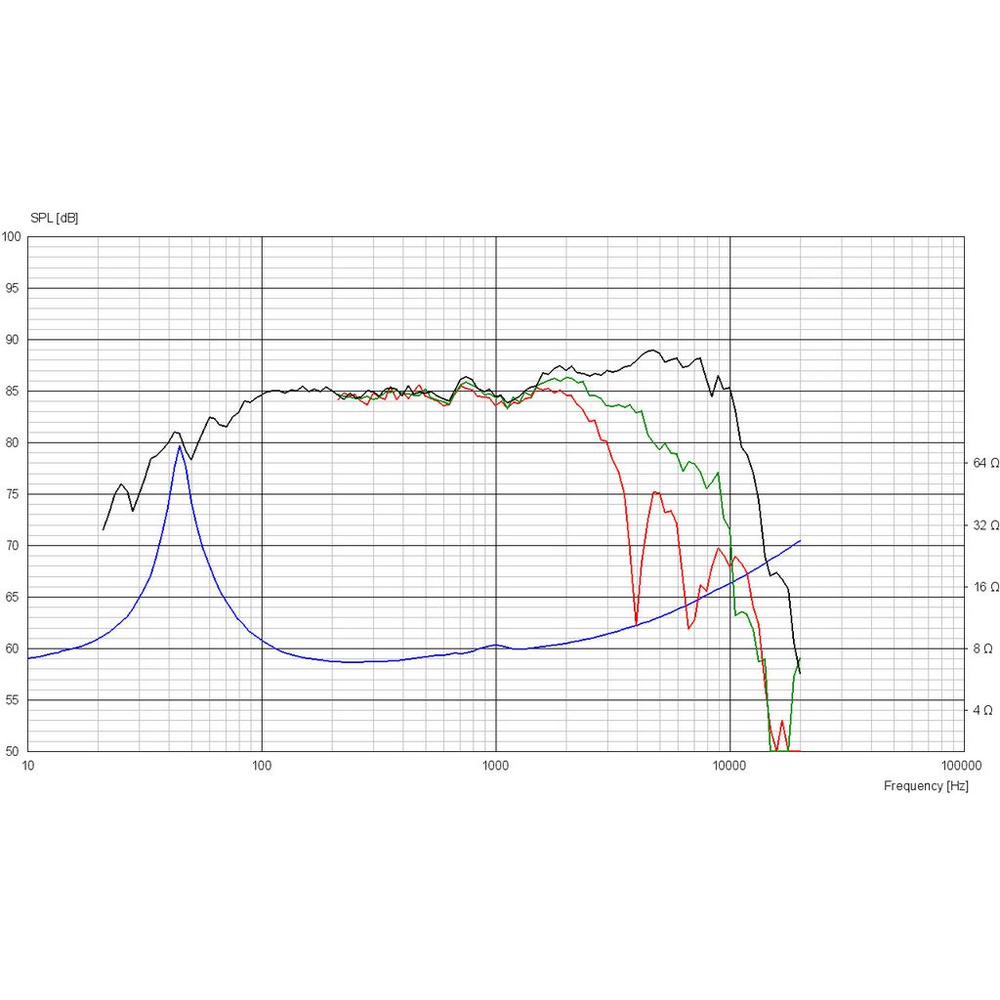

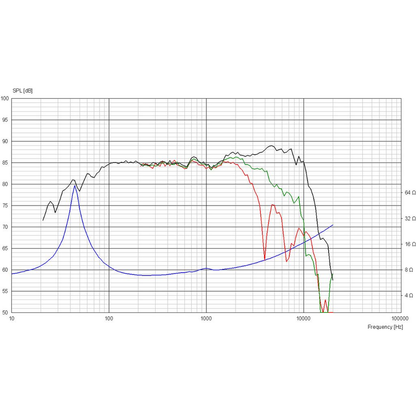

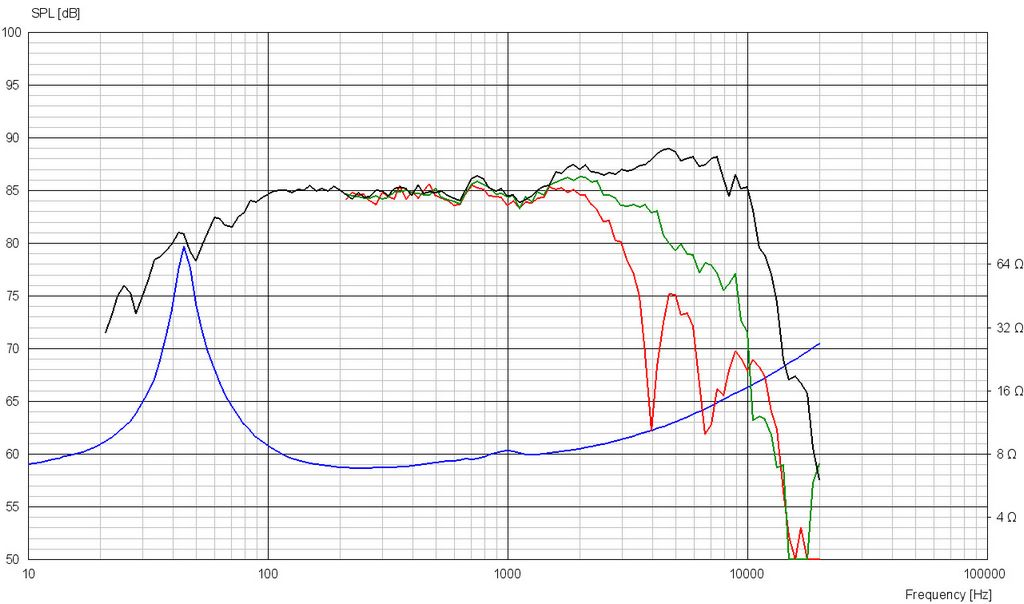

Scan-Speak - 5" Revelator Mid-Woofer - 15W/8530K00
Scan-Speak - 5" Revelator Mid-Woofer - 15W/8530K00
Regular price
$344.95
Regular price
Sale price
$344.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Features a non-resonant cone and dust cap structure, dynamic linear suspension, SD-1 magnet system, “Grasshopper” cast aluminium chassis with maximised air flow and resonance terminating mounting system. Less resonance in all structures, lower compression and higher linearity, faster termination of excess energy and higher sound pressure capability gives Scan-Speak more musical and dynamic capability.
Features
- Patented Symmetrical Drive Motor Design
- Sliced Cone (Controls Cone Breakups)
- Low-Loss linear suspension
- Low Damping SBR Rubber Surround
- Coated Paper Cone
- Large Ferrite Magnet System
Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 5" |
| Nominal impedance | 8Ω |
| Series | Revelator |
| Power handling (RMS) | 60 W |
| Power handling (program) | 110 W |
| Sensitivity | 85.5 dB |
| Suggested alignment | Ported |
| Frequency range | fs – 6,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 39 Hz |
|---|---|
| DC resistance (Re) | 5.9 Ω |
| Minimum impedance (Zmin) | 6.7 Ω |
| Voice coil inductance (Le) | 0.3 mH |
| Mechanical Q (Qms) | 5 |
| Electrical Q (Qes) | 0.43 |
| Total Q (Qts) | 0.39 |
| Equivalent volume (Vas) | 16 L |
| Compliance (Cms) | 1.27 mm/N |
| Moving mass (Mms) | 13 g |
| Mechanical resistance (Rms) | 0.64 kg/s |
| Force factor (Bl) | 6.6 T·m |
| Effective piston area (Sd) | 95 cm² |
| Linear excursion (Xmax, one-way) | 6.5 mm |
| Mechanical excursion (Xmech) | 9 mm |
| Displacement volume (Vd) | 61.75 cm³ |
| Efficiency bandwidth product (EBP) | 90.7 |
| Effective piston diameter (D) | 110 mm |
| Impedance at resonance (Zo) | 57 Ω |
Motor
| Voice coil height | 18 mm |
|---|---|
| Air gap height | 5 mm |
| Voice coil layers | 2 |

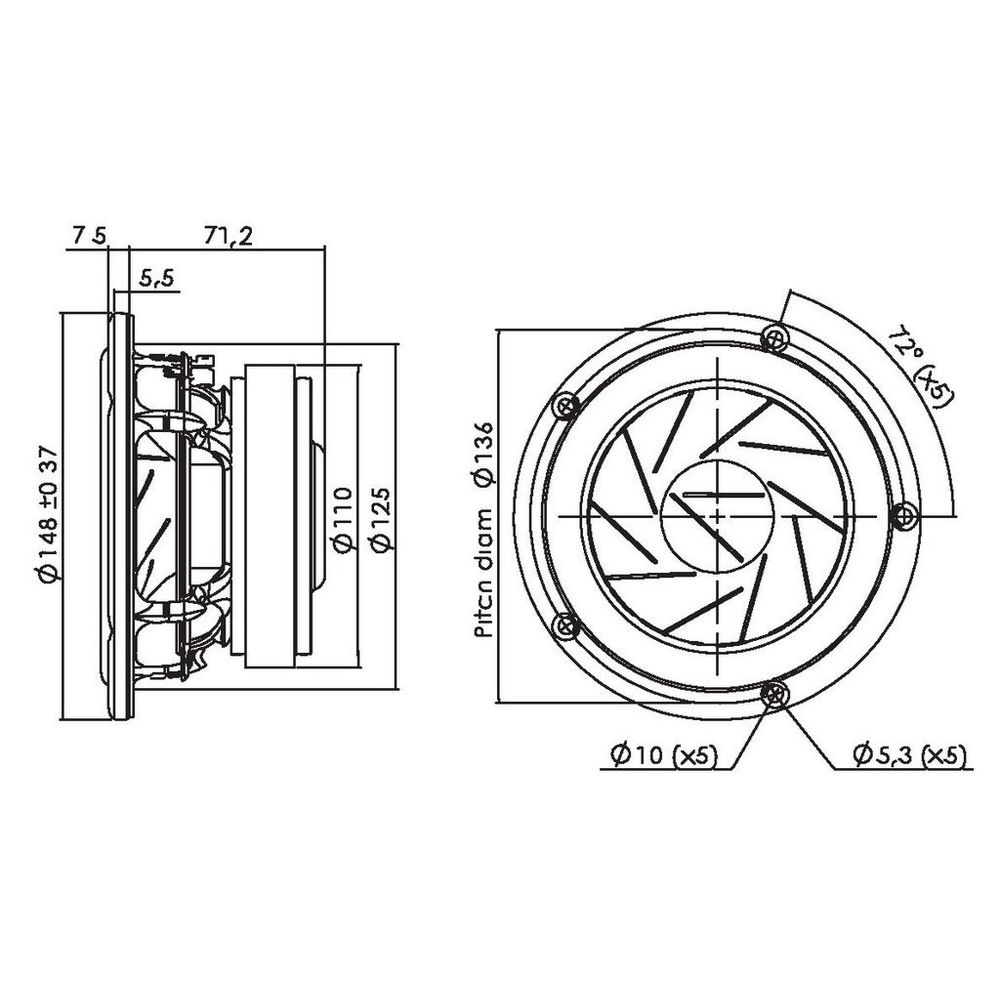

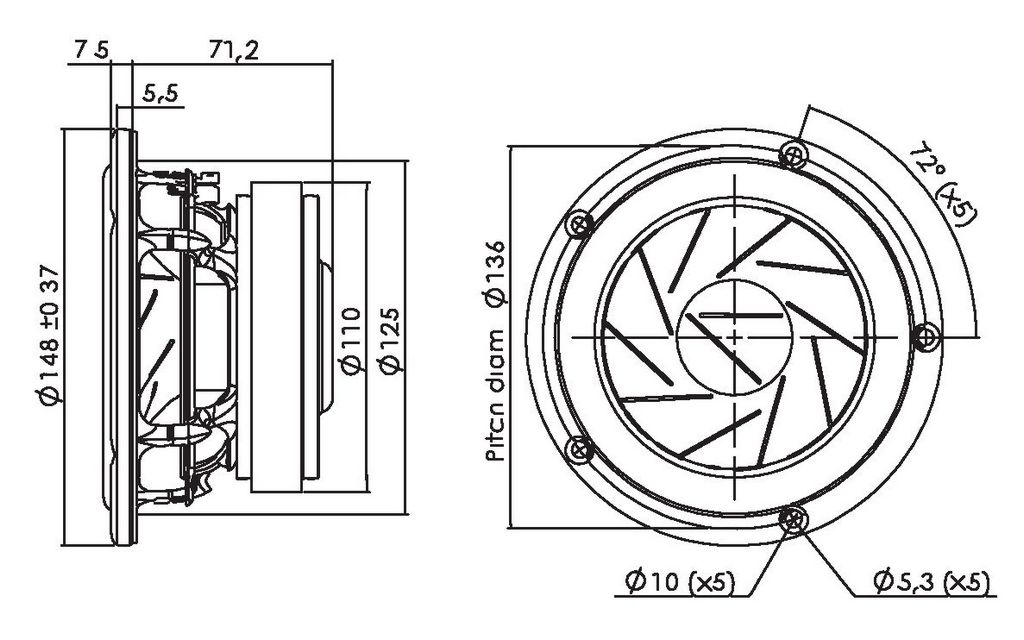

Mounting
| Overall diameter | 148.2 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 126.0 mm |
| Mounting depth | 71 mm |
| Bolt circle diameter | 136.2 mm |
| Mounting holes | 5 |
| Mounting hole diameter | 5.3 mm |
| Volume displaced by driver | 0.36 L |
| Voice coil diameter | 38 mm |
| Weight | 1.7 kg |
Materials
| Cone | Coated Sliced Paper |
|---|---|
| Surround | SBR |
| Magnet | Ferrite |
Typical box tunings
| Closed box: box volume | 8 L |
|---|---|
| Closed box: corner frequency | 67 Hz |
| Vented box: box volume | 17 L |
| Vented box: box resonance | 38 Hz |
| Vented box: corner frequency | 38 Hz |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Downloads
- 15W/8530K00 Datasheet
- 15W/8530K00 Drawing
- 15W/8530K00 Adv. Parameters
- 15W/8530K00 3D model
- 15W/8530K00 Cutout & Recess Template (NB Audio) Straight off Scan-Speak's spec sheet: flange outline, bolt holes. Scaled from Scan-Speak's drawing, so close but not guaranteed exact: cutout. Left out: recess depth not on file, so measure your flange. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
