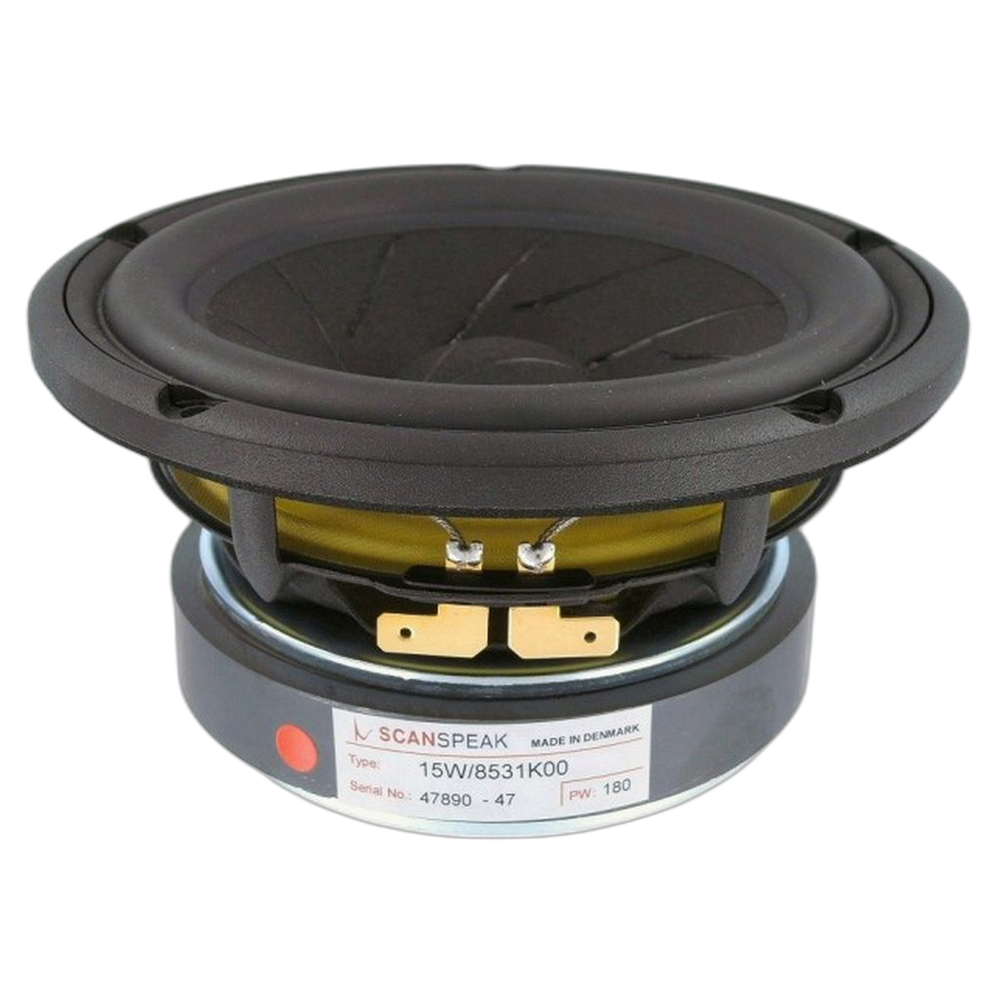

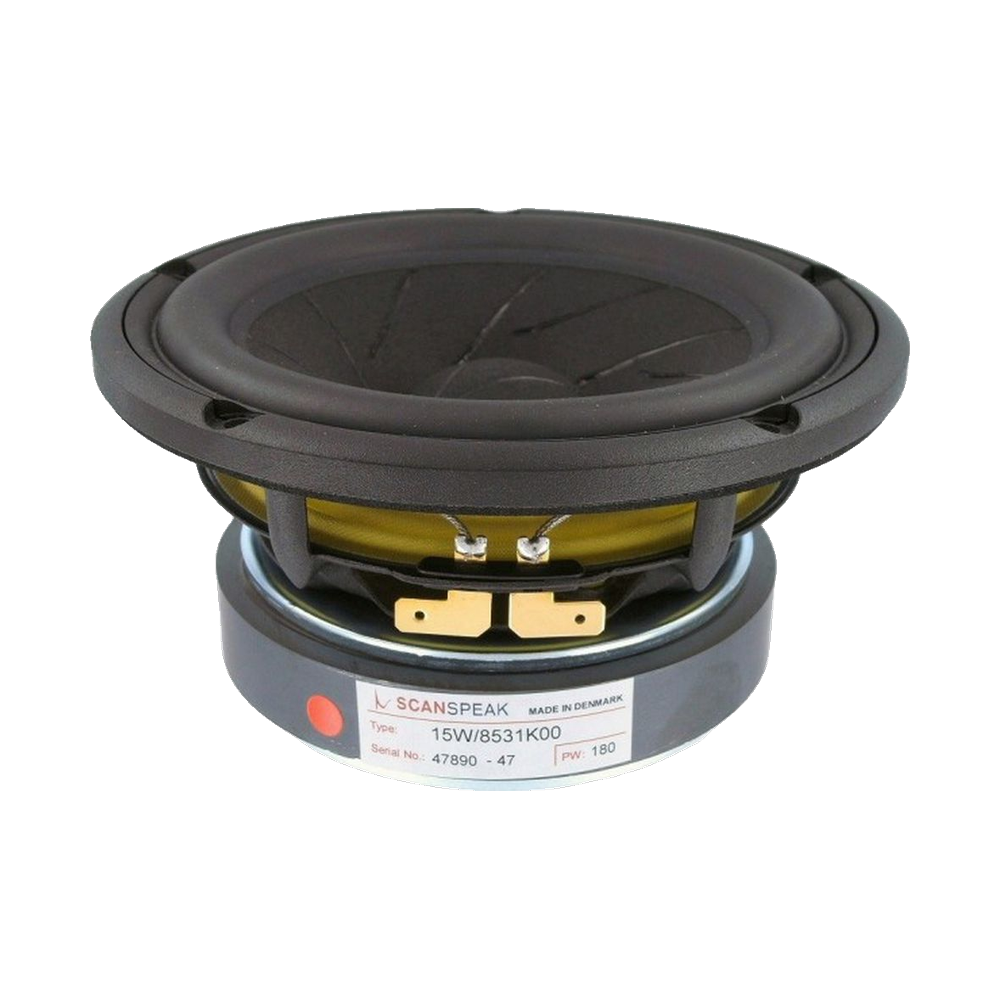

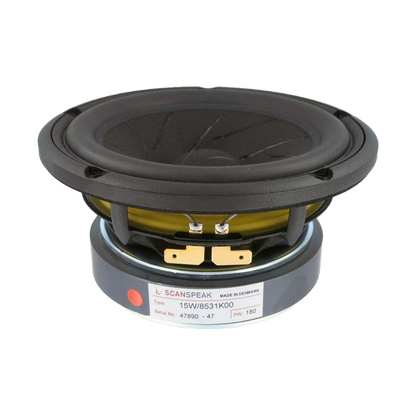

Scan-Speak - 5" Revelator Mid-Woofer - 15W/8531K00
Scan-Speak - 5" Revelator Mid-Woofer - 15W/8531K00
Regular price
$324.95
Regular price
Sale price
$324.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

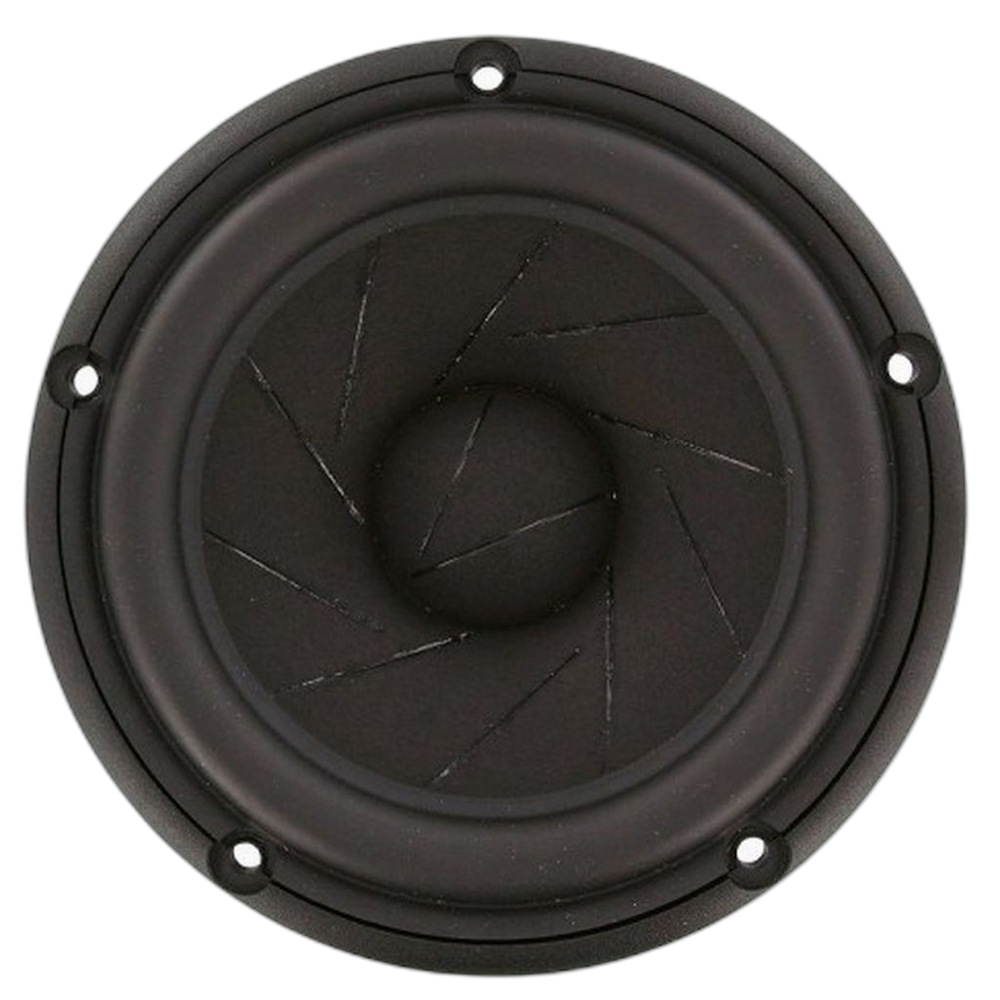

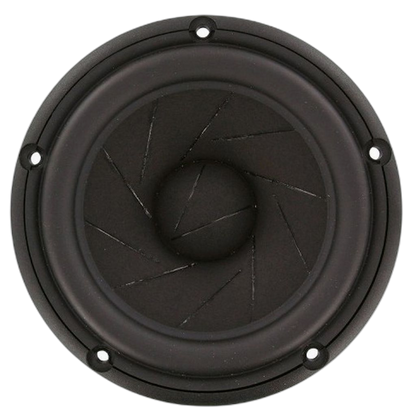

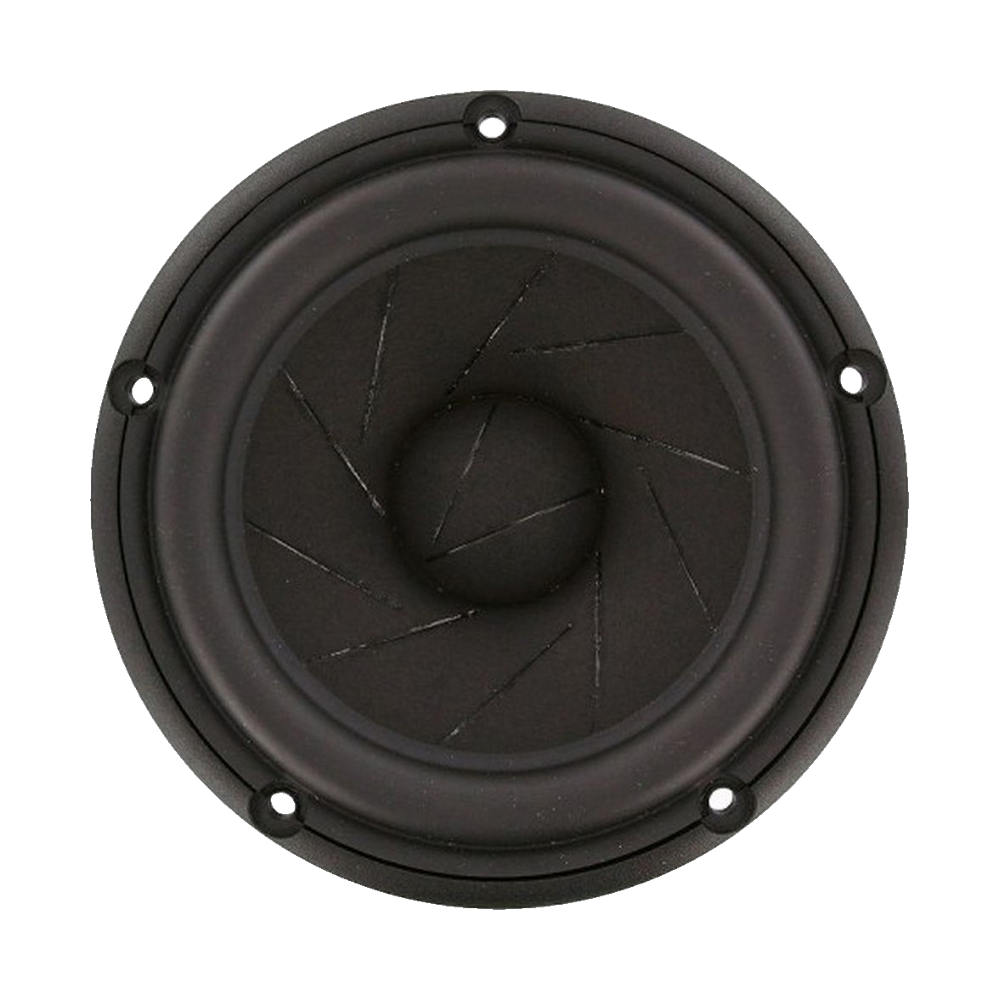

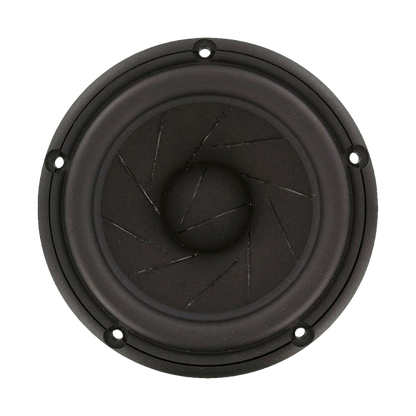

The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speak's low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.
Features
- Patented Symmetrical Drive Motor Design
- Sliced Cone (Controls Cone Breakups)
- Low-Loss linear suspension
- Low Damping SBR Rubber Surround
- Die cast Alu Chassis vented below spider
- Large Ferrite Magnet System

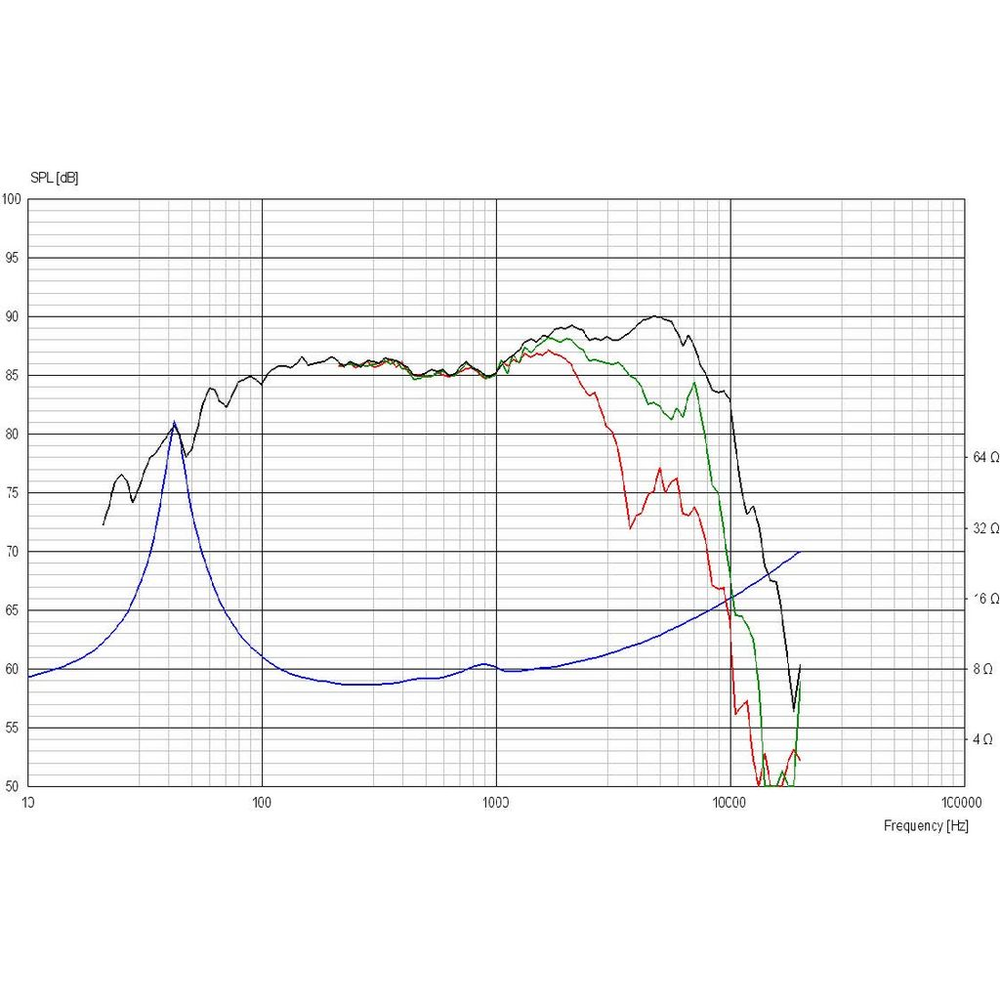

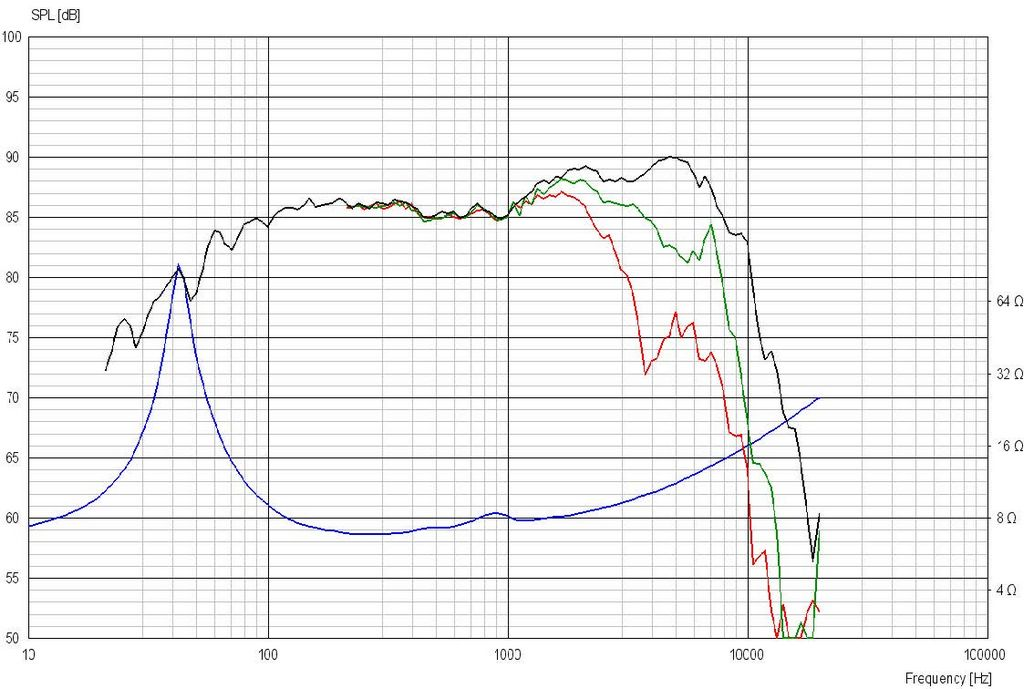

Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 5" |
| Nominal impedance | 8Ω |
| Series | Revelator |
| Power handling (RMS) | 60 W |
| Power handling (program) | 110 W |
| Sensitivity | 85.5 dB |
| Suggested alignment | Either |
| Frequency range | fs – 6,000 Hz |

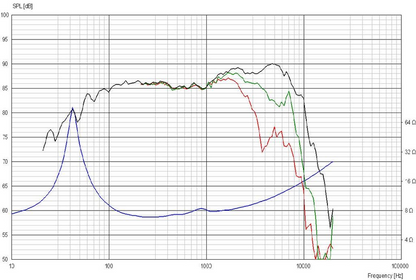

Thiele/Small parameters
| Resonant frequency (Fs) | 39 Hz |
|---|---|
| DC resistance (Re) | 5.8 Ω |
| Minimum impedance (Zmin) | 6.7 Ω |
| Voice coil inductance (Le) | 0.29 mH |
| Mechanical Q (Qms) | 4.9 |
| Electrical Q (Qes) | 0.42 |
| Total Q (Qts) | 0.38 |
| Equivalent volume (Vas) | 16.7 L |
| Compliance (Cms) | 1.3 mm/N |
| Moving mass (Mms) | 12.8 g |
| Mechanical resistance (Rms) | 0.64 kg/s |
| Force factor (Bl) | 6.6 T·m |
| Effective piston area (Sd) | 95 cm² |
| Linear excursion (Xmax, one-way) | 6.5 mm |
| Mechanical excursion (Xmech) | 9 mm |
| Displacement volume (Vd) | 61.75 cm³ |
| Efficiency bandwidth product (EBP) | 92.86 |
| Effective piston diameter (D) | 110 mm |
| Impedance at resonance (Zo) | 57 Ω |
Motor
| Voice coil height | 18 mm |
|---|---|
| Air gap height | 5 mm |
| Voice coil layers | 2 |
Mounting
| Overall diameter | 148.2 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 126.5 mm |
| Mounting depth (estimate) | ≈ 73.7 mm |
| Flange thickness | 5.4 mm |
| Bolt circle diameter | 136.2 mm |
| Mounting holes | 5 |
| Mounting hole diameter | 5.3 mm |
| Volume displaced by driver | 0.36 L |
| Voice coil diameter | 38 mm |
| Weight | 1.7 kg |
Materials
| Cone | Sliced Paper |
|---|---|
| Surround | SBR |
| Basket | Cast Aluminium |
| Magnet | Ferrite |
Typical box tunings
| Closed box: box volume | 8 L |
|---|---|
| Closed box: corner frequency | 69 Hz |
| Vented box: box volume | 17 L |
| Vented box: box resonance | 39 Hz |
| Vented box: corner frequency | 40 Hz |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Downloads
- 15W/8531K00 Datasheet

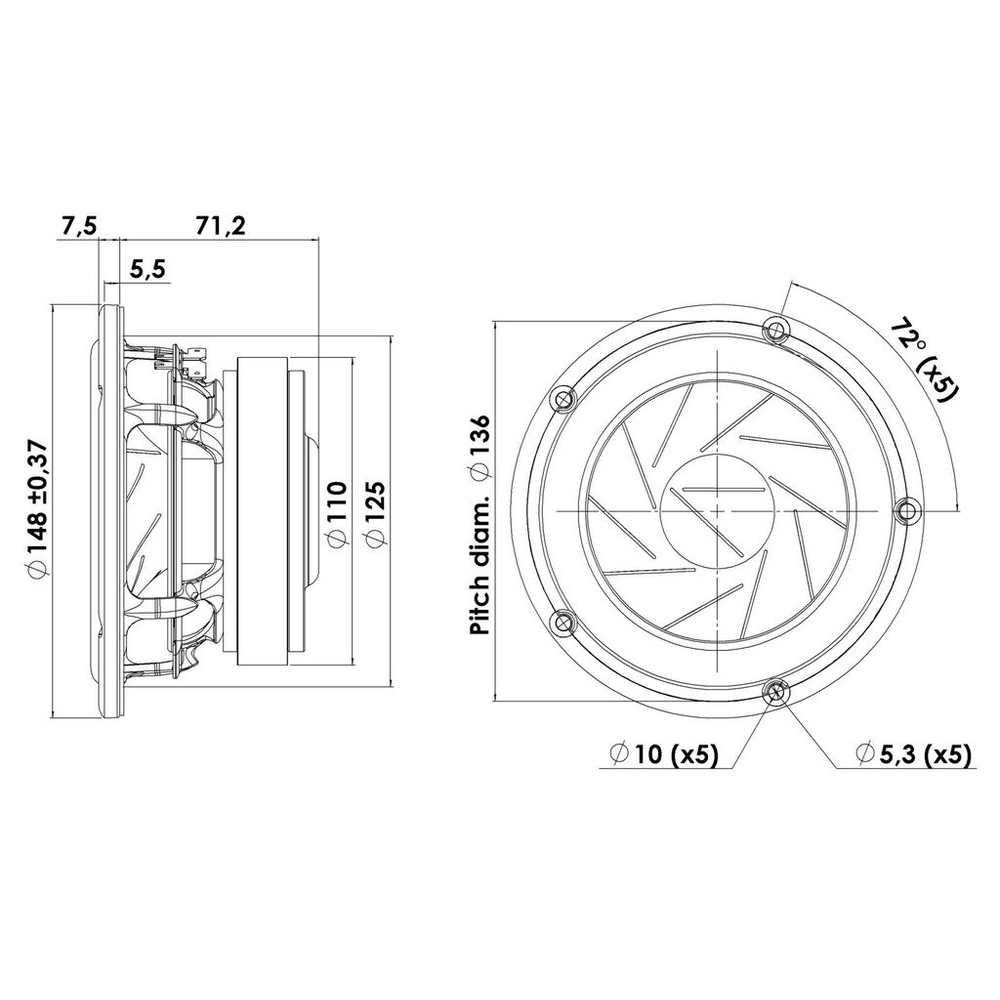

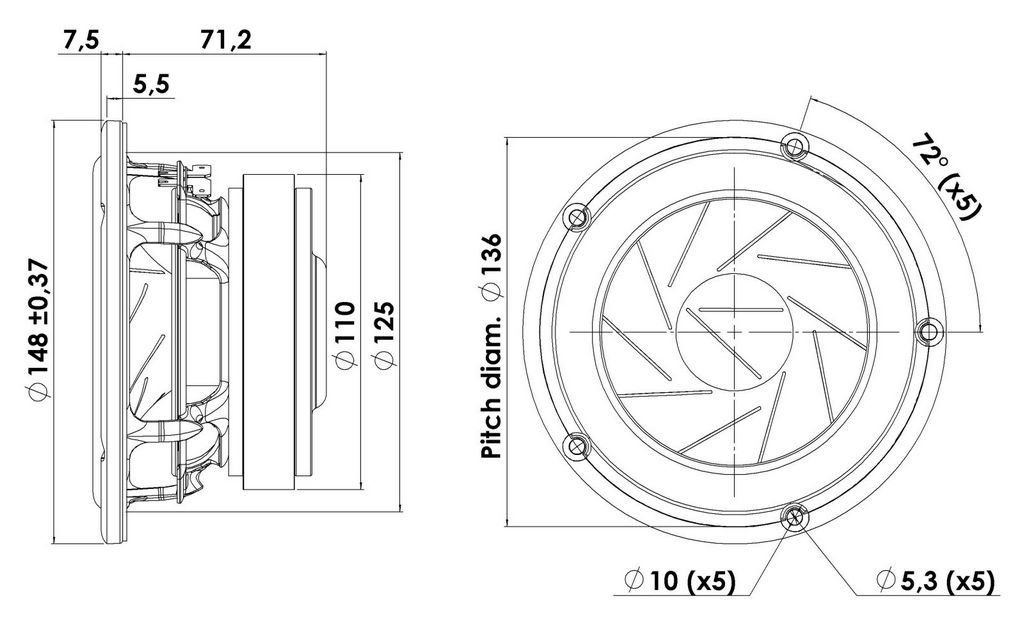

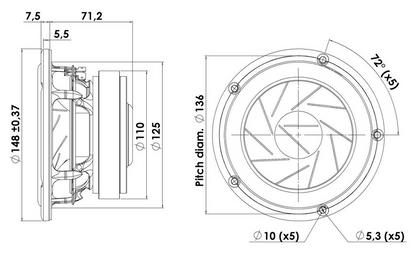

- 15W/8531K00 Drawing
- 15W/8531K00 Adv. Parameters
- 15W/8531K00 3D model
- 15W/8531K00 Cutout & Recess Template (NB Audio) Straight off Scan-Speak's spec sheet: flange outline, recess depth, bolt holes. Scaled from Scan-Speak's drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
