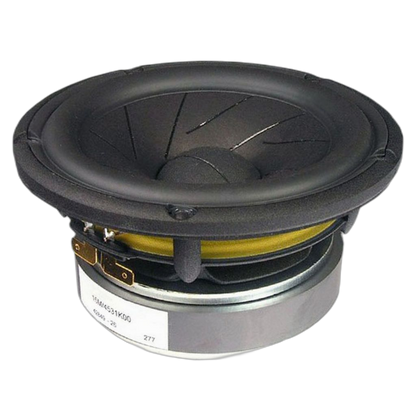

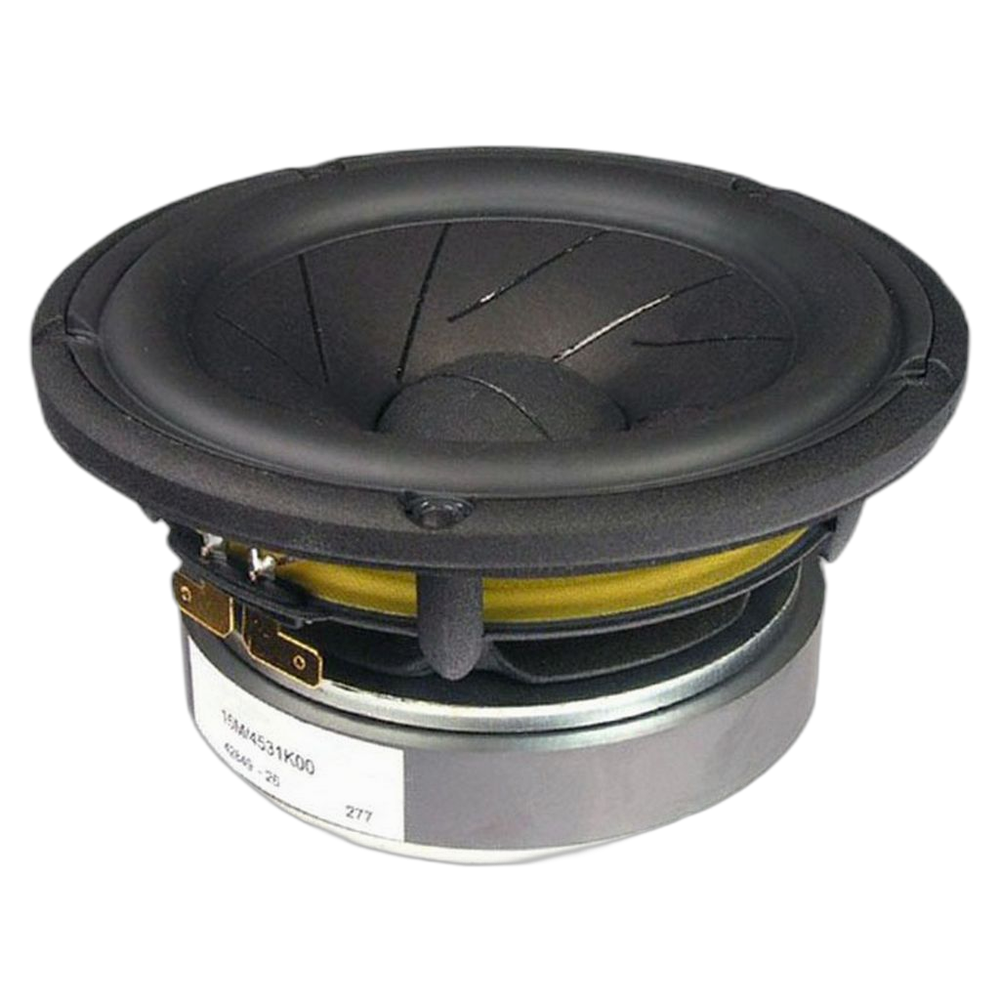

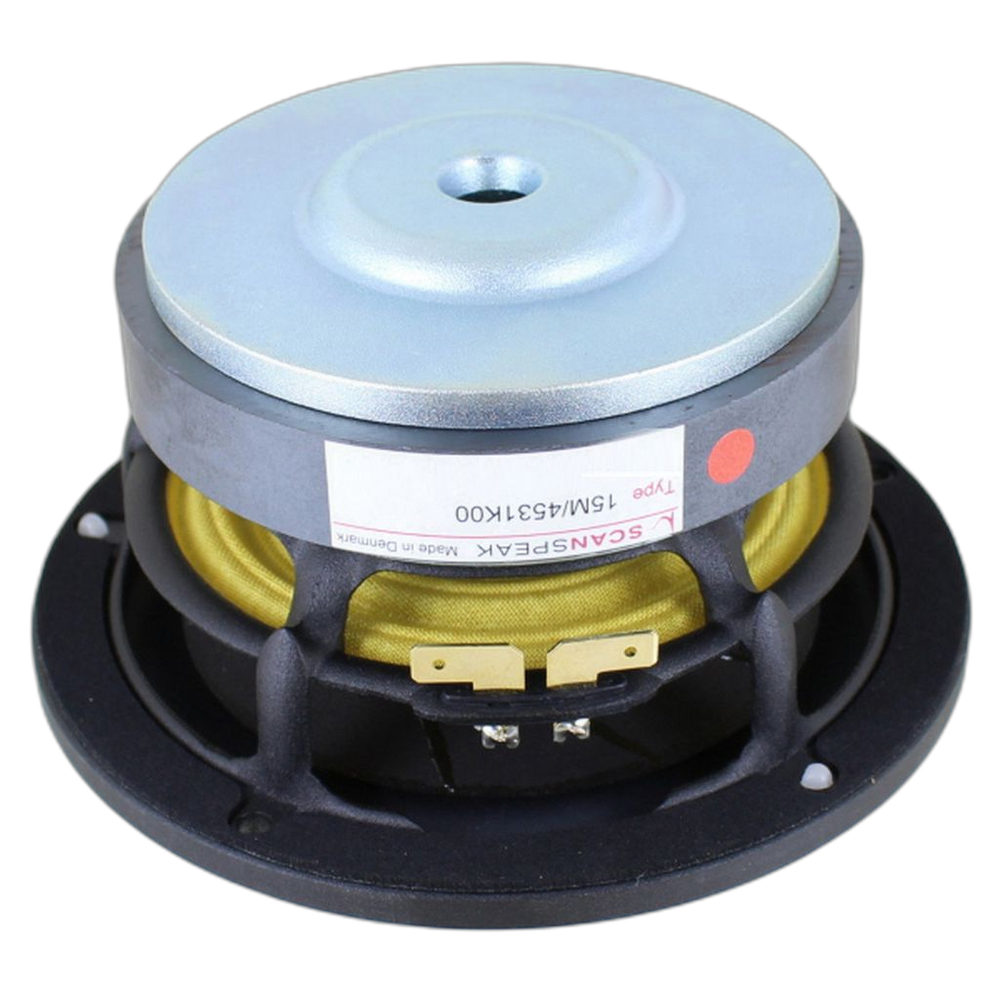

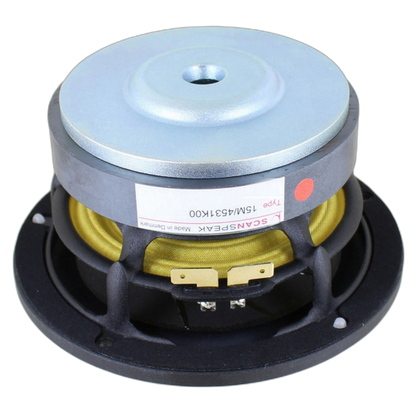

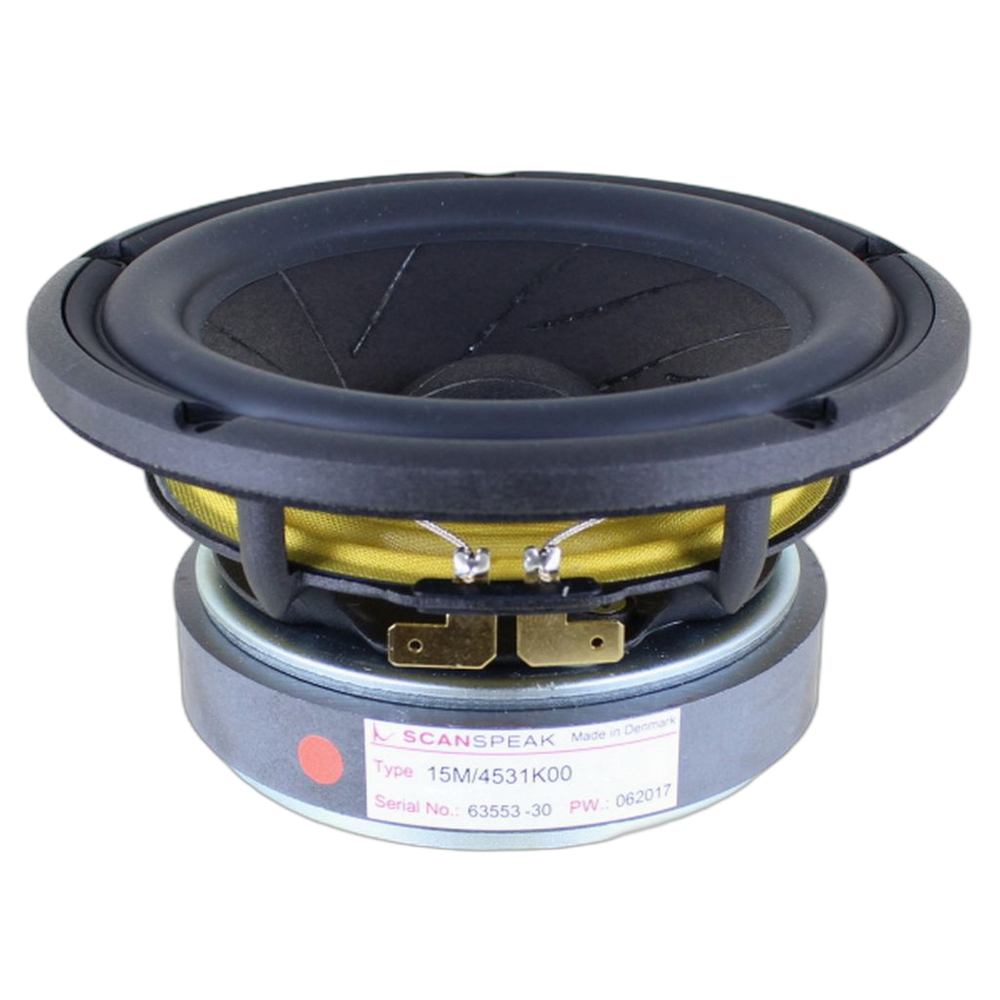

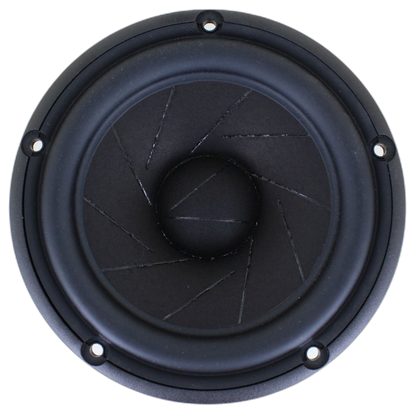

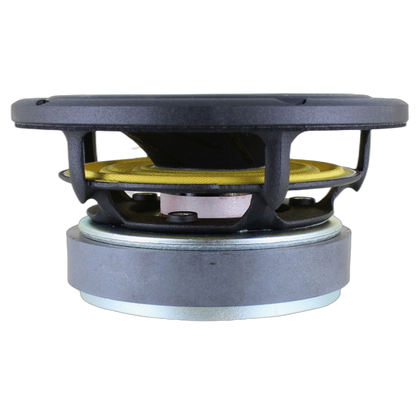

This premium reference driver features a non-resonant, paper pulp,spiral ribbed, doped, cone and textile cap structure. Dynamic linear suspension, “SD-1” magnet system, tapered pole vent, a beautiful ”Grasshopper” aerodynamic cast chassis with maximised air flow and resonance terminating mounting system. Achieves minimum resonances, low compression, high linearity, fast, dynamic, high sound pressure.
Features
- Excellent Midrange Reproduction
- Patented Symmetrical Drive motor design

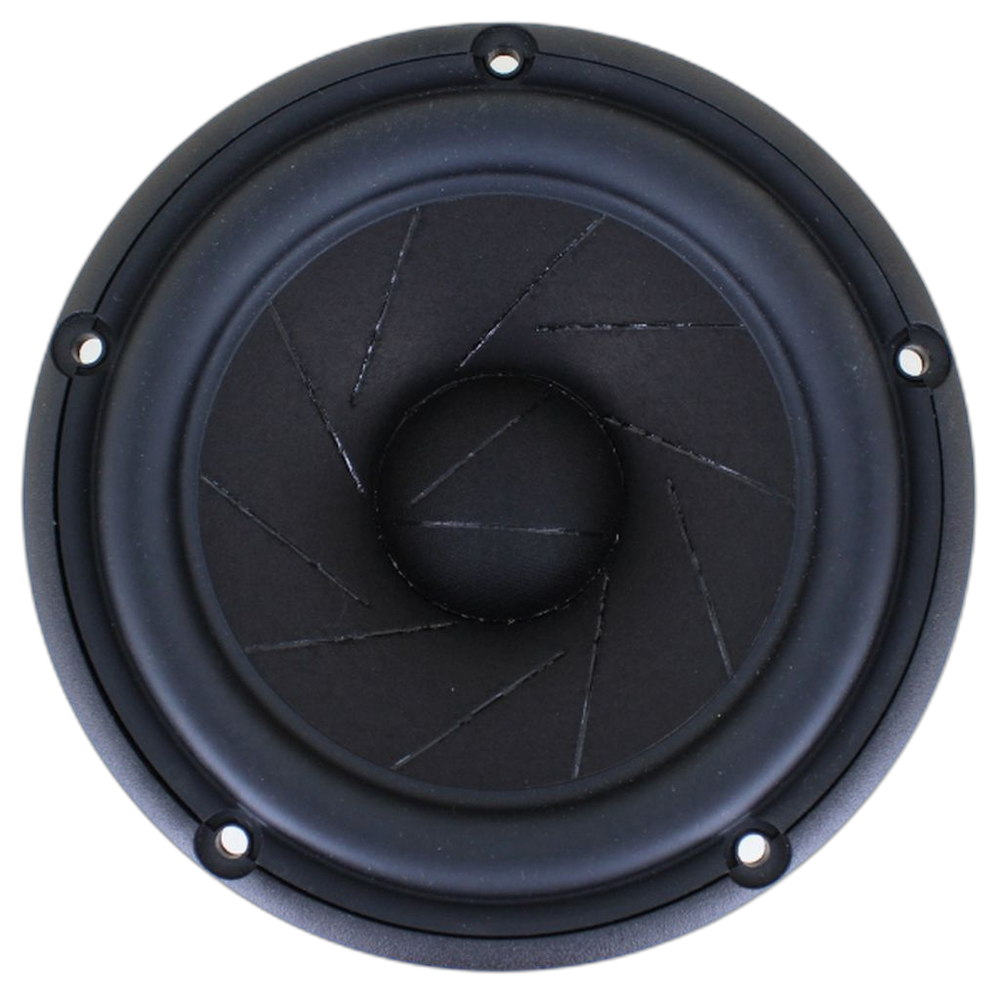

- Sliced Cone (Controls Cone Breakups)
- Low-loss linear suspension
- High Output 90dB @ 2.83V
- Die cast Alu Chassis vented below spider
Specifications
Specifications
General

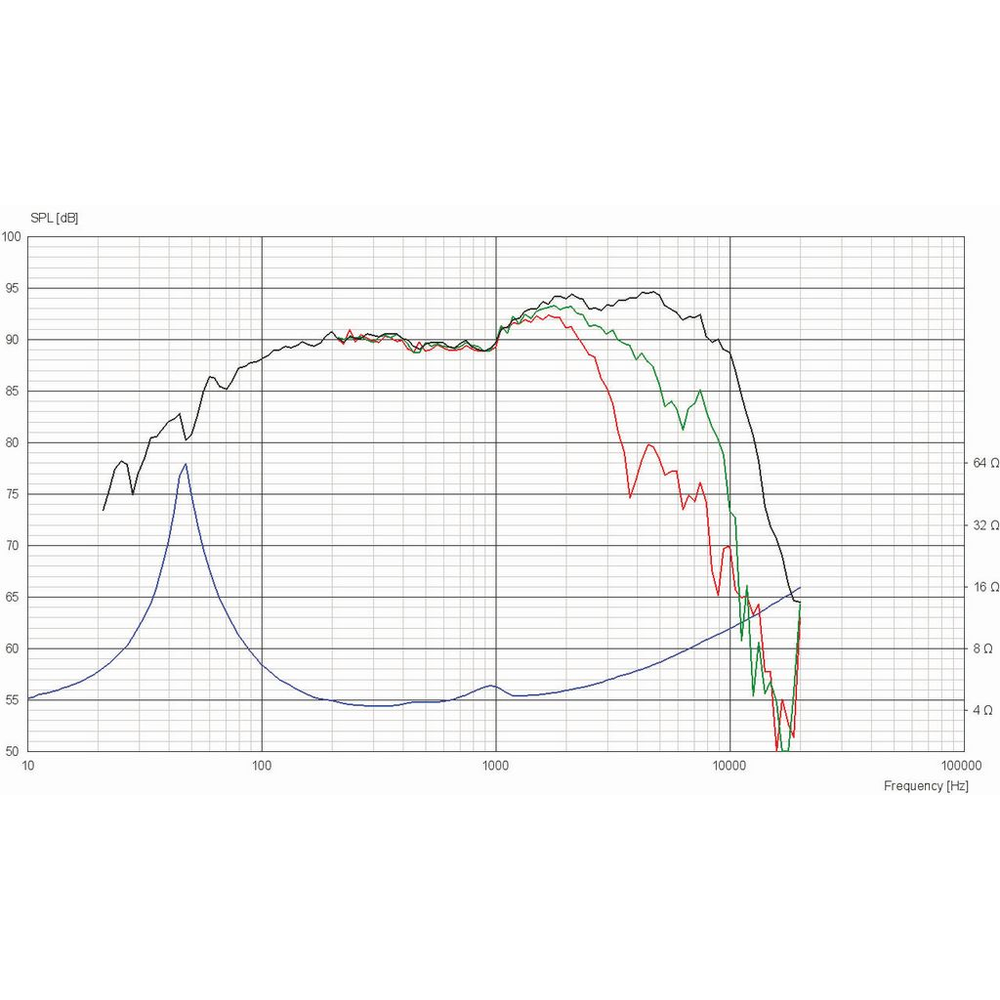

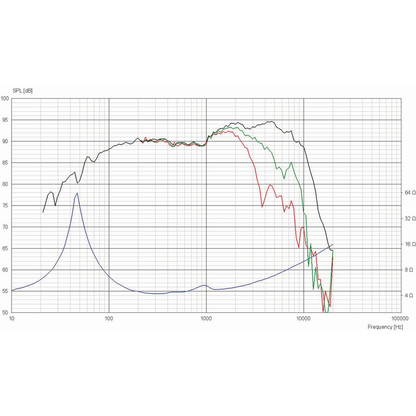

| Driver type | Mid-Range |
|---|---|
| Nominal size | 5" |
| Nominal impedance | 4Ω |
| Series | Revelator |
| Power handling (RMS) | 50 W |
| Power handling (program) | 150 W |
| Sensitivity | 90 dB |
| Frequency range | 65 – 7,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 42 Hz |
|---|---|
| DC resistance (Re) | 3.5 Ω |
| Minimum impedance (Zmin) | 4.1 Ω |
| Voice coil inductance (Le) | 0.16 mH |
| Mechanical Q (Qms) | 4.8 |
| Electrical Q (Qes) | 0.28 |
| Total Q (Qts) | 0.27 |
| Equivalent volume (Vas) | 16 L |
| Compliance (Cms) | 1.3 mm/N |
| Moving mass (Mms) | 11 g |
| Mechanical resistance (Rms) | 0.6 kg/s |
| Force factor (Bl) | 6 T·m |
| Effective piston area (Sd) | 95 cm² |
| Linear excursion (Xmax, one-way) | 3 mm |
| Mechanical excursion (Xmech) | 8 mm |
| Displacement volume (Vd) | 28.5 cm³ |
| Efficiency bandwidth product (EBP) | 150 |
| Effective piston diameter (D) | 110 mm |
| Impedance at resonance (Zo) | 53 Ω |
Motor
| Voice coil height | 11 mm |
|---|---|
| Air gap height | 5 mm |
| Voice coil layers | 2 |

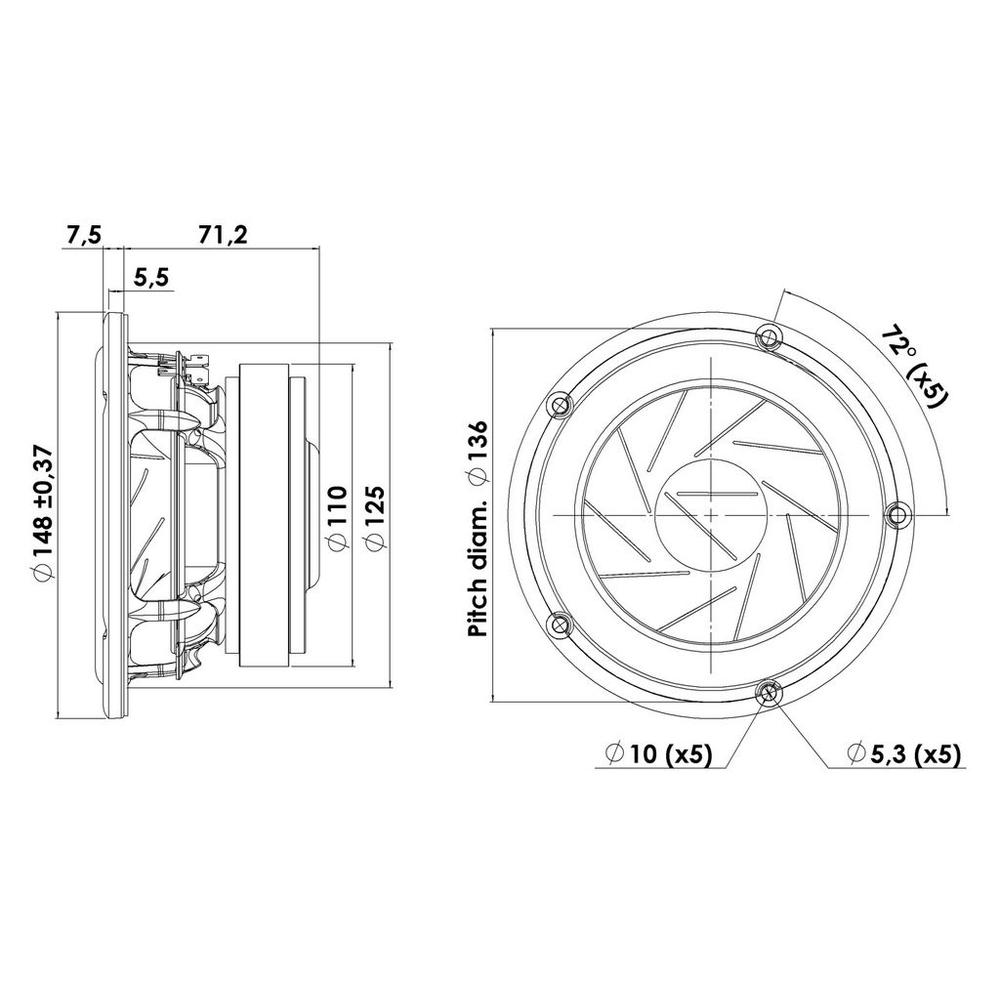

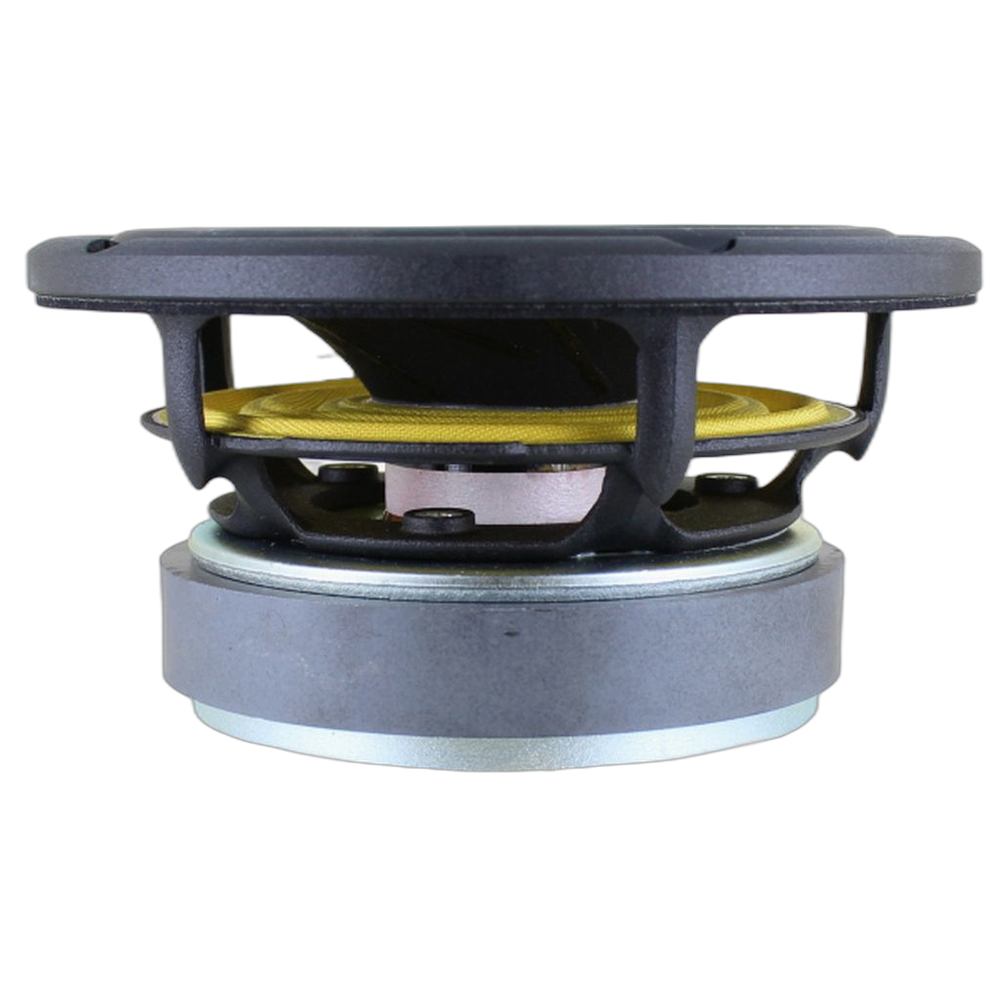

Mounting
| Overall diameter | 148.2 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 126.5 mm |
| Mounting depth | 71 mm |
| Flange thickness | 5.4 mm |
| Bolt circle diameter | 136.2 mm |
| Mounting holes | 5 |
| Mounting hole diameter | 5.3 mm |
| Volume displaced by driver | 0.36 L |
| Voice coil diameter | 38 mm |
| Weight | 1.7 kg |
Materials
| Cone | Sliced Paper |
|---|---|
| Basket | Cast Aluminium |
| Magnet | Ferrite |
Typical box tunings
| Closed box: box volume | 3.3 L |
|---|---|
| Closed box: corner frequency | 101 Hz |
| Vented box: box volume | 6 L |
| Vented box: box resonance | 58 Hz |
| Vented box: corner frequency | 64 Hz |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
