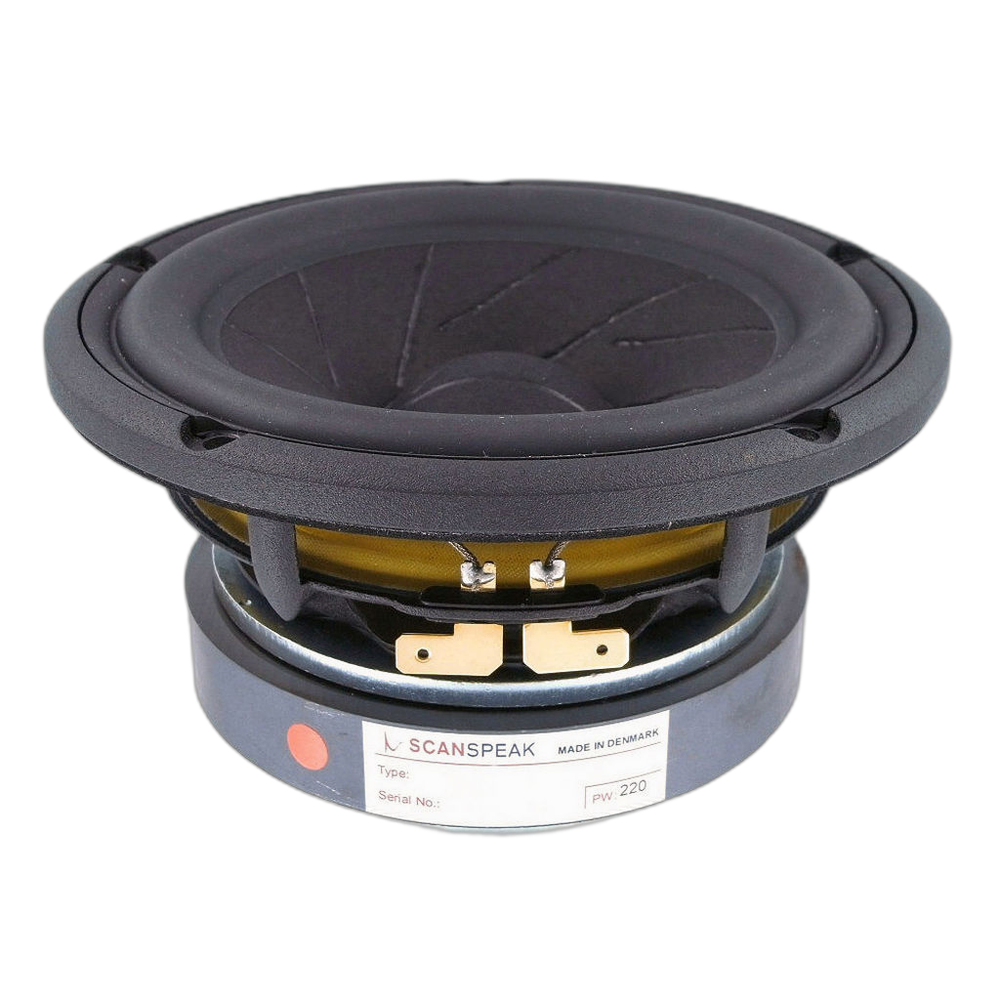

Scan-Speak - 5" Revelator Midrange - 15M/8631G00
Scan-Speak - 5" Revelator Midrange - 15M/8631G00
Regular price
$344.95
Regular price
Sale price
$344.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Description
15 cm Midrange 8 ohm, Sliced Paper Cone, Large Ferrite Magnet
This Revelator midrange has sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with the Scan-Speak low loss linear suspension and the patented symmetrical Drive SD-1 it represents a breakthrough in midrange clarity and overall smooth frequency response characteristics.
Features
- Patented Symmetrical Drive motor system
- Low loss, low damping linear suspension
- Sliced cone technology
- Die cast Alu chassis vented below spider
- Large ferrite magnet system

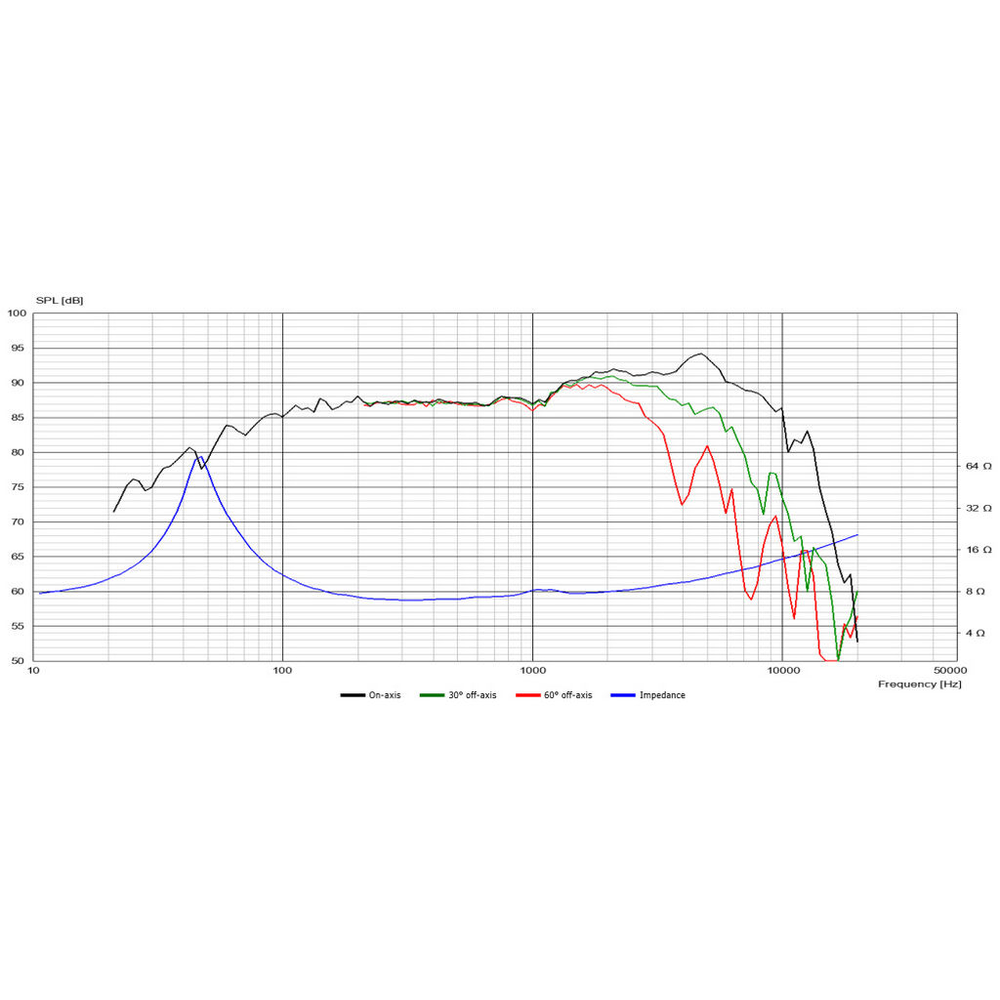

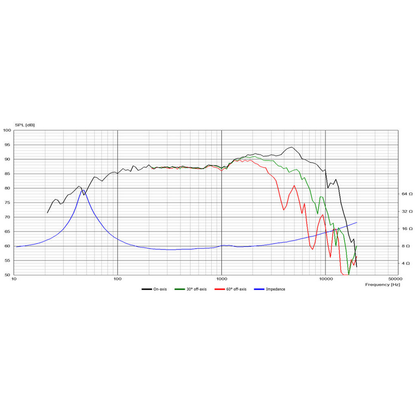

Specifications
Specifications
General
| Driver type | Mid-Range |
|---|---|
| Nominal size | 5" |
| Nominal impedance | 8Ω |
| Series | Revelator |
| Power handling (RMS) | 50 W |
| Power handling (program) | 110 W |
| Sensitivity | 87 dB |
| Frequency range | 50 – 7,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 42 Hz |
|---|---|
| DC resistance (Re) | 5.9 Ω |
| Minimum impedance (Zmin) | 6.9 Ω |
| Voice coil inductance (Le) | 0.22 mH |
| Mechanical Q (Qms) | 5.8 |
| Electrical Q (Qes) | 0.37 |
| Total Q (Qts) | 0.35 |
| Equivalent volume (Vas) | 16.2 L |
| Compliance (Cms) | 1.28 mm/N |
| Moving mass (Mms) | 10.9 g |
| Mechanical resistance (Rms) | 0.5 kg/s |
| Force factor (Bl) | 6.8 T·m |
| Effective piston area (Sd) | 95 cm² |
| Linear excursion (Xmax, one-way) | 3 mm |
| Mechanical excursion (Xmech) | 8 mm |
| Displacement volume (Vd) | 28.5 cm³ |
| Efficiency bandwidth product (EBP) | 113.5 |
| Effective piston diameter (D) | 110 mm |
| Impedance at resonance (Zo) | 96 Ω |
Motor
| Voice coil height | 11 mm |
|---|---|
| Air gap height | 5 mm |
| Voice coil layers | 2 |

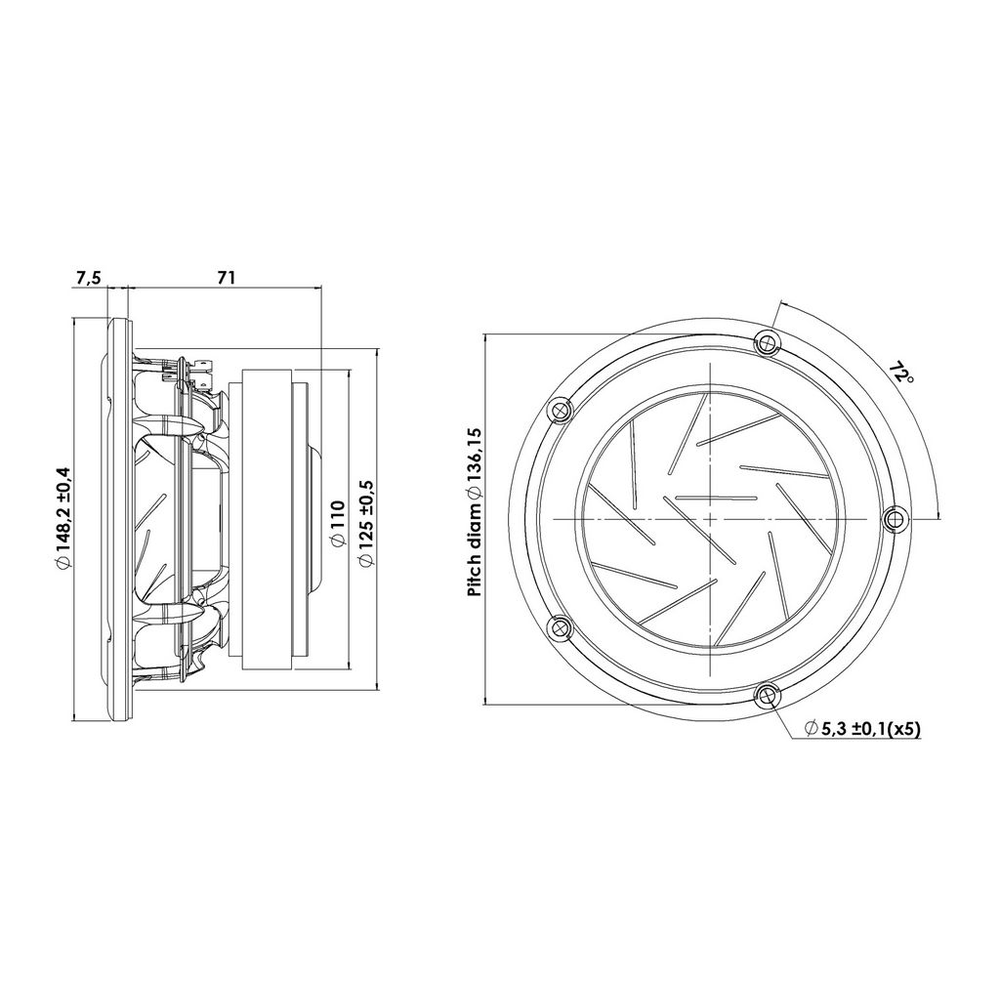

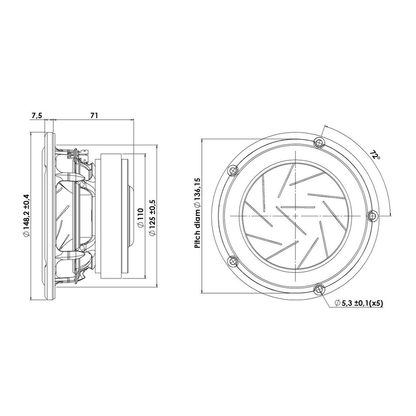

Mounting
| Overall diameter | 148.2 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 126.0 mm |
| Mounting depth | 71 mm |
| Bolt circle diameter | 136.2 mm |
| Mounting holes | 5 |
| Mounting hole diameter | 5.3 mm |
| Volume displaced by driver | 0.36 L |
| Voice coil diameter | 38 mm |
| Weight | 1.7 kg |
| Width | 38 mm |
Materials
| Cone | Sliced Paper |
|---|---|
| Basket | Cast Aluminium |
| Magnet | Ferrite |
Typical box tunings
| Closed box: box volume | 6 L |
|---|---|
| Closed box: corner frequency | 80 Hz |
| Vented box: box volume | 12 L |
| Vented box: box resonance | 46 Hz |
| Vented box: corner frequency | 48 Hz |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Downloads
- 15M/8631G00 Datasheet
- 15M/8631G00 Drawing
- 15M/8631G00 3D model
- 15M/8631G00 Cutout & Recess Template (NB Audio) Straight off Scan-Speak's spec sheet: flange outline, bolt holes. Scaled from Scan-Speak's drawing, so close but not guaranteed exact: cutout. Left out: recess depth not on file, so measure your flange. Check it against your driver before you cut.
Some figures here aren't checked against Scan-Speak's datasheet yet. See which
