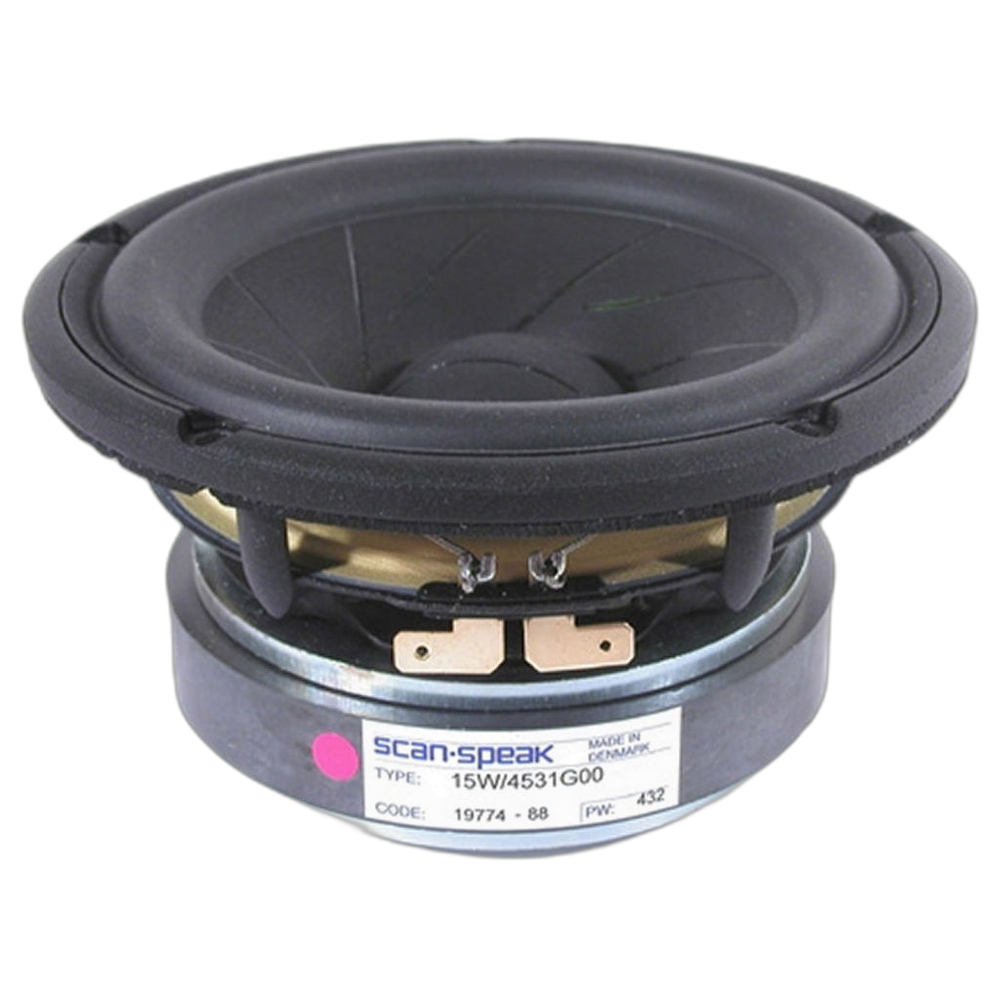

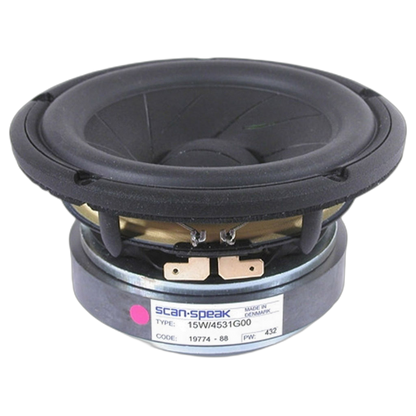

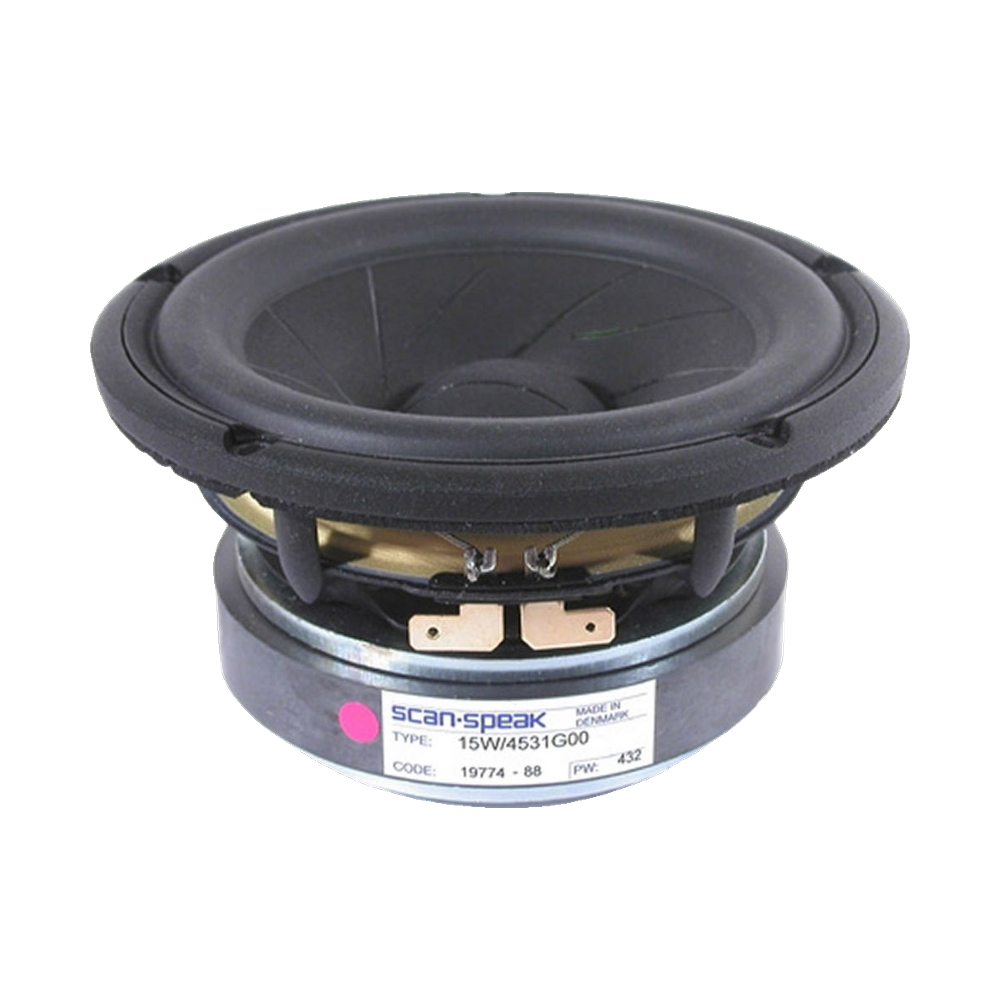

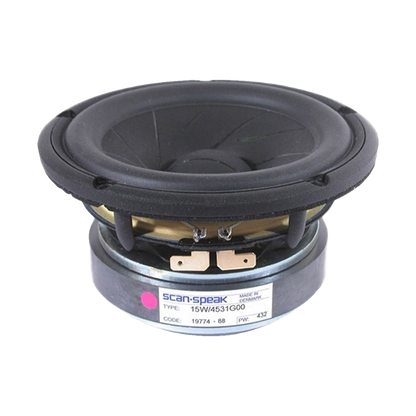

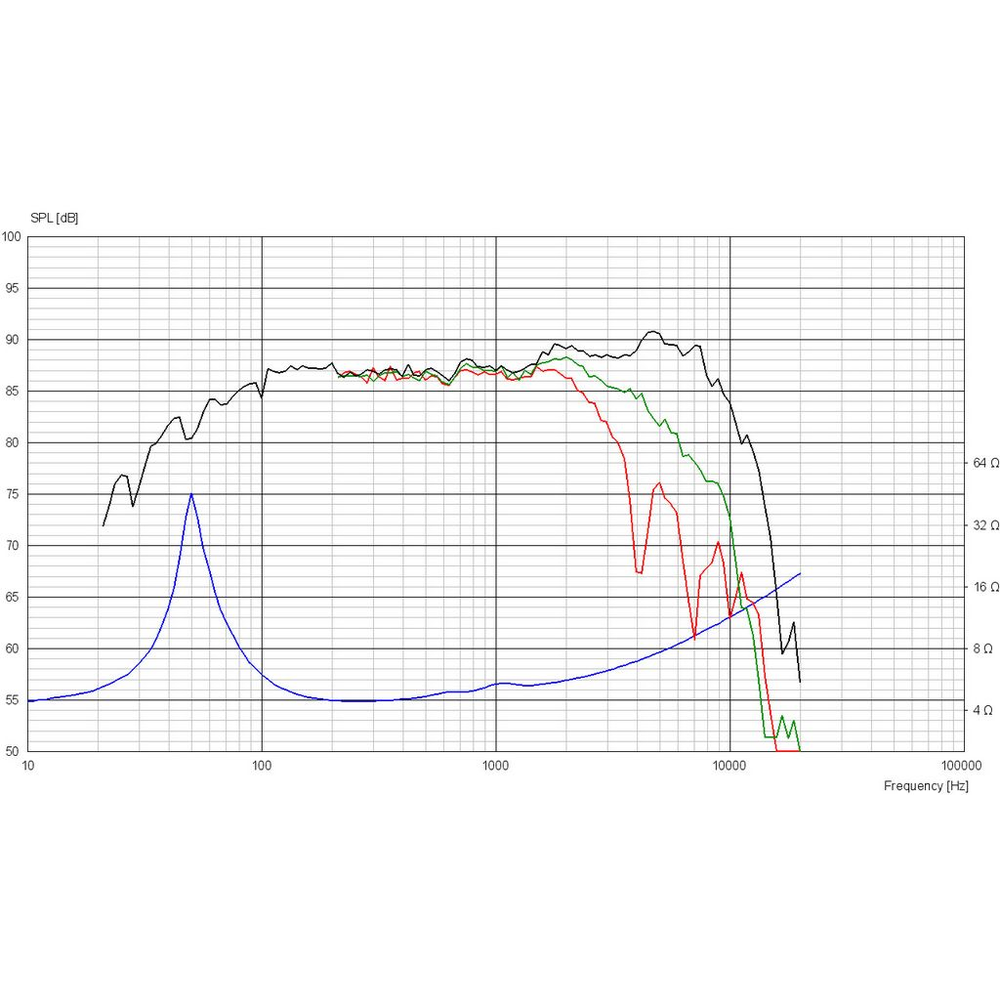

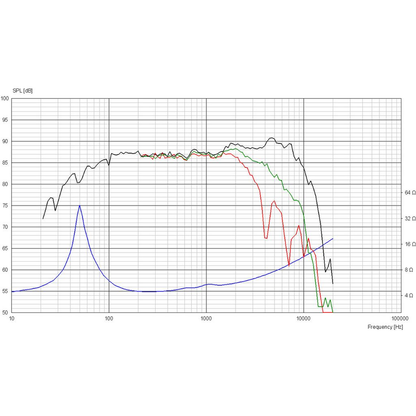

Scan-Speak - 5" Revelator Mid-Woofer - 15W/4531G00
Scan-Speak - 5" Revelator Mid-Woofer - 15W/4531G00
Regular price
$344.95
Regular price
Sale price
$344.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Features a slit-paper uncoated non-resonant cone and dust cap structure, dynamic linear suspension, SD-1 magnet system, “Grasshopper” cast chassis with maximised air flow, glass fibre voice coil former and resonance terminating mounting system. The 15W/4531G provides a more extended frequency response than its brothers, but still fantastic bass down to the mid 50’s in a vented enclosure.
Features
- Patented Symmetrical Drive motor design
- Sliced Cone (Controls Cone Breakups)
- Low-Loss linear suspension
- Low Damping SBR Rubber Surround
- Die cast Alu Chassis vented below spider
- Large Ferrite Magnet System
- Cut out: 125mm
- Depth: 71mm

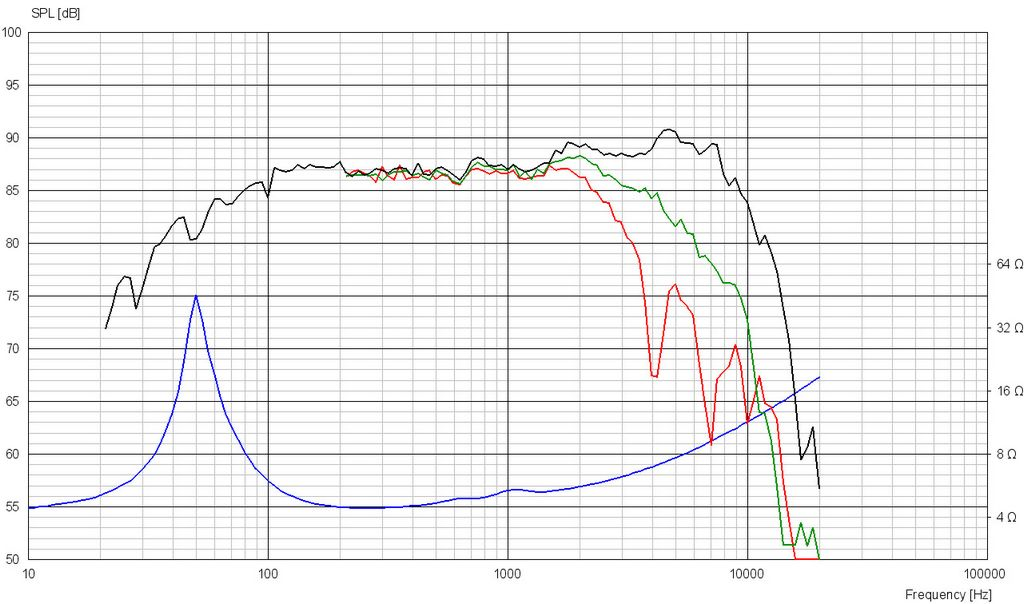

Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 5" |
| Nominal impedance | 4Ω |
| Series | Revelator |
| Power handling (RMS) | 60 W |
| Power handling (program) | 180 W |
| Sensitivity | 87 dB |
| Suggested alignment | Ported |
| Frequency range | fs – 6,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 40 Hz |
|---|---|
| DC resistance (Re) | 3.4 Ω |
| Minimum impedance (Zmin) | 4.4 Ω |
| Voice coil inductance (Le) | 0.25 mH |
| Mechanical Q (Qms) | 4.6 |
| Electrical Q (Qes) | 0.34 |
| Total Q (Qts) | 0.32 |
| Equivalent volume (Vas) | 15.8 L |
| Compliance (Cms) | 1.25 mm/N |
| Moving mass (Mms) | 13 g |
| Mechanical resistance (Rms) | 0.7 kg/s |
| Force factor (Bl) | 5.7 T·m |
| Effective piston area (Sd) | 95 cm² |
| Linear excursion (Xmax, one-way) | 6.5 mm |
| Mechanical excursion (Xmech) | 9 mm |
| Displacement volume (Vd) | 61.75 cm³ |
| Efficiency bandwidth product (EBP) | 117.6 |
| Effective piston diameter (D) | 110 mm |
| Impedance at resonance (Zo) | 4.2 Ω |
Motor
| Voice coil height | 17.5 mm |
|---|---|
| Air gap height | 5 mm |
| Voice coil layers | 2 |

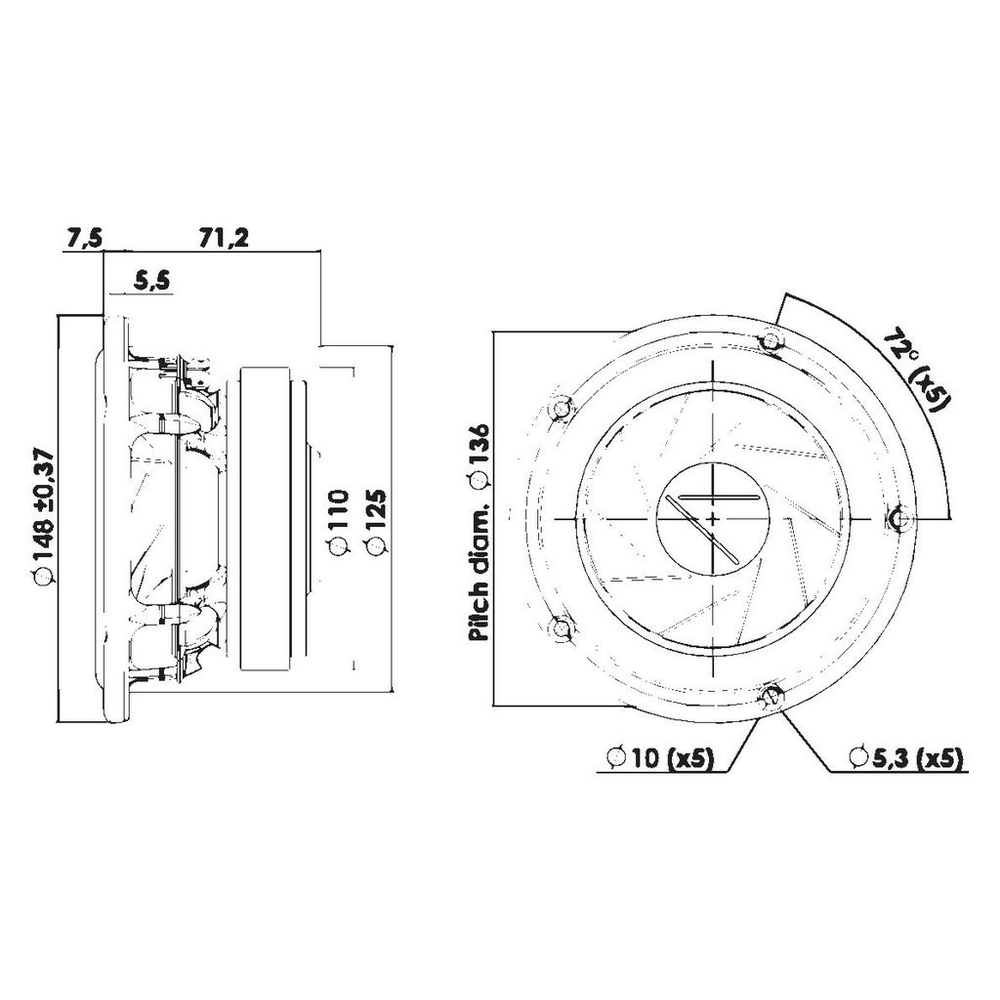

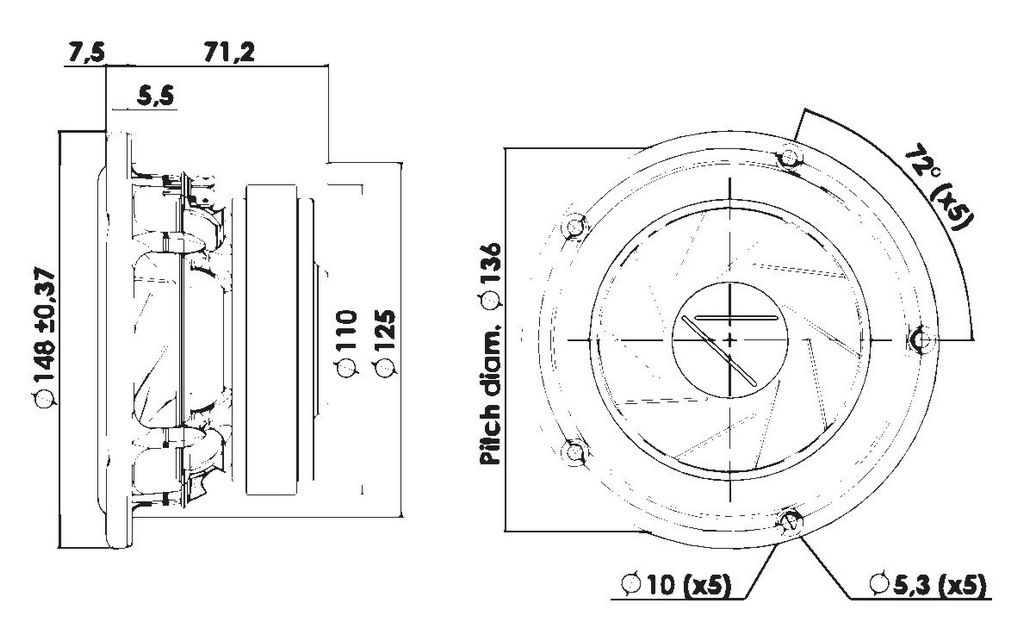

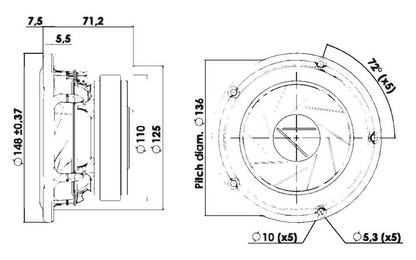

Mounting
| Overall diameter | 148.2 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 126.0 mm |
| Mounting depth | 71 mm |
| Bolt circle diameter | 136.2 mm |
| Mounting holes | 5 |
| Mounting hole diameter | 5.3 mm |
| Volume displaced by driver | 0.36 L |
| Voice coil diameter | 38 mm |
| Weight | 1.7 kg |
Materials
| Cone | Sliced Paper |
|---|---|
| Surround | SBR |
| Basket | Cast Aluminium |
| Magnet | Ferrite |
Typical box tunings
| Vented box: box volume | 10 L |
|---|---|
| Vented box: box resonance | 47 Hz |
| Vented box: corner frequency | 49 Hz |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Downloads
- 15W/4531G00 Datasheet
- 15W/4531G00 Drawing
- 15W/4531G00 Adv. Parameters
- 15W/4531G00 3D model
- 15W/4531G00 Cutout & Recess Template (NB Audio) Straight off Scan-Speak's spec sheet: flange outline, bolt holes. Scaled from Scan-Speak's drawing, so close but not guaranteed exact: cutout. Left out: recess depth not on file, so measure your flange. Check it against your driver before you cut.
