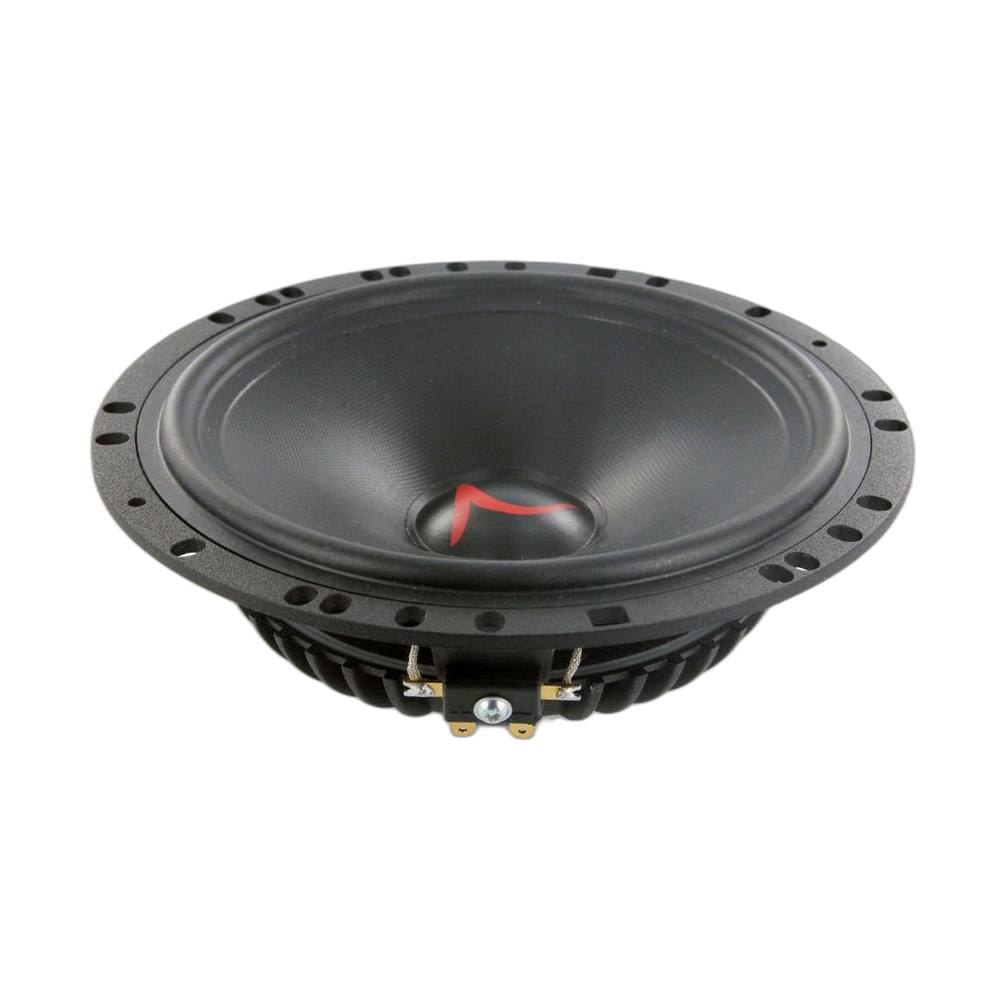

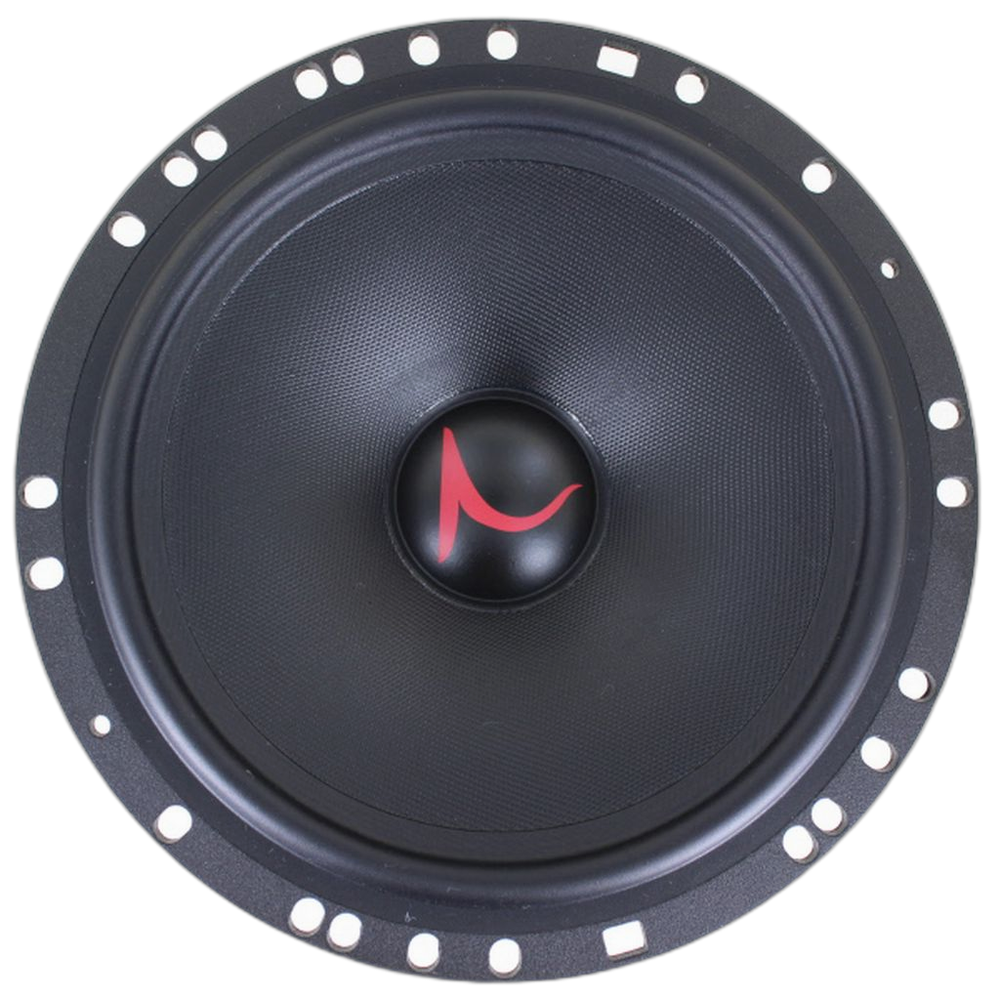

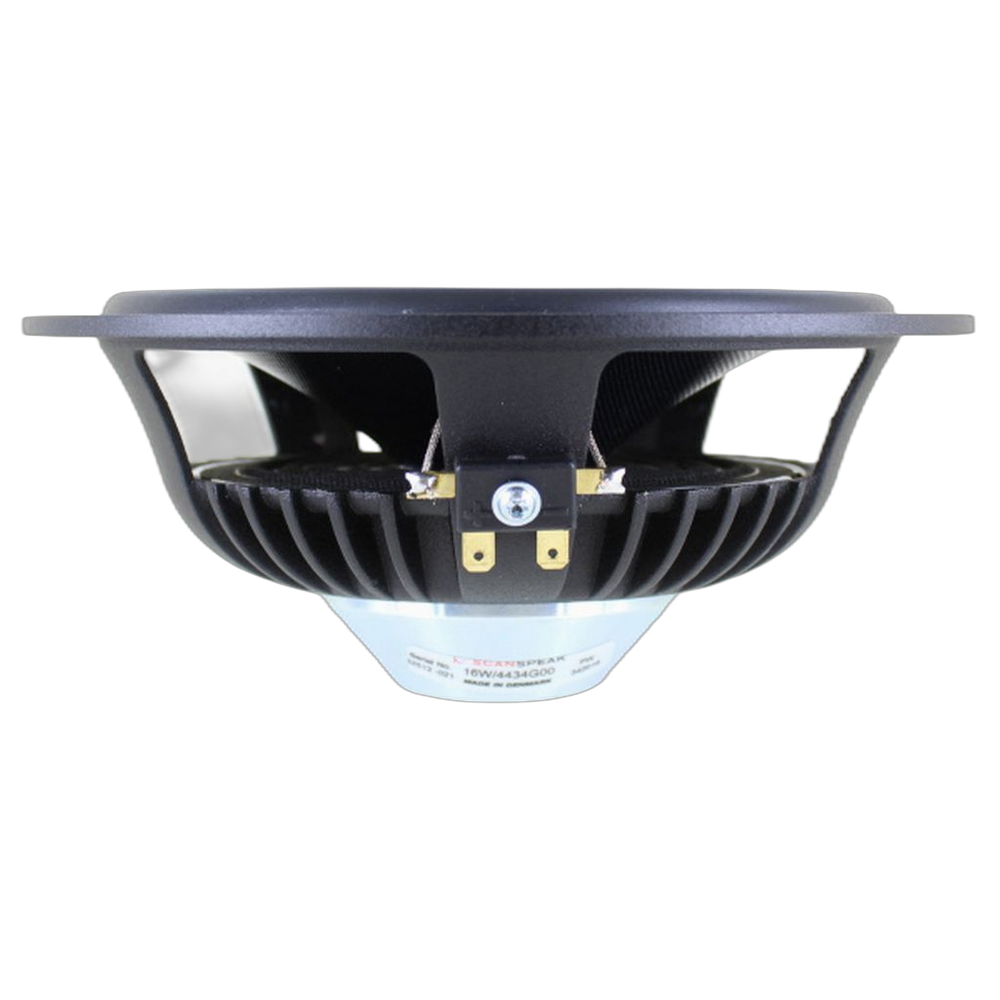

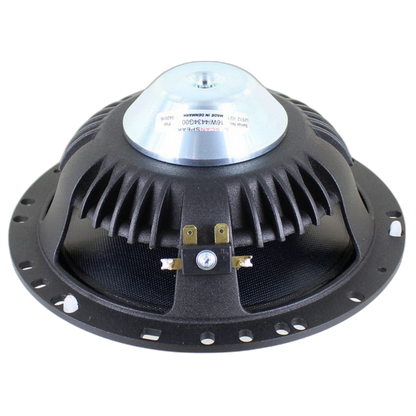

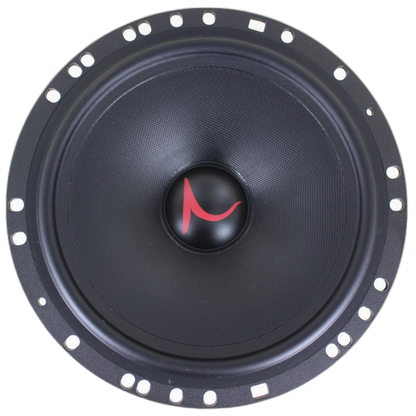

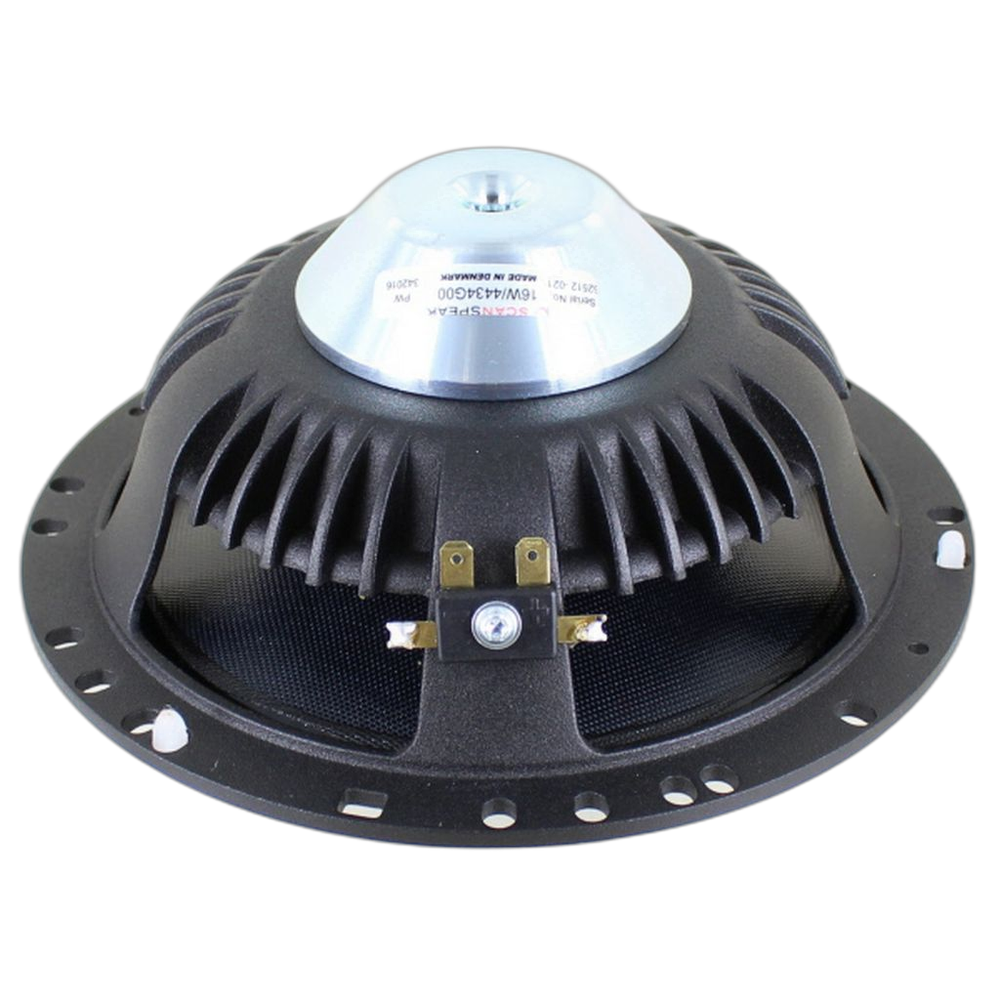

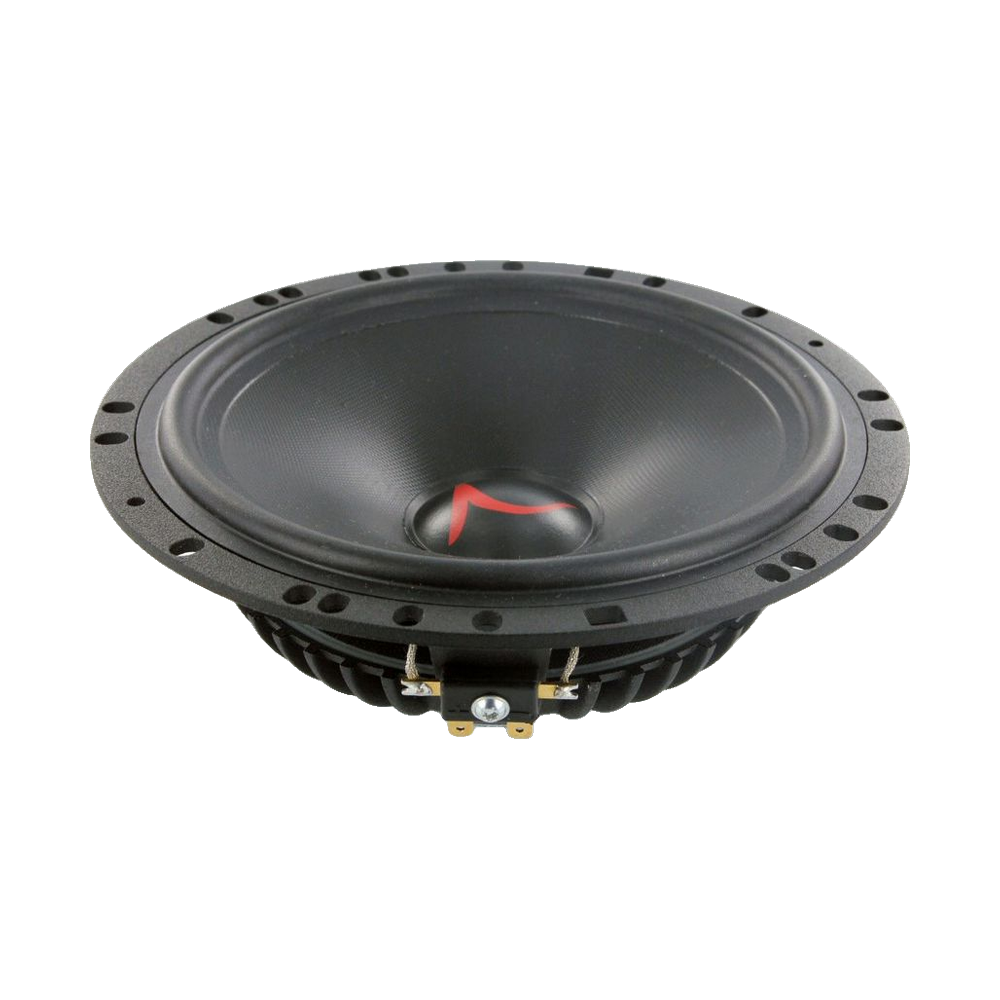

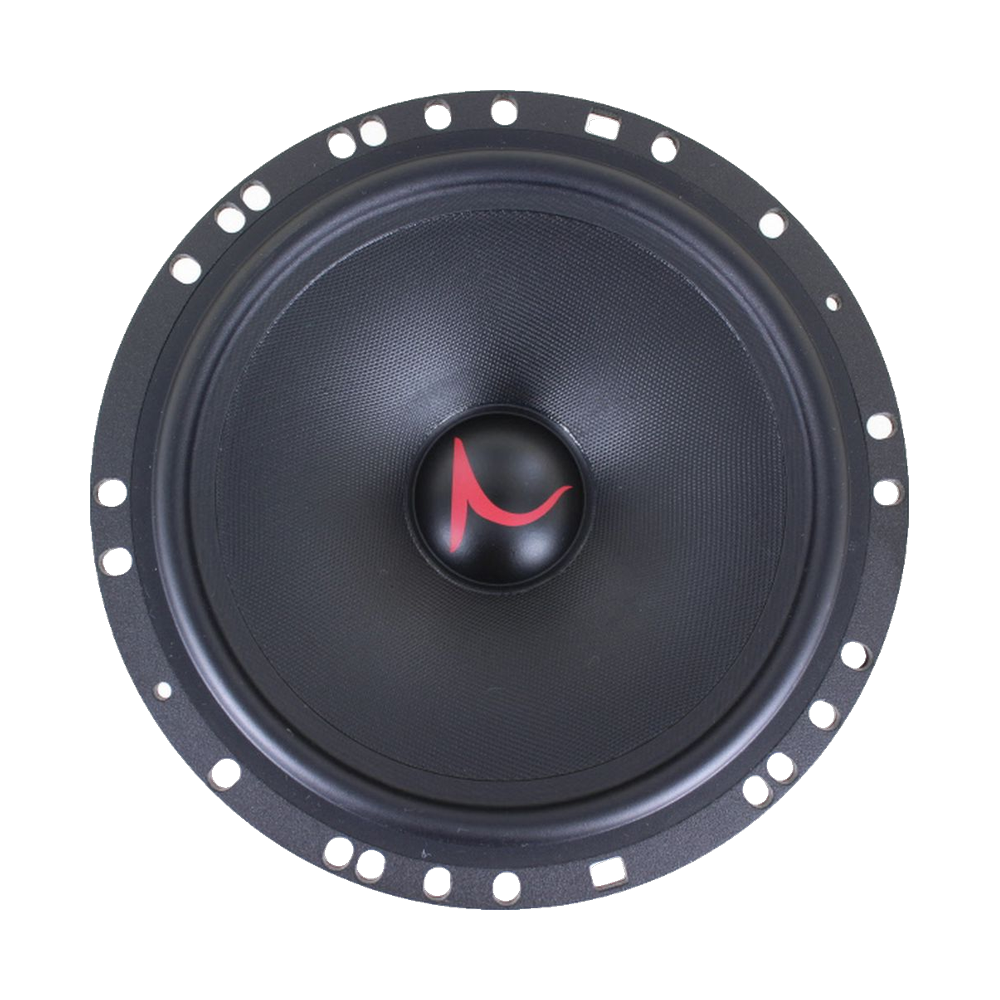

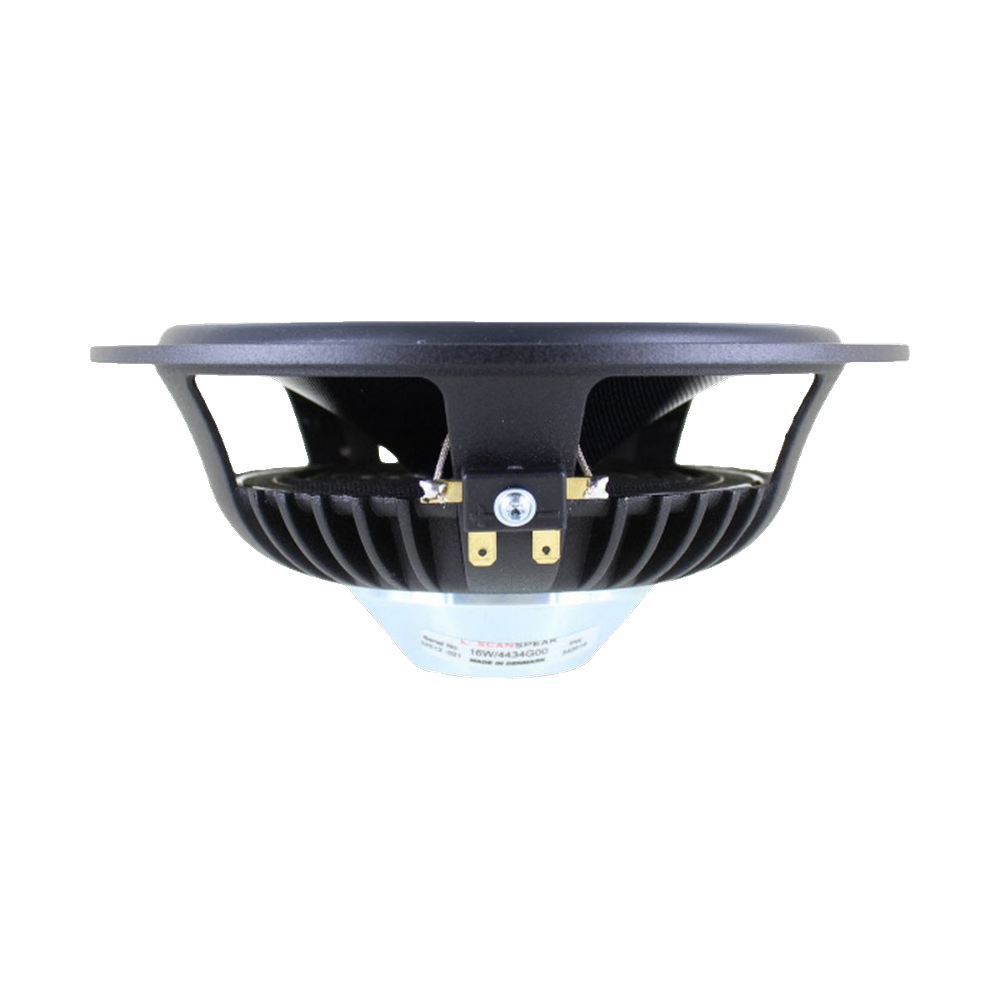

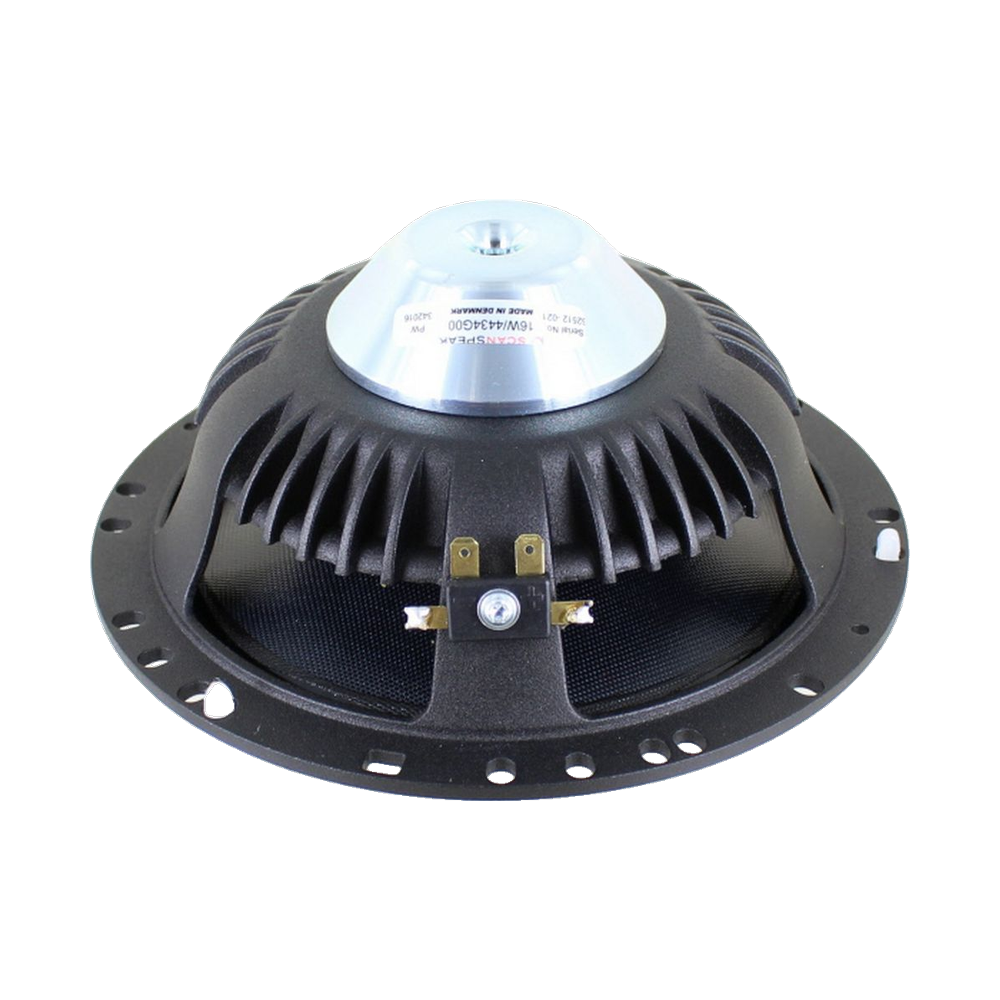

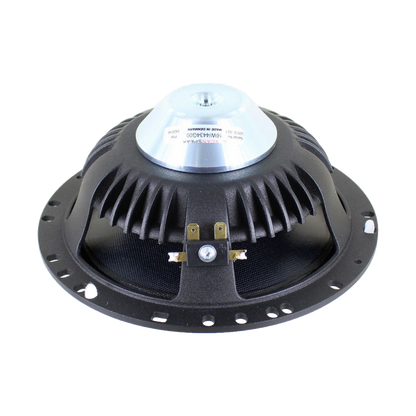

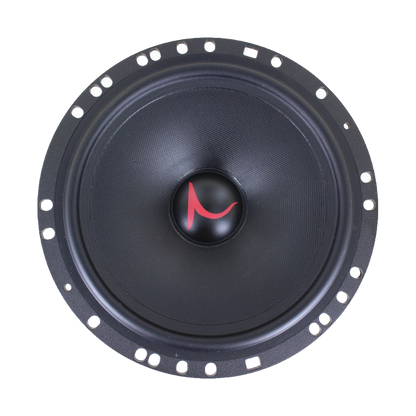

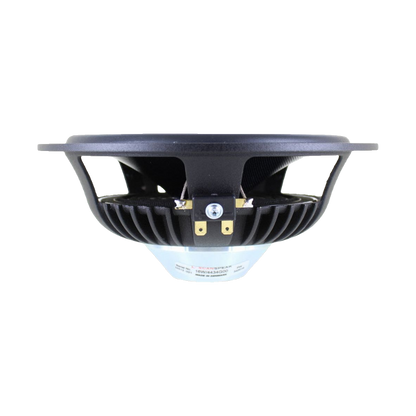

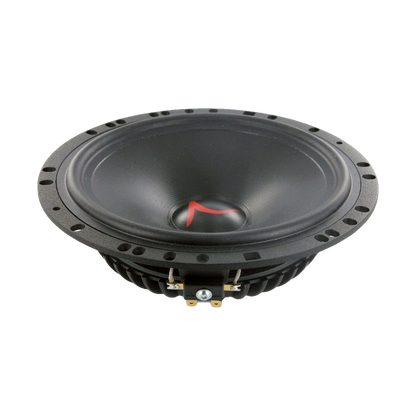

Scan-Speak - 6" Automotive Mid-Woofer - 16W/4434G00
Scan-Speak - 6" Automotive Mid-Woofer - 16W/4434G00
Regular price
$254.95
Regular price
Sale price
$254.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Supplier availability unconfirmed.
Couldn't load pickup availability
Description
16cm Midwoofer 4ohm, Coated Fibreglass Cone, Neo Magnet.
Features
- Optimised for Car Use
- Aluminium Die cast Basket
- Black Coated NRSC Fibre Glass Cone
- EURO-DIN mounting flange
- Shallow mounting dimension
- Low Loss Suspension, with Rubber Surround
Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 6" |
| Nominal impedance | 4Ω |
| Series | Automotive |
| Power handling (RMS) | 40 W |
| Sensitivity | 90.5 dB |
| Suggested alignment | Either |
| Frequency range | fs – 4,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 55 Hz |
|---|---|
| DC resistance (Re) | 3 Ω |
| Minimum impedance (Zmin) | 3.8 Ω |
| Voice coil inductance (Le) | 0.35 mH |
| Mechanical Q (Qms) | 3.06 |
| Electrical Q (Qes) | 0.56 |
| Total Q (Qts) | 0.48 |
| Equivalent volume (Vas) | 17.9 L |
| Compliance (Cms) | 0.67 mm/N |
| Moving mass (Mms) | 12.5 g |
| Mechanical resistance (Rms) | 1.41 kg/s |
| Force factor (Bl) | 4.8 T·m |
| Effective piston area (Sd) | 138 cm² |
| Linear excursion (Xmax, one-way) | 4 mm |
| Mechanical excursion (Xmech) | 8 mm |
| Displacement volume (Vd) | 55.2 cm³ |
| Efficiency bandwidth product (EBP) | 98.21 |
| Effective piston diameter (D) | 131 mm |
| Impedance at resonance (Zo) | 19.4 Ω |
Motor
| Voice coil height | 12 mm |
|---|---|
| Air gap height | 4 mm |
| Voice coil layers | 2 |
Mounting
| Overall diameter | 165.5 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 142.0 mm |
| Mounting depth | 62.7 mm |
| Volume displaced by driver | 0.2 L |
| Voice coil diameter | 32 mm |
| Weight | 0.6 kg |
Materials
| Cone | Coated Fibreglass |
|---|---|
| Surround | Rubber |
| Basket | Cast Aluminium |
| Magnet | Neodymium |
Typical box tunings
| Closed box: box volume | 23 L |
|---|---|
| Closed box: corner frequency | 74 Hz |
| Vented box: box volume | 44 L |
| Vented box: box resonance | 42 Hz |
| Vented box: corner frequency | 37 Hz |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4).
Downloads
- 16W/4434G00 Datasheet

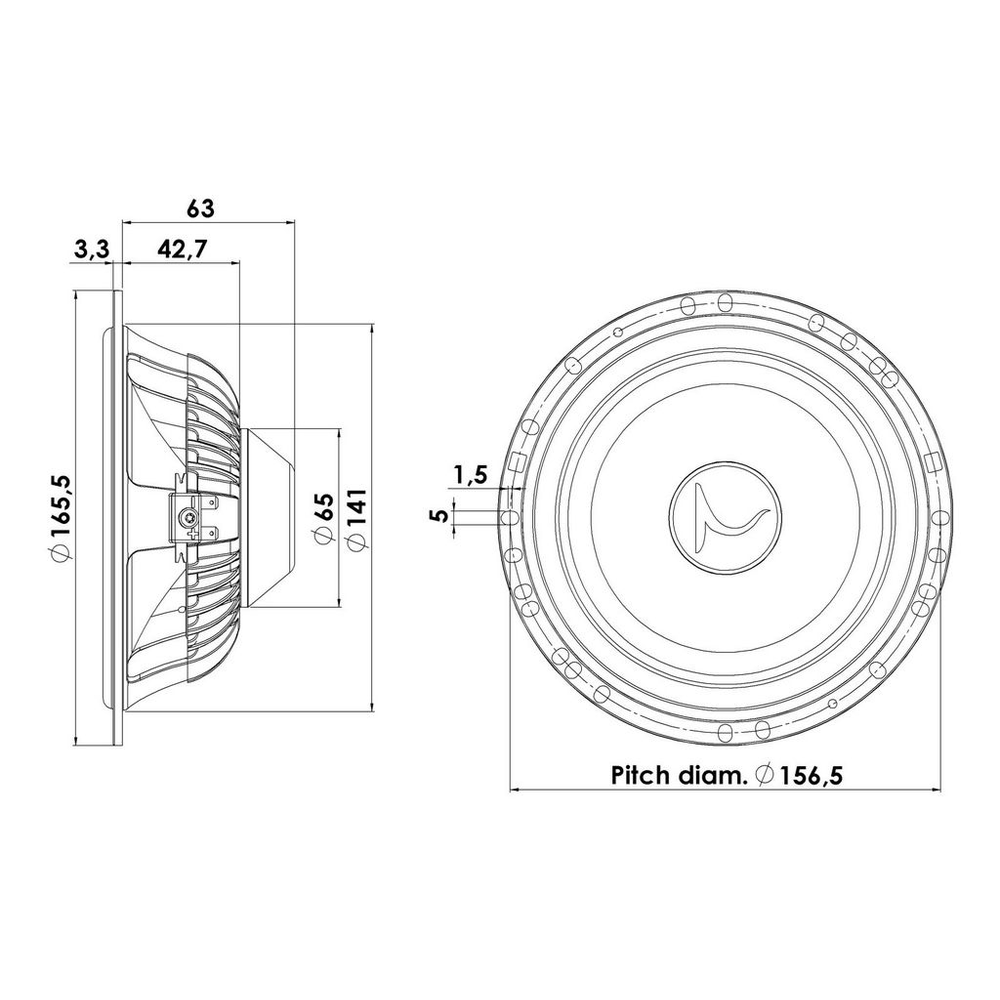

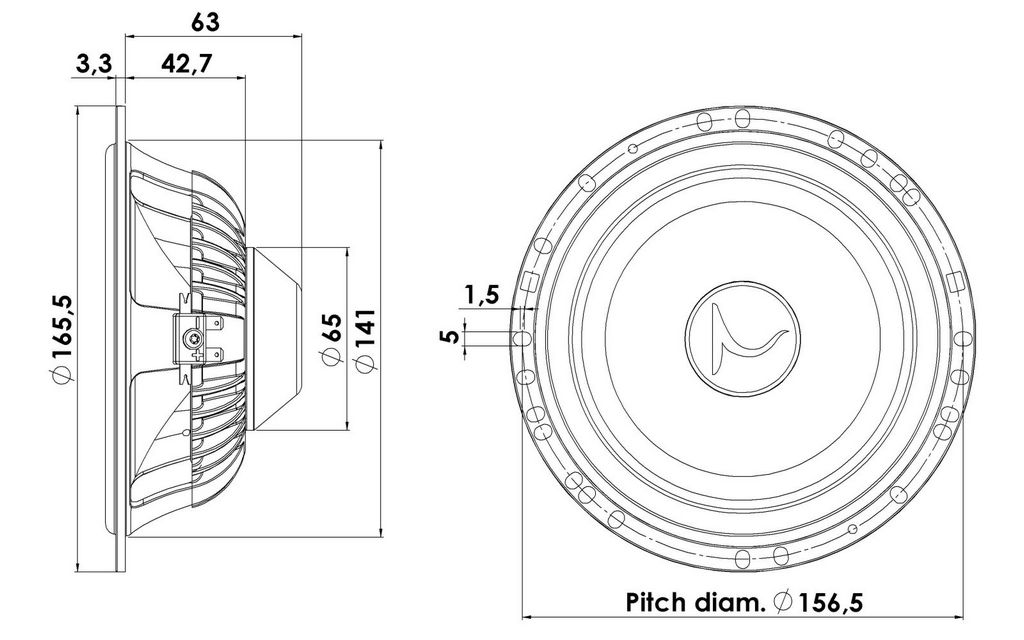

- 16W/4434G00 Drawing
- 16W/4434G00 3D model
- 16W/4434G00 Cutout & Recess Template (NB Audio) Straight off Scan-Speak's spec sheet: flange outline. Scaled from Scan-Speak's drawing, so close but not guaranteed exact: cutout. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
