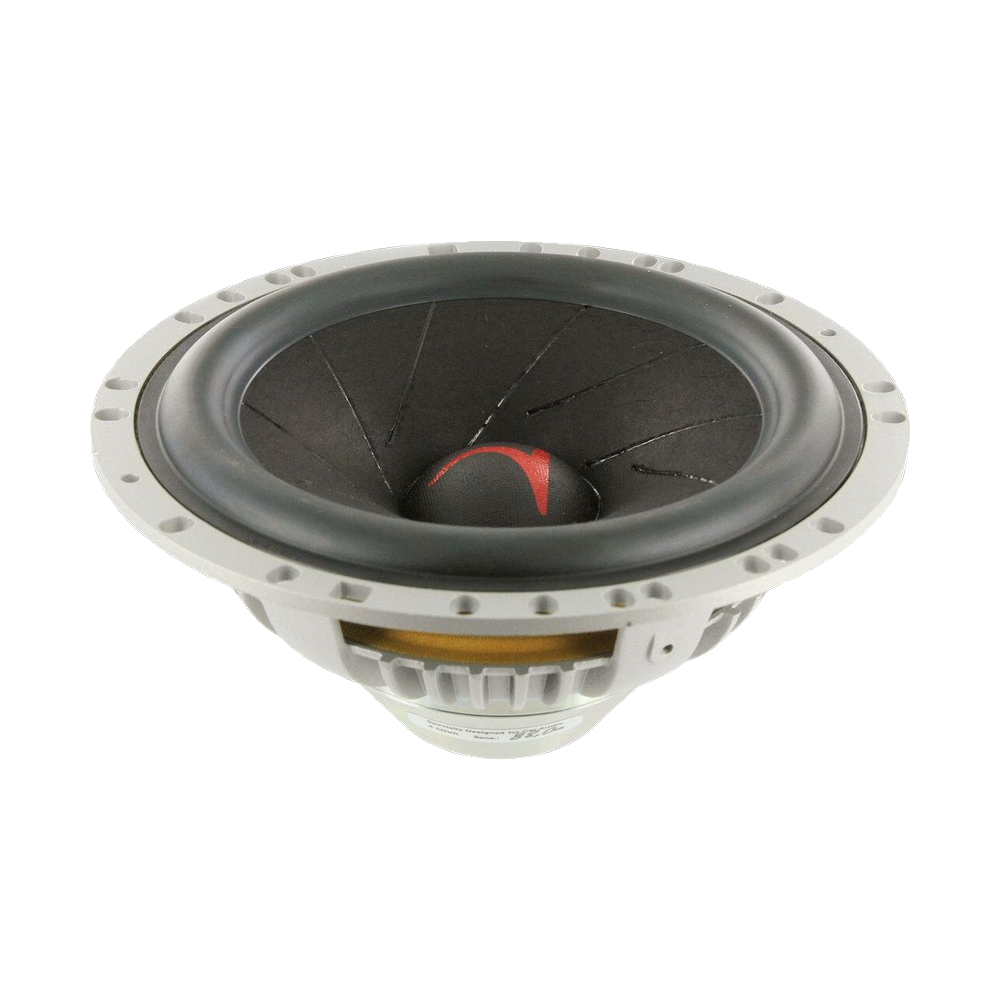

Scan-Speak - 6" Automotive Mid-Woofer - 16W/4531G06
Scan-Speak - 6" Automotive Mid-Woofer - 16W/4531G06
Regular price
$614.95
Regular price
Sale price
$614.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

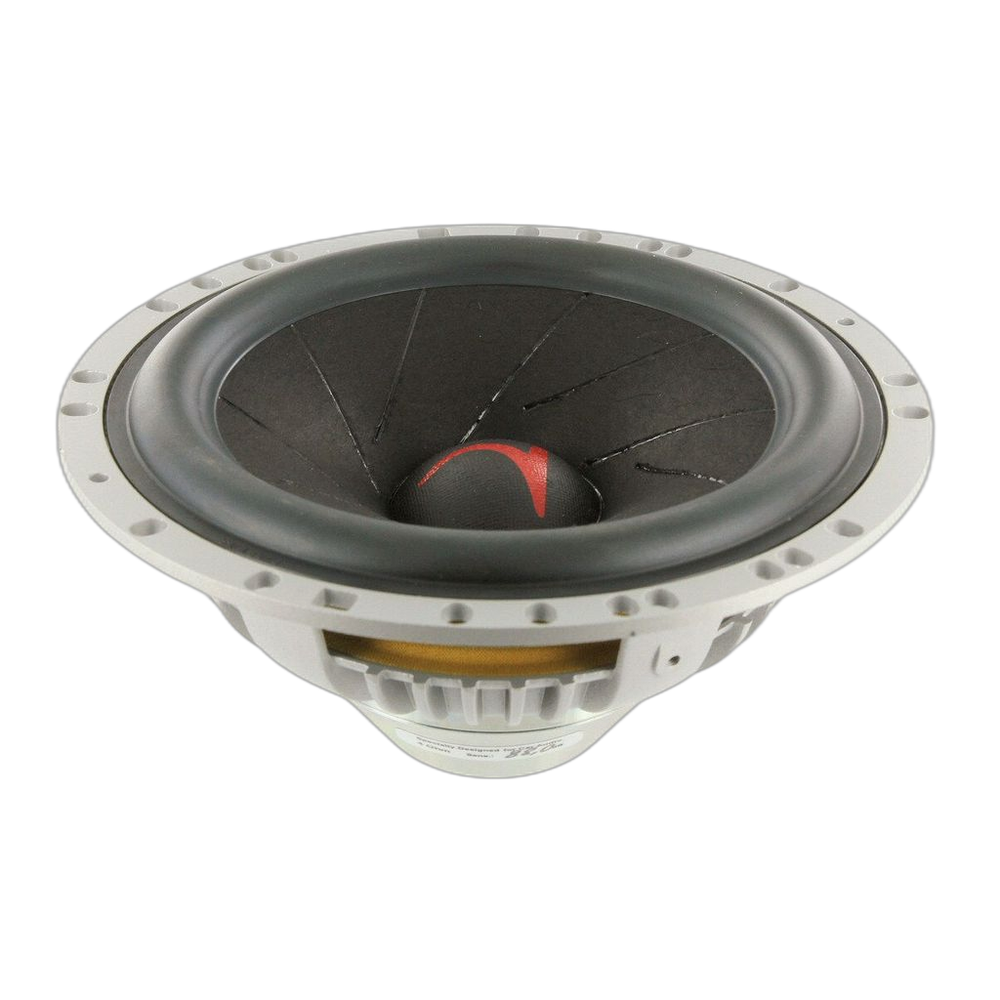

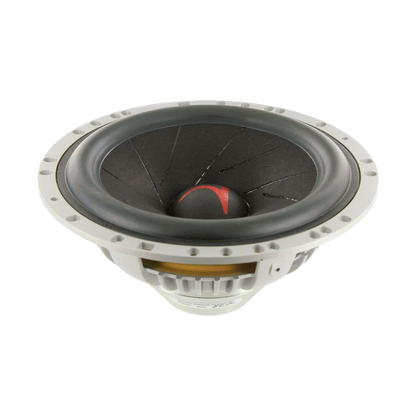

16cm Midwoofer 4ohm, Sliced Paper Cone, Neo Magnet. Scan-Speak SILVER SERIES are specially selected units from Scan-Speak’s well-known home audio speakers, which have been optimised for automotive use. This series enables audiophiles to experience in their vehicle the - TRUE TO LIFE - that they enjoy from their high-end home audio system. Scan-Speak
Features
- Patented Symmetrical Drive Motor Design
- Robust Die cast Alu Chassis
- Low Damping SBR Rubber Surround
- Low-Loss linear suspension
- Sliced Cone (Controls Cone Breakups)
- Compact powerful Neo magnet
Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 6" |
| Nominal impedance | 4Ω |
| Series | Automotive |
| Power handling (RMS) | 70 W |
| Power handling (program) | 125 W |
| Sensitivity | 88 dB |
| Suggested alignment | Either |
| Frequency range | fs – 6,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 51 Hz |
|---|---|
| DC resistance (Re) | 3.5 Ω |
| Minimum impedance (Zmin) | 3.95 Ω |
| Voice coil inductance (Le) | 0.28 mH |
| Mechanical Q (Qms) | 5.08 |
| Electrical Q (Qes) | 0.66 |
| Total Q (Qts) | 0.59 |
| Equivalent volume (Vas) | 12.6 L |
| Compliance (Cms) | 0.59 mm/N |
| Moving mass (Mms) | 16.3 g |
| Mechanical resistance (Rms) | 1.02 kg/s |
| Force factor (Bl) | 5.2 T·m |
| Effective piston area (Sd) | 123 cm² |
| Linear excursion (Xmax, one-way) | 6.5 mm |
| Mechanical excursion (Xmech) | 9.5 mm |
| Displacement volume (Vd) | 79.95 cm³ |
| Efficiency bandwidth product (EBP) | 77.27 |
| Effective piston diameter (D) | 125 mm |
| Impedance at resonance (Zo) | 32.63 Ω |
Motor
| Voice coil height | 17.5 mm |
|---|---|
| Air gap height | 4 mm |
| Voice coil layers | 2 |

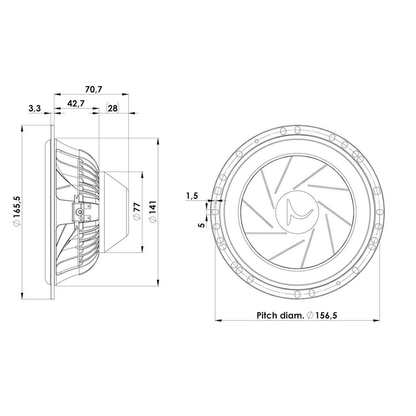

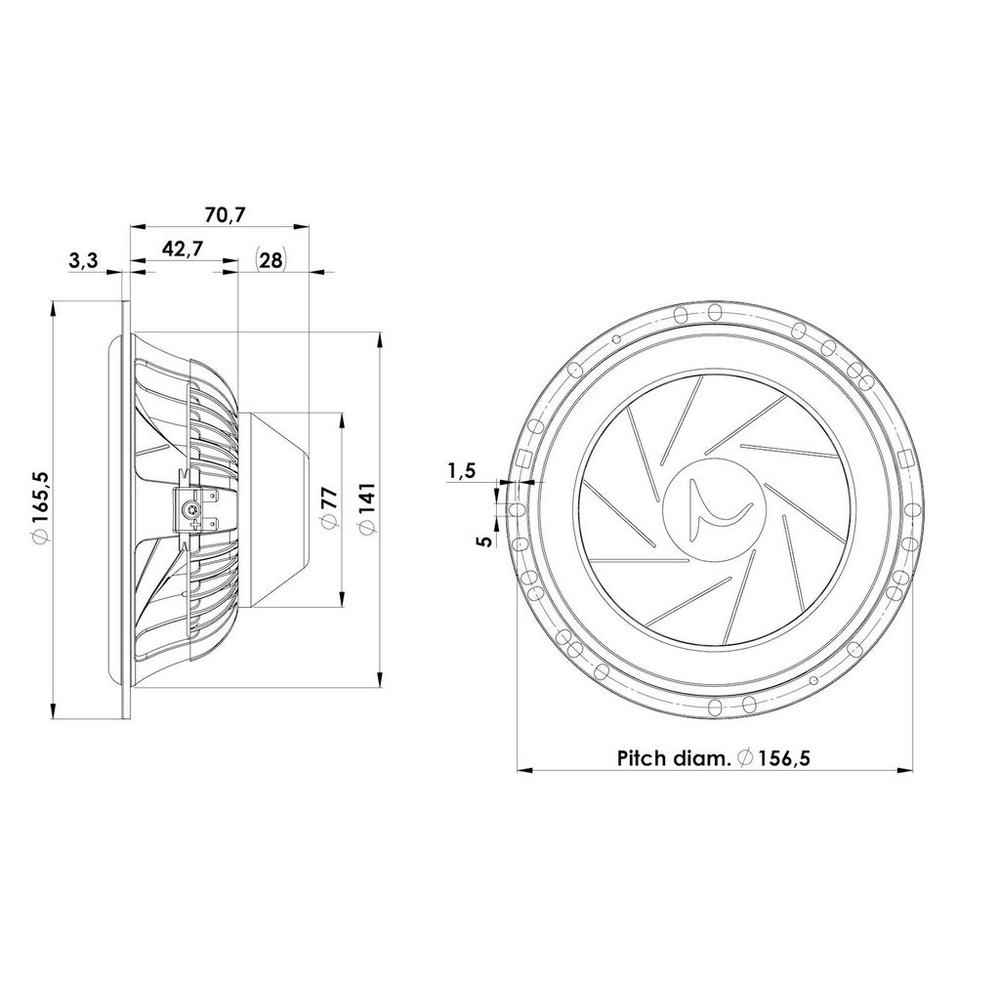

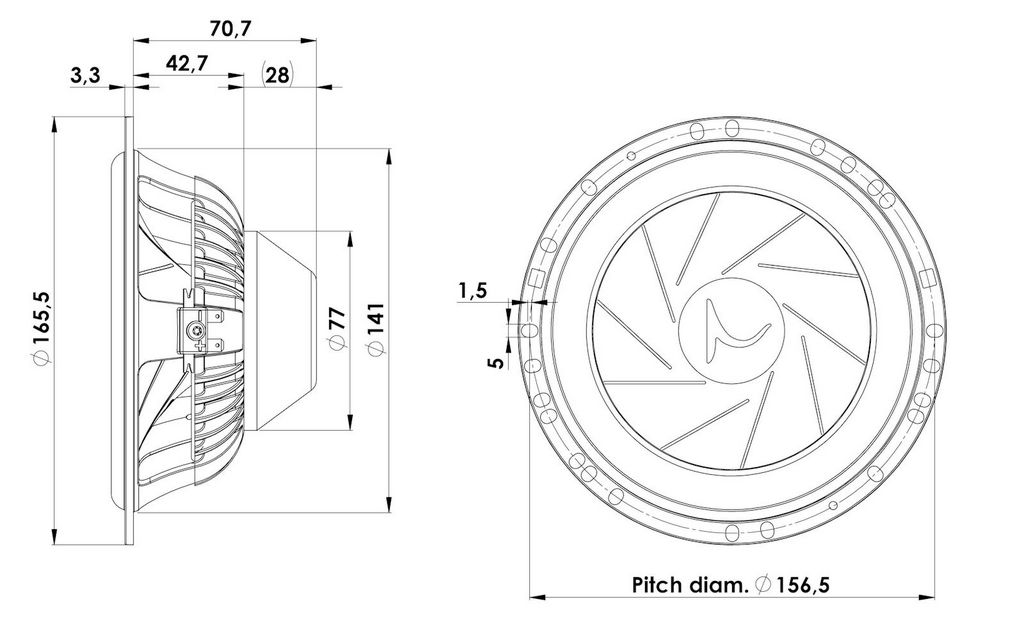

Mounting
| Overall diameter | 165.5 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 142.0 mm |
| Mounting depth | 70.7 mm |
| Volume displaced by driver | 0.2 L |
| Voice coil diameter | 38 mm |
| Weight | 0.8 kg |
Materials
| Cone | Sliced Paper |
|---|---|
| Surround | SBR |
| Basket | Cast Aluminium |
| Magnet | Neodymium |
Typical box tunings
| Closed box: box volume | 58 L |
|---|---|
| Closed box: corner frequency | 56 Hz |
| Vented box: box volume | 58 L |
| Vented box: box resonance | 32 Hz |
| Vented box: corner frequency | 26 Hz |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Downloads
- 16W/4531G06 Datasheet
- 16W/4531G06 Drawing
- 16W/4531G06 3D model
- 16W/4531G06 Cutout & Recess Template (NB Audio) Straight off Scan-Speak's spec sheet: flange outline. Scaled from Scan-Speak's drawing, so close but not guaranteed exact: cutout. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
Where do these figures come from? See the source of each one
