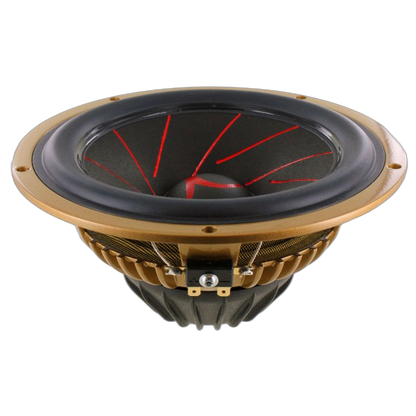

Scan-Speak - 6" Automotive Mid-Woofer - 16W/4538G05
Scan-Speak - 6" Automotive Mid-Woofer - 16W/4538G05
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

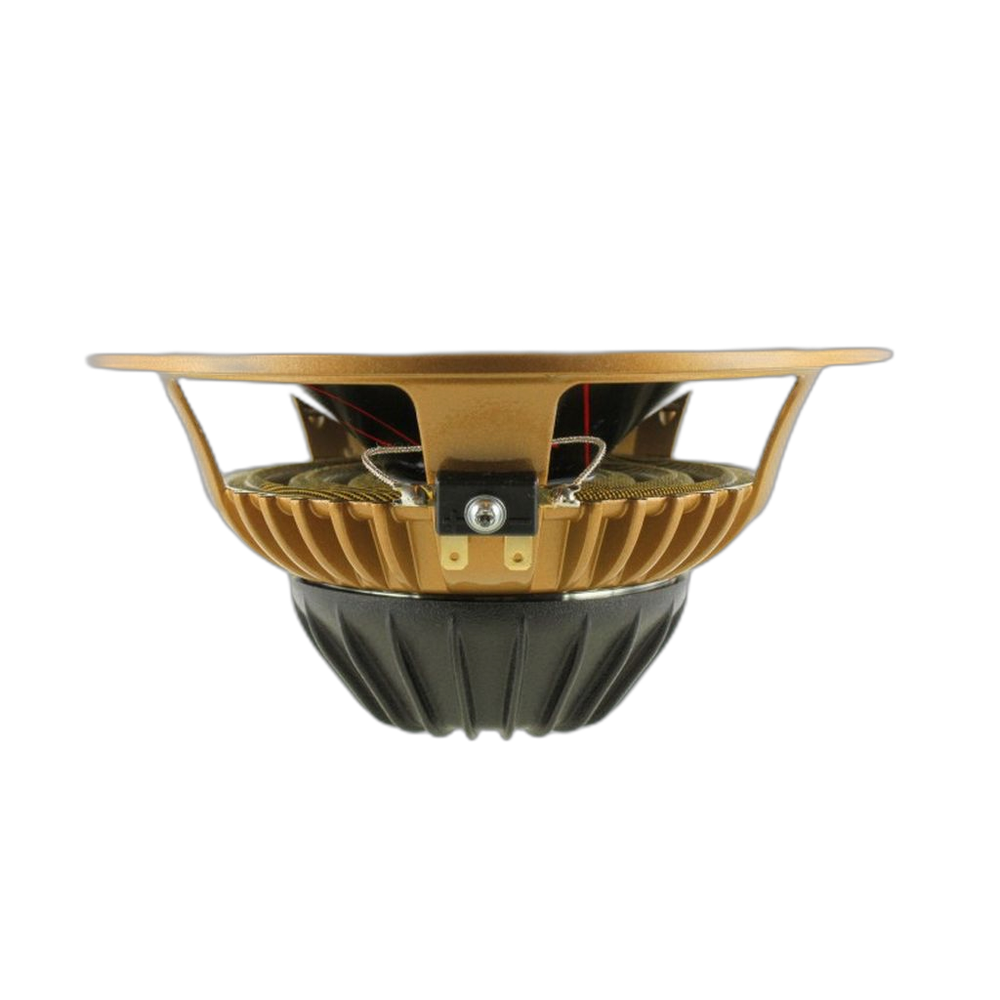

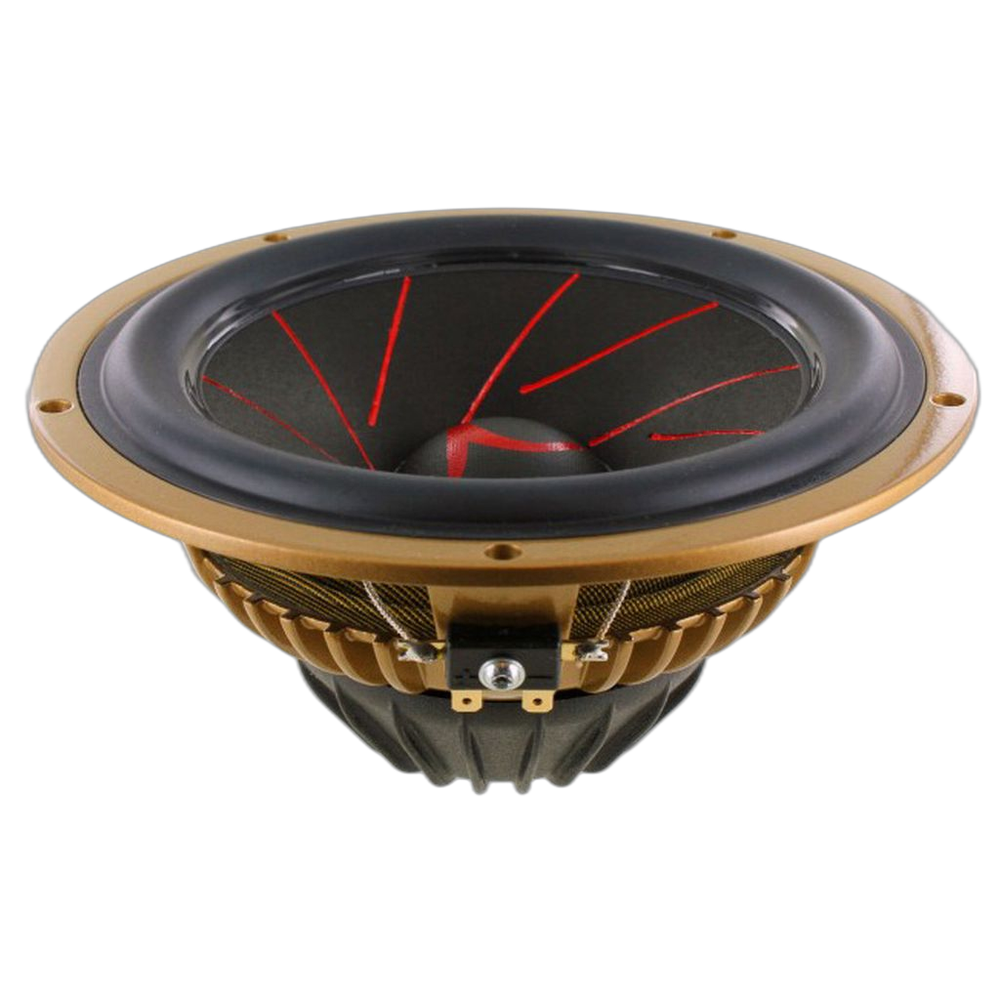

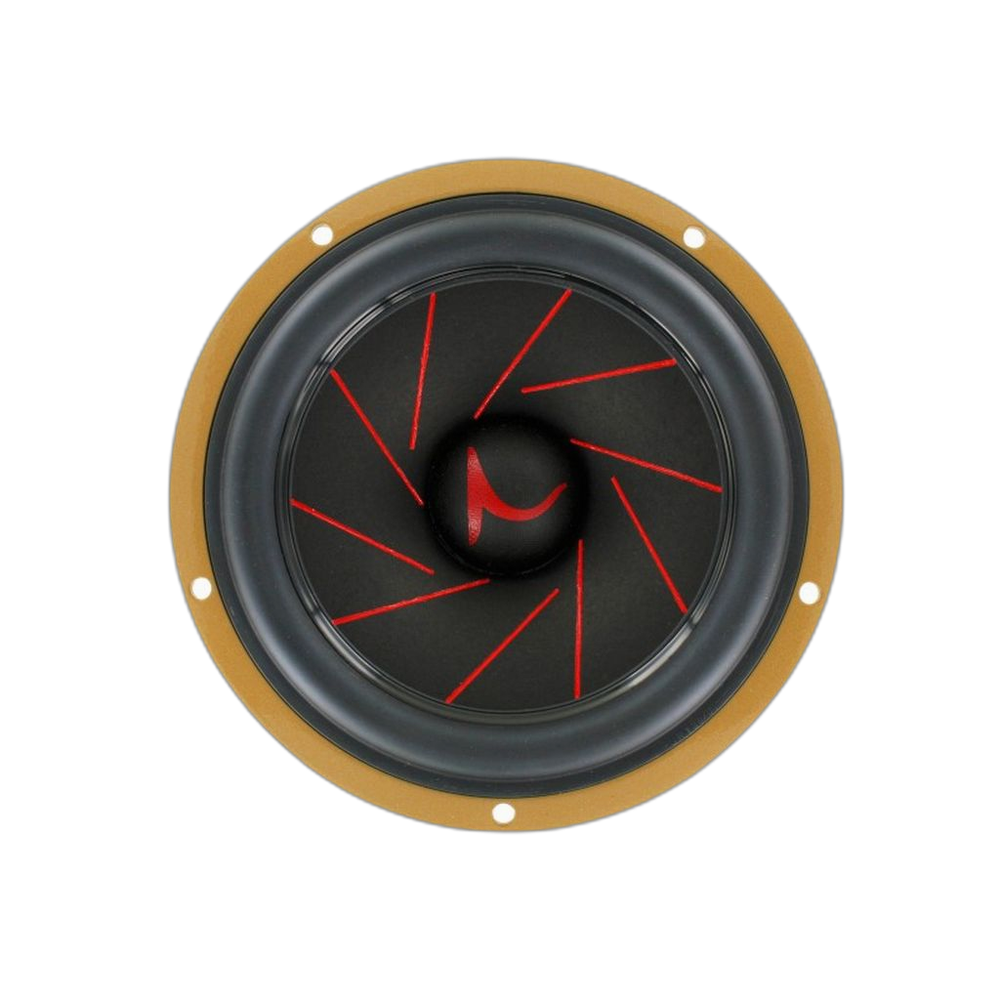

16cm Midwoofer 4ohm, Sliced Sandwich Cone, Neo Magnet. Features a sandwich cone with a sliced paper membrane combined with a polycarbonate rearside membrane, a brand new technology that are extremely robust, well dampened and suppresses cone breakup modes dramatically. This in combination with low-loss linear suspension and its Symmetrical Drive High-Grade Neodymium magnet offers outstanding sound performance. Scan-Speak

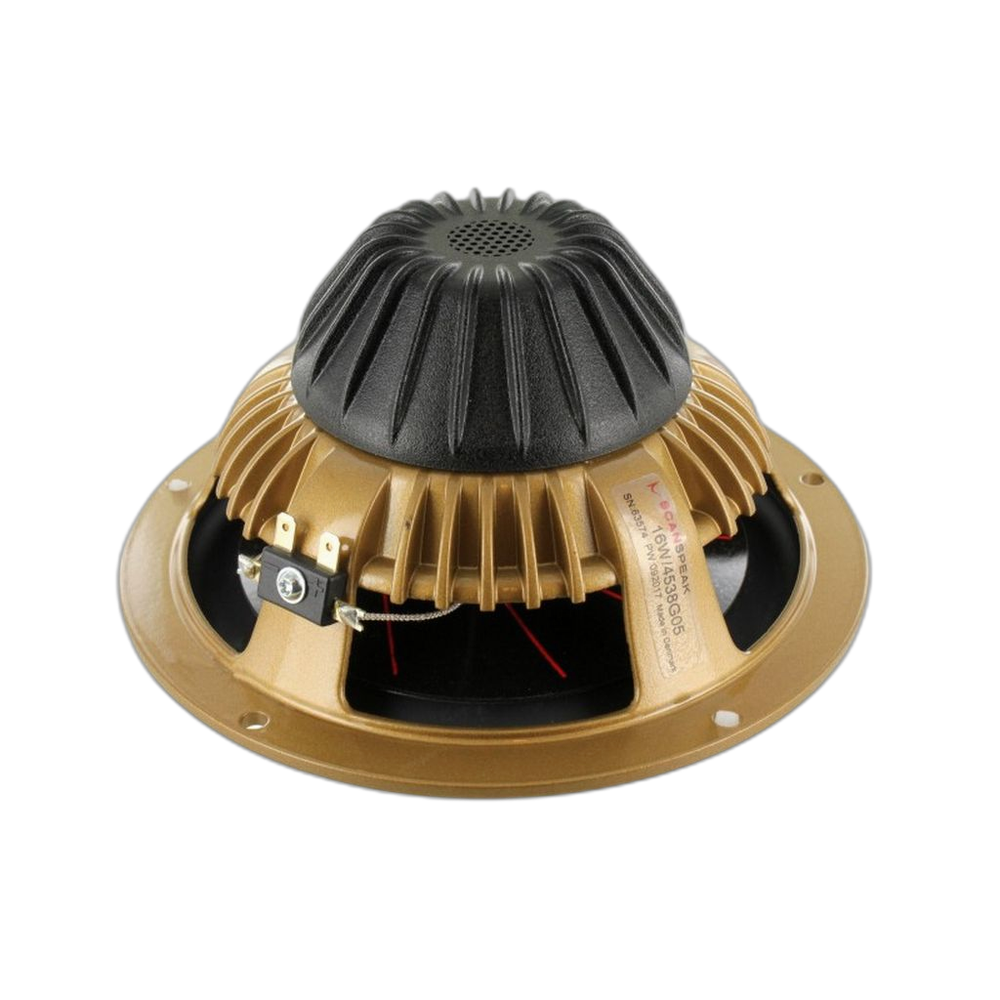

Features
- Die Cast Housing & Face Plate
- High Grade Compact Neo magnet System
- Low Damping SBR Rubber Surround
- Low-Loss linear suspension
- Patented Symmetrical Drive Motor Design
- Robust Die cast Alu Chassis
Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 6" |
| Nominal impedance | 4Ω |
| Series | Automotive |
| Power handling (RMS) | 70 W |
| Power handling (program) | 125 W |
| Sensitivity | 90 dB |
| Suggested alignment | Either |
| Frequency range | fs – 5,000 Hz |

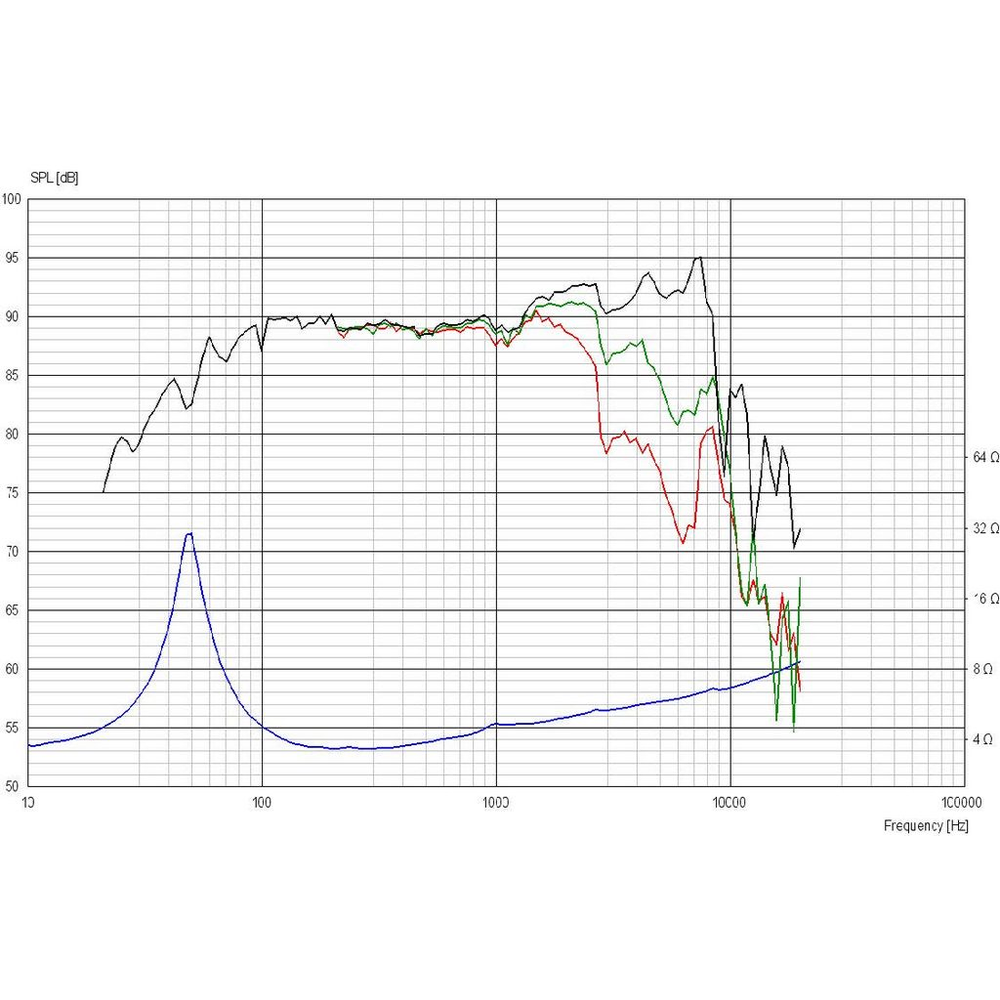

Thiele/Small parameters
| Resonant frequency (Fs) | 36 Hz |
|---|---|
| DC resistance (Re) | 3.1 Ω |
| Minimum impedance (Zmin) | 3.5 Ω |
| Voice coil inductance (Le) | 0.18 mH |
| Mechanical Q (Qms) | 3.82 |
| Electrical Q (Qes) | 0.39 |
| Total Q (Qts) | 0.35 |
| Equivalent volume (Vas) | 24 L |
| Compliance (Cms) | 1.12 mm/N |
| Moving mass (Mms) | 16.9 g |
| Mechanical resistance (Rms) | 1 kg/s |
| Force factor (Bl) | 5.5 T·m |
| Effective piston area (Sd) | 123 cm² |
| Linear excursion (Xmax, one-way) | 6.6 mm |
| Mechanical excursion (Xmech) | 13.5 mm |
| Displacement volume (Vd) | 81.18 cm³ |
| Efficiency bandwidth product (EBP) | 92.31 |
| Effective piston diameter (D) | 125 mm |
| Impedance at resonance (Zo) | 35 Ω |
Motor
| Voice coil height | 17.2 mm |
|---|---|
| Air gap height | 4 mm |
| Voice coil layers | 2 |

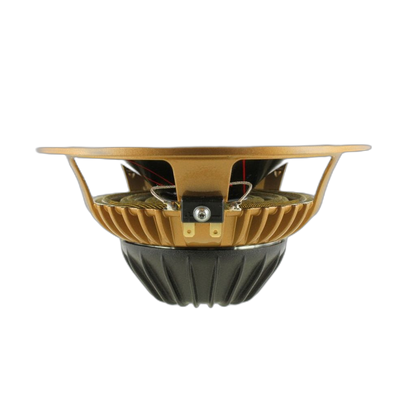

Mounting
| Overall diameter | 165.5 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 142.0 mm |
| Mounting depth | 74.2 mm |
| Flange thickness | 3.3 mm |
| Bolt circle diameter | 156 mm |
| Mounting holes | 5 |
| Mounting hole diameter | 5.2 mm |
| Volume displaced by driver | 0.2 L |
| Voice coil diameter | 38 mm |
| Weight | 1 kg |
Materials
| Surround | SBR |
|---|---|
| Basket | Cast Aluminium |
| Magnet | Neodymium |
Typical box tunings
| Closed box: box volume | 10 L |
|---|---|
| Closed box: corner frequency | 66 Hz |
| Vented box: box volume | 21 L |
| Vented box: box resonance | 38 Hz |
| Vented box: corner frequency | 38 Hz |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Downloads
- 16W/4538G05 Datasheet

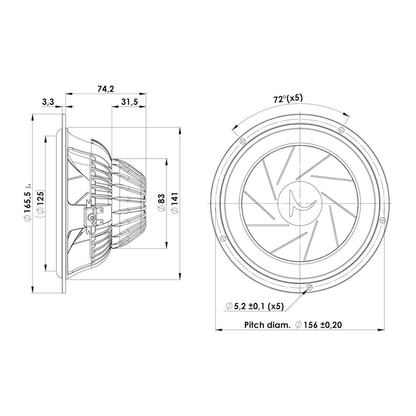

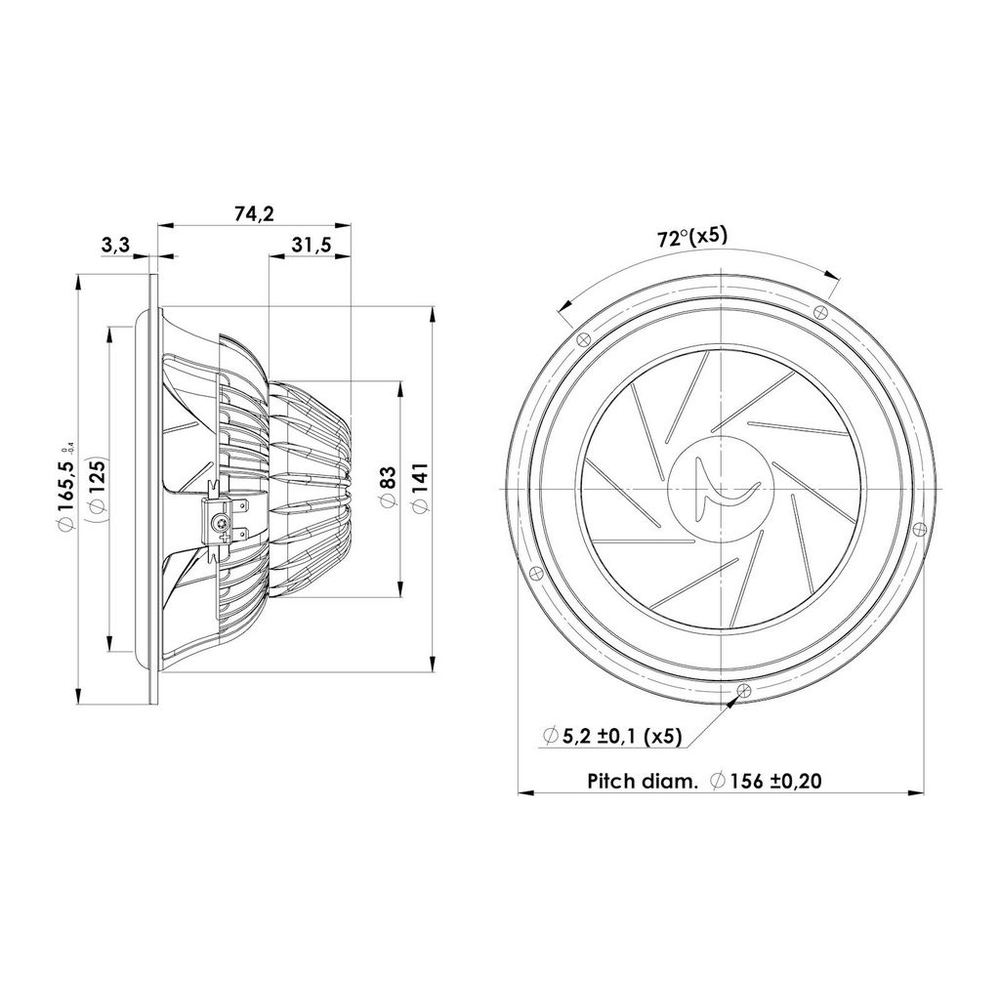

- 16W/4538G05 Drawing
- 16W/4538G05 3D model
- 16W/4538G05 Cutout & Recess Template (NB Audio) Straight off Scan-Speak's spec sheet: flange outline, recess depth, bolt holes. Scaled from Scan-Speak's drawing, so close but not guaranteed exact: cutout. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
