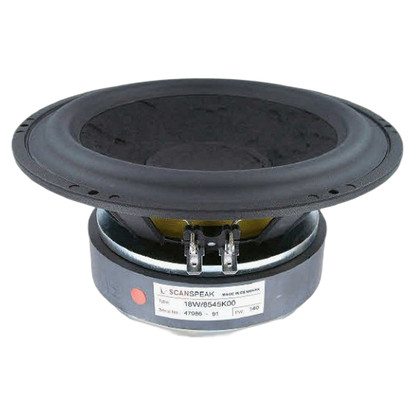

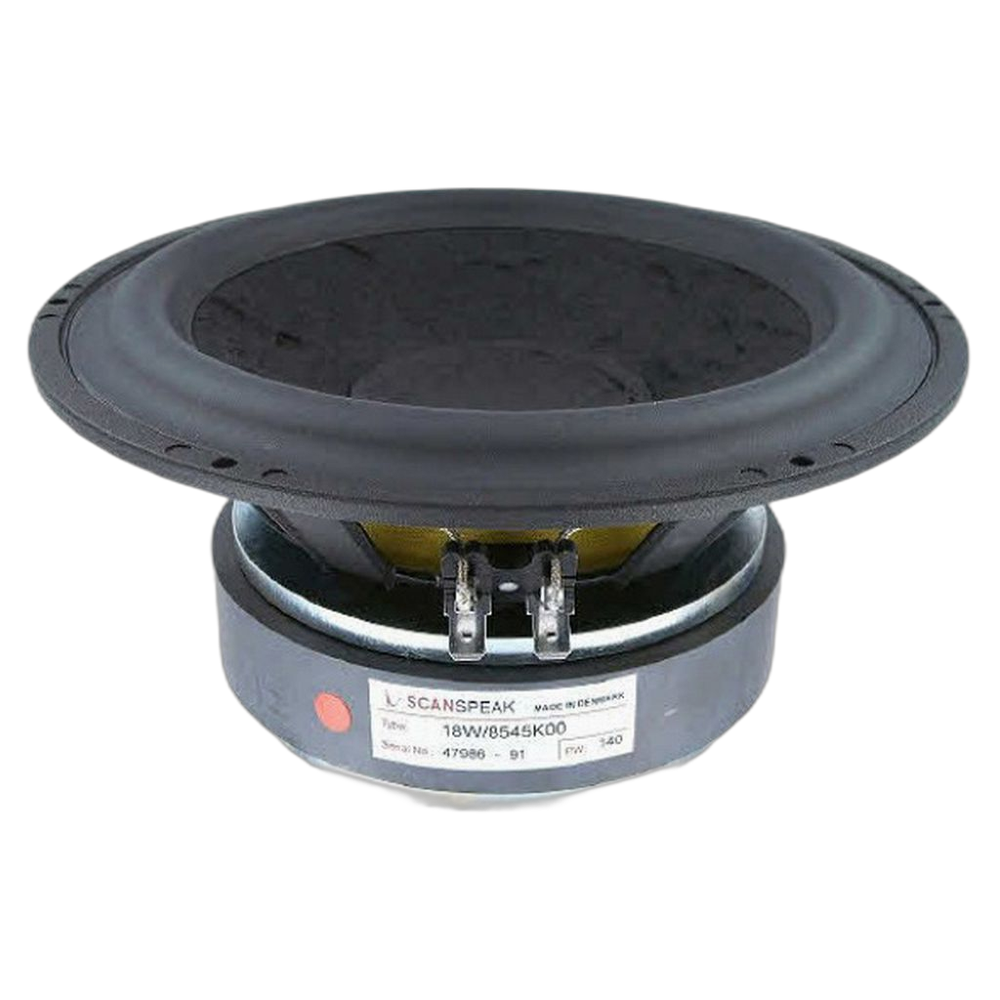

Scan-Speak - 7" Classic Mid-Woofer - 18W/8545K00
Scan-Speak - 7" Classic Mid-Woofer - 18W/8545K00
Regular price
$339.95 AUD
Regular price
Sale price
$339.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Carbon fibre impregnated paper cone that dampens resonances normally associated with stiff cones. The magnet system is the new SD-1 system which eliminates modulation and dynamic distortion, as well as clipping distortion created as it exceeds its maximum linear excursion. This driver uses a fibreglass voice coil former.
Features
- Box suggestions:
- 0.25 cubic foot sealed box with 20% filling for and F3 of 84Hz
- 0.5 cubic foot box with 2" vent by 8" long for an F3 of 49Hz
- 0.7 cubic foot box with 2" vent by 8" long for an F3 of 45Hz
Specifications
| Power | 100Wrms |
|---|---|
| Impedance | 8Ω Re 6.6Ω |
| Sens. | 87.5dB |
| Qms | 5.2 |
| Qes | 0.3 |
| Qts | 0.28 |
| Vas | 46.4L |
| Fs | 28Hz |
| Re | 6.6Ω |
| Rms | 0.69kg/s |
| Sd | 145cm² |
| Size | 6.5' |
| Type | Mid-Woofer |
| Width | 177mm |
| Zn | 8Ω |
| Le | 0.40mH |
| Mag. | 2.3kg |
| Mms | 20.5g |
| Cms | 1.58mm/N |
| Coil | 42mmØ |
| Manufacturer | Scan-speak |
| Series | Classic |
