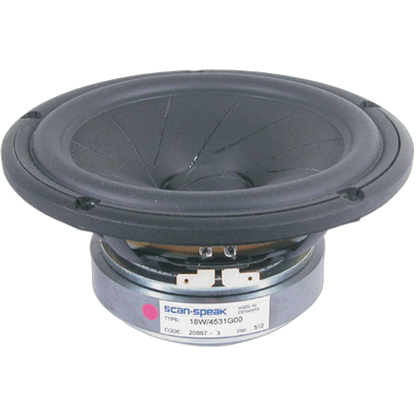

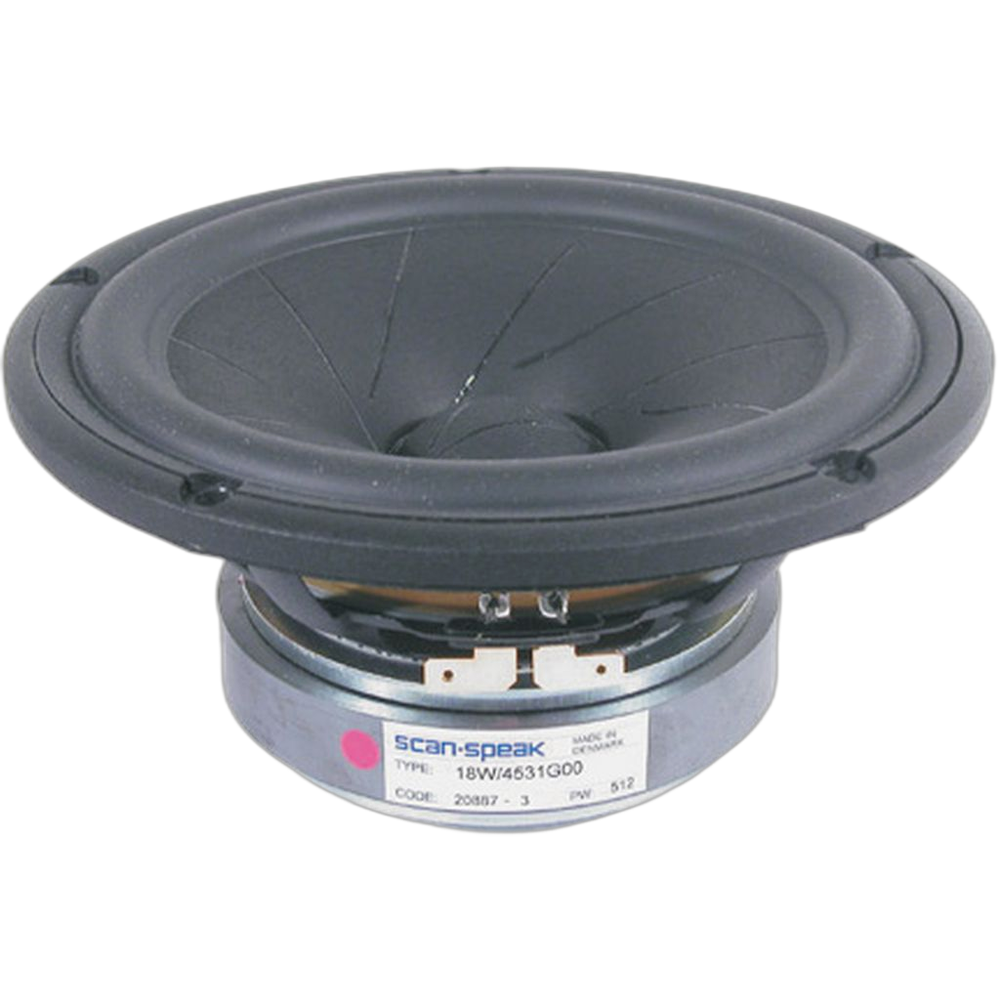

Scan-Speak - 7" Revelator Mid-Woofer - 18W/4531G00
Scan-Speak - 7" Revelator Mid-Woofer - 18W/4531G00
Regular price
$354.95
Regular price
Sale price
$354.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
The Revelator series of woofers has for years been celebrated for reproducing the best sounding dynamic transducers in the world. This driver features a non-resonant cone and dust-cap structure,dynamic linear suspension, SD-1 patented magnet system, “Grasshopper” chassis for maximised airflow, and anti-resonance mounting system. An absolute premium reference level, wide bandwidth driver.
Features
- Patented Symmetrical Drive Motor Design
- Sliced Cone (Controls Cone Breakups)
- Low-Loss linear suspension
- Low Damping SBR Rubber Surround
- Die cast Alu Chassis vented below spider
- Large Ferrite Magnet System

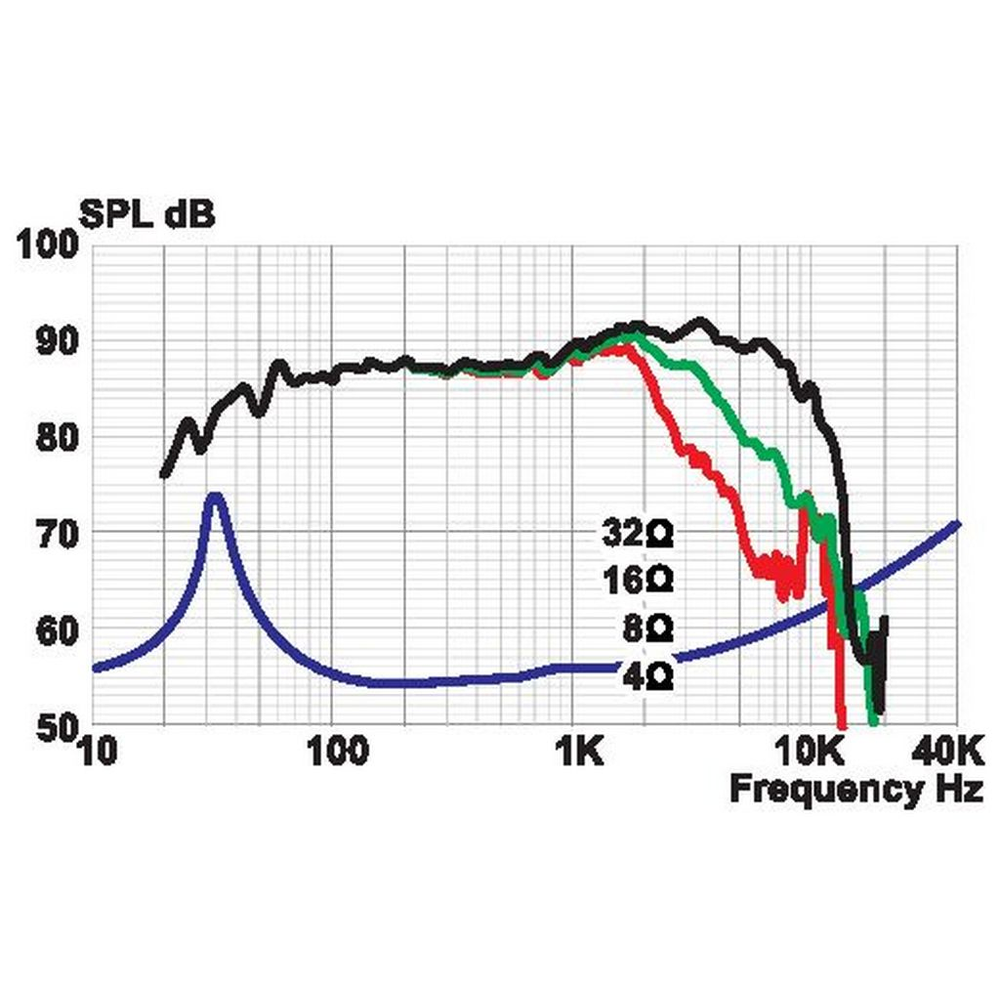

Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 7" |
| Nominal impedance | 4Ω |
| Series | Revelator |
| Power handling (RMS) | 70 W |
| Power handling (program) | 110 W |
| Sensitivity | 90 dB |
| Suggested alignment | Either |
| Frequency range | fs – 7,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 33 Hz |
|---|---|
| DC resistance (Re) | 3.4 Ω |
| Minimum impedance (Zmin) | 4.2 Ω |
| Voice coil inductance (Le) | 0.3 mH |
| Mechanical Q (Qms) | 5.2 |
| Electrical Q (Qes) | 0.38 |
| Total Q (Qts) | 0.35 |
| Equivalent volume (Vas) | 42 L |
| Compliance (Cms) | 1.33 mm/N |
| Moving mass (Mms) | 17.5 g |
| Mechanical resistance (Rms) | 0.7 kg/s |
| Force factor (Bl) | 5.7 T·m |
| Effective piston area (Sd) | 150 cm² |
| Linear excursion (Xmax, one-way) | 6.5 mm |
| Mechanical excursion (Xmech) | 11 mm |
| Displacement volume (Vd) | 97.5 cm³ |
| Efficiency bandwidth product (EBP) | 86.84 |
| Effective piston diameter (D) | 138 mm |
| Impedance at resonance (Zo) | 49.9 Ω |
Motor
| Voice coil height | 17.5 mm |
|---|---|
| Air gap height | 5 mm |
| Voice coil layers | 2 |
Mounting
| Overall diameter | 182.2 mm |
|---|---|
| Cutout diameter (suggested) | ≈ 157.0 mm |
| Mounting depth | 77.4 mm |
| Flange thickness | 5.6 mm |
| Bolt circle diameter | 169.8 mm |
| Mounting holes | 5 |
| Mounting hole diameter | 5.3 mm |
| Volume displaced by driver | 0.47 L |
| Voice coil diameter | 38 mm |
| Weight | 1.7 kg |
Materials
| Cone | Sliced Paper |
|---|---|
| Surround | SBR |
| Basket | Cast Aluminium |
| Magnet | Ferrite |
Typical box tunings
| Closed box: box volume | 17 L |
|---|---|
| Closed box: corner frequency | 61 Hz |
| Vented box: box volume | 35 L |
| Vented box: box resonance | 36 Hz |
| Vented box: corner frequency | 35 Hz |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Downloads
- 18W/4531G00 Datasheet

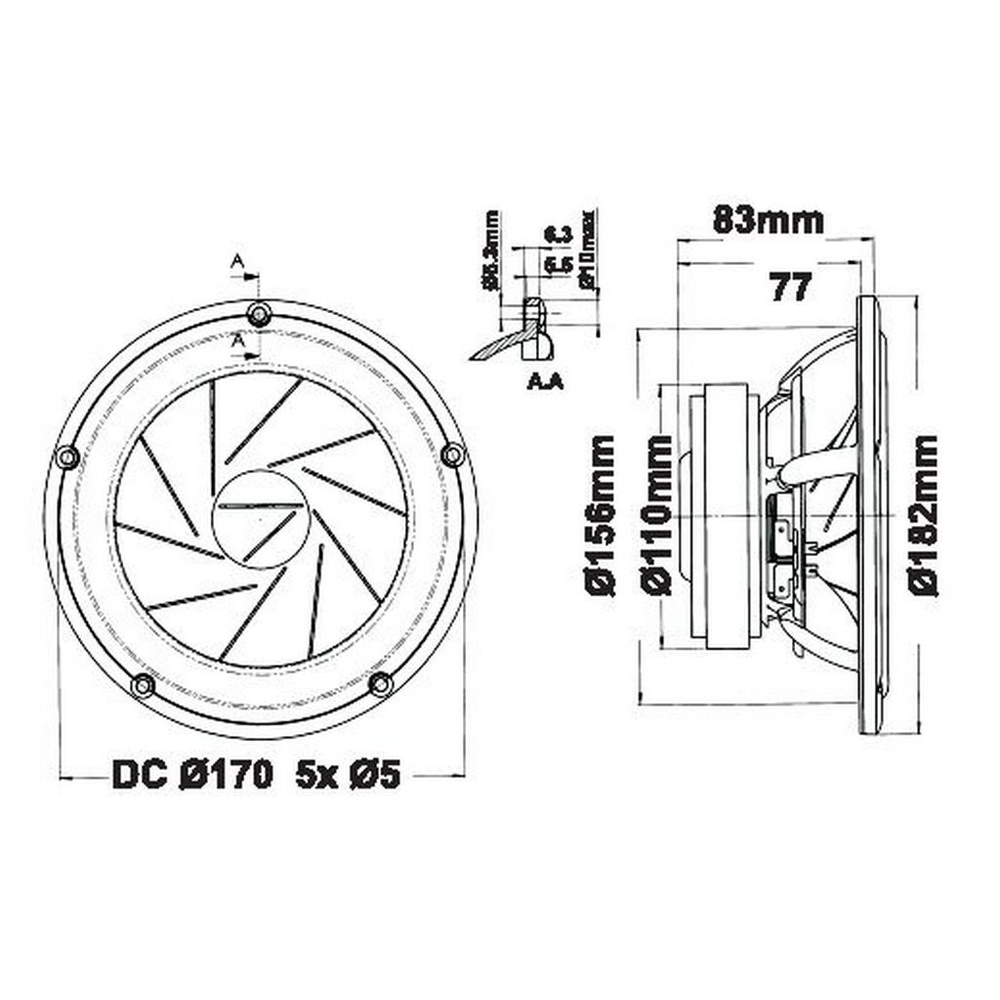

- 18W/4531G00 Drawing
