Scan-Speak

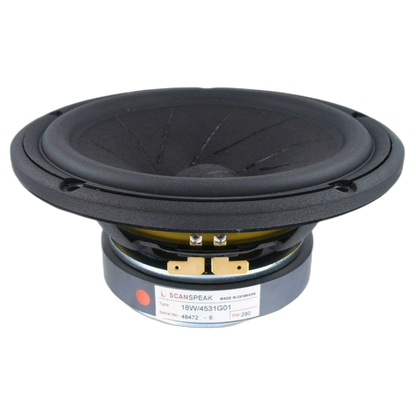

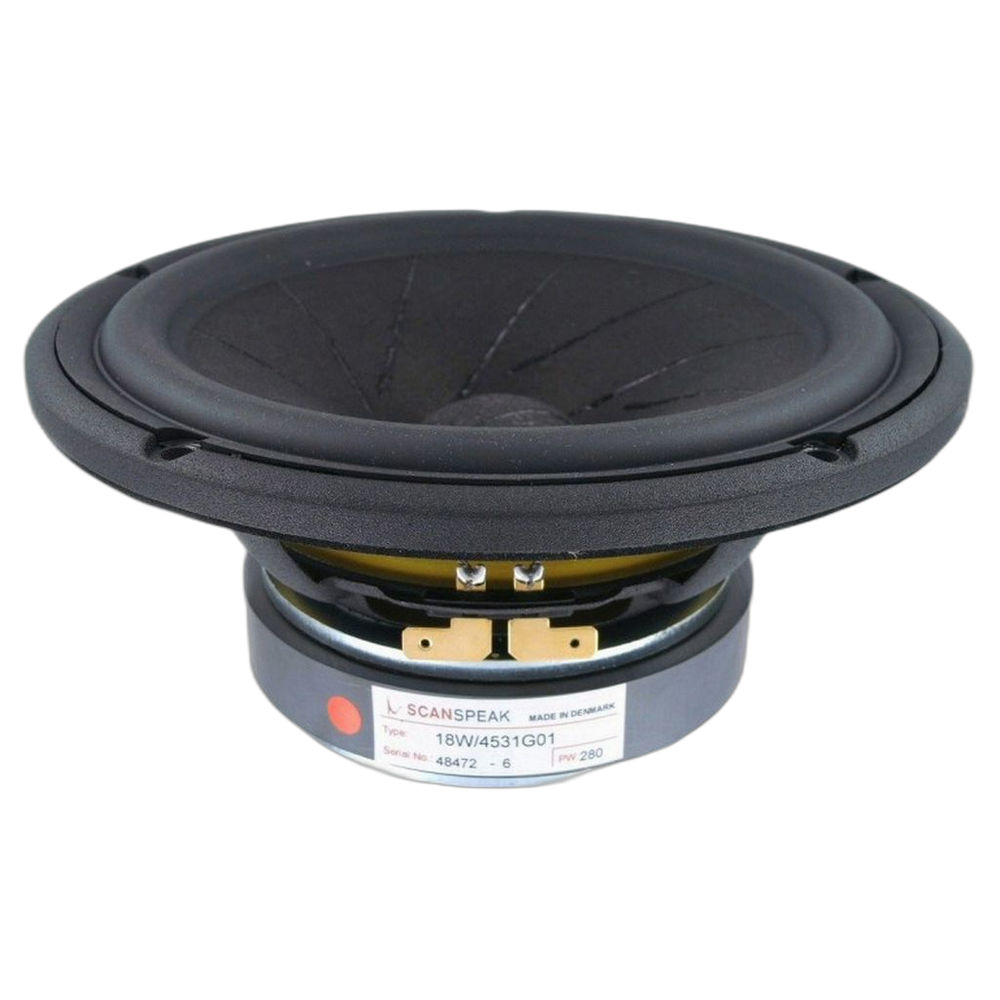

Scan-Speak - 7" Revelator Mid-Woofer - 18W/4531G01
Scan-Speak - 7" Revelator Mid-Woofer - 18W/4531G01
Regular price
$349.95 AUD
Regular price
Sale price
$349.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The Revelator midrange and mid-woofers, both well known for their sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.
Features
- Patented Symmetrical Drive Motor Design
- Wood Fibre Cone
- Low Damping SBR Rubber Surround
- Sliced Cone (Controls Cone Breakups)
- Low-Loss linear suspension
- Large Ferrite Magnet System

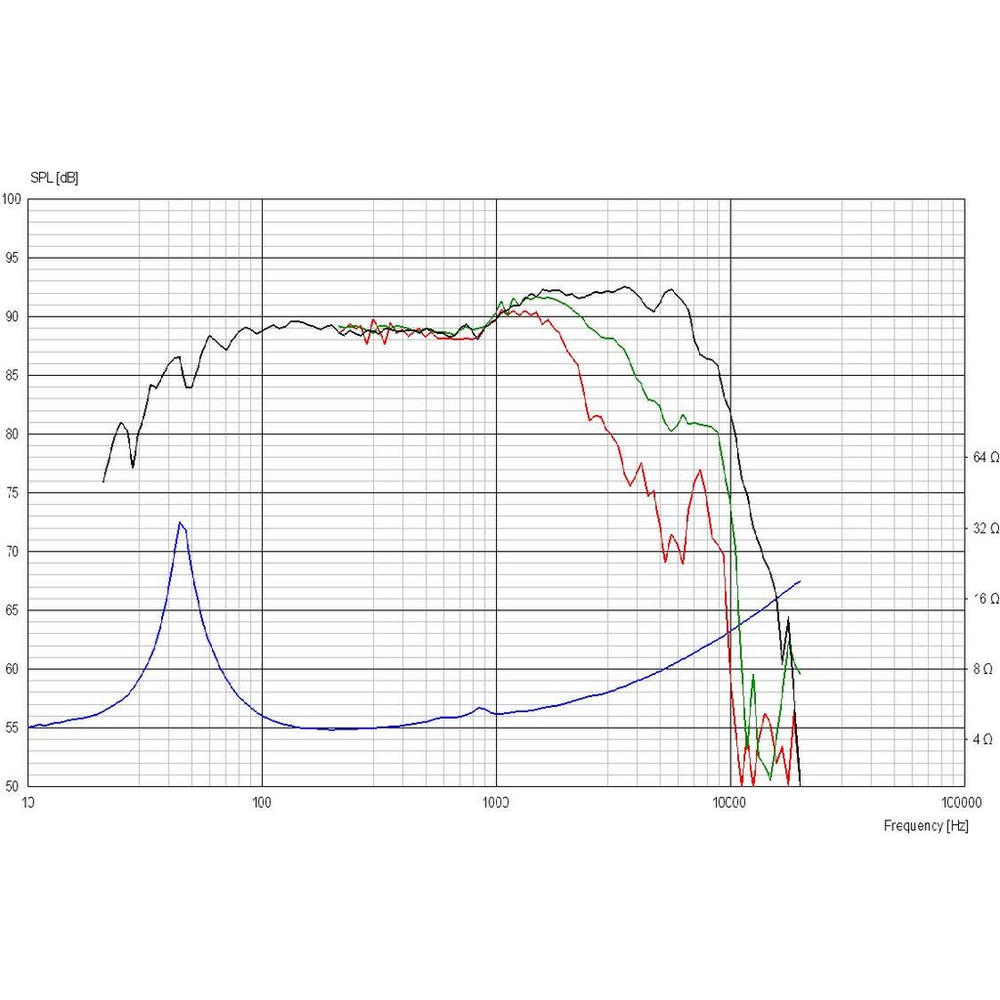

Specifications
| Impedance | 4Ω Re 4.4Ω |
|---|---|
| Fs | 34Hz |
| Power | 70Wrms |
| Sens. | 89.0dB |
| Qes | 0.38 |
| Qms | 4.90 |
| Qts | 0.35 |
| Cms | 1.3mm/N |
| Coil | 38mmØ |
| Le | 0.27mH |
| Mag. | 1.7kg |
| Mms | 16.9g |
| Re | 4.4Ω |
| Rms | 0.74kg/s |
| Sd | 157cm² |
| Size | 7' |
| Type | Mid-Woofer |
| Vas | 45.6L |

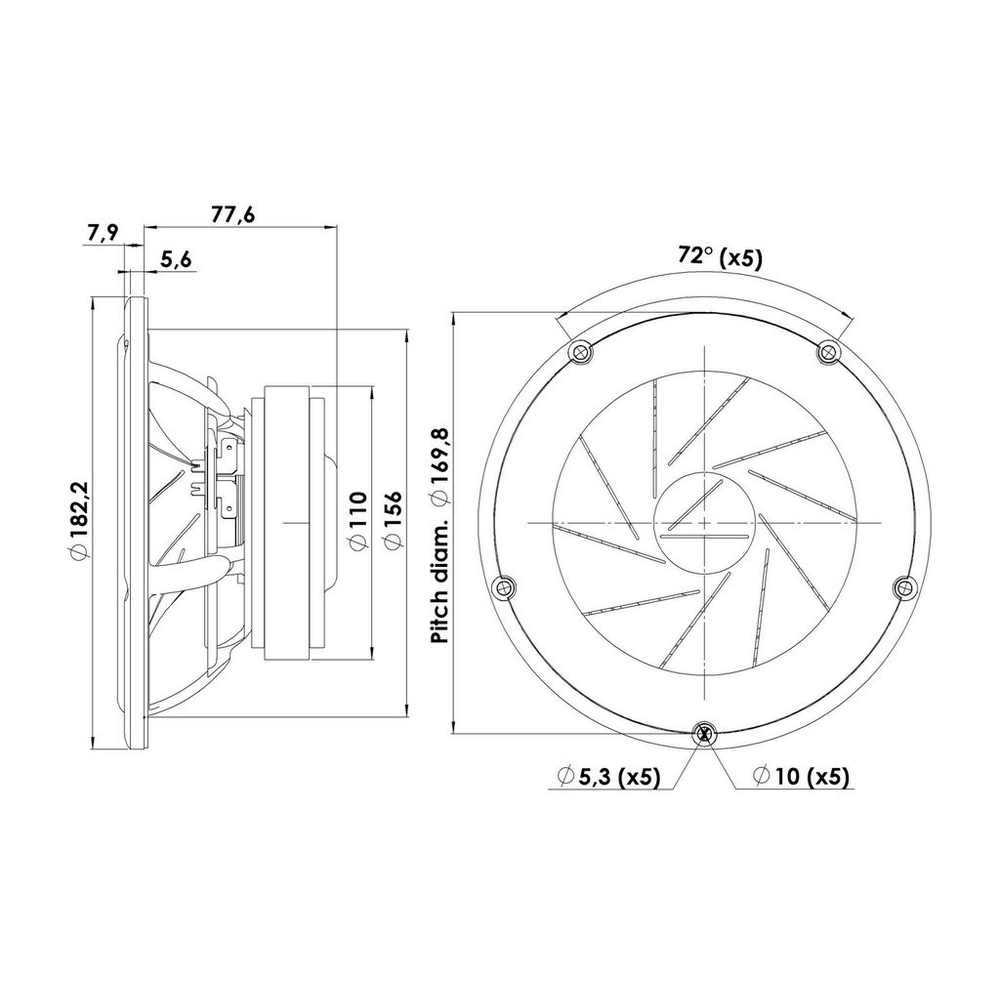

| Width | 182mm |
| Zn | 4Ω |
| Manufacturer | Scan-speak |
| Series | Revelator |
