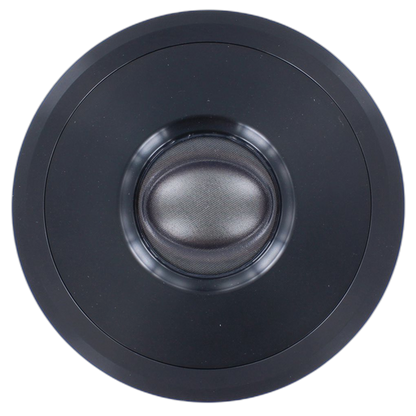

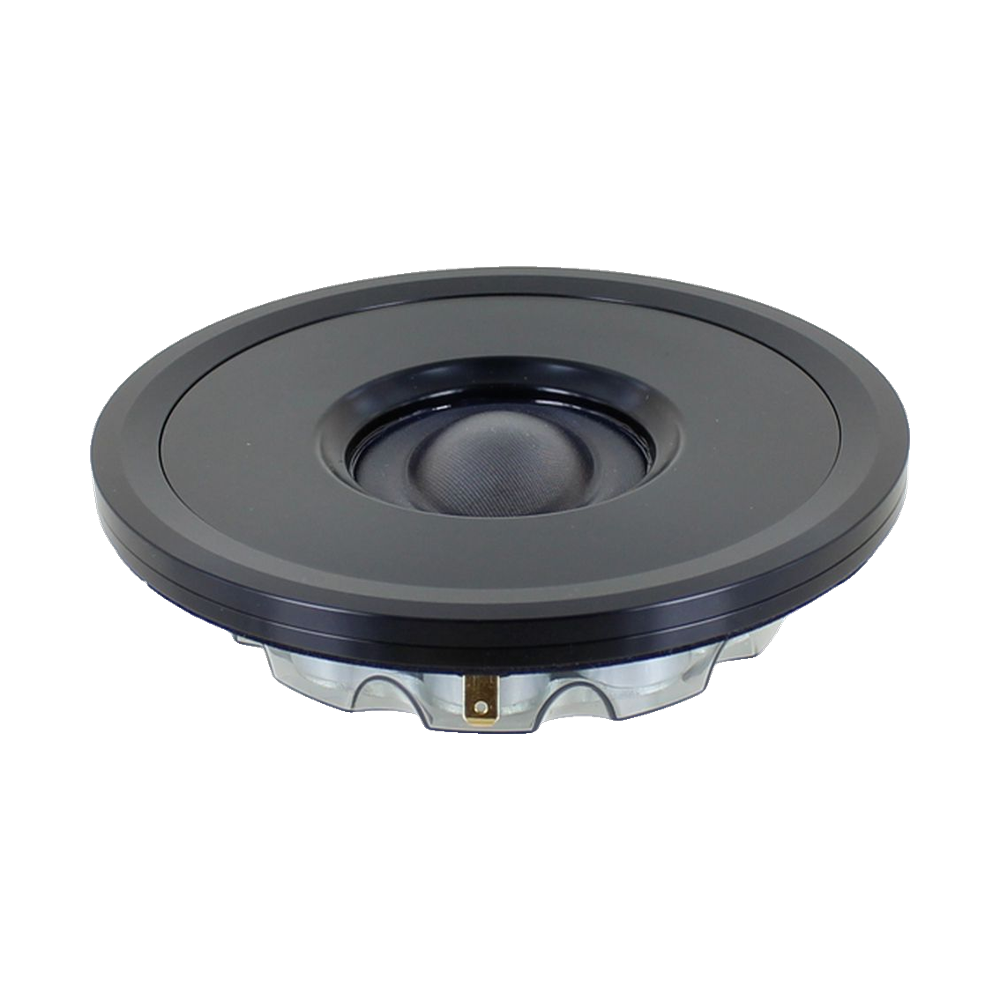

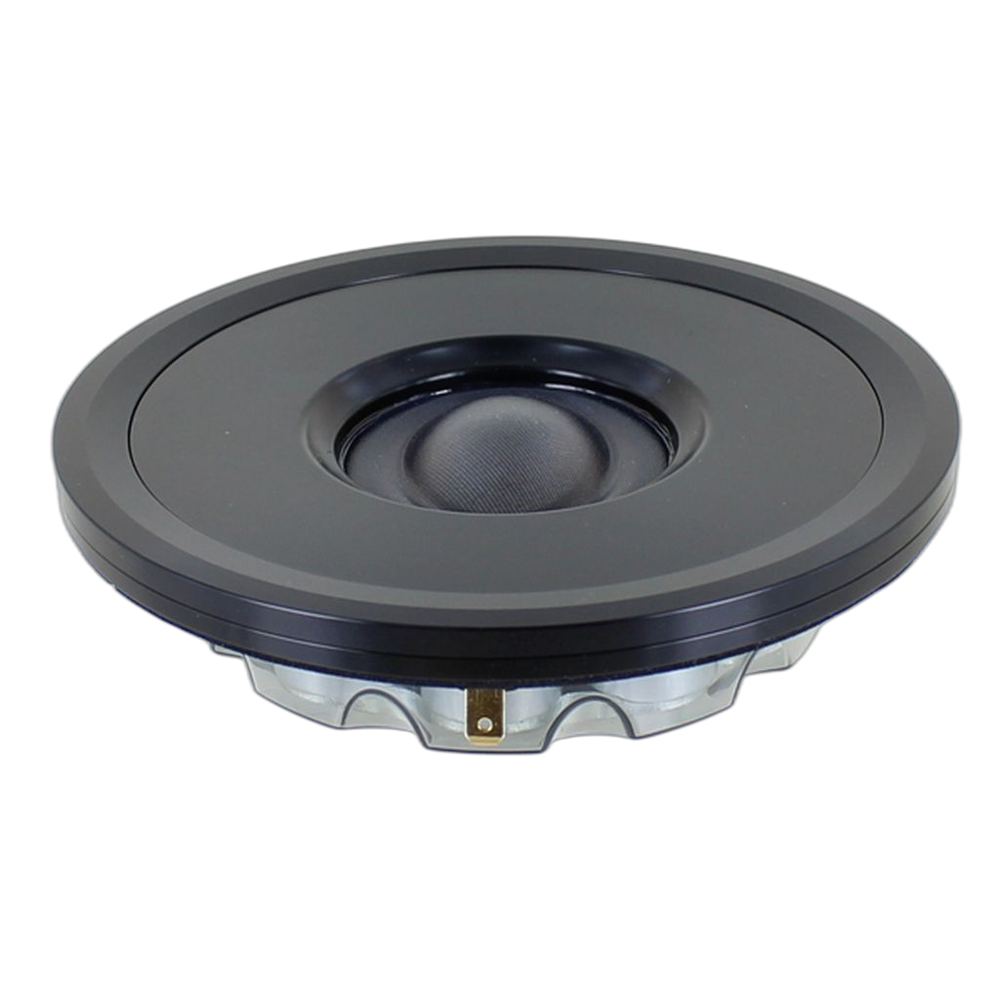

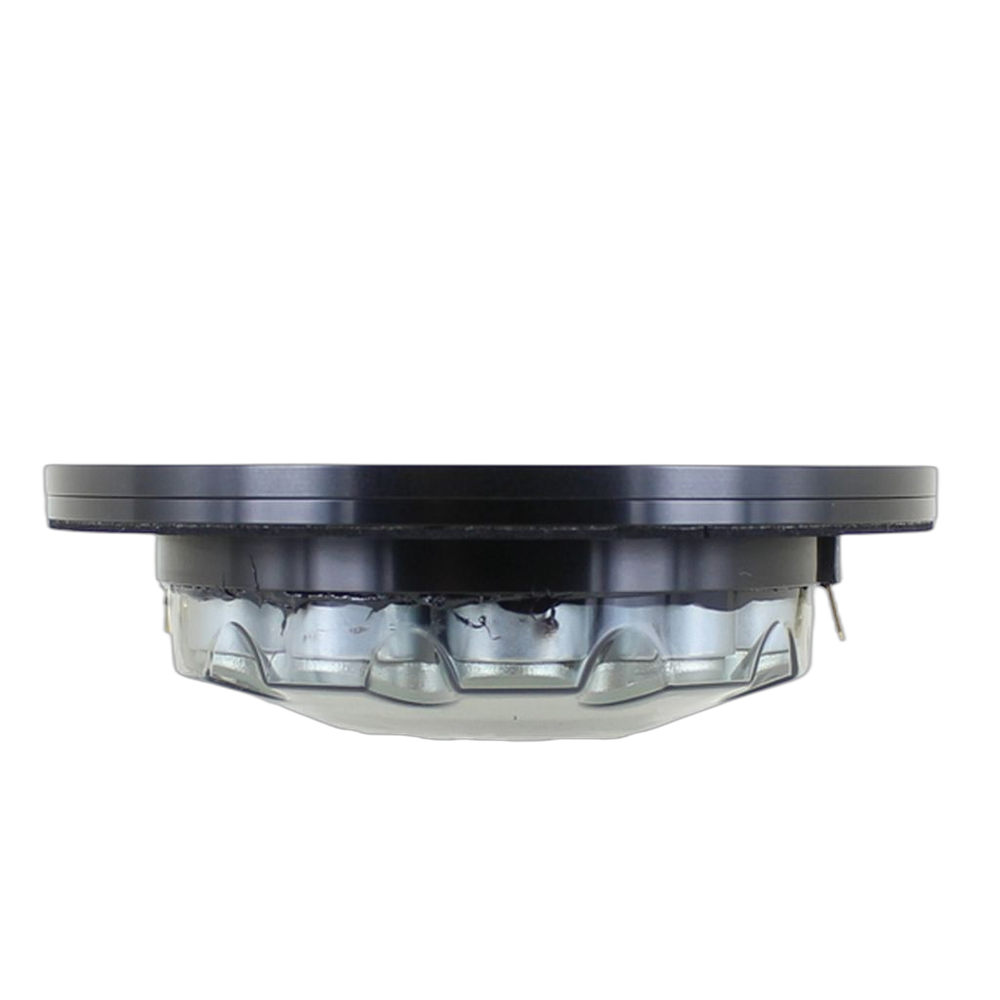

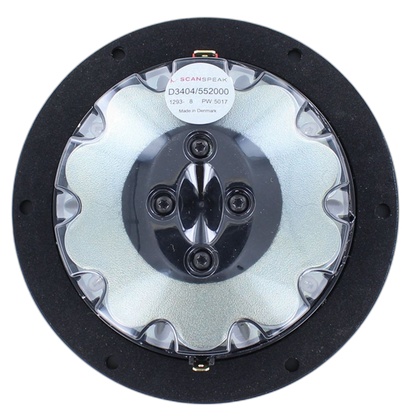

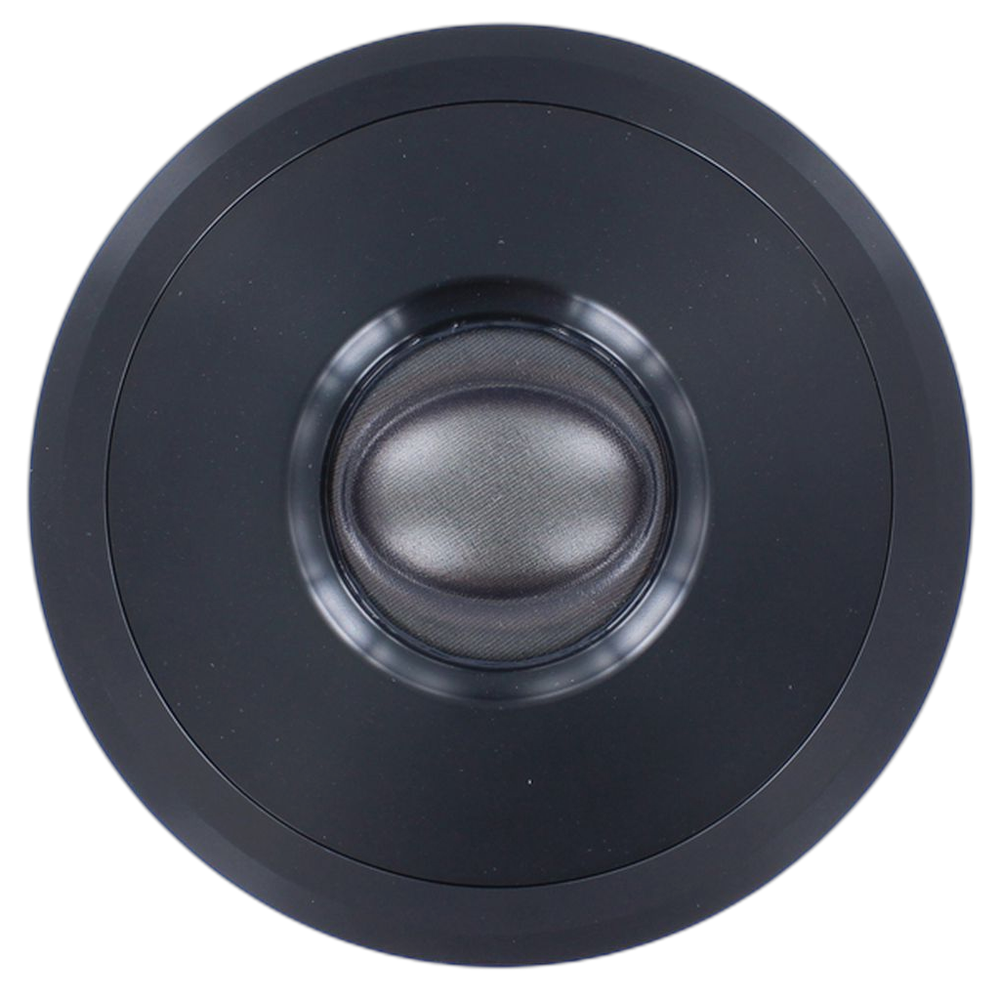

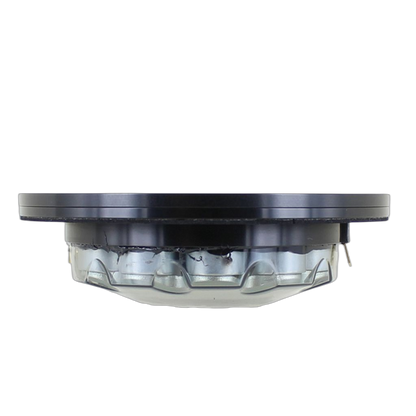

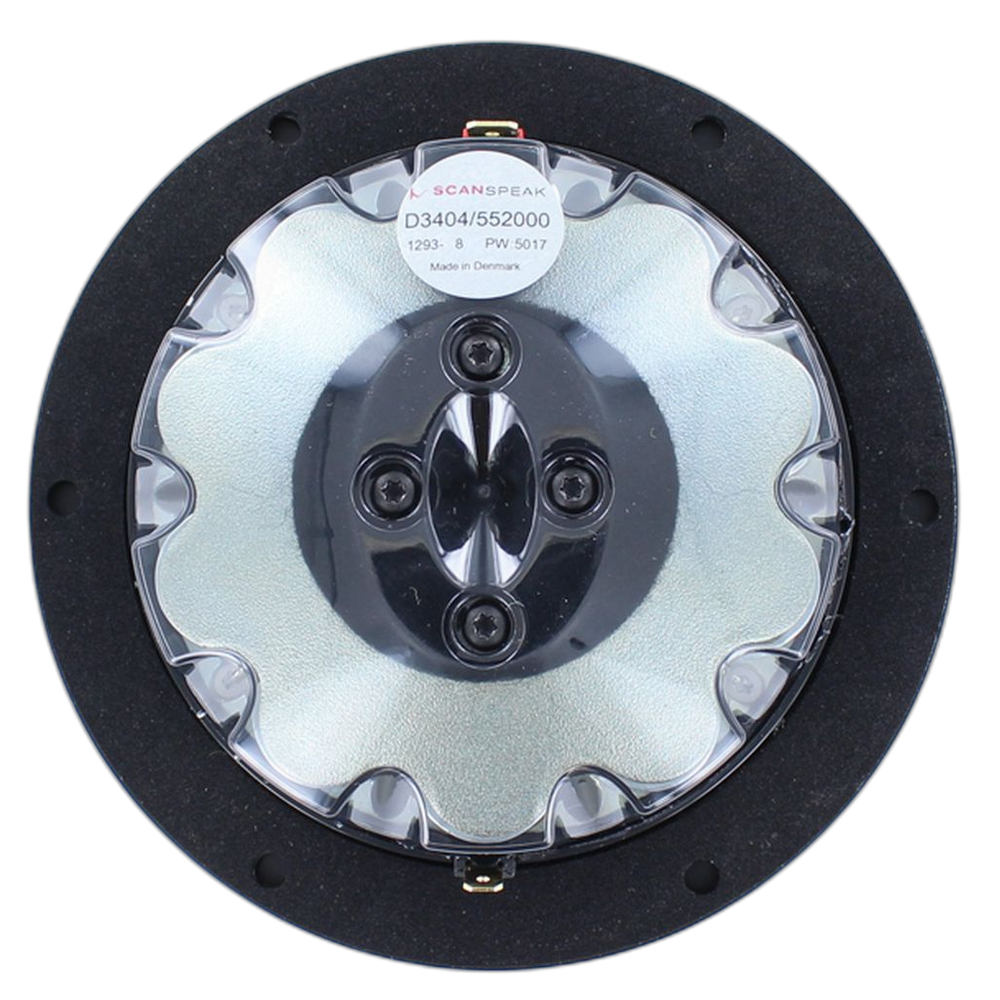

Scan-Speak - 1.3" Ellipticor Dome Tweeter - D3404/552000
Scan-Speak - 1.3" Ellipticor Dome Tweeter - D3404/552000
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
~38 mm Dome Tweeter, 4 ohm, Neo, AirCirc
With the Ellipticor family a long tradition of circular motor structures and their inherent breakup behaviour has been broken since one of its key features is an elliptical voice coil and magnet gap. In combination with the powerful SD AirCirc magnet system the D3404 has high sensitivity, very low distortion, and has an extremely fast response to transients. Above all a TRUE TO LIFE sound which makes D3404/552000 one of the very best tweeters on the market!
Features
- Elliptic voice coil
- AirCirc optimised magnet system
- Low mechanical losses
- Exceptionally low distortion
- High sensitivity (SPL)
- Flexible optics with replaceable decor ring

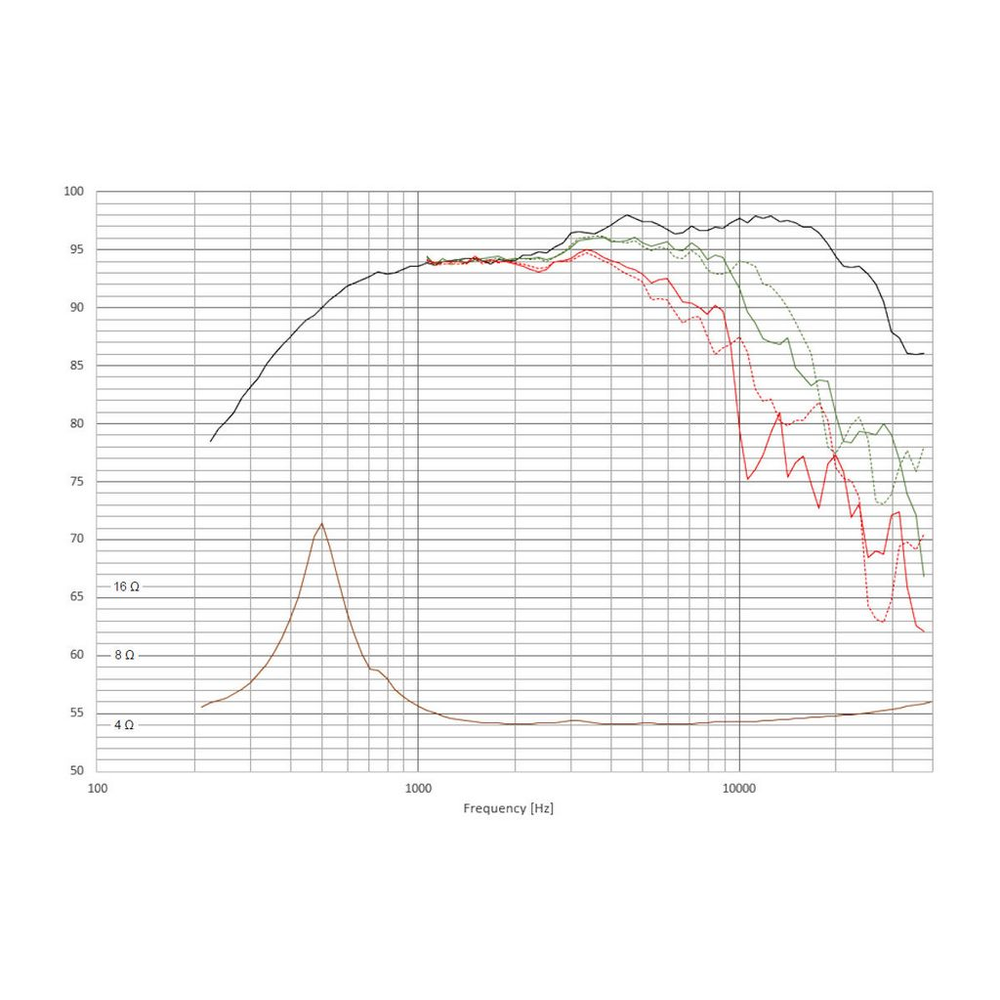

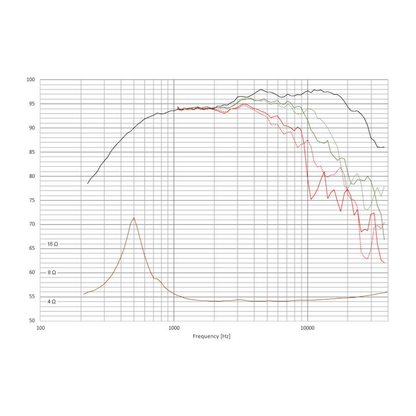

Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 1.3" |
| Nominal impedance | 4Ω |
| Series | Ellipticor |
| Power handling (RMS) | 180 W |
| Power handling (program) | 300 W |
| Sensitivity | 97 dB |
| Frequency range | 2,500 – 20,000 Hz |
| Recommended crossover | 2. order HP Butterworth, 2.5 kHz |
Thiele/Small parameters
| Resonant frequency (Fs) | 475 Hz |
|---|---|
| DC resistance (Re) | 3 Ω |
| Minimum impedance (Zmin) | 4 Ω |
| Voice coil inductance (Le) | 0.01 mH |
| Mechanical Q (Qms) | 5.25 |
| Electrical Q (Qes) | 0.63 |
| Total Q (Qts) | 0.57 |
| Equivalent volume (Vas) | 0.04 L |
| Compliance (Cms) | 0.2 mm/N |
| Moving mass (Mms) | 0.57 g |
| Mechanical resistance (Rms) | 0.32 kg/s |
| Force factor (Bl) | 2.8 T·m |
| Effective piston area (Sd) | 11.4 cm² |
| Linear excursion (Xmax, one-way) | 0.25 mm |
| Mechanical excursion (Xmech) | 2 mm |
| Displacement volume (Vd) | 0.285 cm³ |
| Efficiency bandwidth product (EBP) | 754 |
| Effective piston diameter (D) | ~38 mm |
| Impedance at resonance (Zo) | 30 Ω |
Motor
| Voice coil size | 28 / 39 mm |
|---|---|
| Voice coil height | 2.5 mm |
| Air gap height | 3 mm |
| Voice coil layers | 2 |

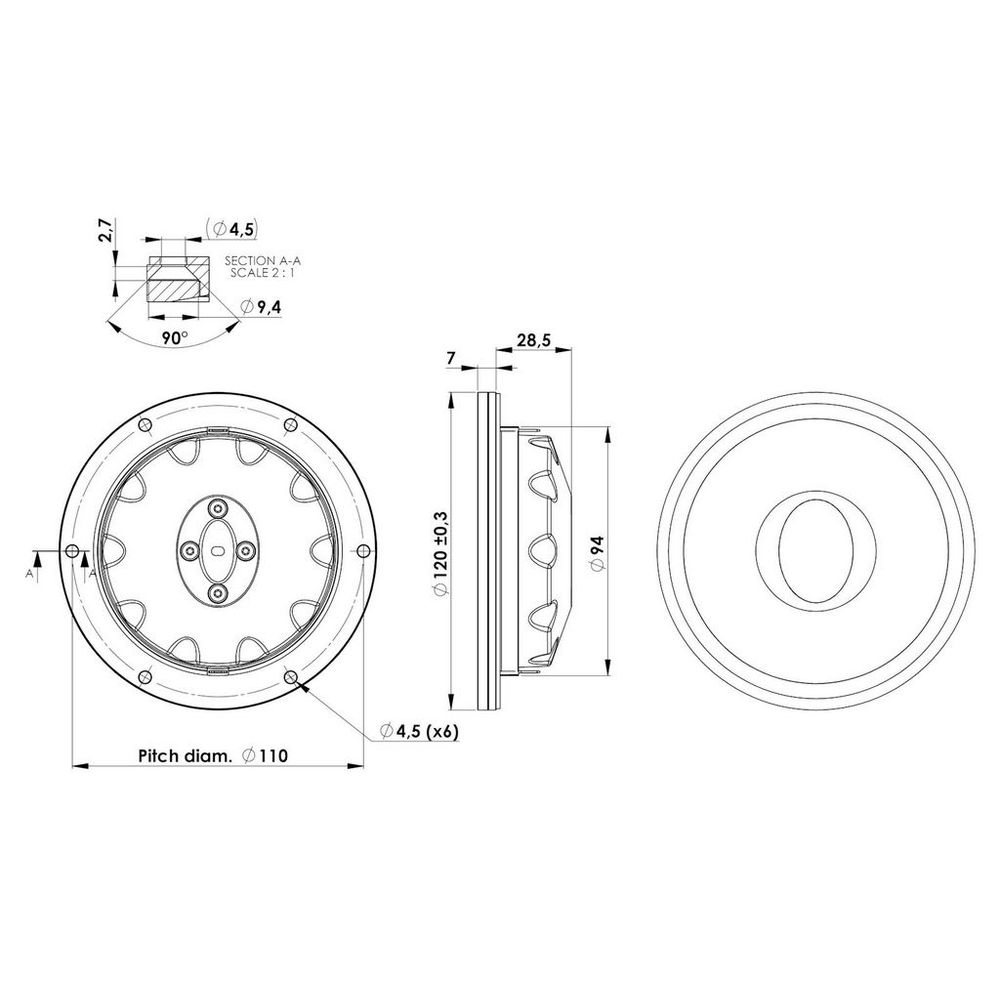

Mounting
| Overall diameter | 120 mm |
|---|---|
| Mounting depth | 35.5 mm |
| Volume displaced by driver | 0.13 L |
| Weight | 0.75 kg |
Materials
| Magnet | Neodymium |
|---|
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
Where do these figures come from? See the source of each one
