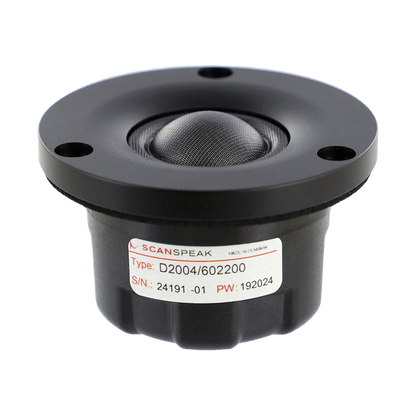

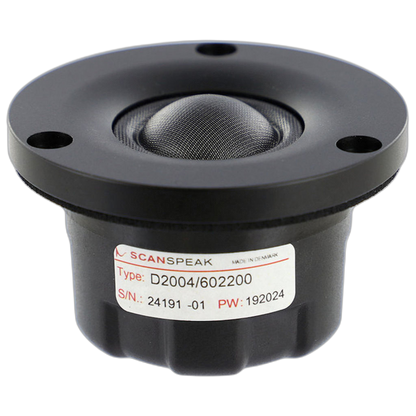

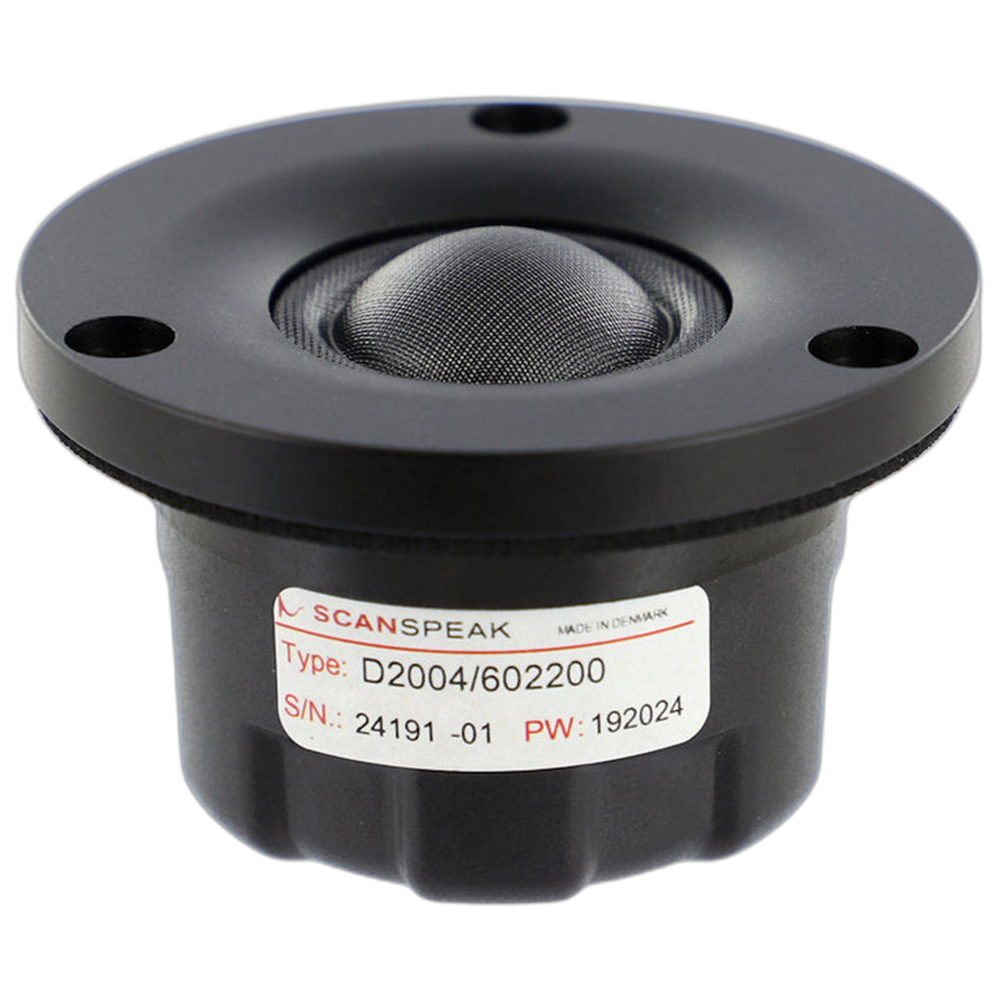

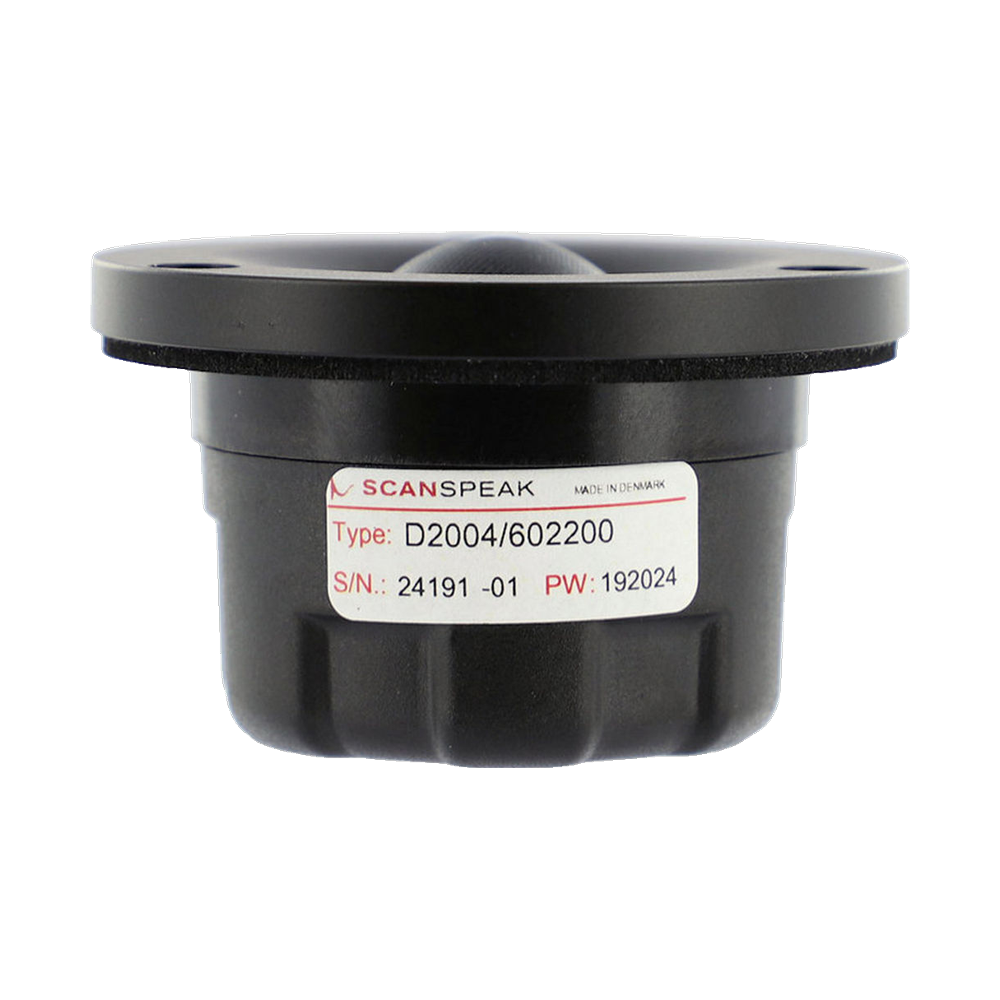

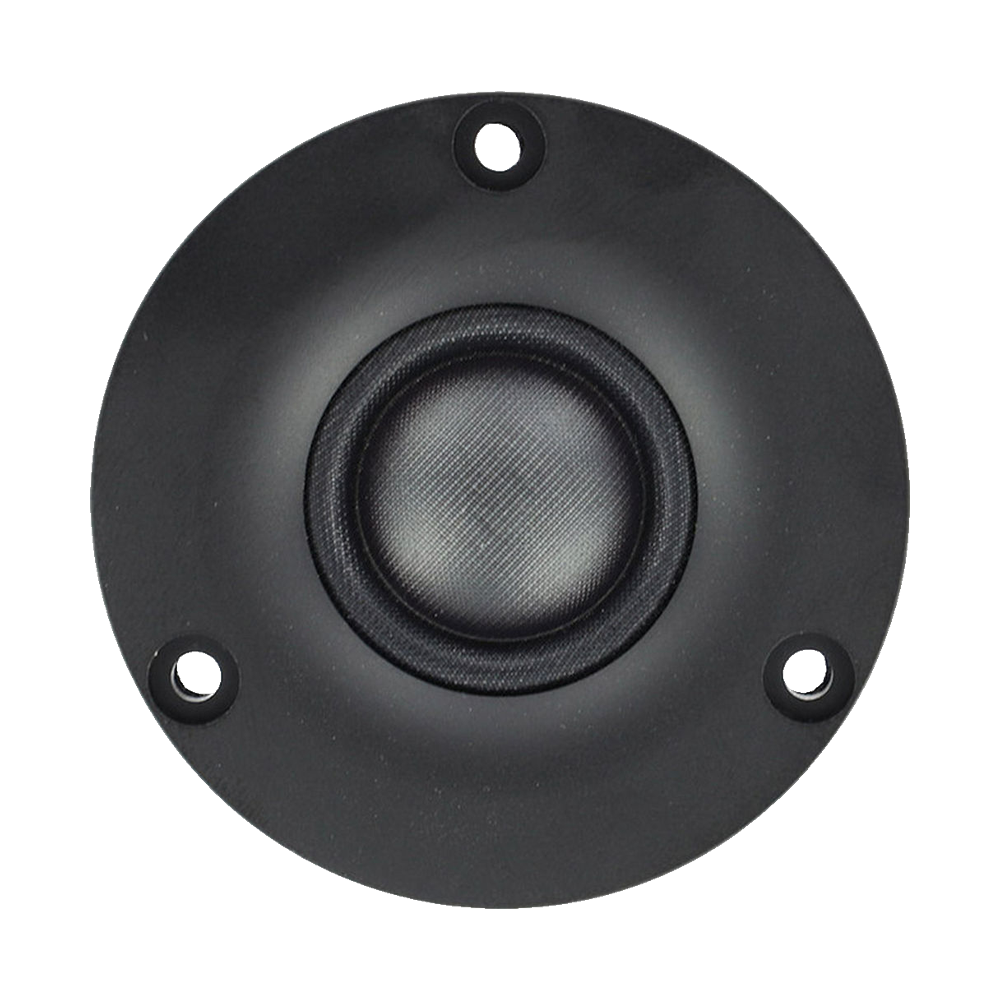

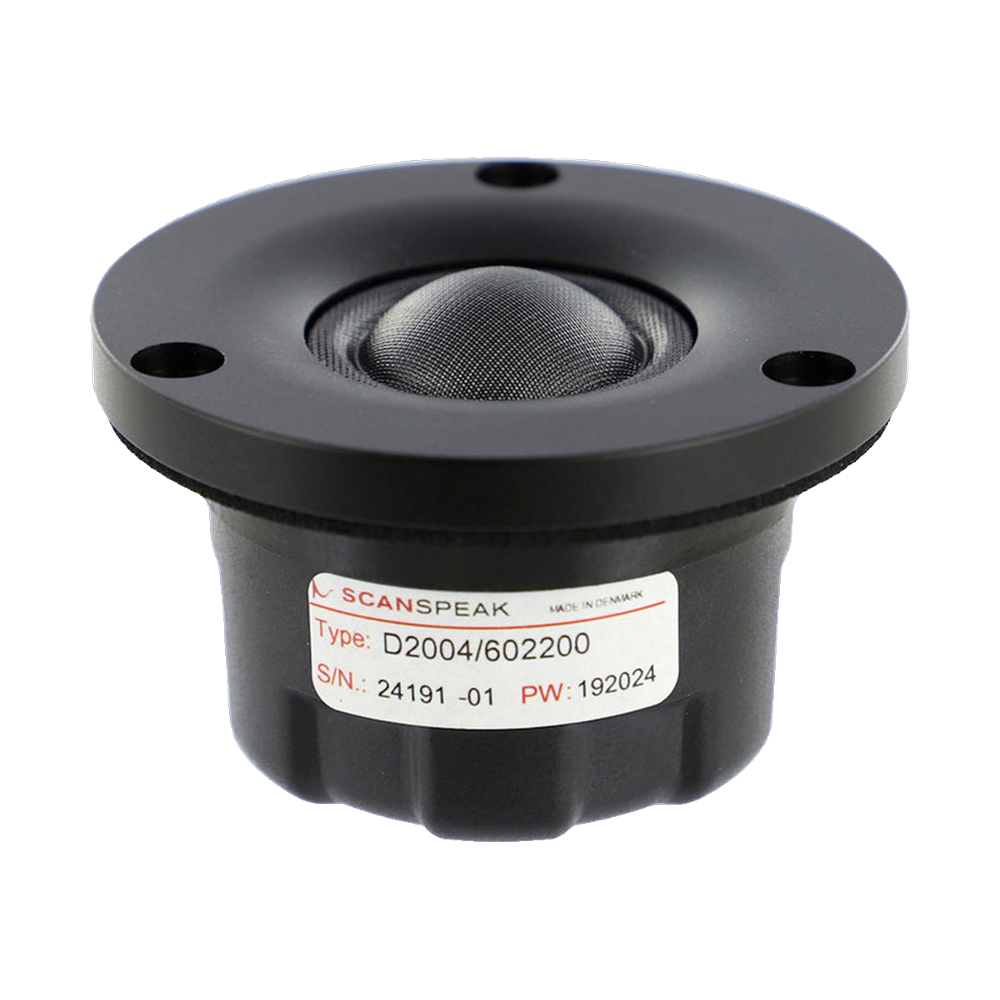

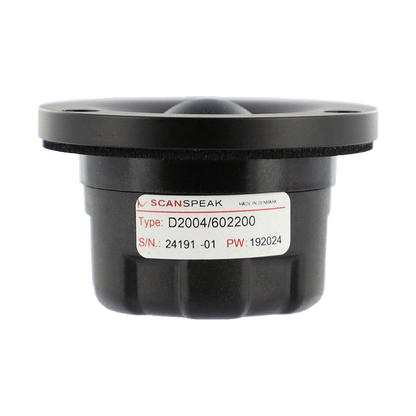

Scan-Speak - ¾" Illuminator Dome Tweeter - D2004/602200
Scan-Speak - ¾" Illuminator Dome Tweeter - D2004/602200
Regular price
$204.95
Regular price
Sale price
$204.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Backordered Product. Contact us for lead time
Couldn't load pickup availability
Description
The compact size is one of the key elements of these Illuminator tweeters, which provides a high degree of flexibility within design options. The small size is employed without compromising sound quality where these compact tweeters are fully comparable to the renowned full size Illuminator and Revelator tweeters, no matter if the music is played at high or low listening levels.

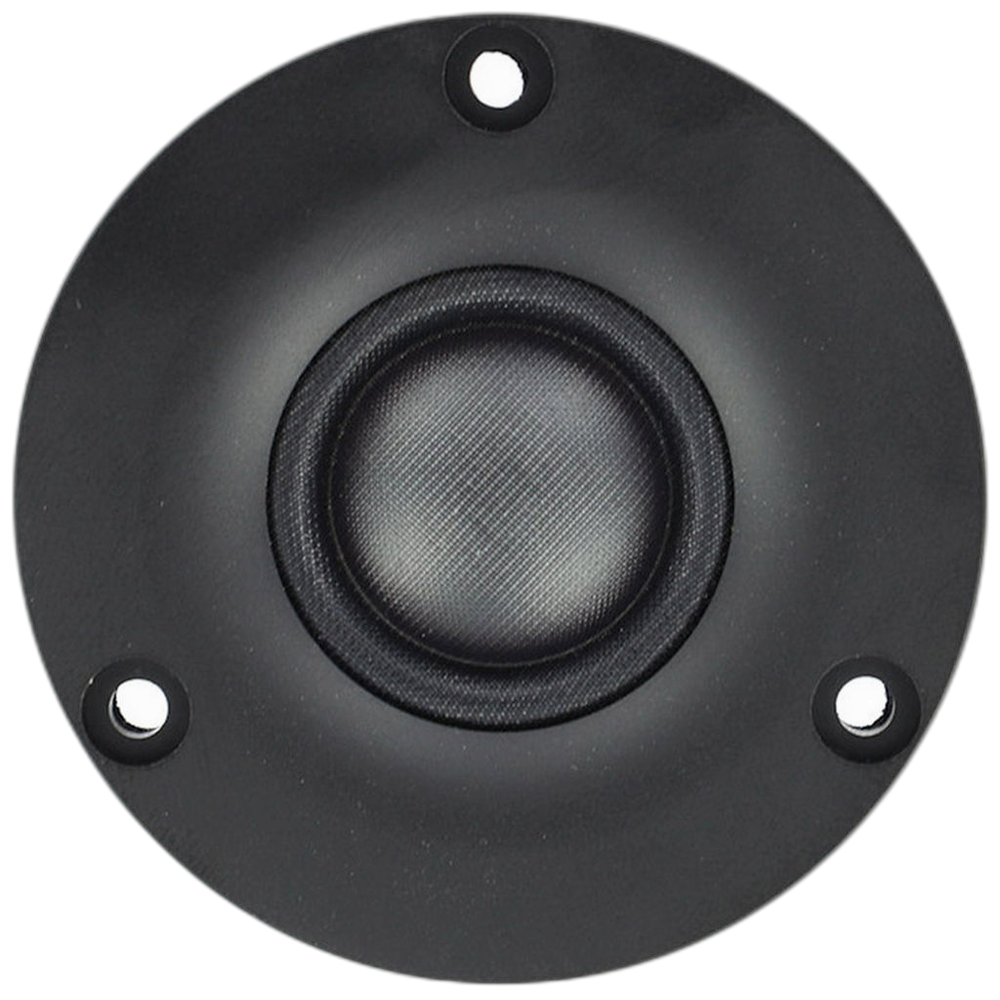

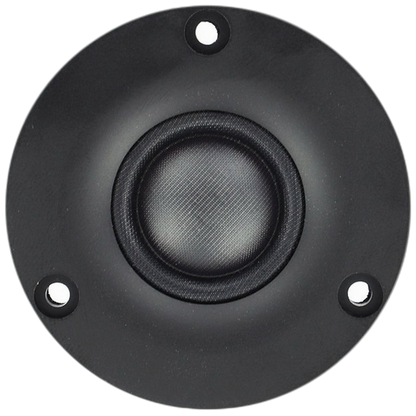

Features
- 3/4" Textile Dome Diaphragm
- Large Roll Surround f. Wide Dispersion
- Patented Symmetrical Drive (SD-2) motor
- Black Anodised machined Alu Faceplate
- Gold Plated Terminals

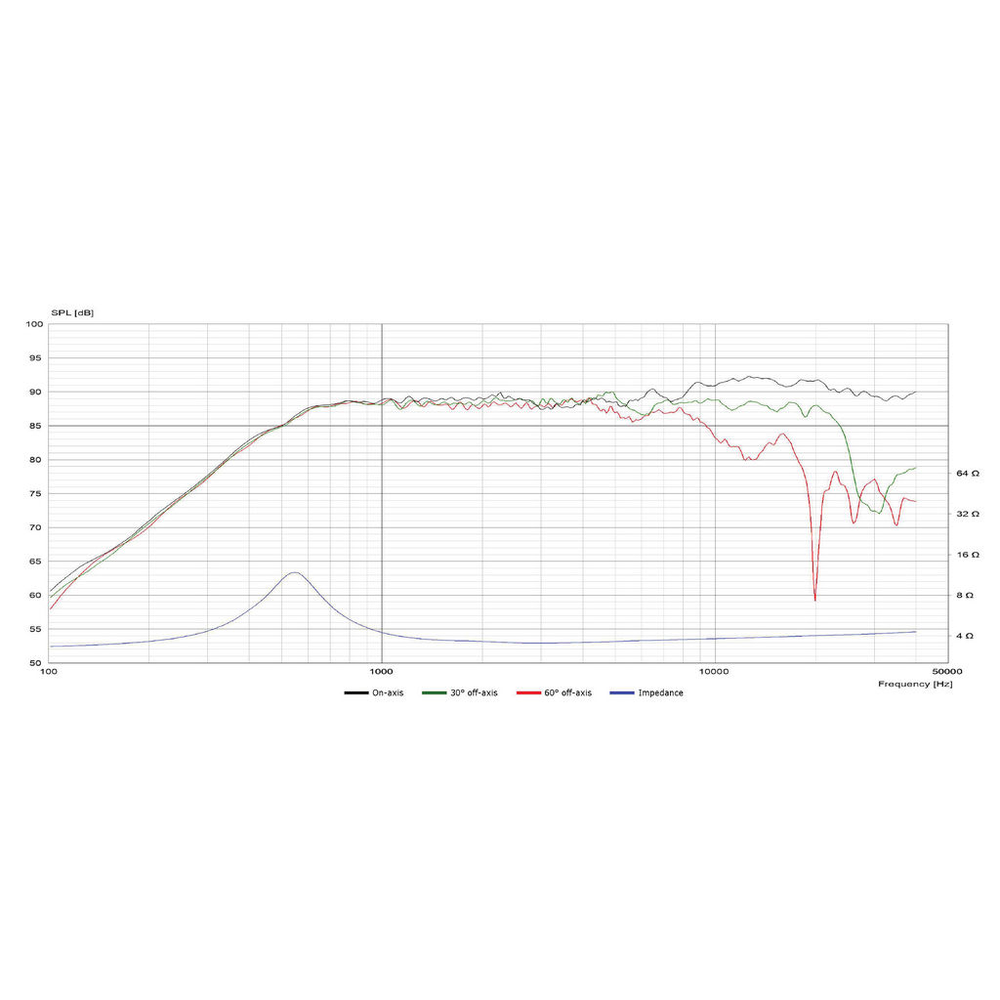

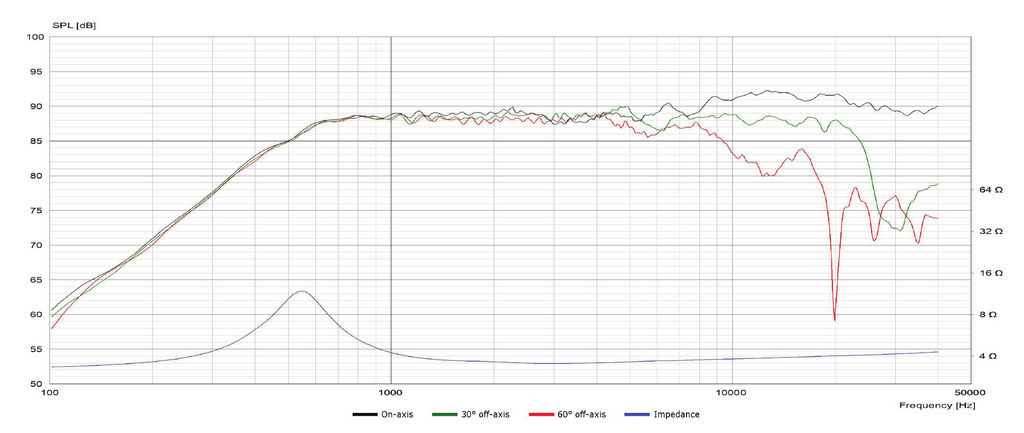

Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal size | 0.75" |
| Nominal impedance | 4Ω |
| Series | Illuminator |
| Power handling (RMS) | 50 W |
| Power handling (program) | 120 W |
| Sensitivity | 89 dB |
| Frequency range | 3,000 – 40,000 Hz |
| Recommended crossover | 2. order HP Butterworth, 3kHz |
Thiele/Small parameters
| Resonant frequency (Fs) | 550 Hz |
|---|---|
| DC resistance (Re) | 2.8 Ω |
| Minimum impedance (Zmin) | 3.5 Ω |
| Voice coil inductance (Le) | 0.02 mH |
| Mechanical Q (Qms) | 3.8 |
| Electrical Q (Qes) | 1.26 |
| Total Q (Qts) | 0.95 |
| Equivalent volume (Vas) | 0.01 L |
| Compliance (Cms) | 0.38 mm/N |
| Moving mass (Mms) | 0.22 g |
| Mechanical resistance (Rms) | 0.2 kg/s |
| Force factor (Bl) | 1.3 T·m |
| Effective piston area (Sd) | 4.5 cm² |
| Linear excursion (Xmax, one-way) | 0.4 mm |
| Mechanical excursion (Xmech) | 1.6 mm |
| Displacement volume (Vd) | 0.18 cm³ |
| Efficiency bandwidth product (EBP) | 436.5 |
| Effective piston diameter (D) | 24 mm |
| Impedance at resonance (Zo) | 11.8 Ω |
Motor
| Voice coil height | 1.8 mm |
|---|---|
| Air gap height | 2.5 mm |
| Voice coil layers | 2 |

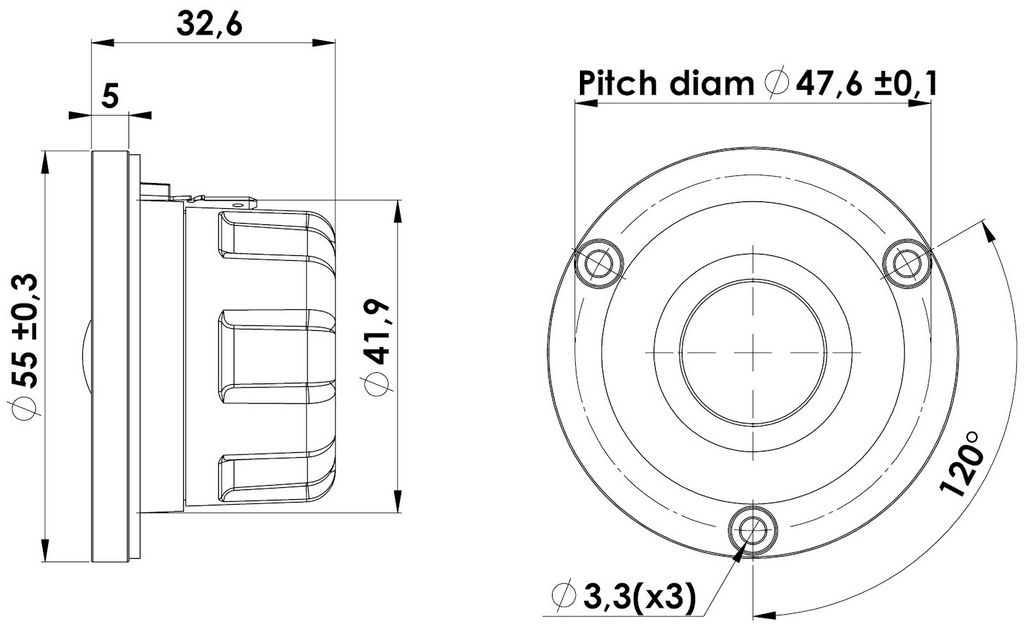

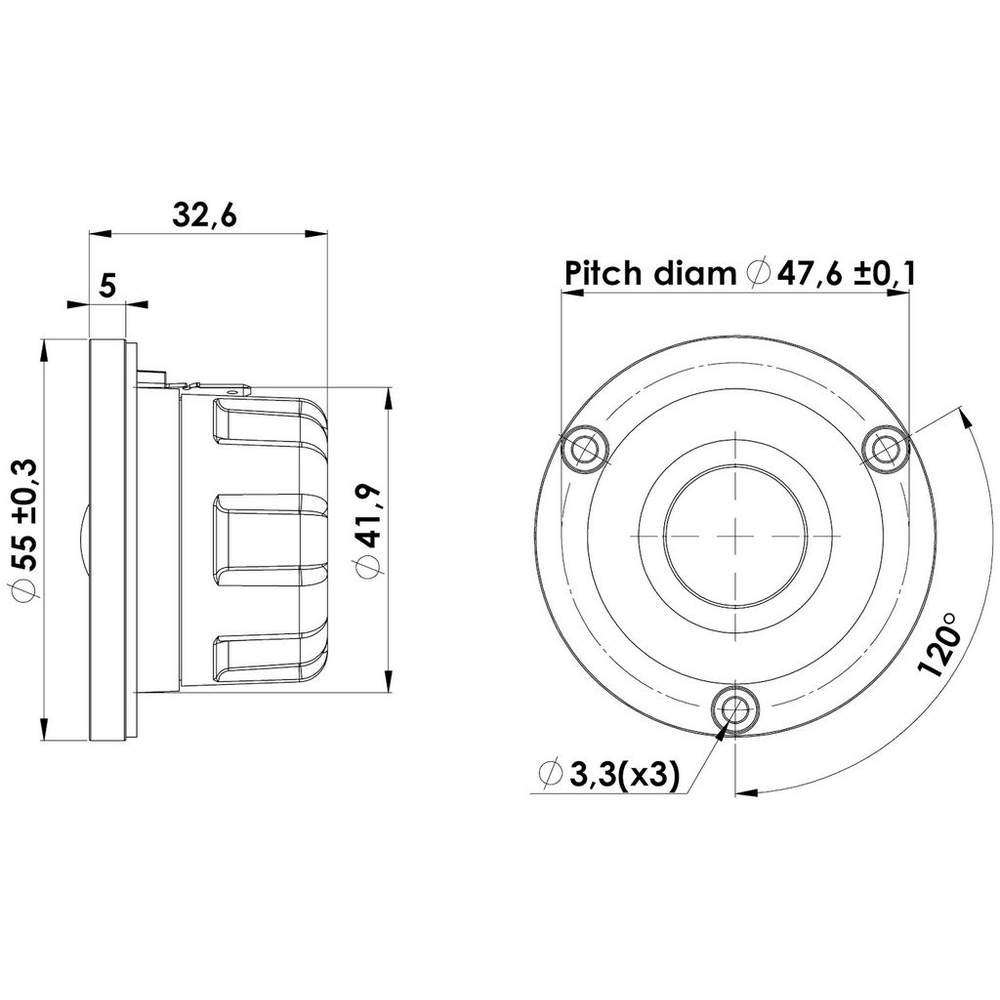

Mounting
| Overall diameter | 55 mm |
|---|---|
| Mounting depth | 32.6 mm |
| Flange thickness | 5 mm |
| Bolt circle diameter | 47.6 mm |
| Mounting holes | 3 |
| Mounting hole diameter | 3.3 mm |
| Volume displaced by driver | 0.04 L |
| Voice coil diameter | 19 mm |
| Weight | 0.1 kg |
Materials
| Cone | Textile |
|---|---|
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
- Power handling (RMS) is Scan-Speak's 100-hour RMS noise test (IEC 18.4); program power is its long-term maximum power (IEC 18.2).
