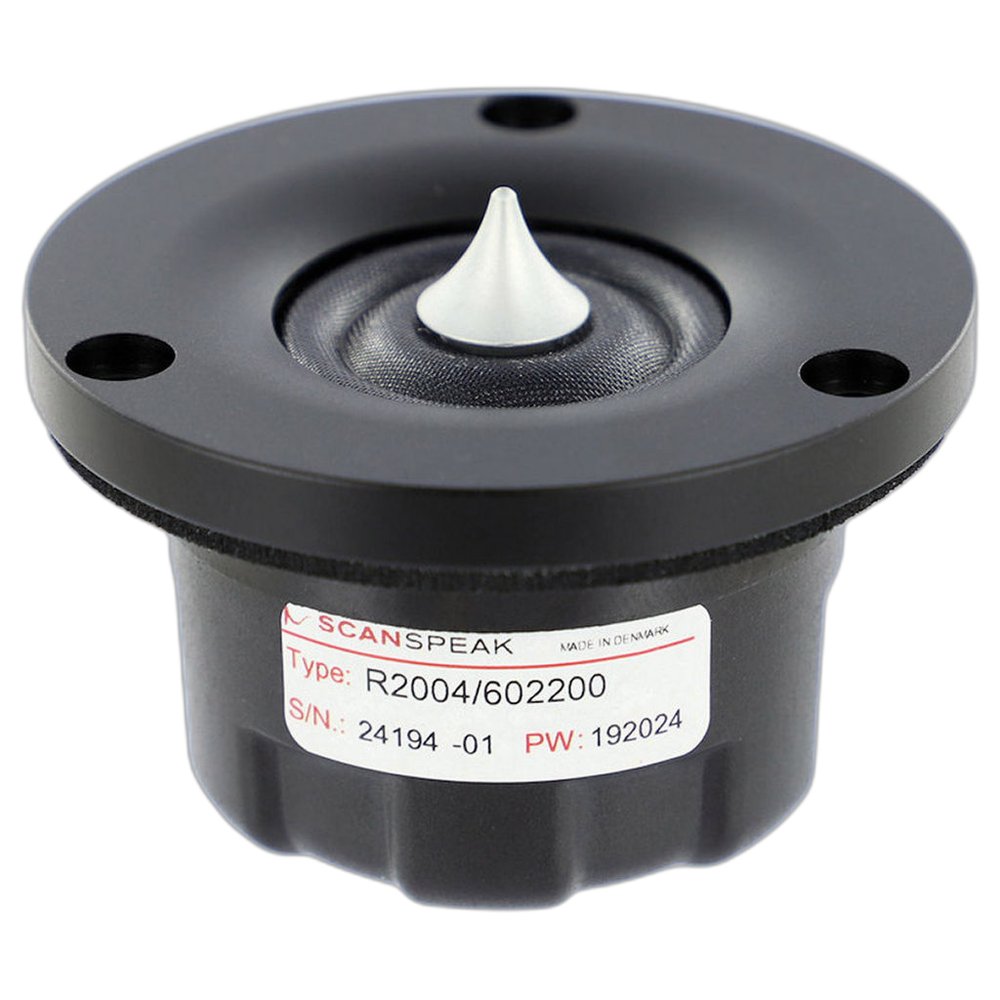

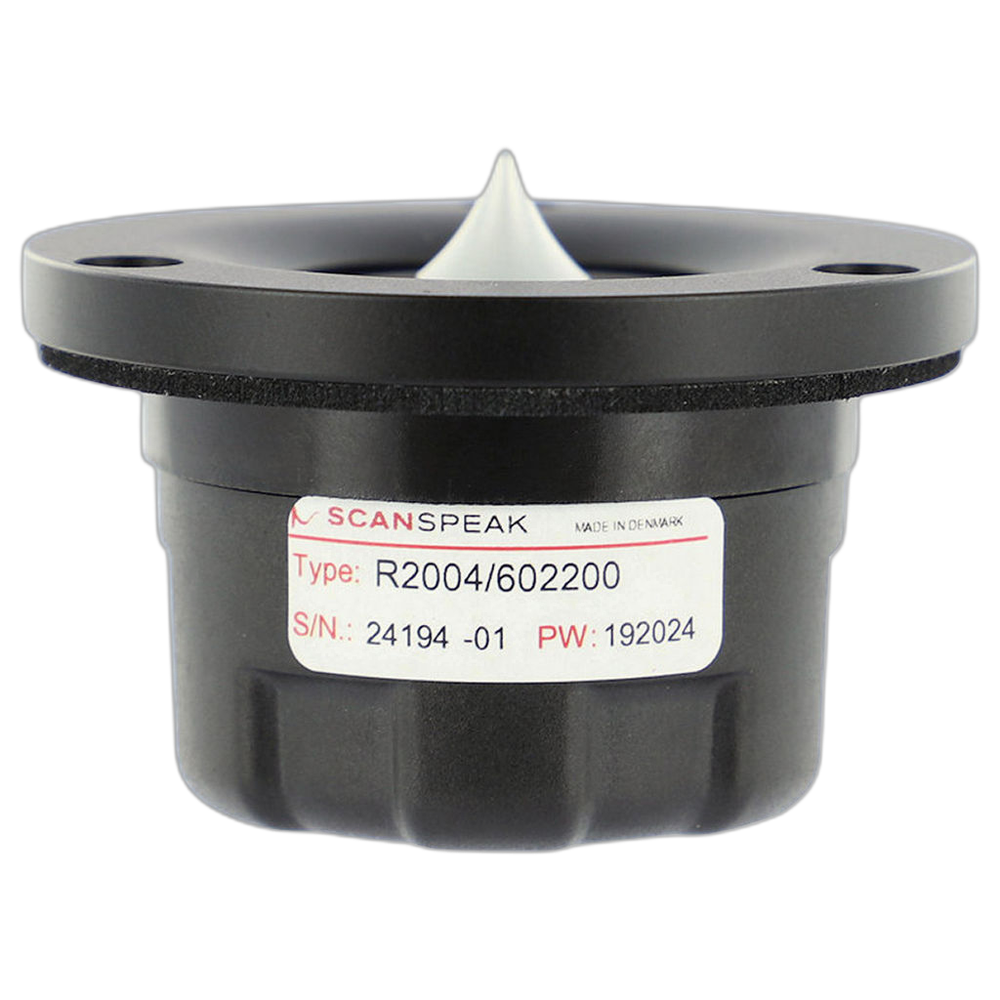

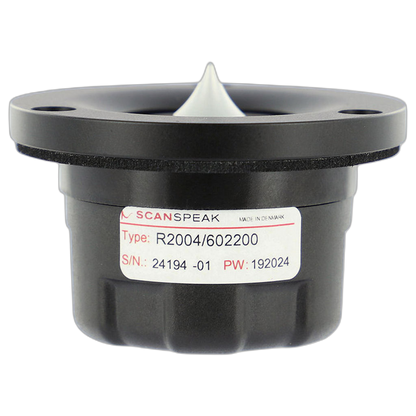

Scan-Speak - ¾" Illuminator Ring Radiator Tweeter - R2004/602200
Scan-Speak - ¾" Illuminator Ring Radiator Tweeter - R2004/602200
Regular price
$259.95 AUD
Regular price
Sale price
$259.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The ¾" ring dome tweeter offers design flexibility without compromising sound quality. These compact tweeters are fully comparable to the renowned full-size Illuminator and Revelator tweeters, delivering exceptional audio performance whether the music is played at high or low listening levels.
Features

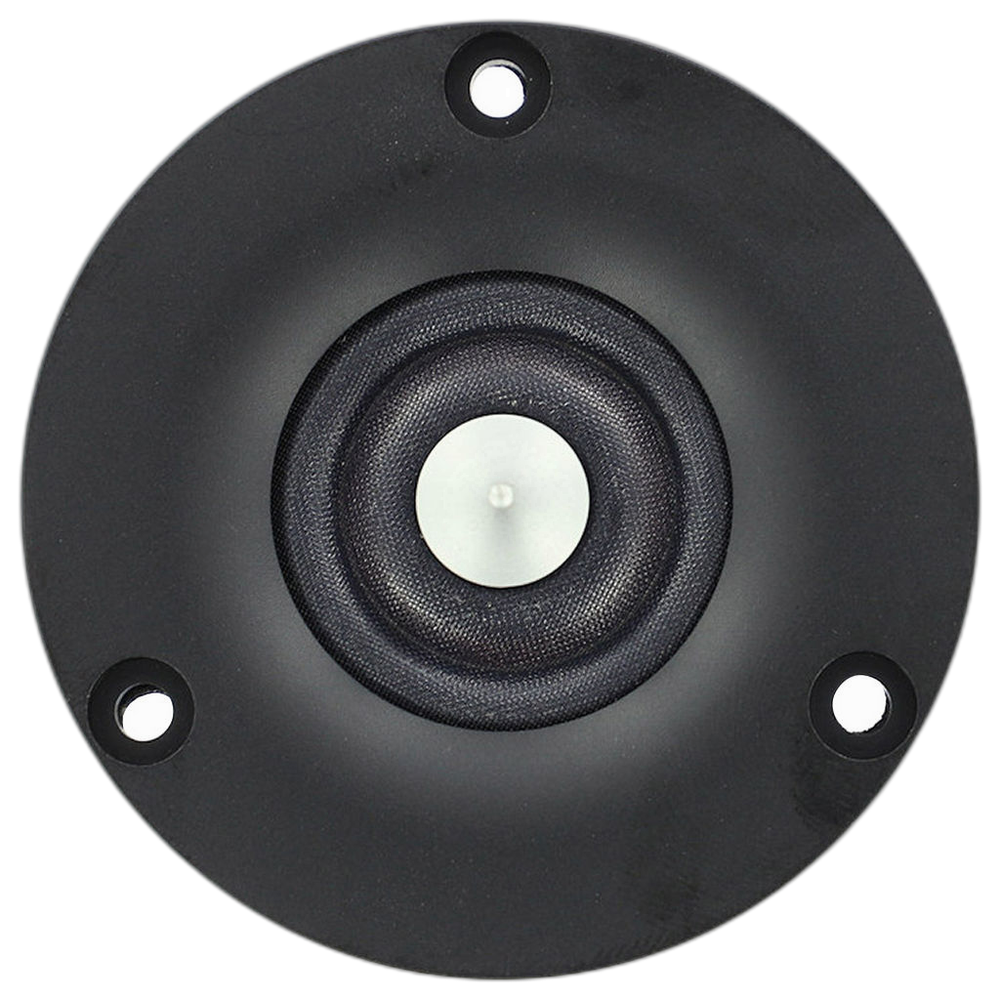

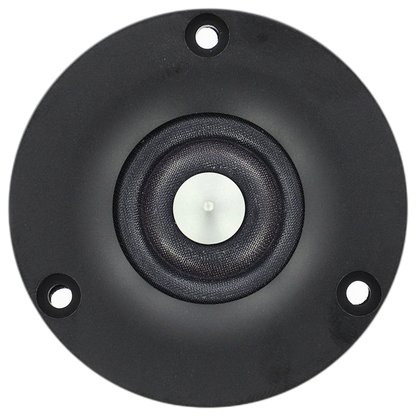

- 3/4" Ring dome diaphragm.
- Patented phase plug design.
- Patented symmetrical drive (SD-2) motor.
- Black anodised machined aluminium face plate.
- Gold plated terminals.
Specifications
| Cms | 0.29mm/N |
|---|---|
| Coil | 19mmØ |
| Fs | 625Hz |
| Impedance | 4Ω Re 2.8Ω |
| Le | 0.02mH |
| Manufacturer | Scan-speak |
| Mms | 0.22g |
| Power | 50Wrms |
| Qes | 1.43 |
| Qms | 2.88 |
| Qts | 0.96 |
| Re | 2.8Ω |
| Rms | 0.3kg/s |
| Sd | 3.8cm² |
| Sens. | 87.5dB |
| Size | 3/4' |
| Type | Tweeter |
| Vas | 0.01L |

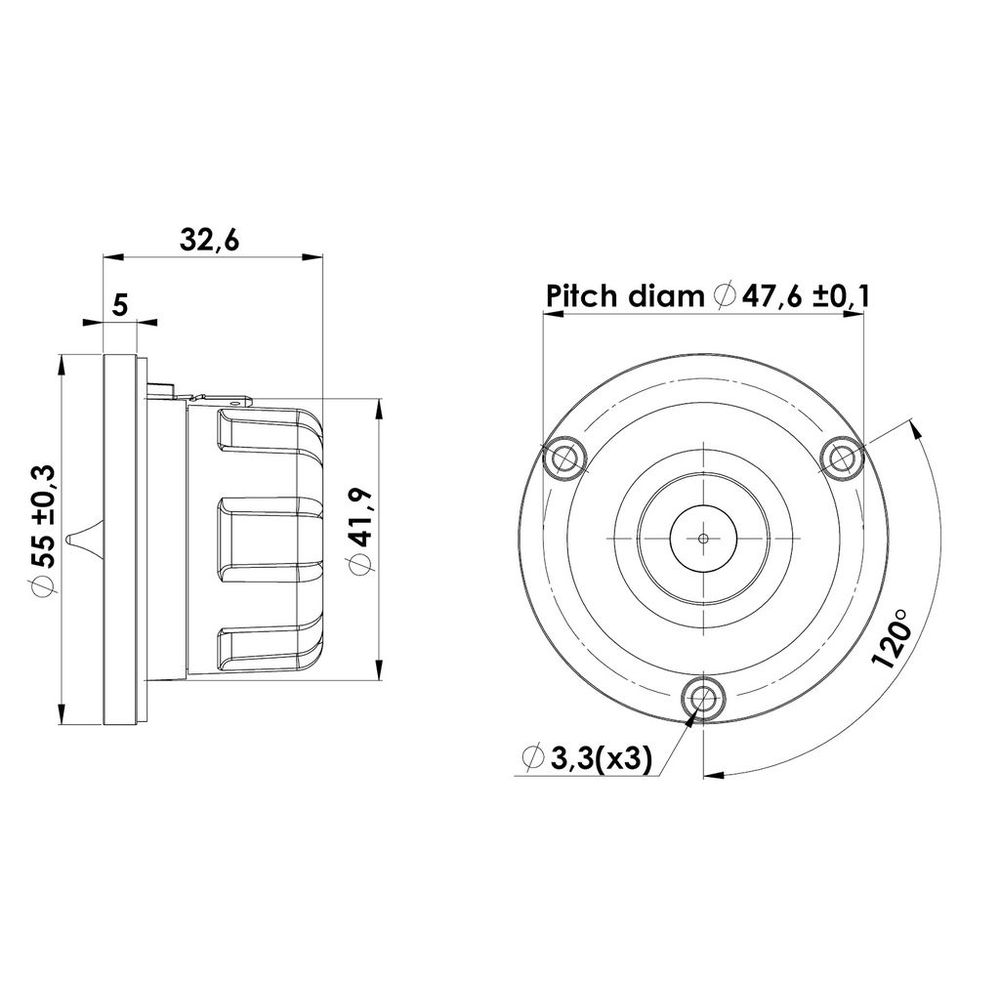

| Width | 55mm |
| Zn | 4Ω |
